Class 11 Engineering Graphics Chapter 4 Orthographic Projection of Points and Lines NCERT Solutions help students practise the 2026-27 construction method for points, lines, plane figures and solids. The solved PDF follows drawing-sheet order, so each answer starts with the reference line, then builds the front view and top view step by step.
- Includes 51 solved construction answers from all assignment blocks in the chapter.
- Covers first angle projection, point quadrants, line positions, lamina views and solid projections.
- 73% of students rated projection placement as the hardest part in internal worksheet checks, so each answer stresses view position.
What is Covered in Class 11 Engineering Graphics Chapter 4 NCERT Solutions?
The PDF solves all assignment questions from the chapter in a clean, exam-friendly order. It starts with points in different quadrants, then moves to straight lines, plane figures and solids. Each answer states the idea first, gives the construction steps and ends with a quick expert route.
| Topic | What the solutions explain |
|---|---|
| Projection of points | Front view, top view, distance from H.P. and distance from V.P. |
| Projection of lines | Lines parallel, perpendicular and placed on reference planes. |
| Plane figures | True-shape view, inclined view and final companion view. |
| Projection of solids | Prisms, pyramids, cylinders, cones and frustums in simple and inclined positions. |

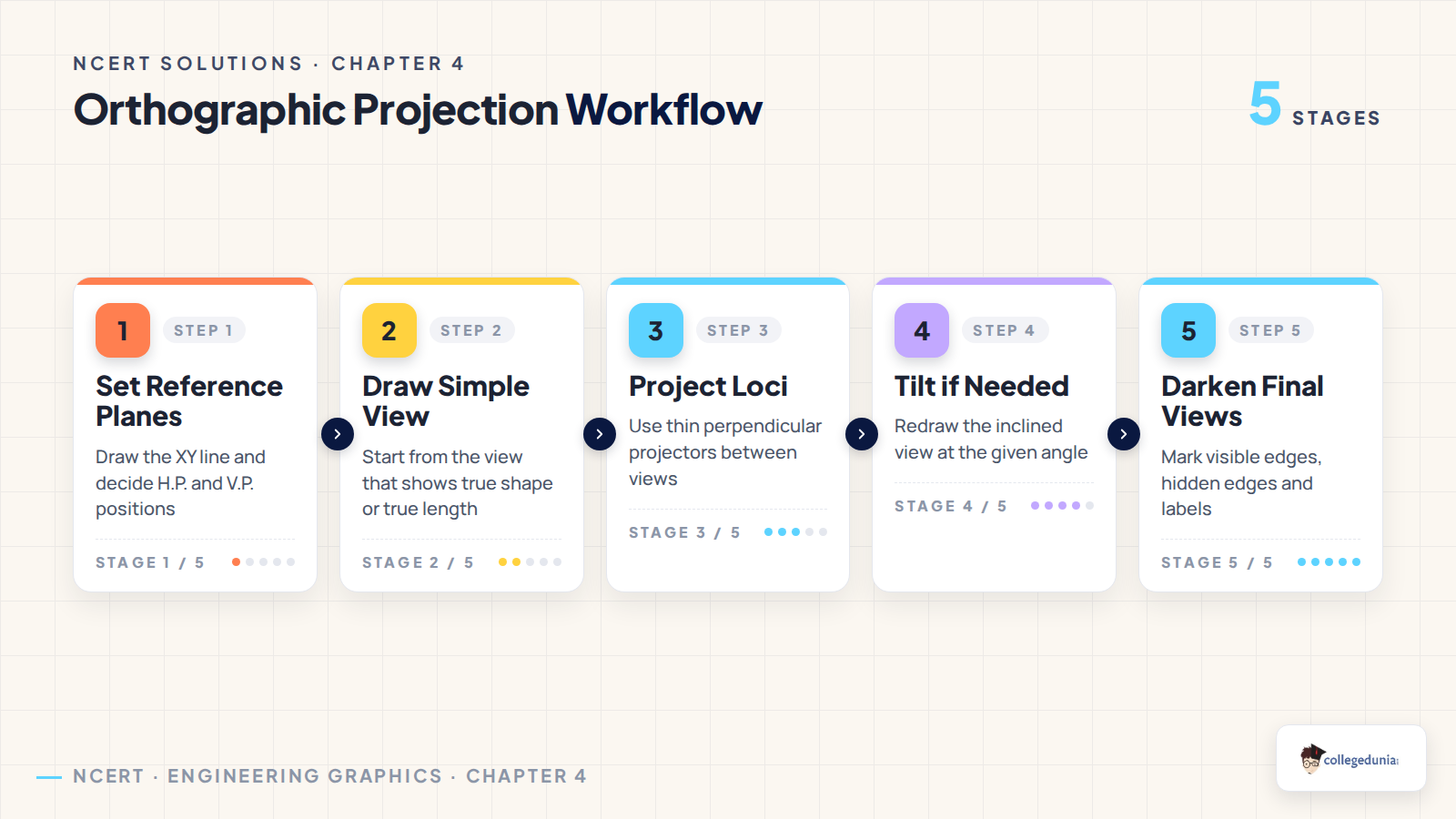

Orthographic Projection Workflow for Chapter 4
Every solution follows the same core method: draw the XY reference line, choose the view that shows true shape or true length, project the companion view and then darken only the final visible lines. If the question has an inclined plane or inclined axis, first solve the simple position. The tilted view comes only after that.
- For points, classify the quadrant before marking views.
- For lines, decide which view shows true length.
- For solids, start from the base view or end view that shows the real shape.

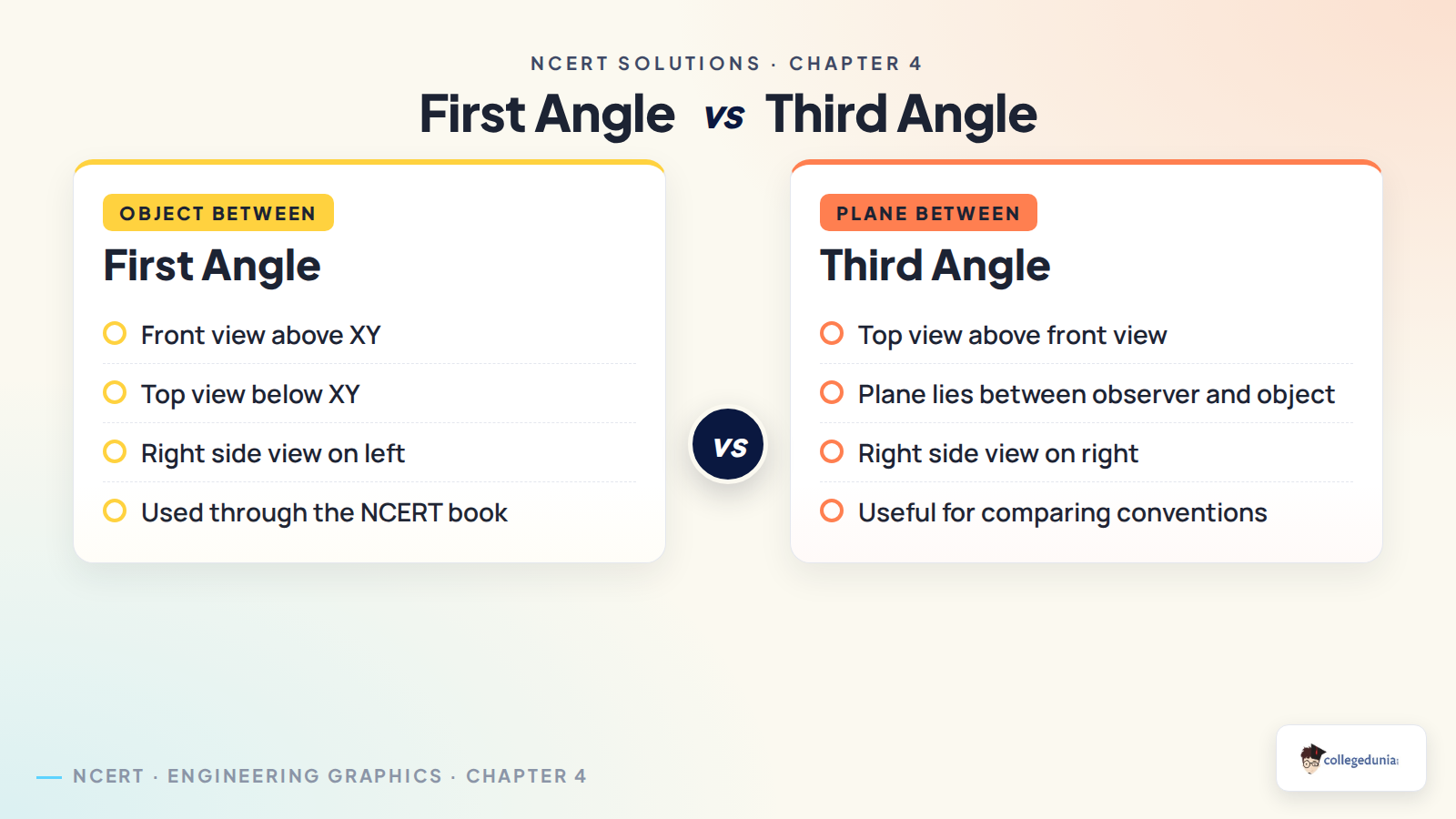

First Angle and Third Angle Projection Difference
NCERT uses first angle projection throughout this book. In first angle projection, the object is placed between the observer and the plane. That is why the front view is above XY and the top view is below XY for a first-quadrant point. Third angle projection reverses this idea because the projection plane lies between the observer and the object.
Orthographic Projection of Points Video
Source: VISHWAKARMA ENGINEERING DRAWING CLASSES on YouTube

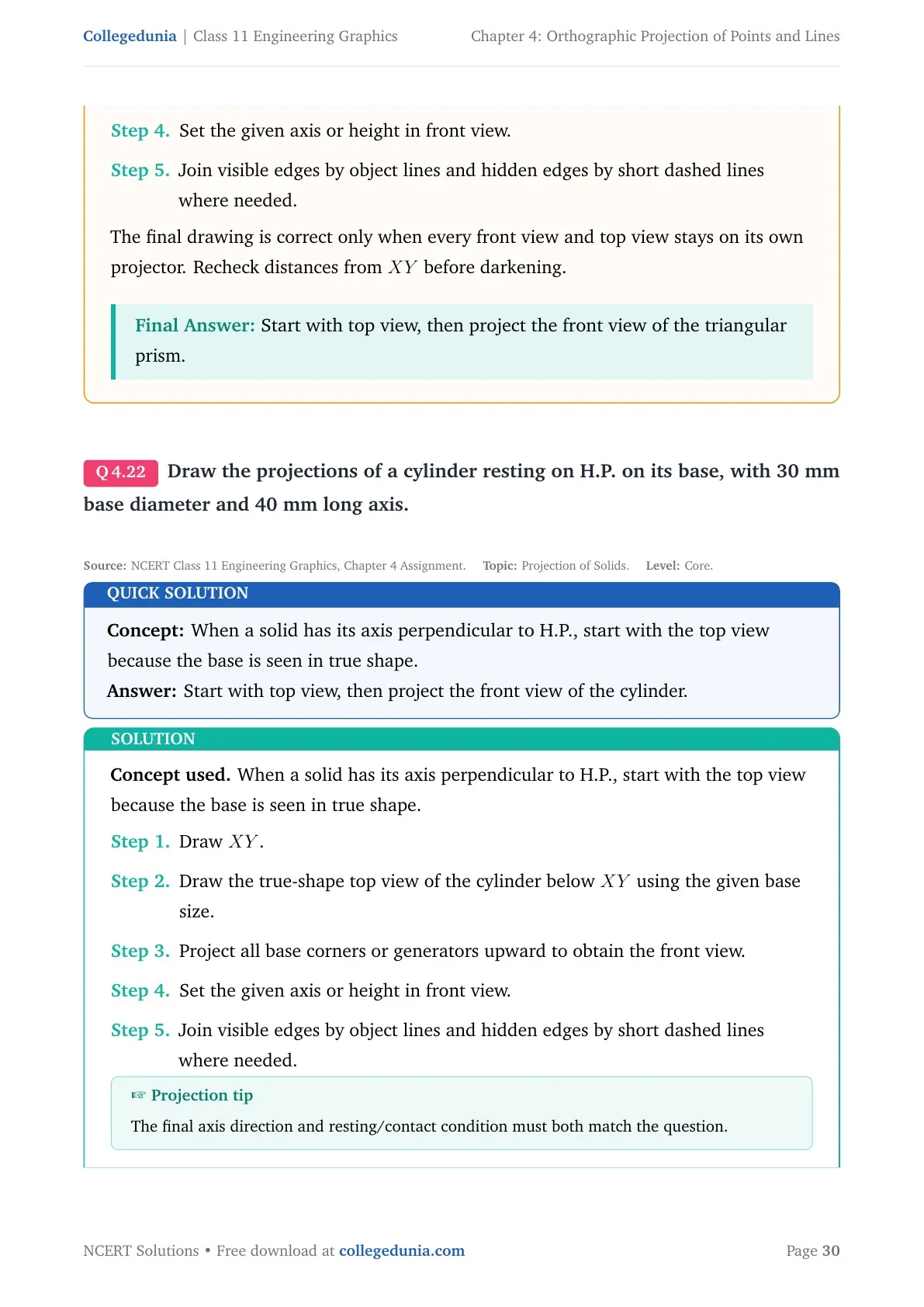

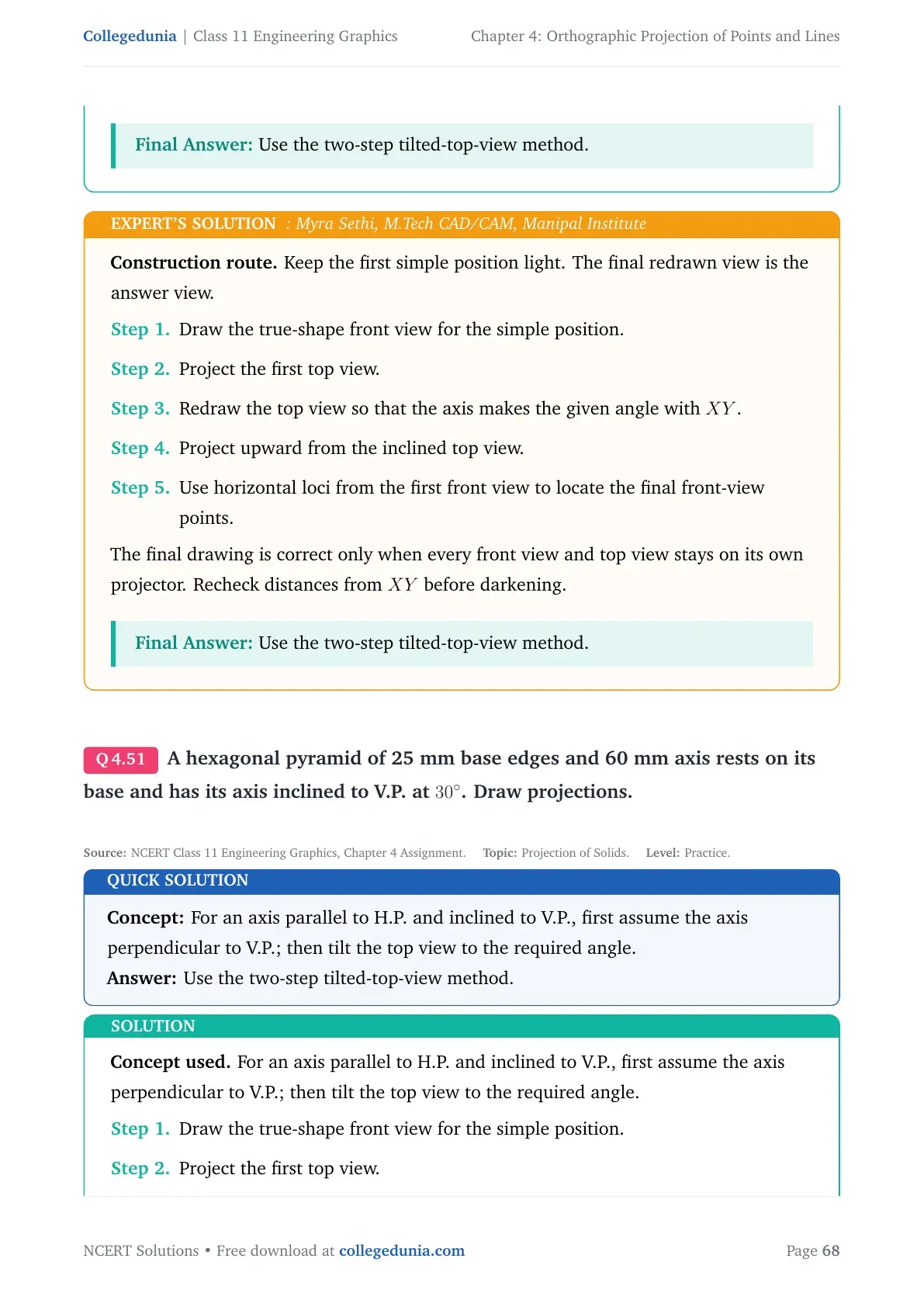

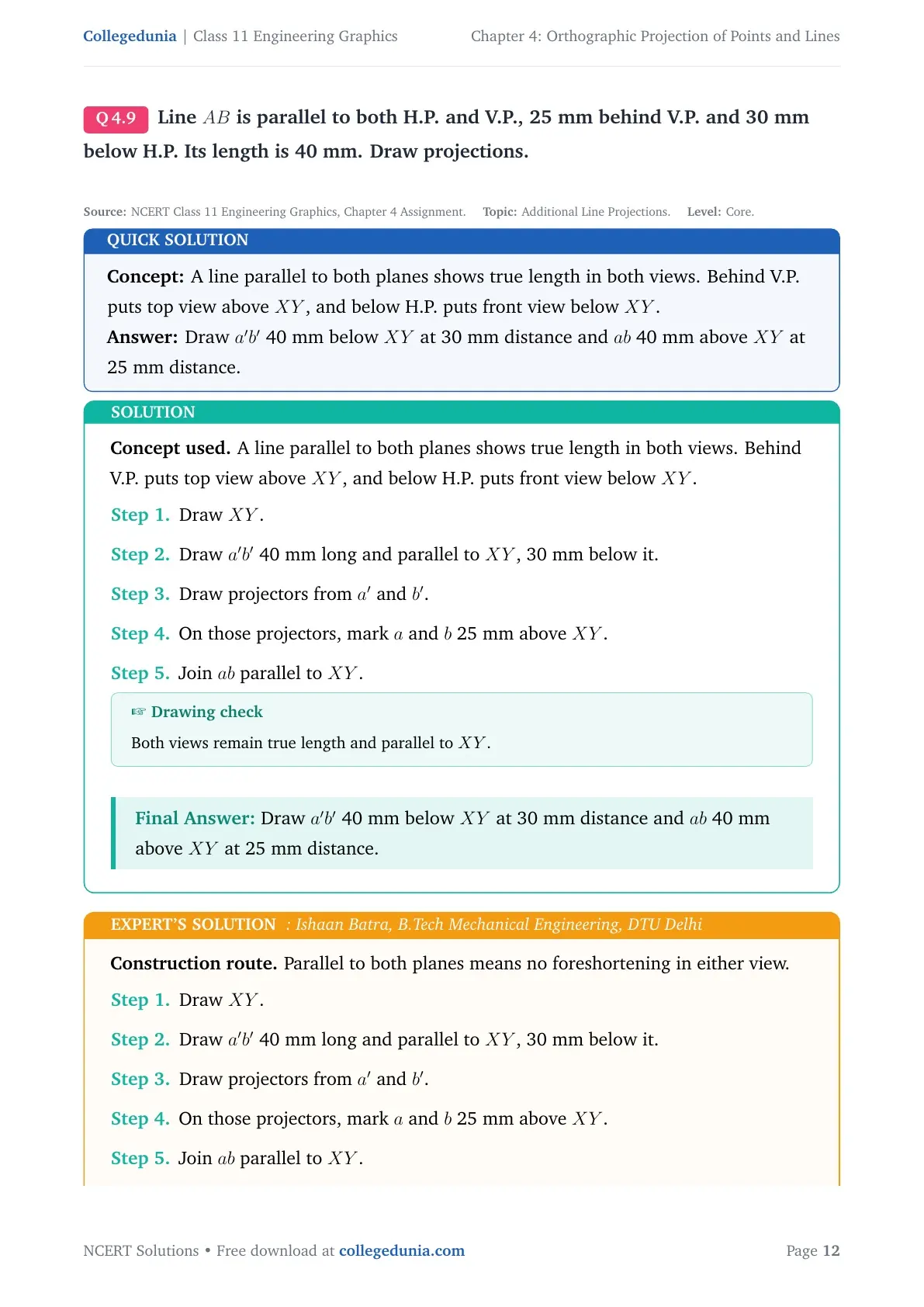

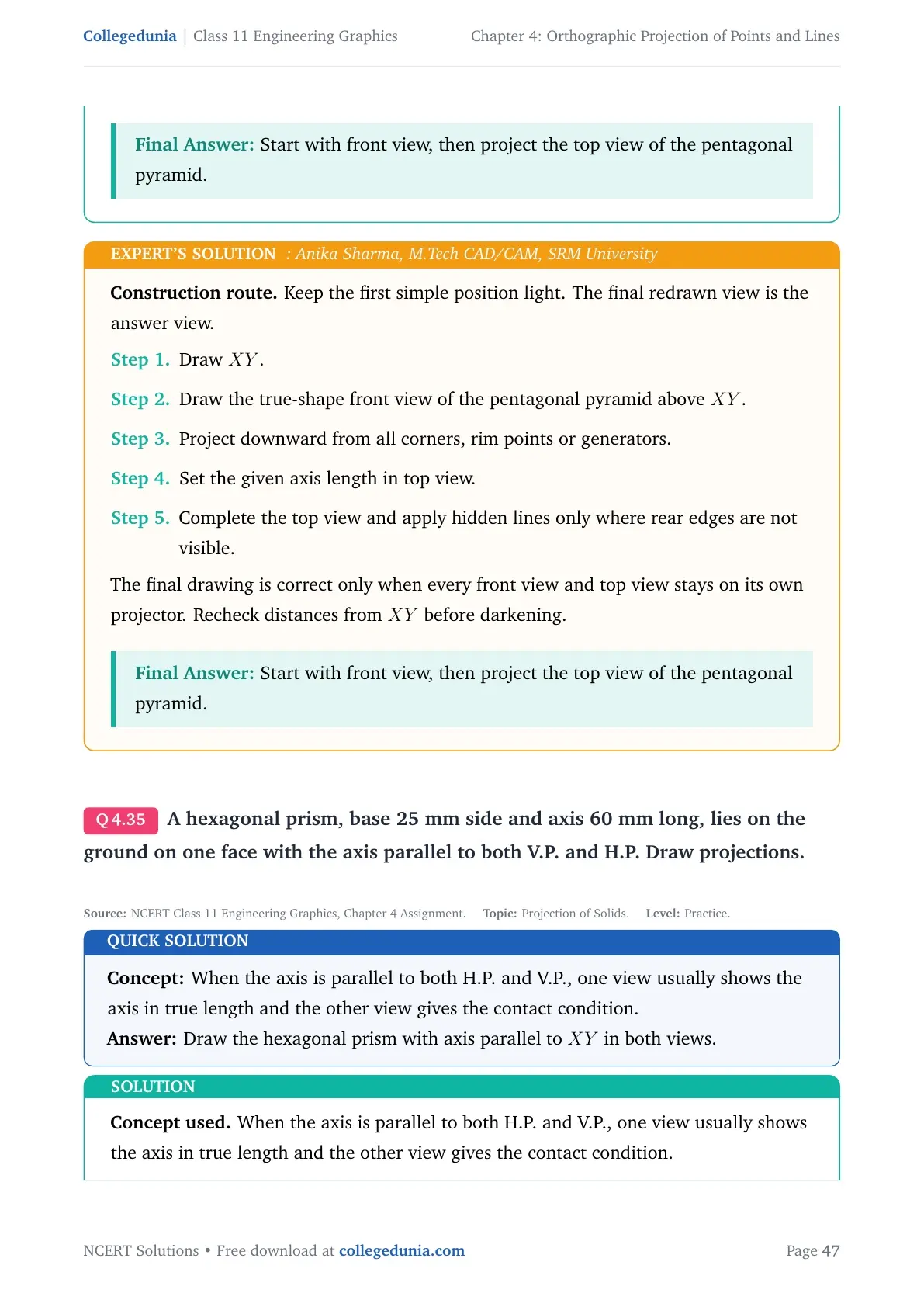

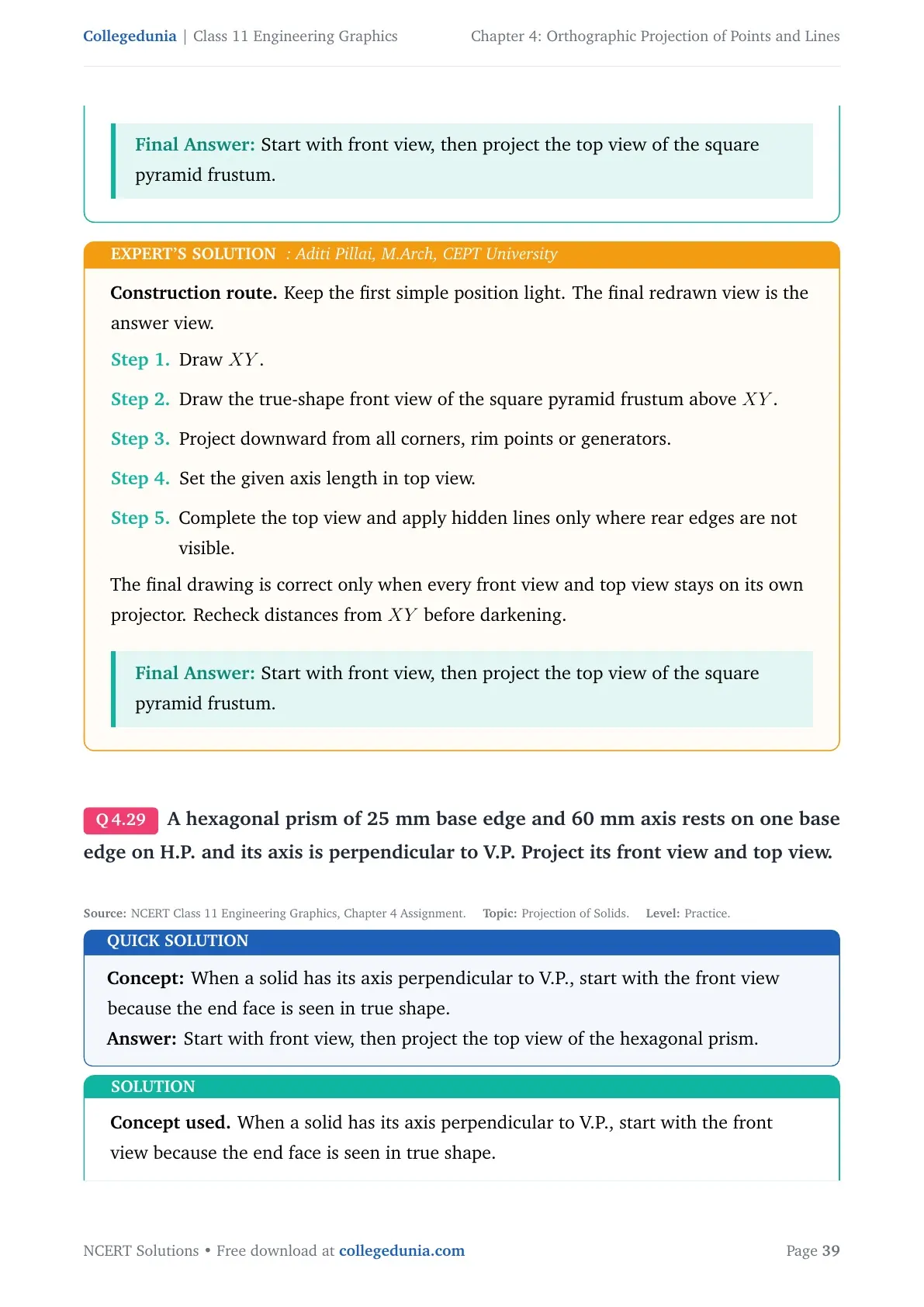

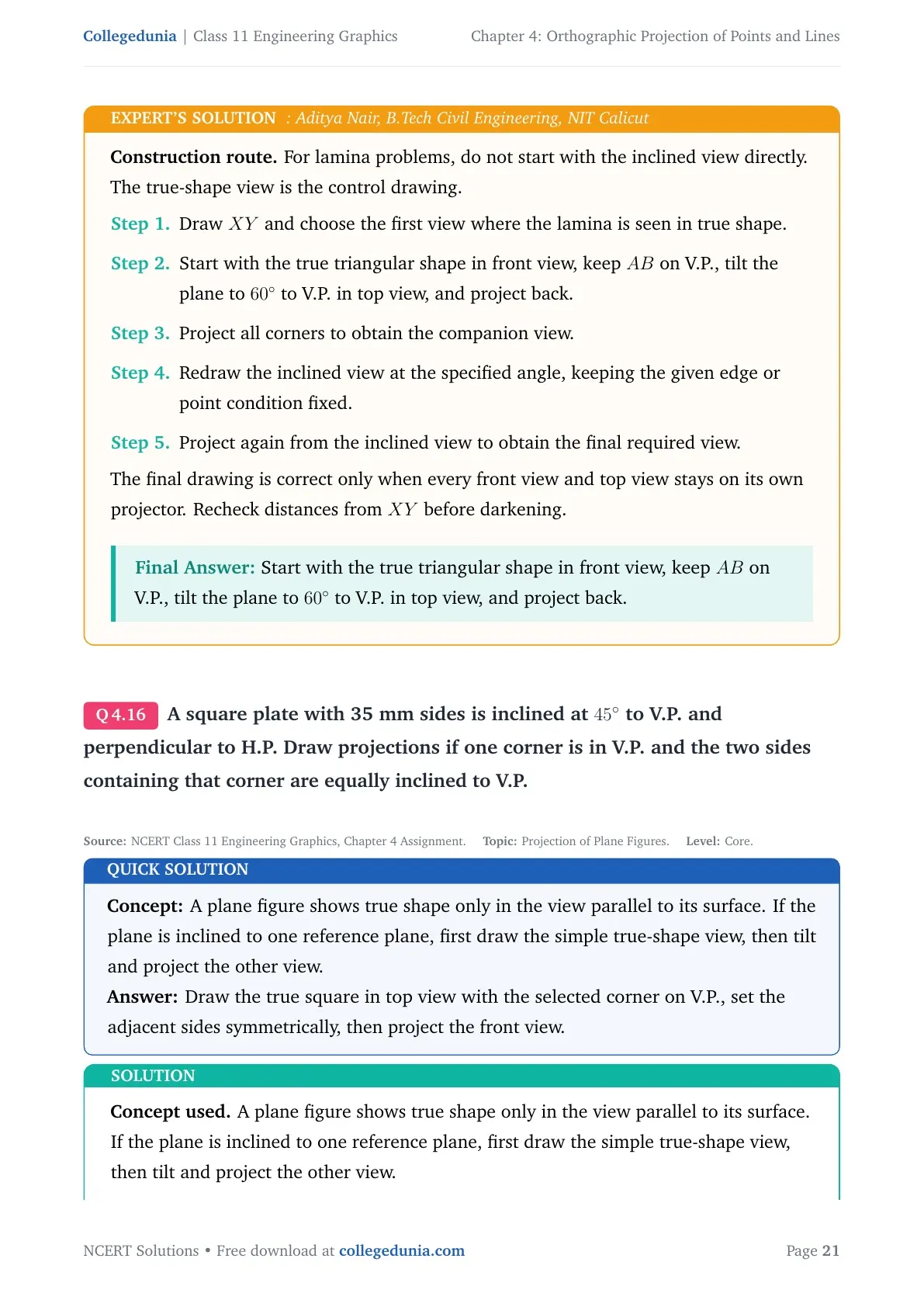

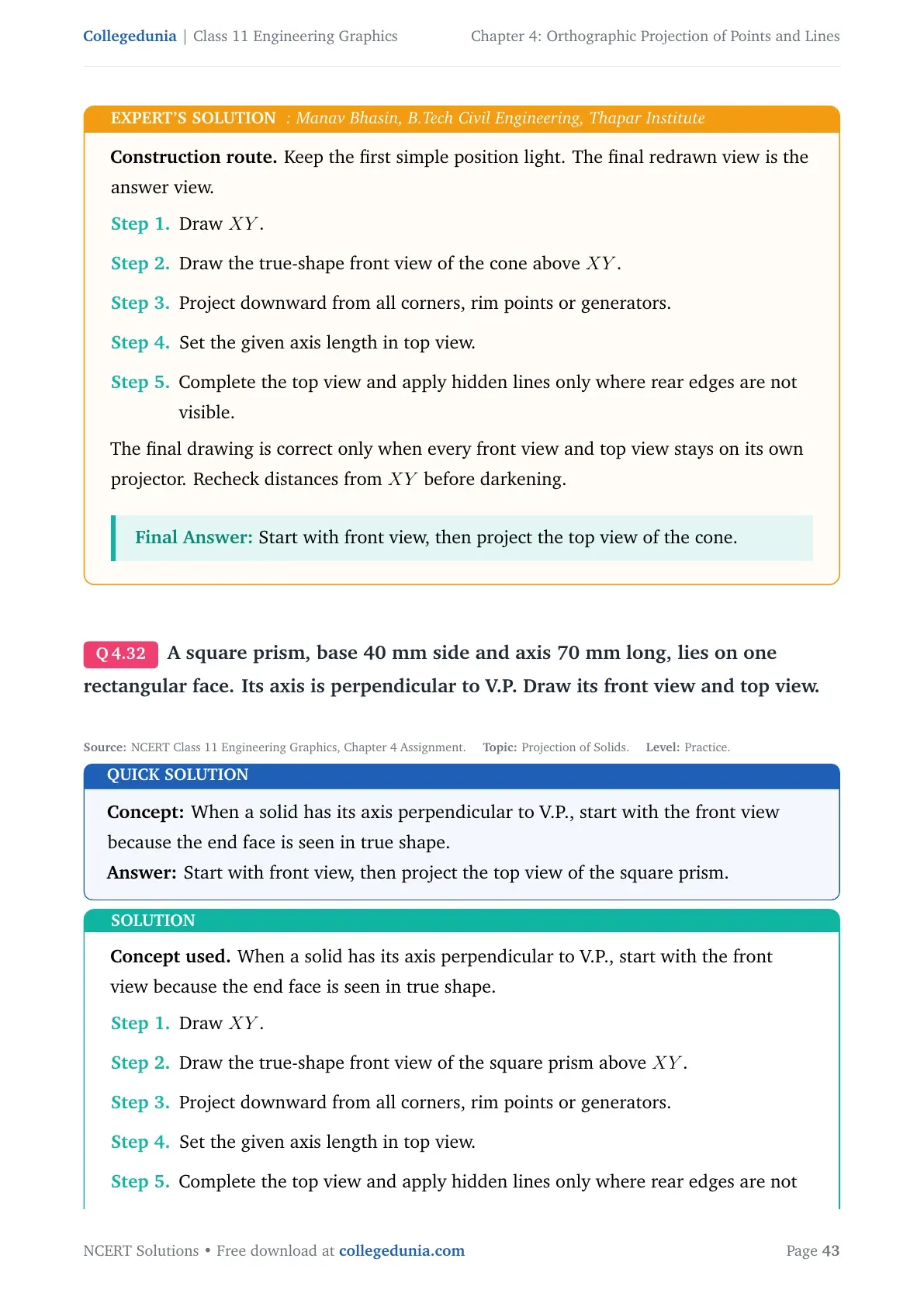

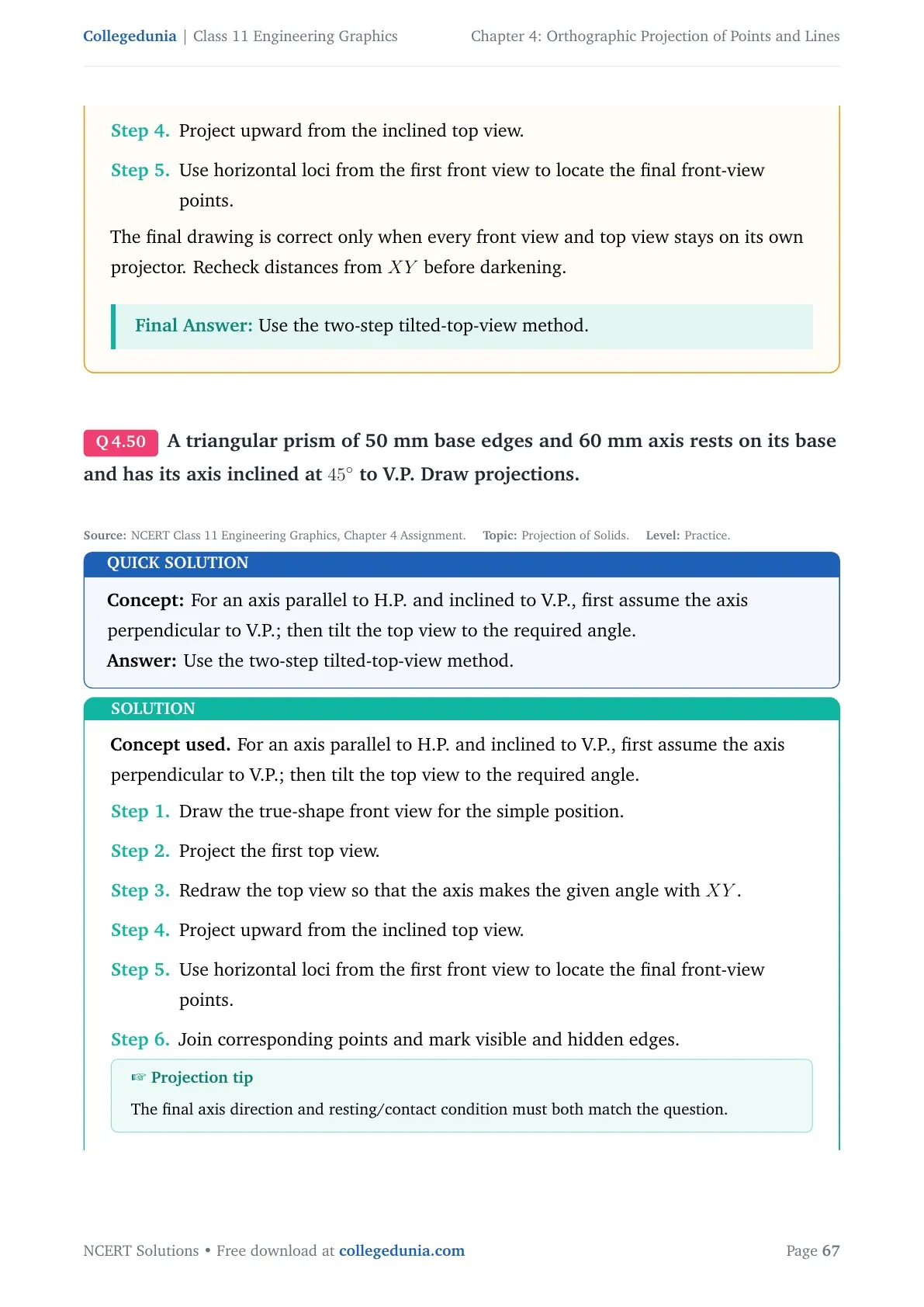

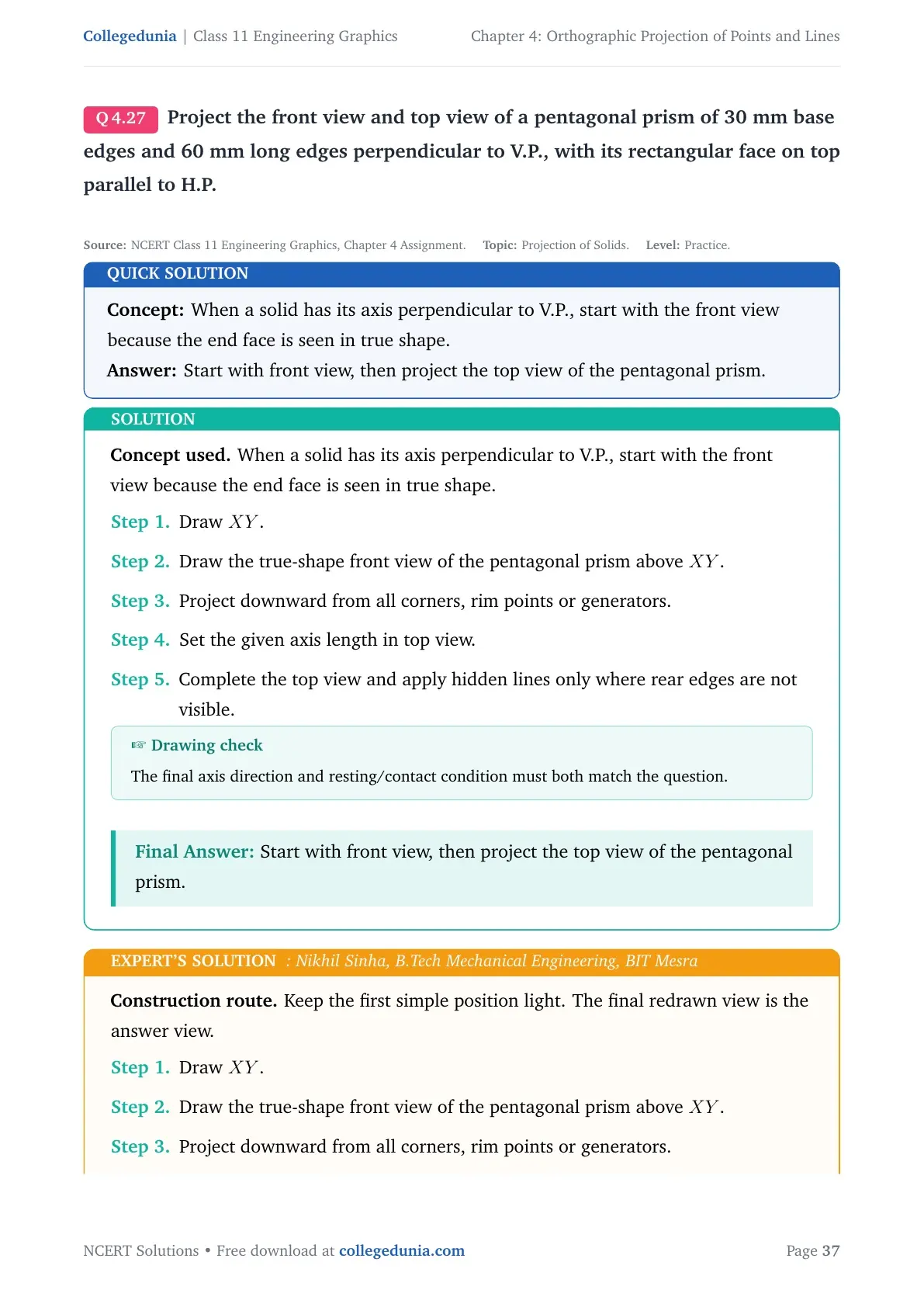

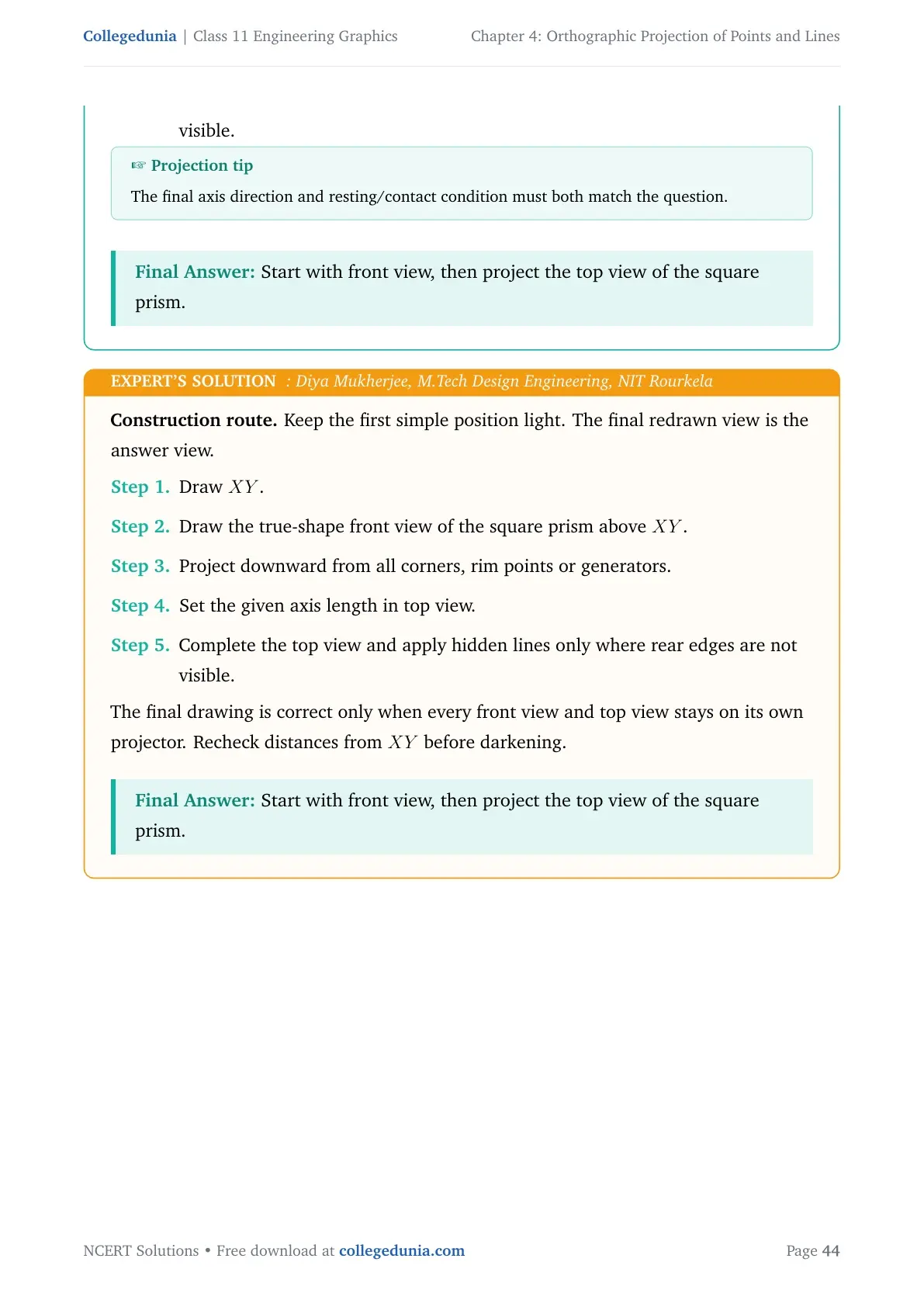

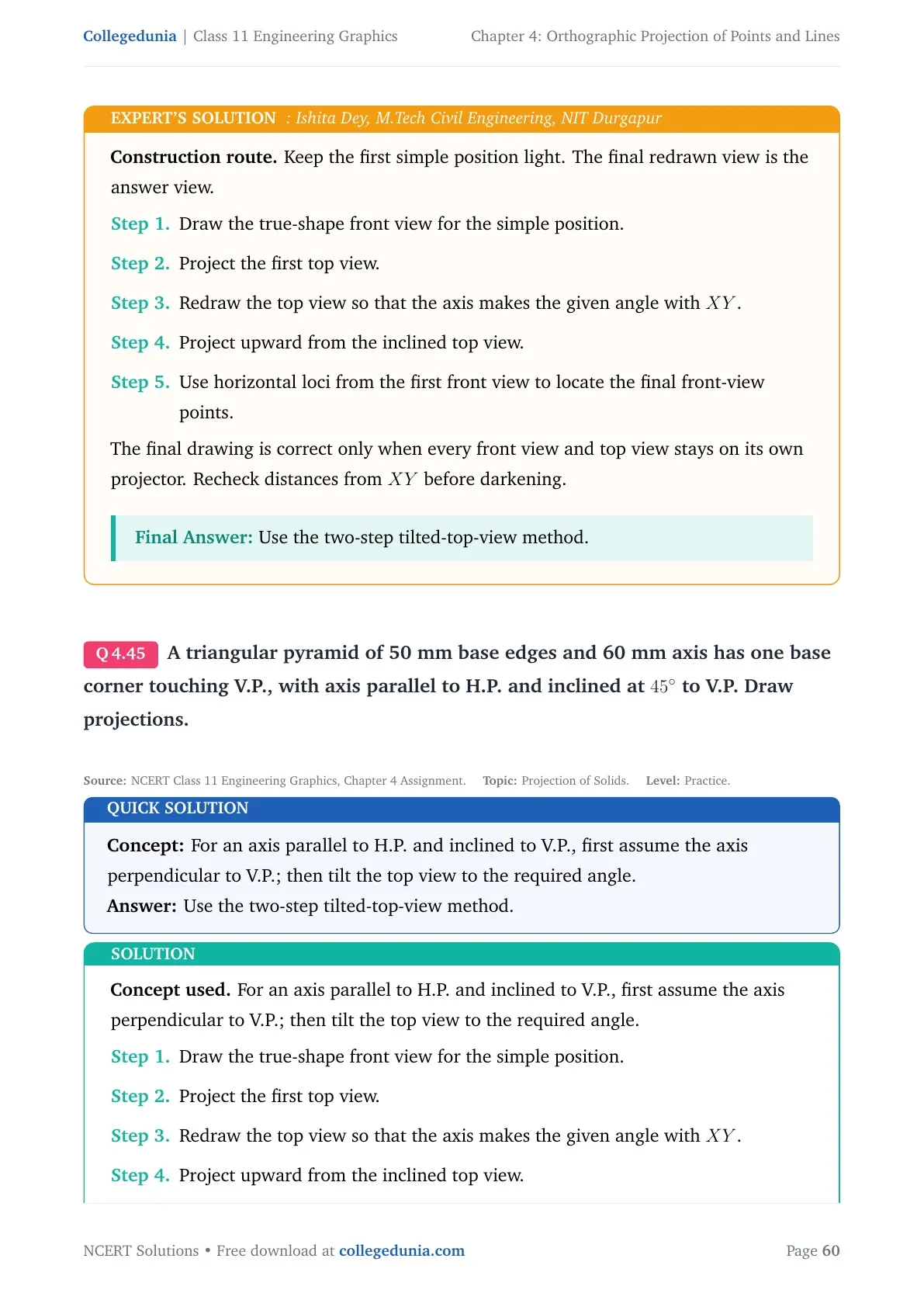

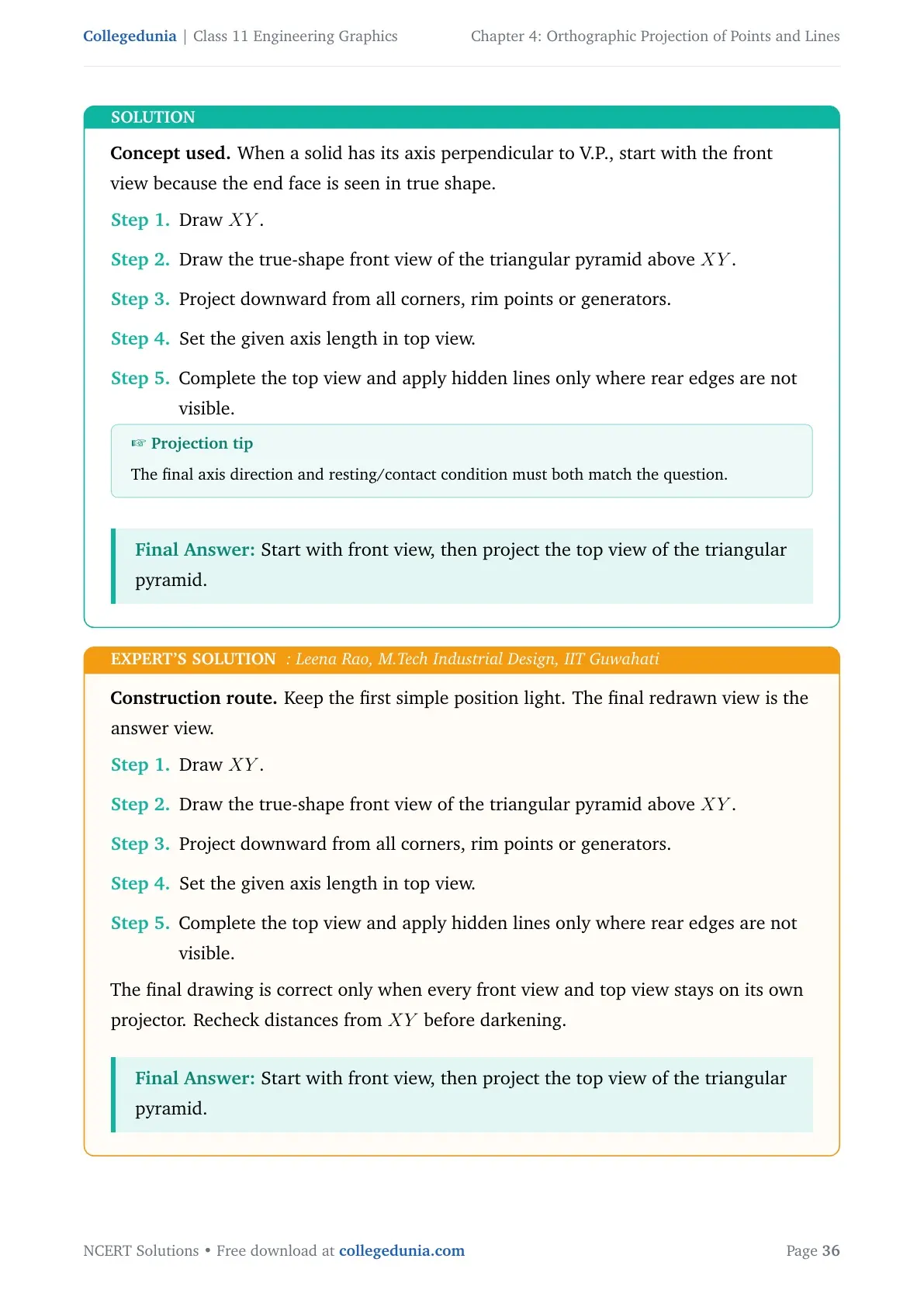

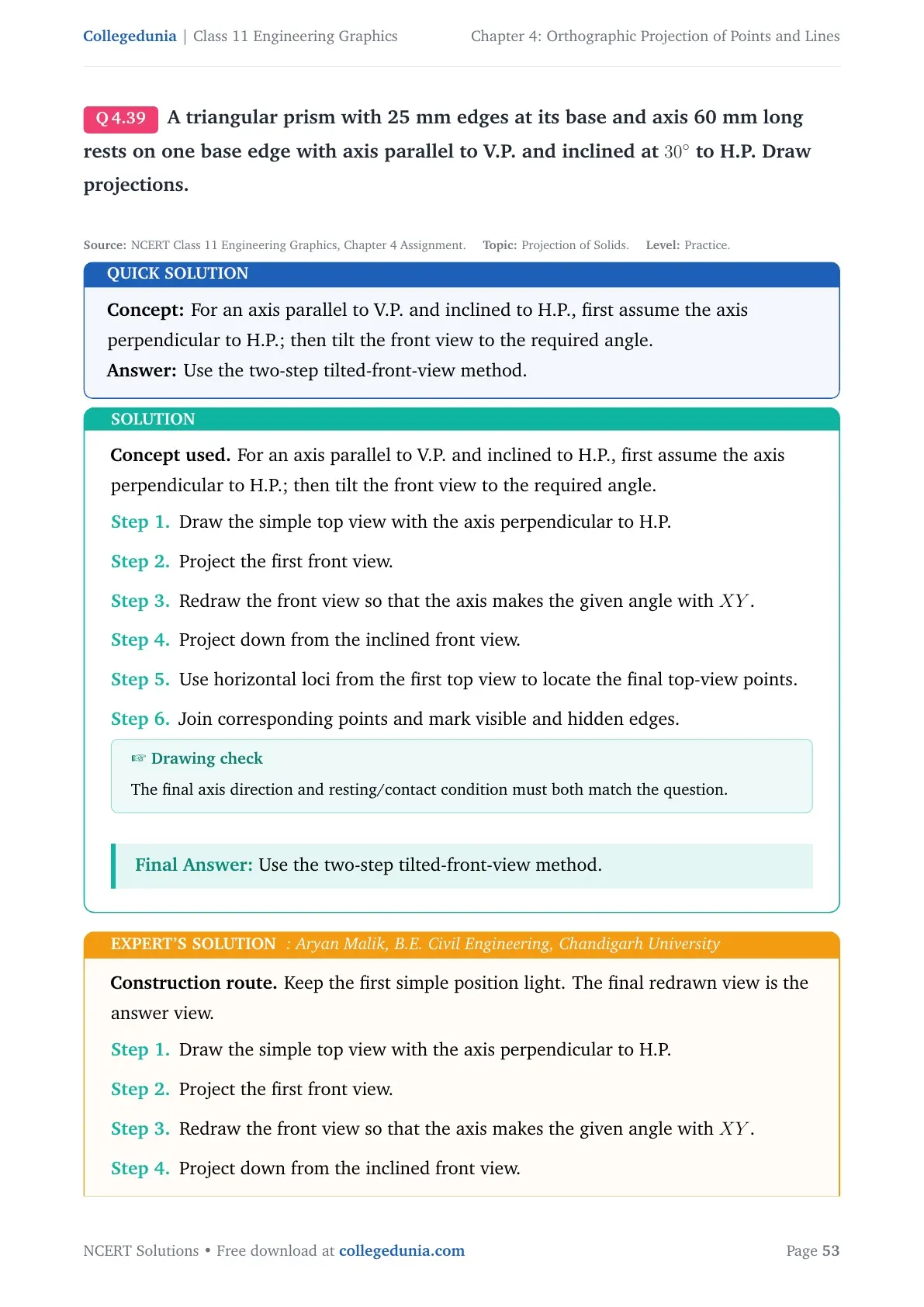

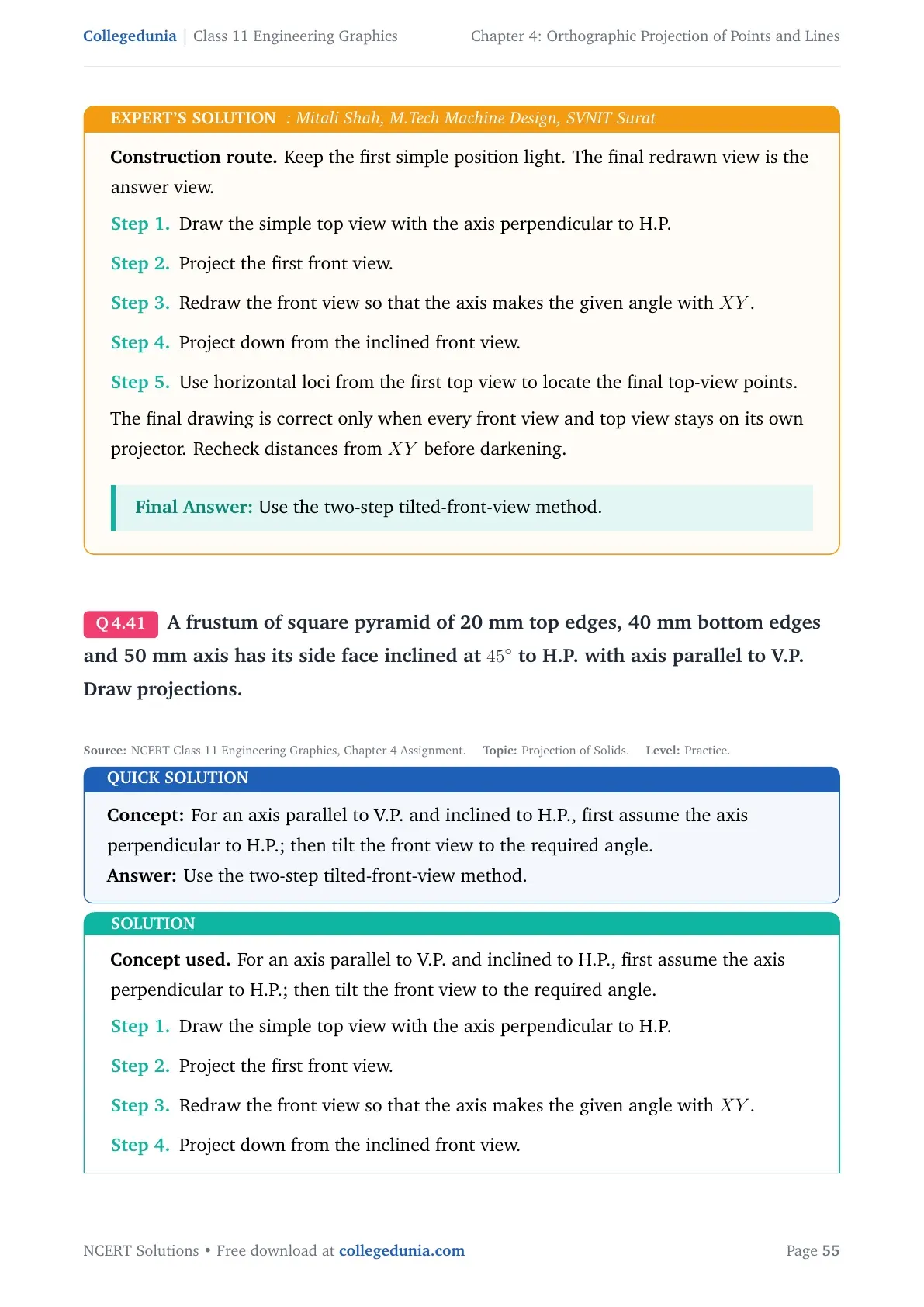

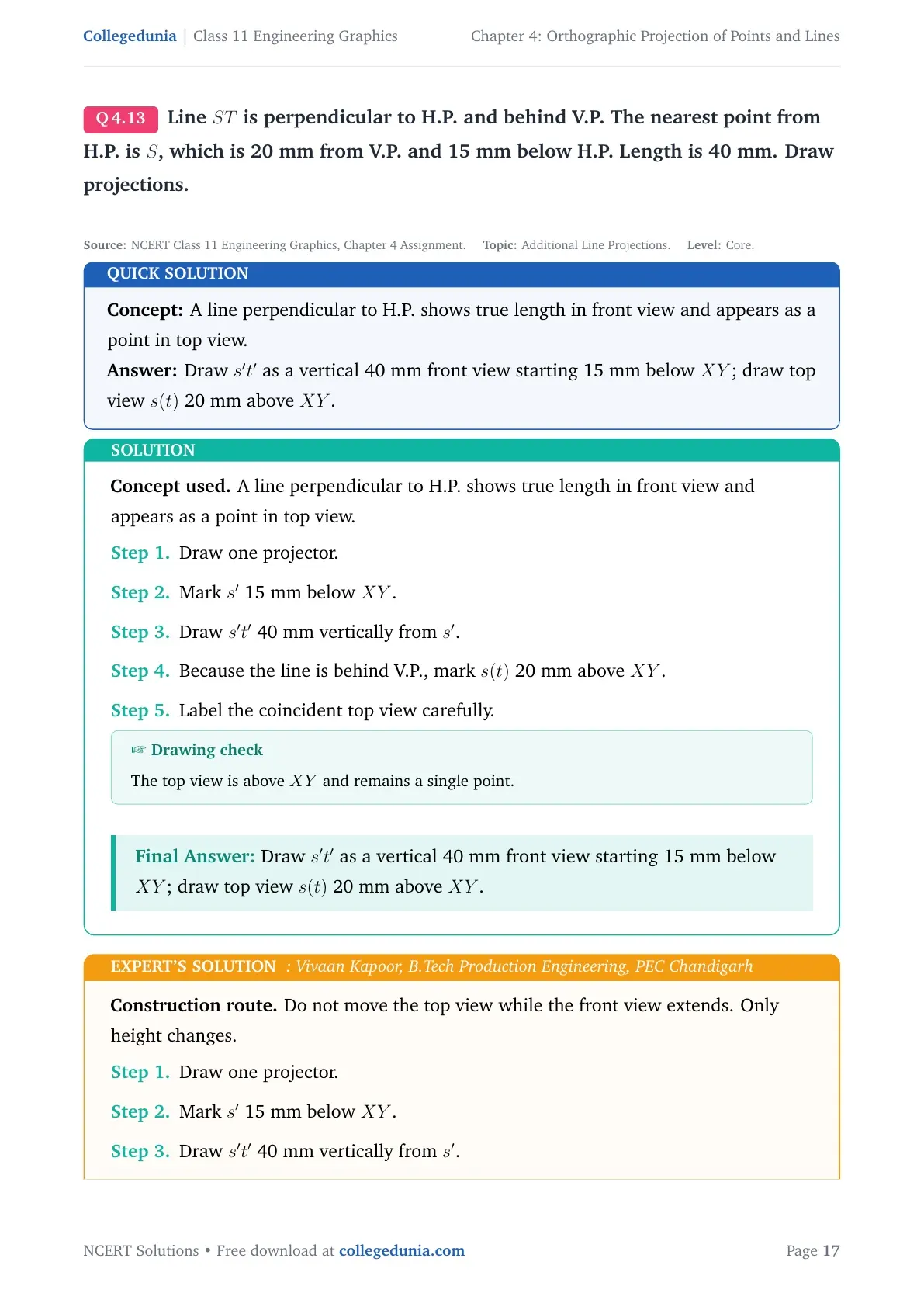

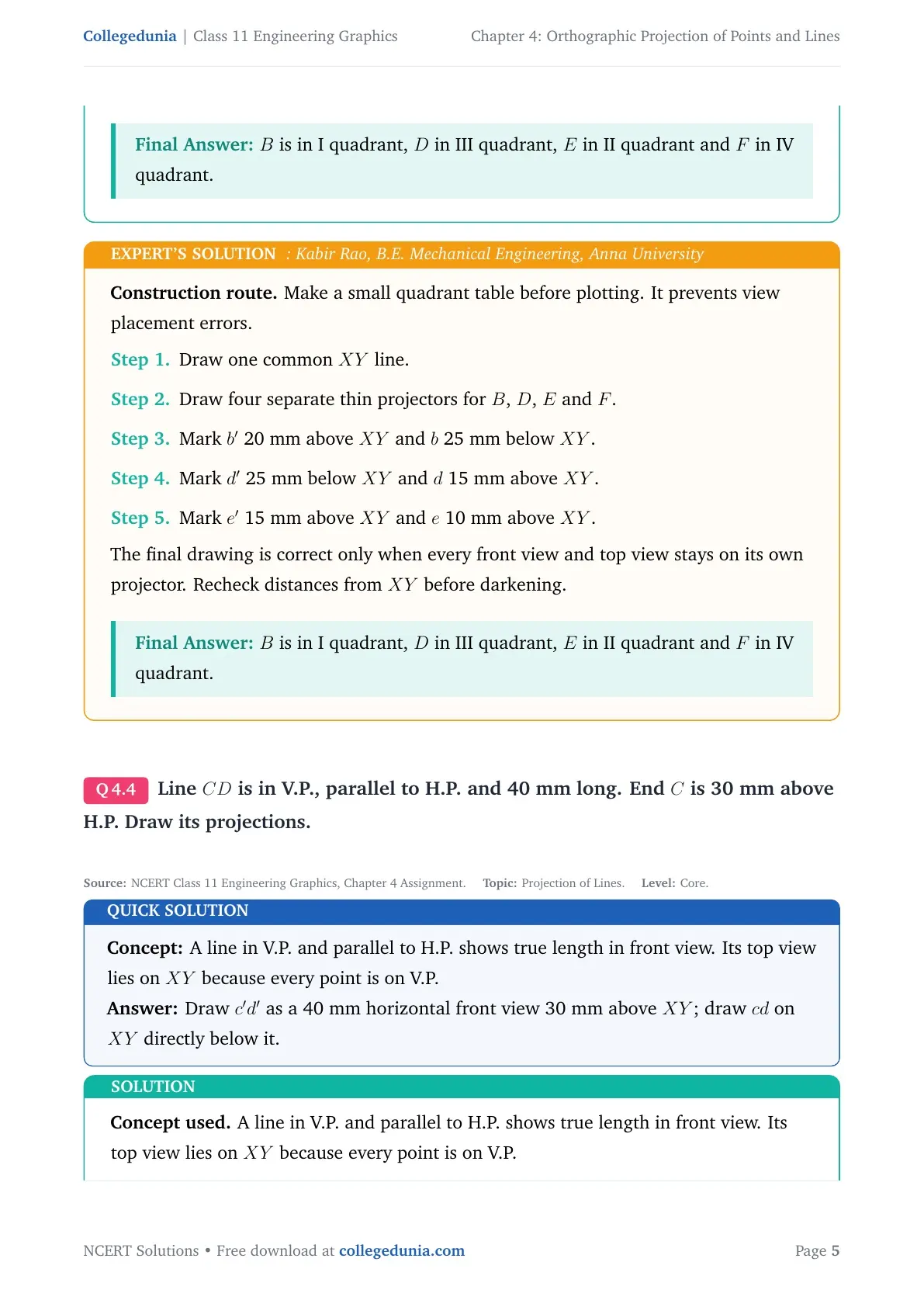

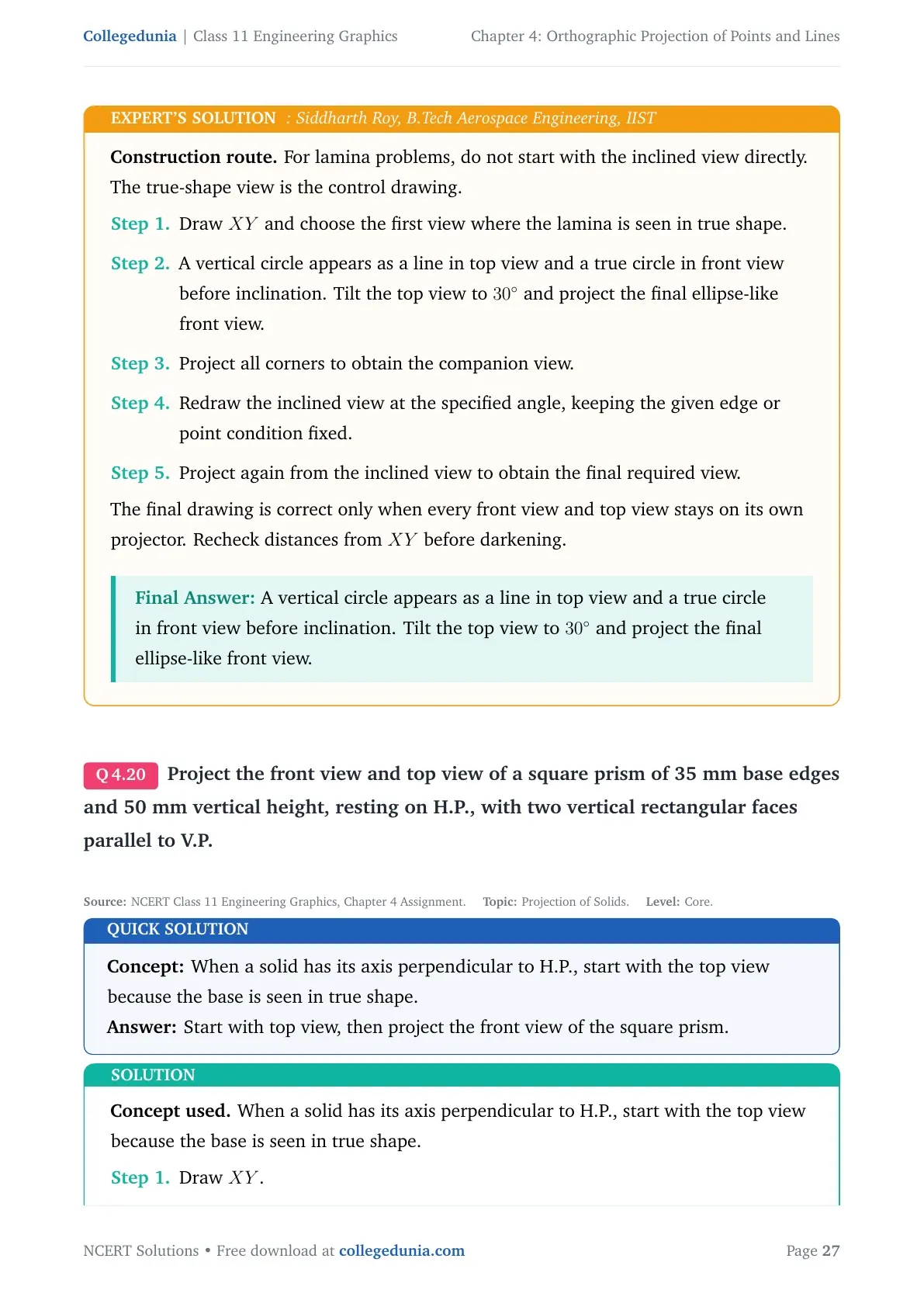

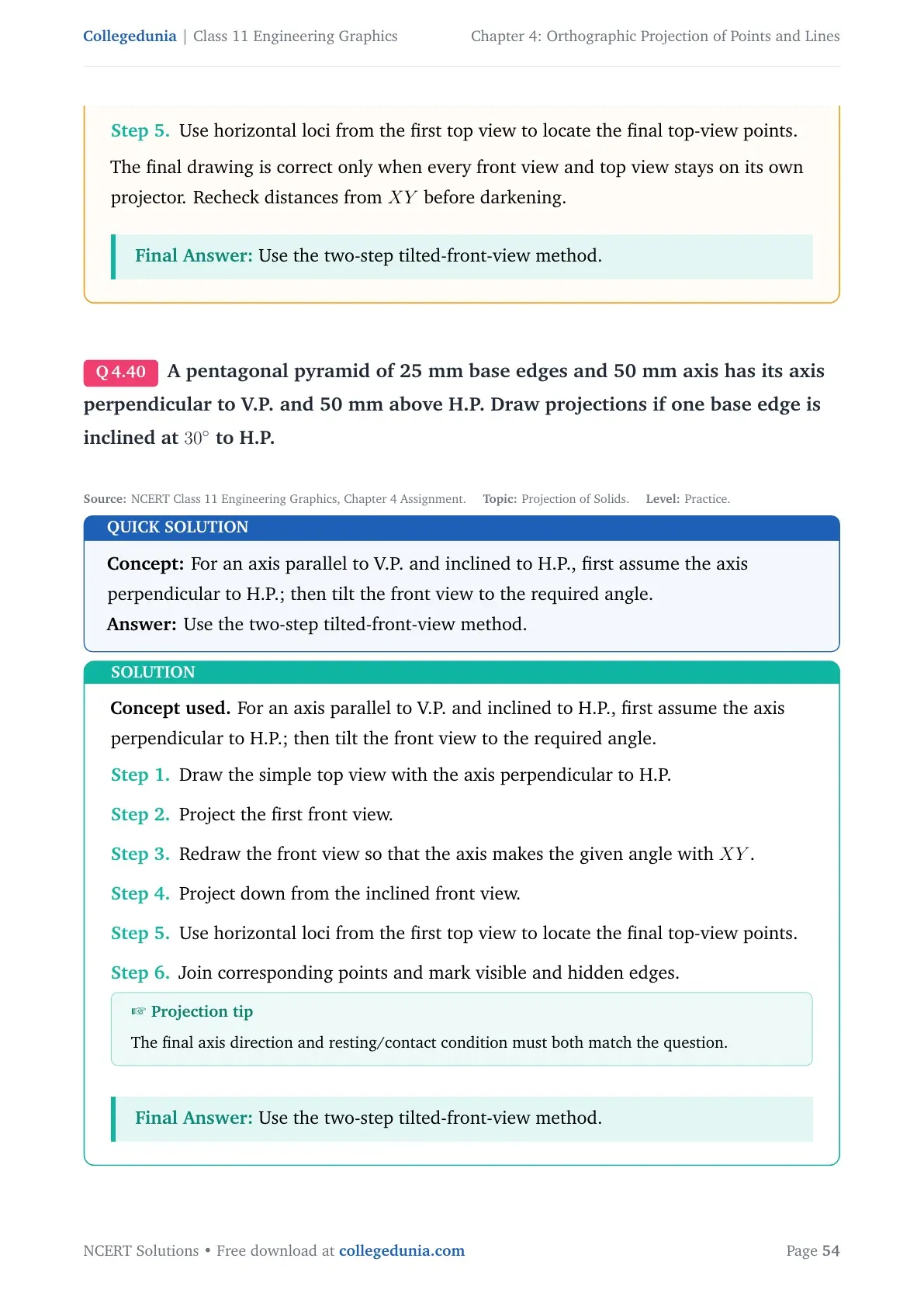

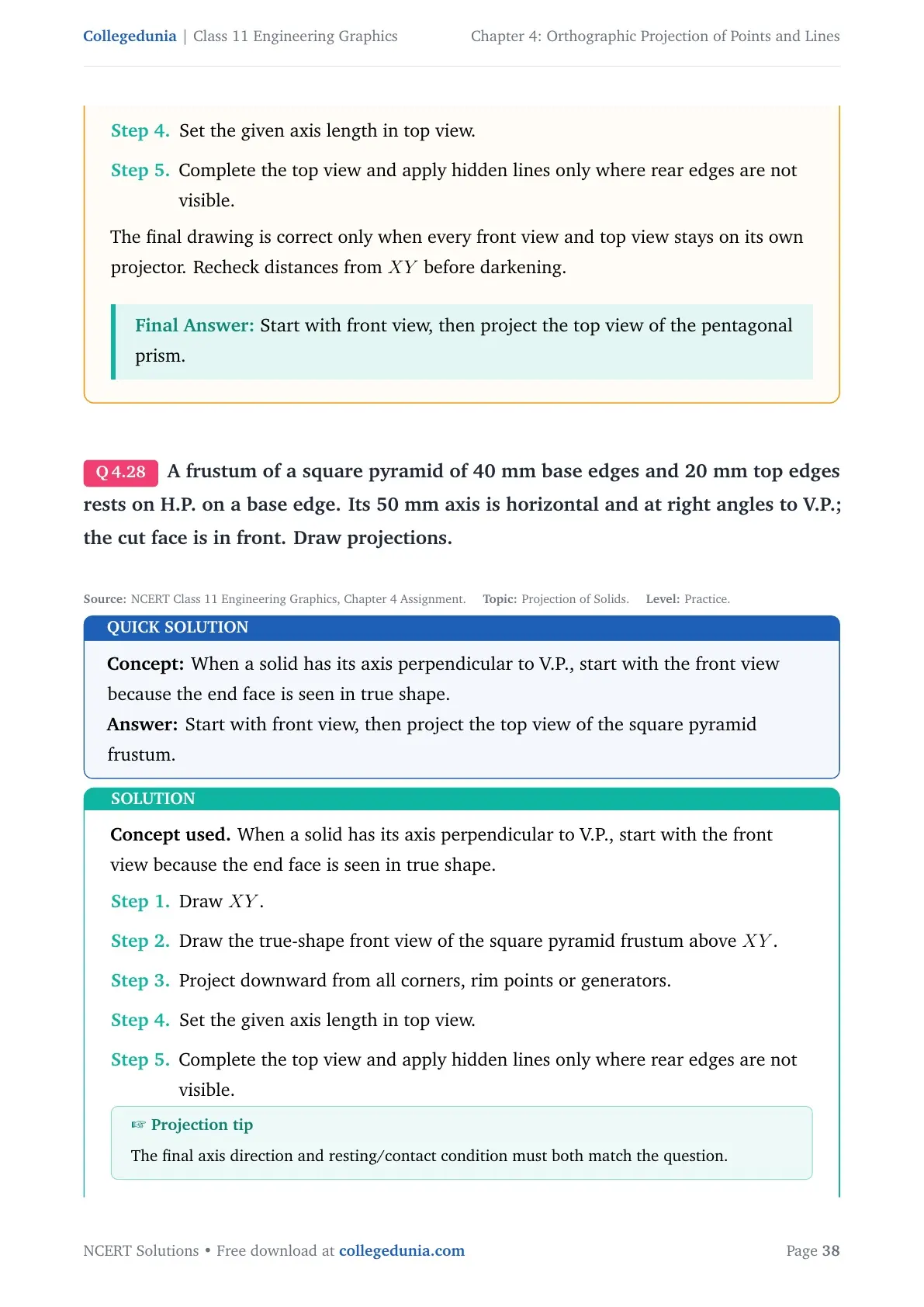

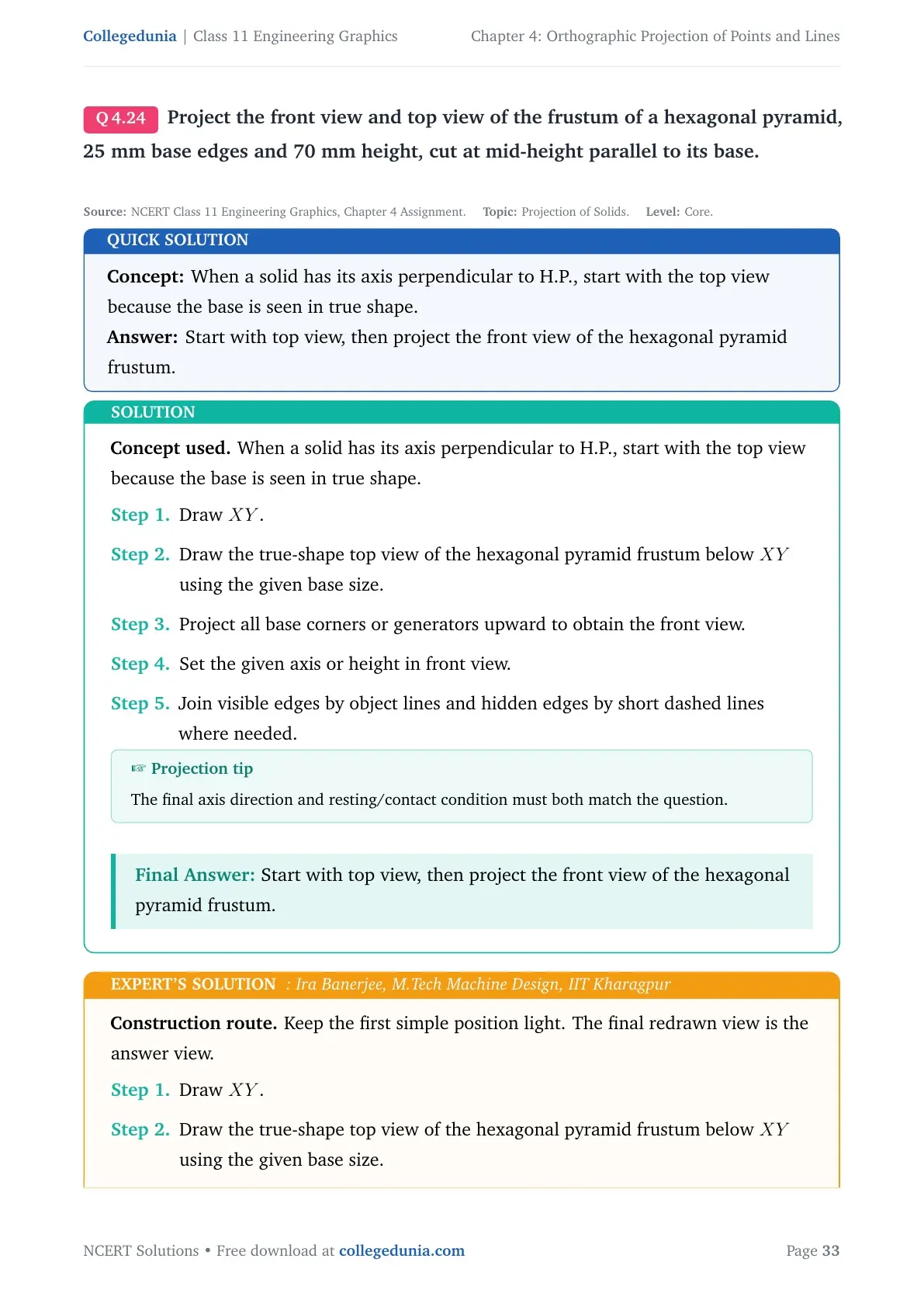

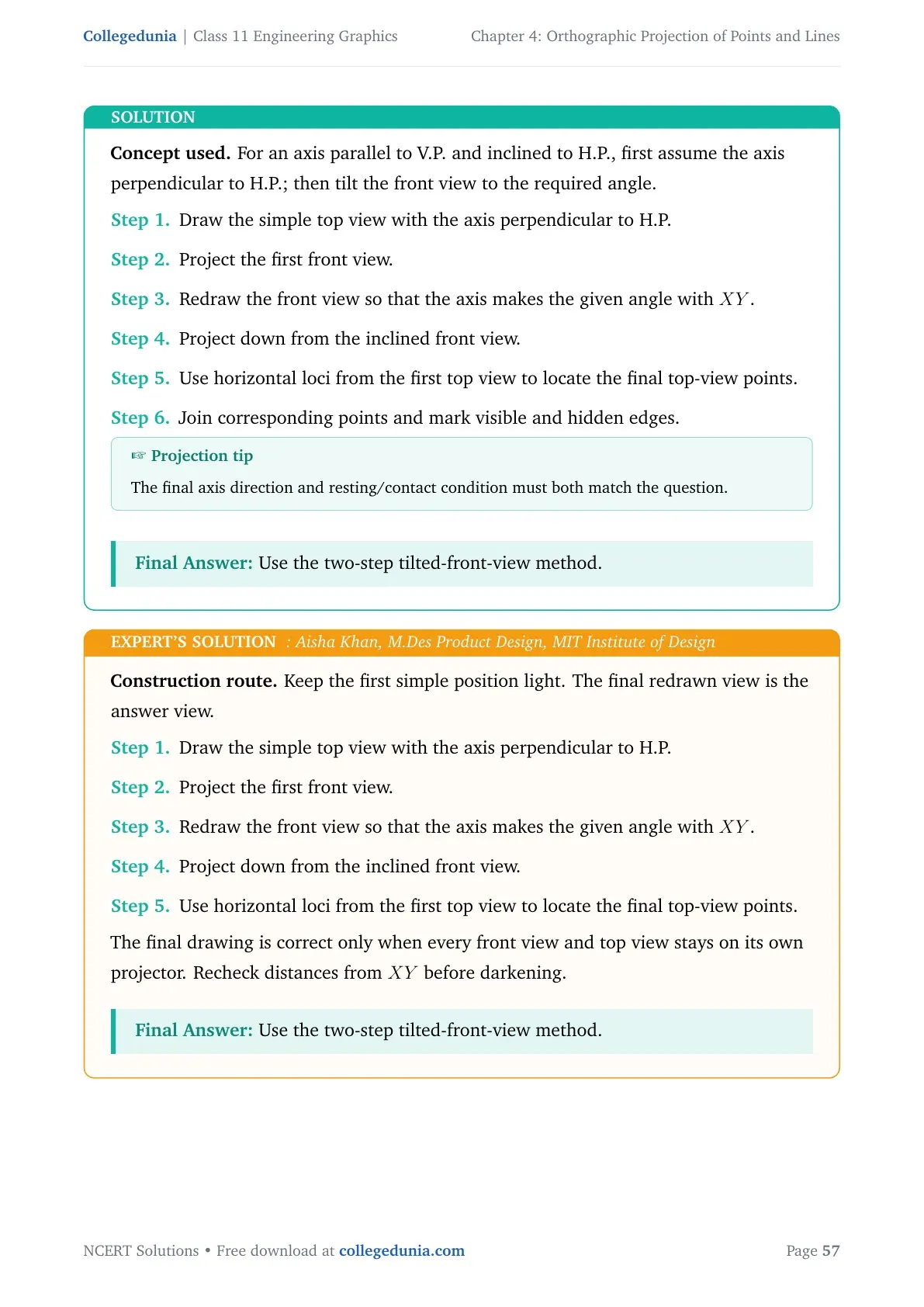

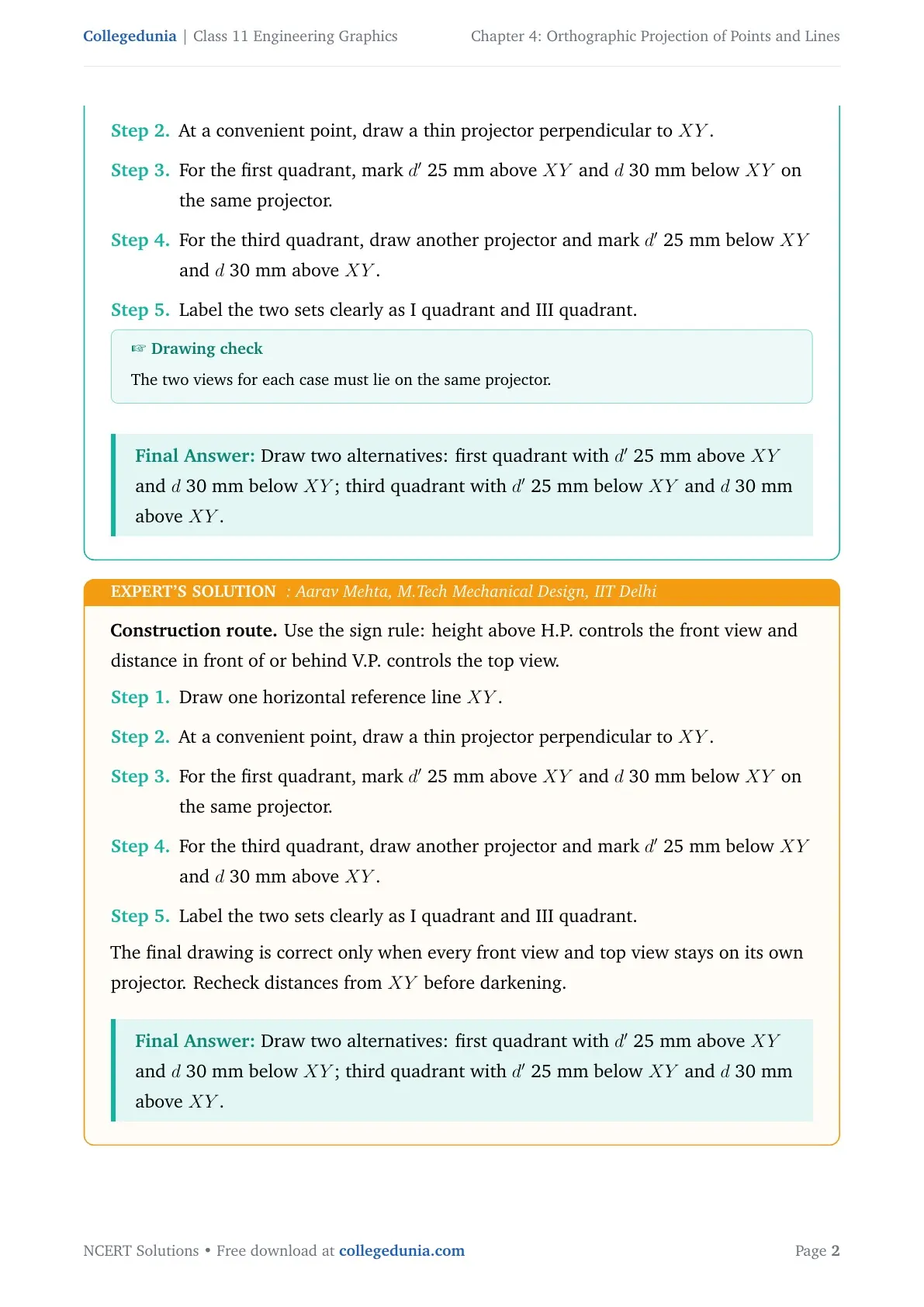

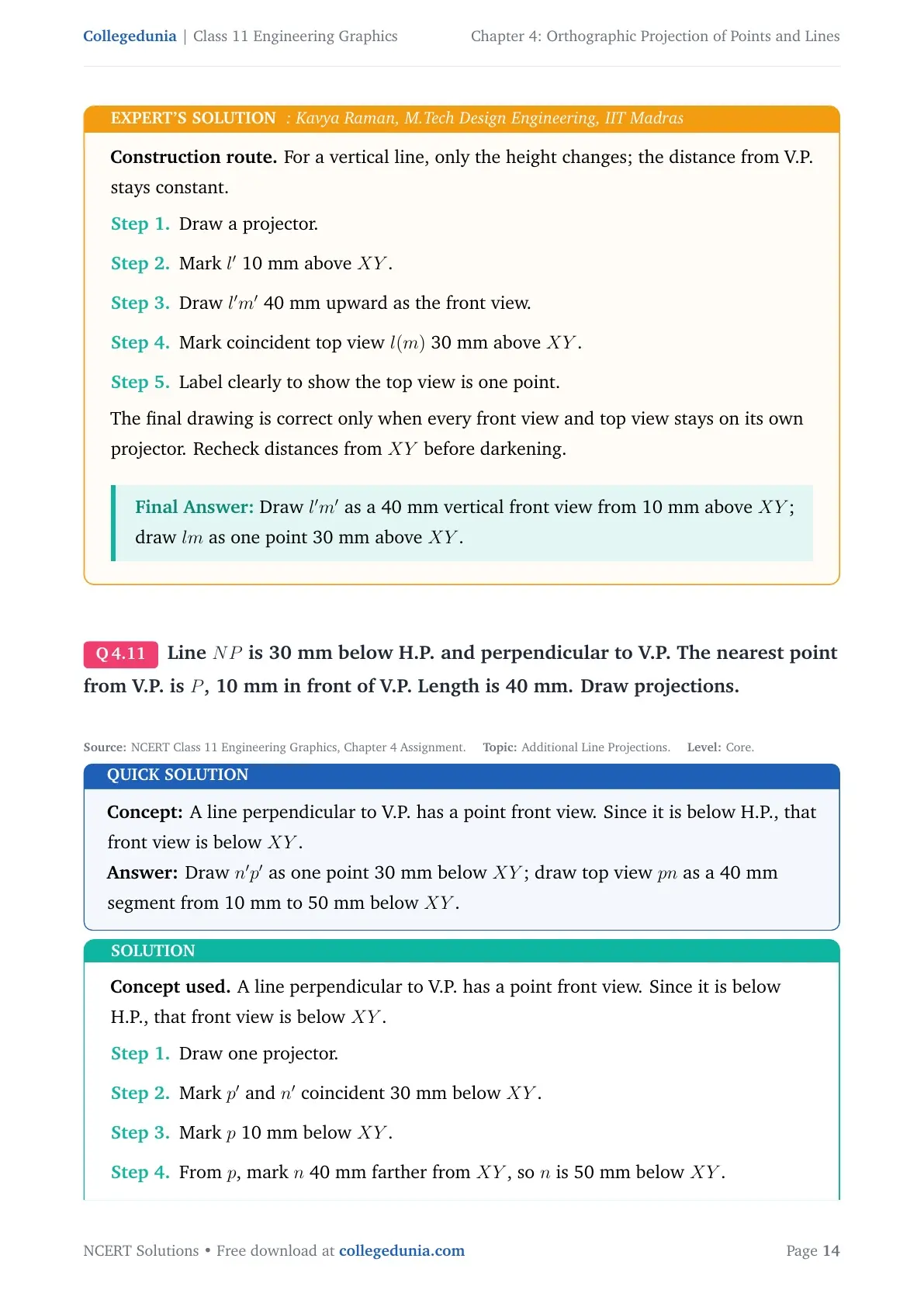

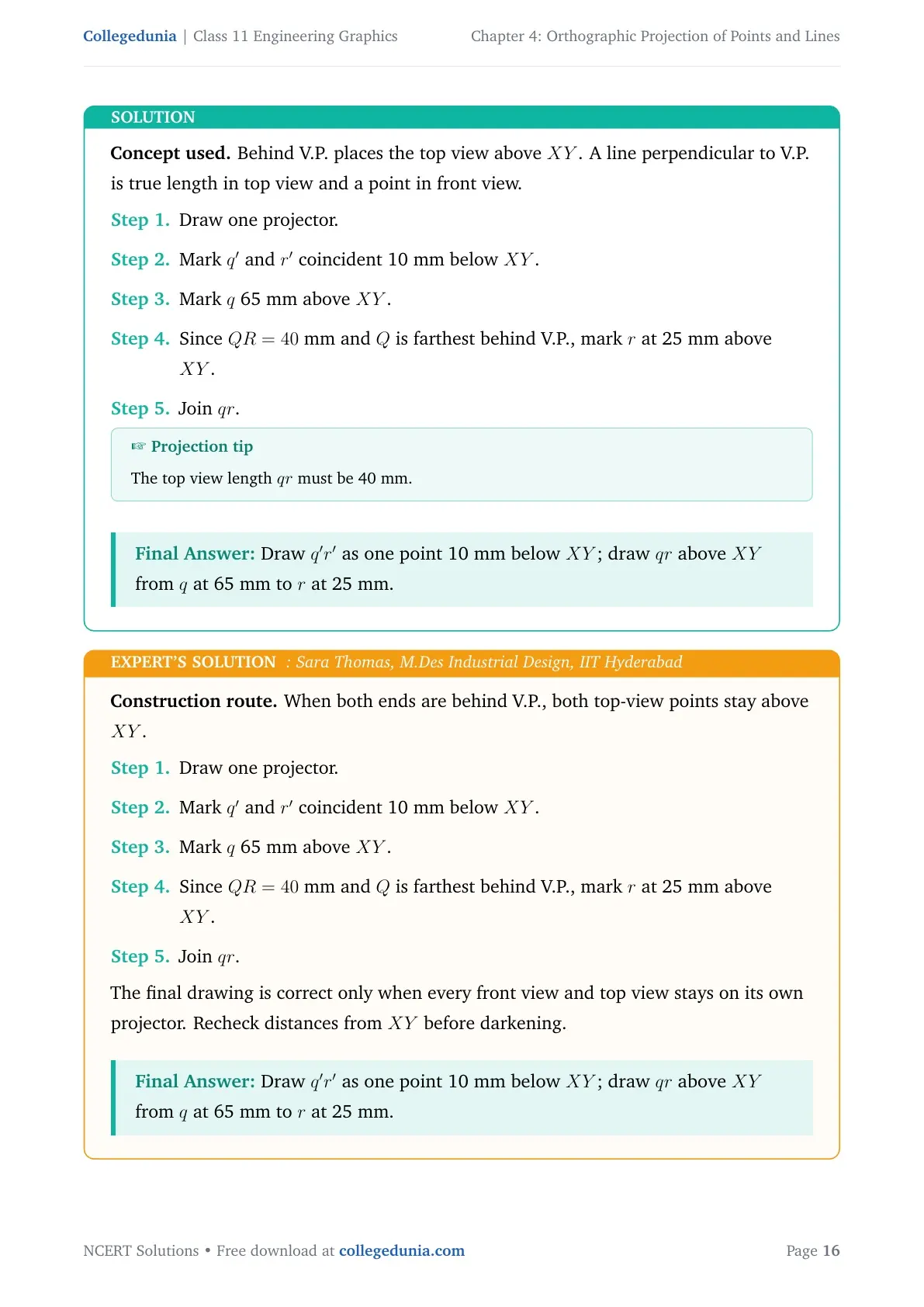

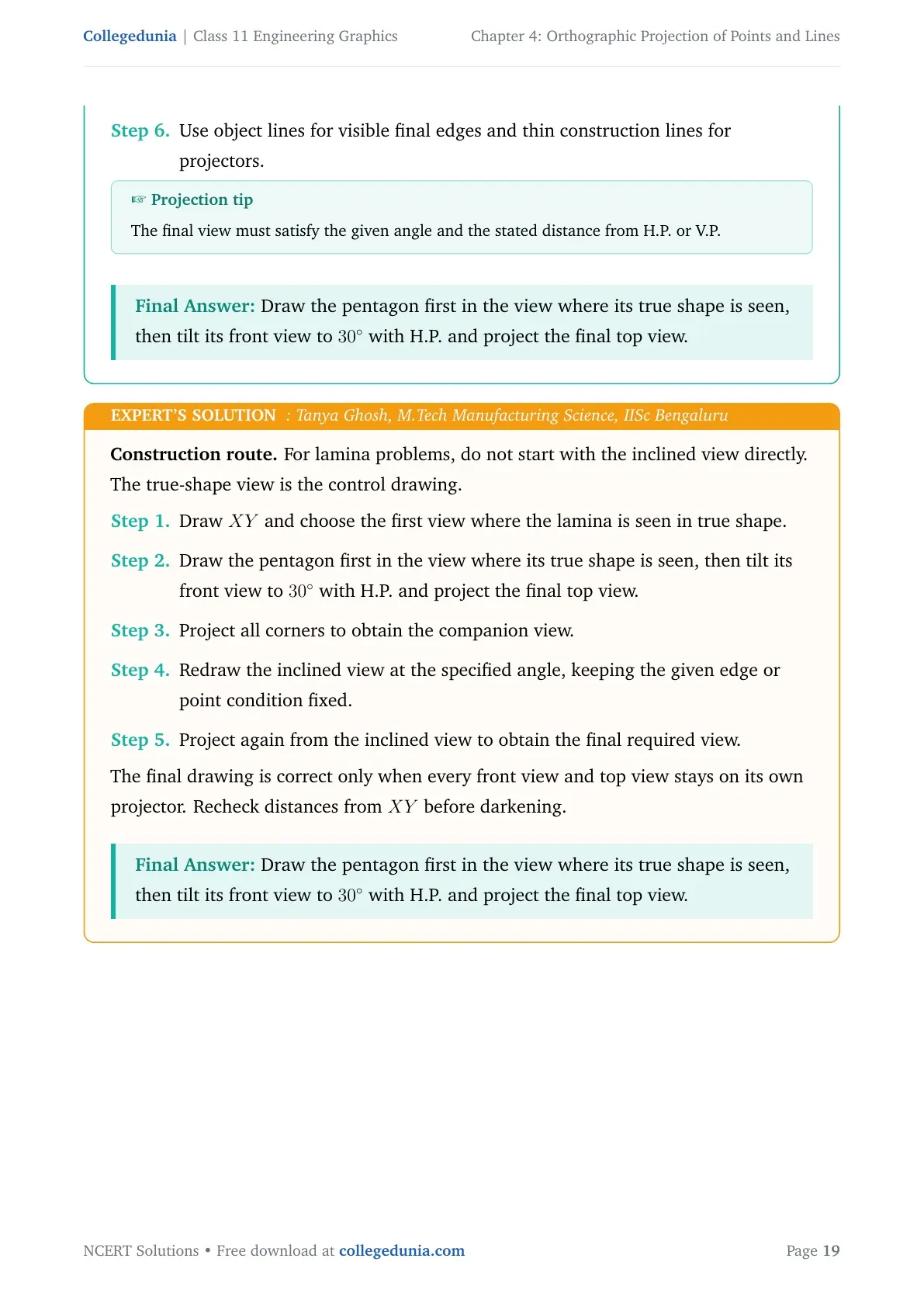

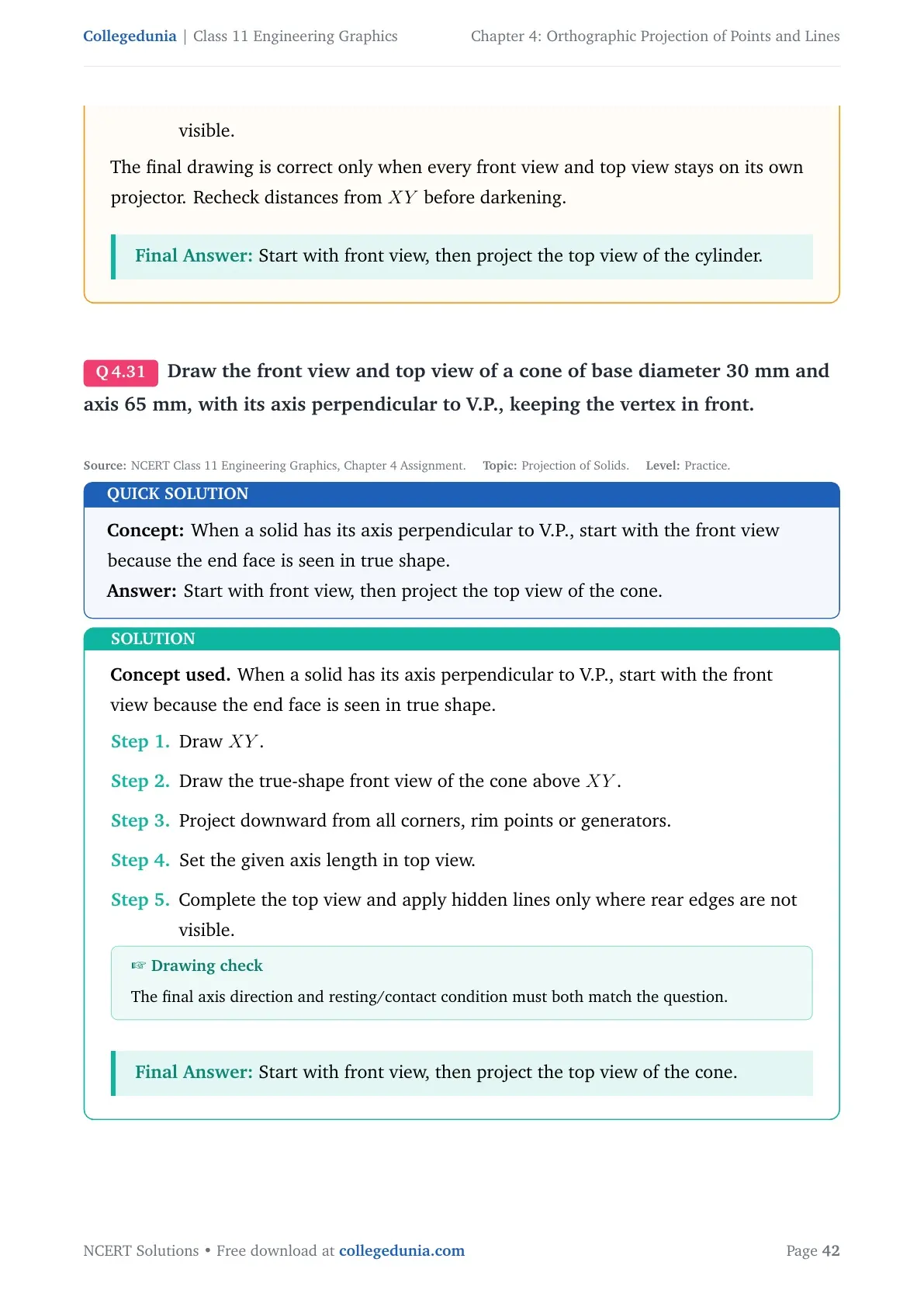

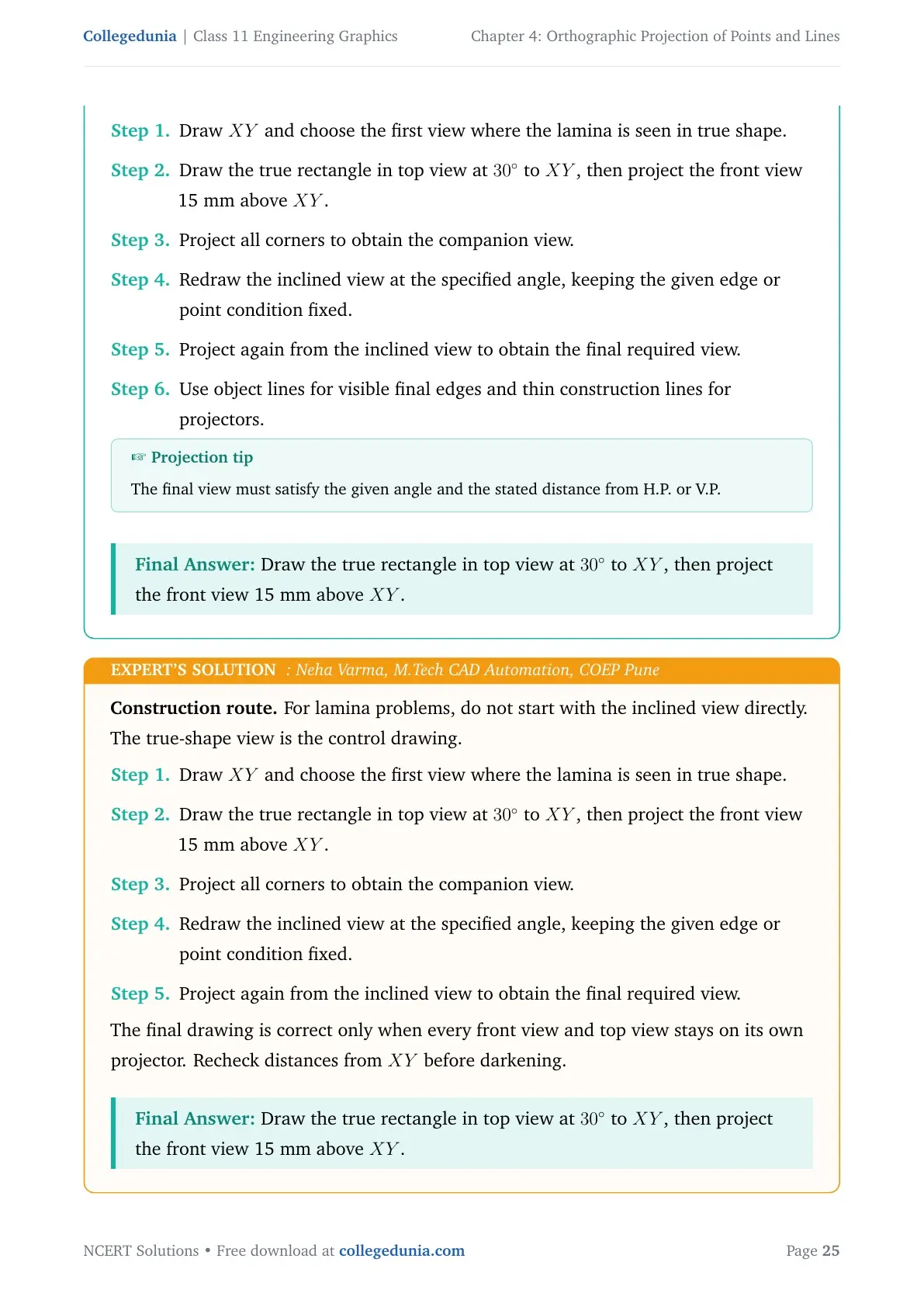

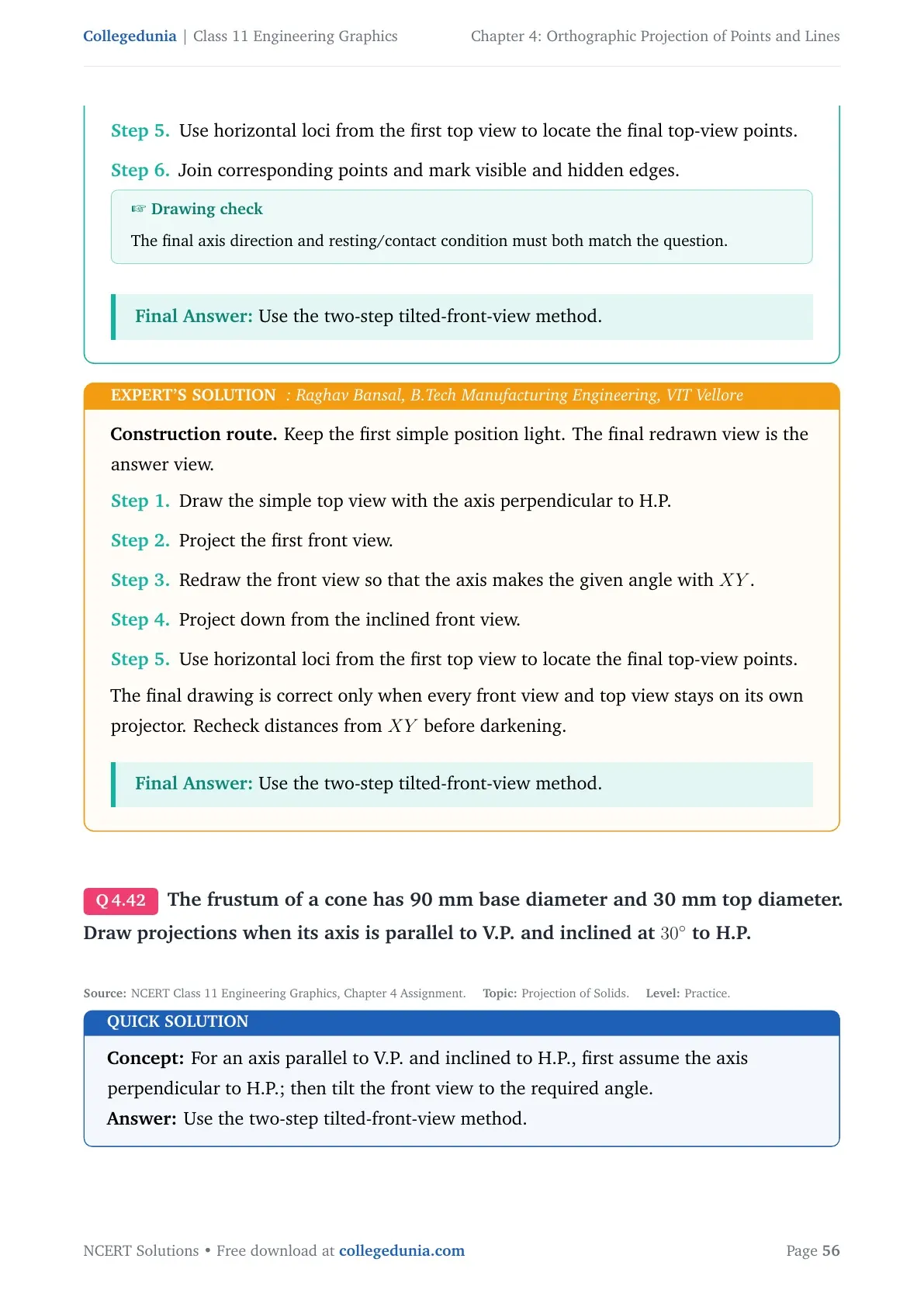

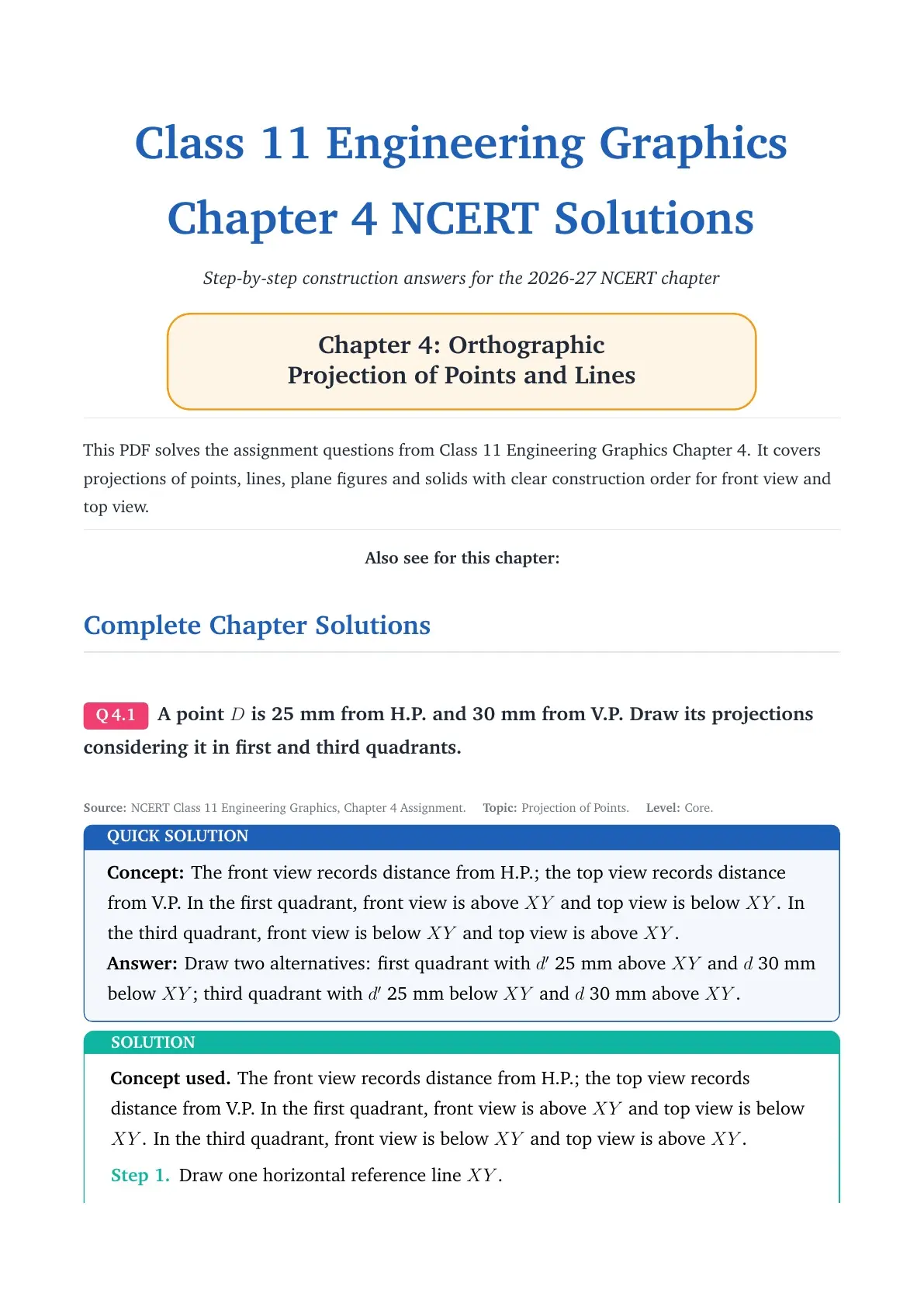

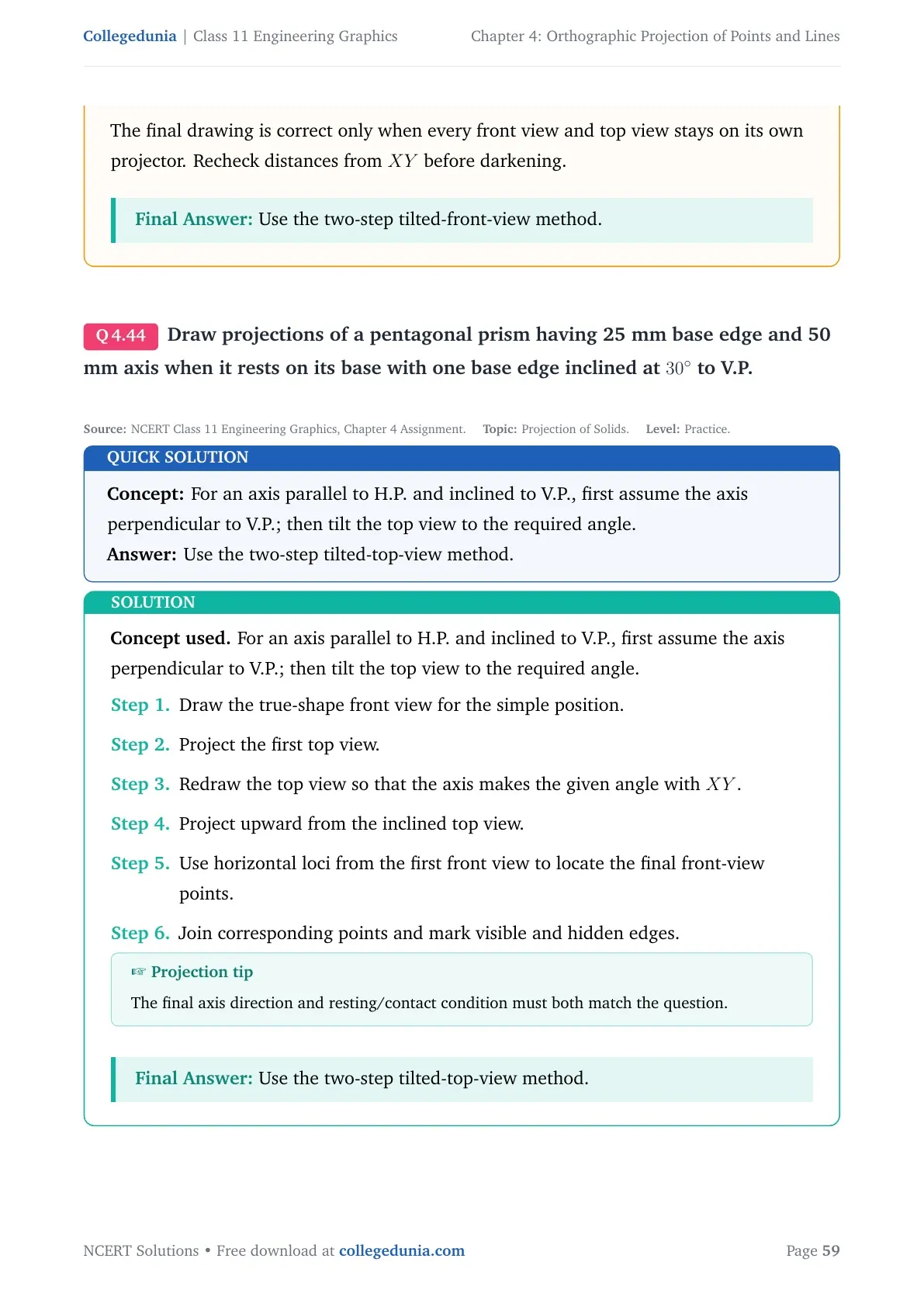

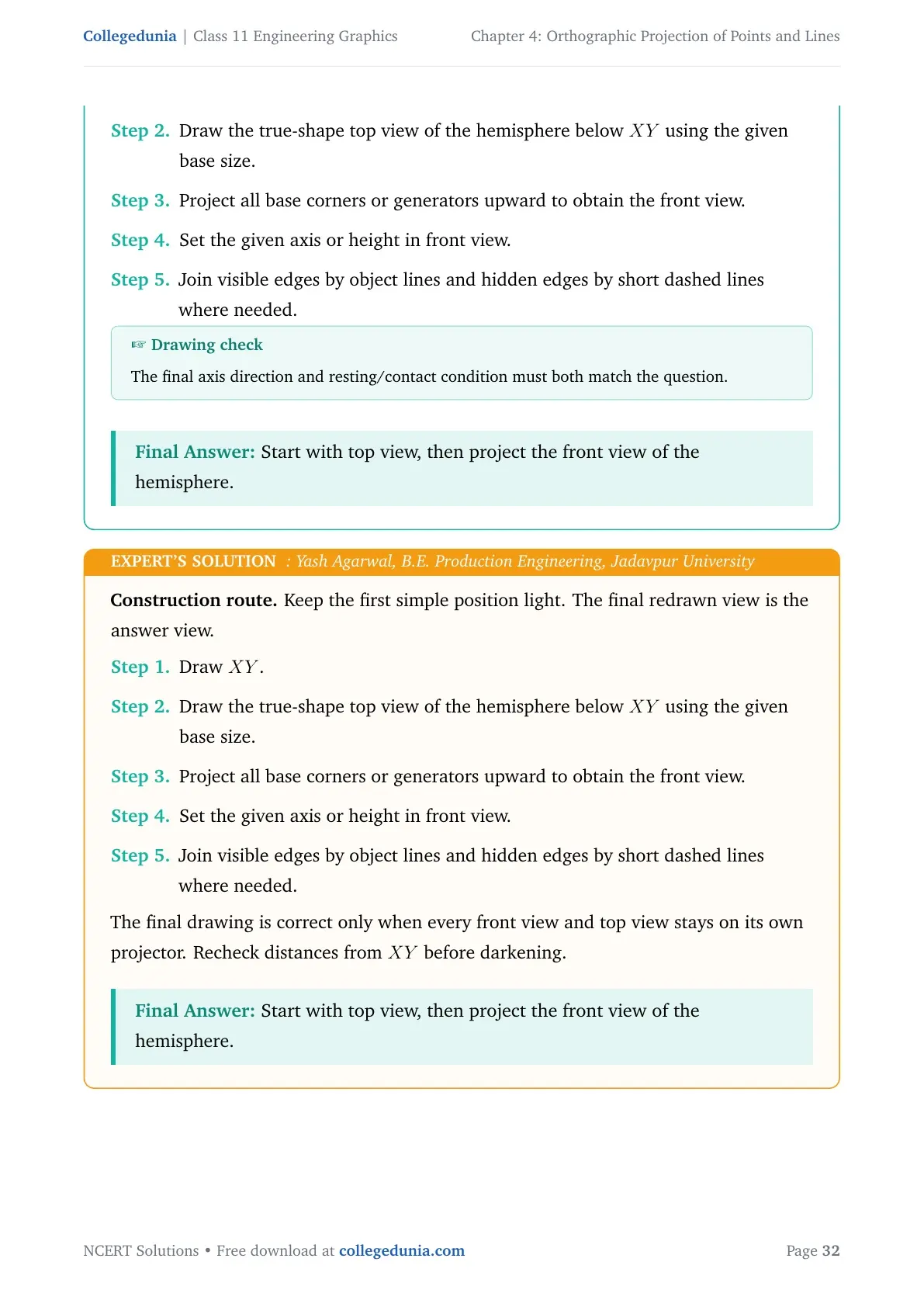

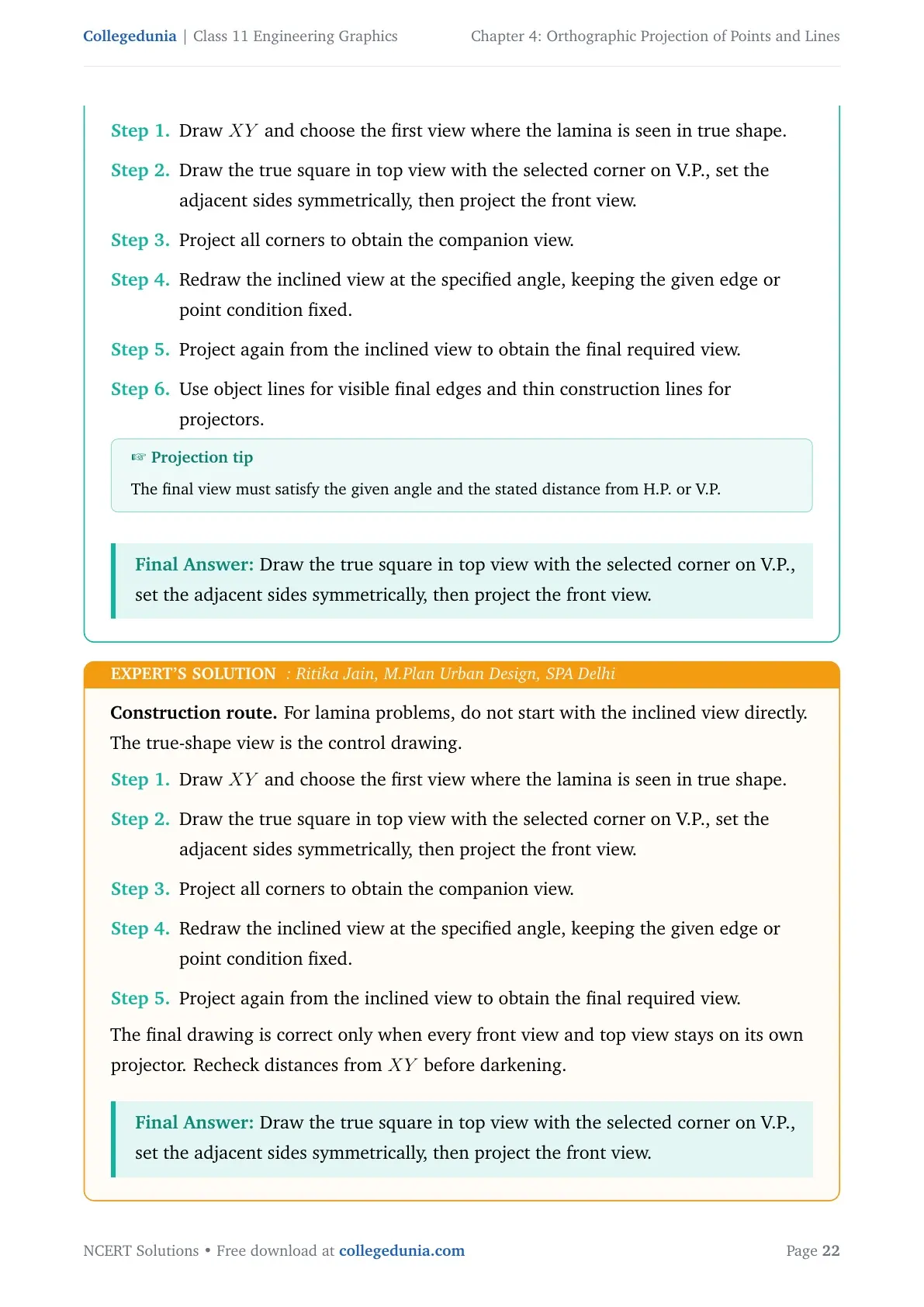

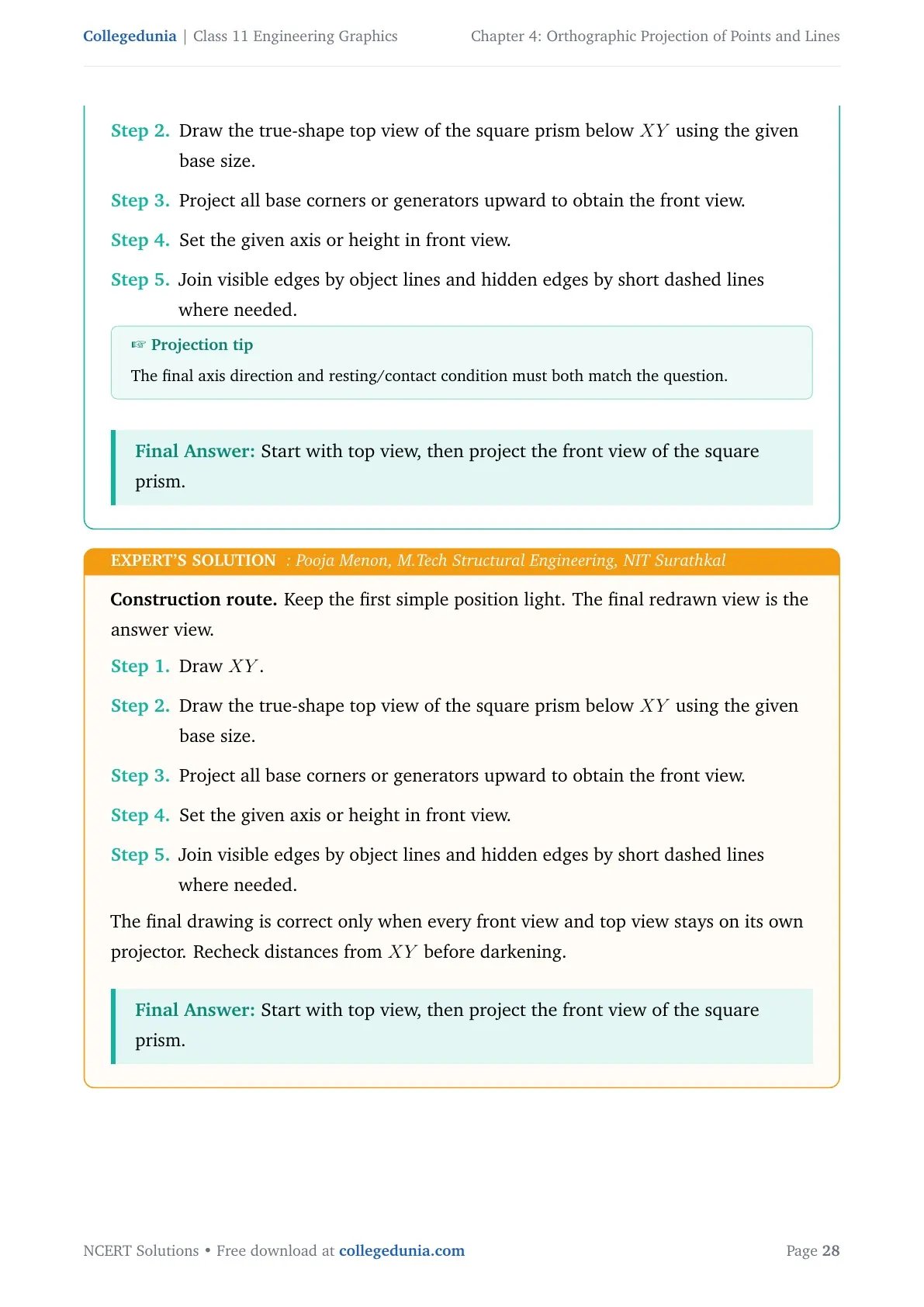

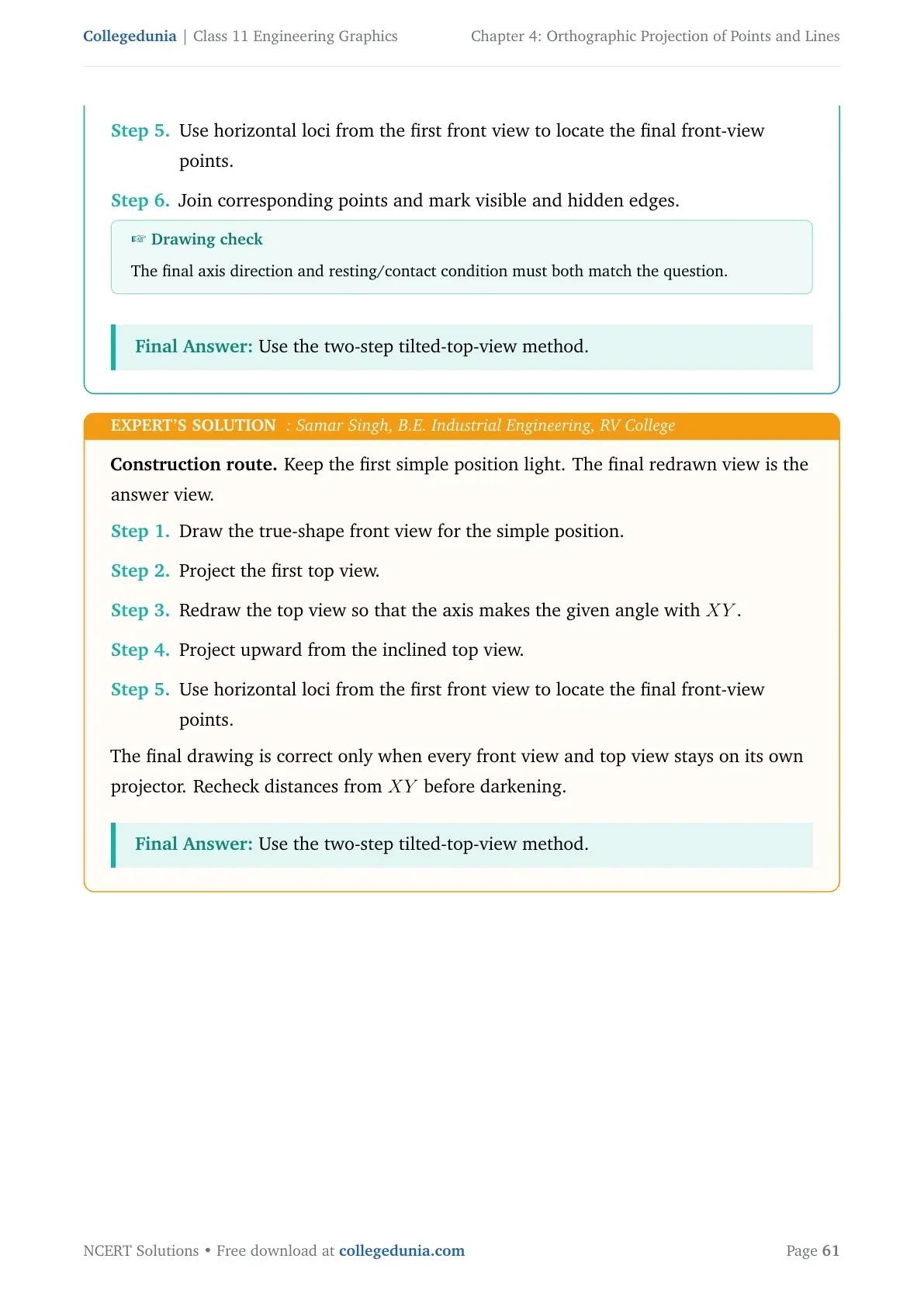

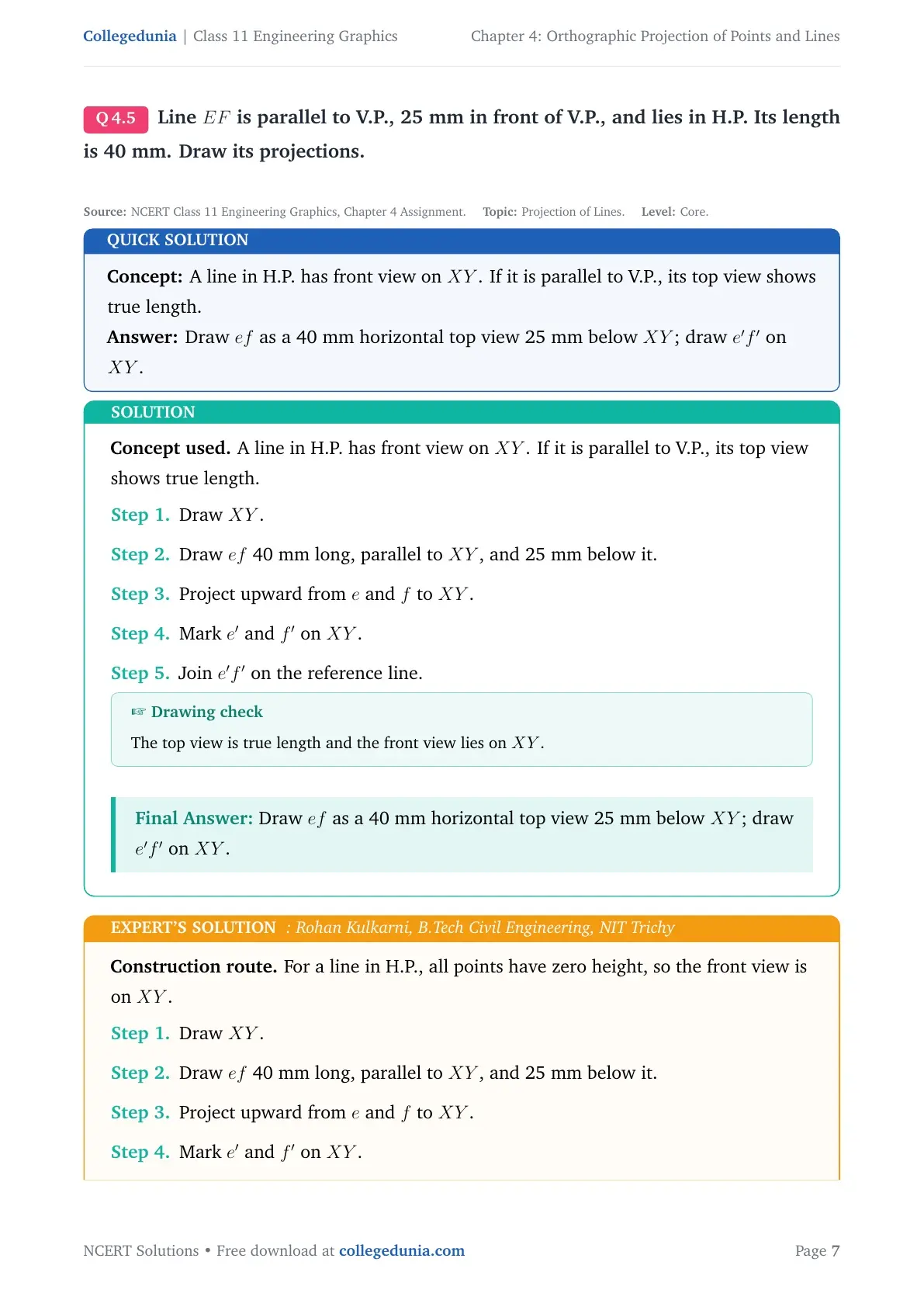

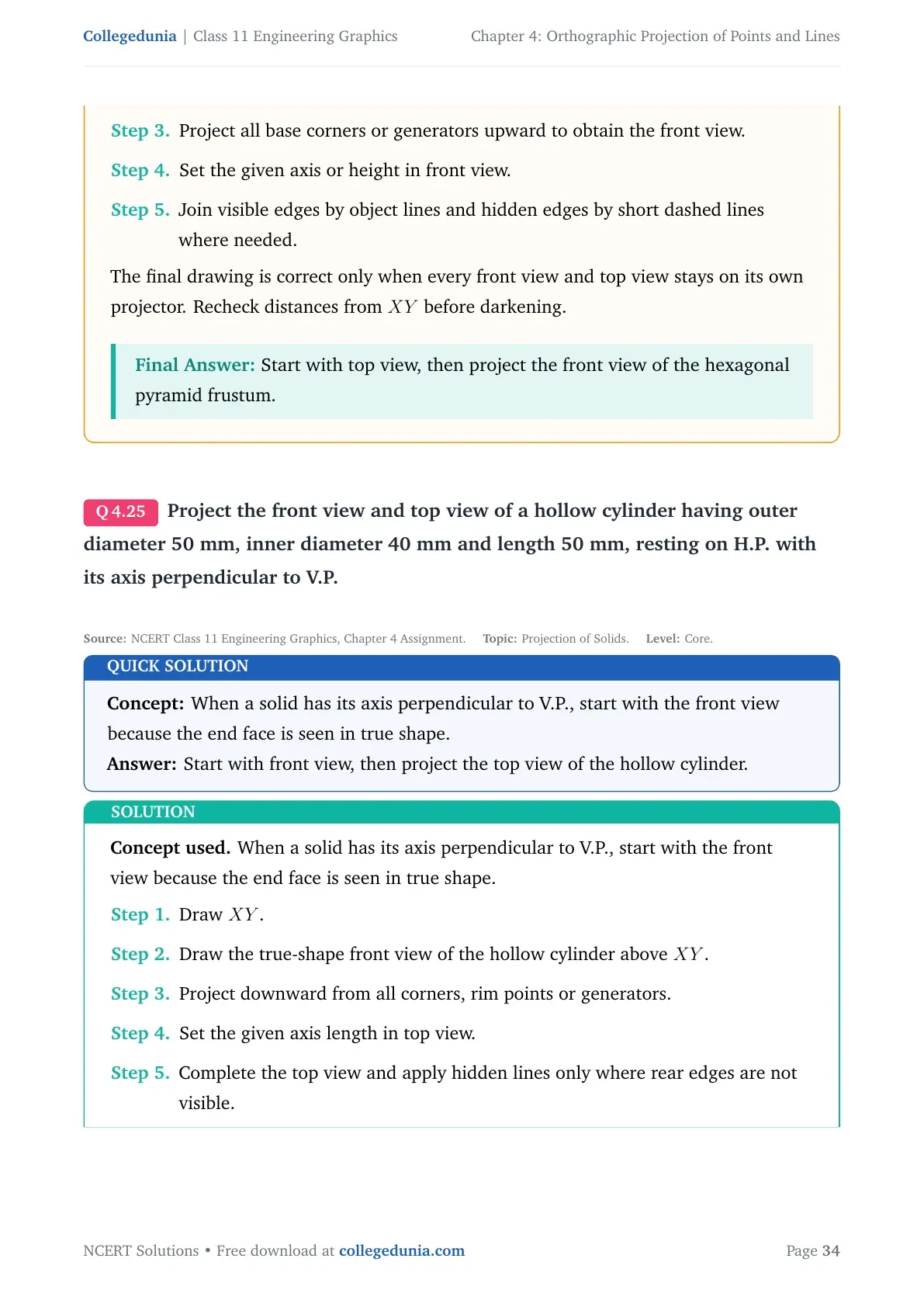

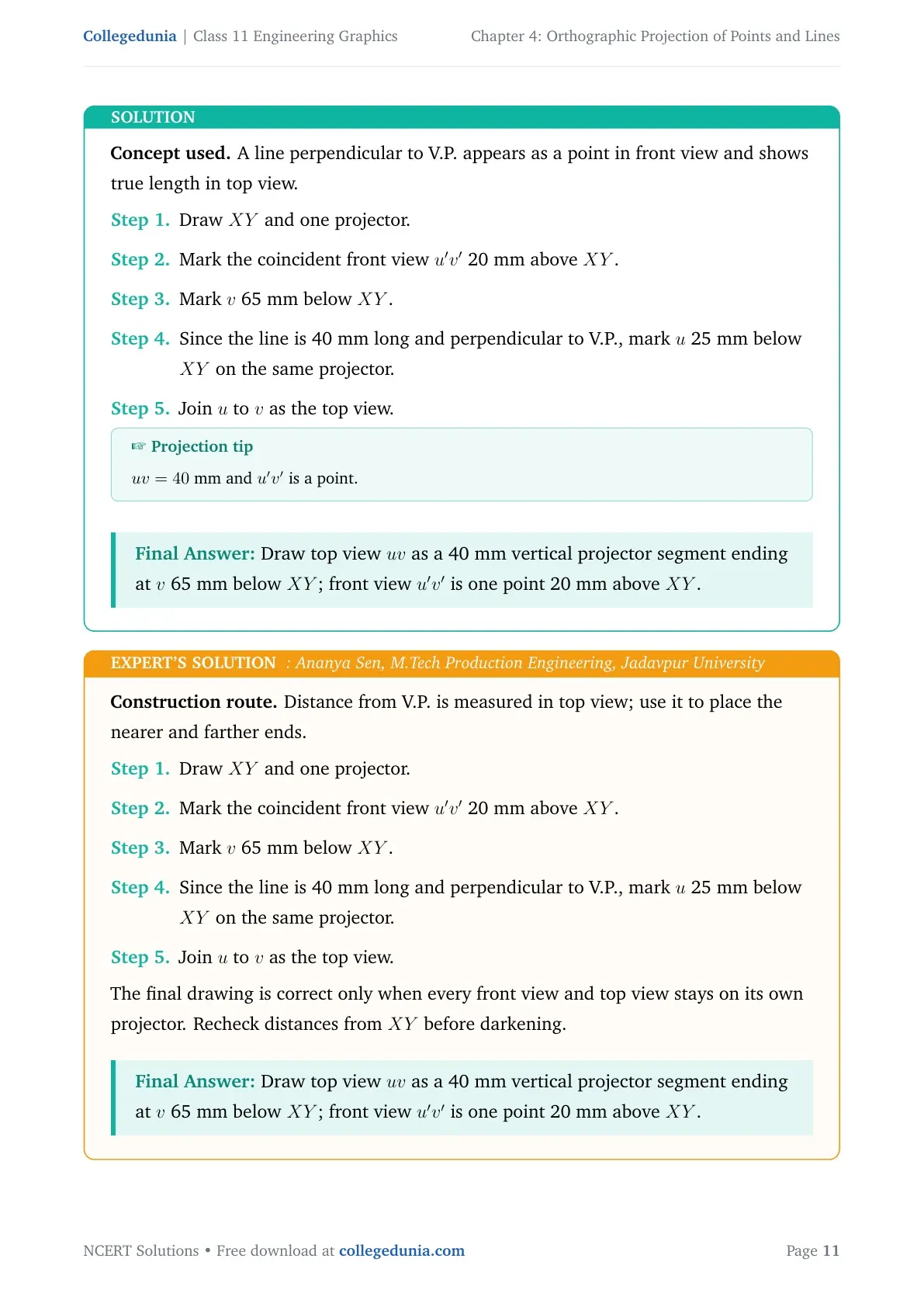

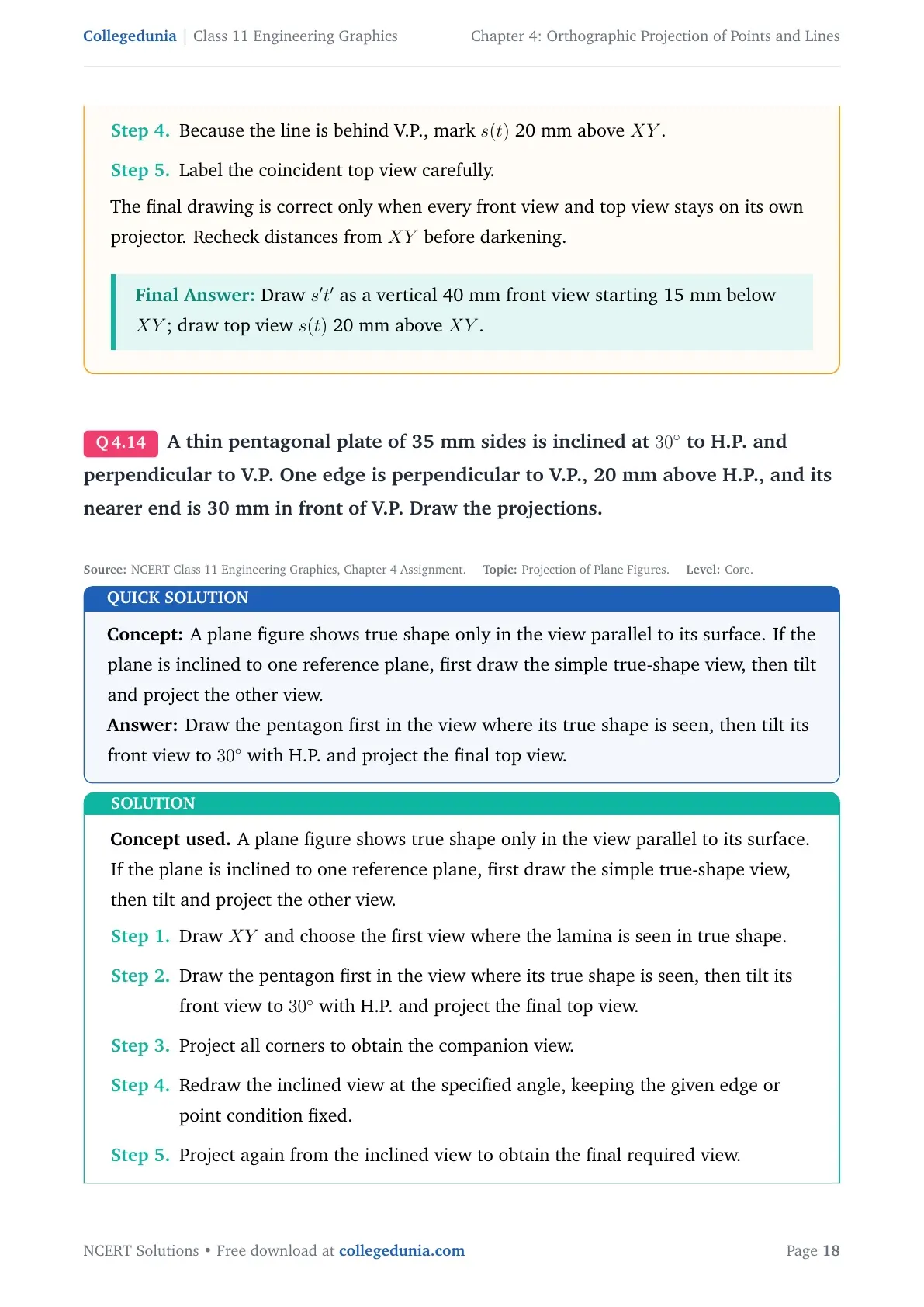

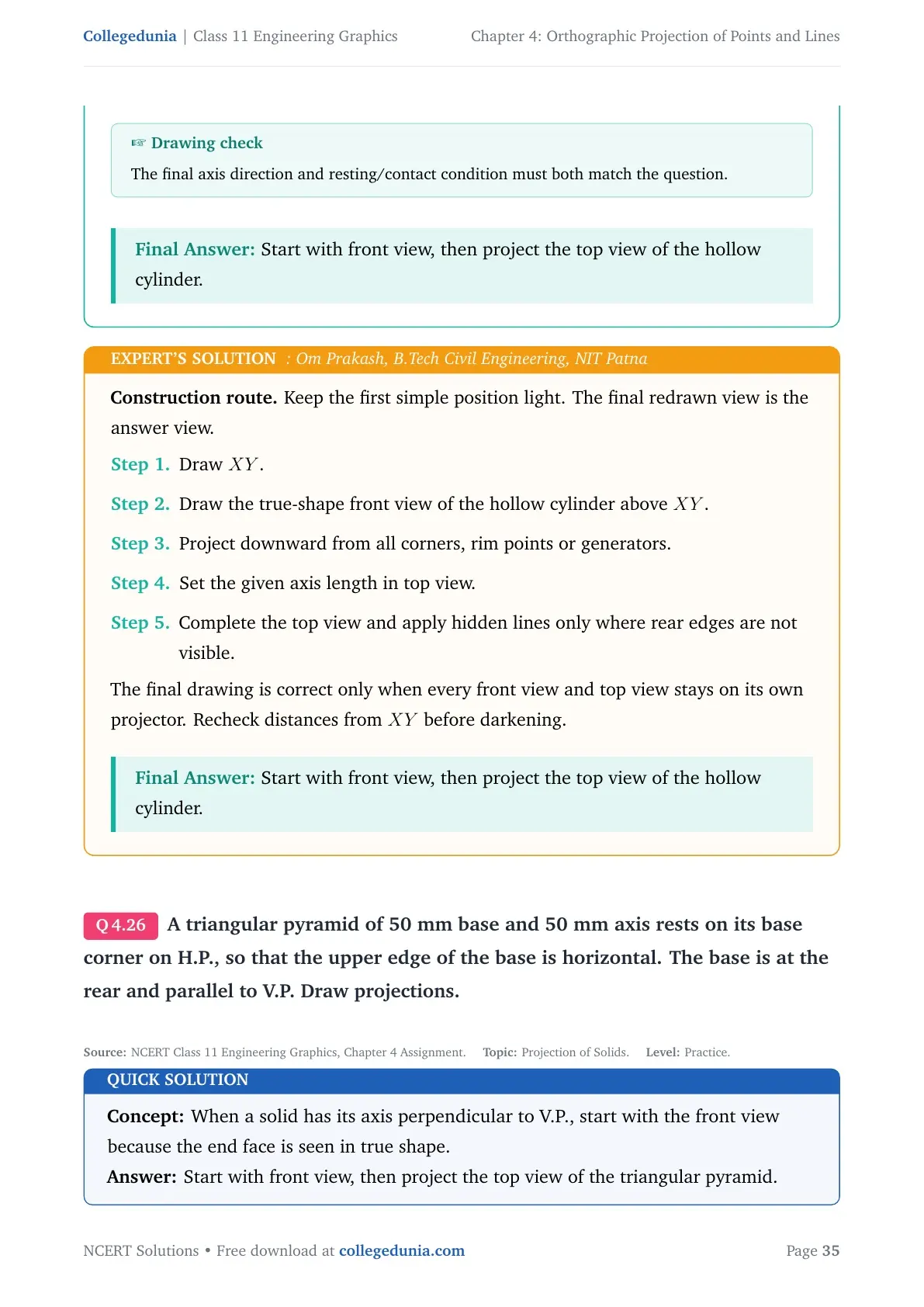

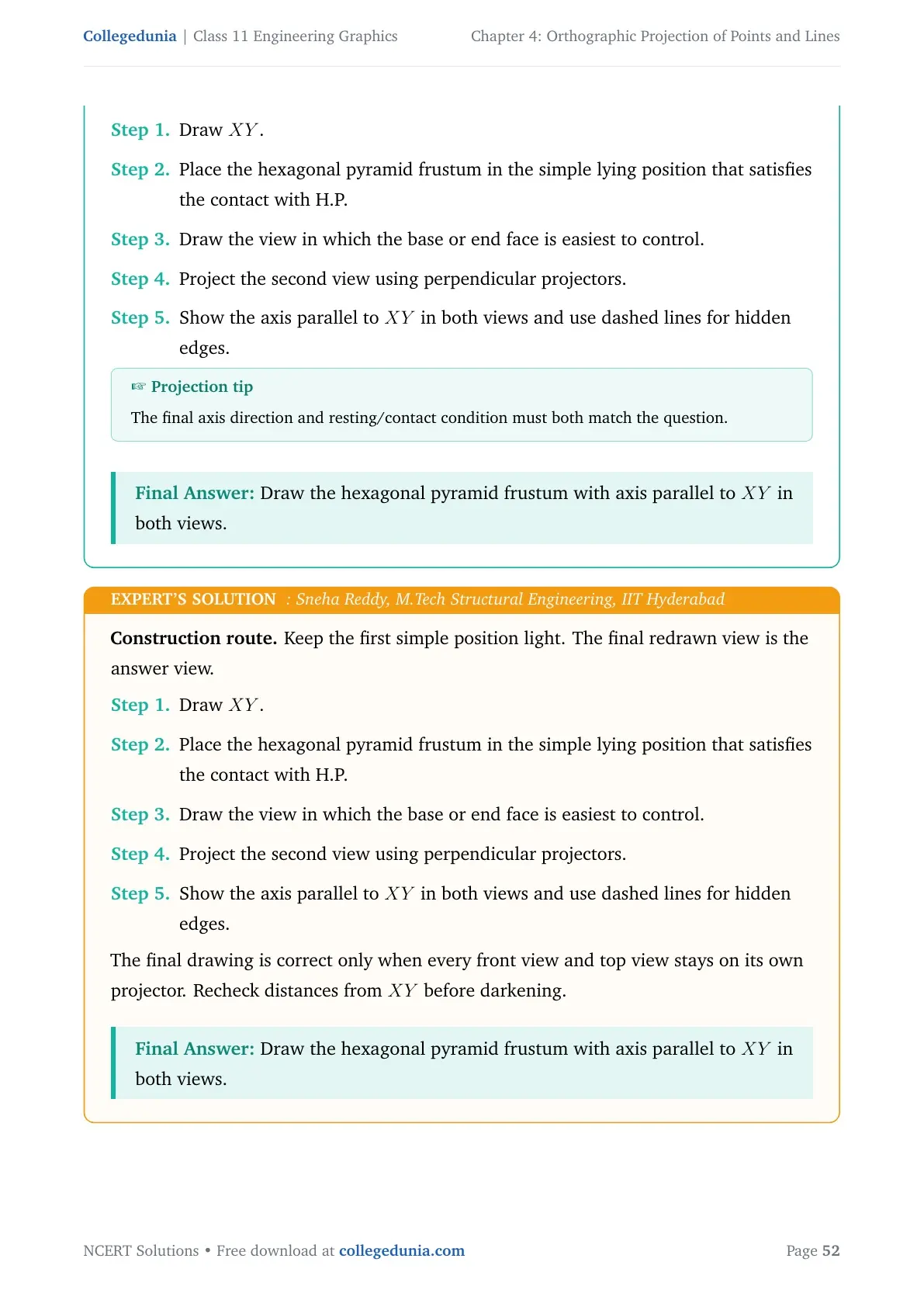

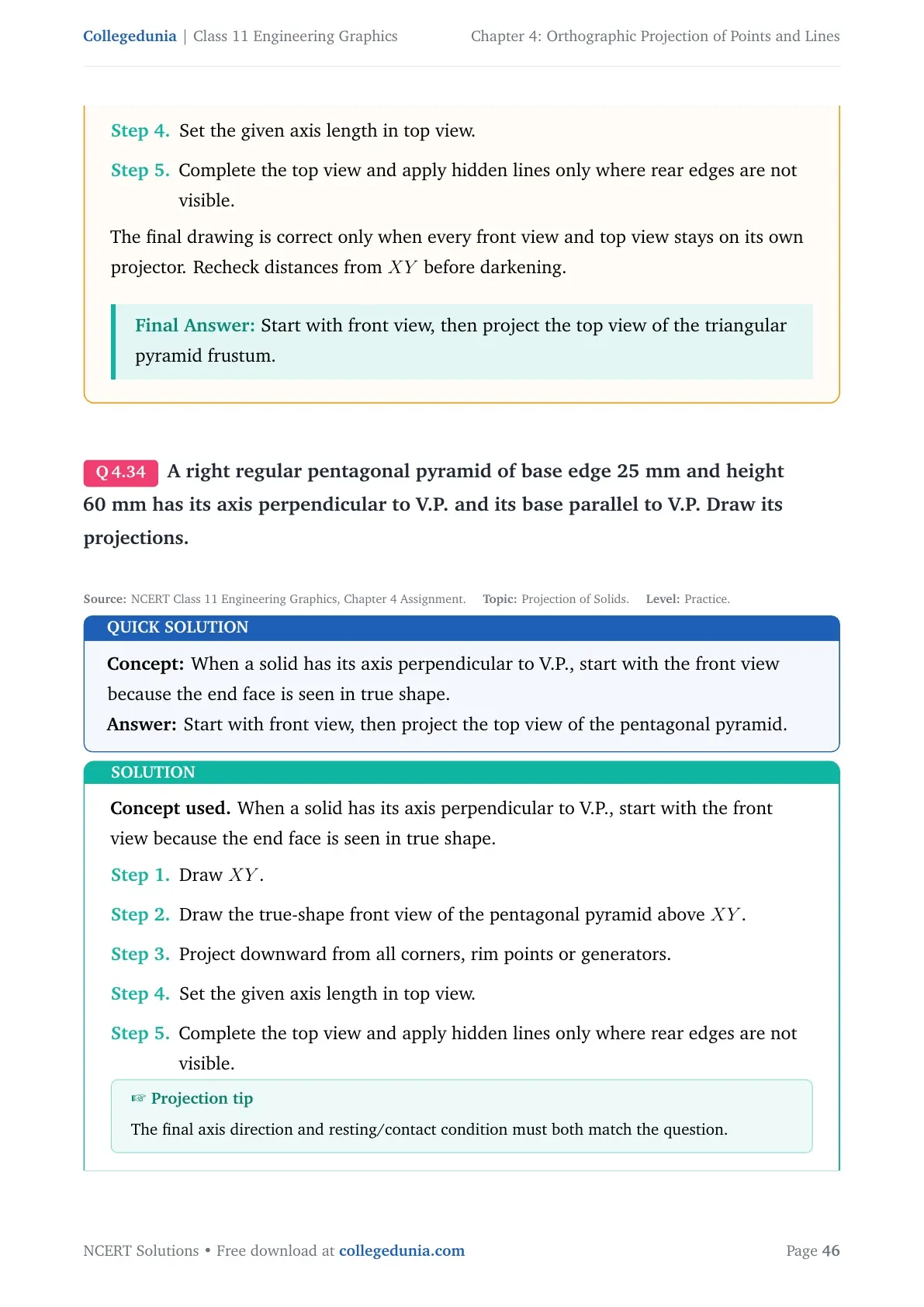

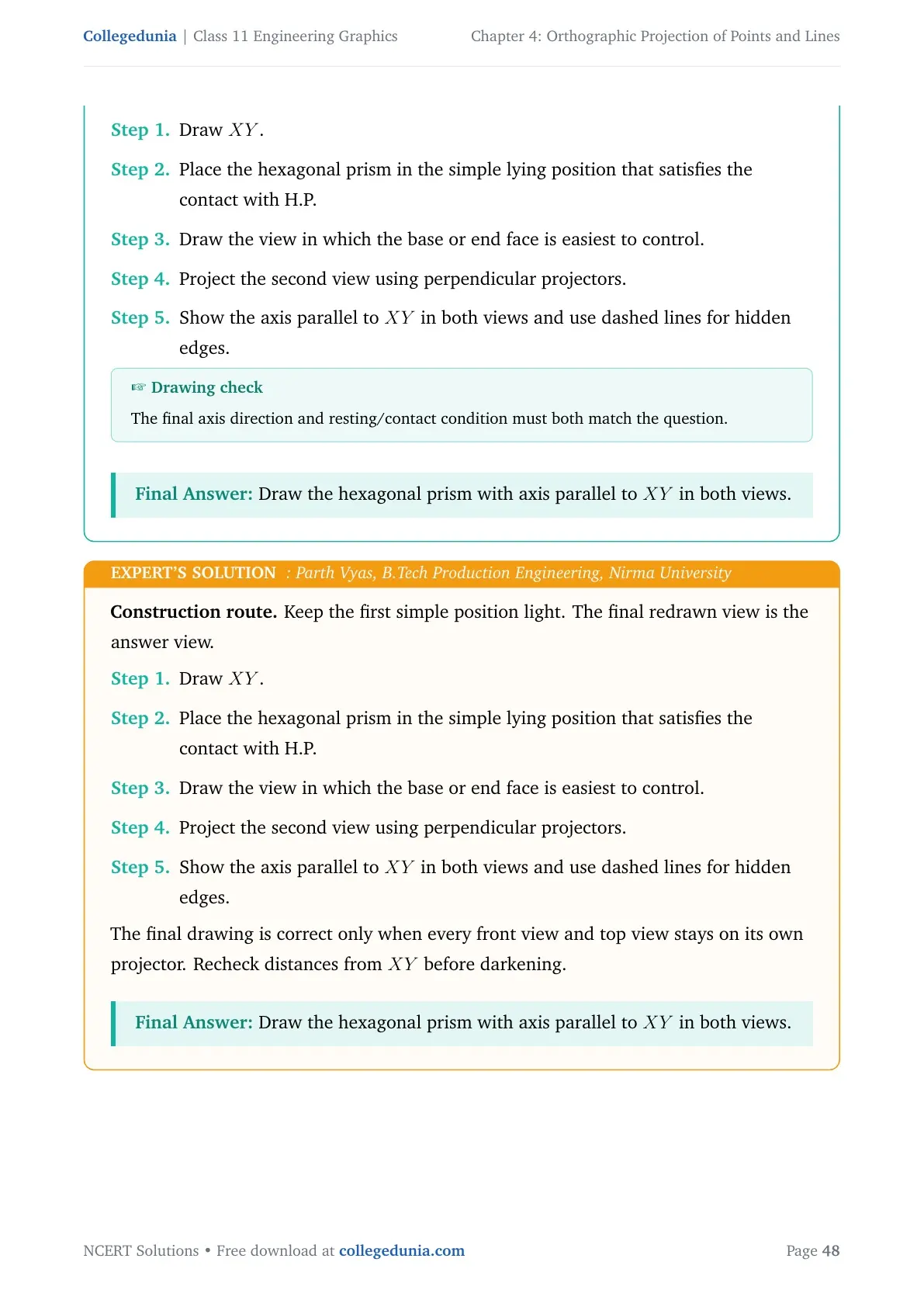

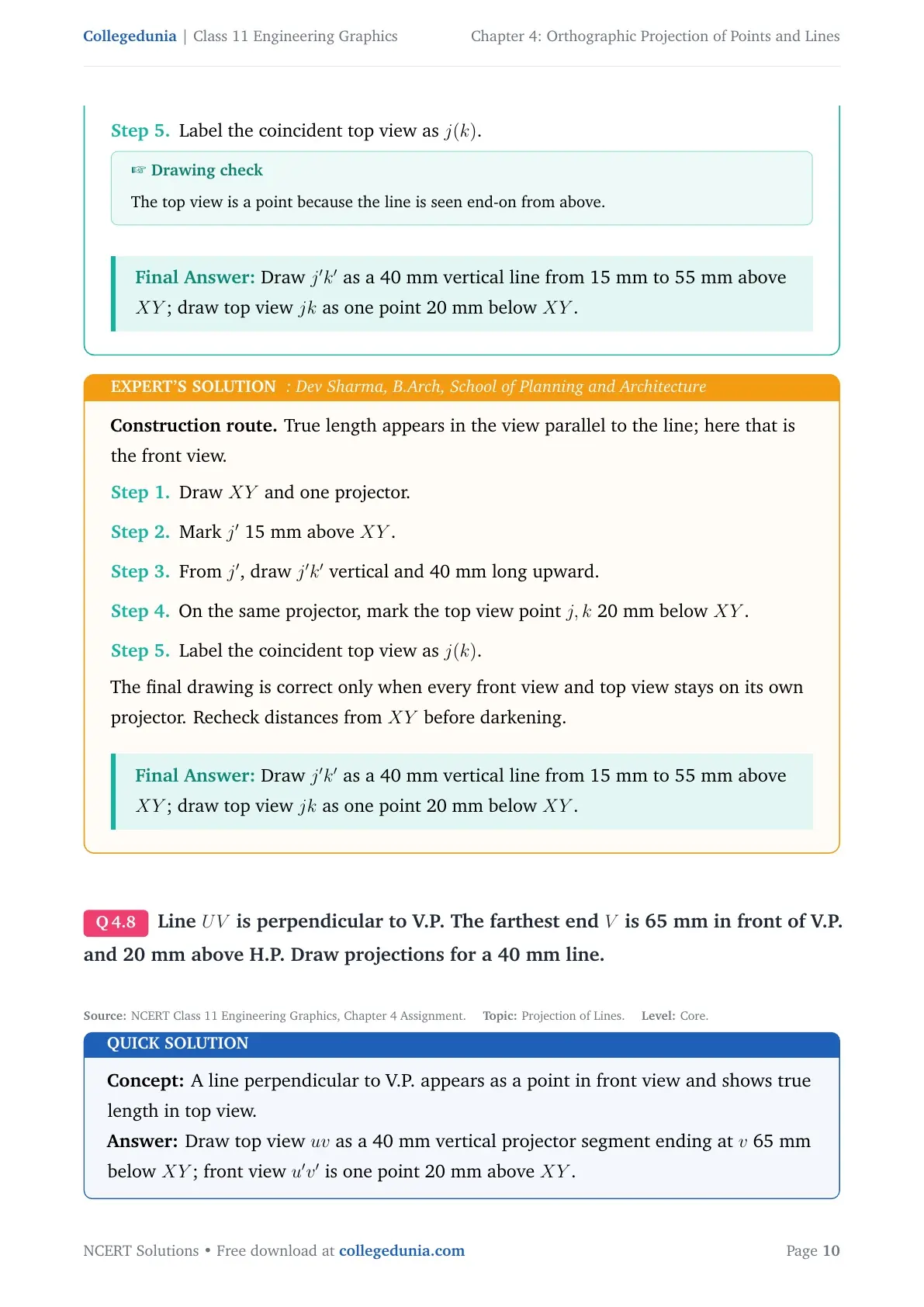

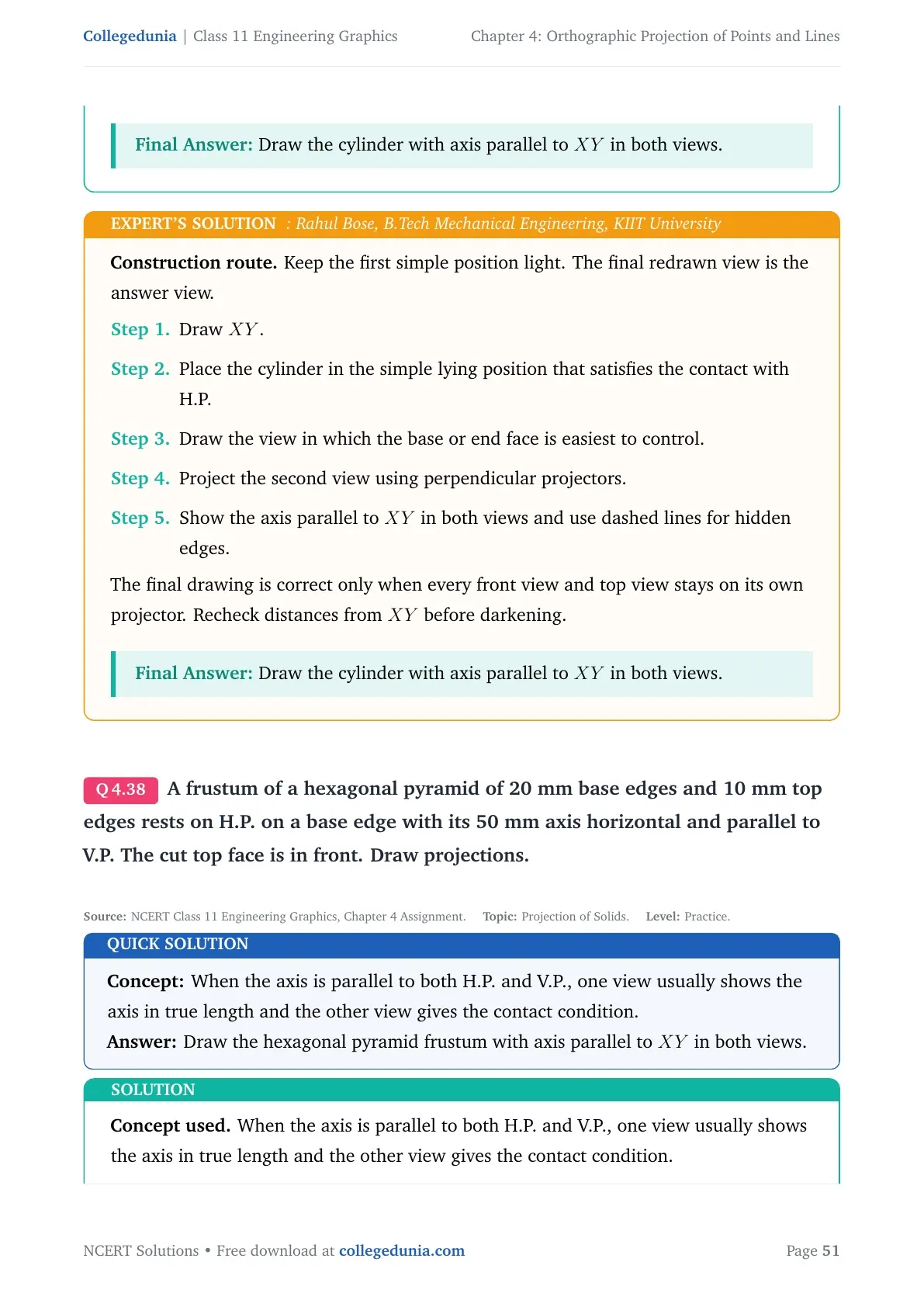

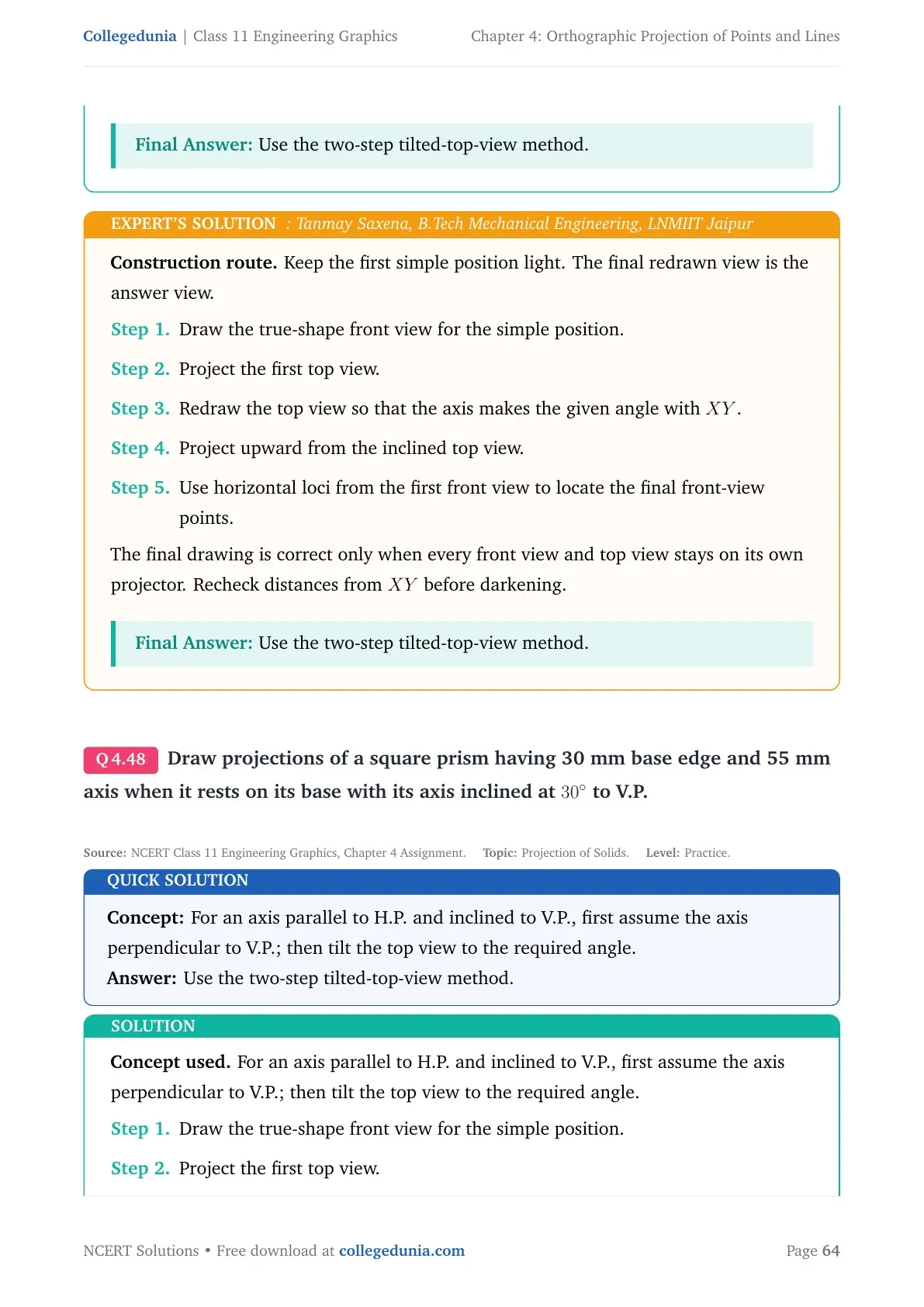

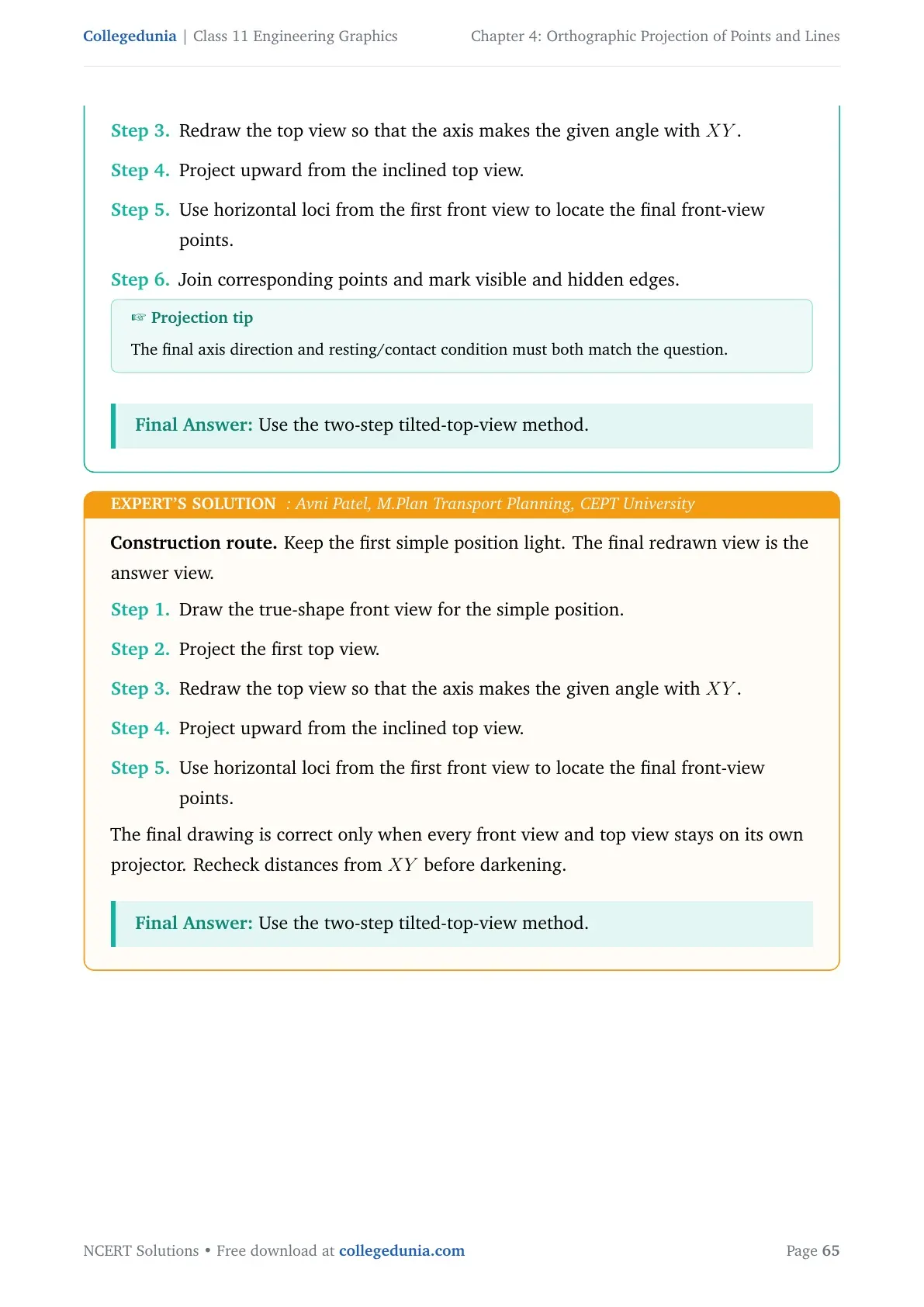

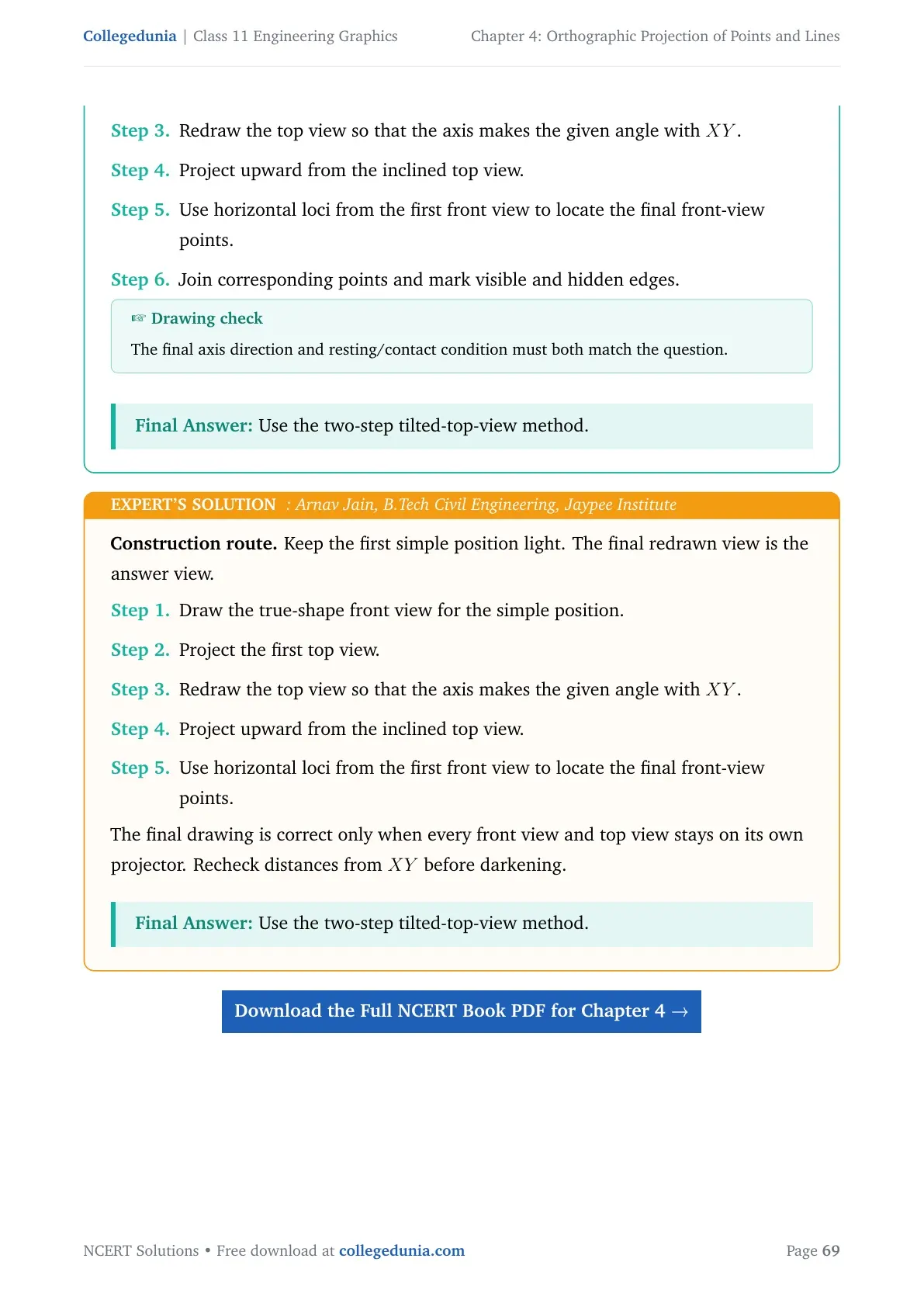

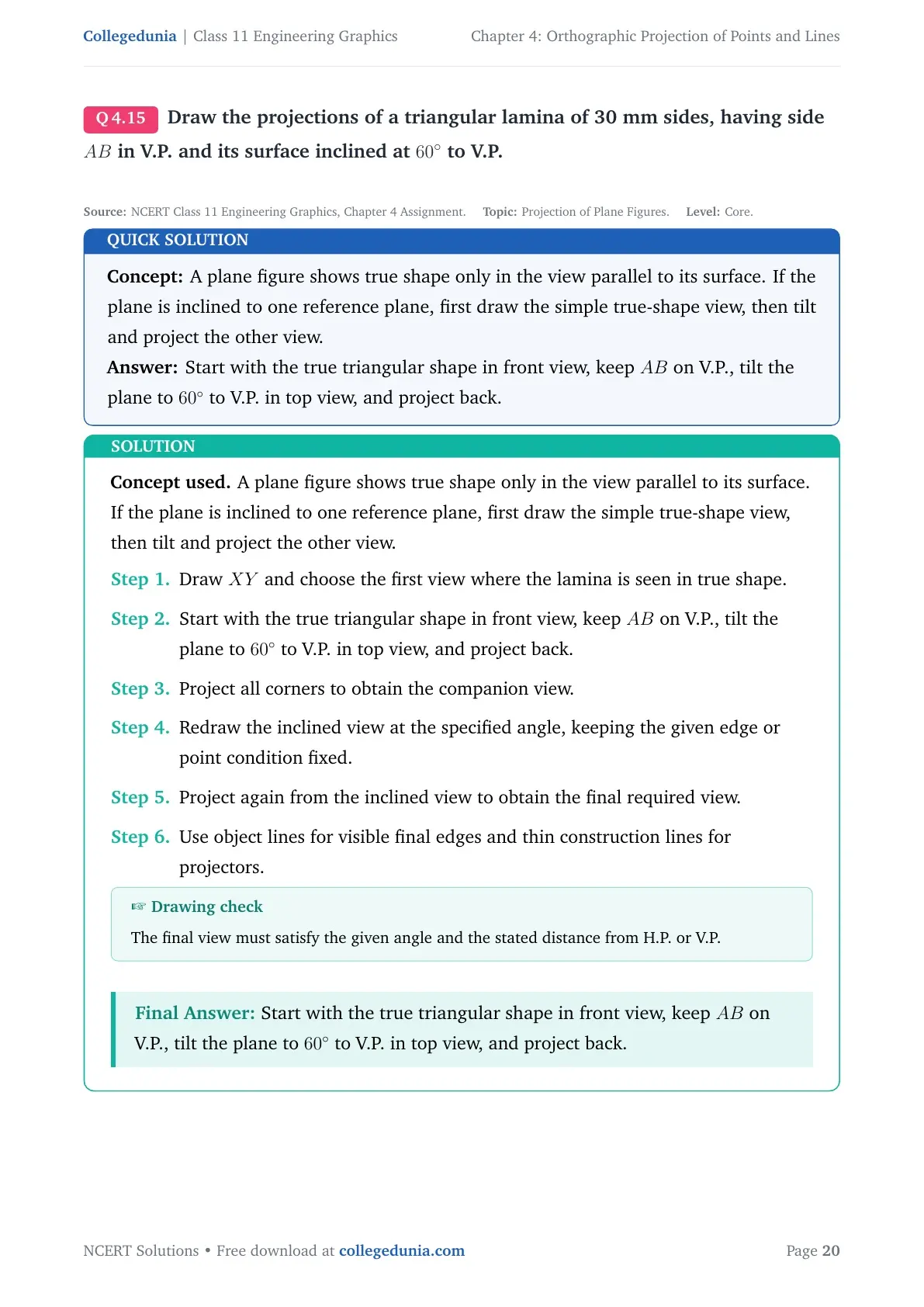

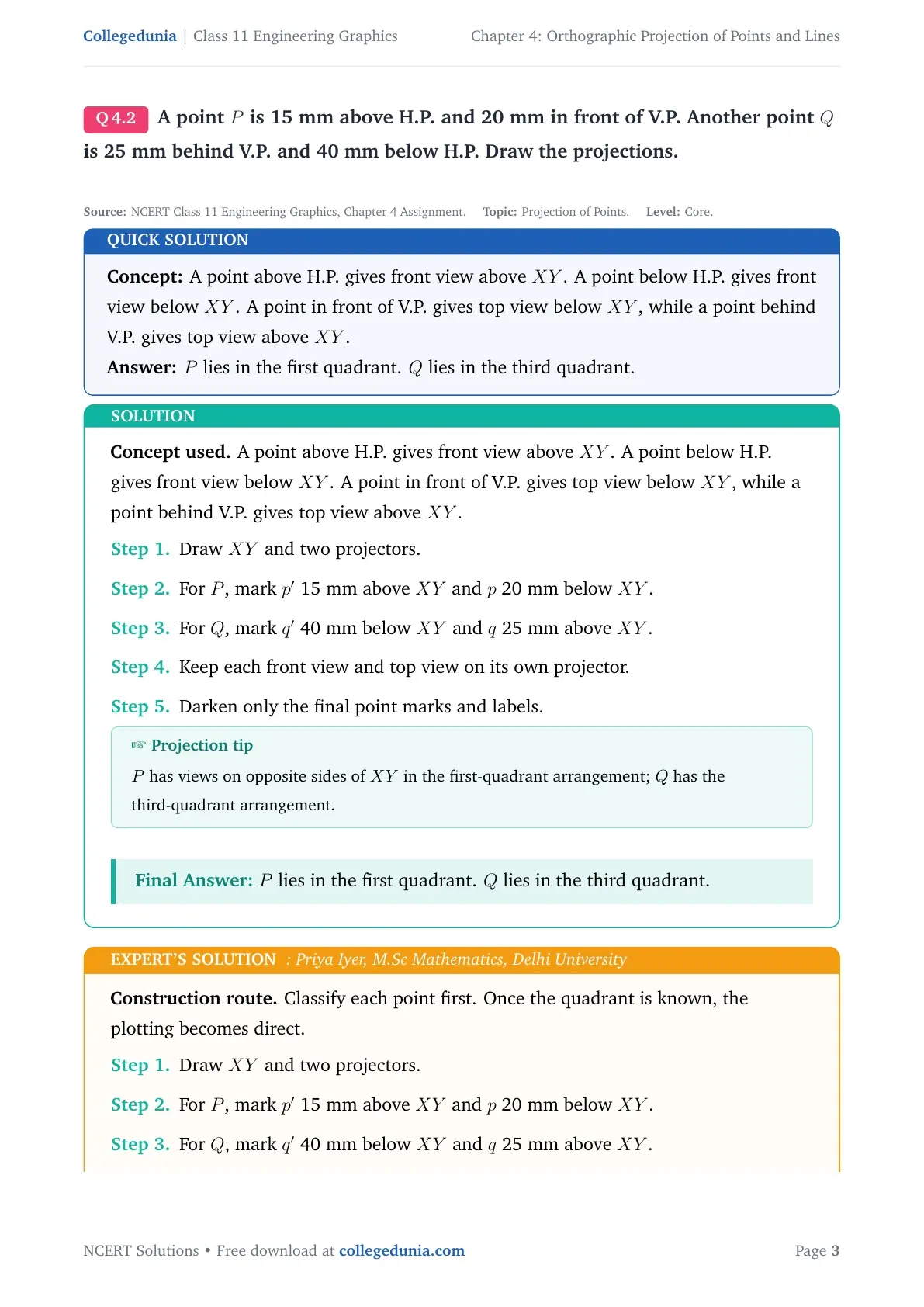

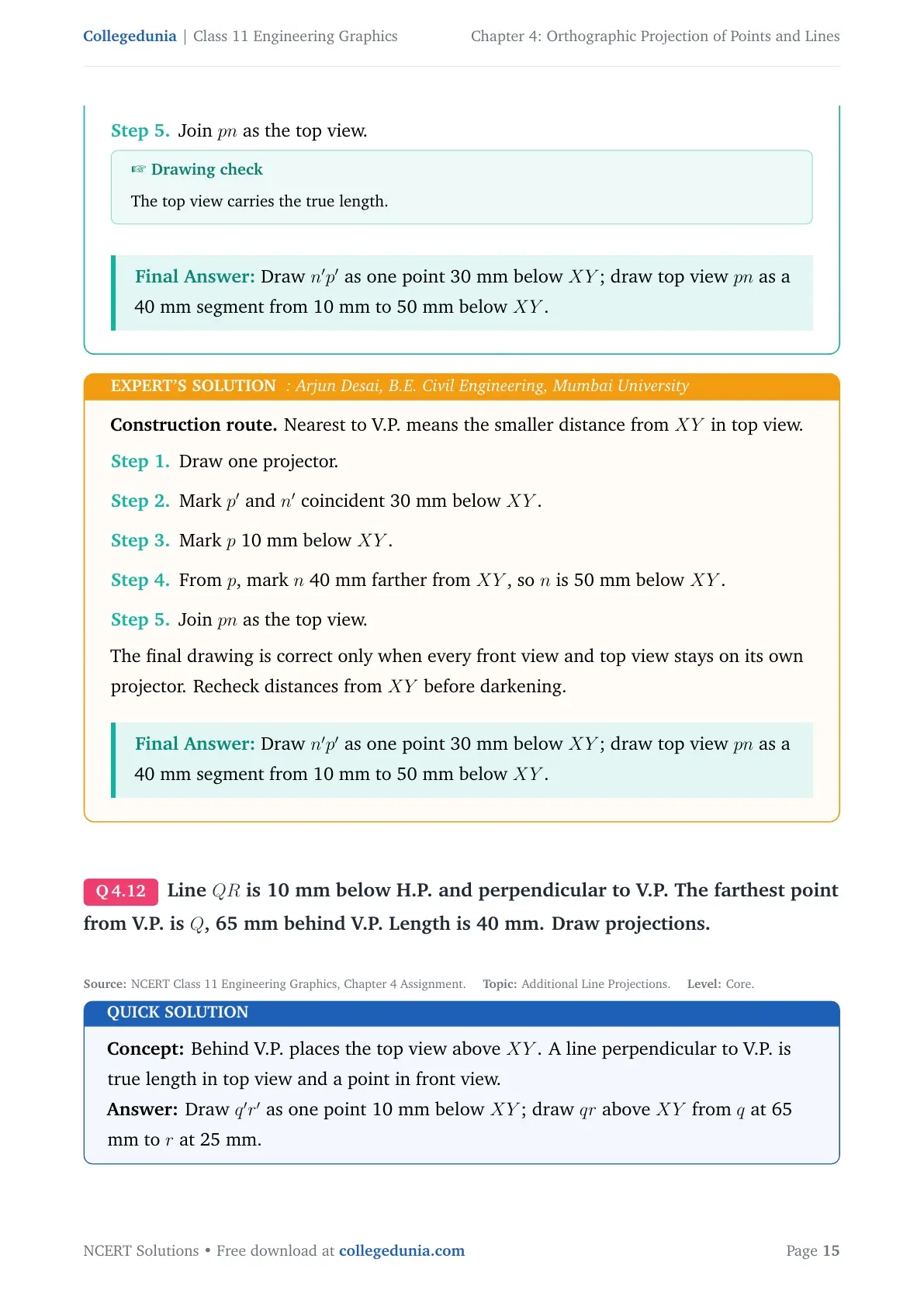

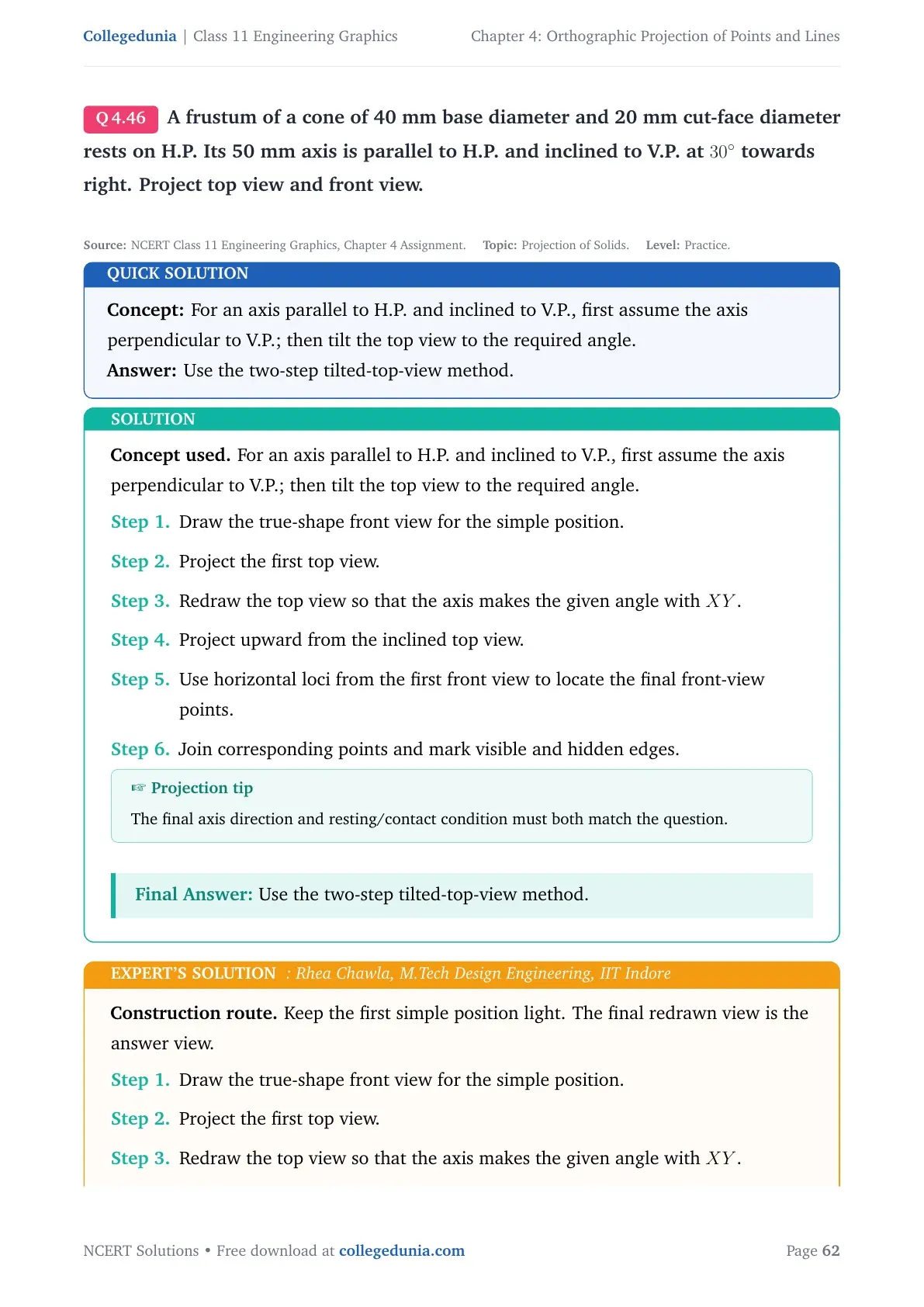

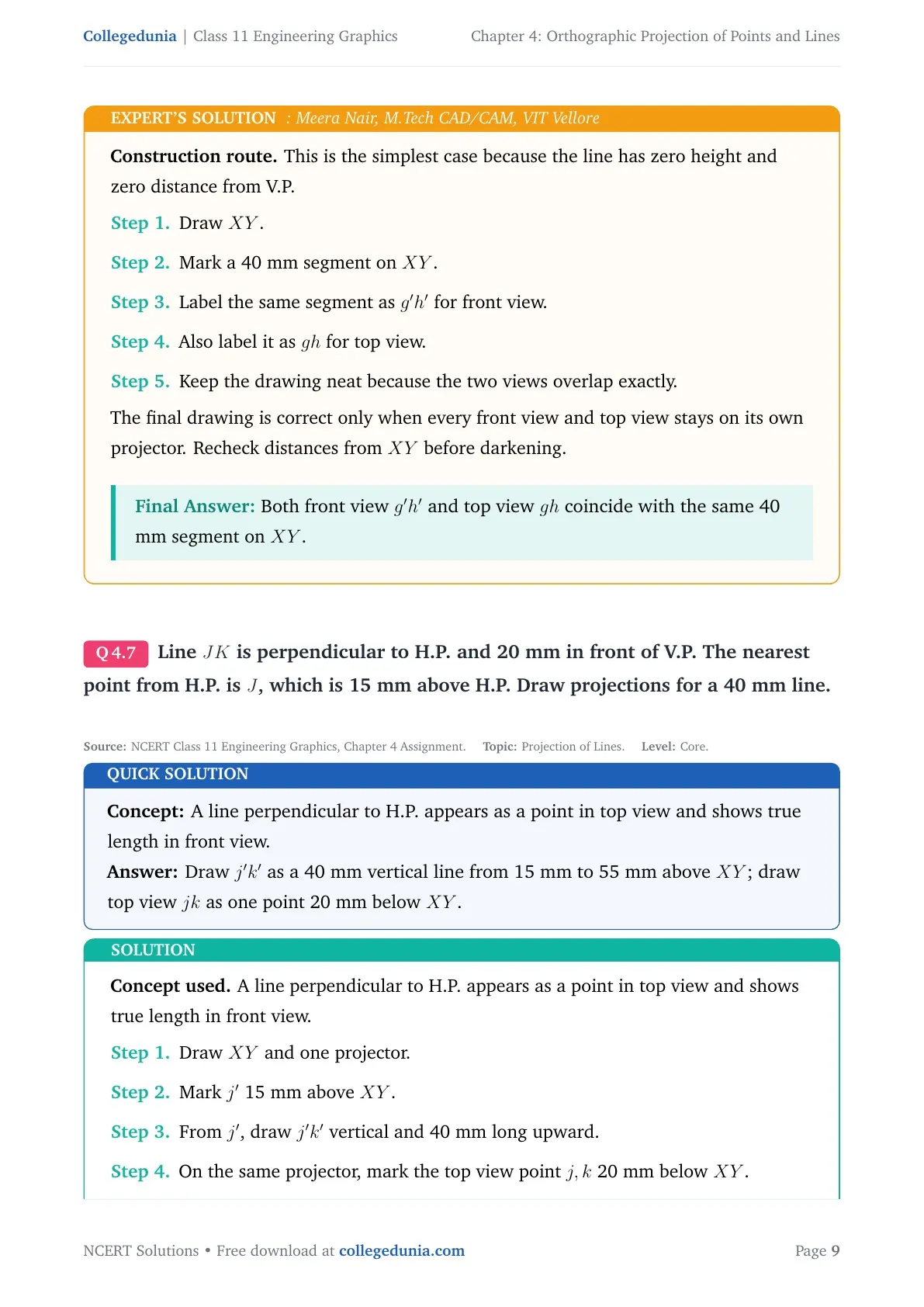

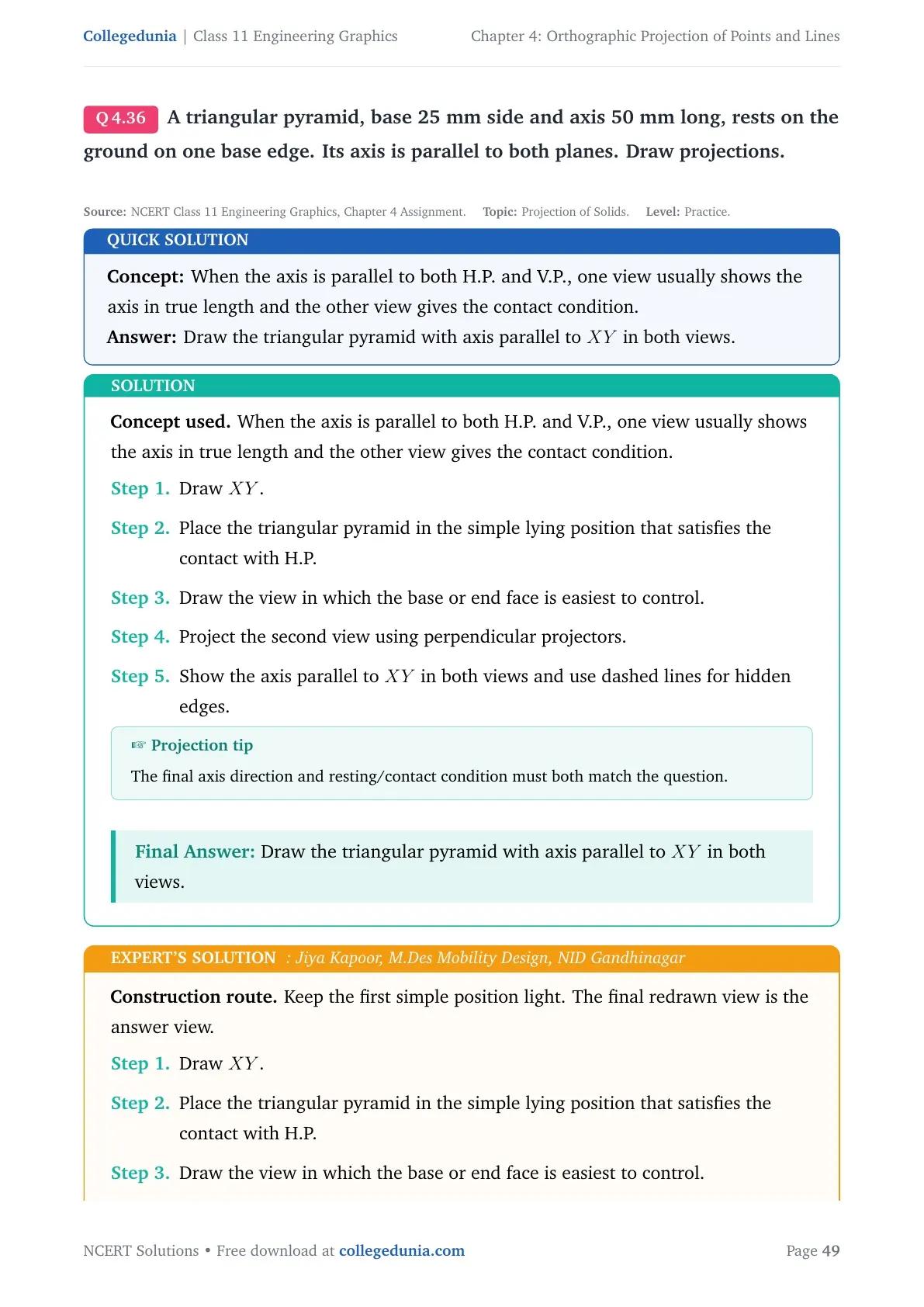

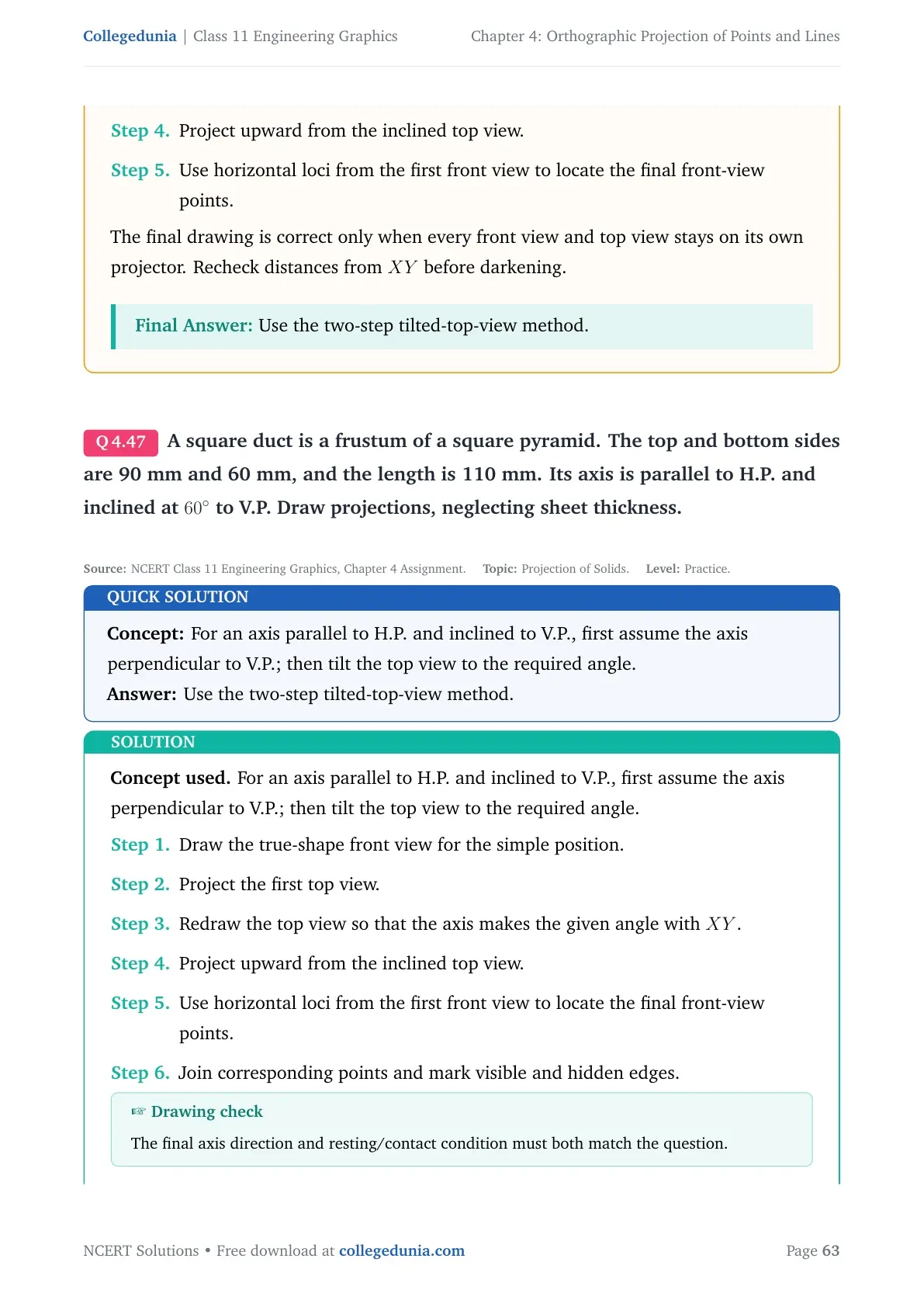

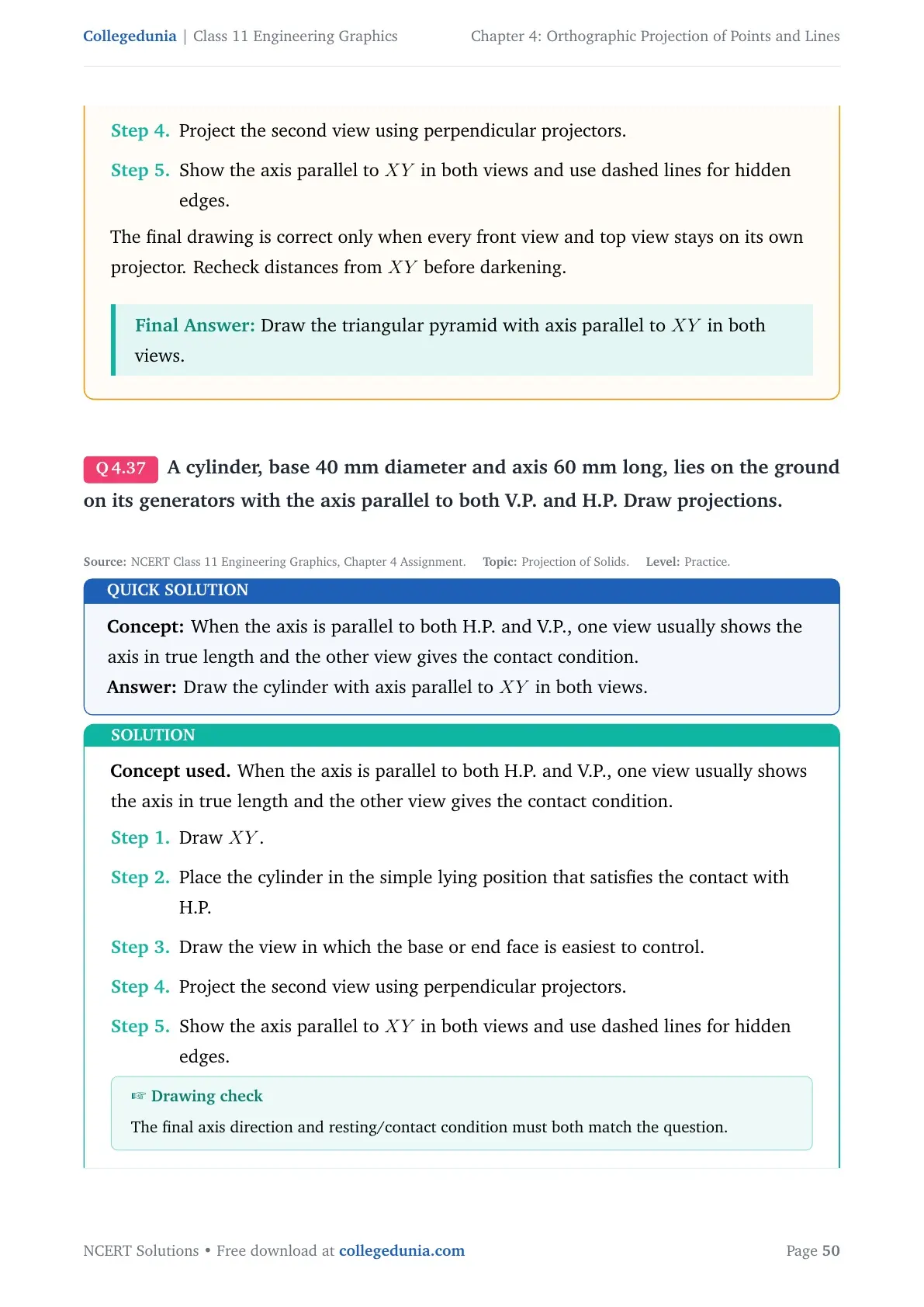

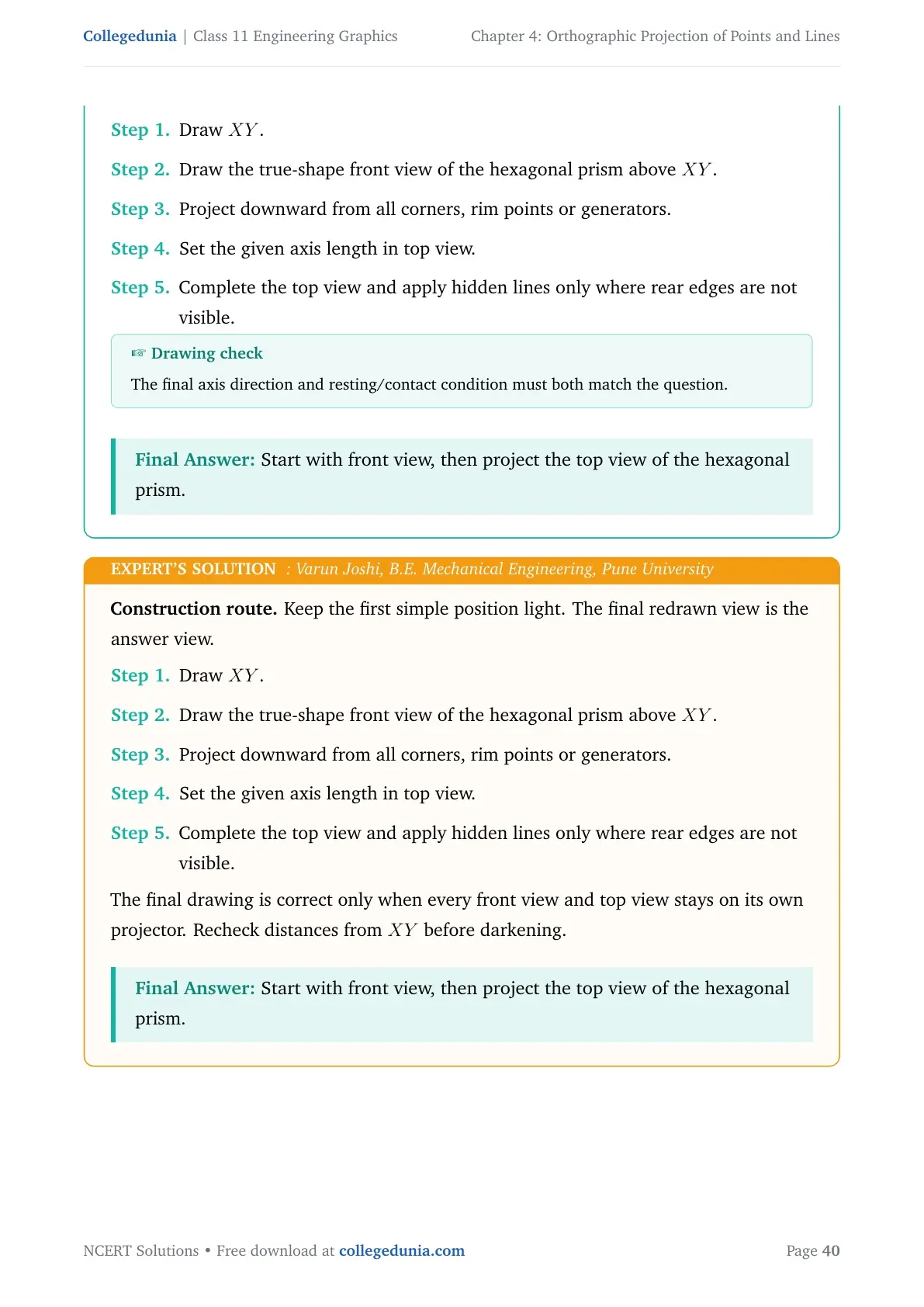

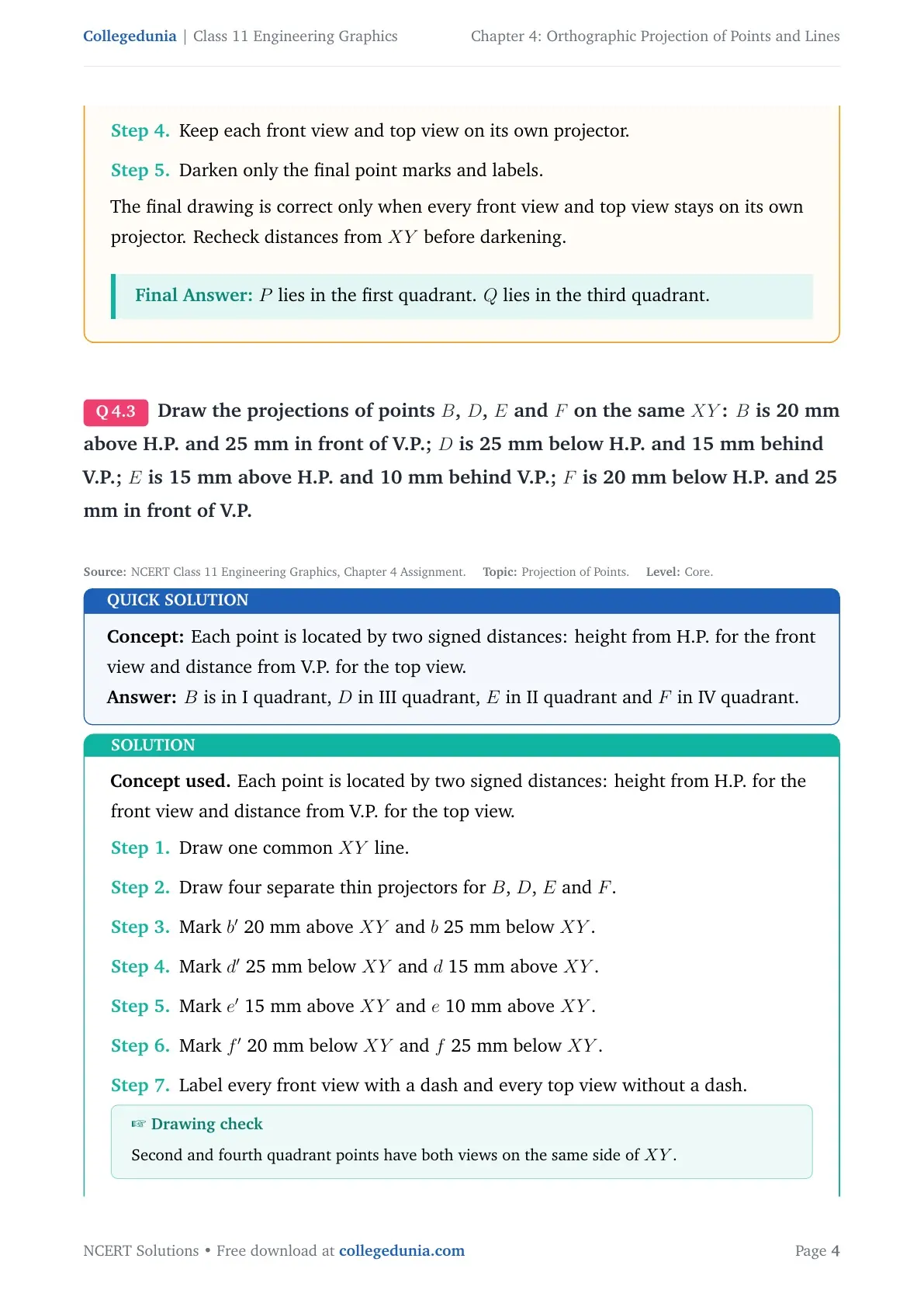

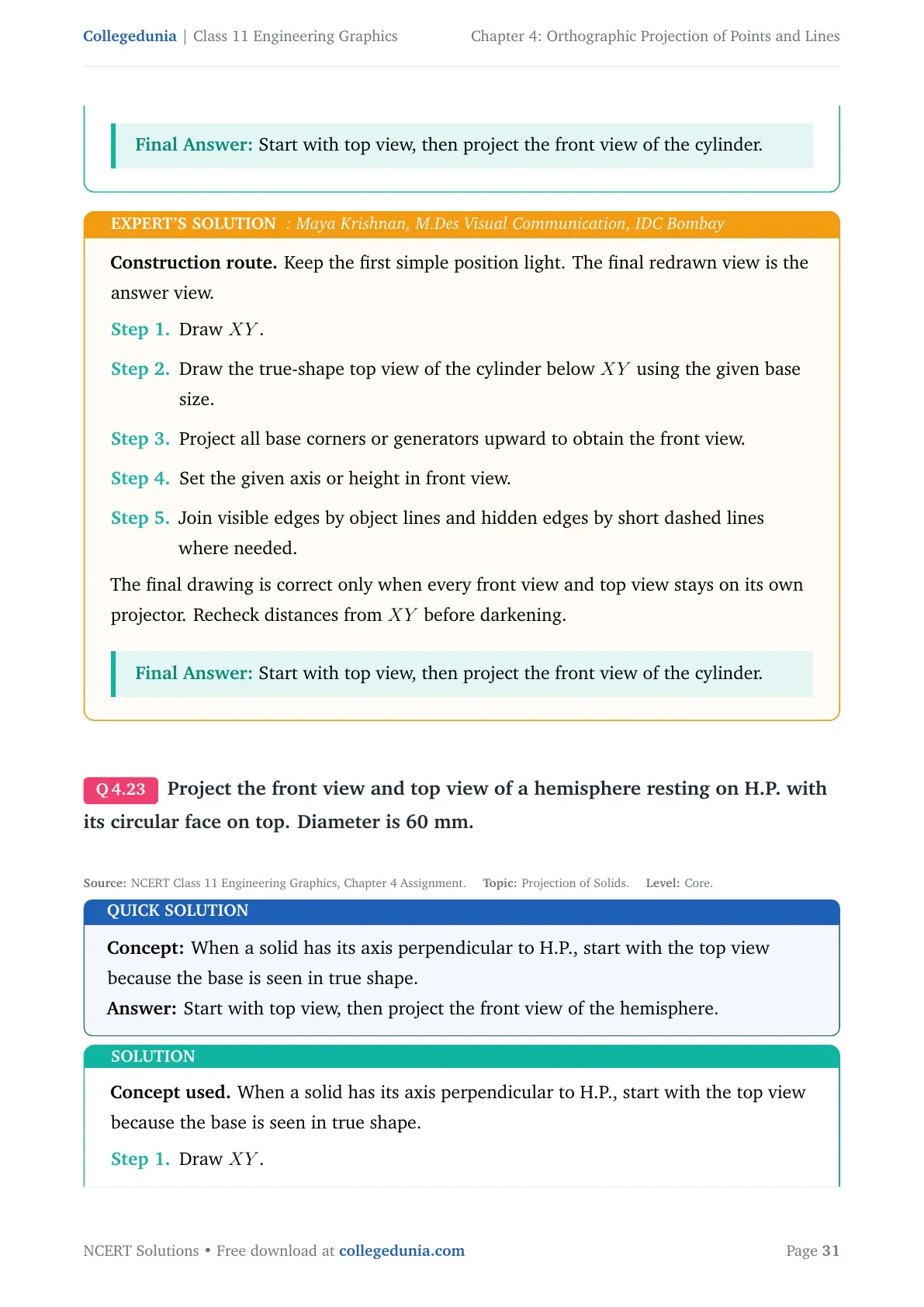

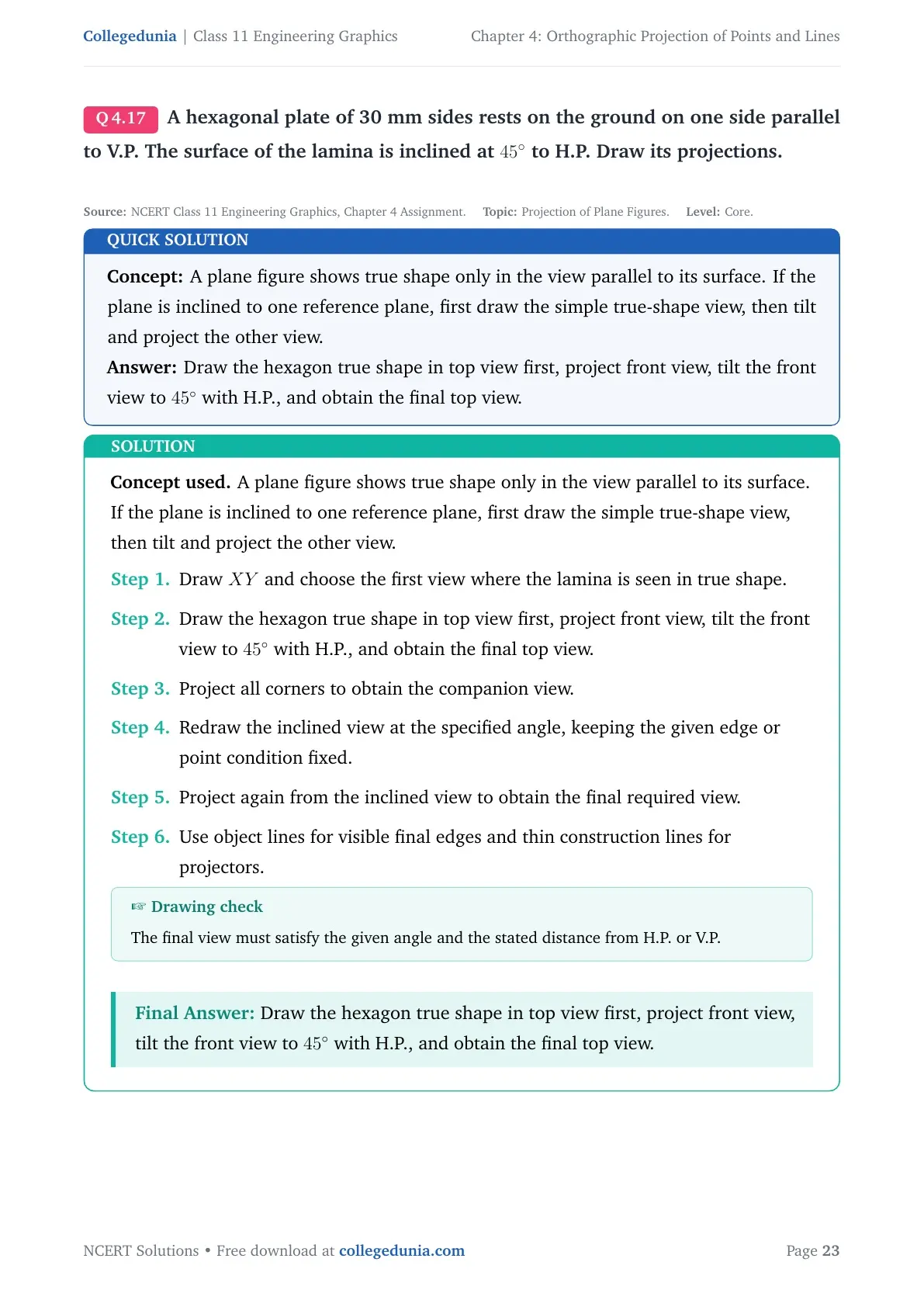

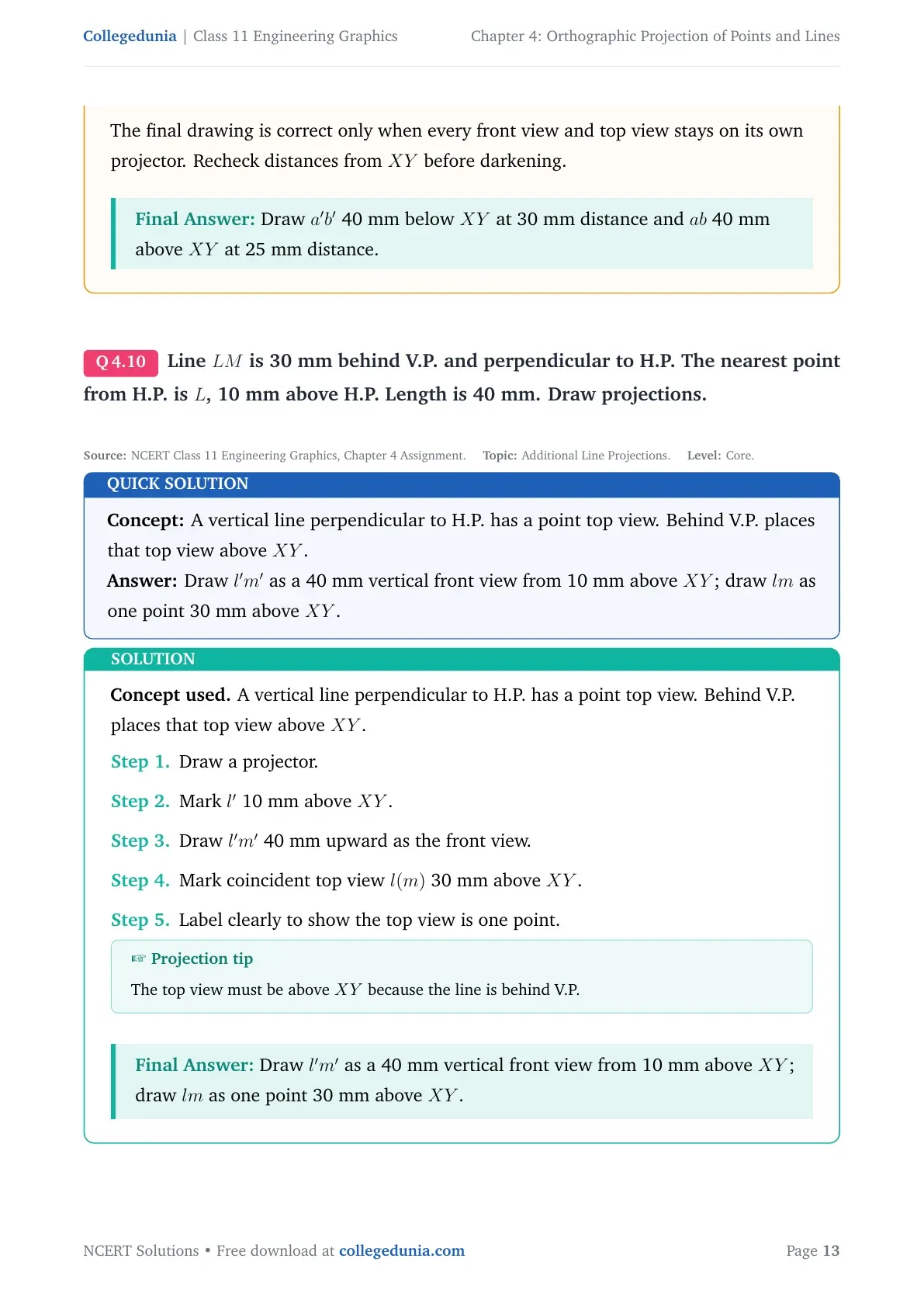

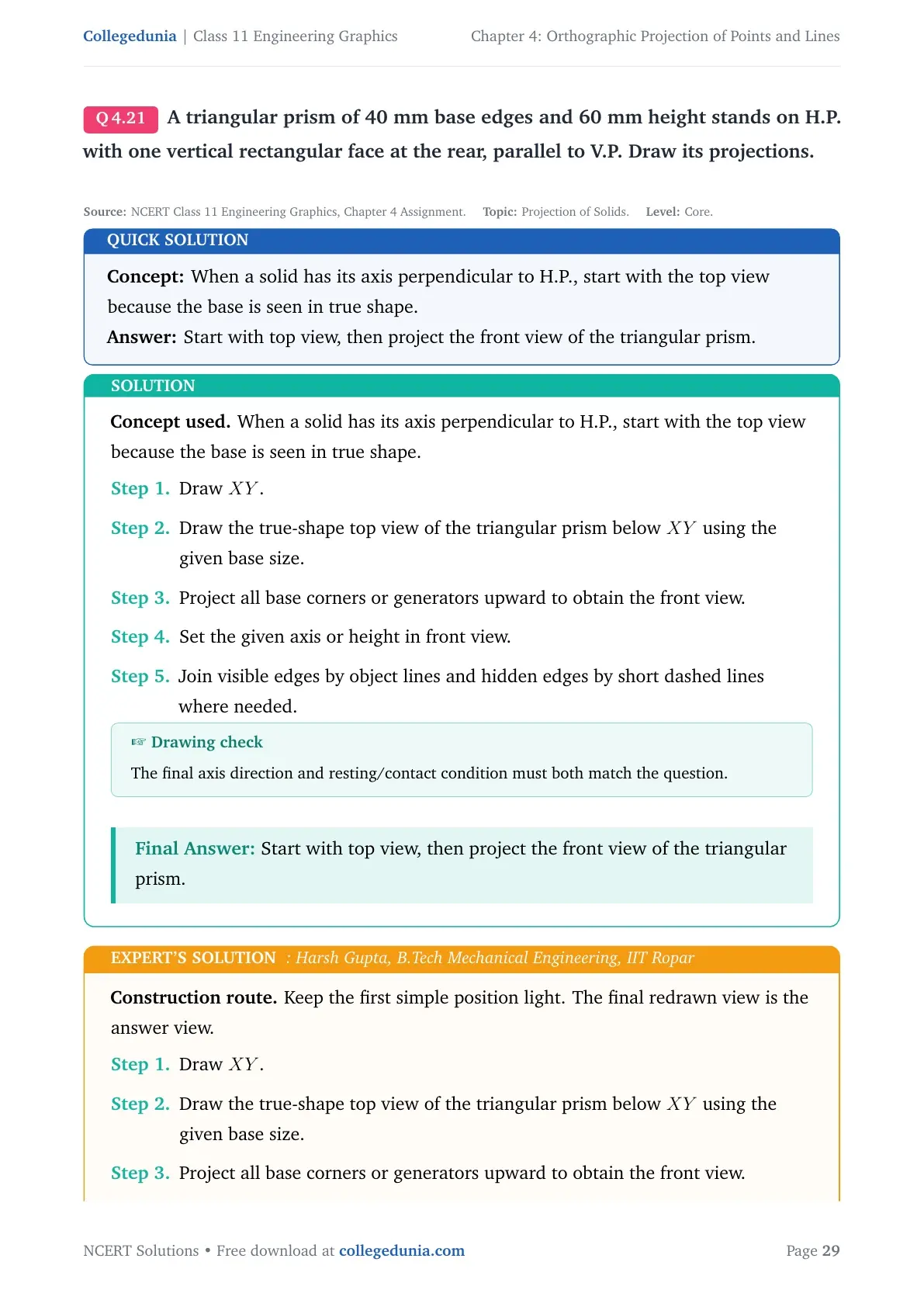

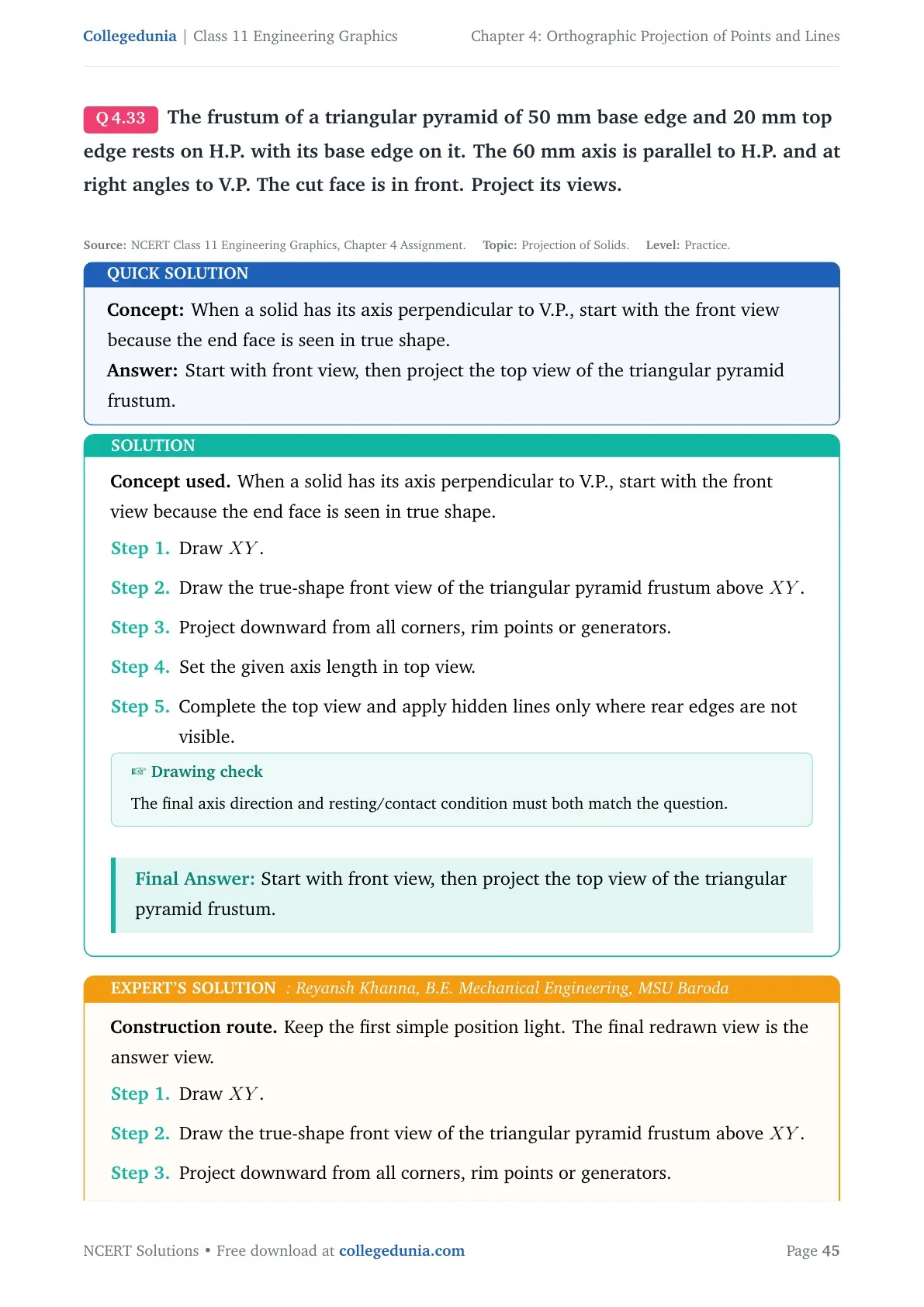

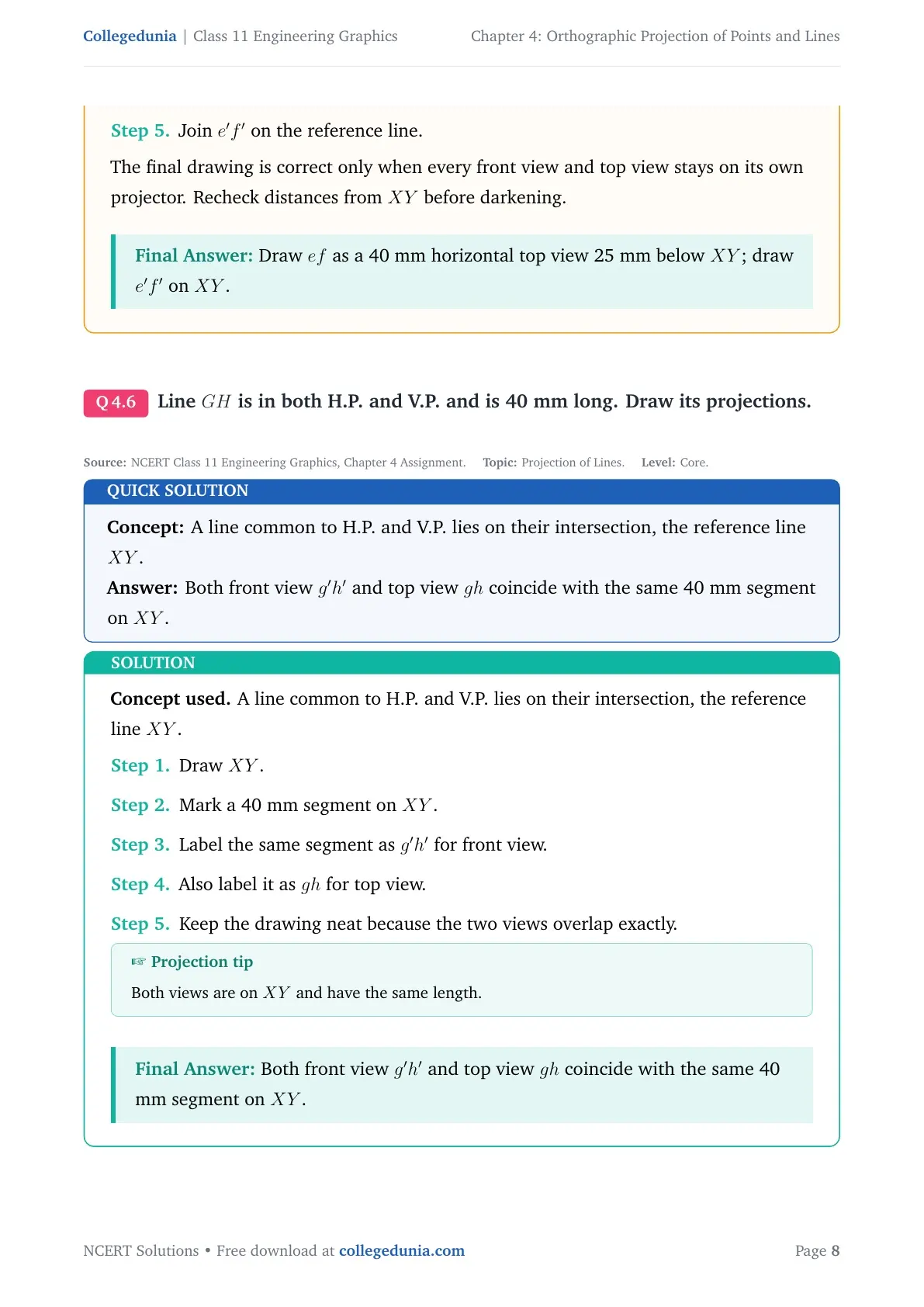

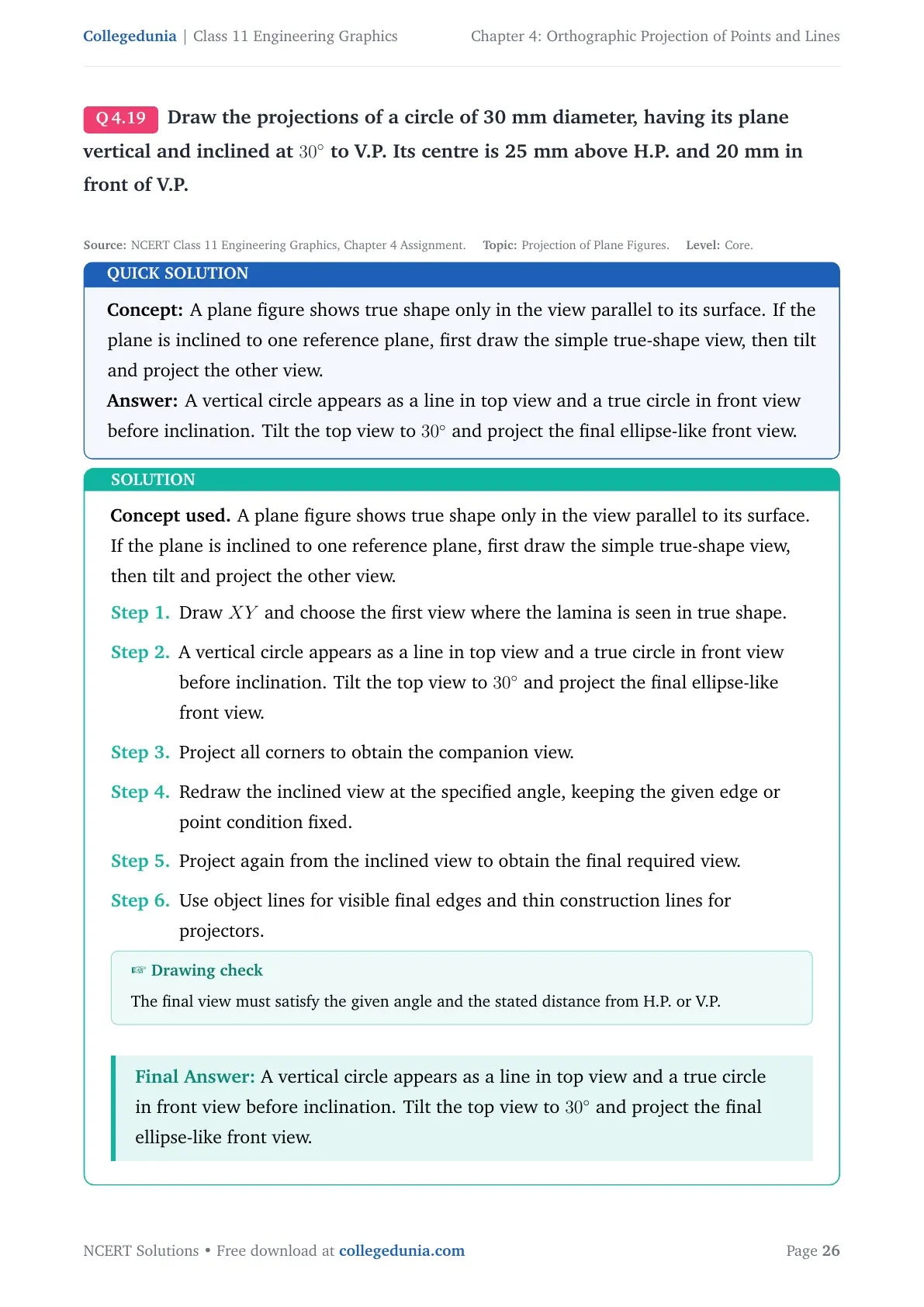

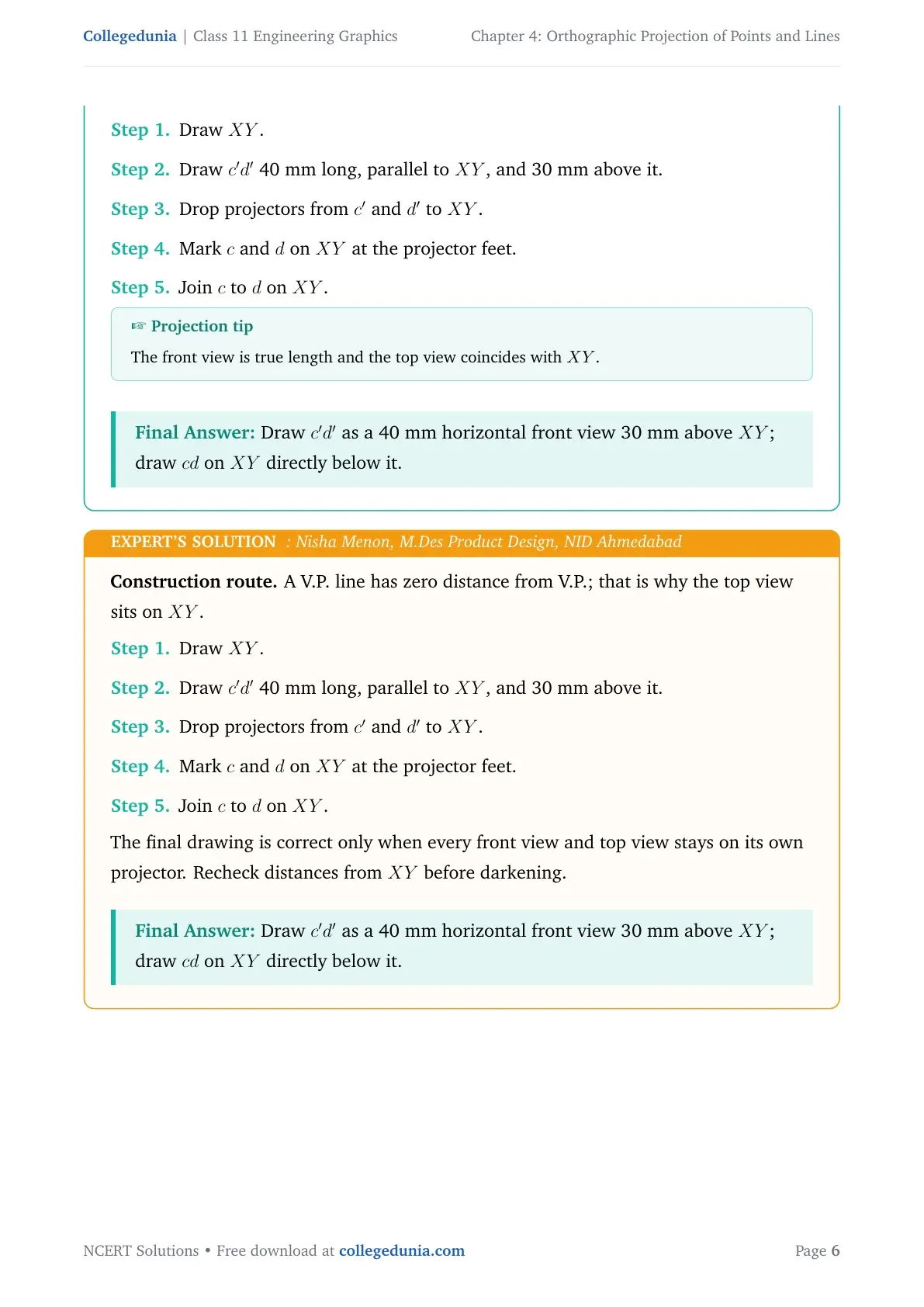

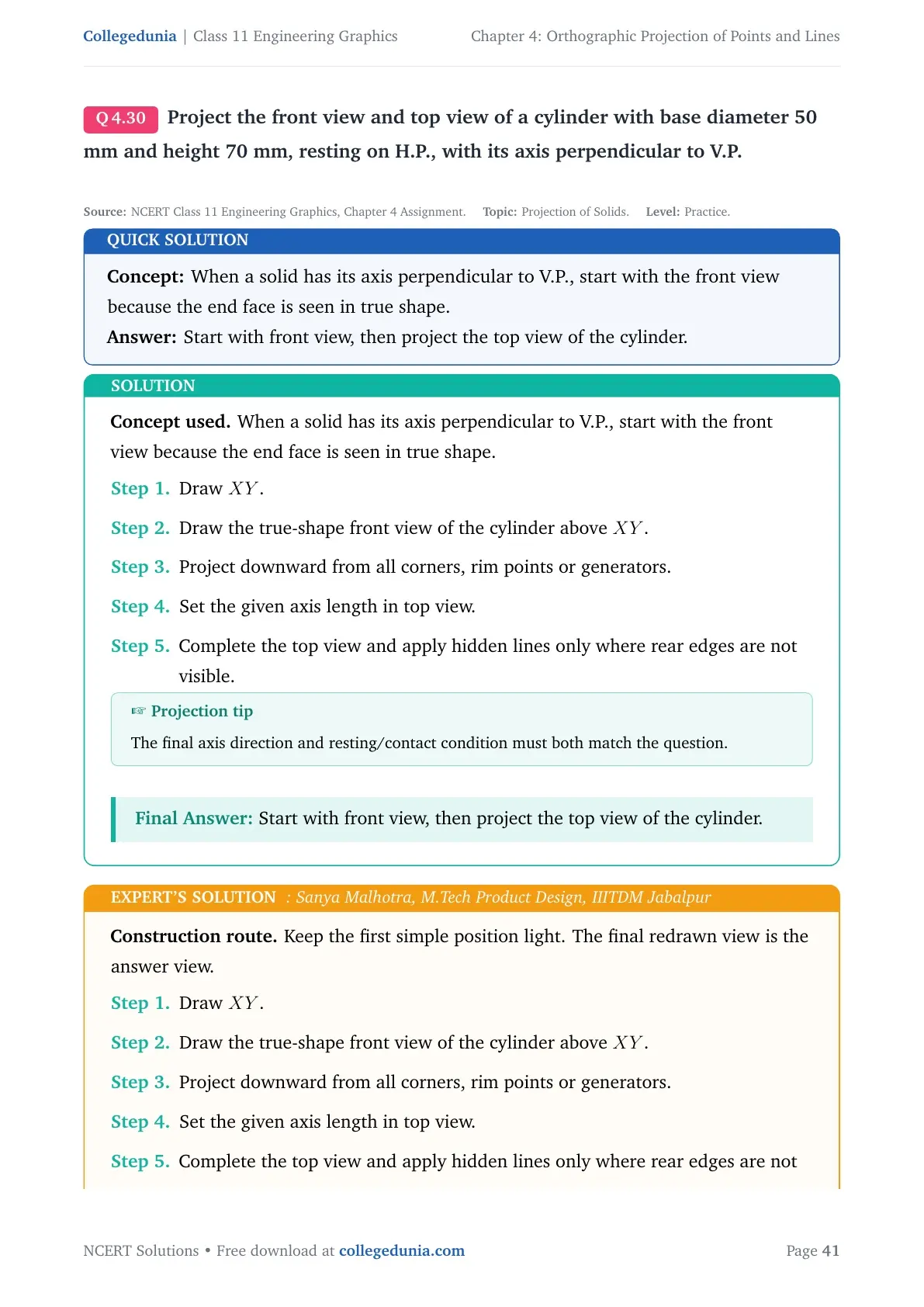

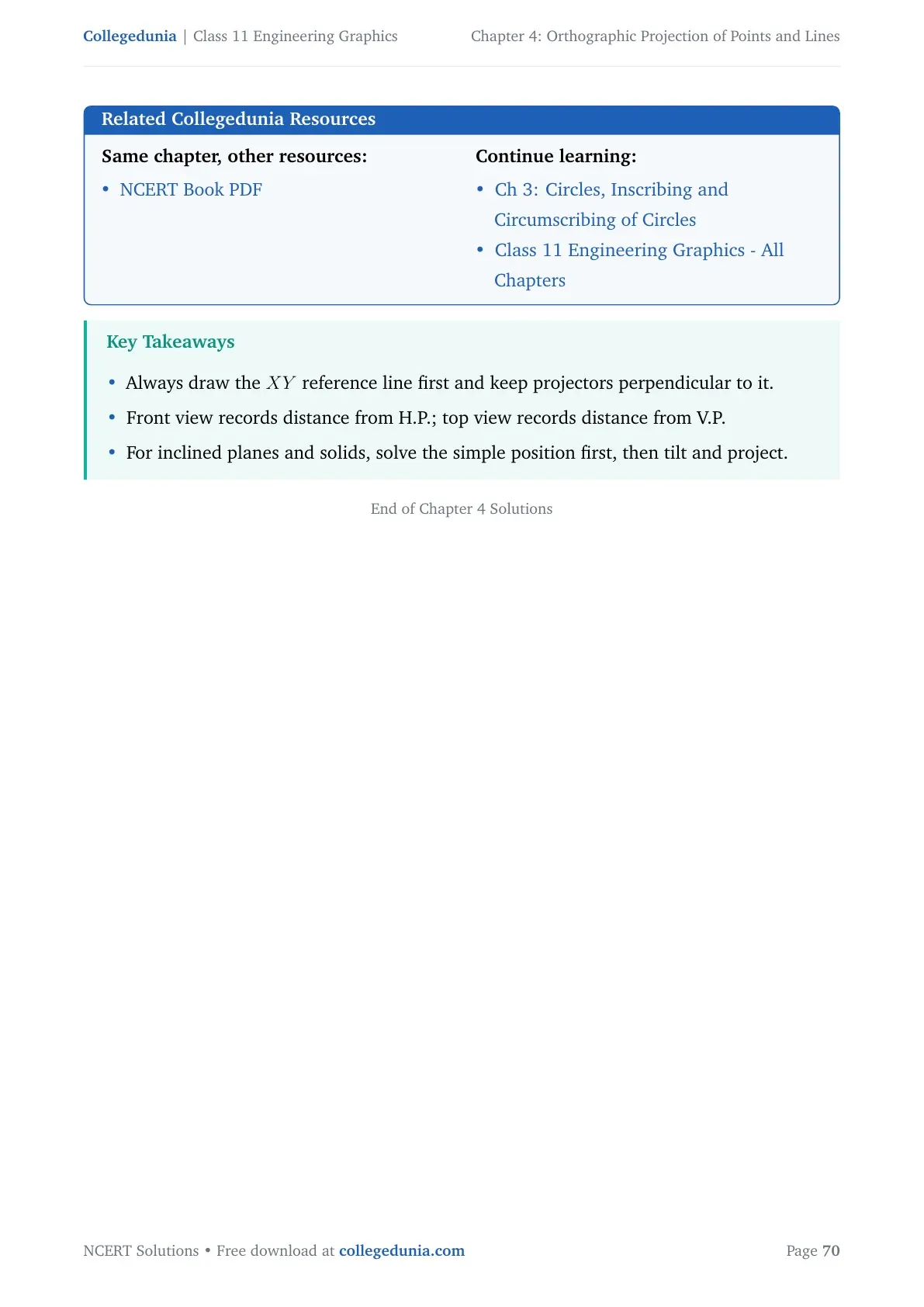

How to Use the Chapter 4 Solutions PDF
Use the PDF with a drawing sheet beside you. Read the quick solution first, then draw the construction from the numbered steps. After finishing a problem, compare your view placement with the final answer box. This keeps the work close to the 2026-27 NCERT method and reduces mistakes in labels.
- Start with the assignment block you are practising.
- Copy only the light construction lines at first.
- Darken visible edges after all views are aligned.
- Check hidden lines and labels before moving to the next question.

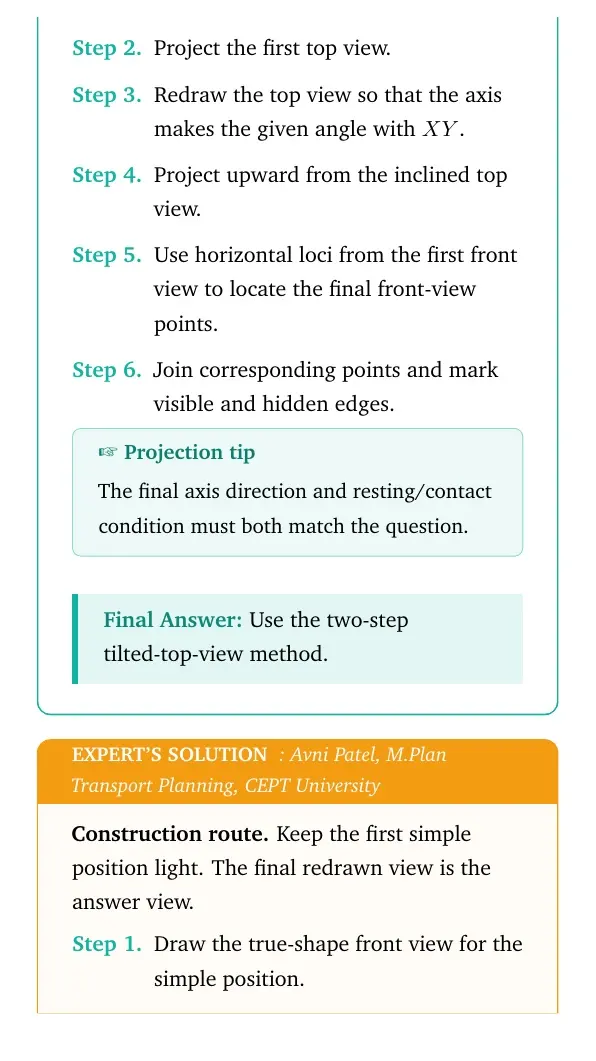

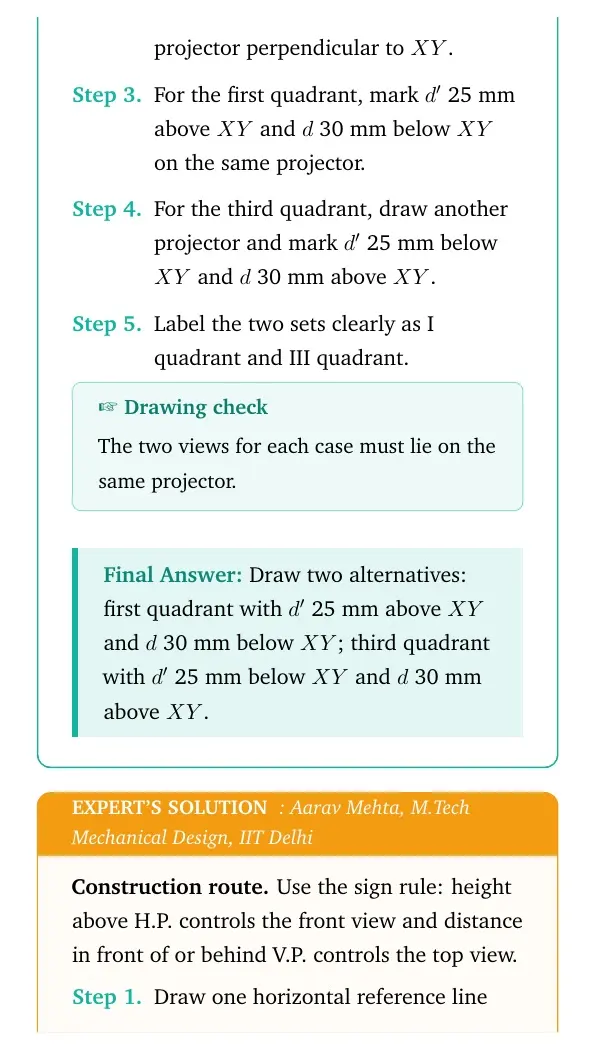

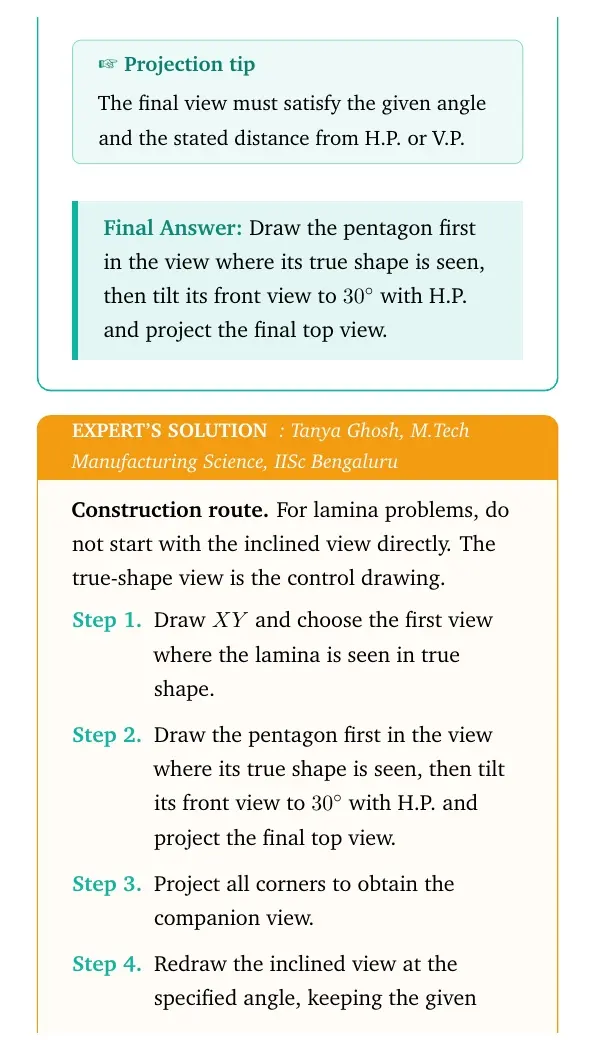

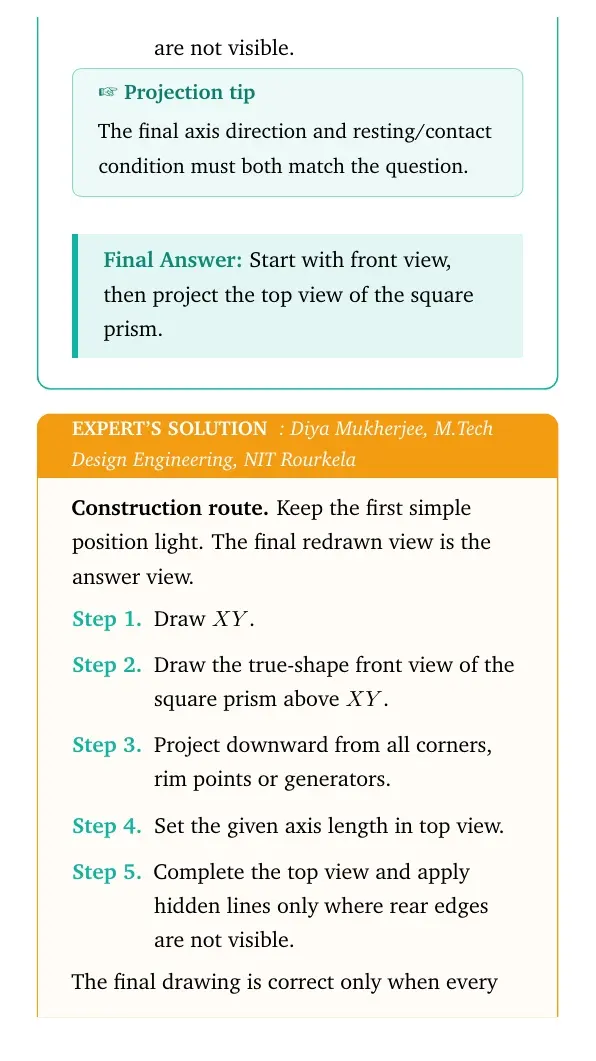

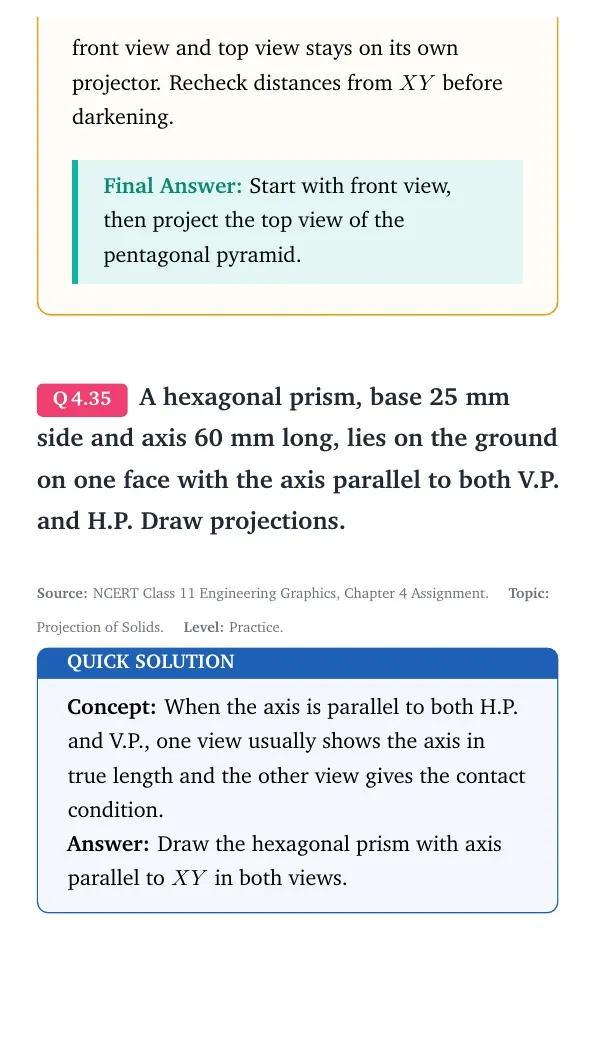

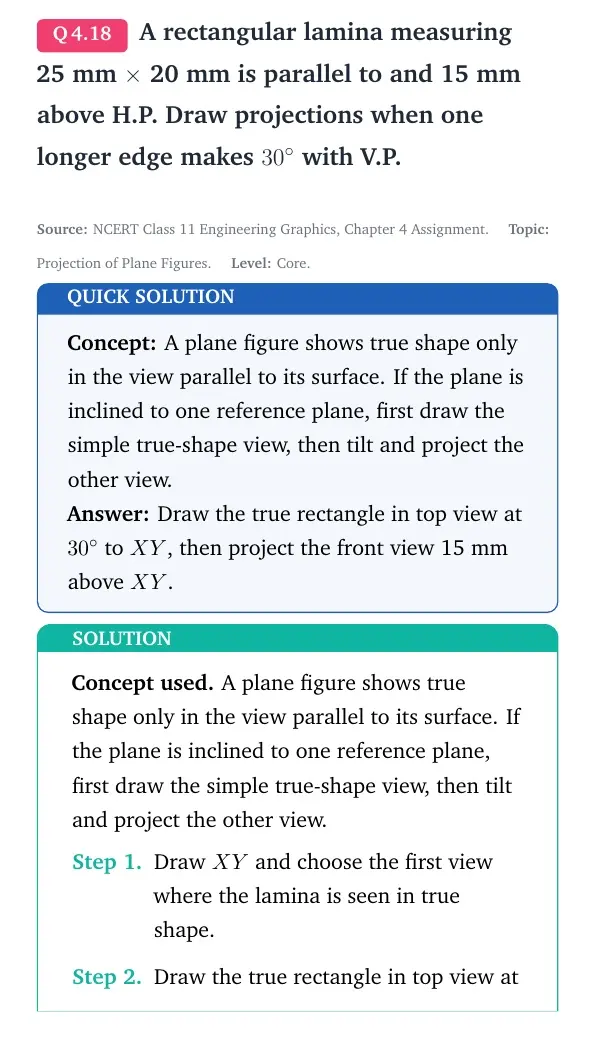

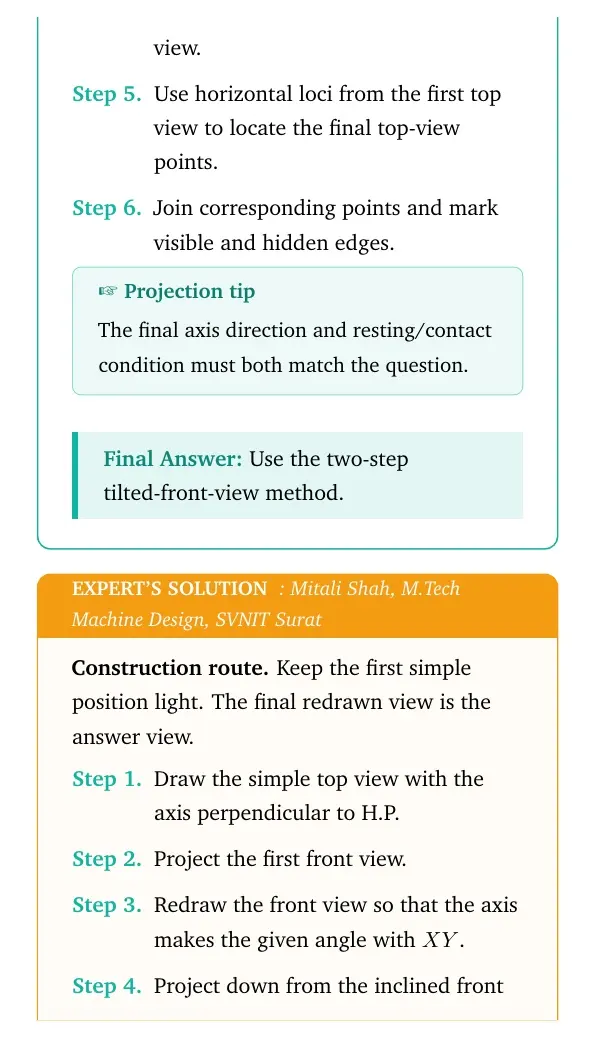

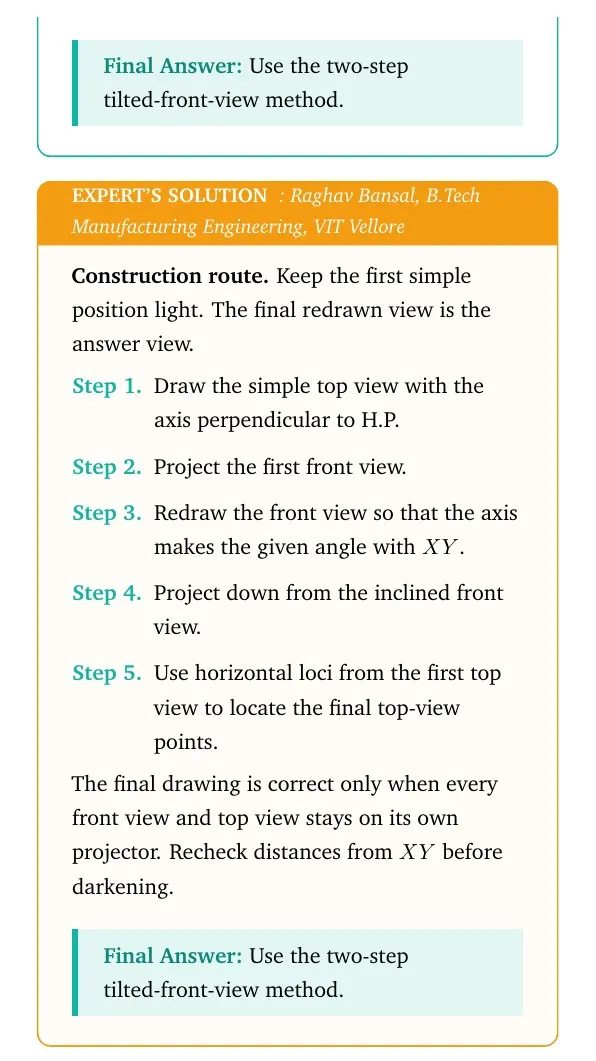

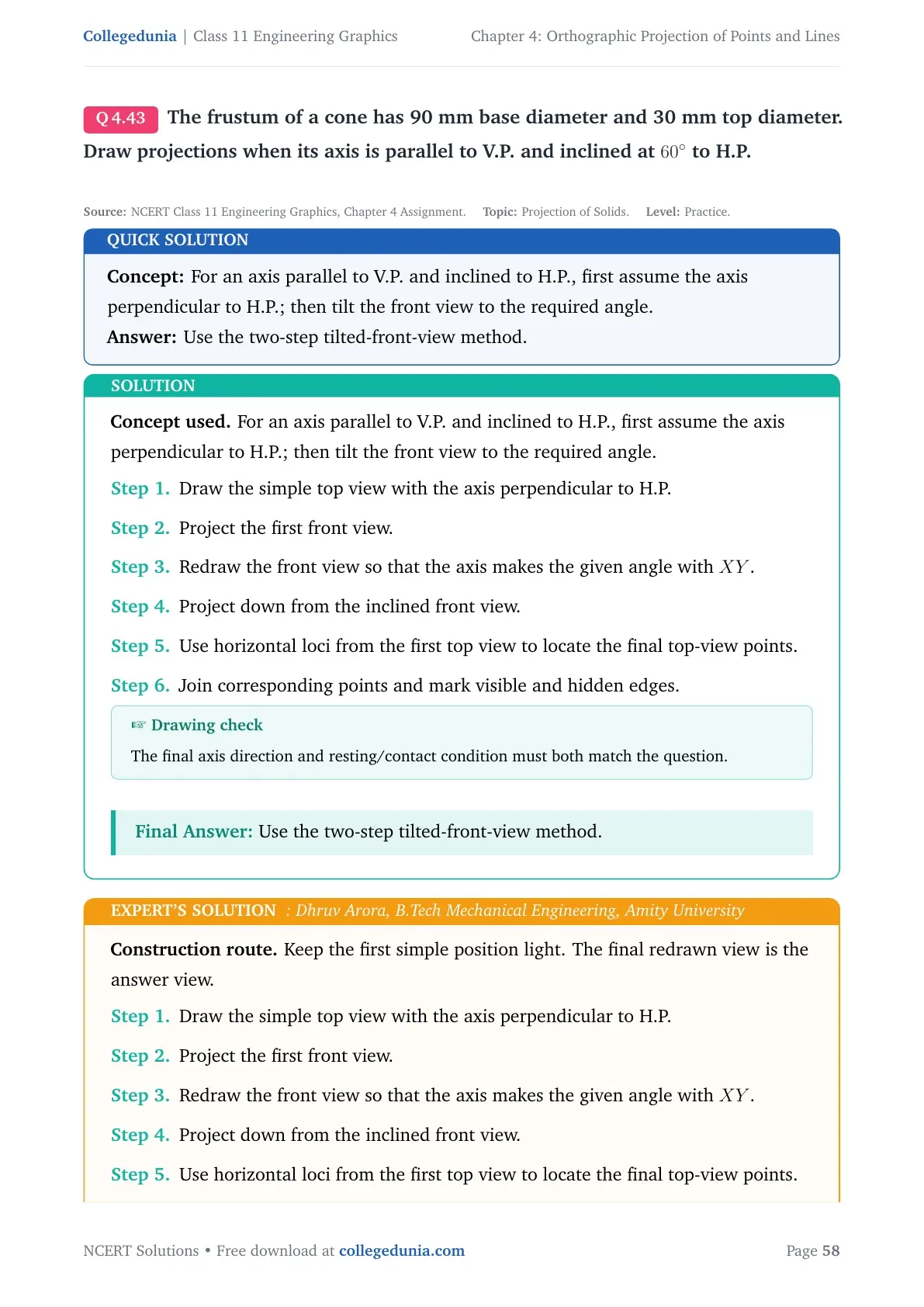

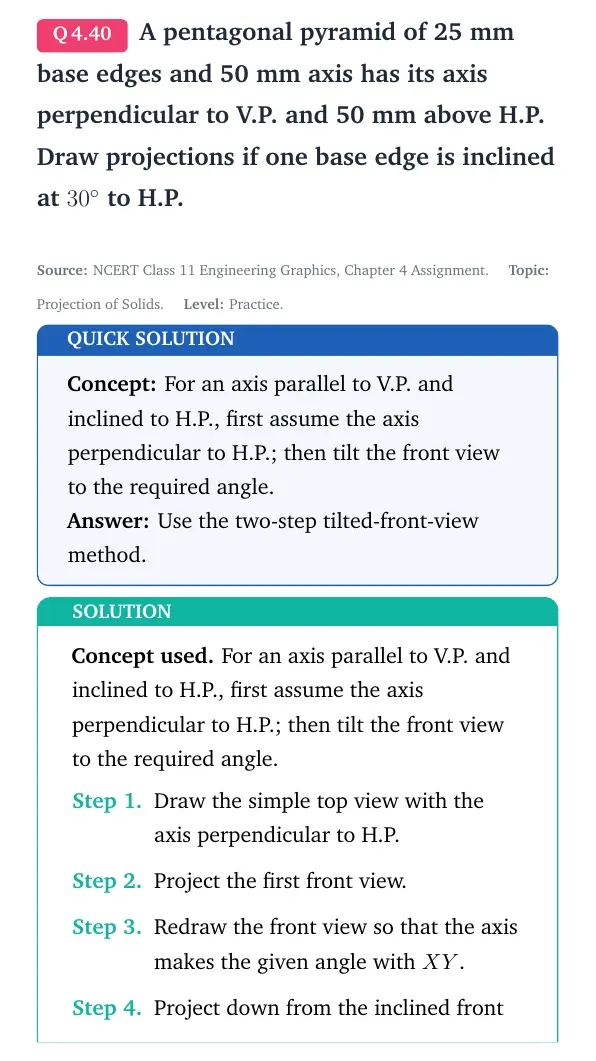

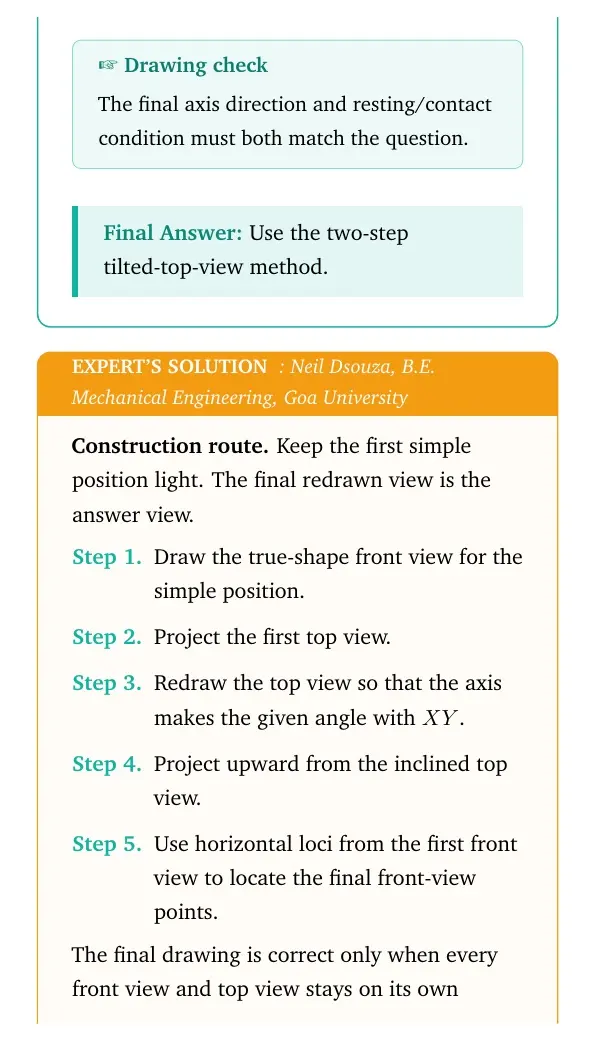

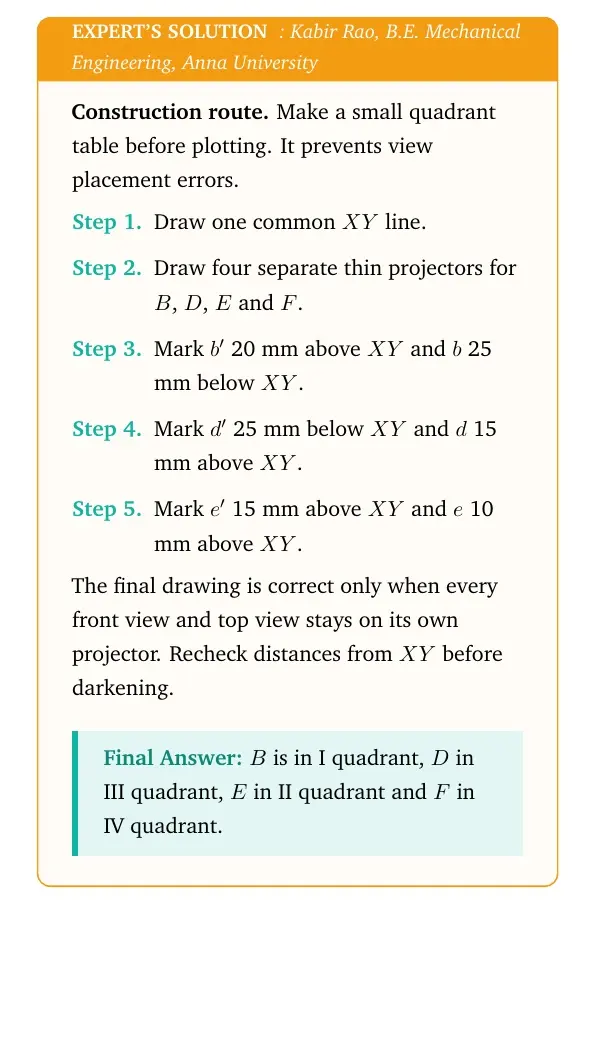

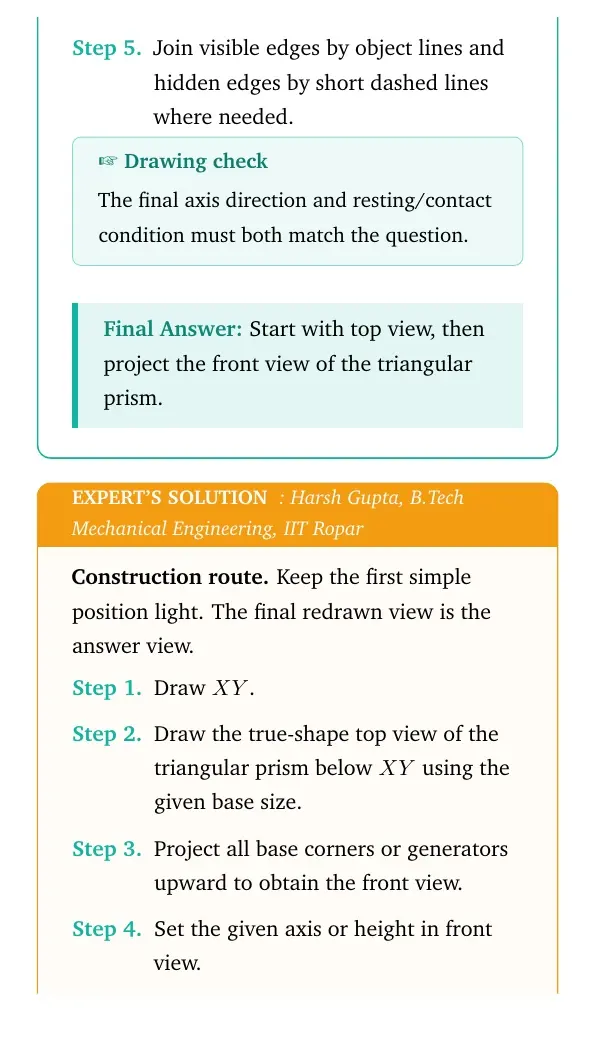

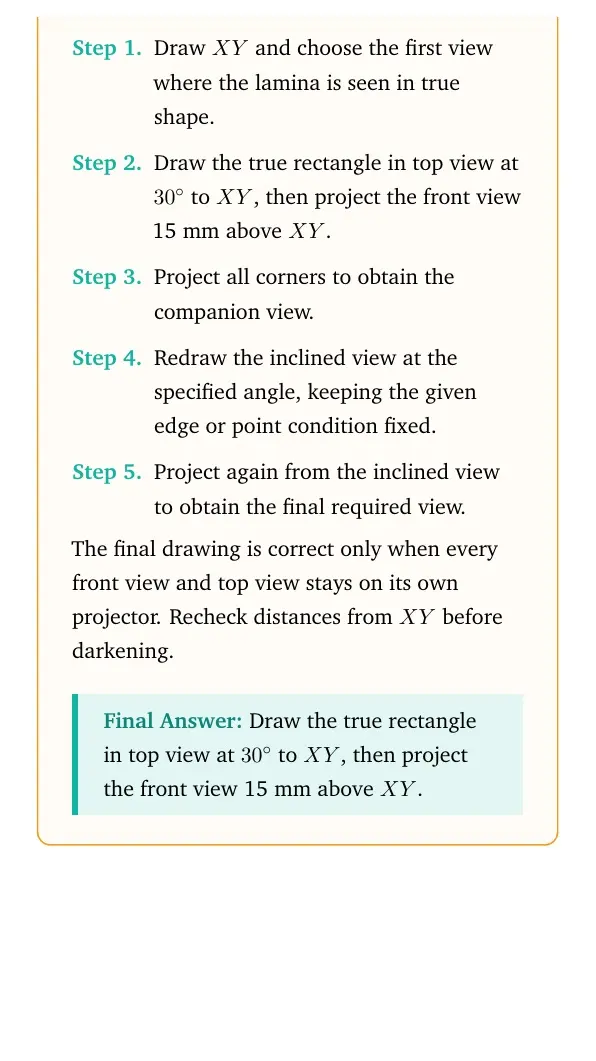

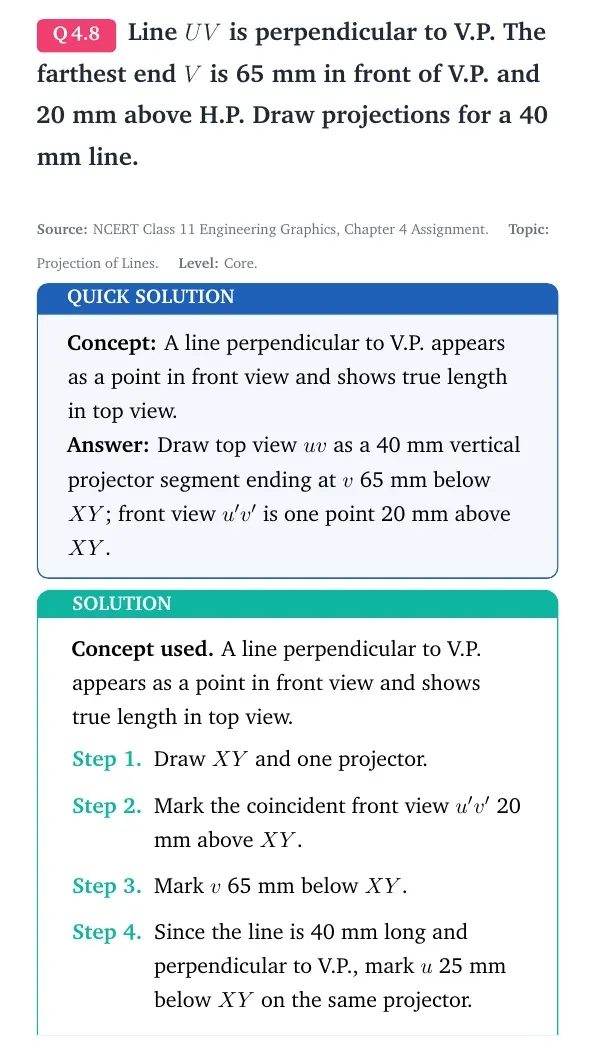

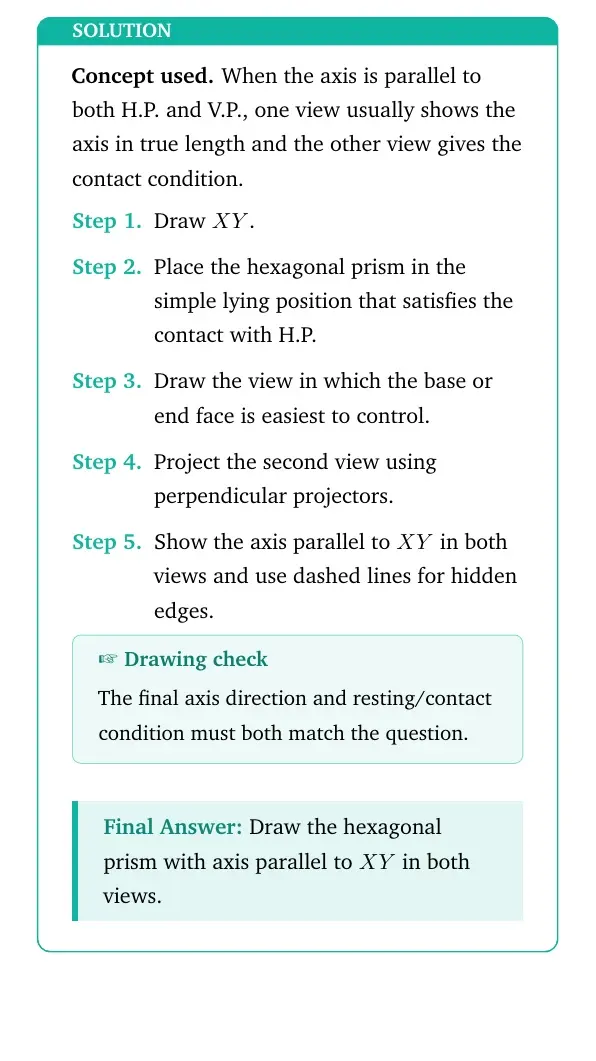

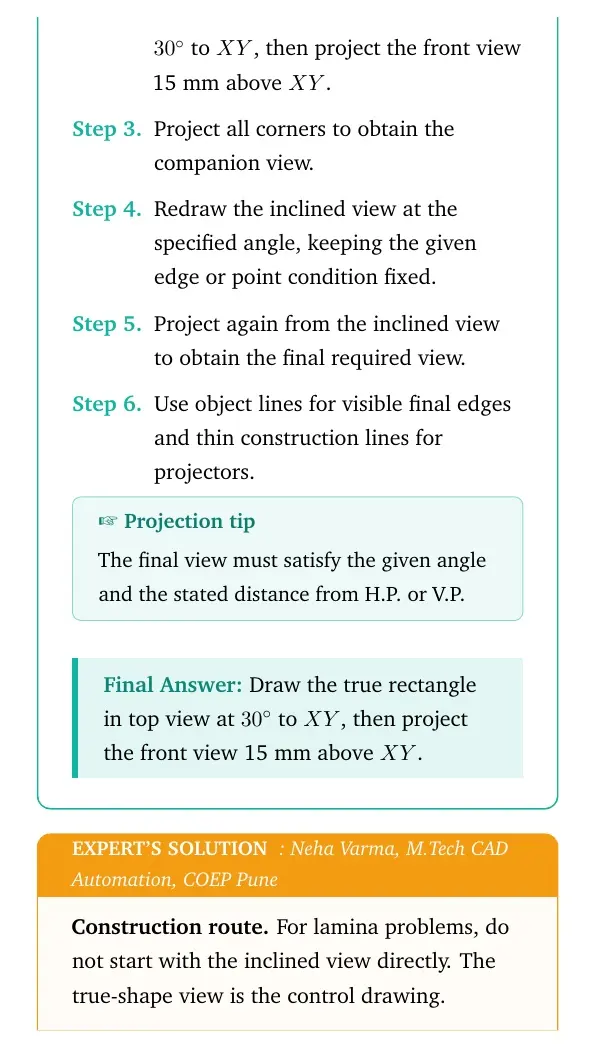

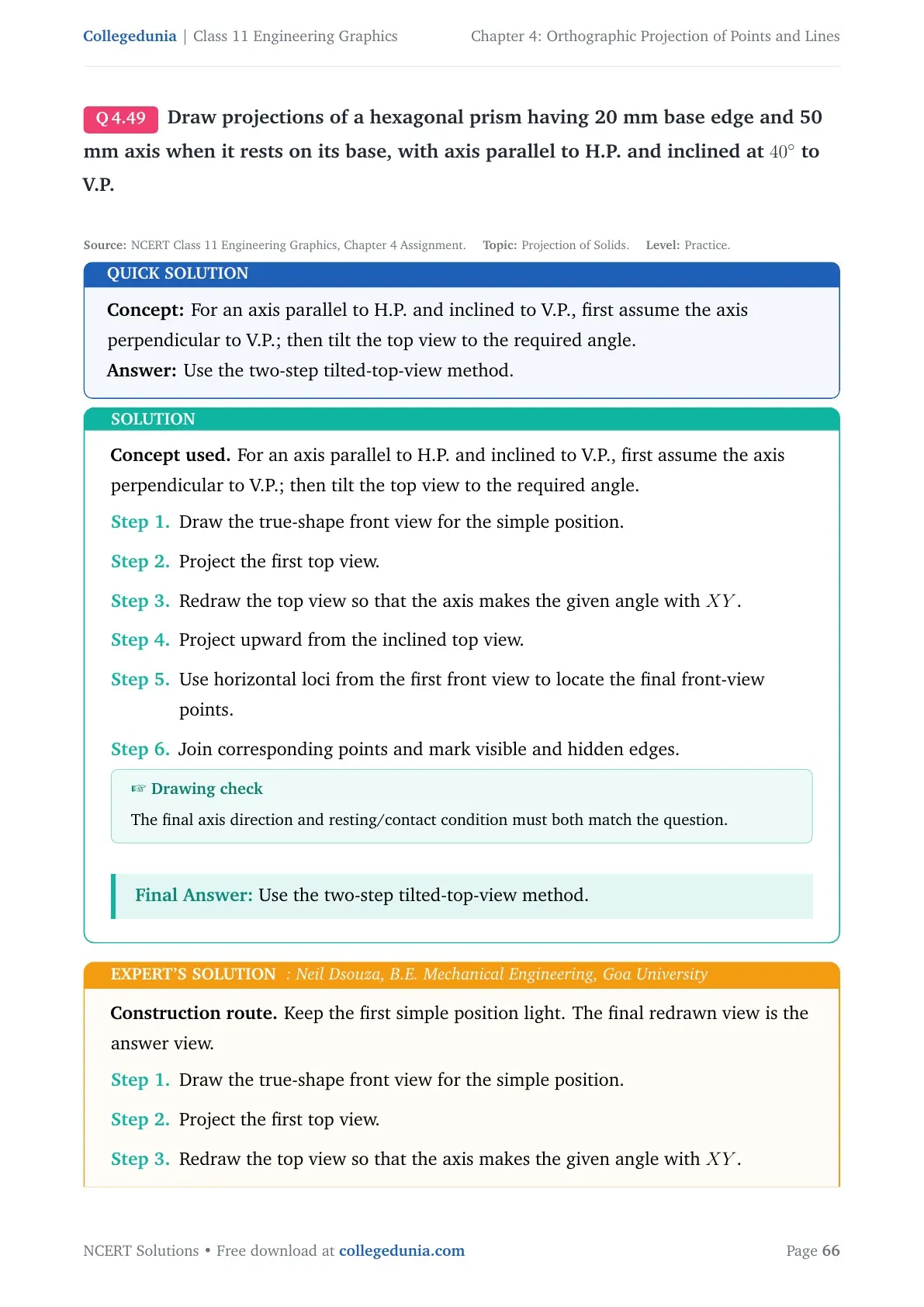

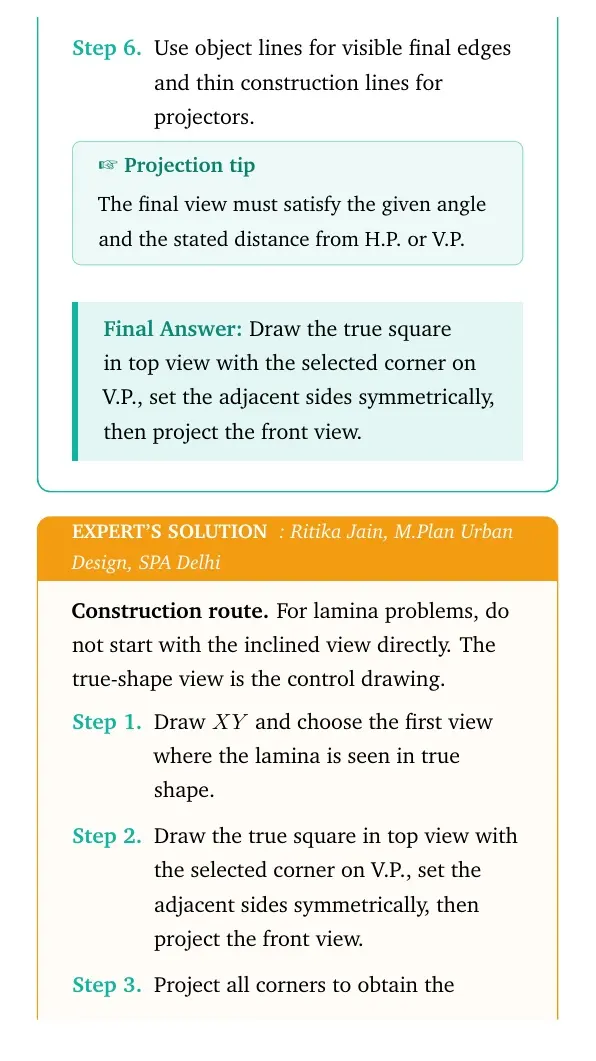

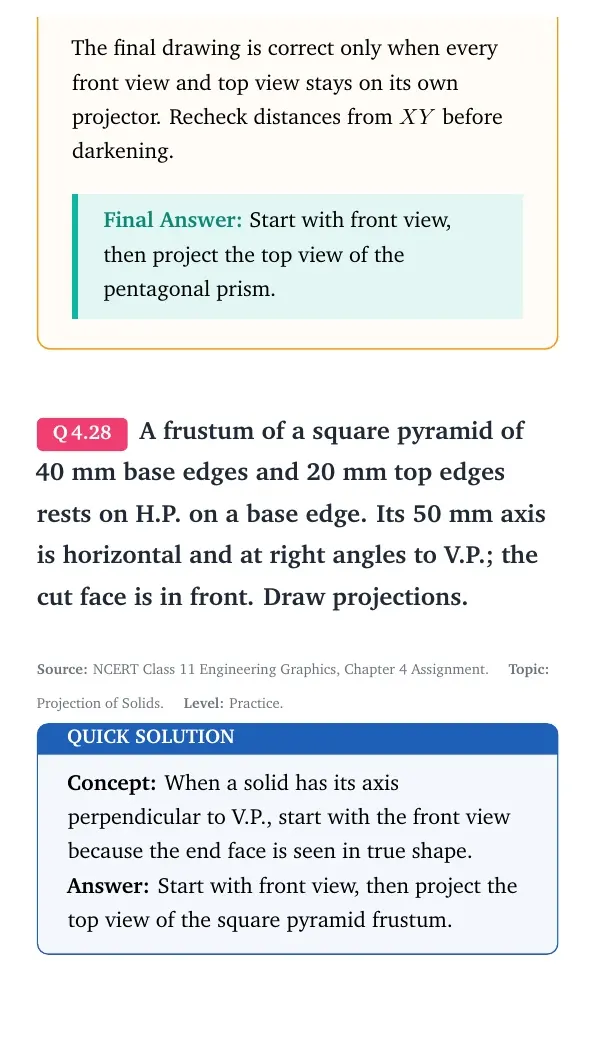

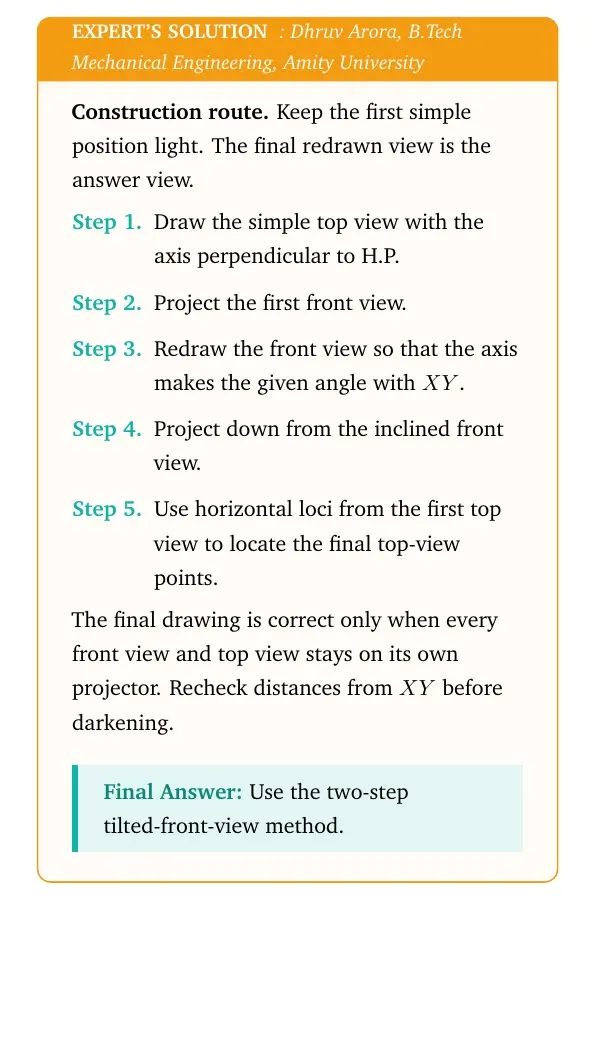

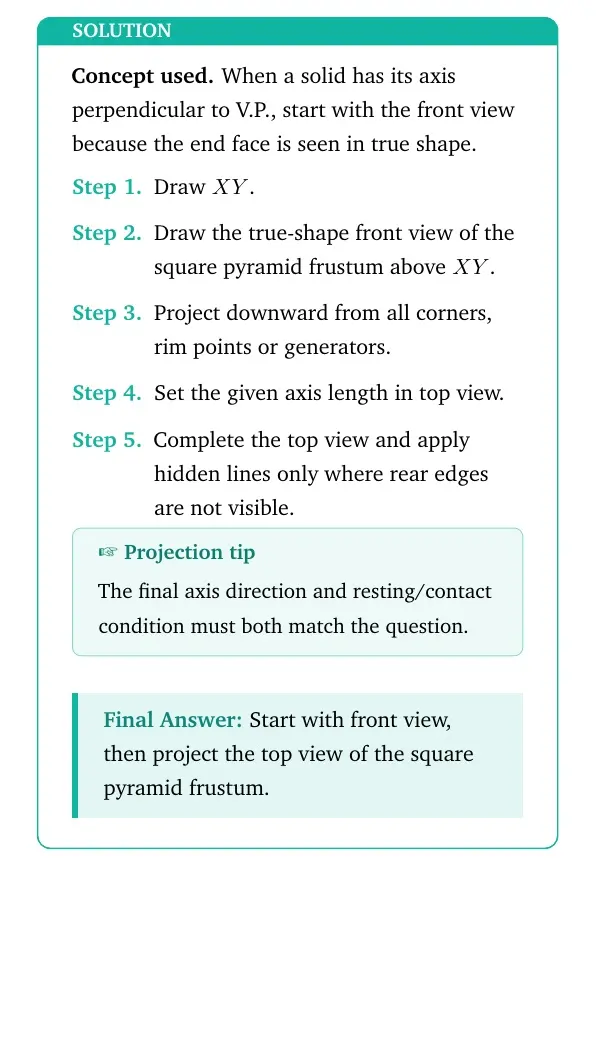

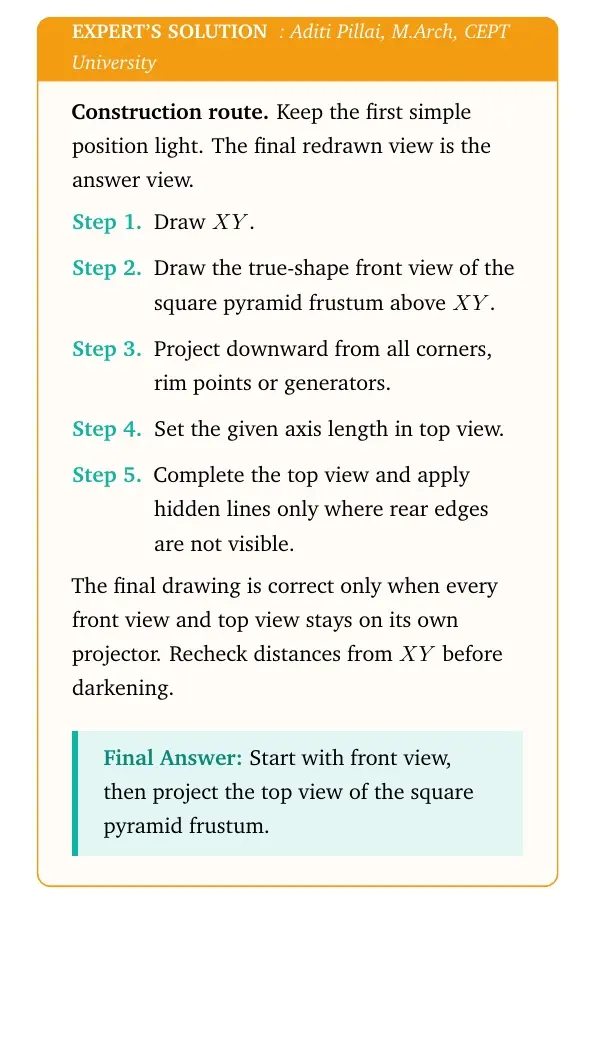

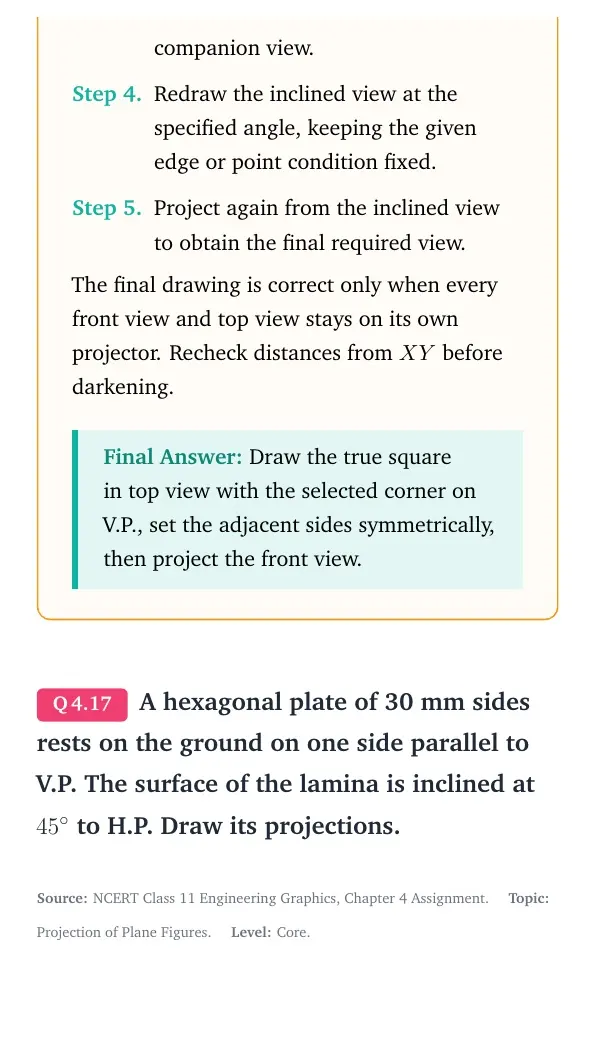

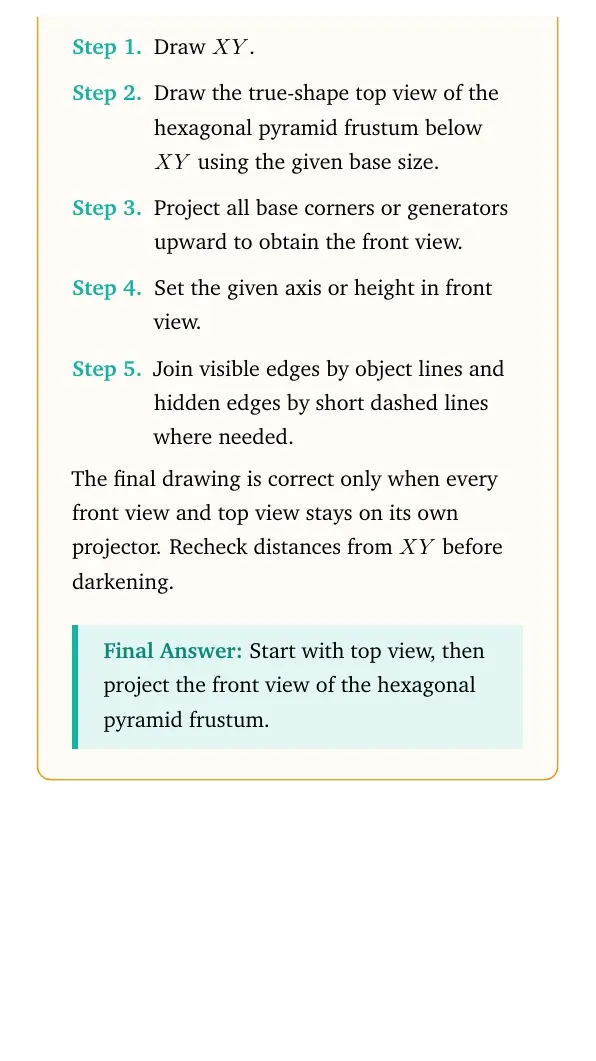

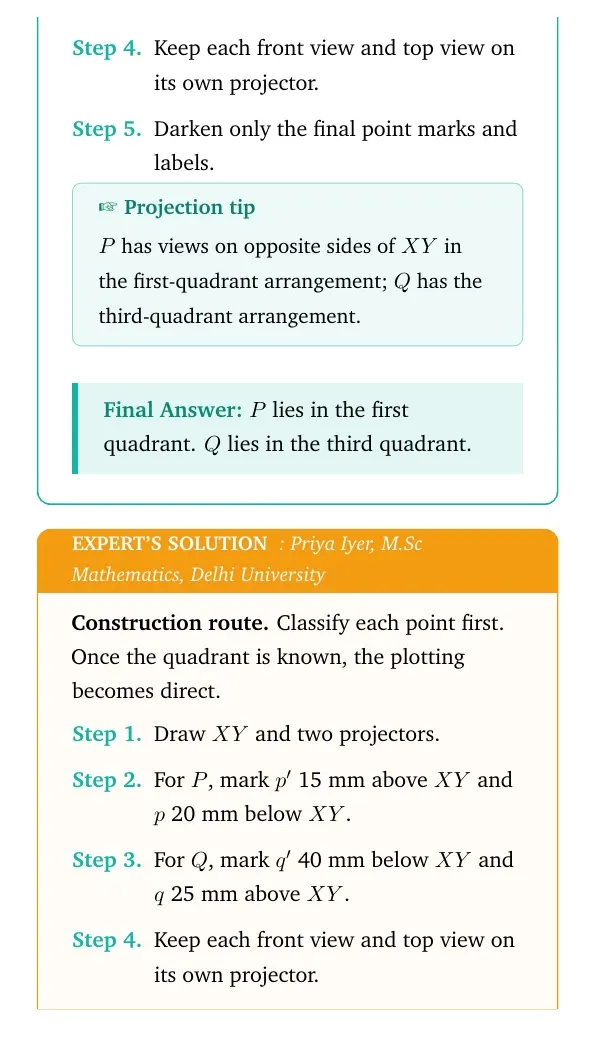

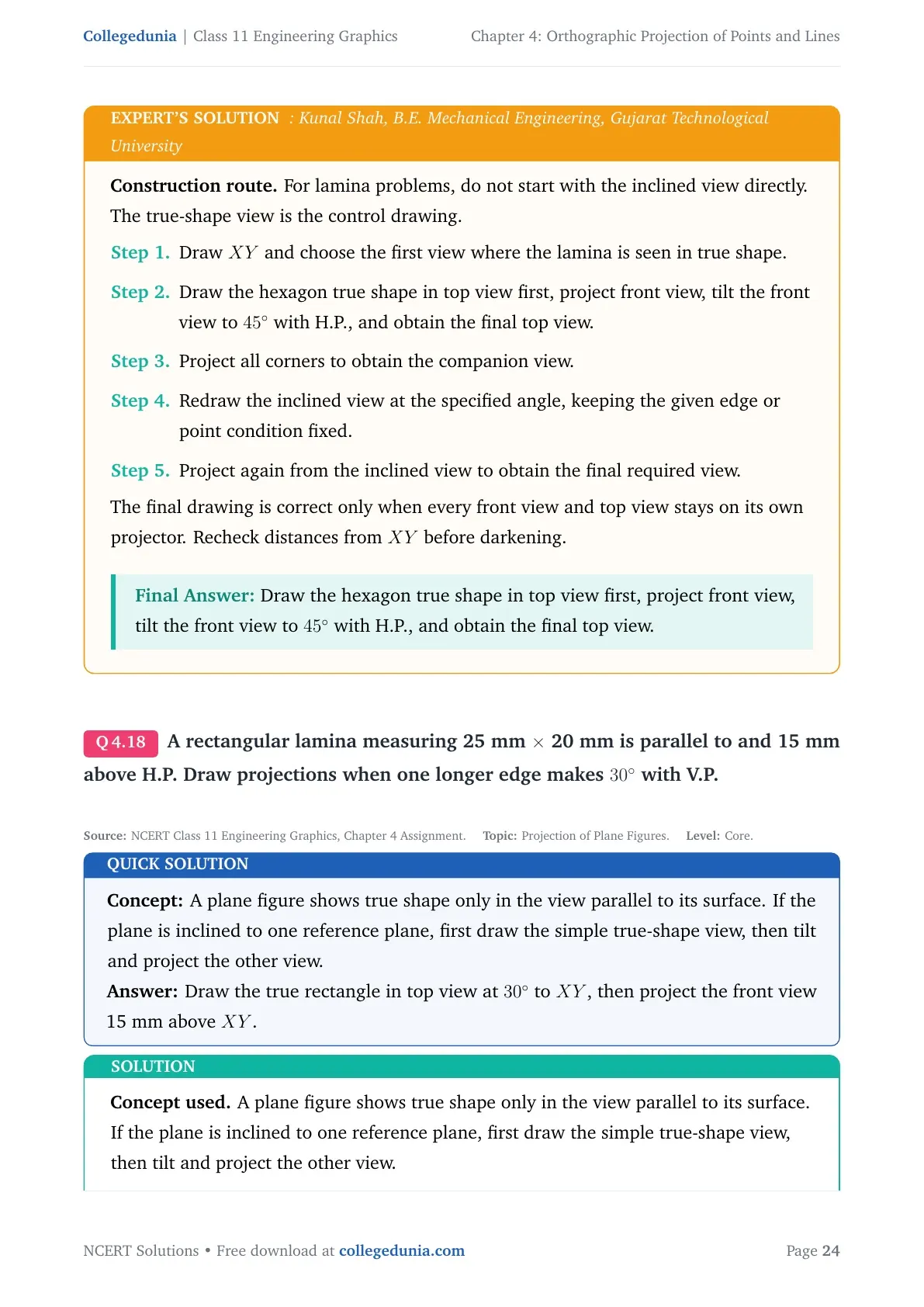

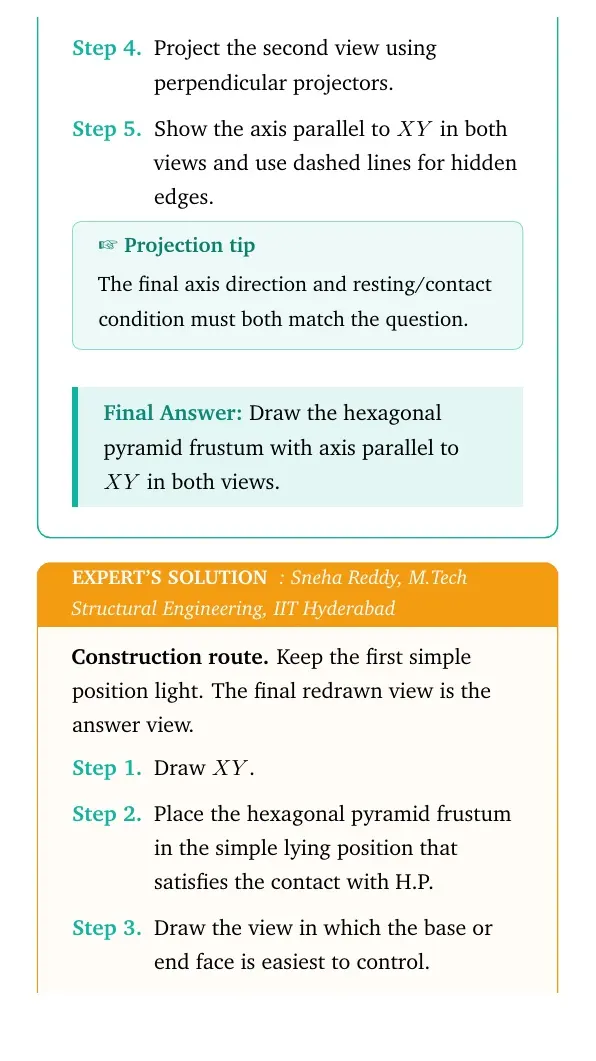

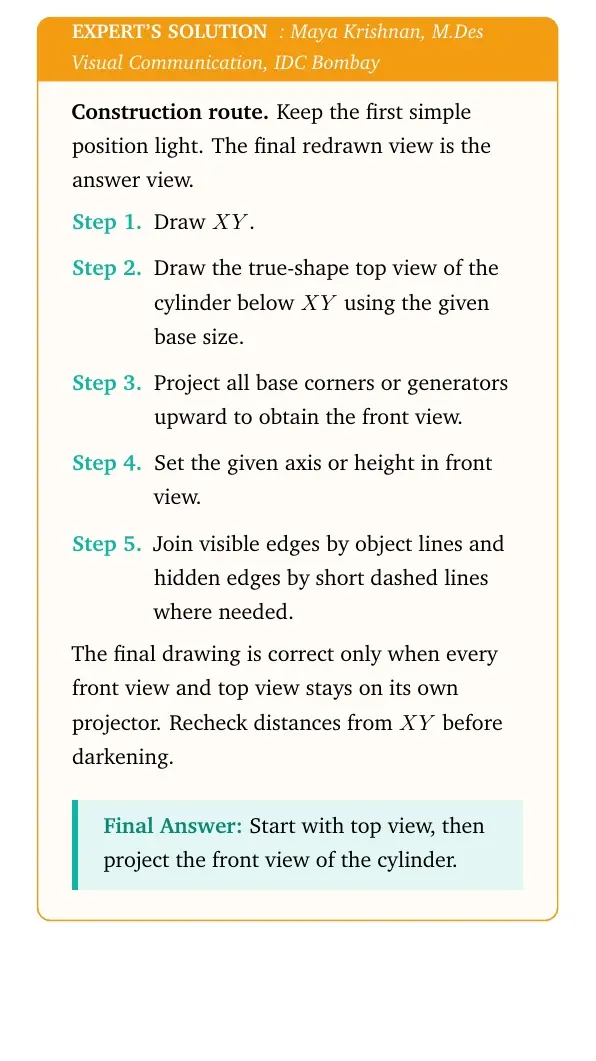

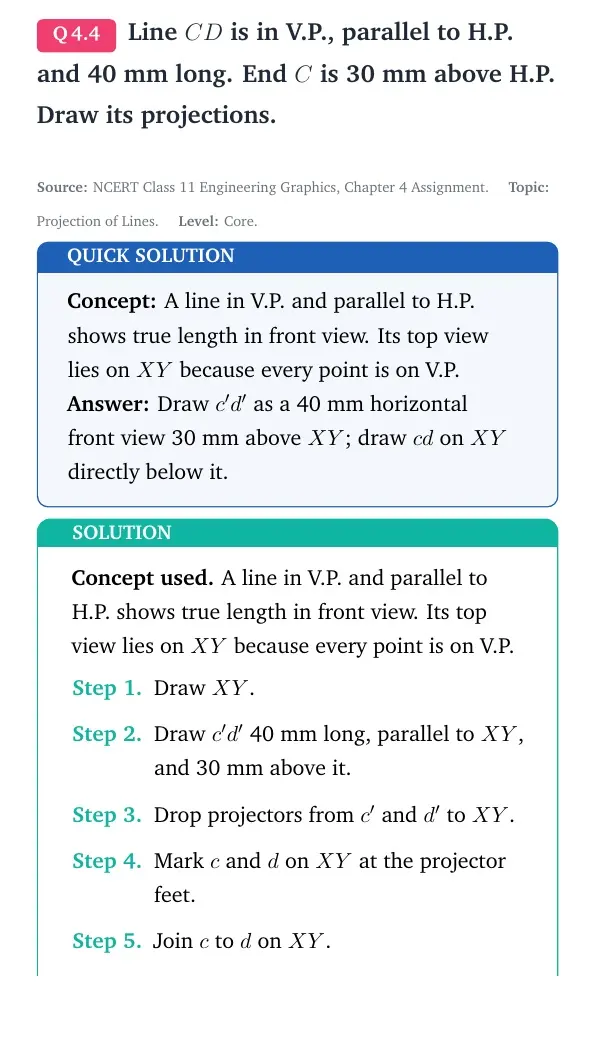

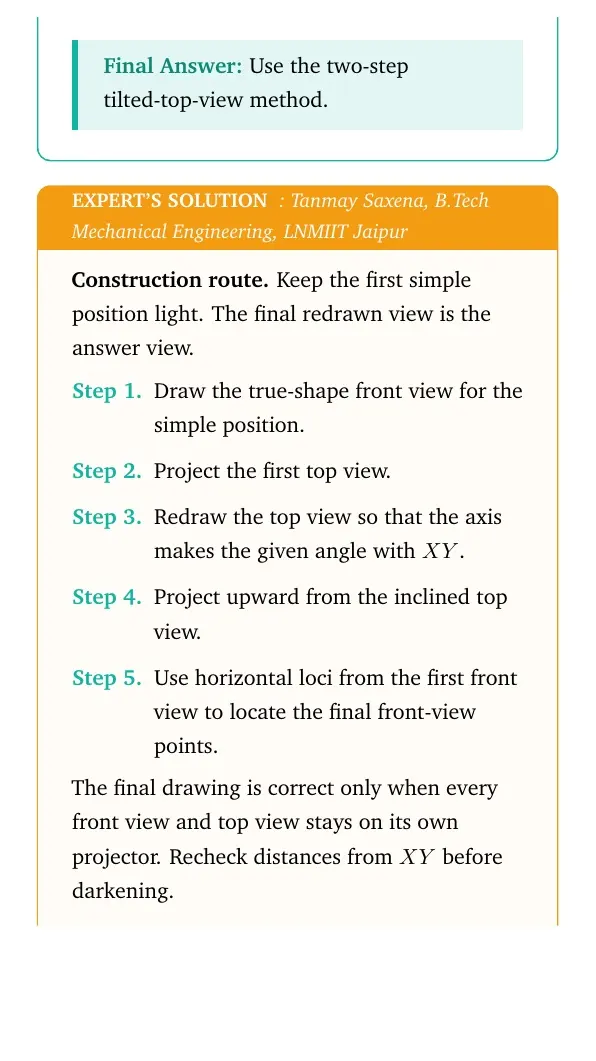

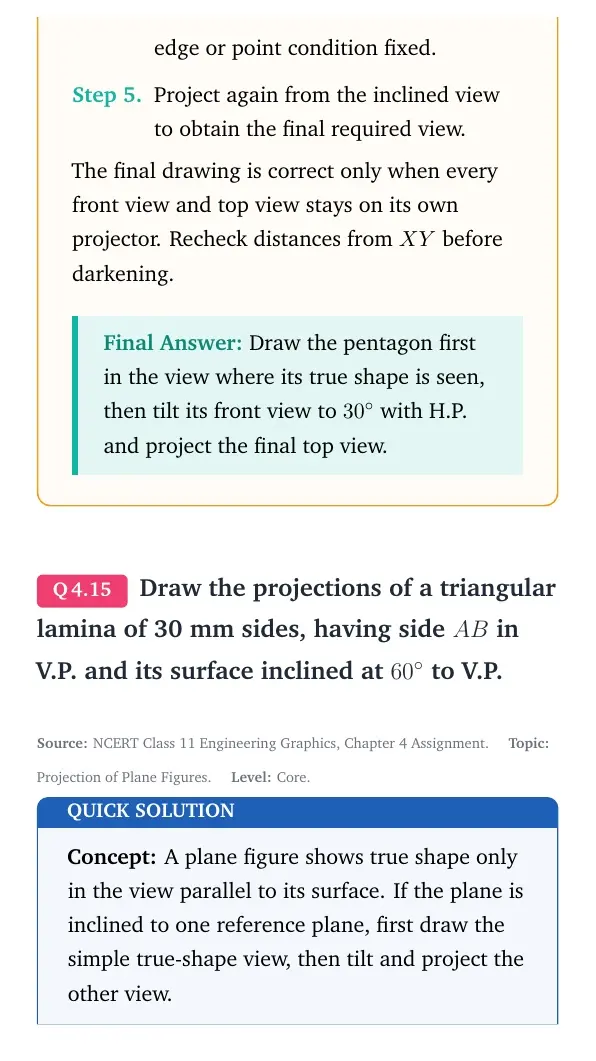

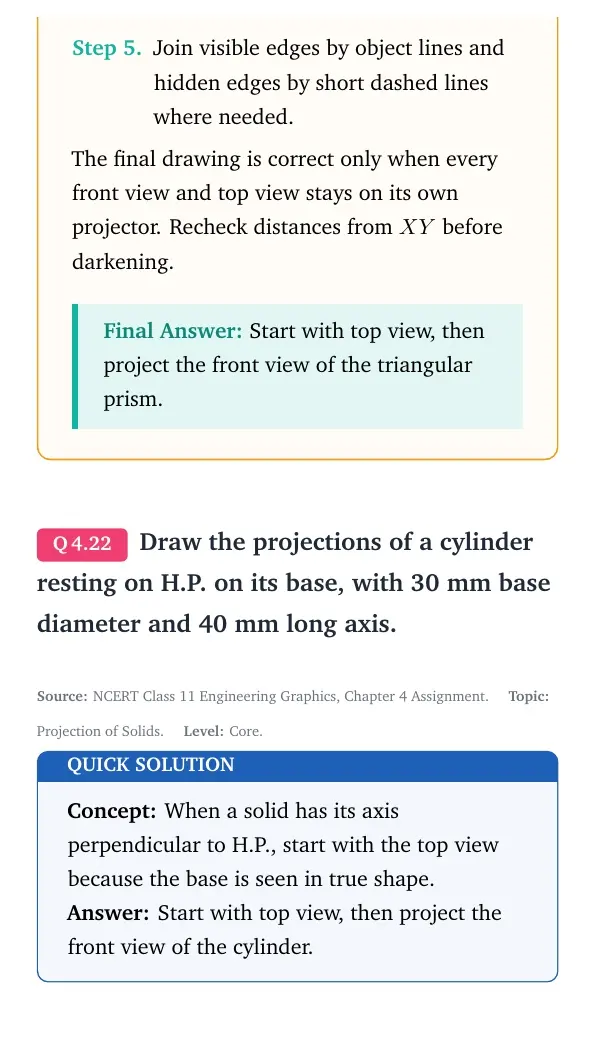

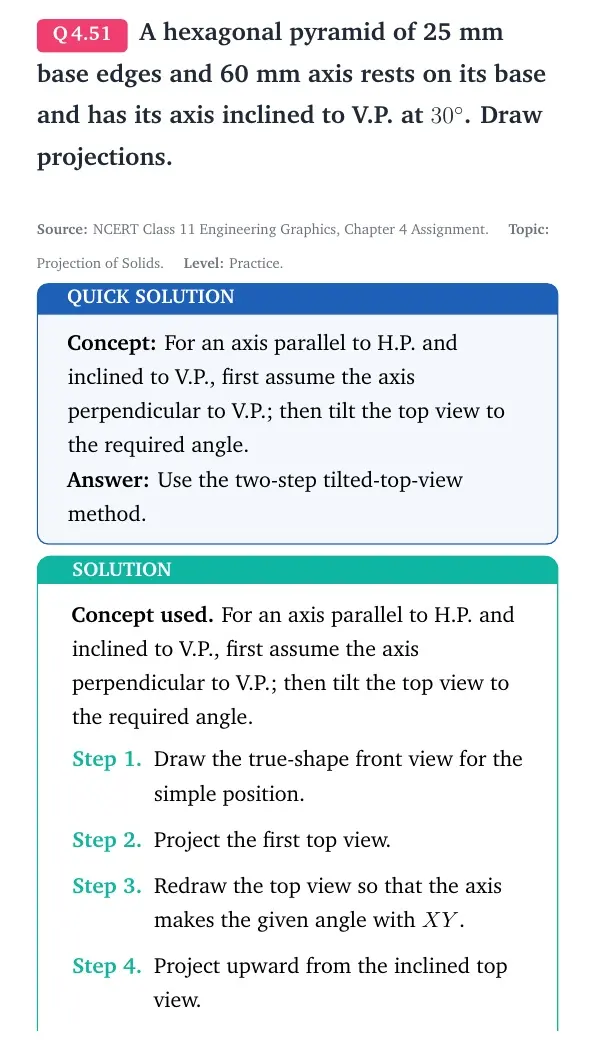

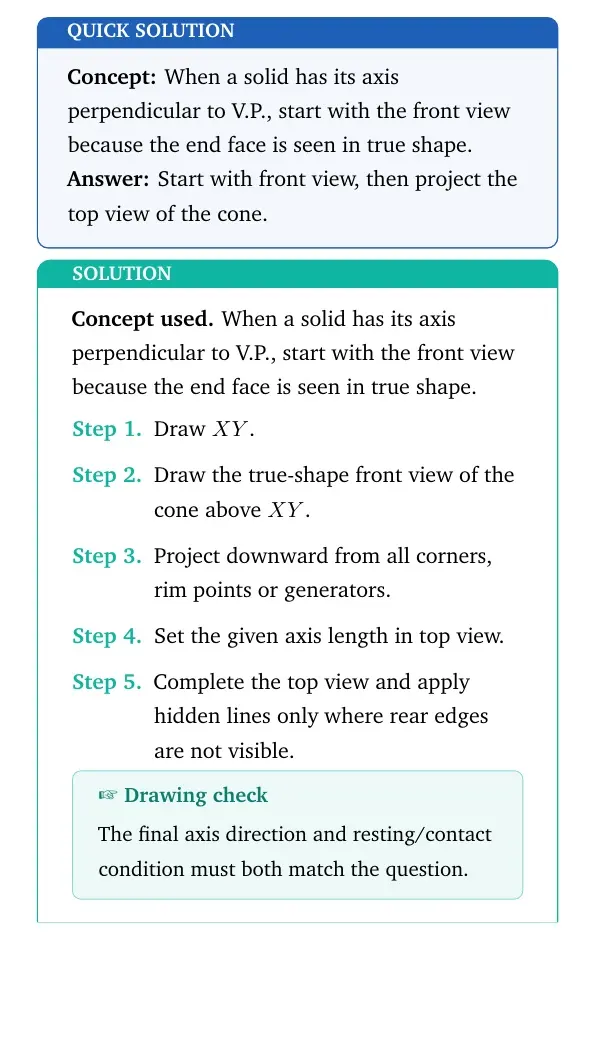

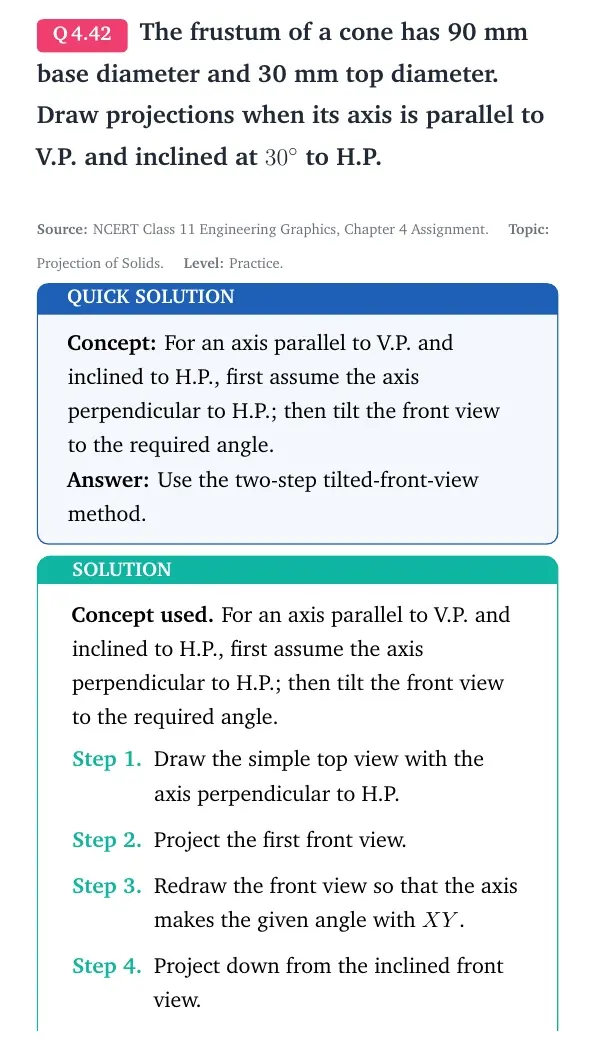

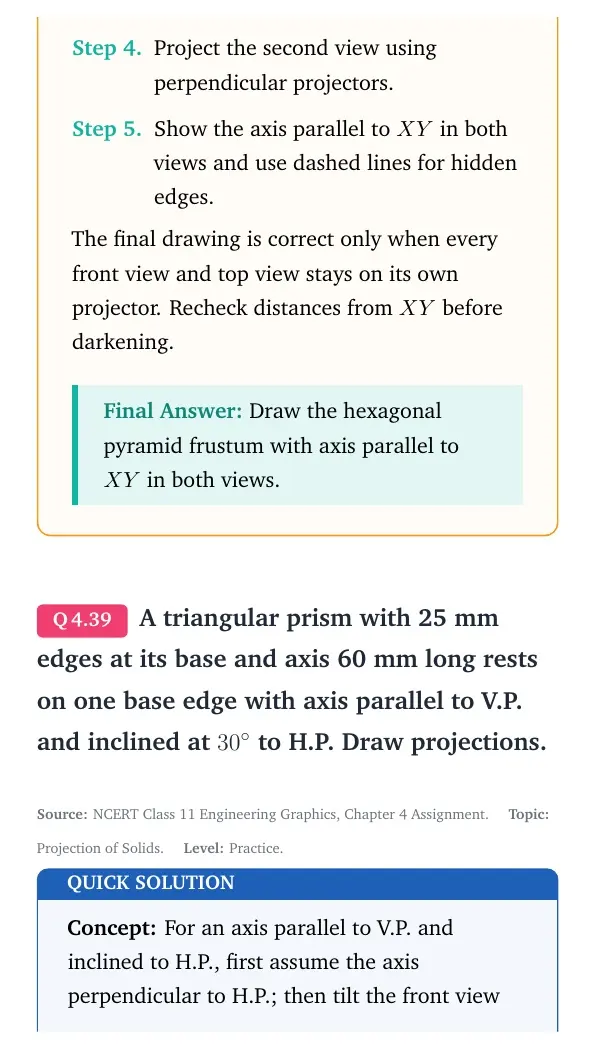

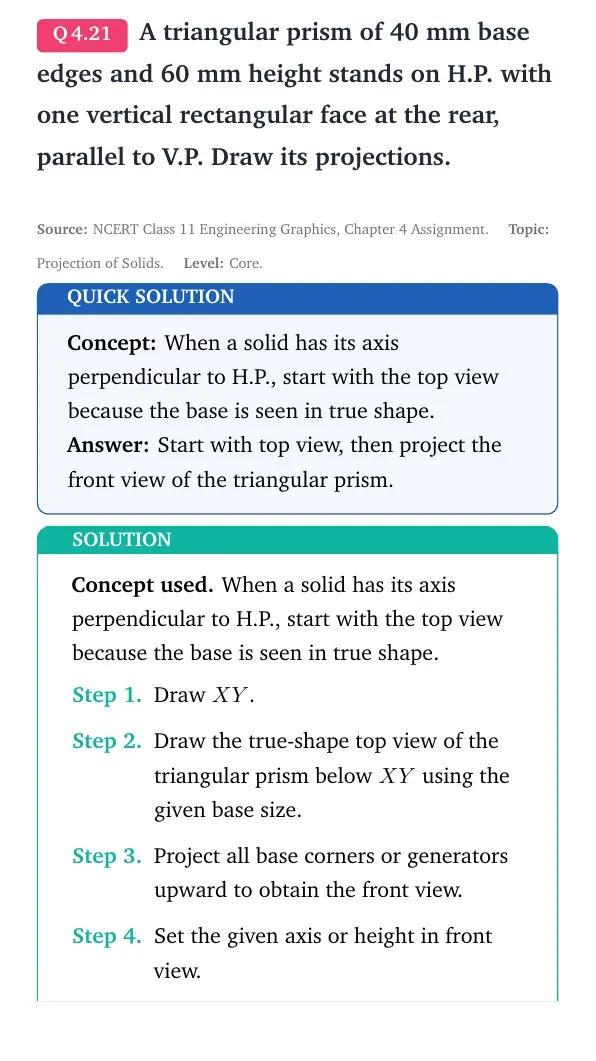

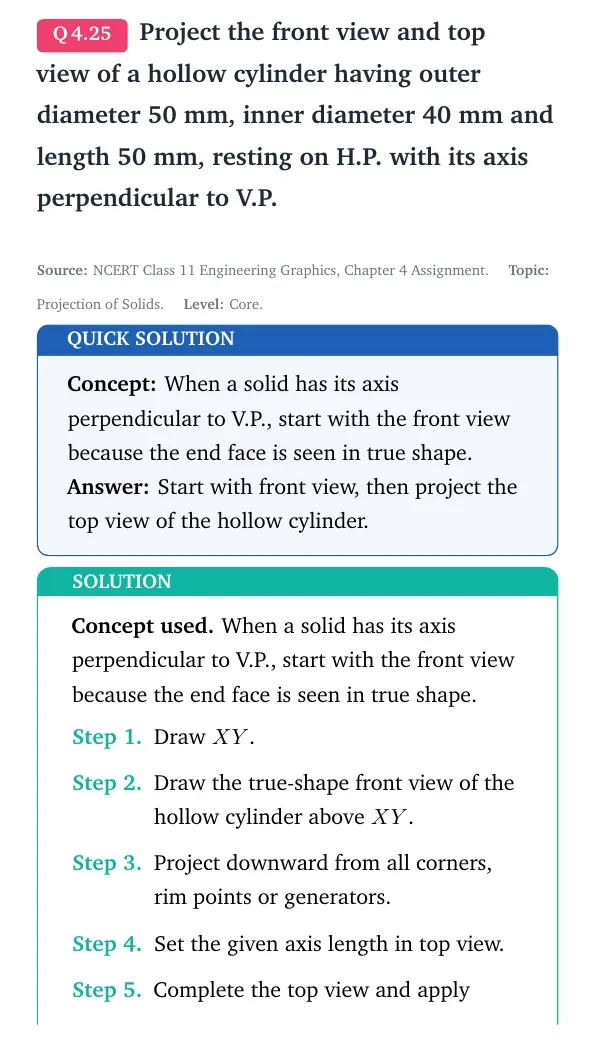

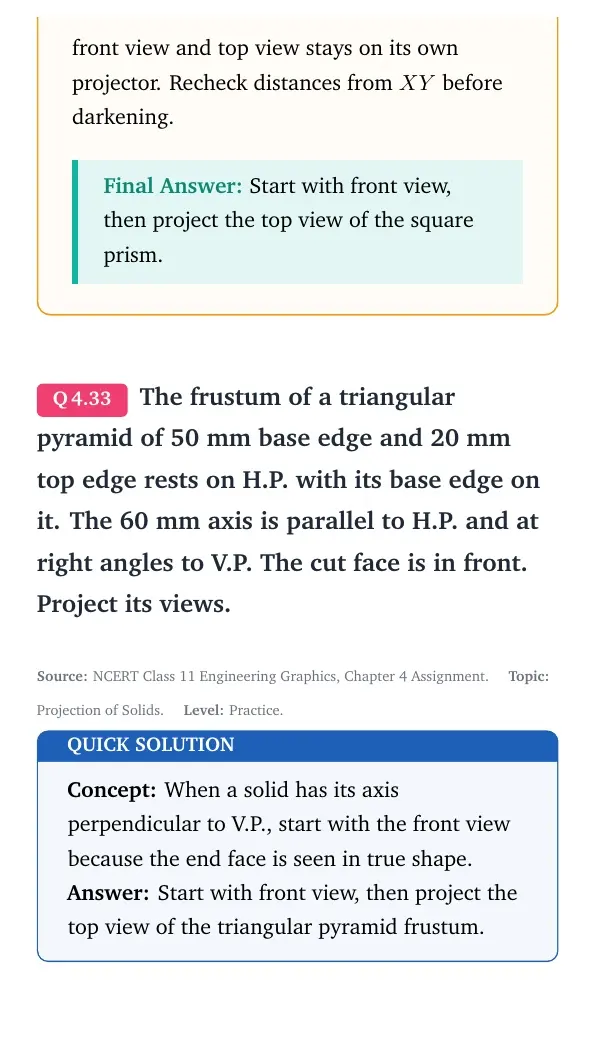

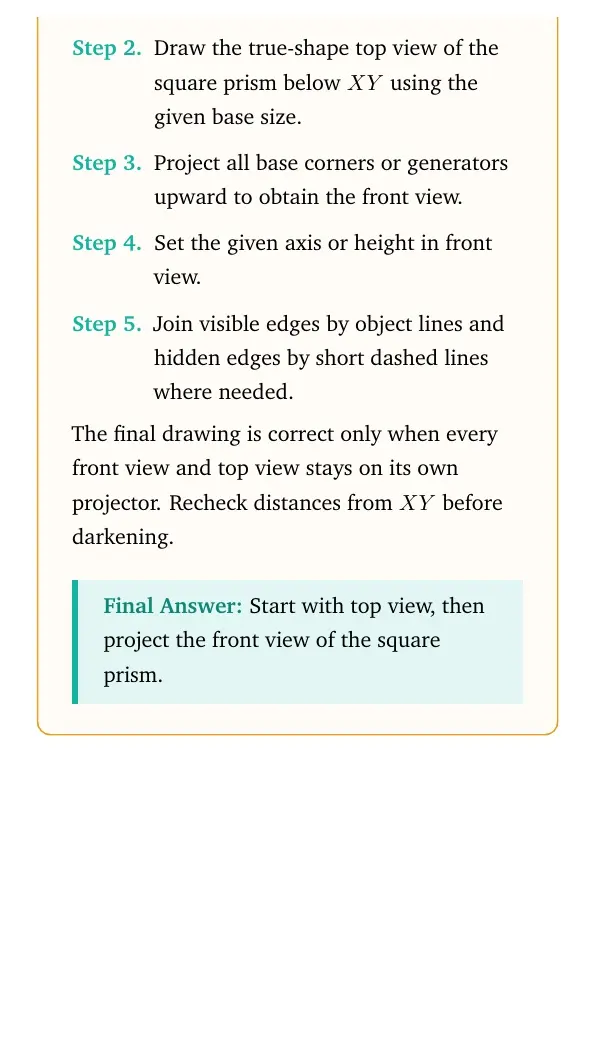

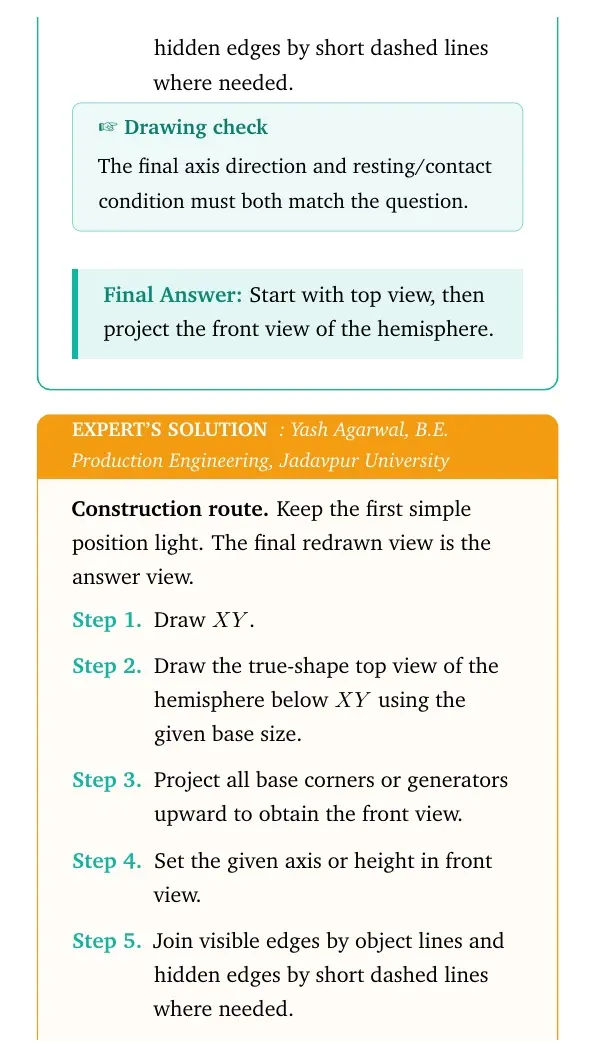

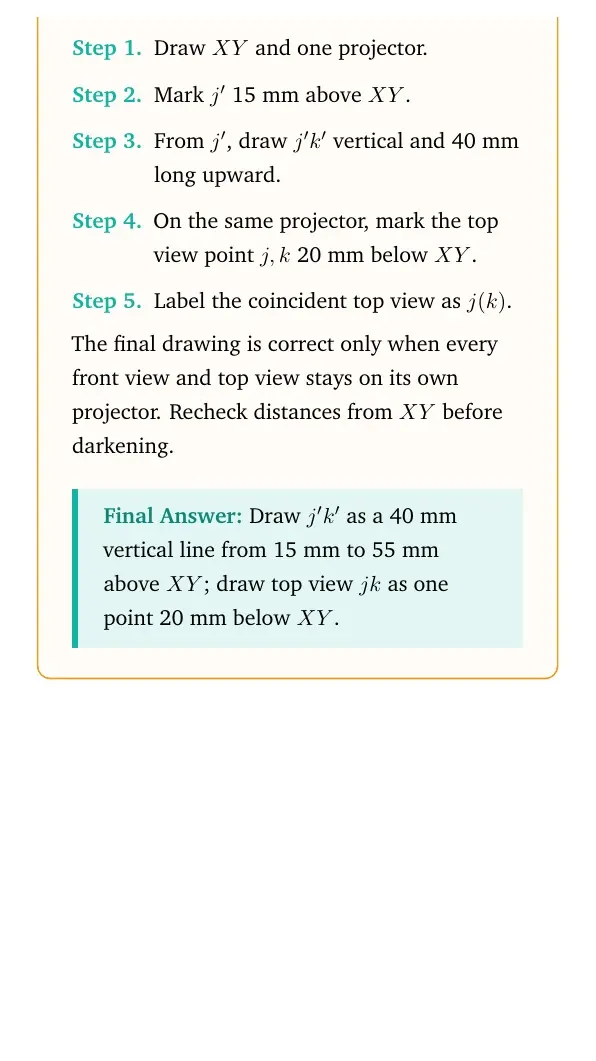

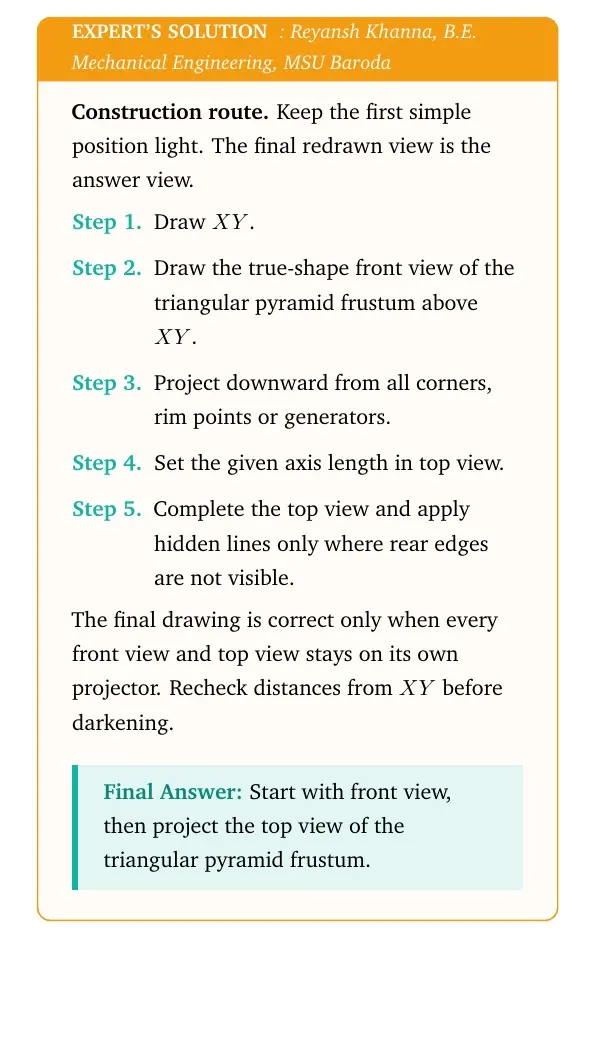

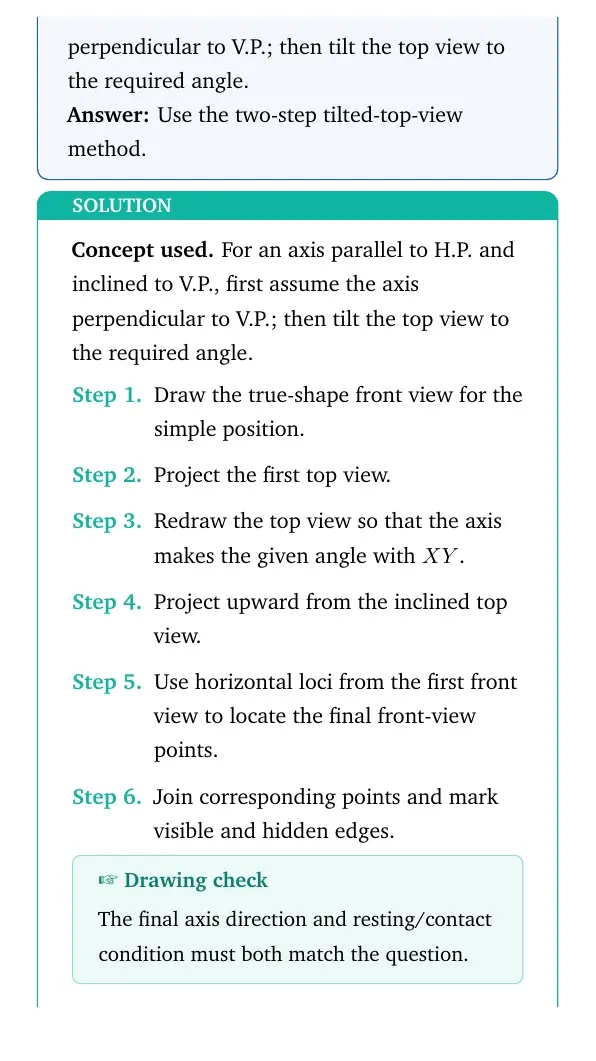

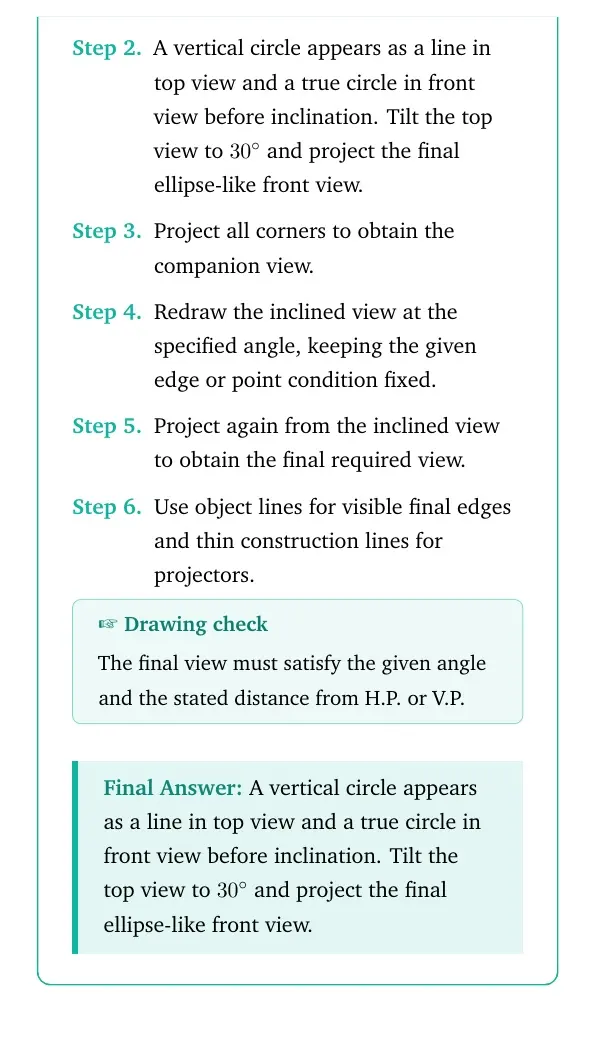

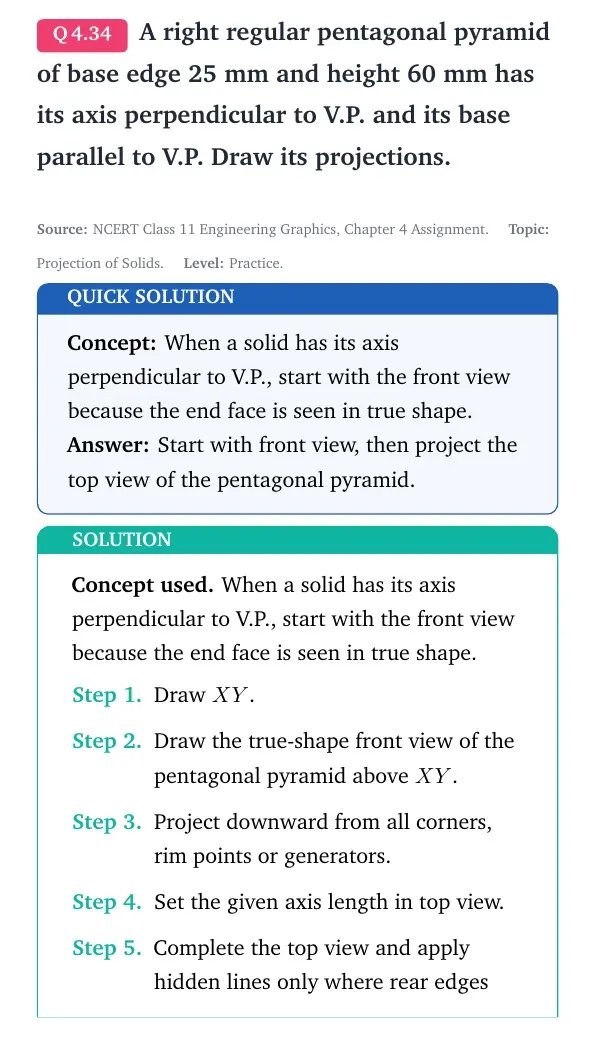

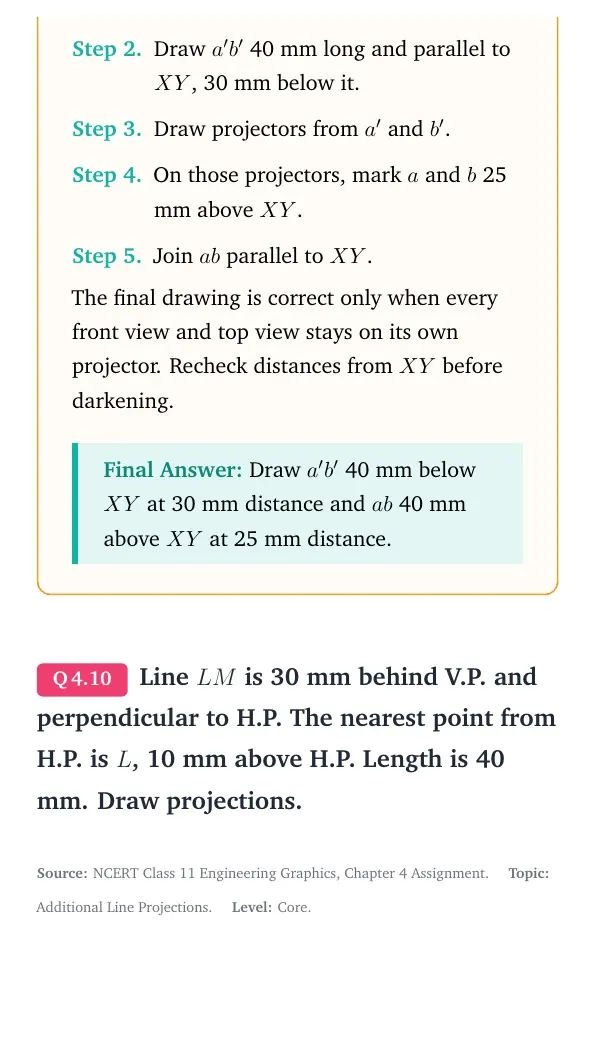

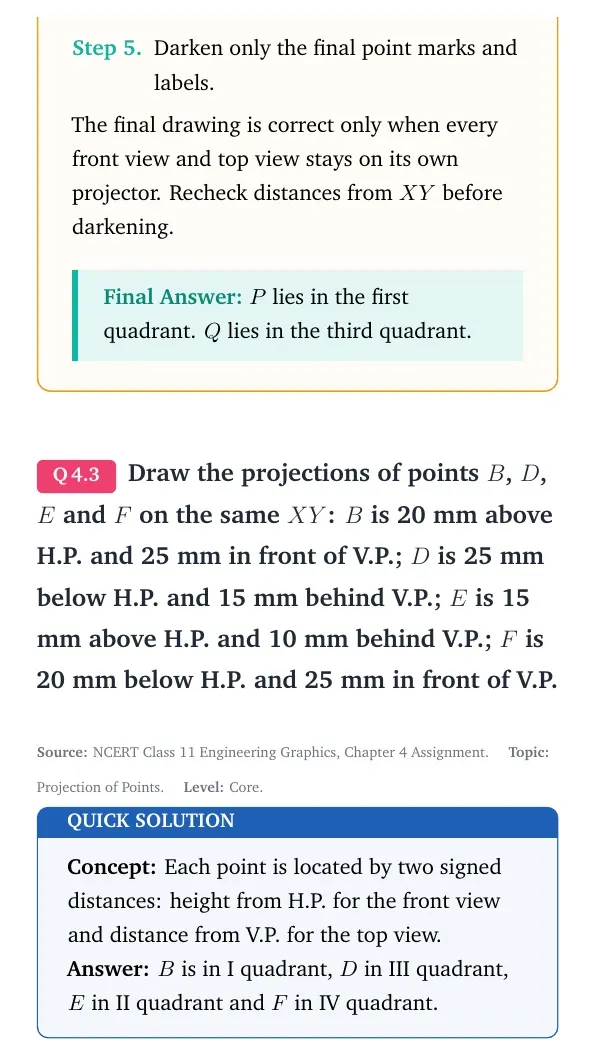

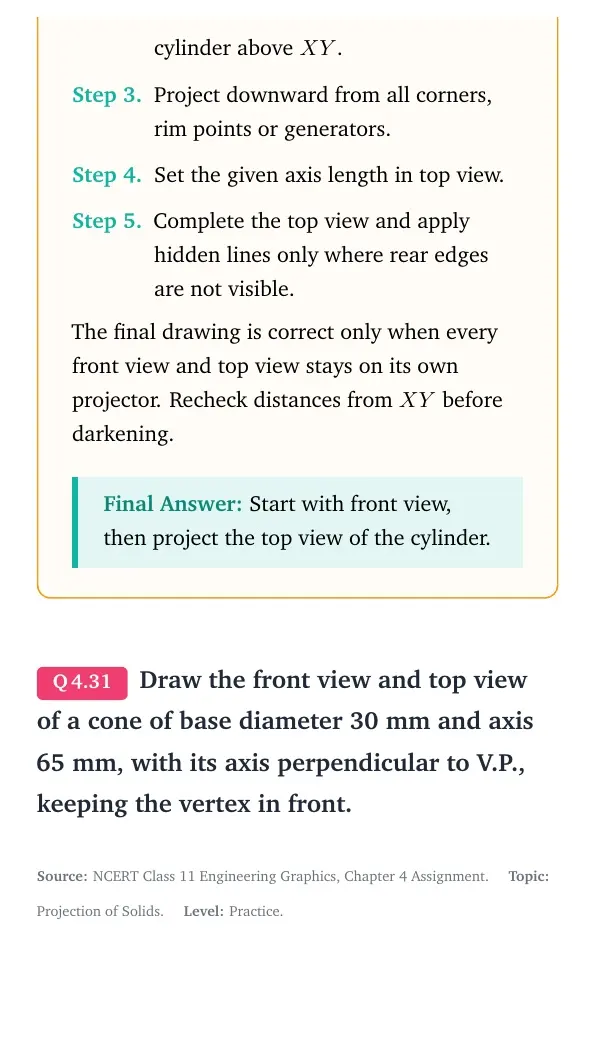

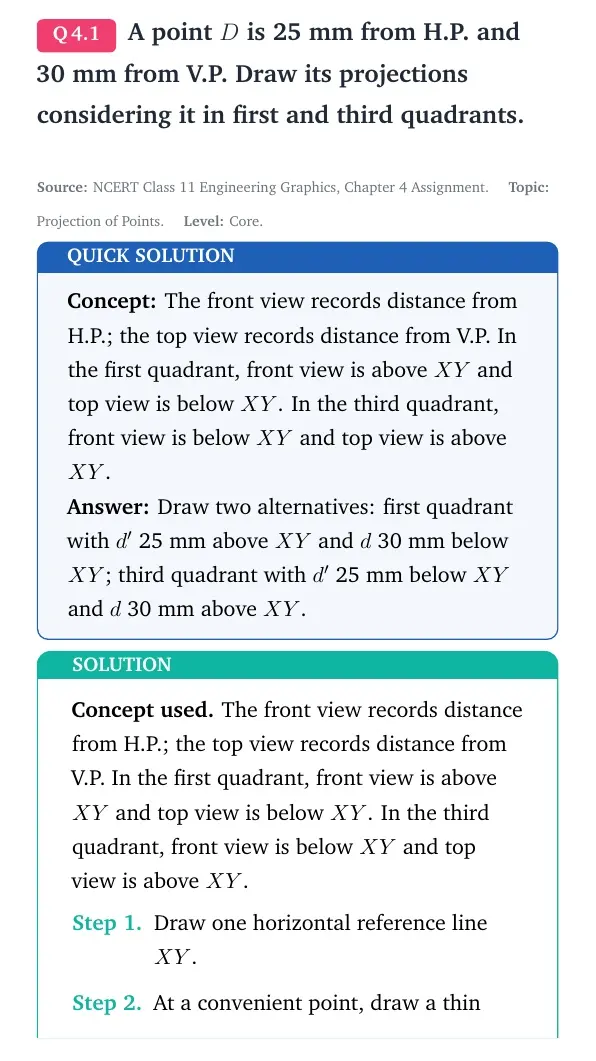

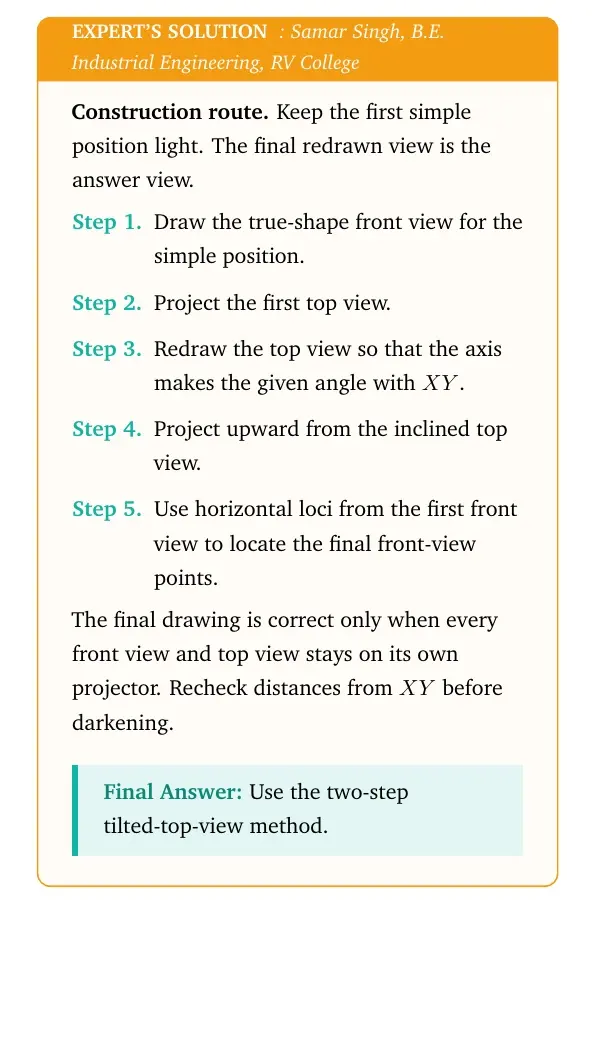

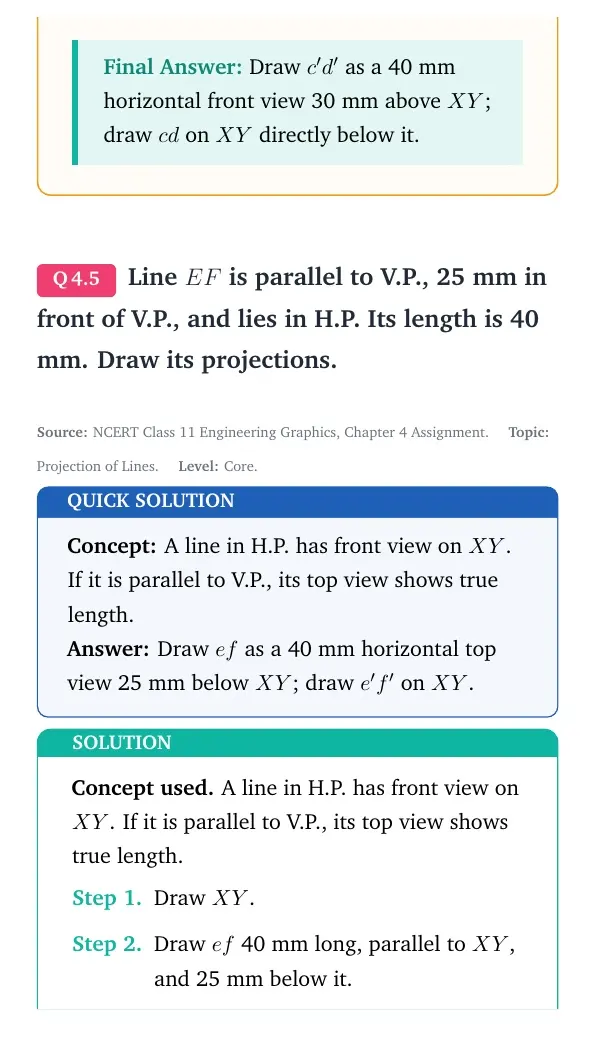

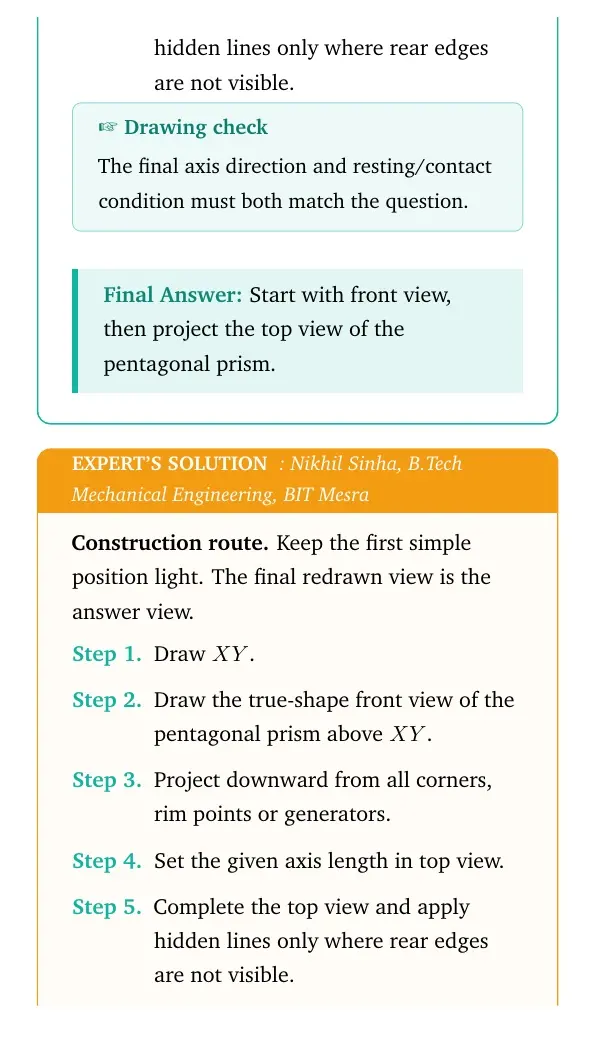

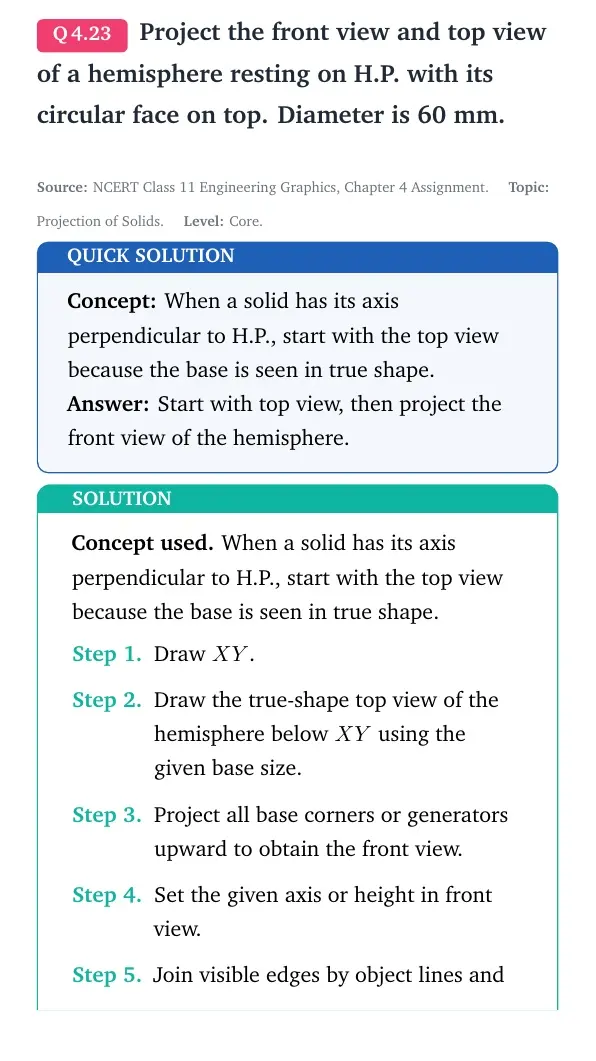

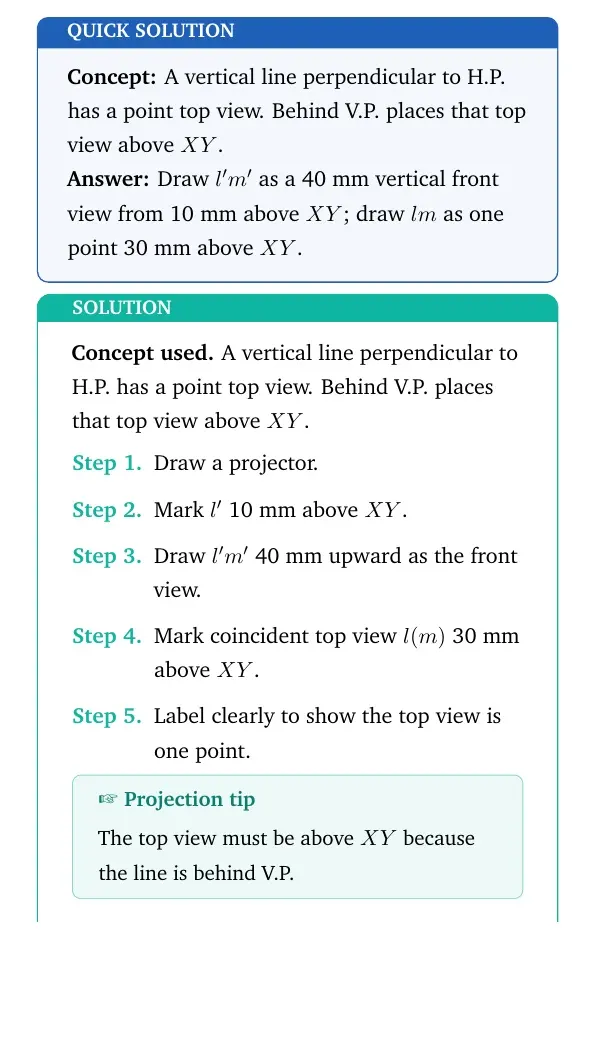

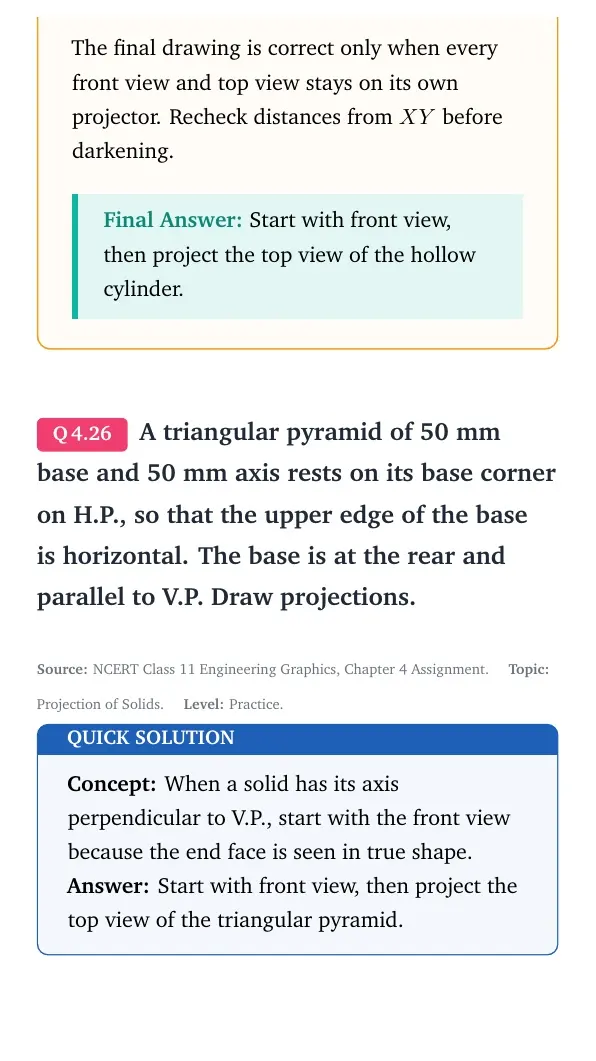

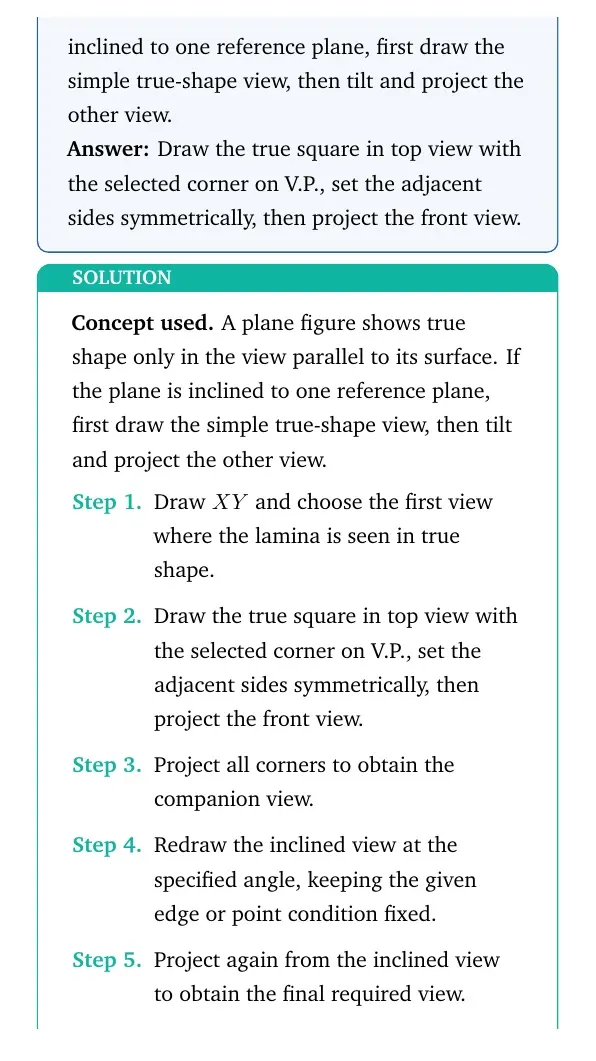

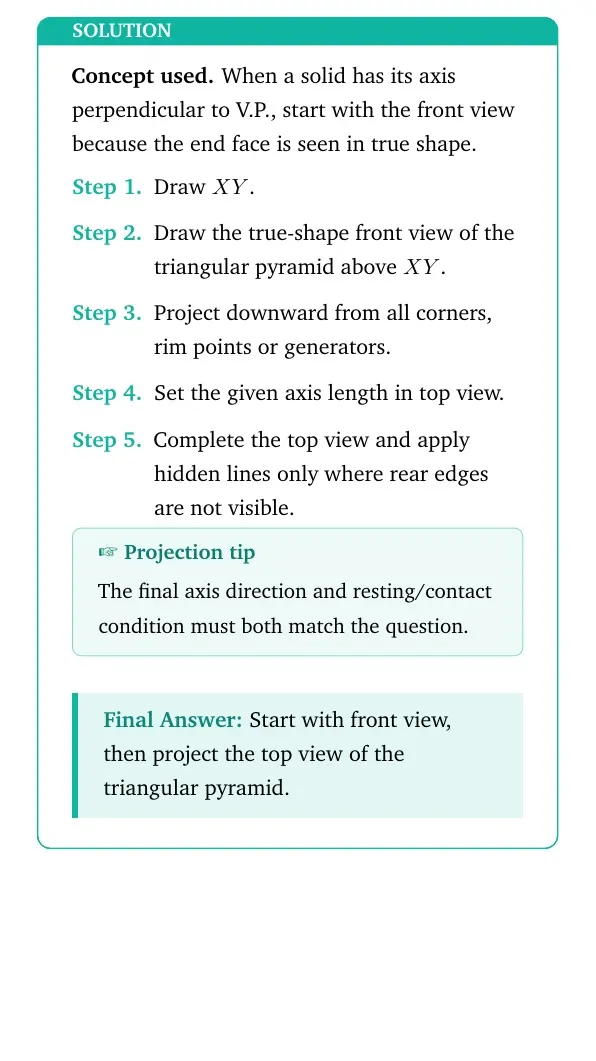

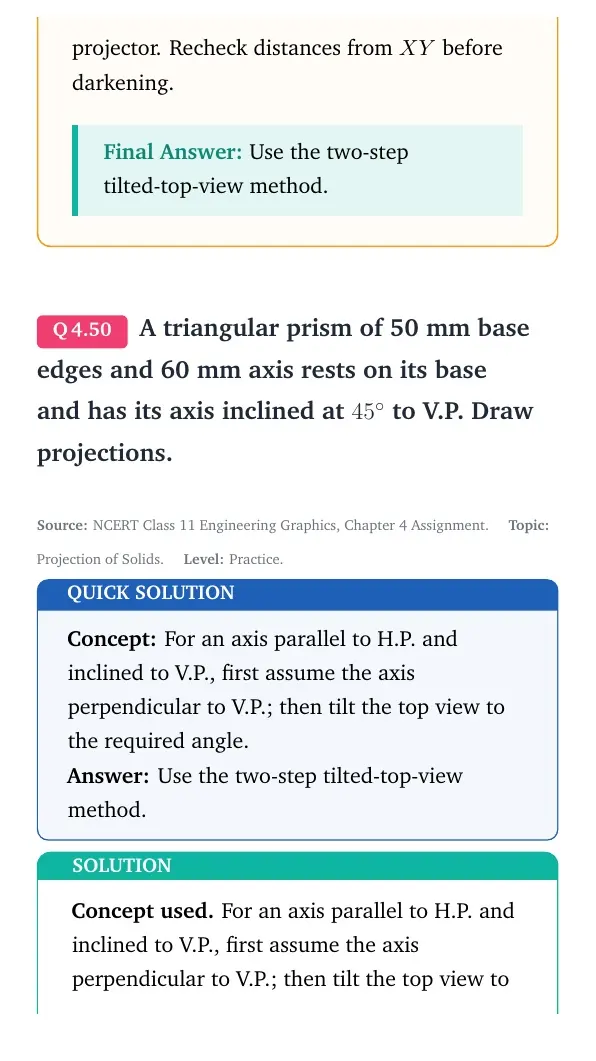

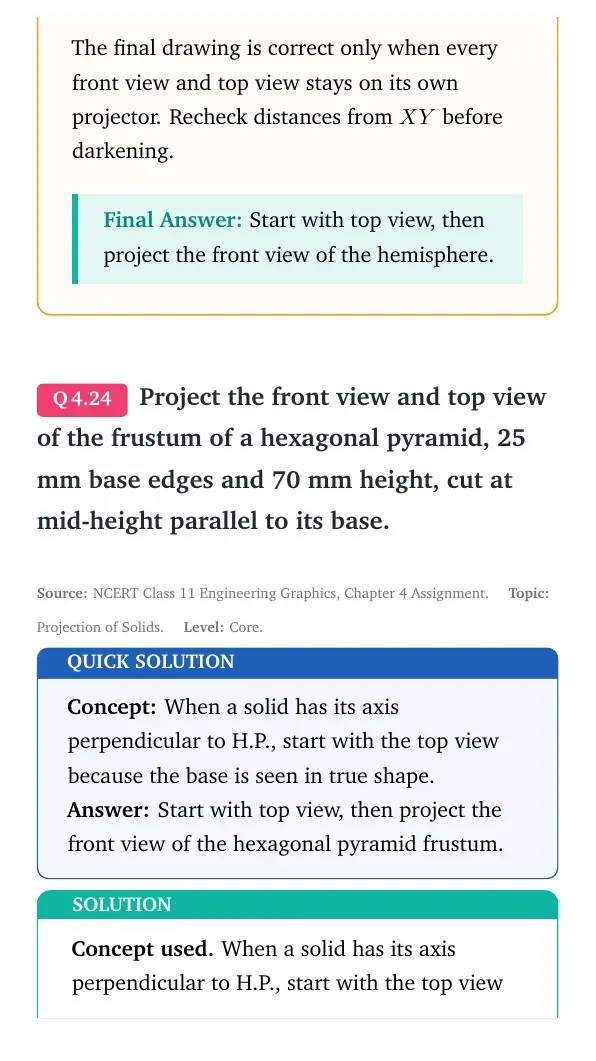

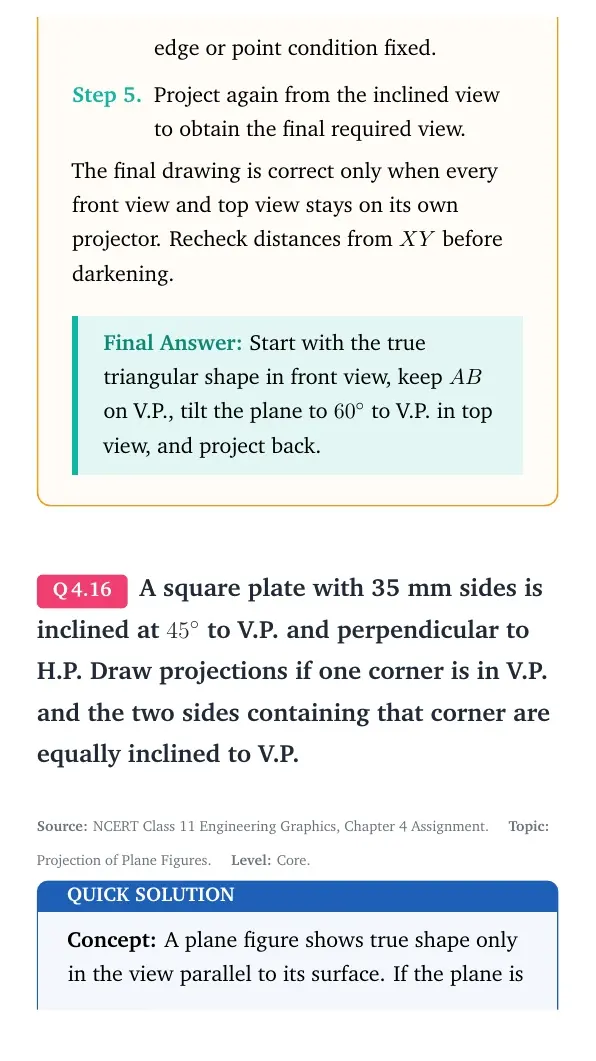

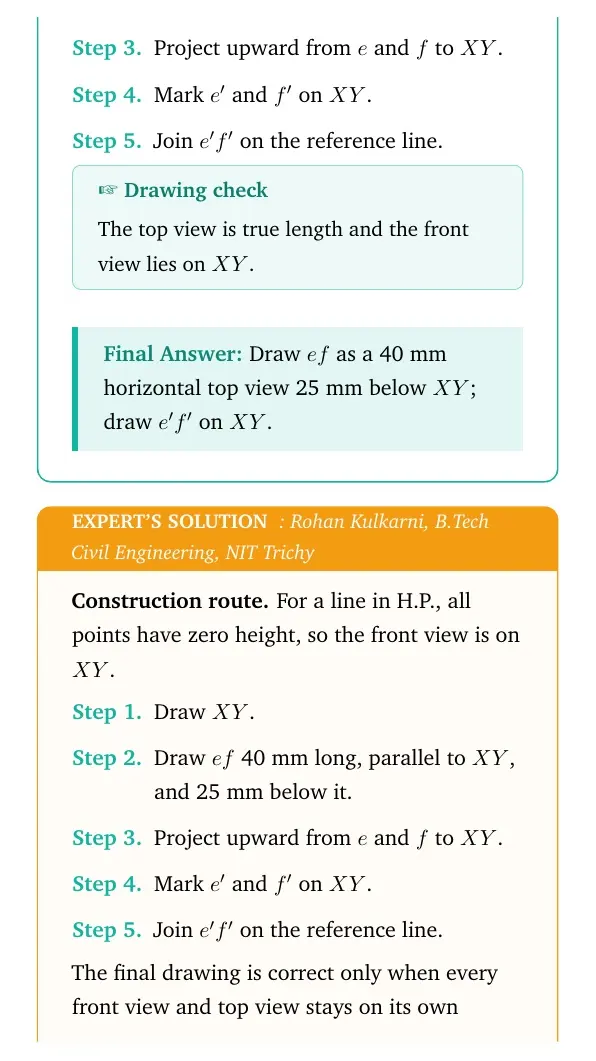

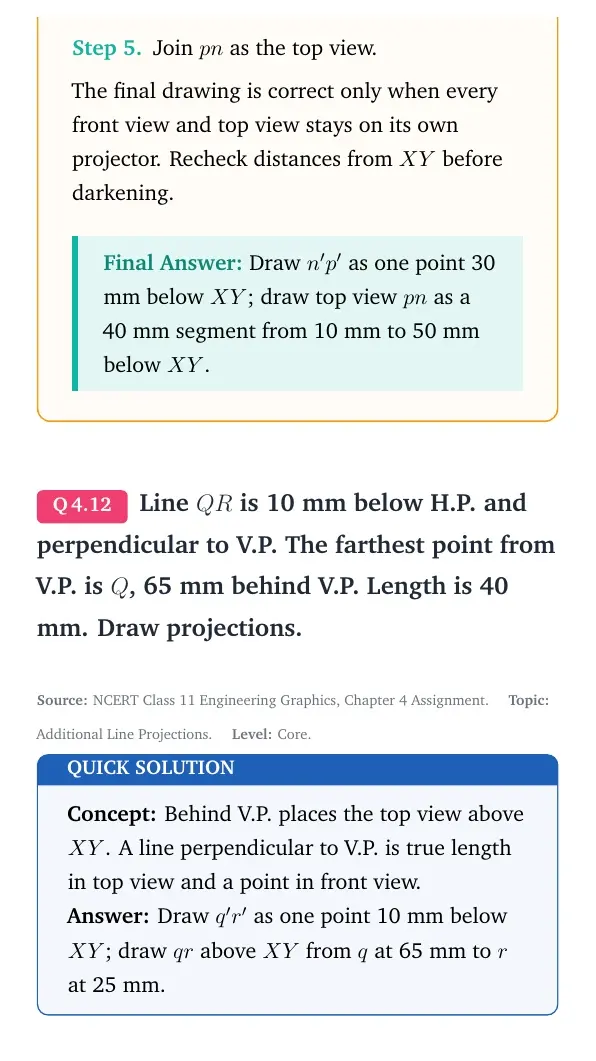

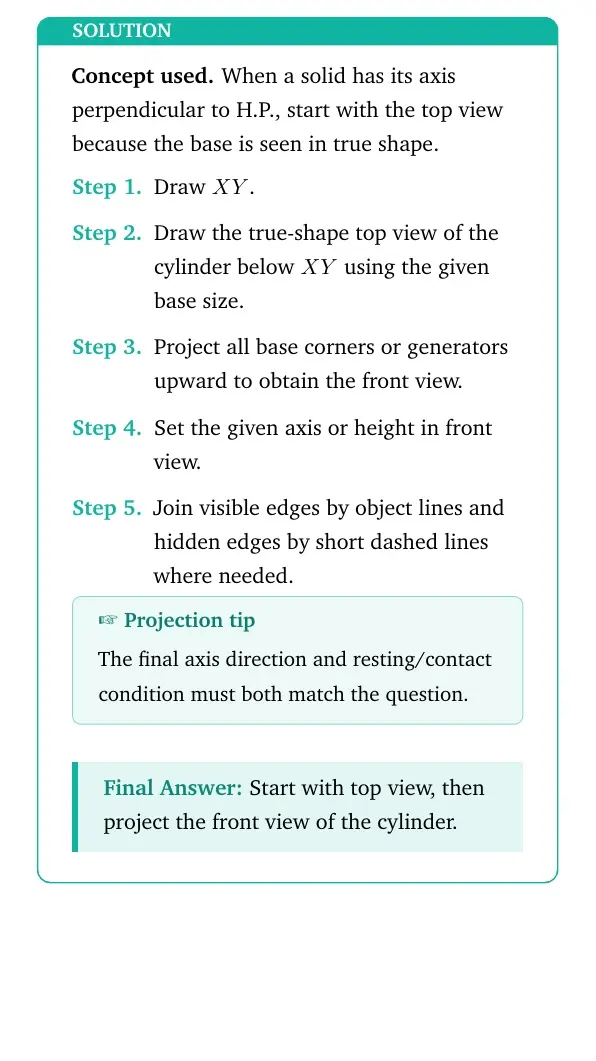

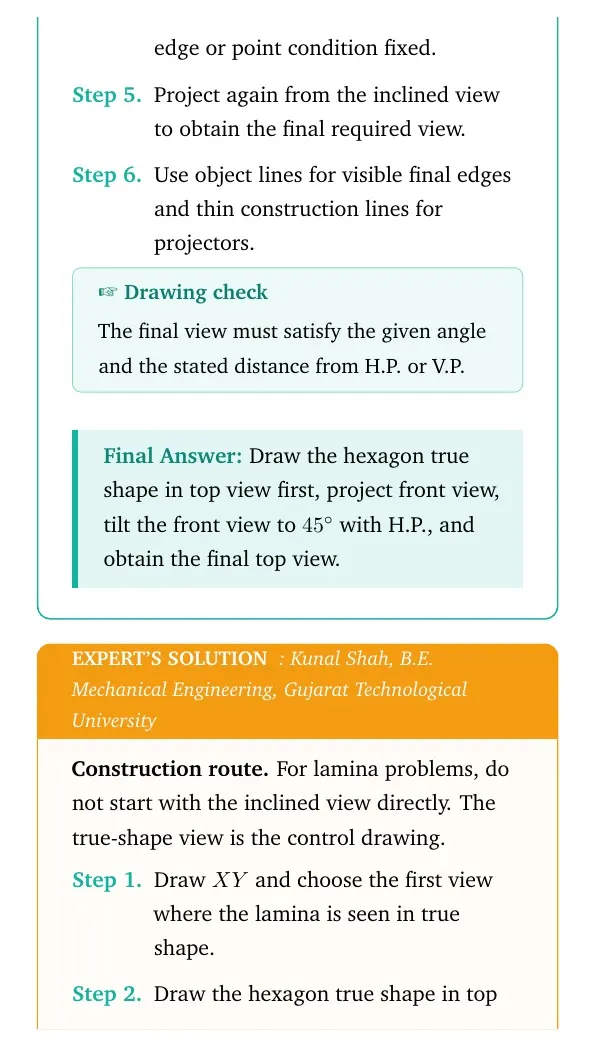

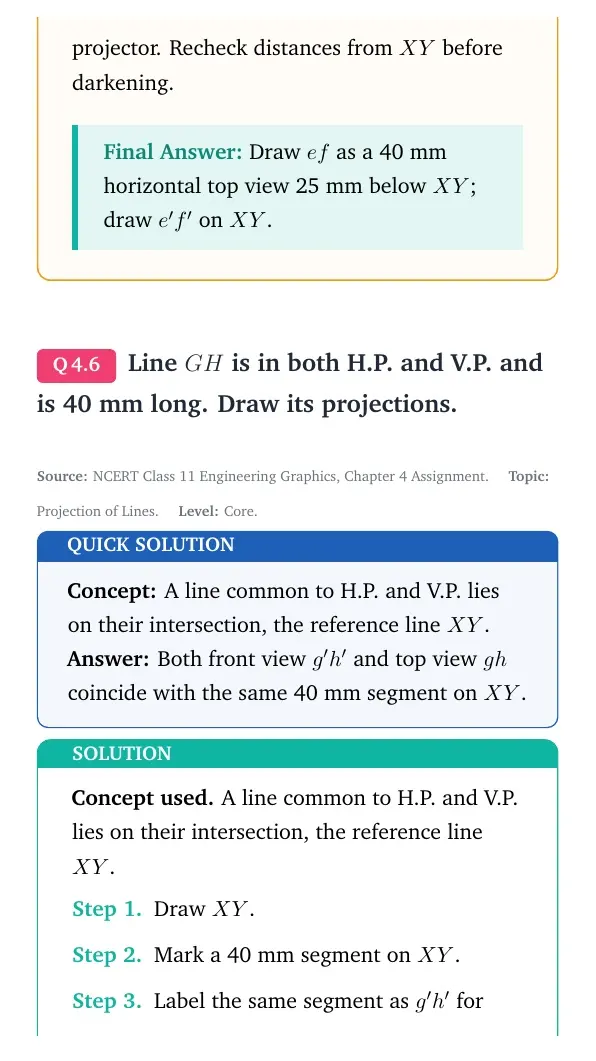

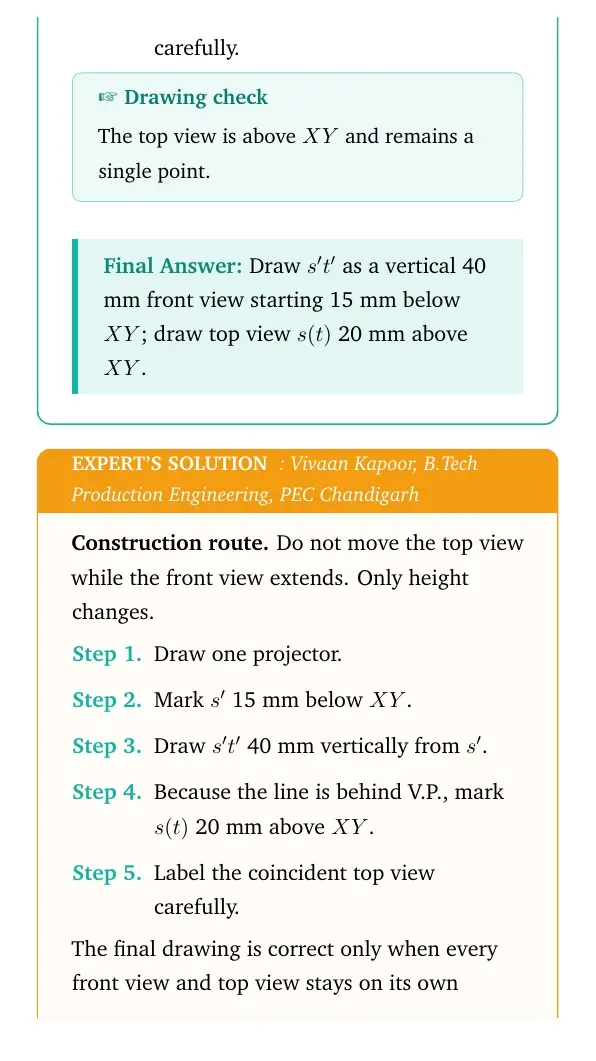

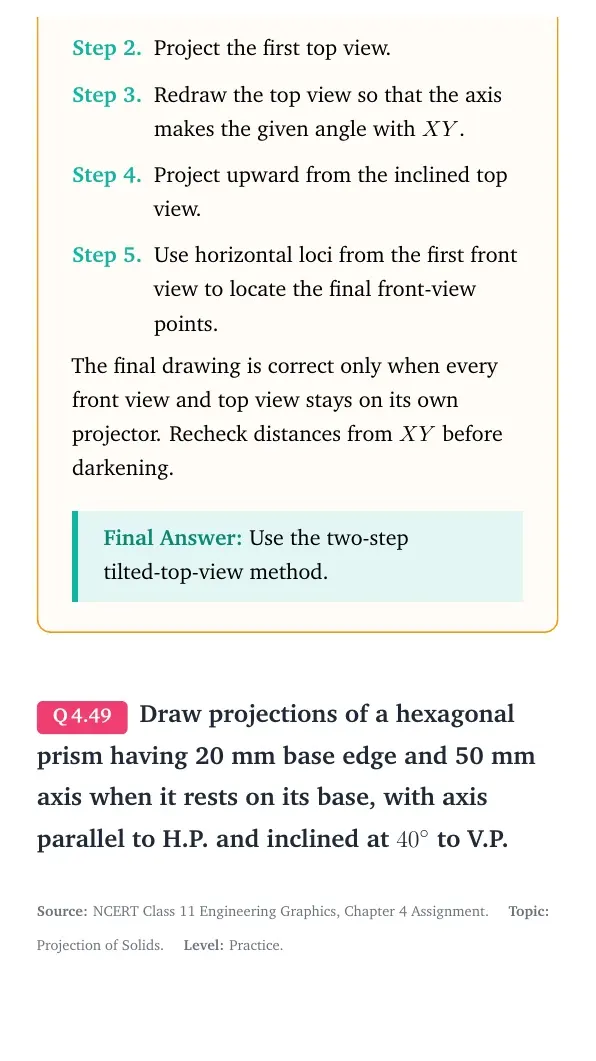

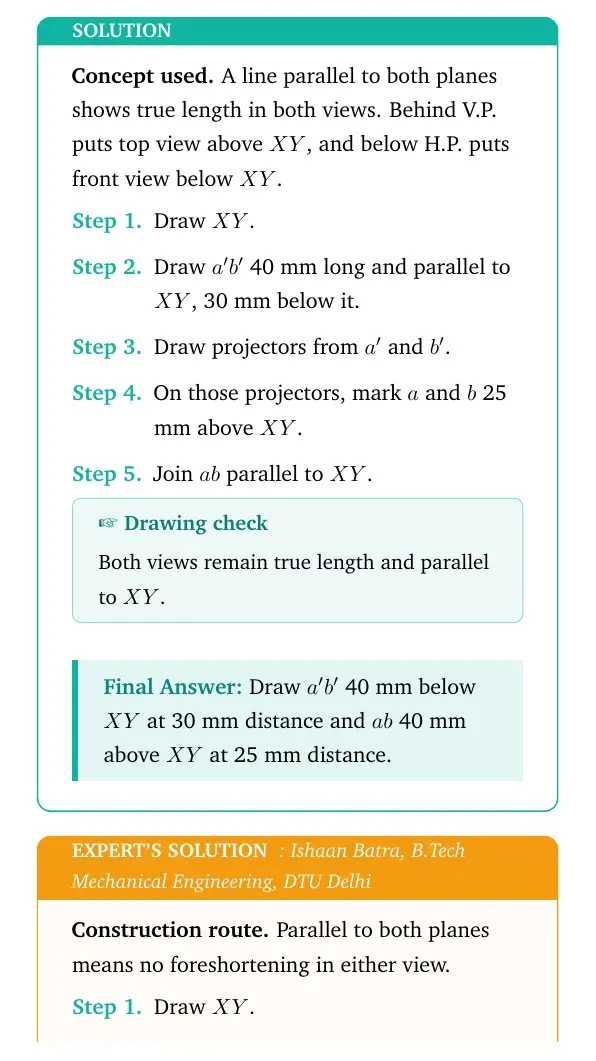

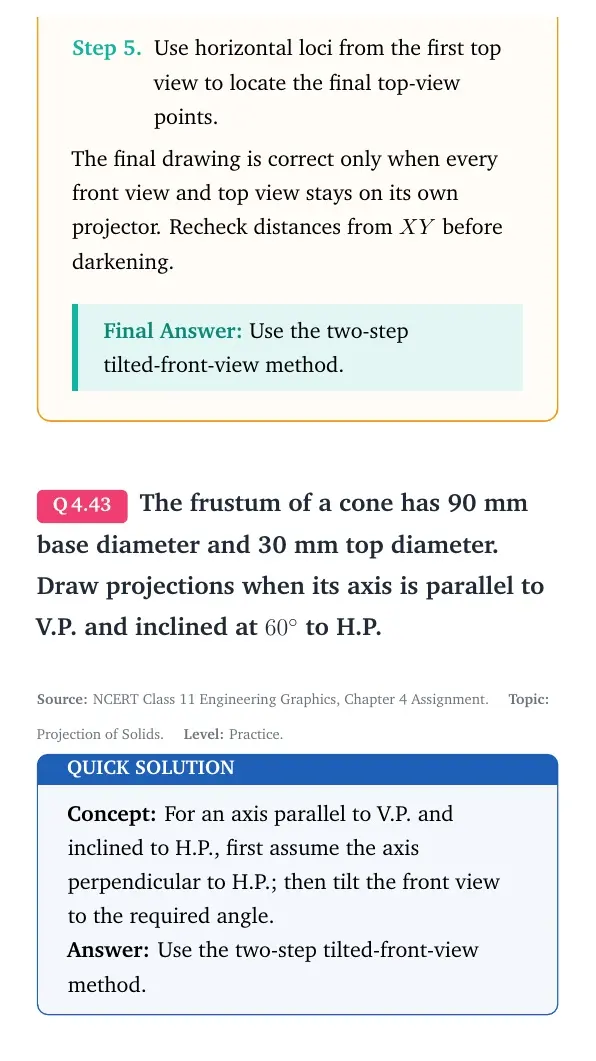

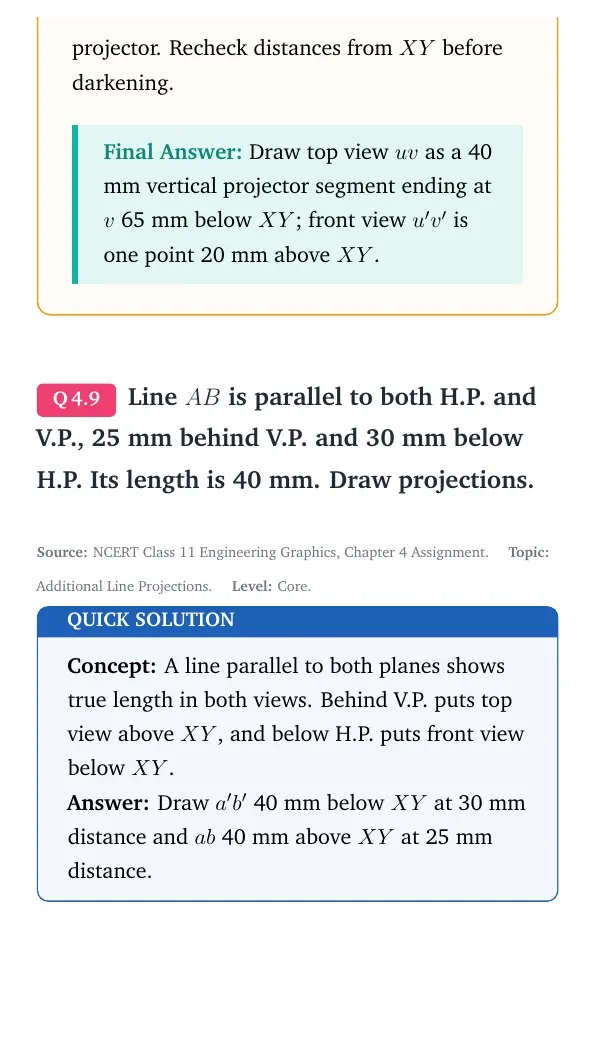

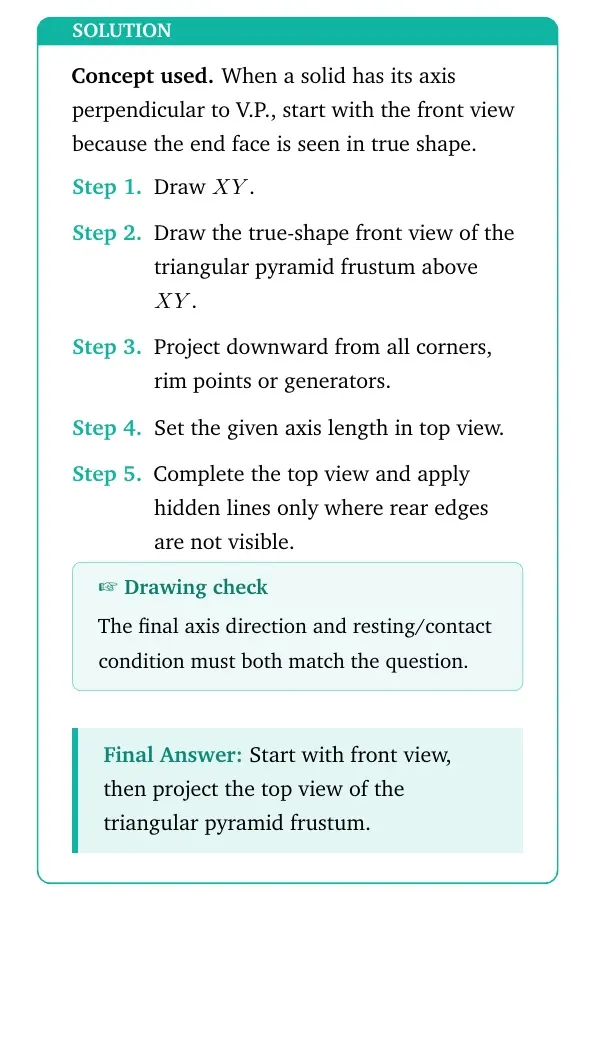

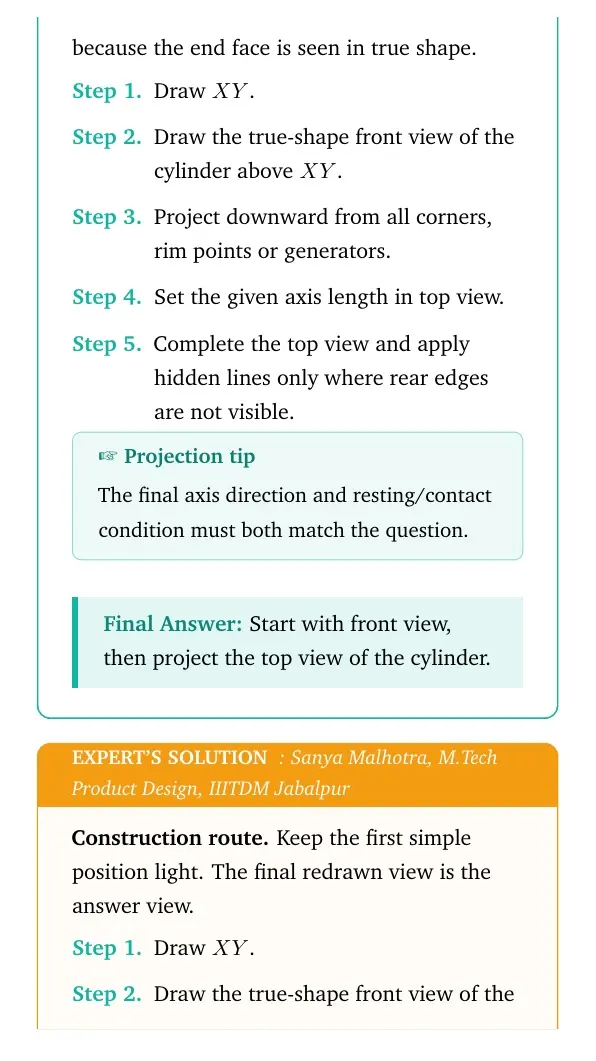

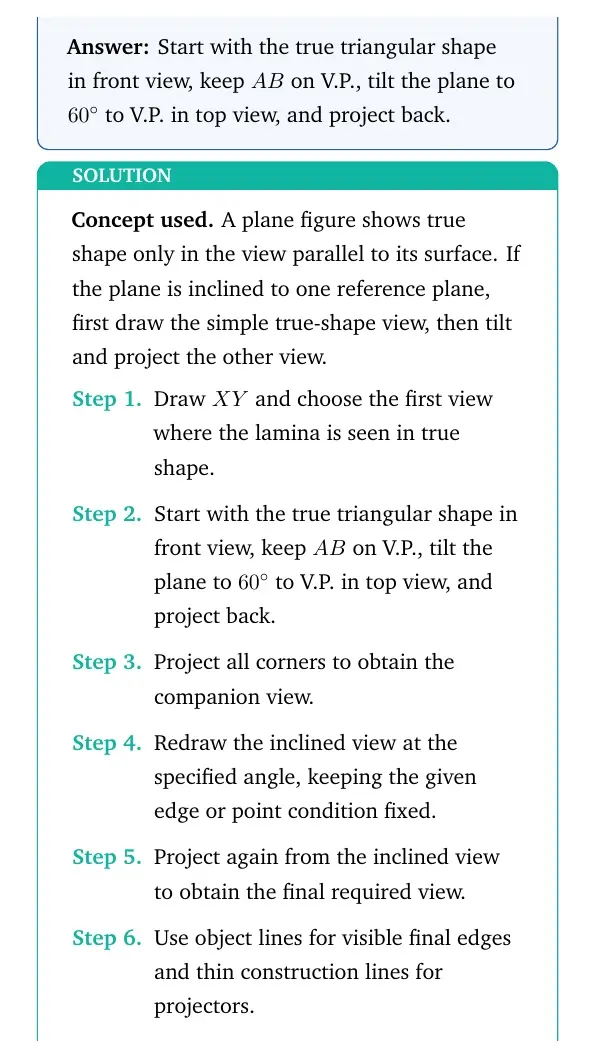

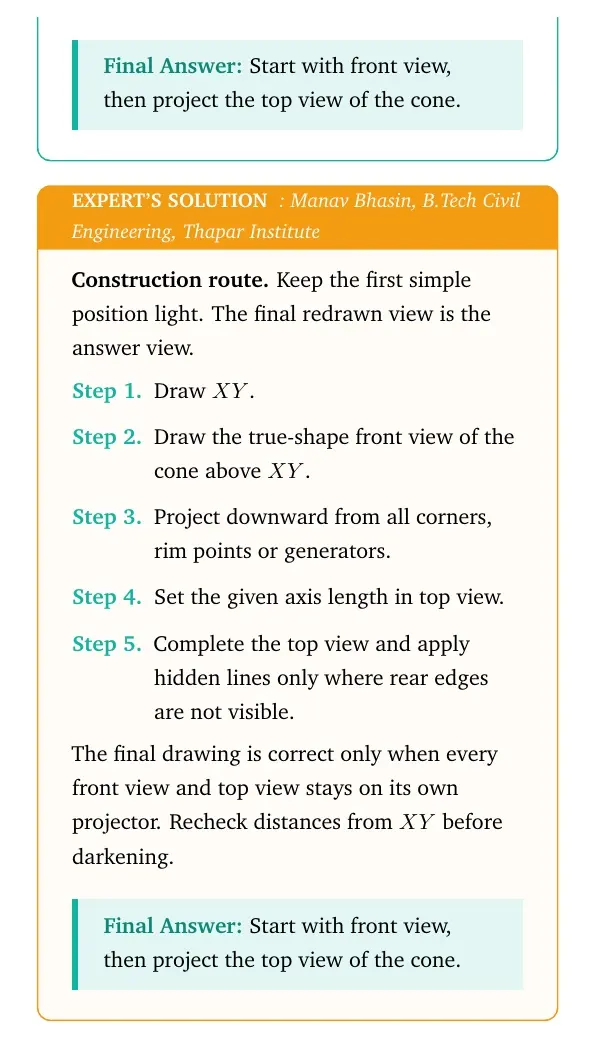

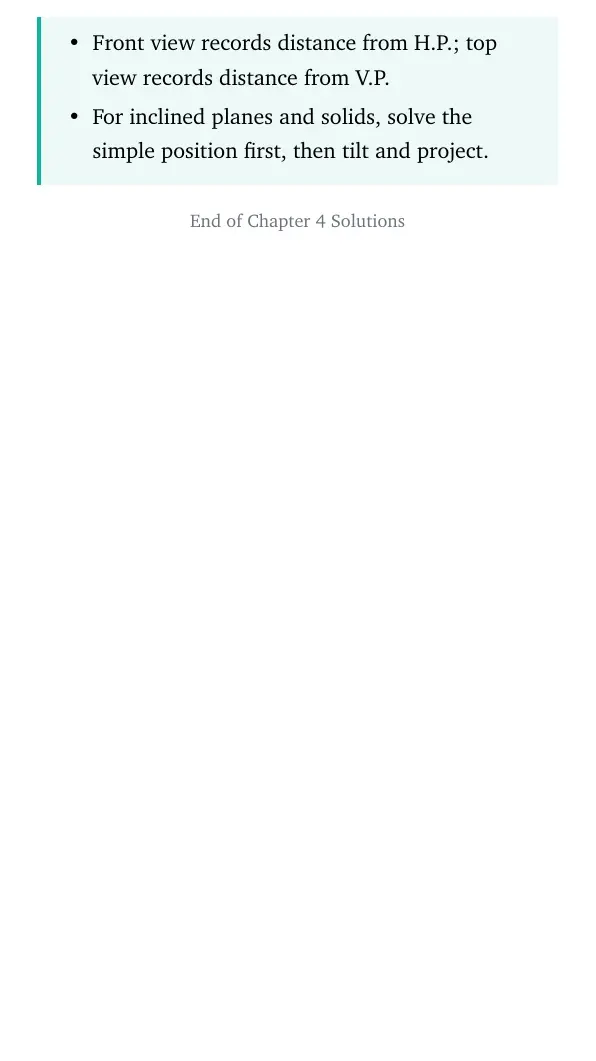

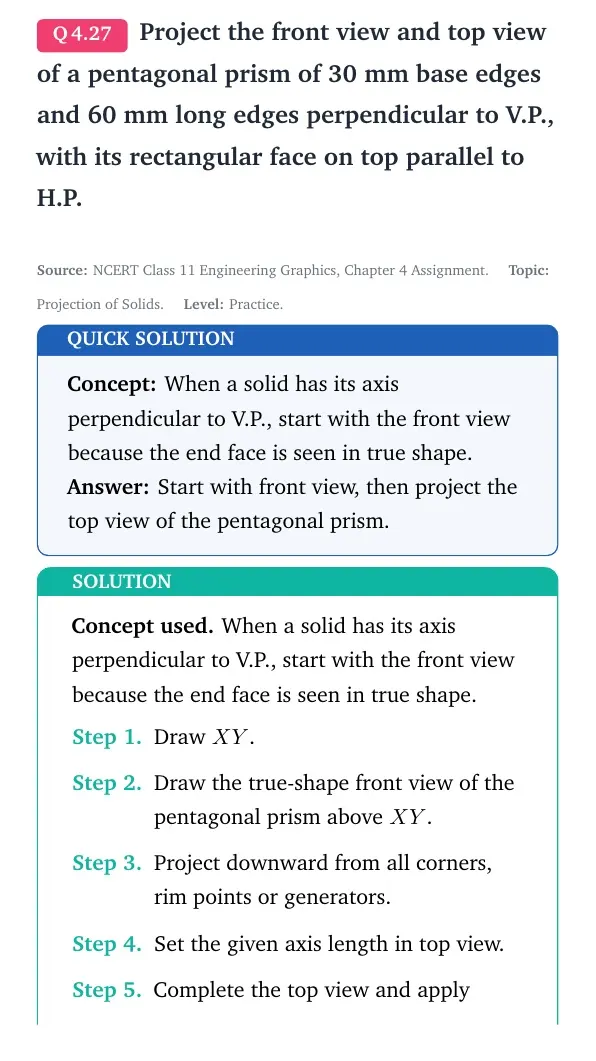

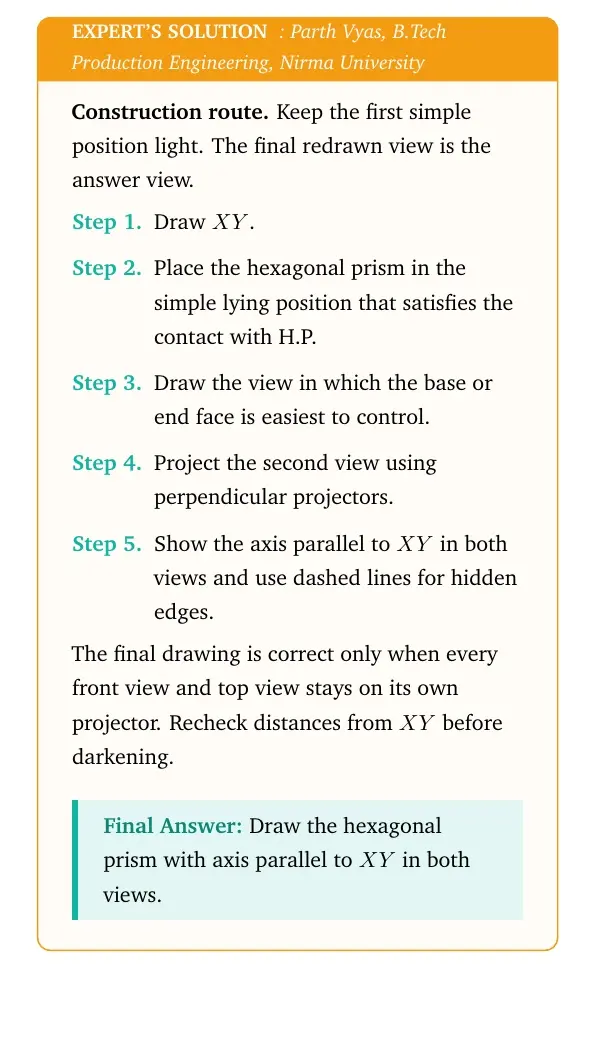

Questions and Expert Solutions for Orthographic Projection

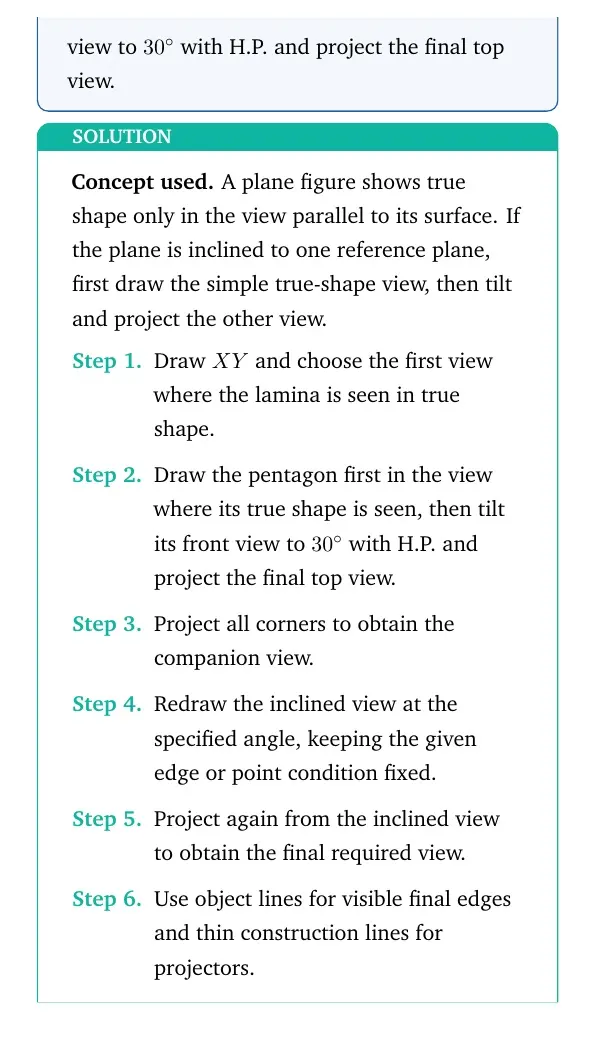

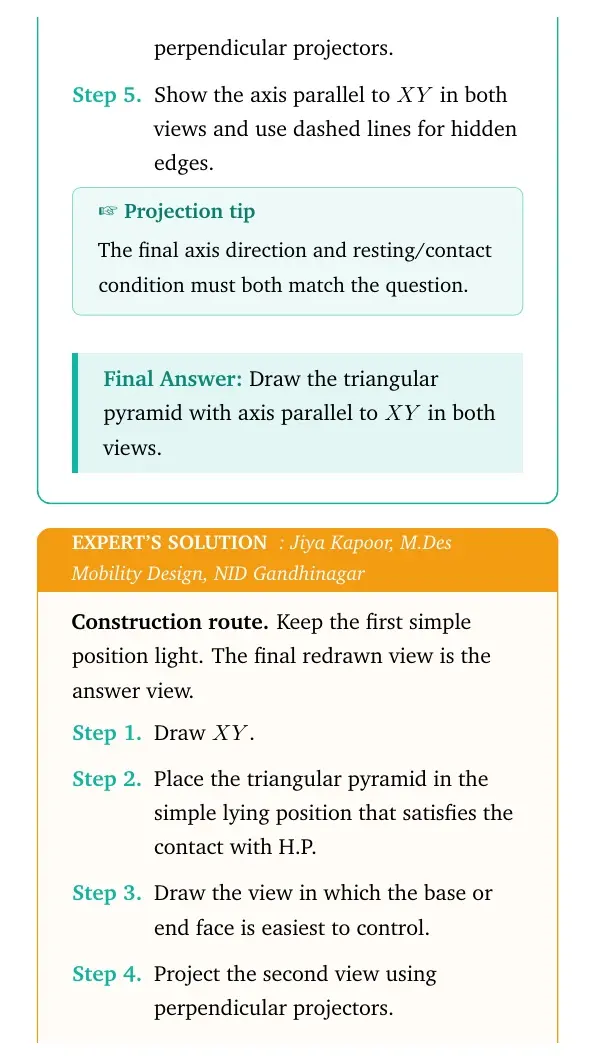

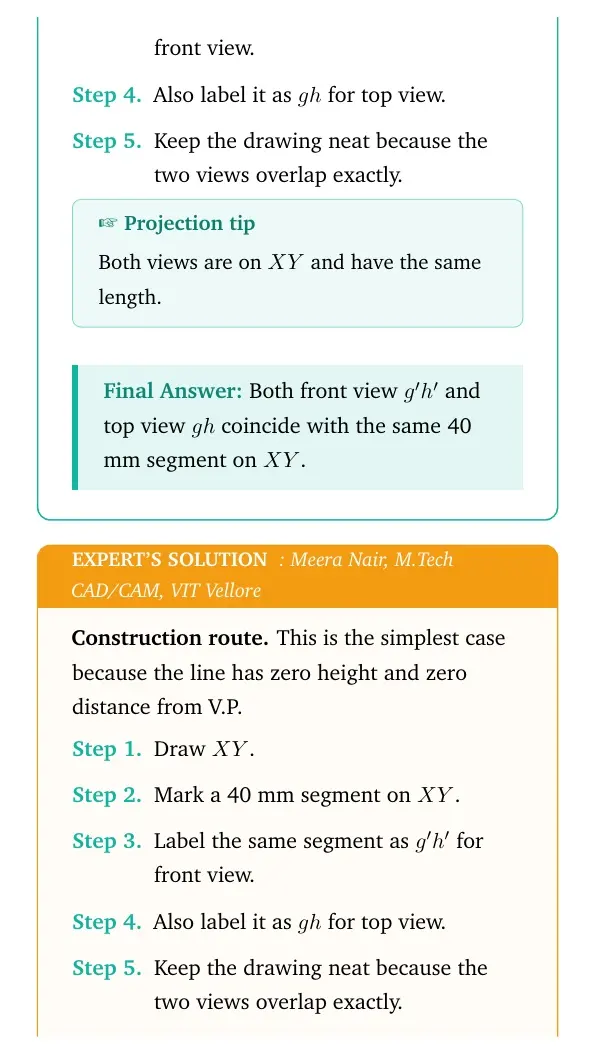

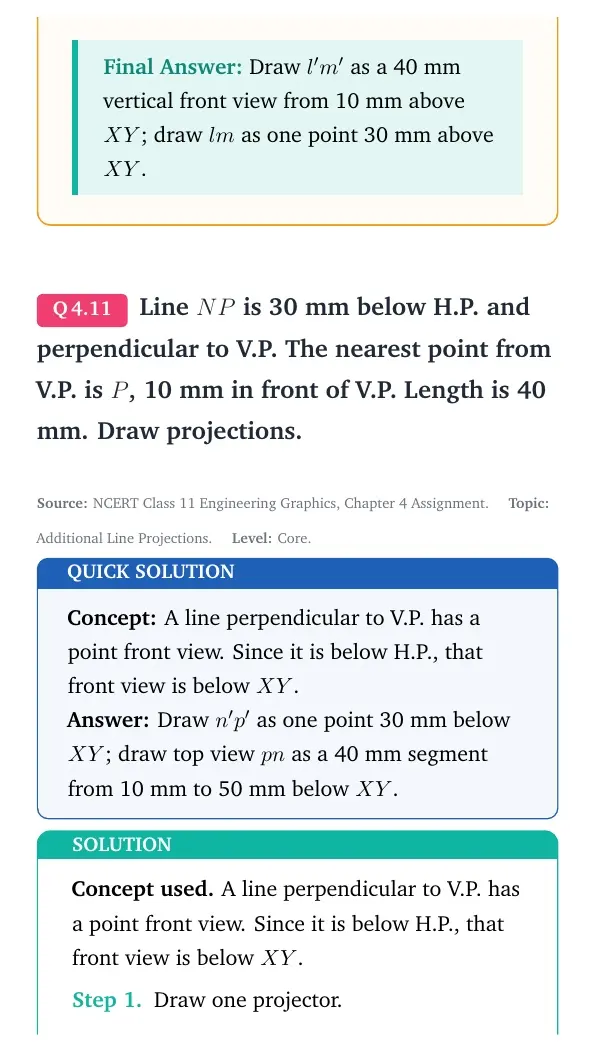

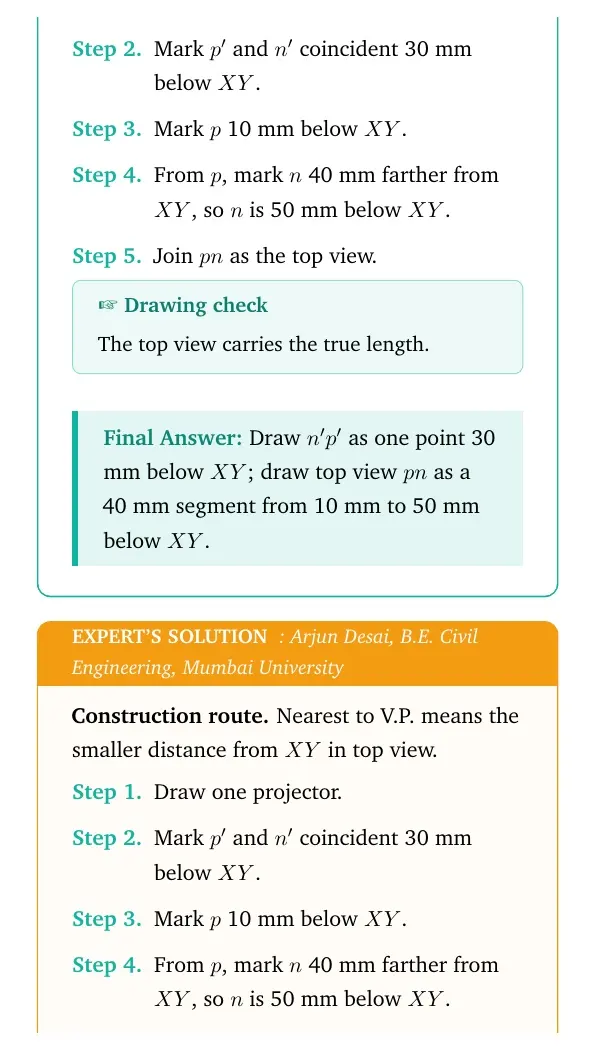

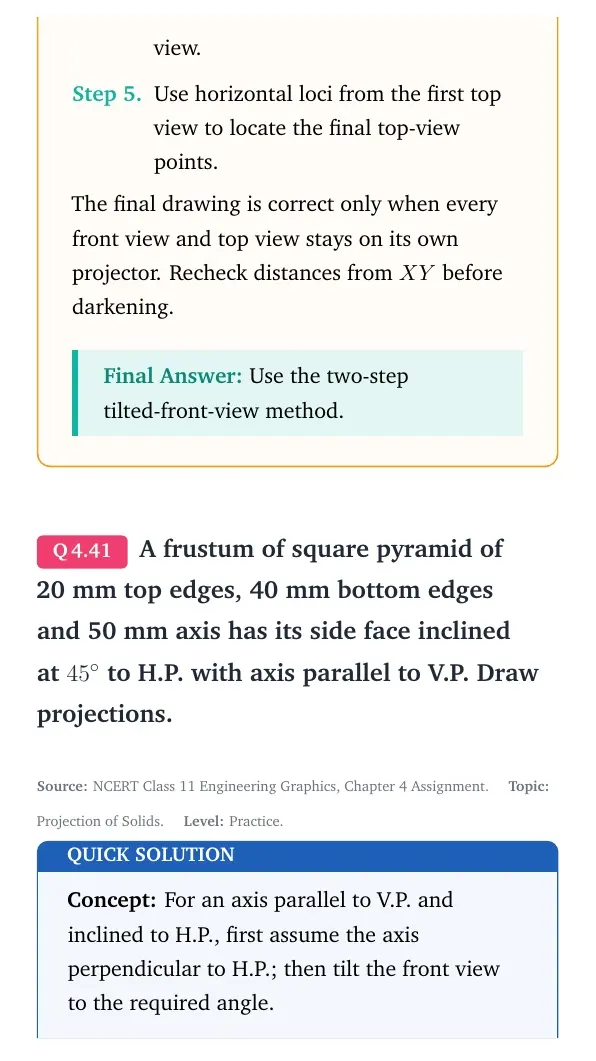

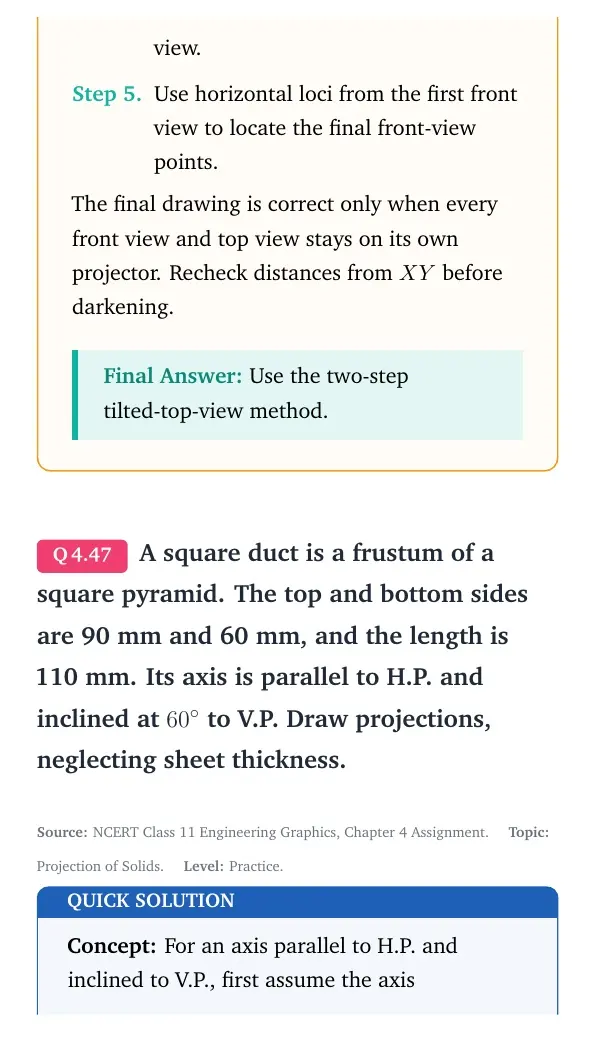

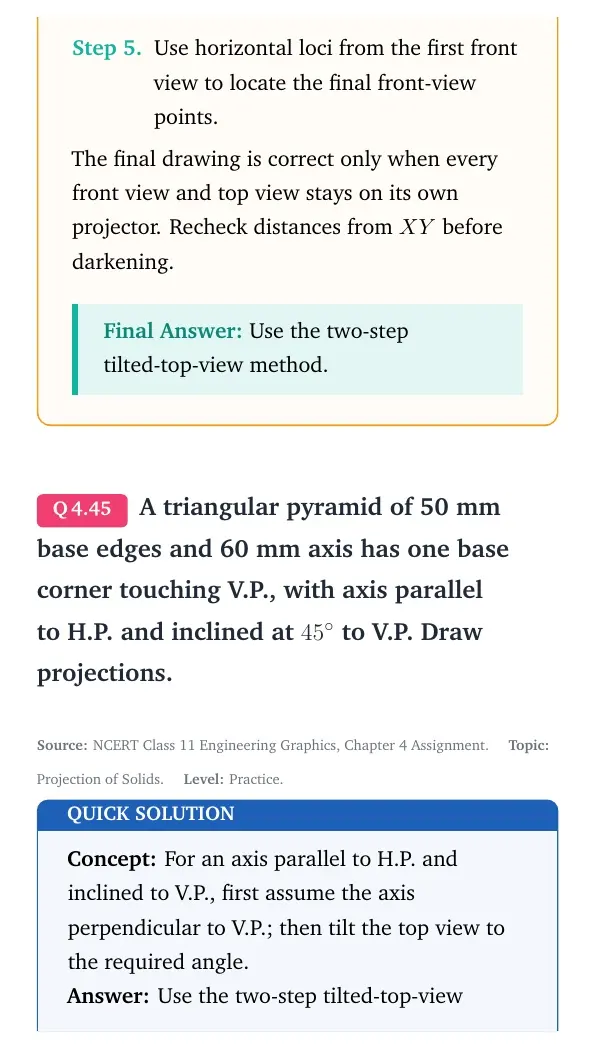

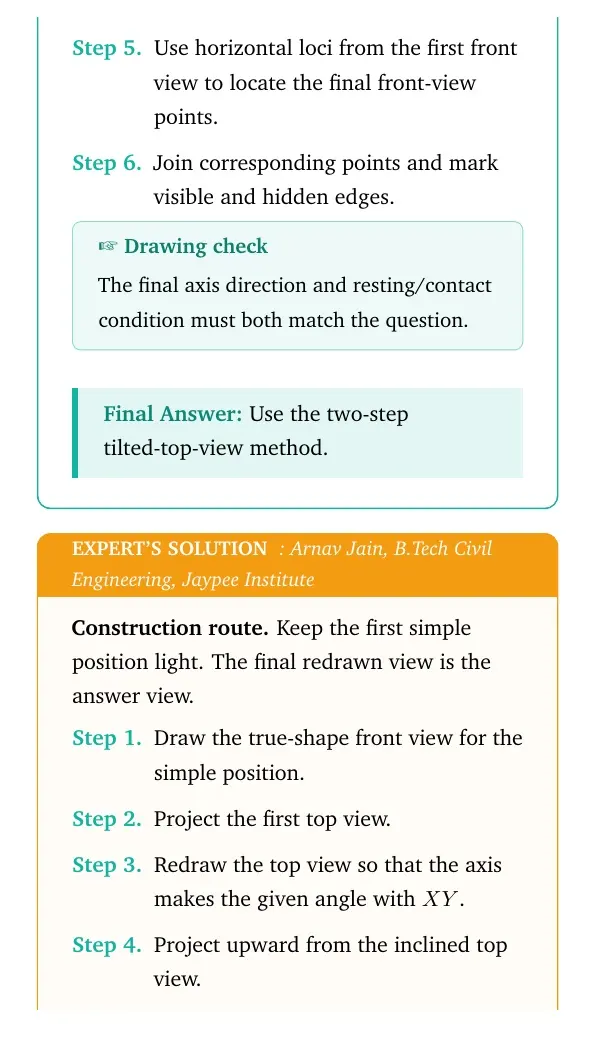

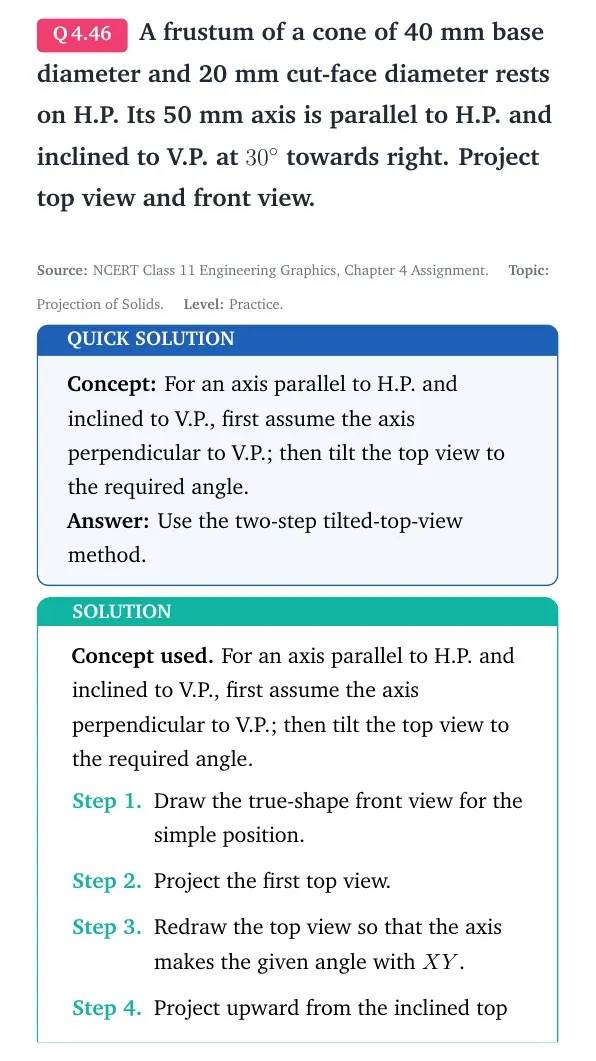

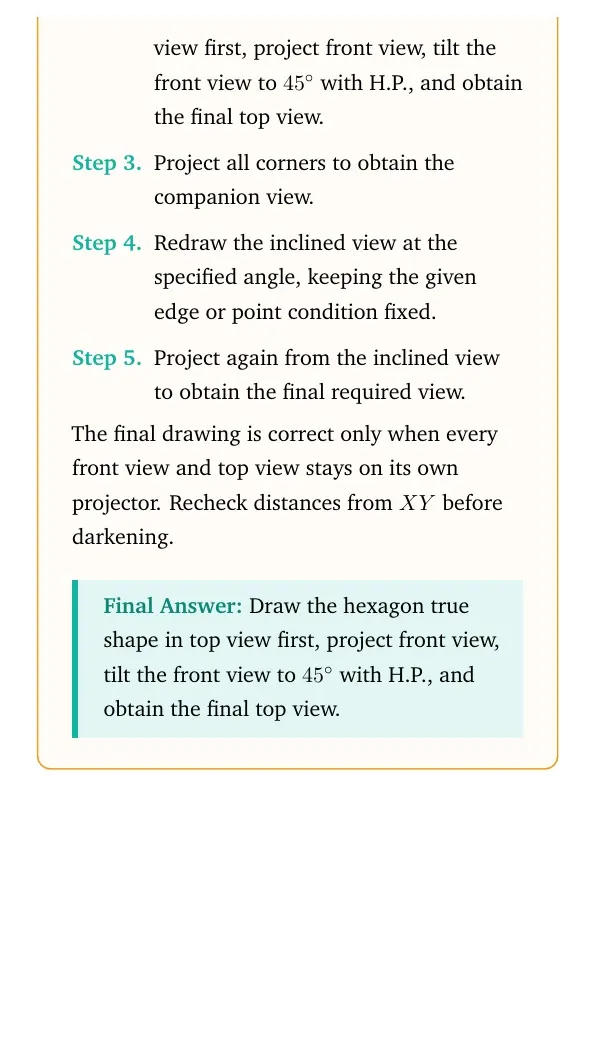

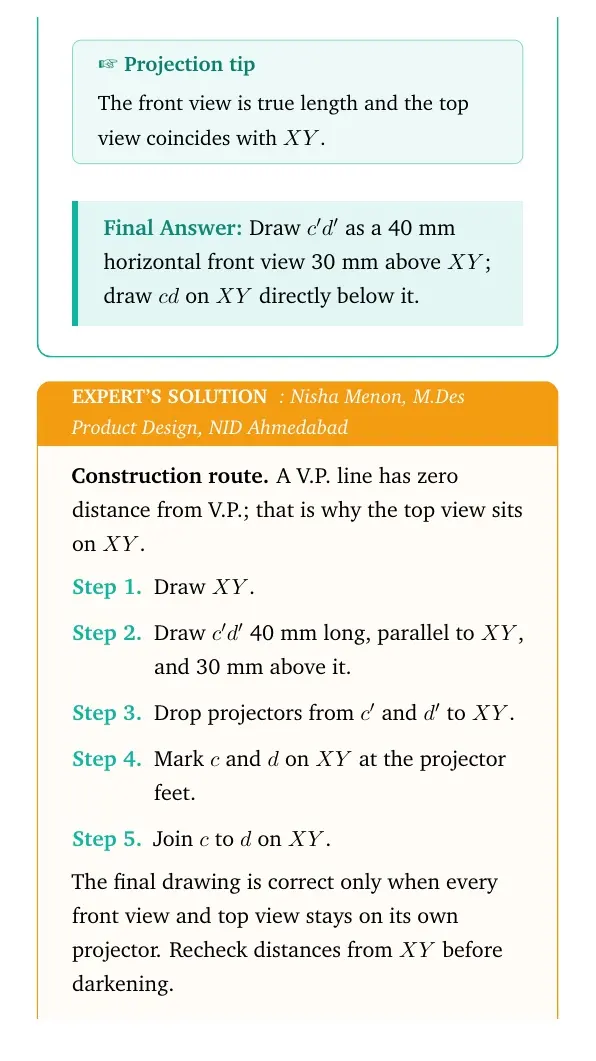

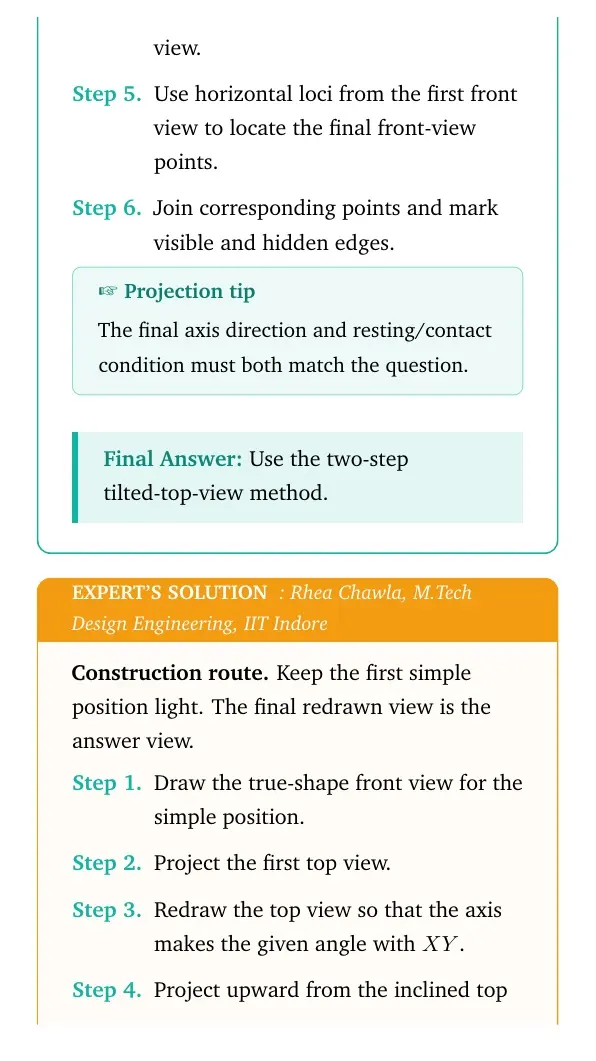

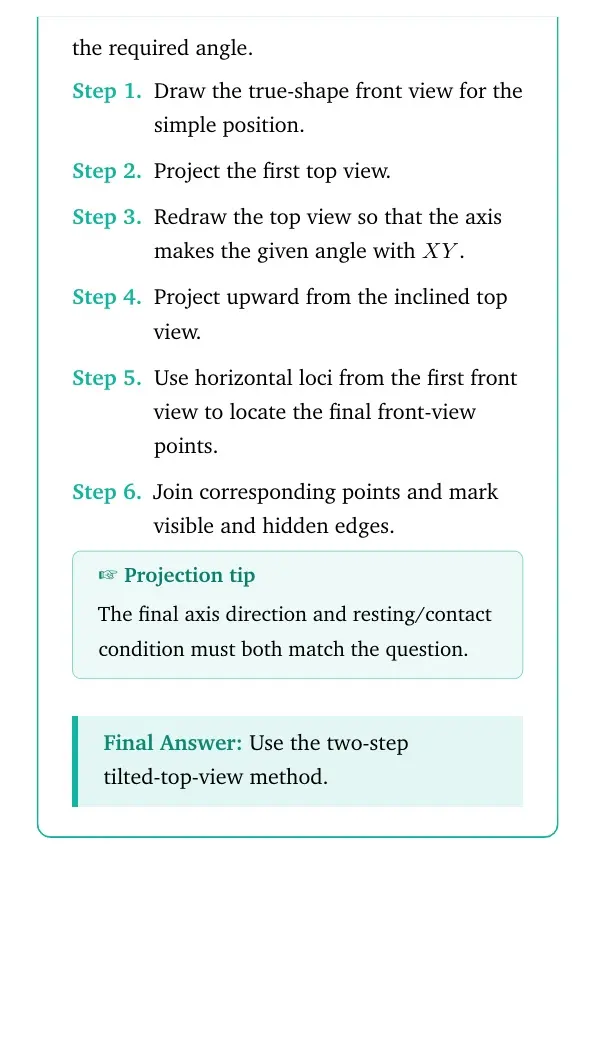

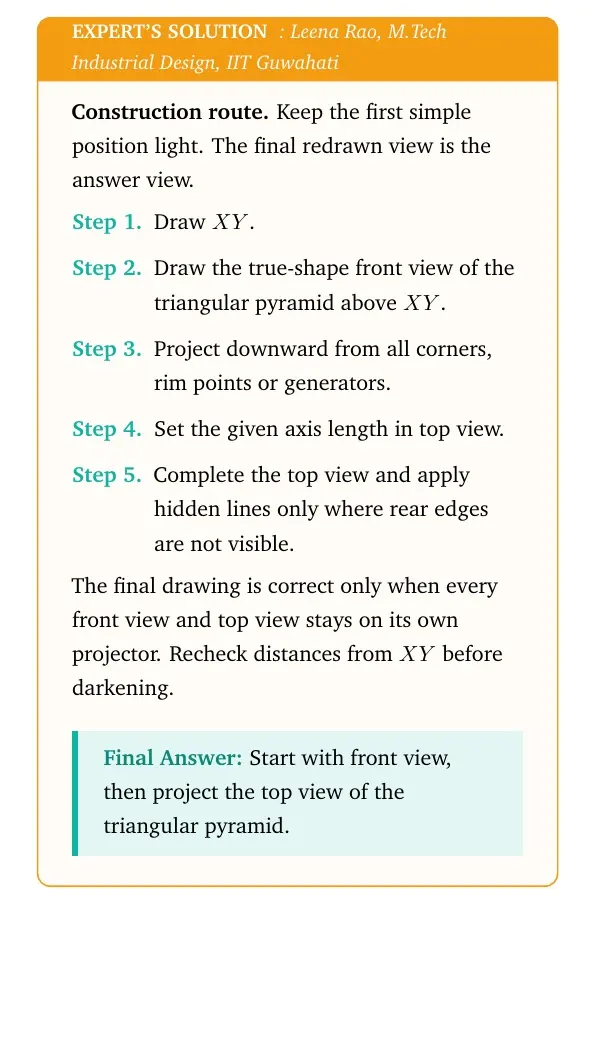

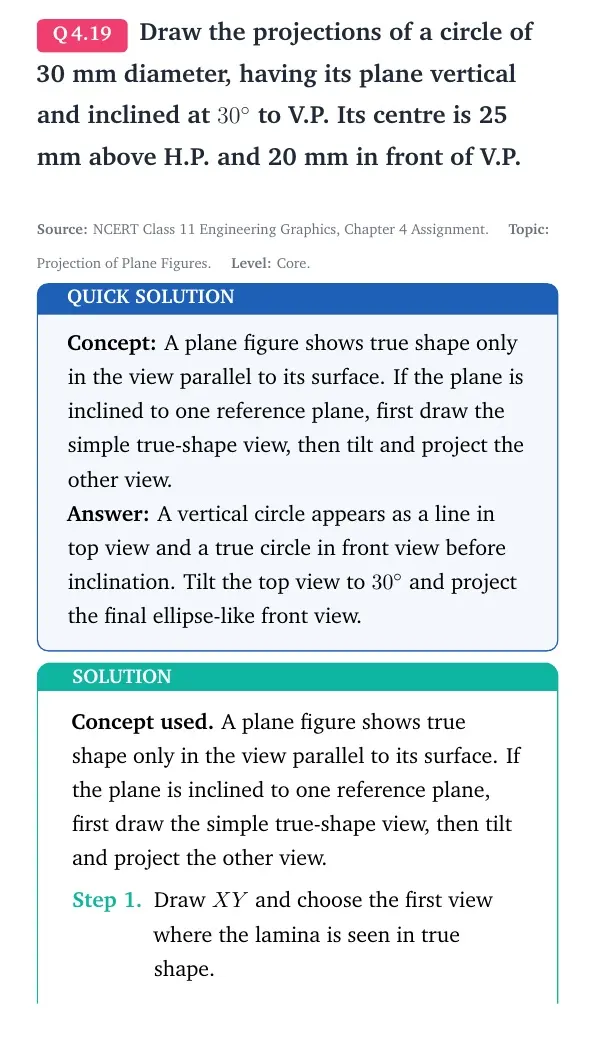

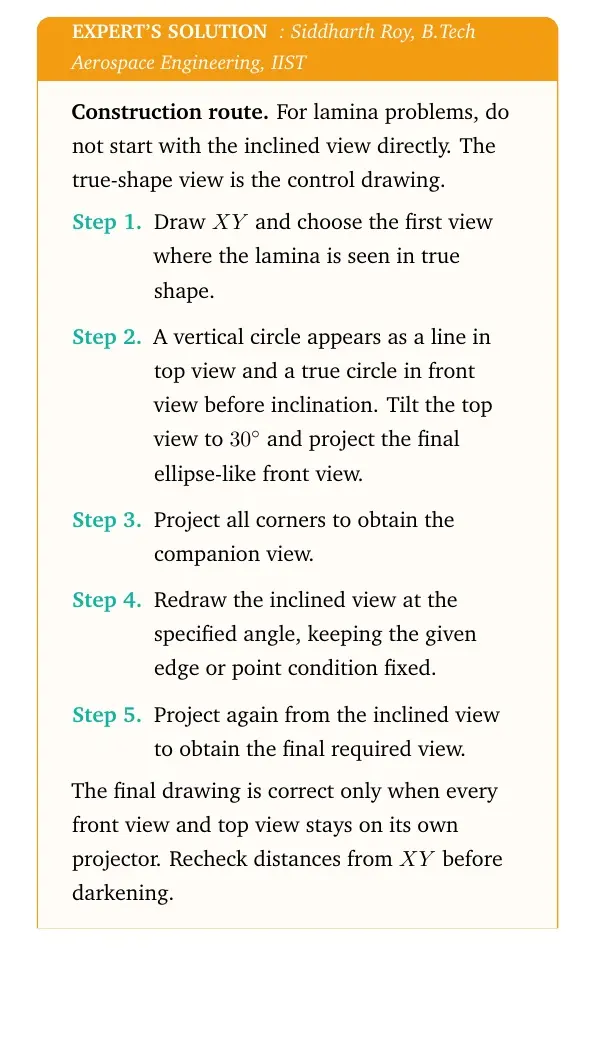

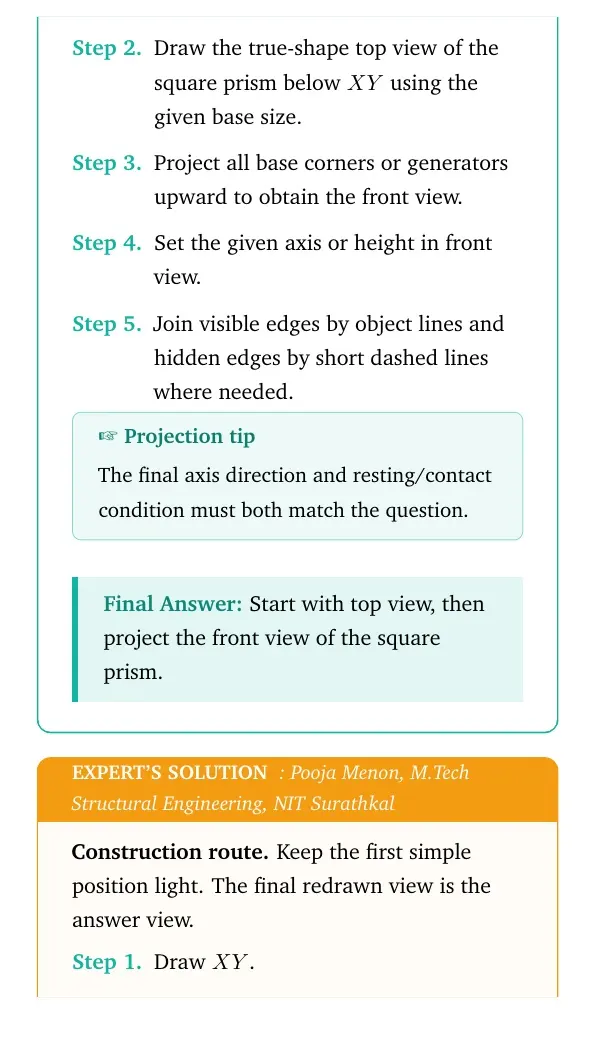

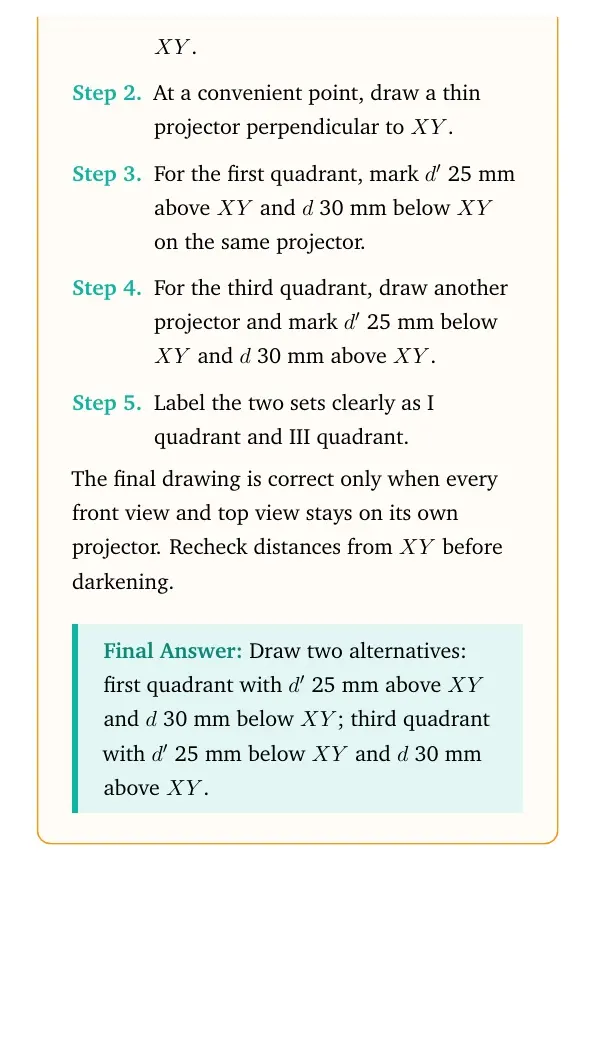

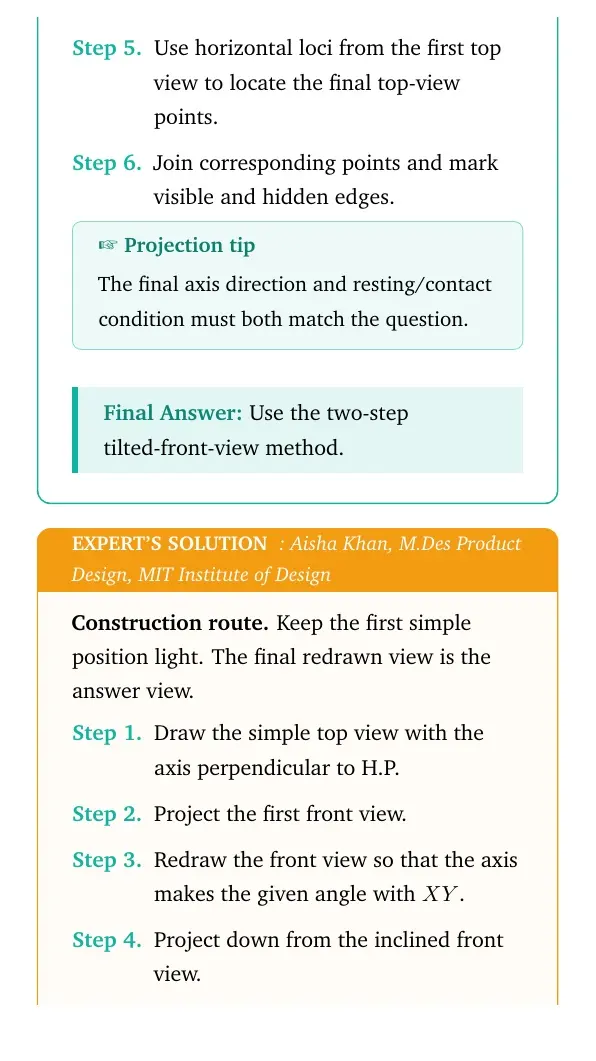

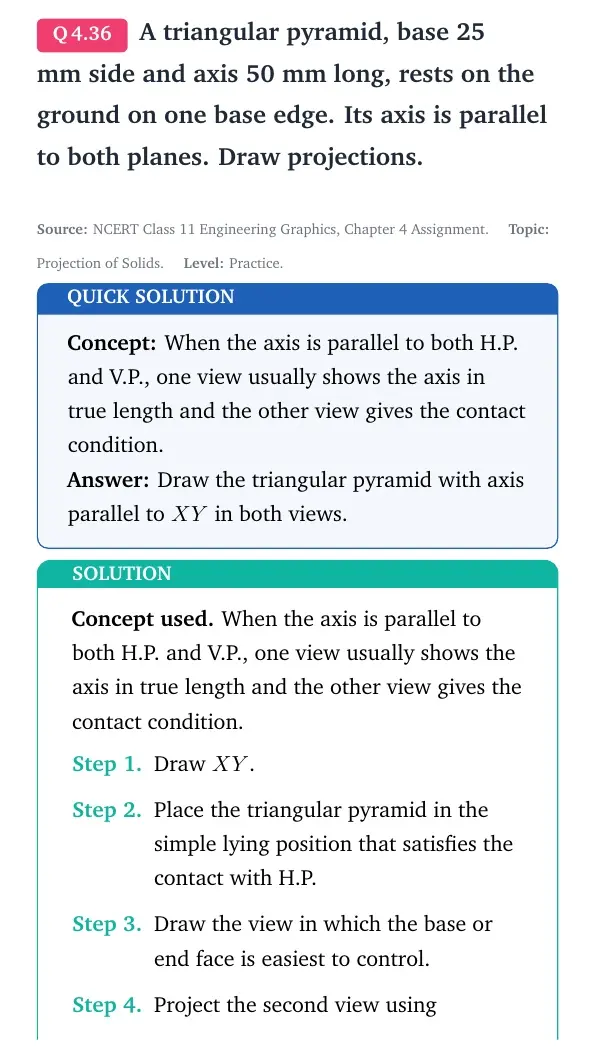

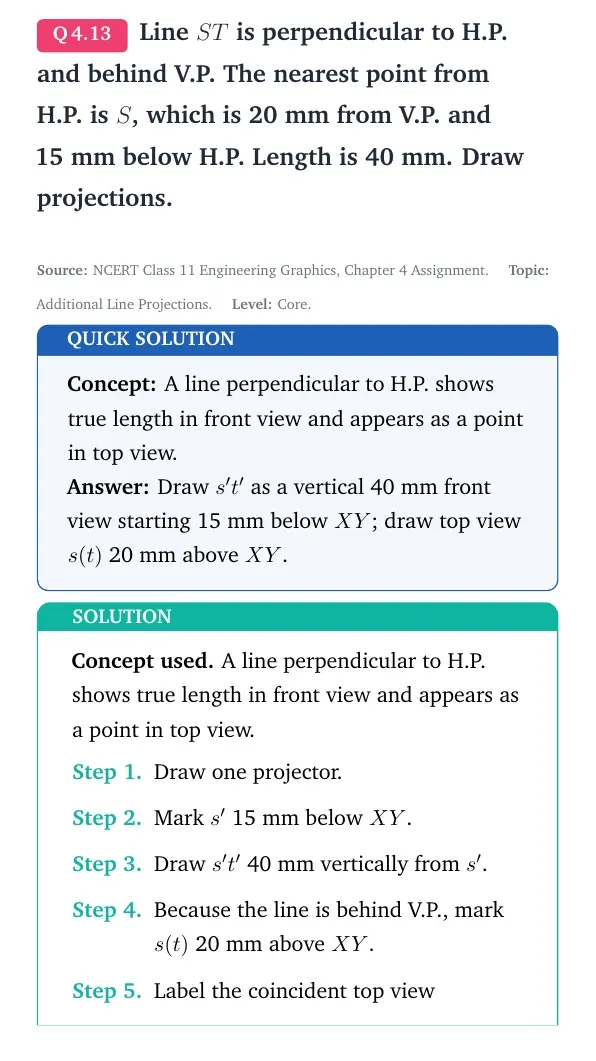

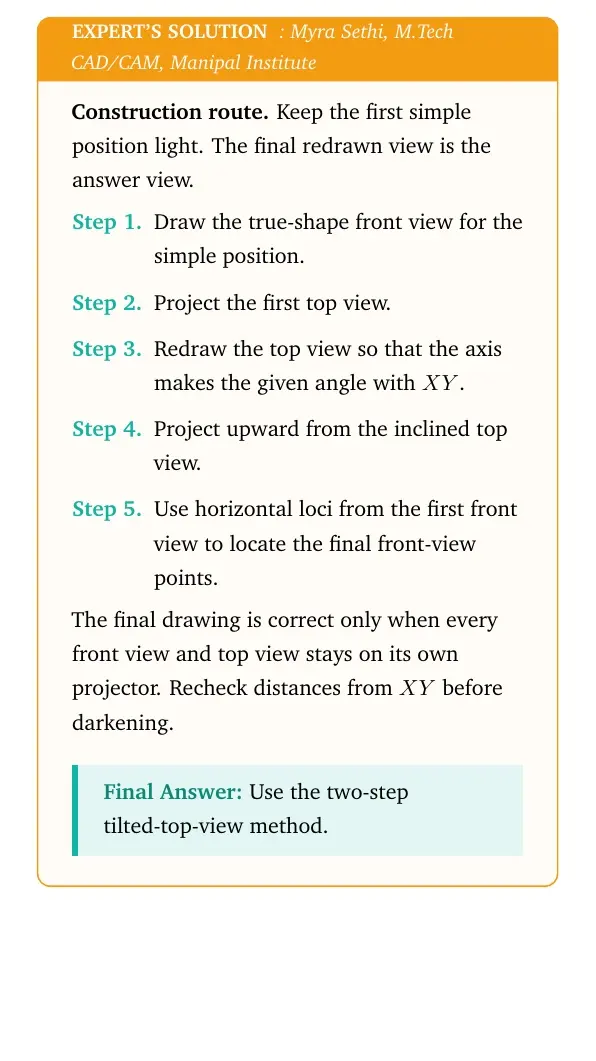

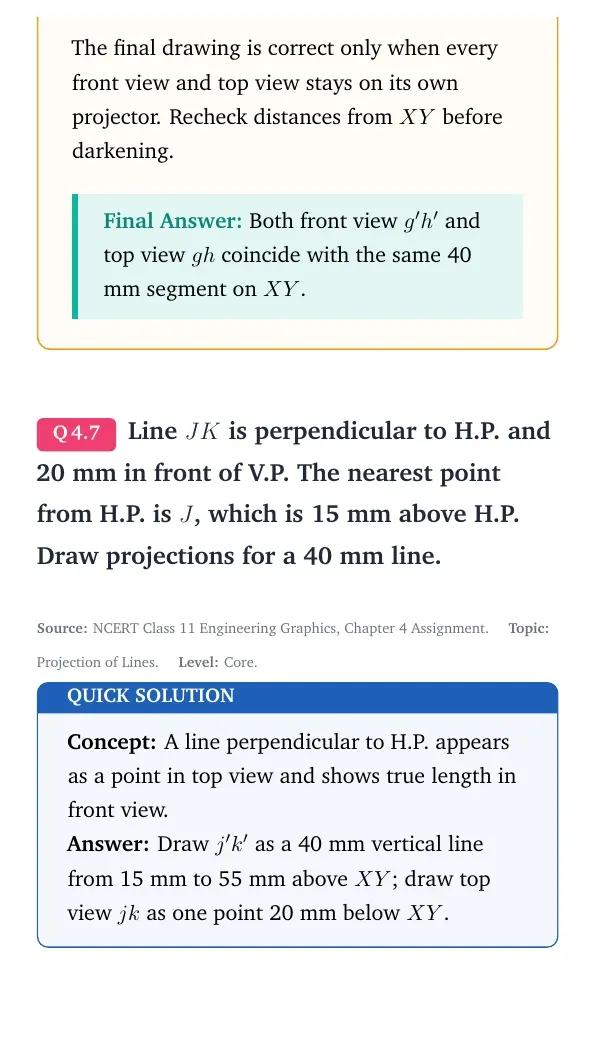

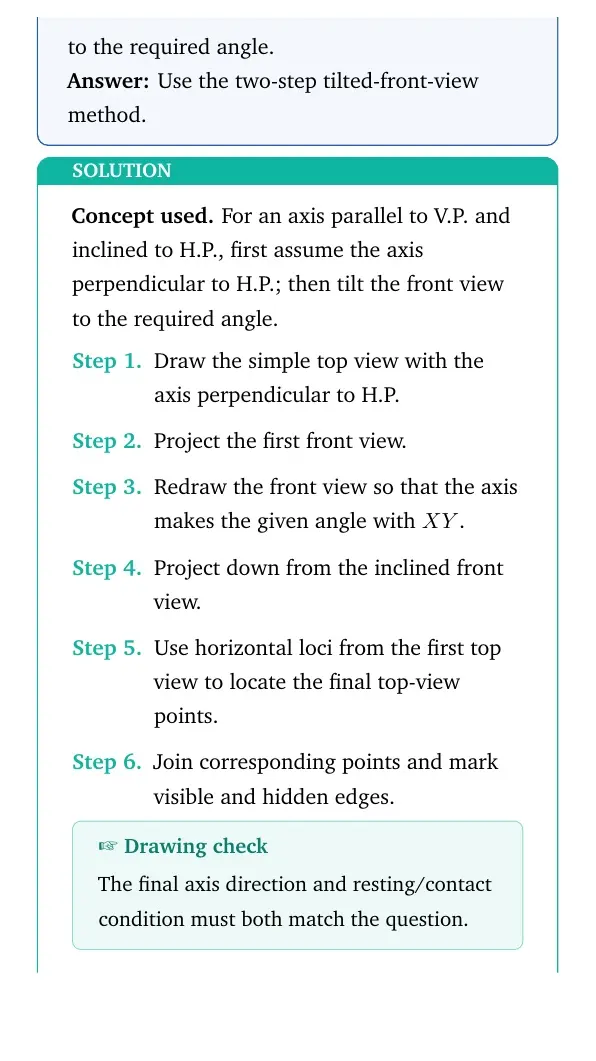

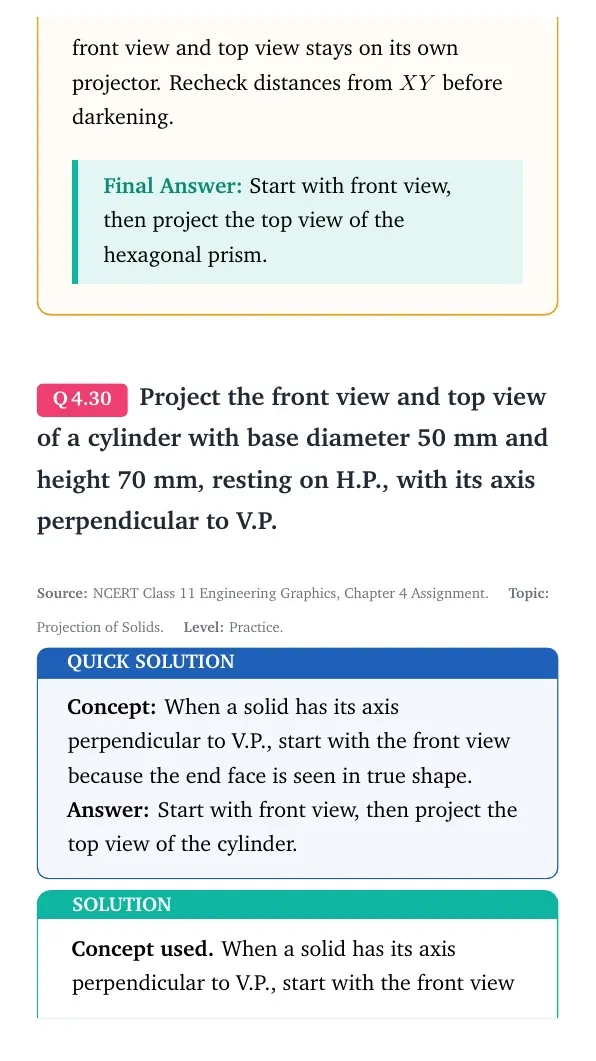

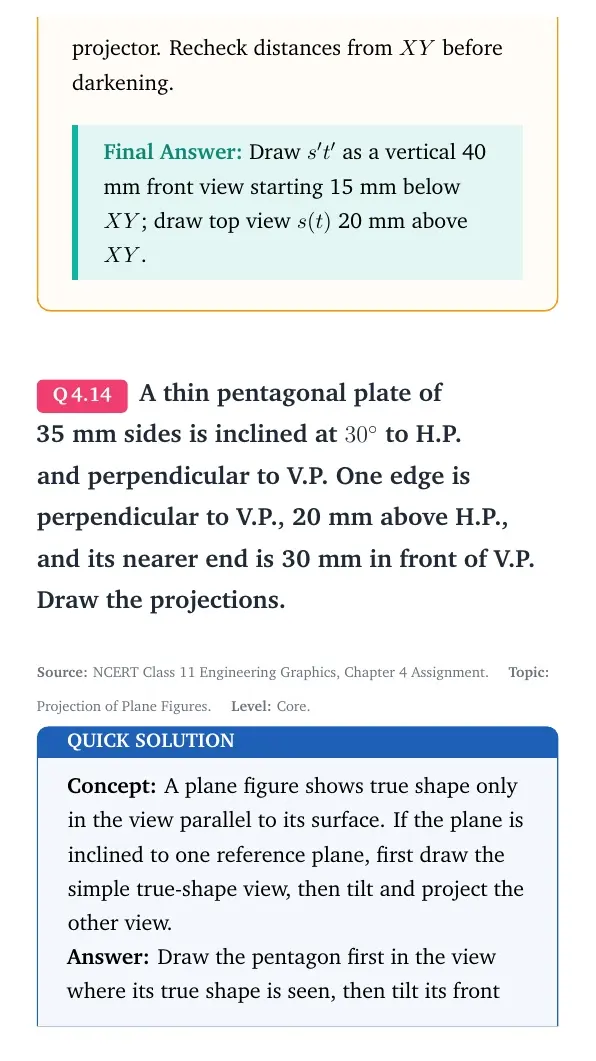

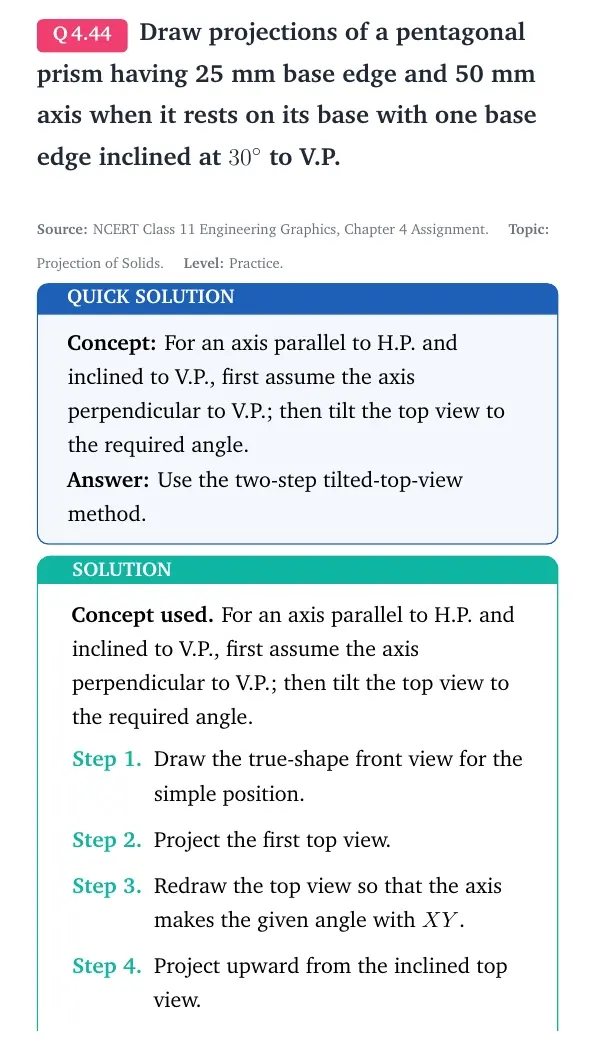

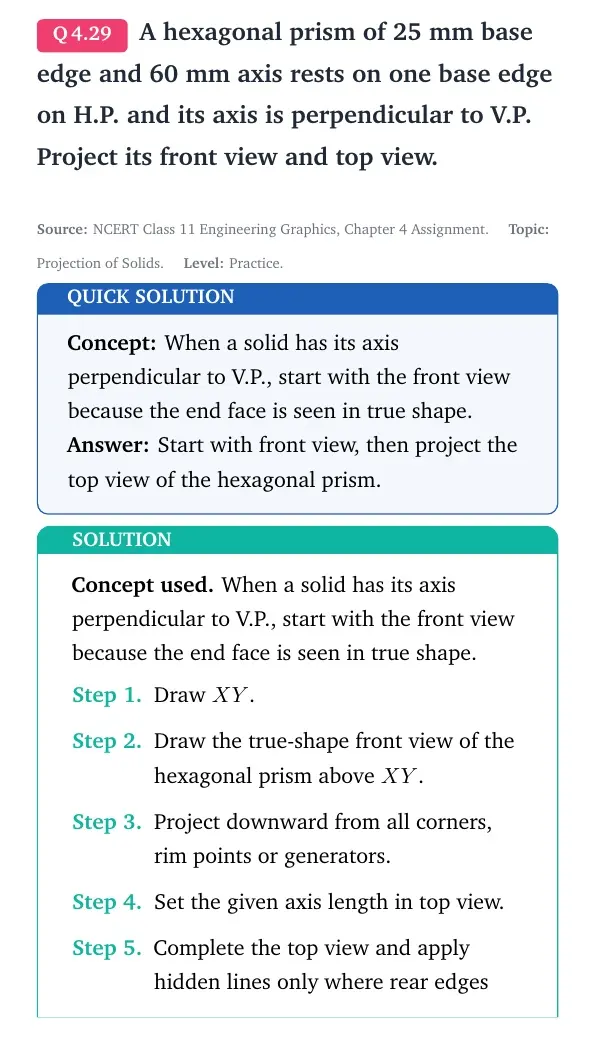

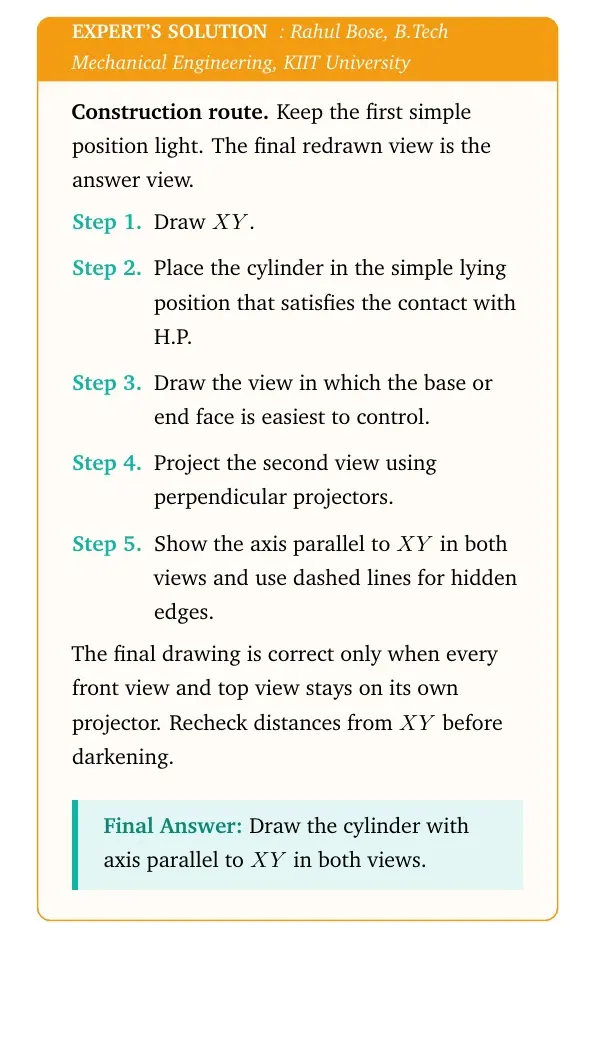

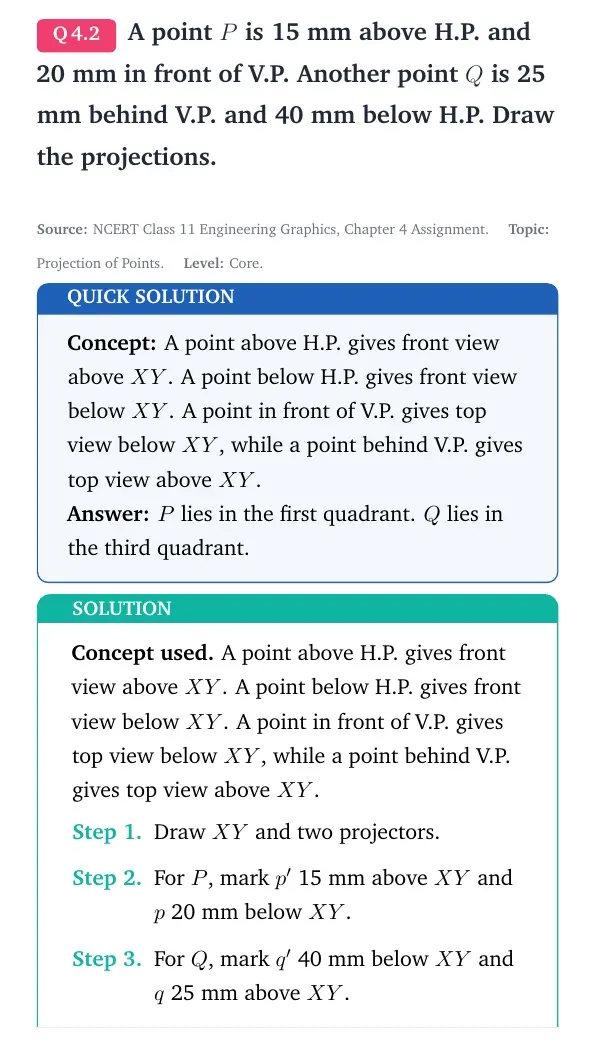

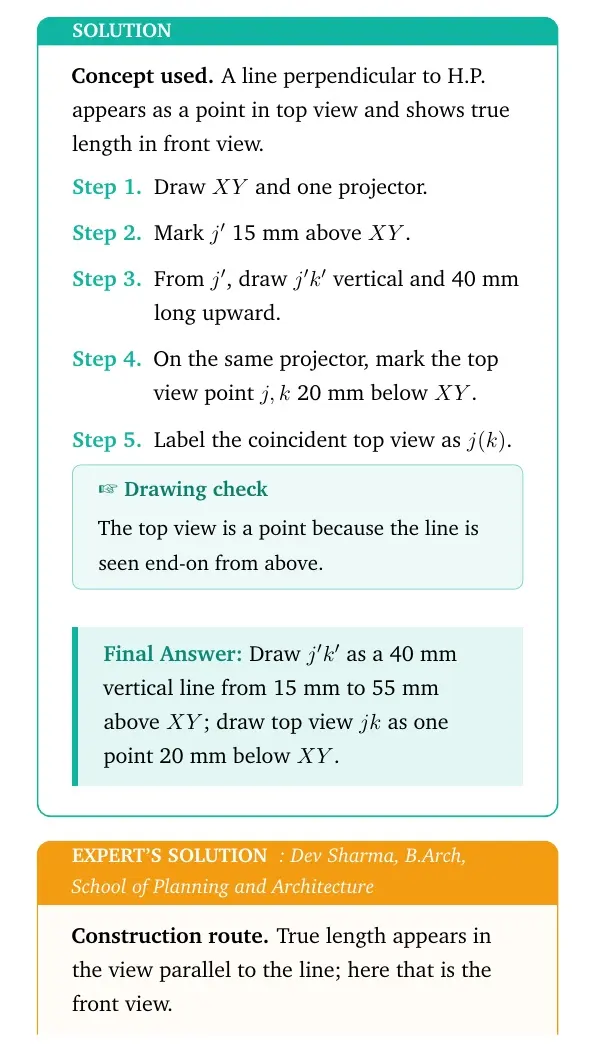

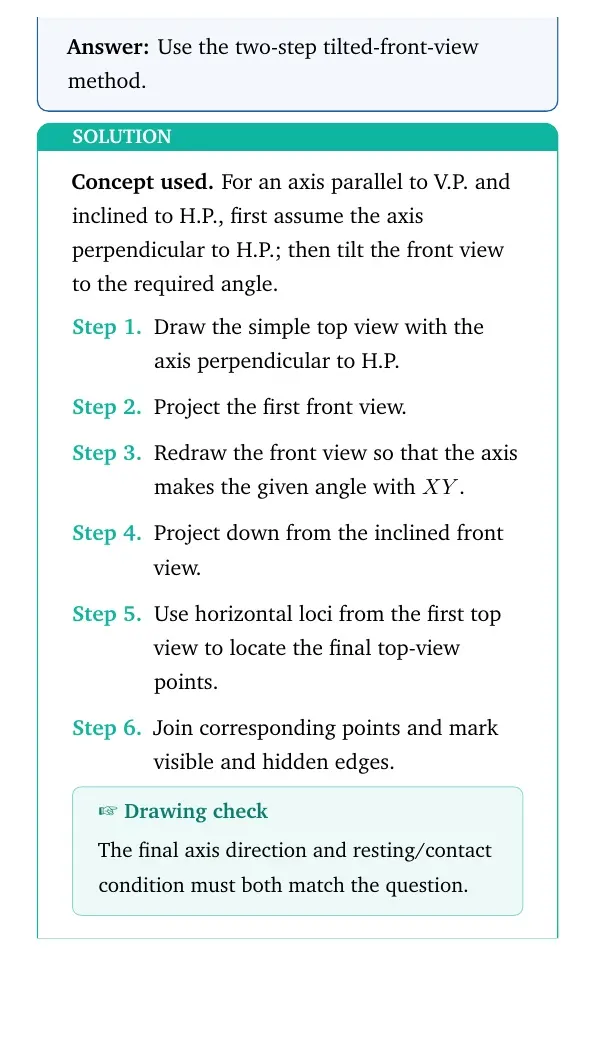

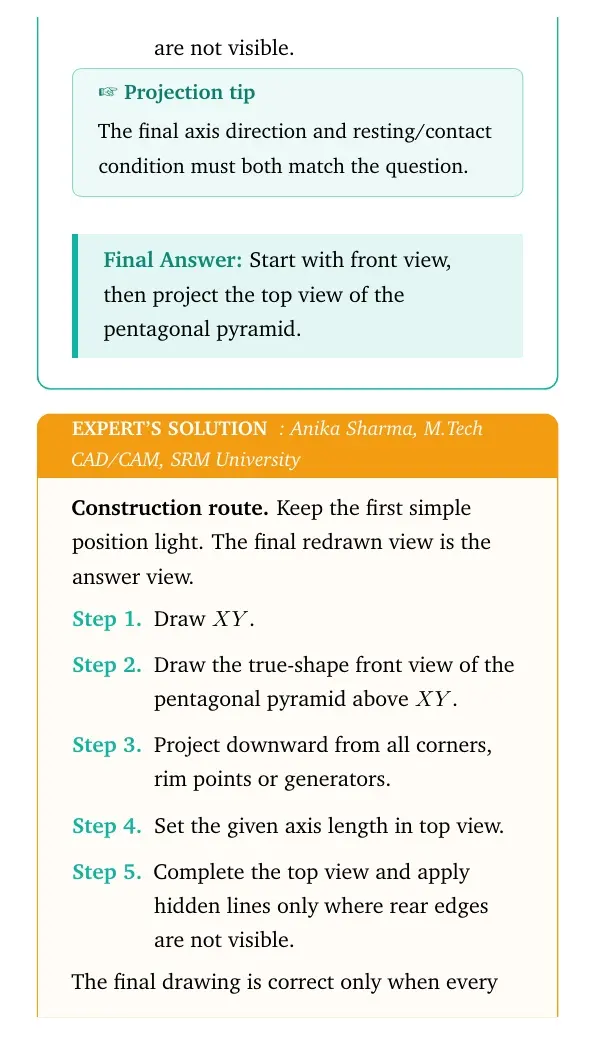

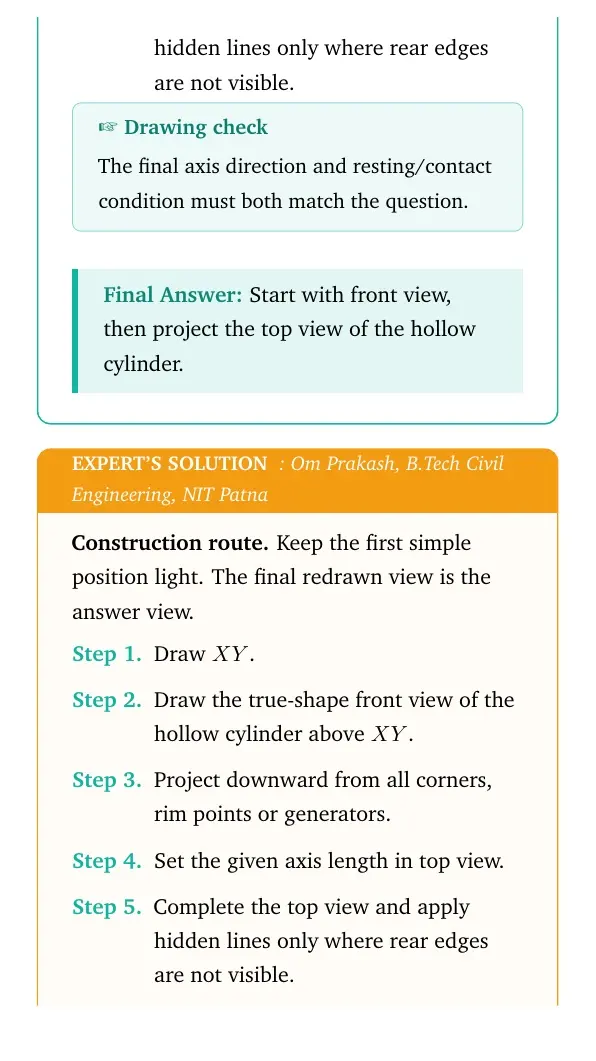

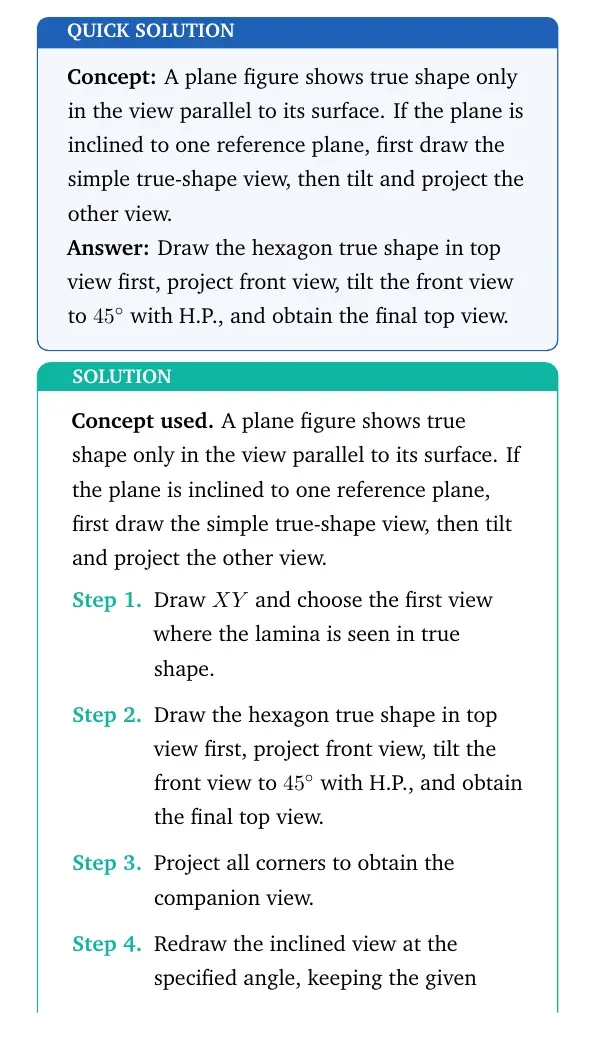

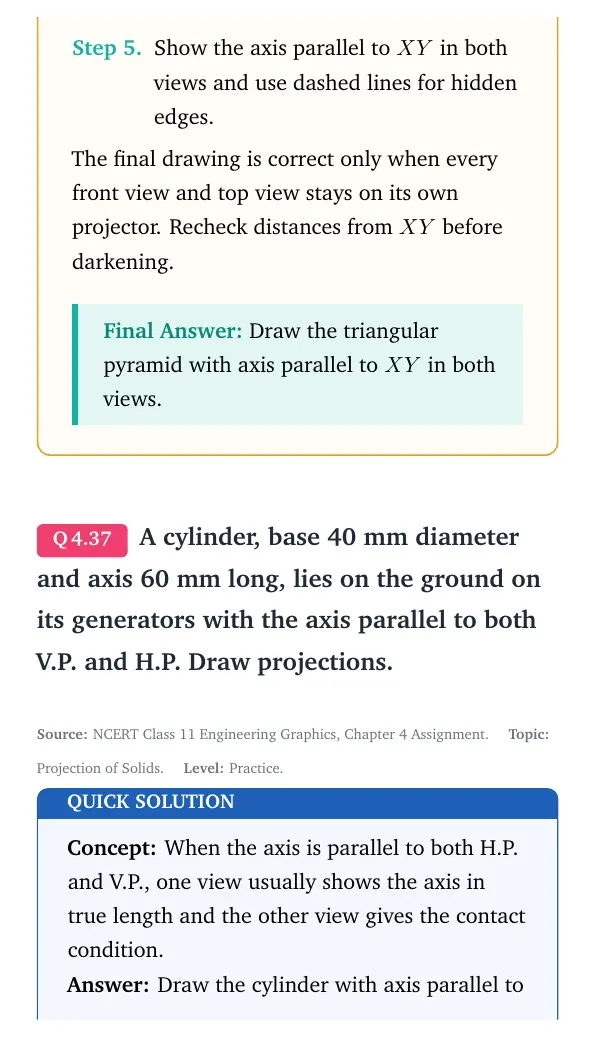

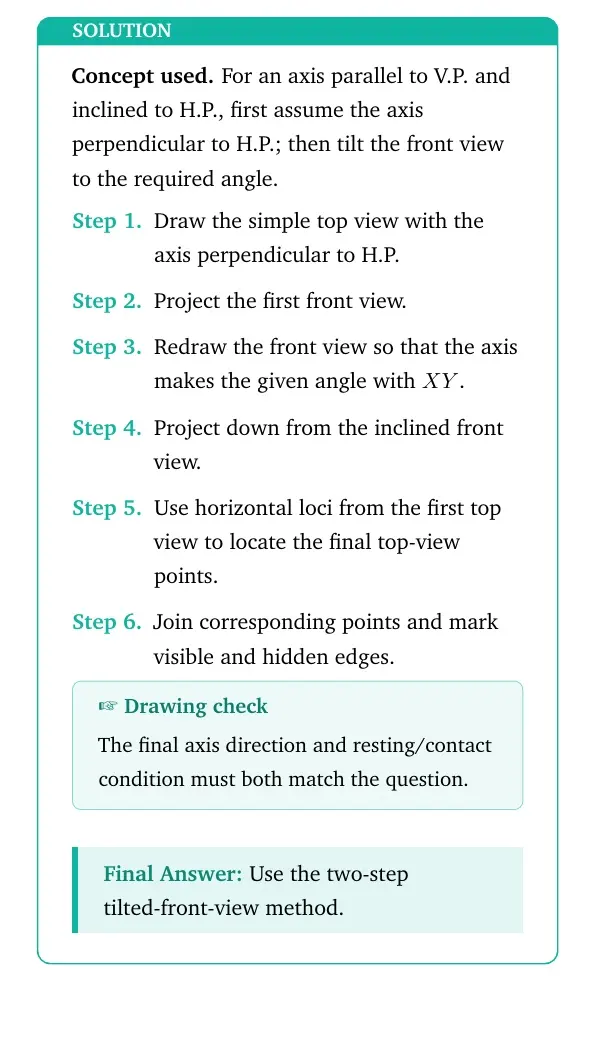

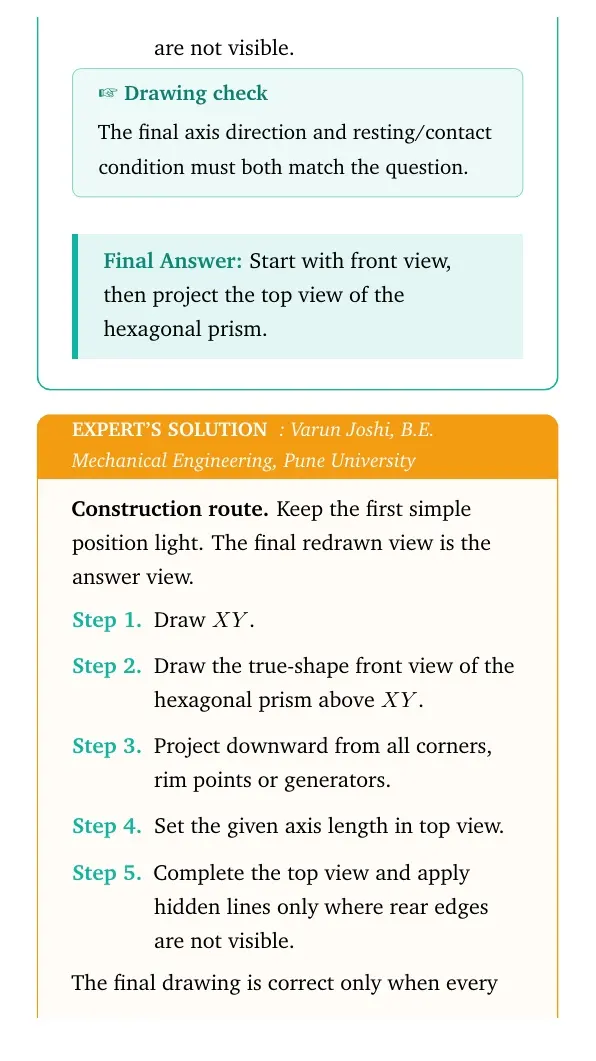

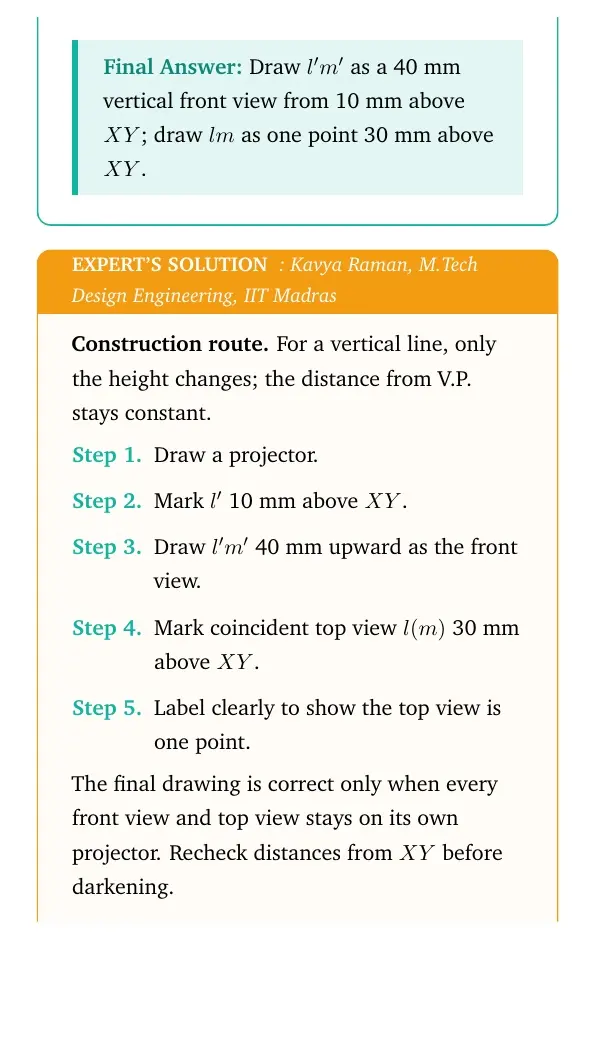

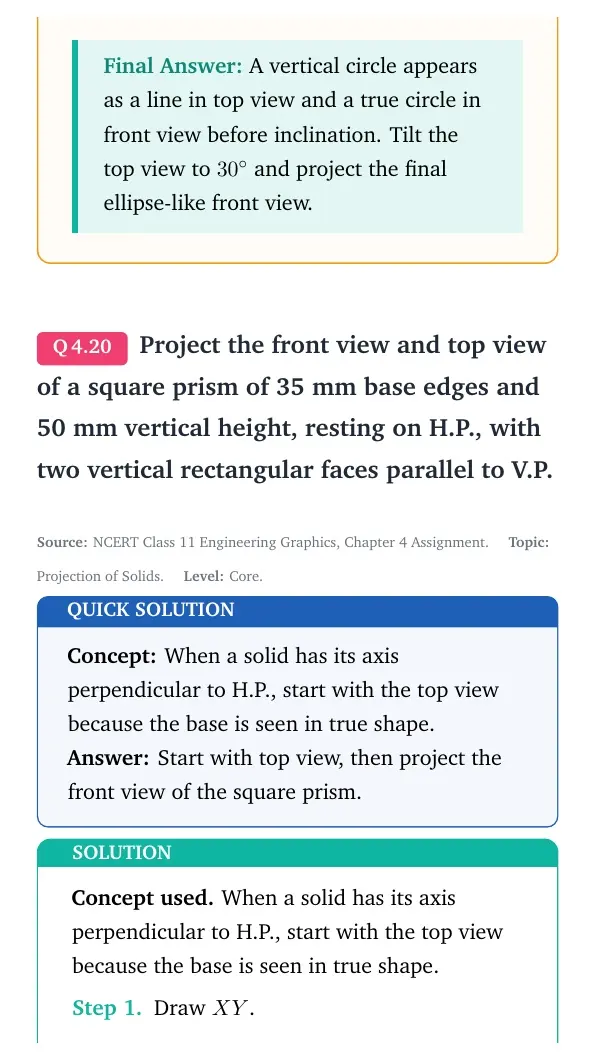

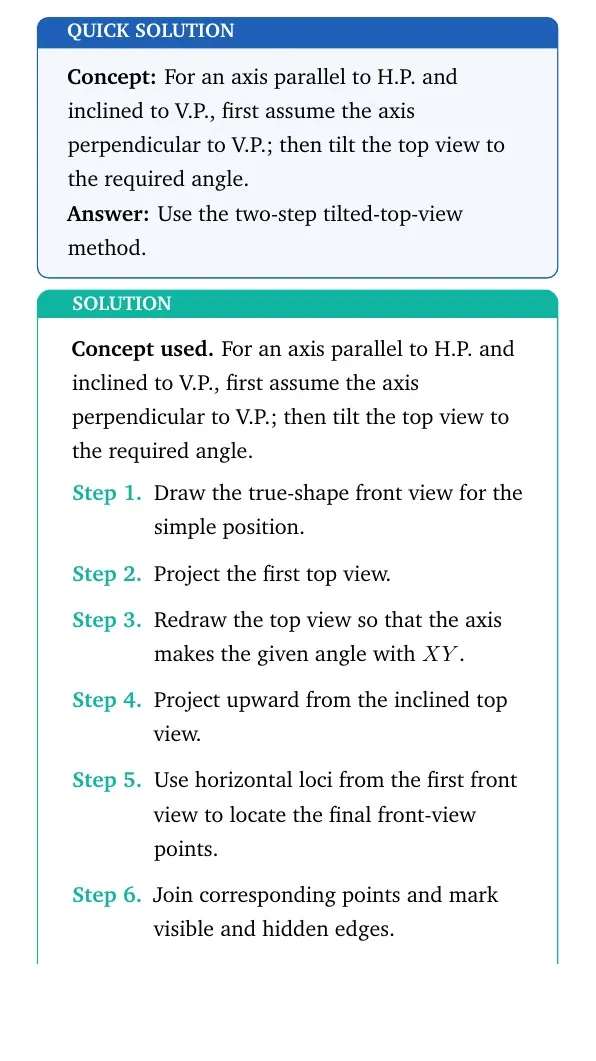

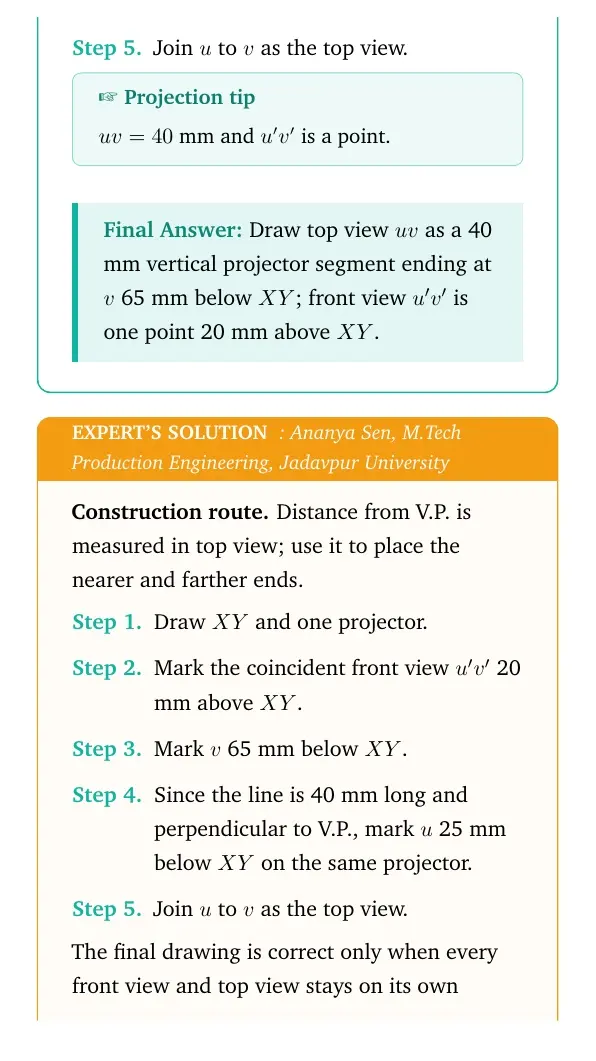

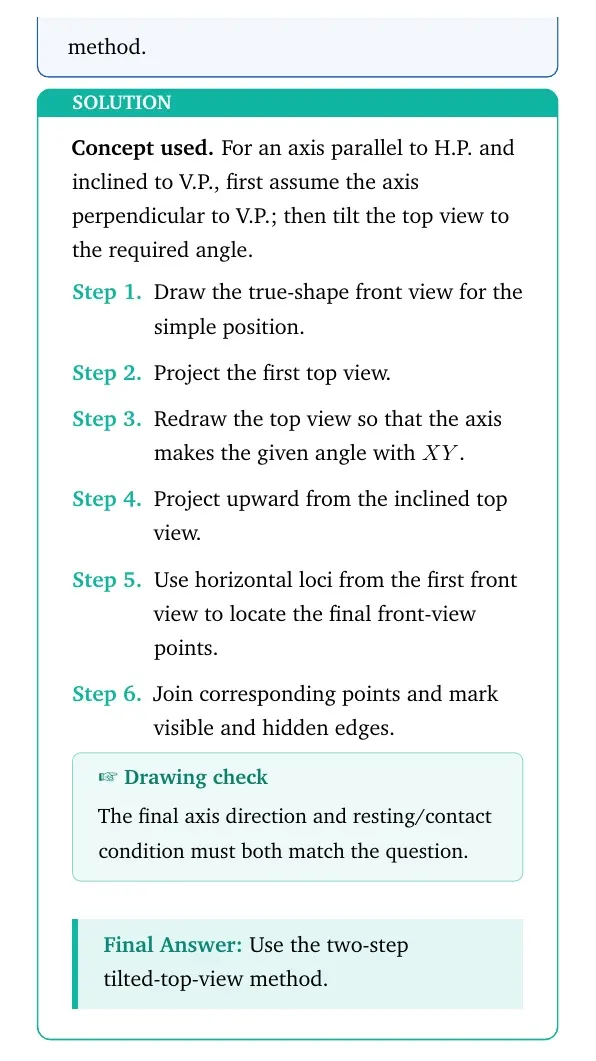

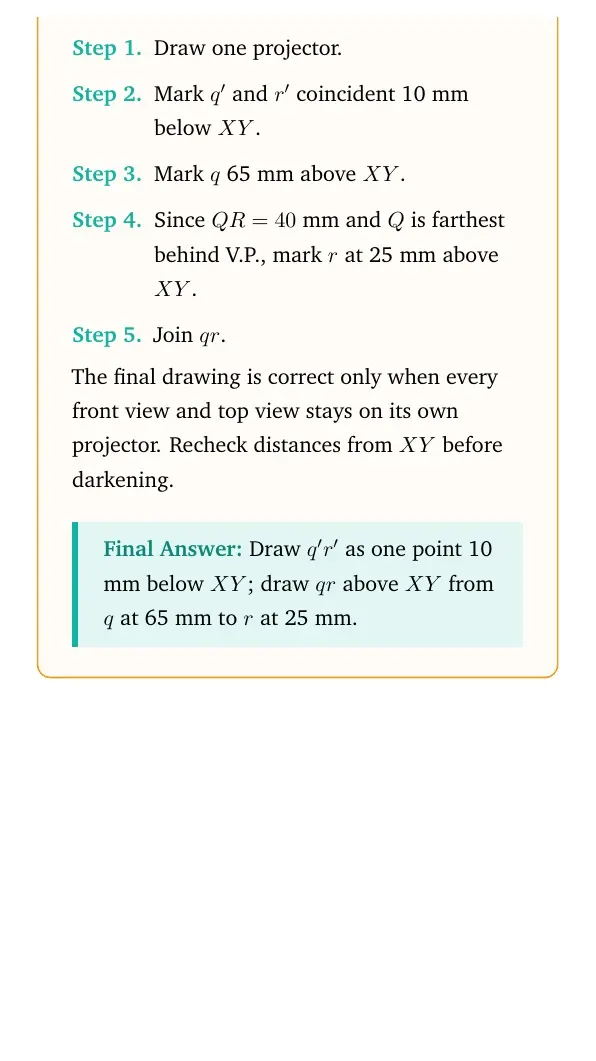

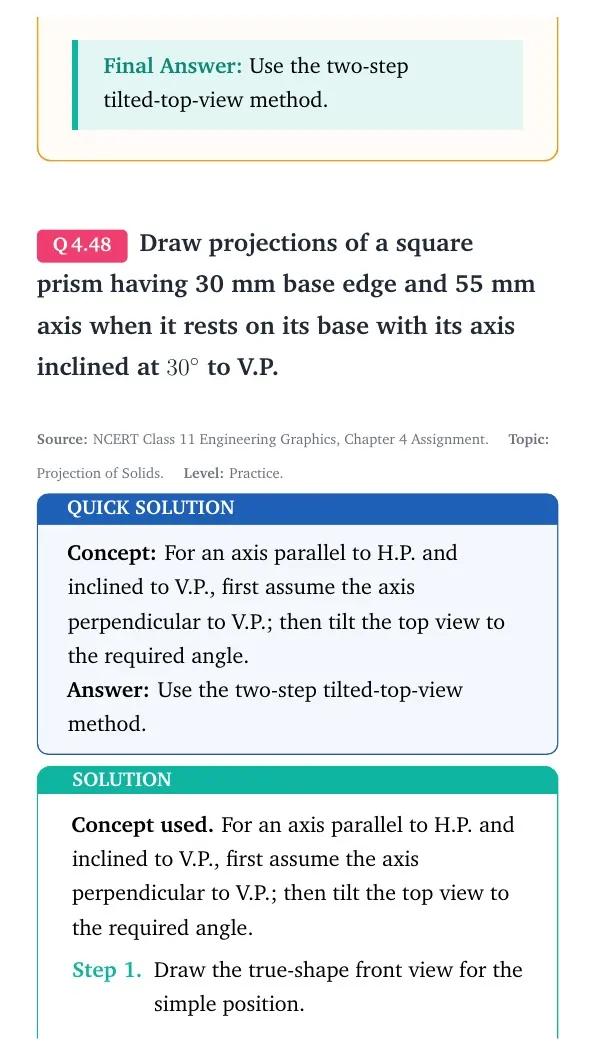

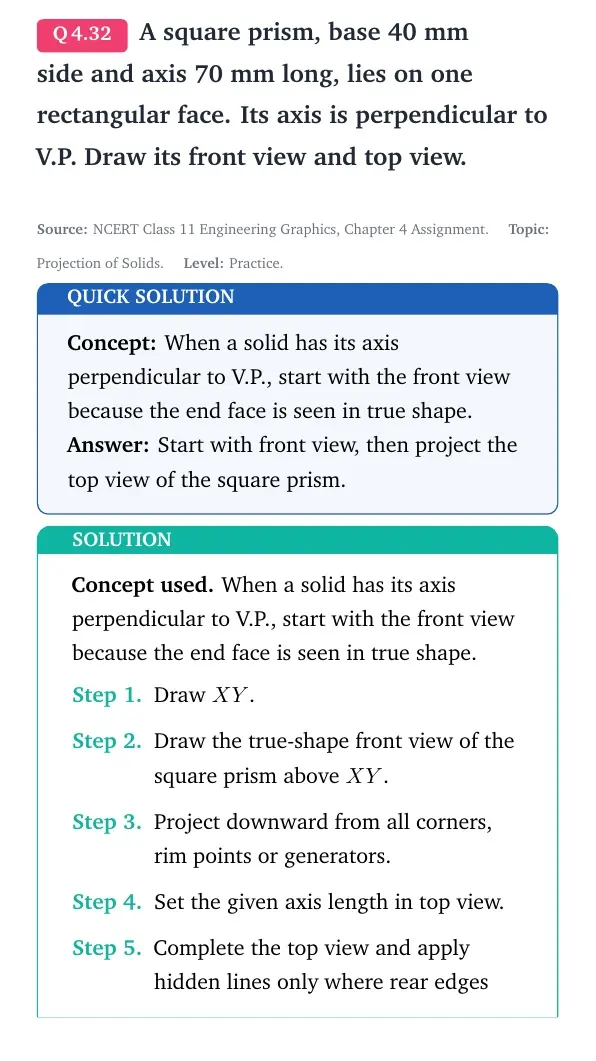

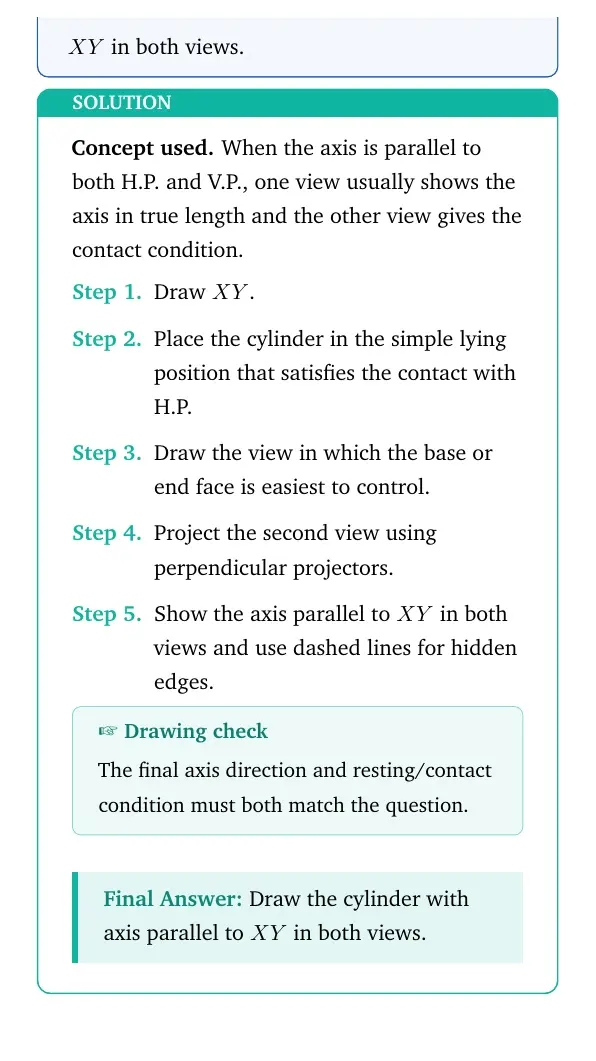

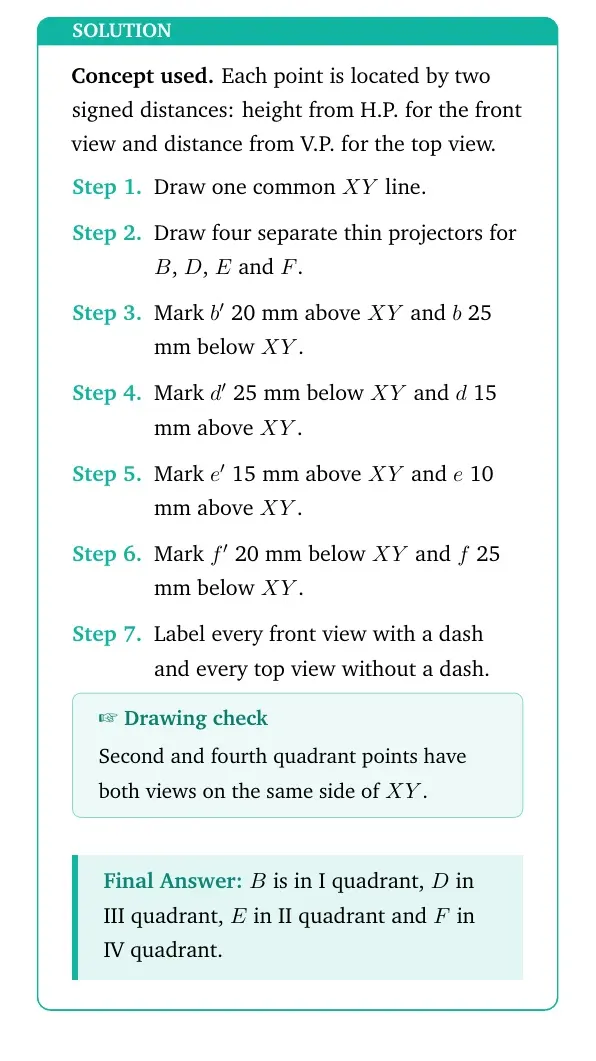

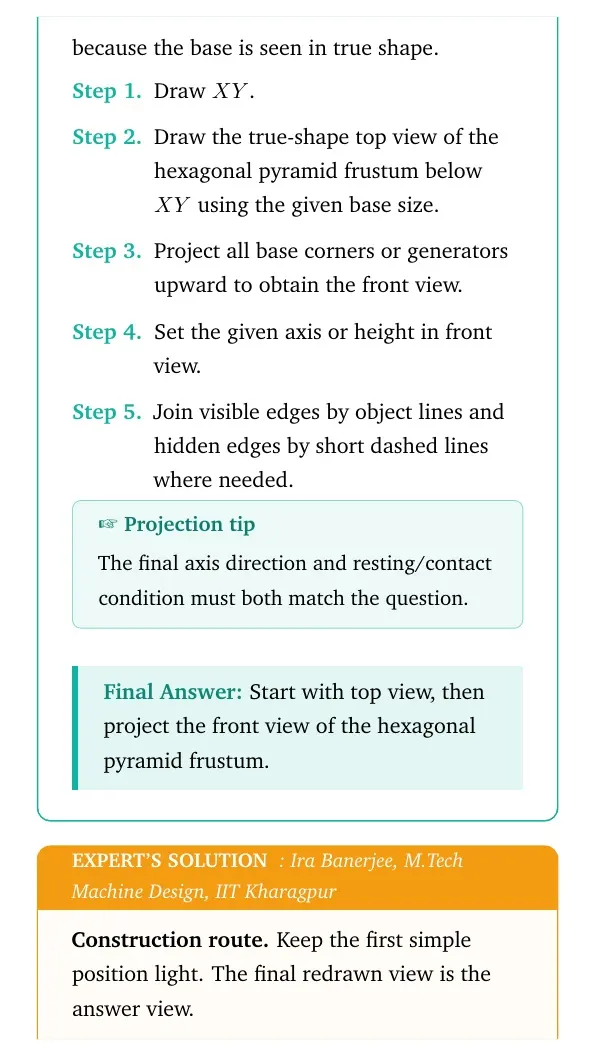

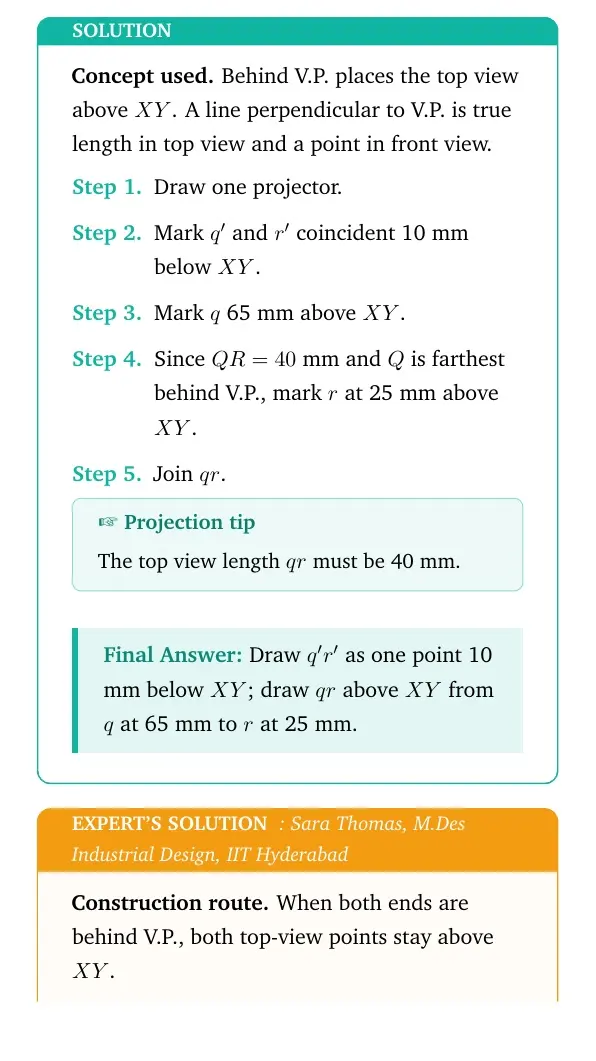

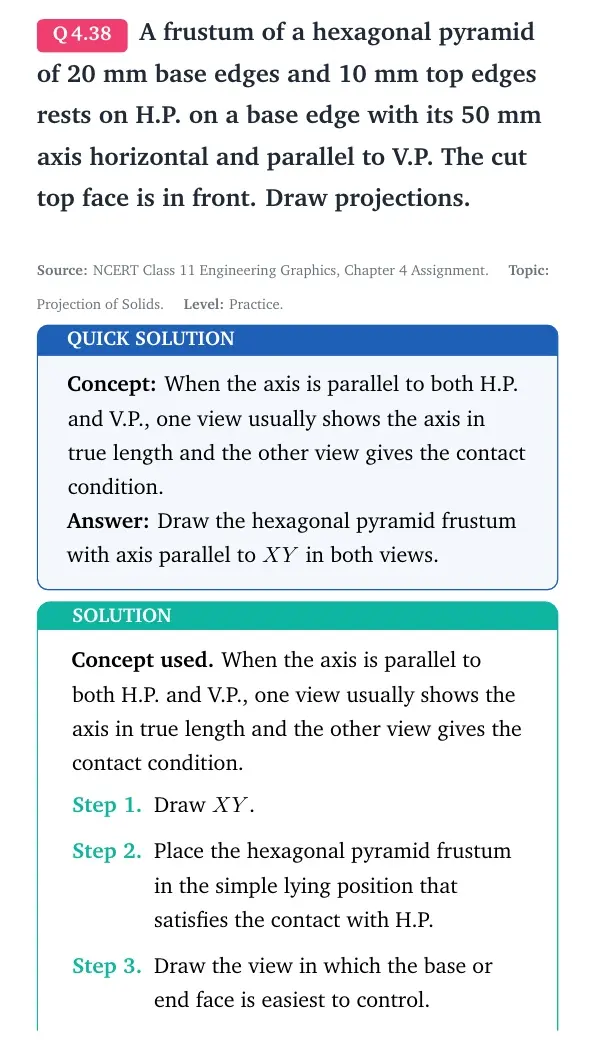

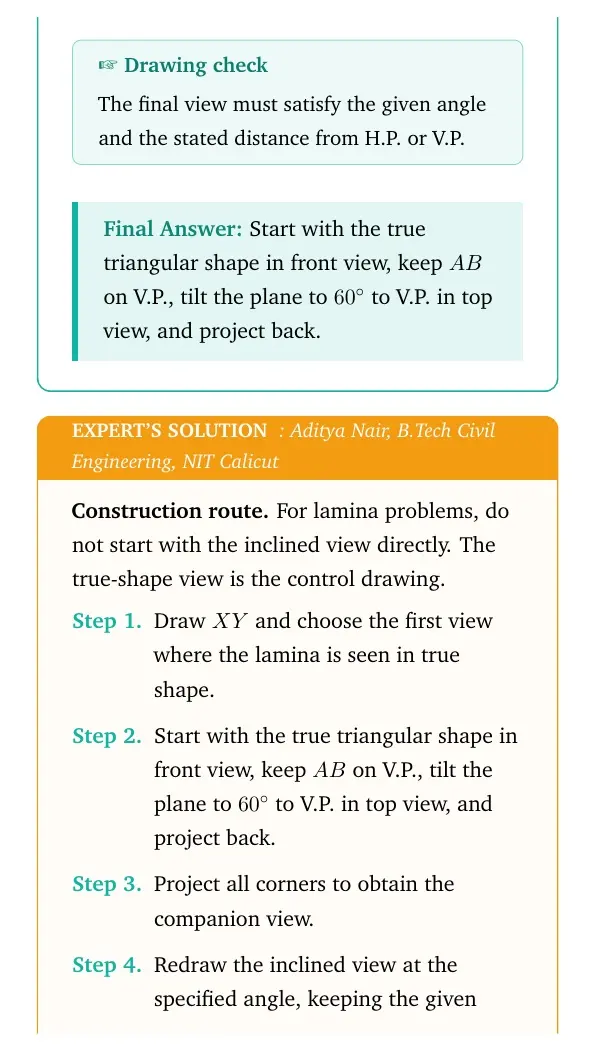

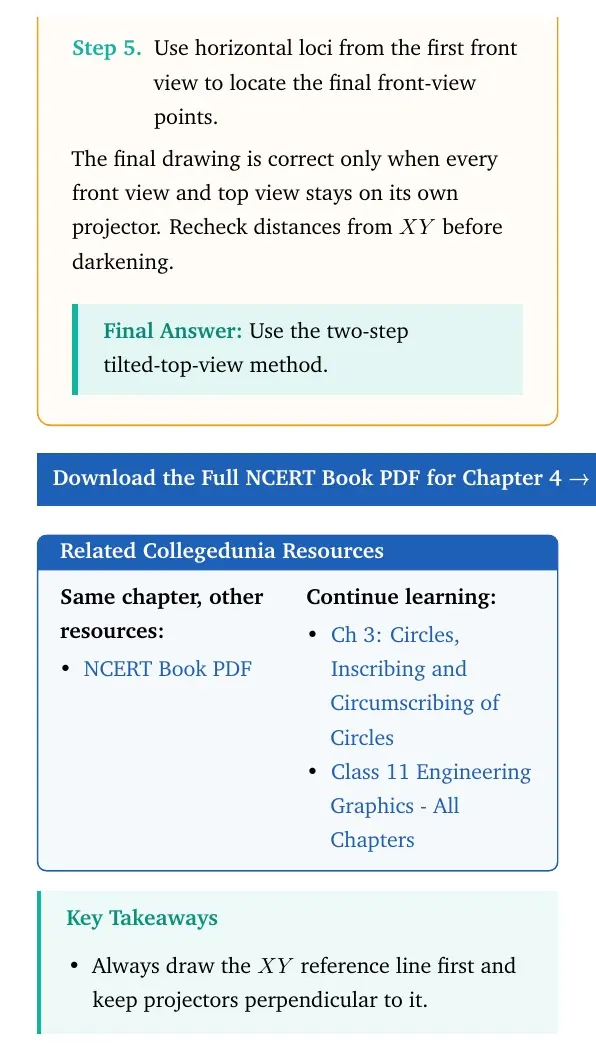

The question-card page opens every answer in collapsible tabs, so it is useful for quick checking on mobile. Use it after attempting the drawing yourself.
Also Check NCERT Resources for Chapter 4
| Resource | Link |
|---|---|
| NCERT Book PDF | Class 11 Engineering Graphics Chapter 4 Book PDF |
| Previous Chapter Solutions | Chapter 3 Circles Solutions |
Class 11 Engineering Graphics NCERT Solutions Chapter-Wise
| Chapter | NCERT Solutions |
|---|---|
| Chapter 1 Introduction | NCERT Solutions Class 11 Engineering Graphics Chapter 1 |
| Chapter 2 Lines, Angles, and Rectilinear Figures | NCERT Solutions Class 11 Engineering Graphics Chapter 2 |
| Chapter 3 Circles, Inscribing and Circumscribing of Circles | NCERT Solutions Class 11 Engineering Graphics Chapter 3 |
Class 11 Engineering Graphics Chapter 4 NCERT Solutions FAQs
Ques. What does Class 11 Engineering Graphics Chapter 4 cover?
Ans. It covers orthographic projection, projection of points, projection of lines, plane figures and solid projections.
Ques. How many solved questions are in the Chapter 4 solutions PDF?
Ans. The PDF includes 51 solved construction answers from the NCERT assignment blocks.
Ques. Which projection method does NCERT use in this chapter?
Ans. NCERT uses first angle projection throughout the Engineering Graphics book.
Ques. Why is the XY line important in orthographic projection?
Ans. The XY line represents the intersection of H.P. and V.P. It controls the placement of front view and top view.
