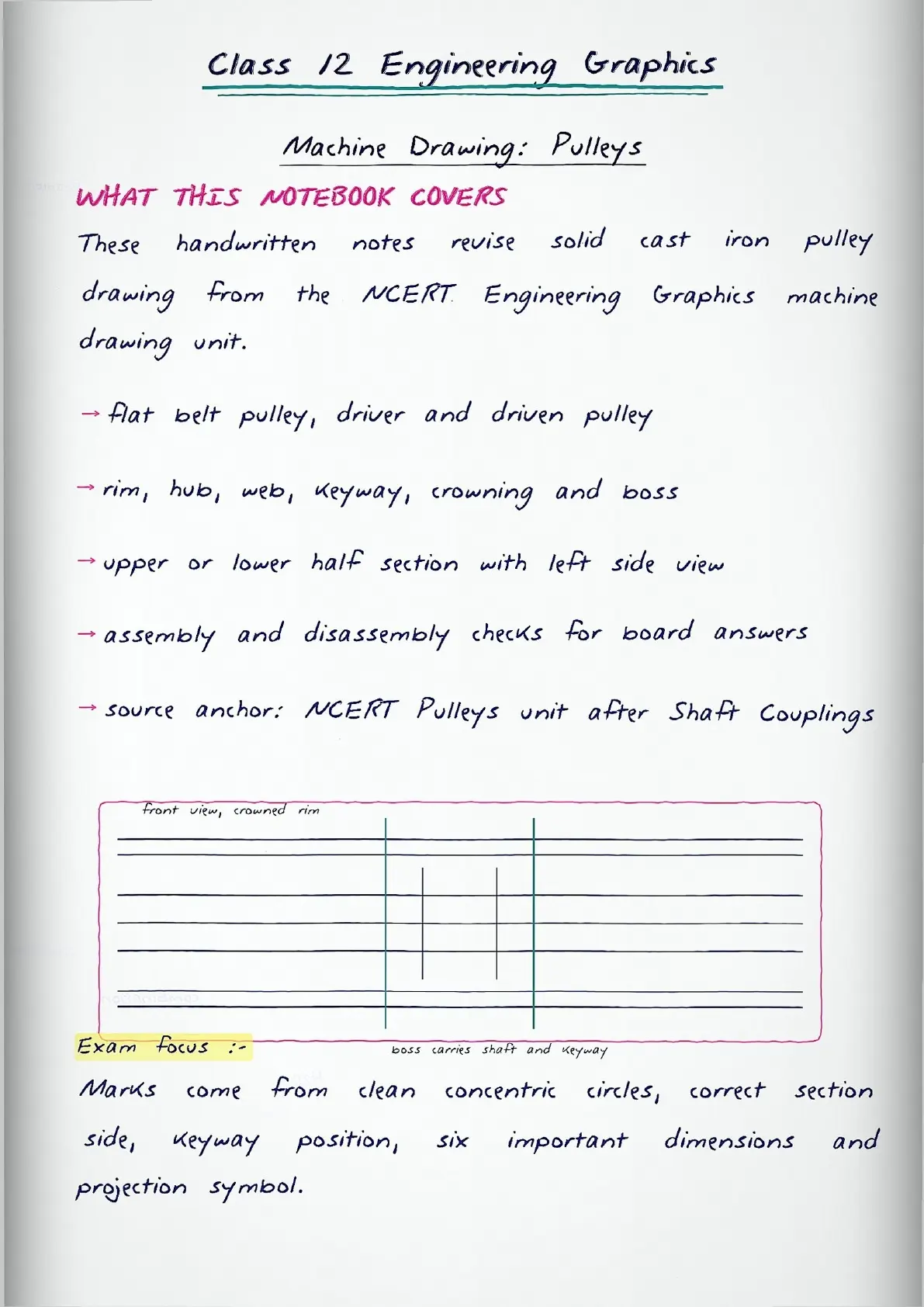

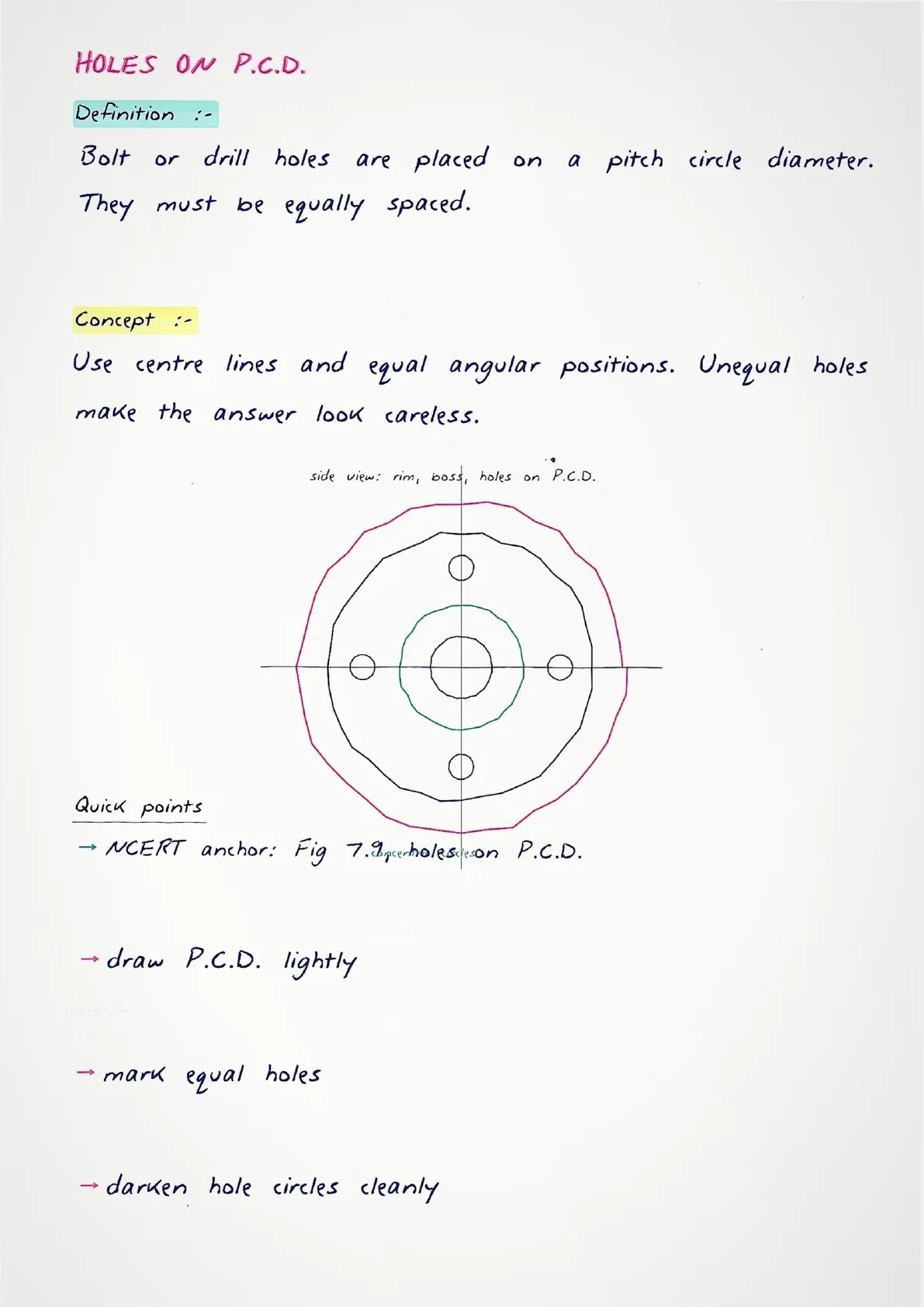

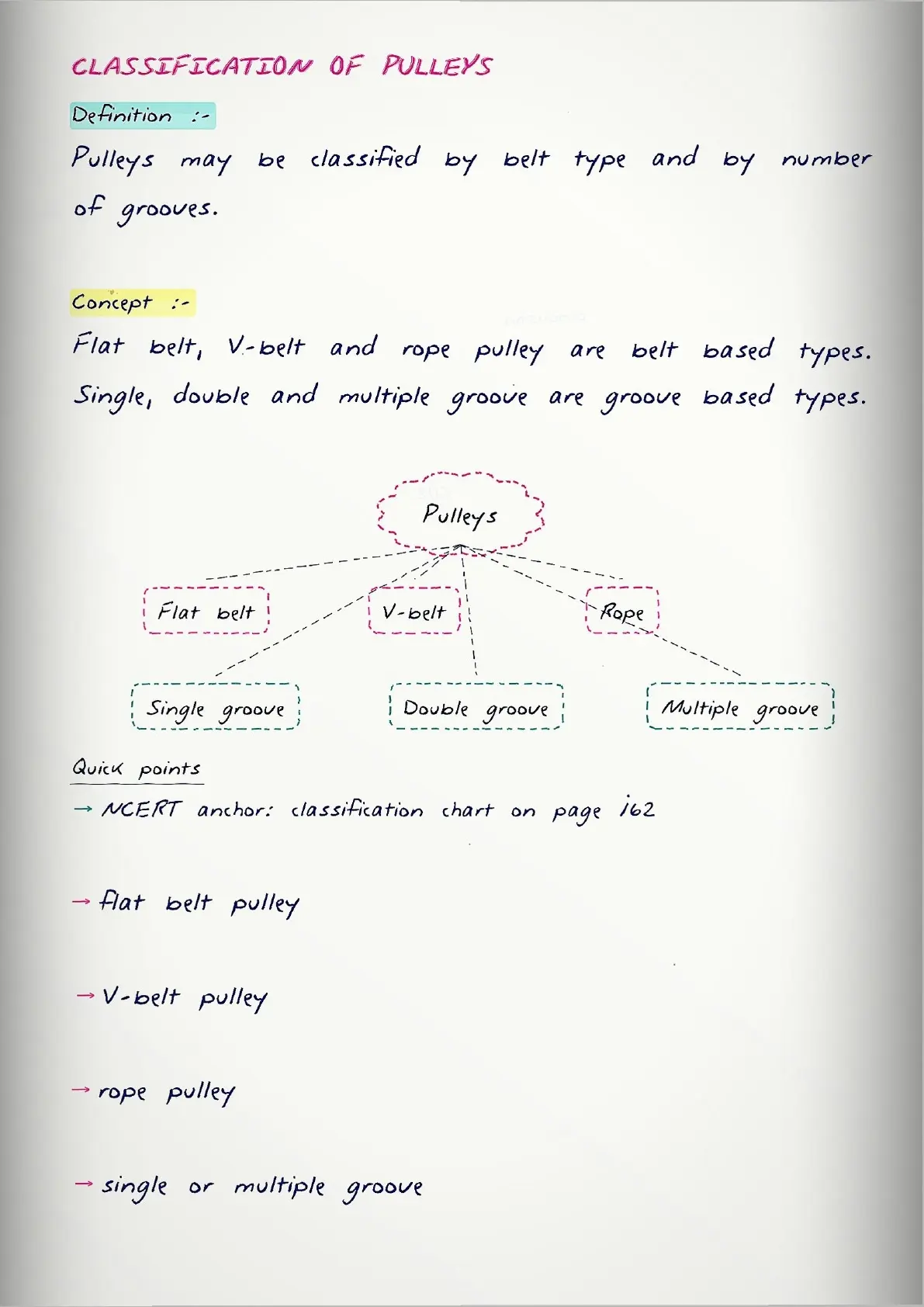

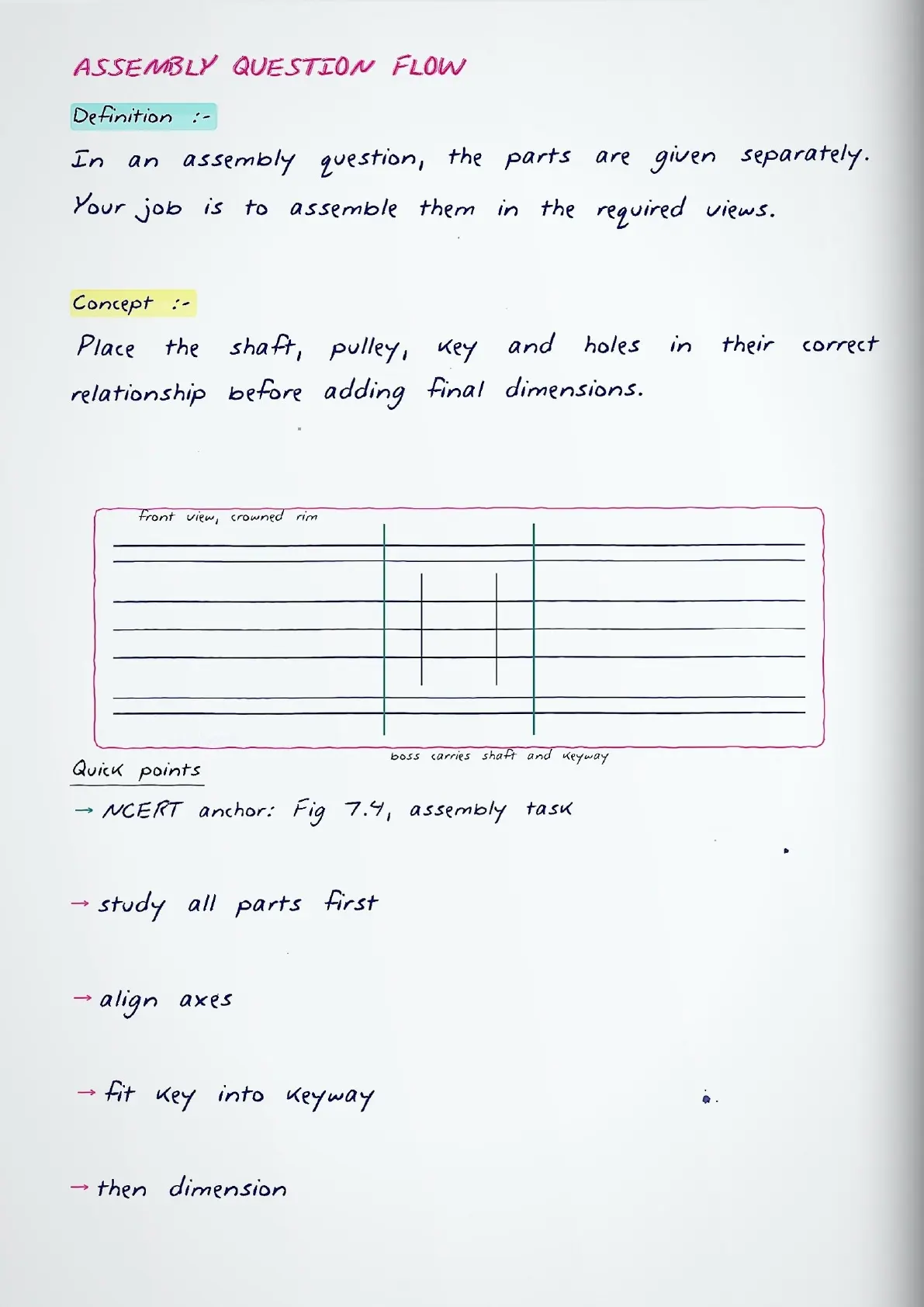

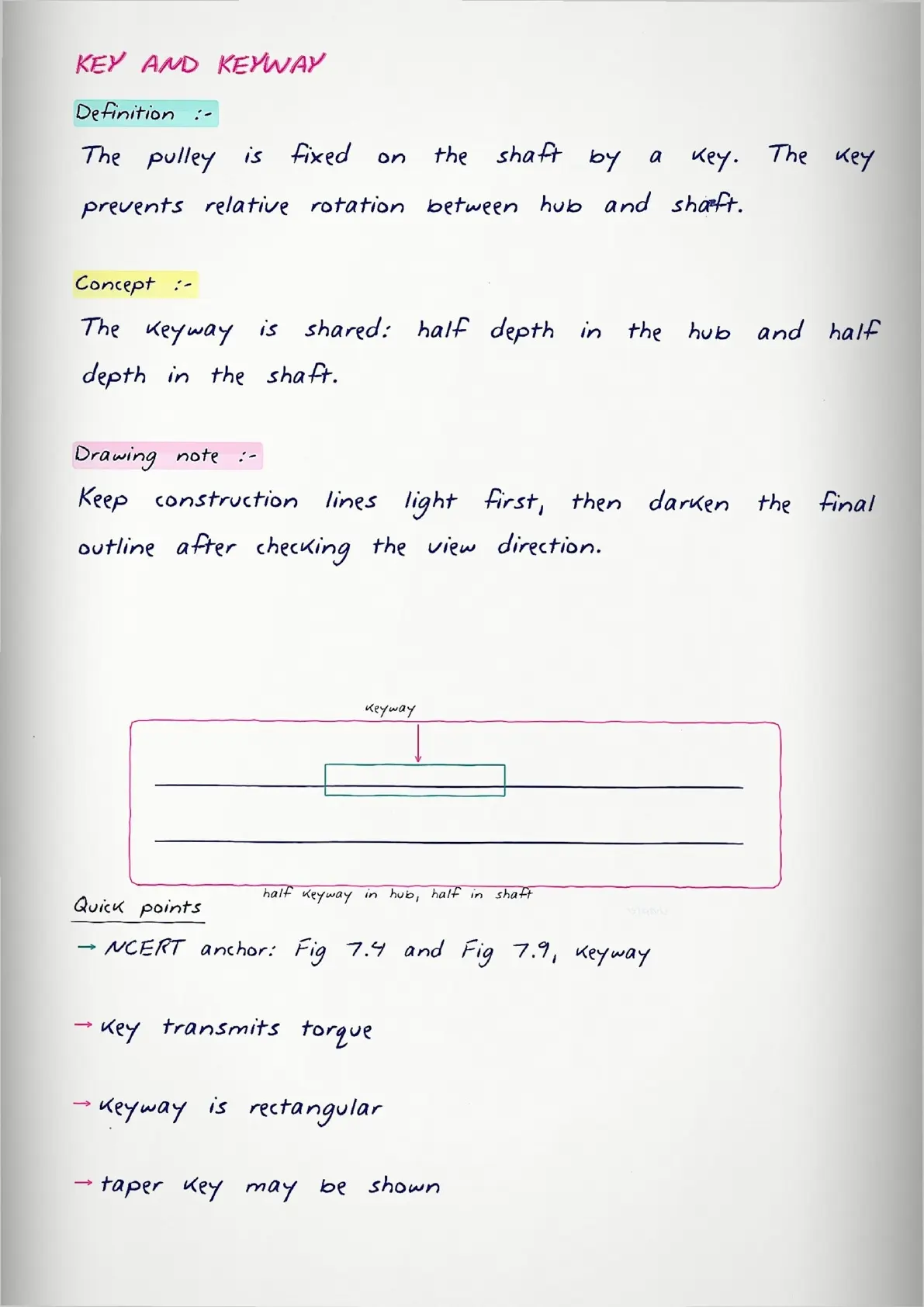

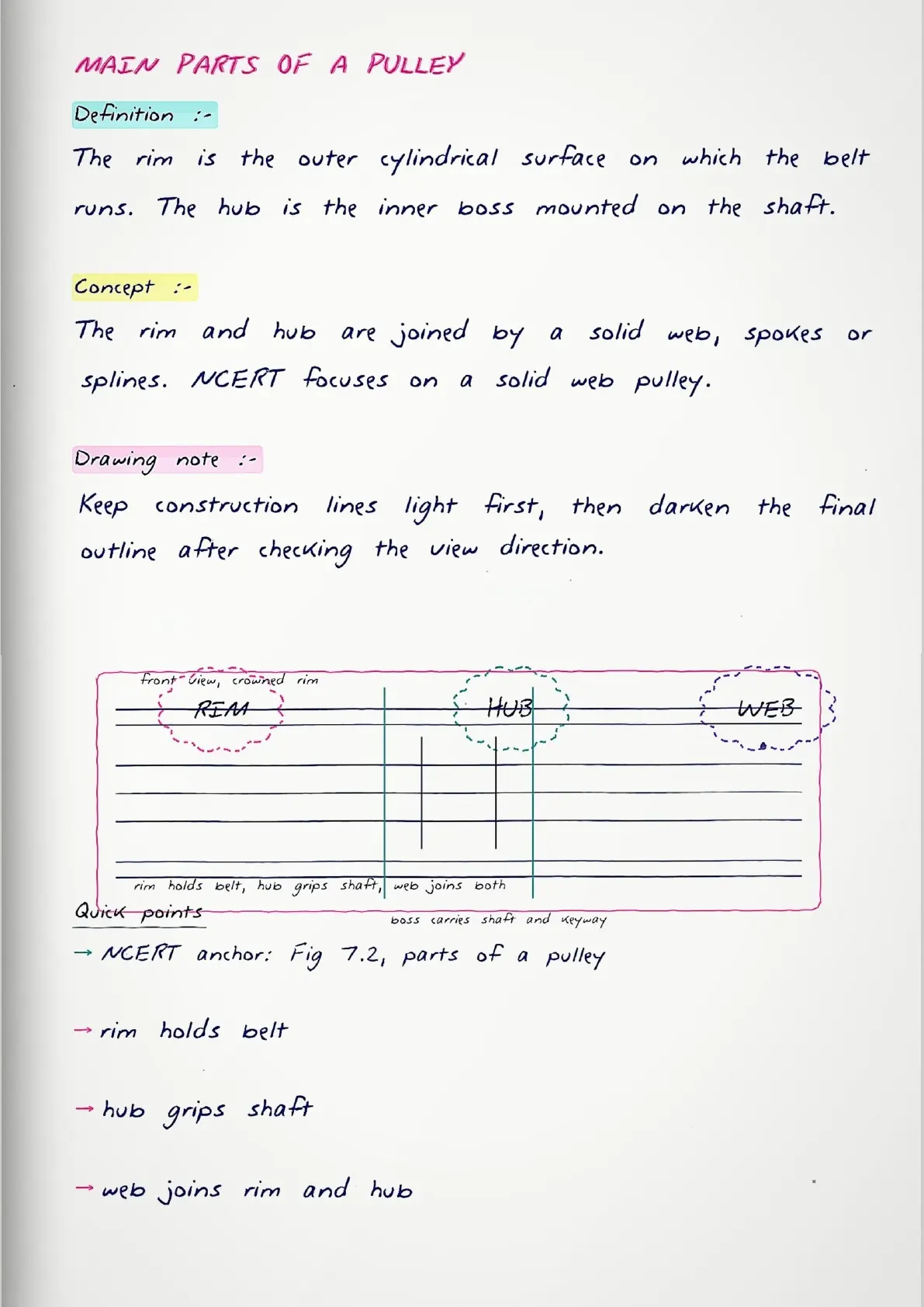

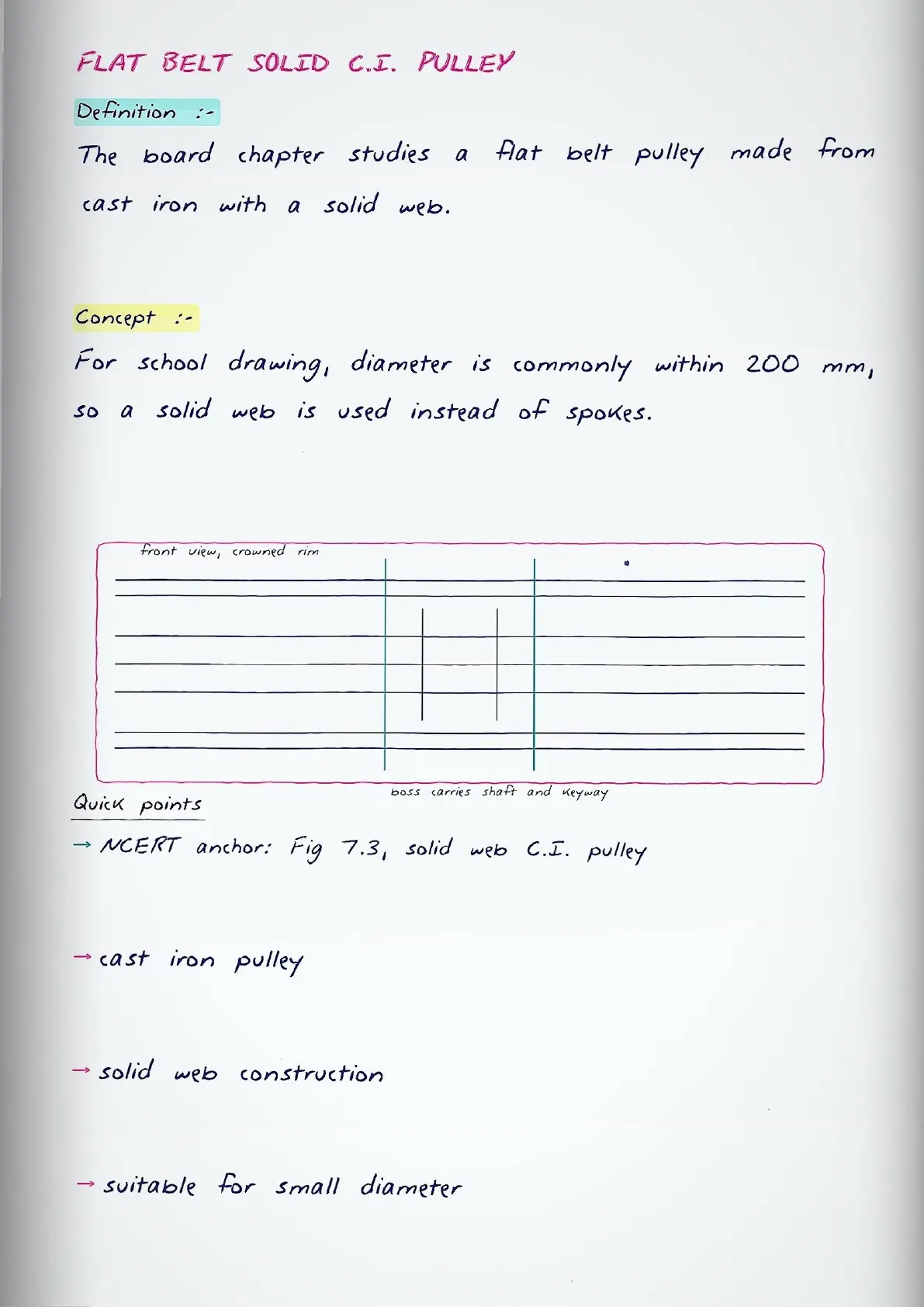

The Pulleys Class 12 handwritten notes are prepared as a 2026-27 NCERT Engineering Graphics resource for quick Machine Drawing revision. The PDF covers solid cast iron pulleys, V-belt pulley assembly, rim and web construction, taper direction, sectional views, dimensions and exam-sheet checking points.
- Best for: fast revision of pulley assembly and disassembly drawing logic.

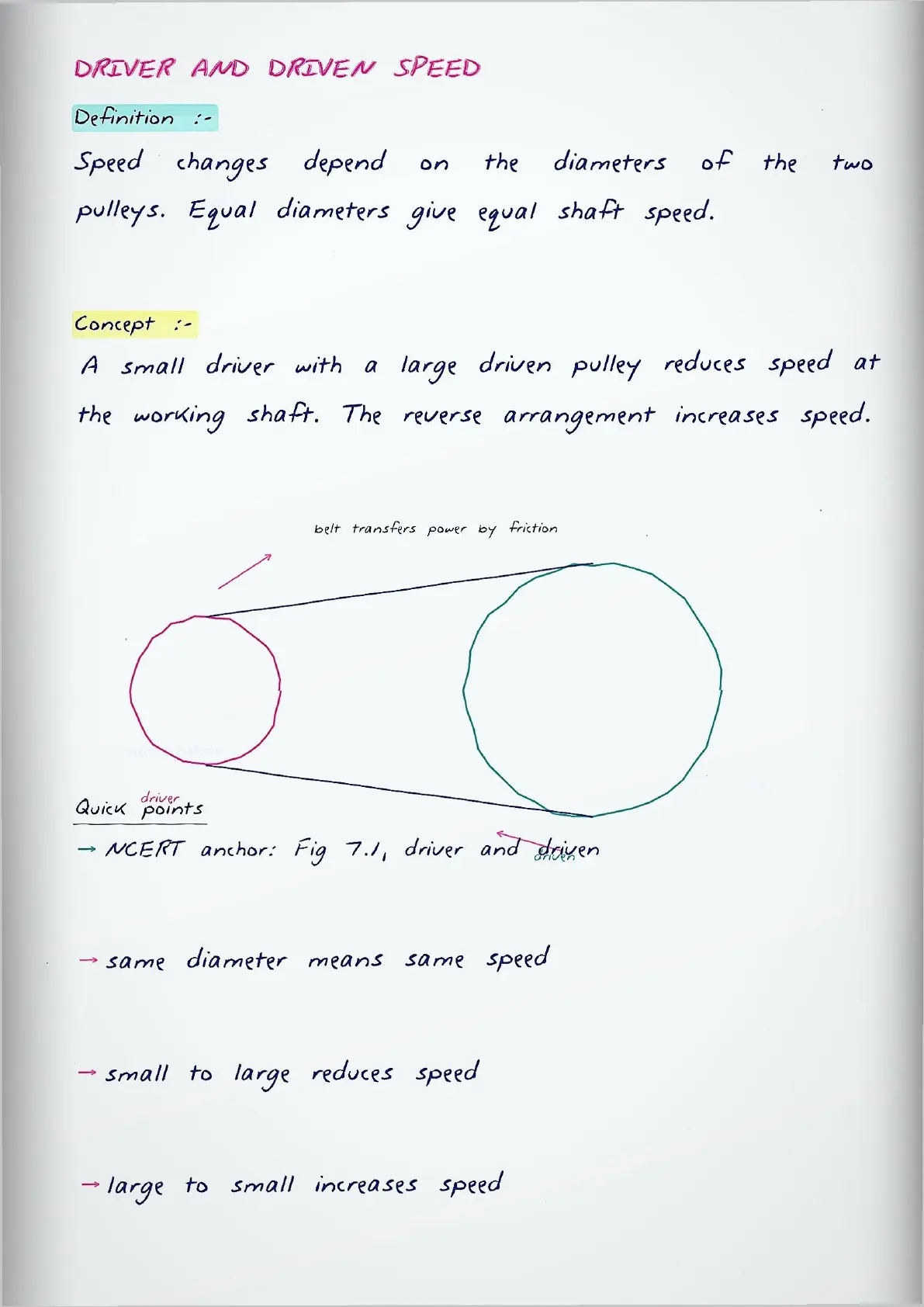

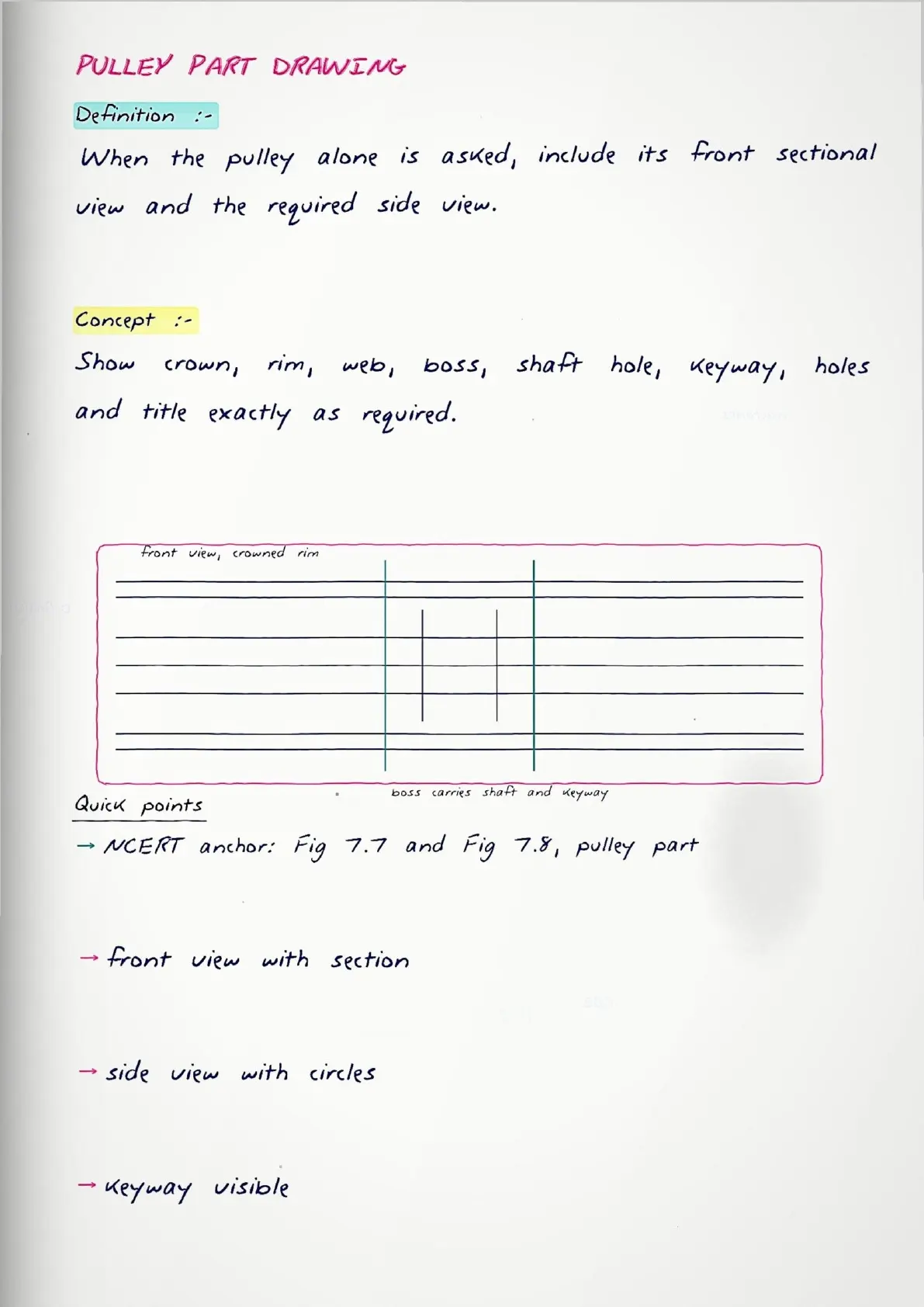

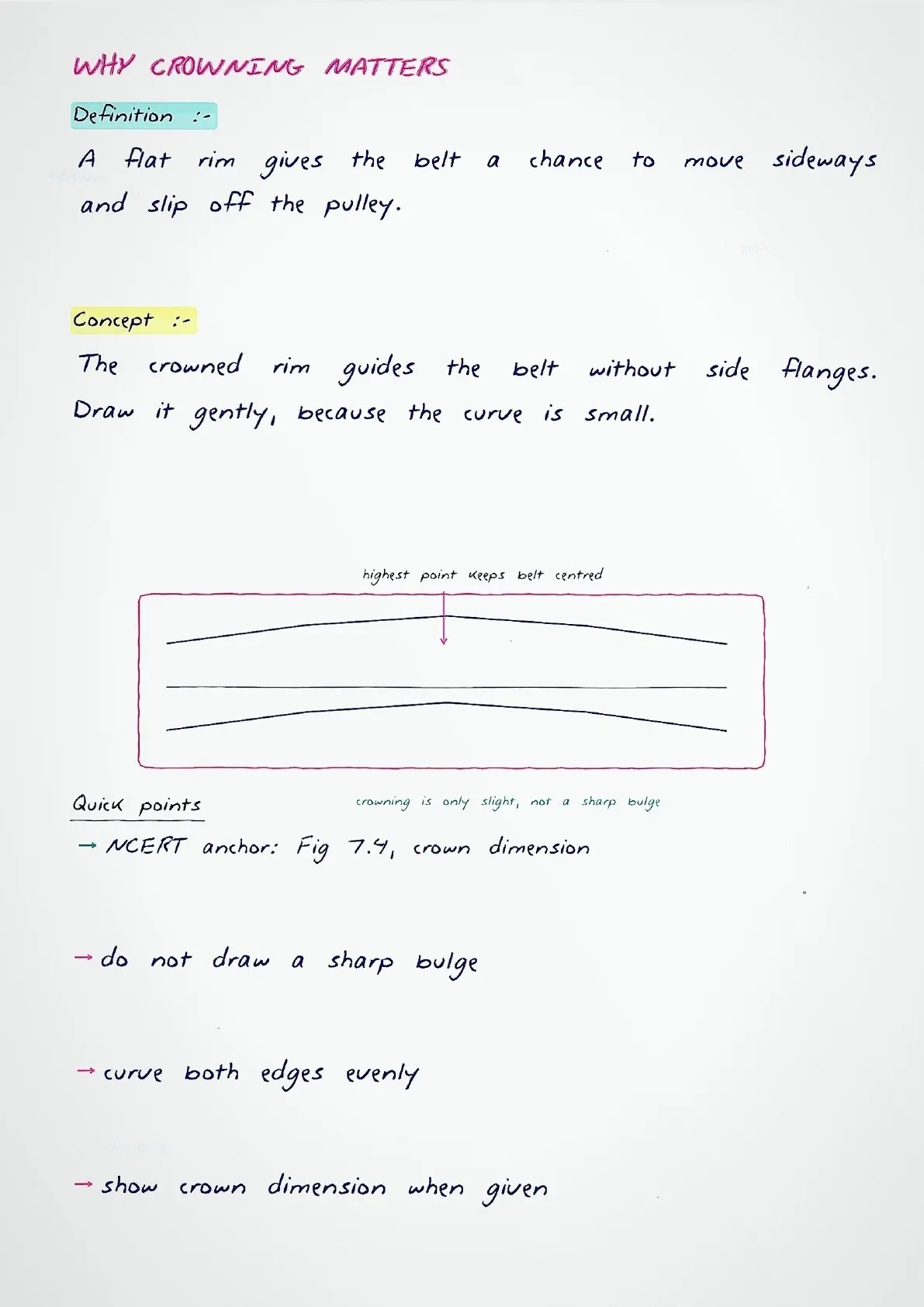

- PDF includes: 26 handwritten pages with pulley sketches and view checks.
- Focus area: rim profile, boss, spokes, taper, keyway, sections and dimensions.

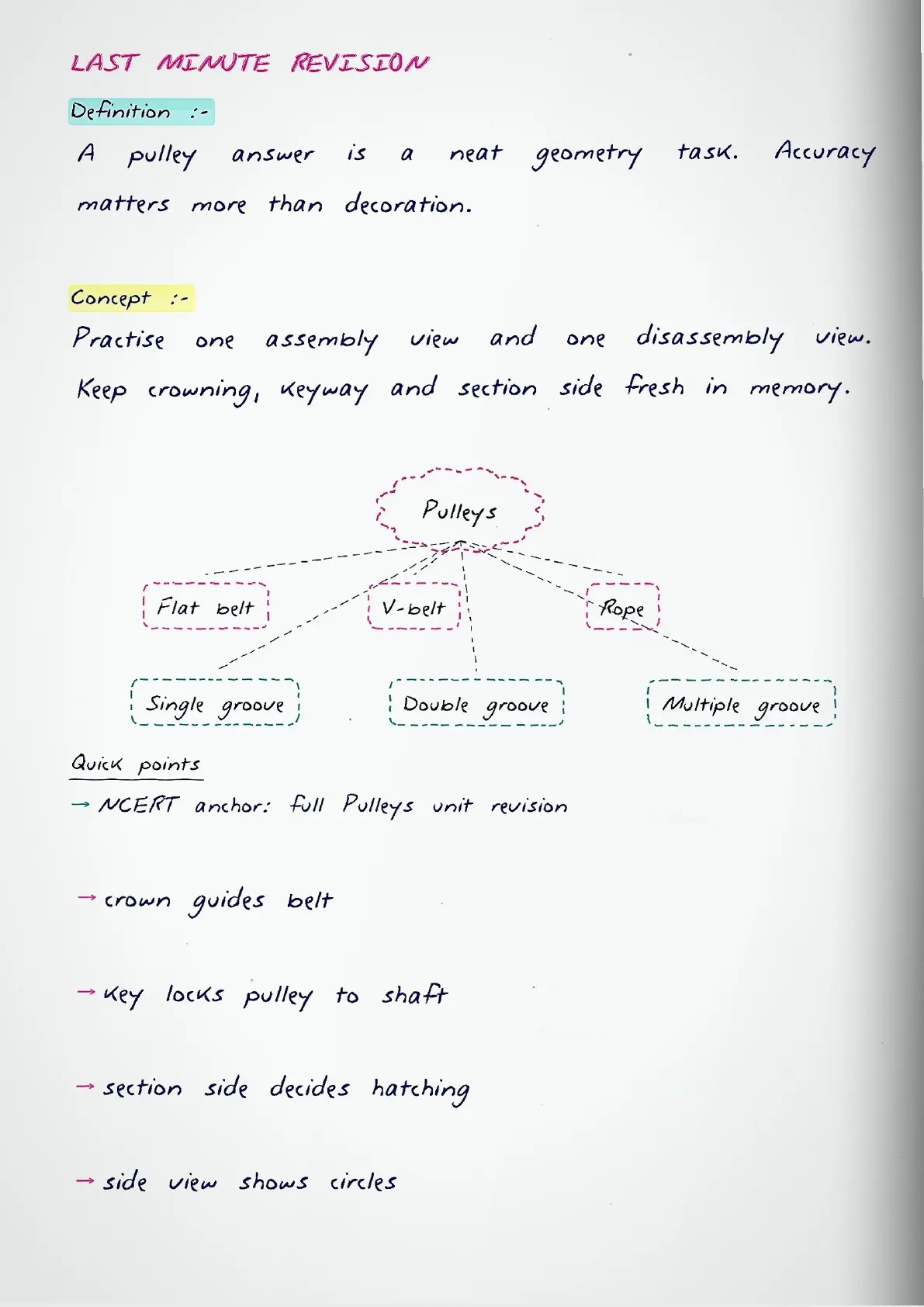

These handwritten revision notes support the NCERT Machine Drawing unit on pulleys and focus on the drawing sequence students need while preparing pulley assembly and sectional views.
Student Feedback
In a Collegedunia poll of 10,940 Class 12 Engineering Graphics students, 73% of students said pulley view practice helped them avoid rim, boss and sectioning mistakes during machine drawing revision.
Source: 2026-27 Collegedunia Class 12 Engineering Graphics revision poll.
|
Table of Contents |
What Pulleys Class 12 Handwritten Notes Include

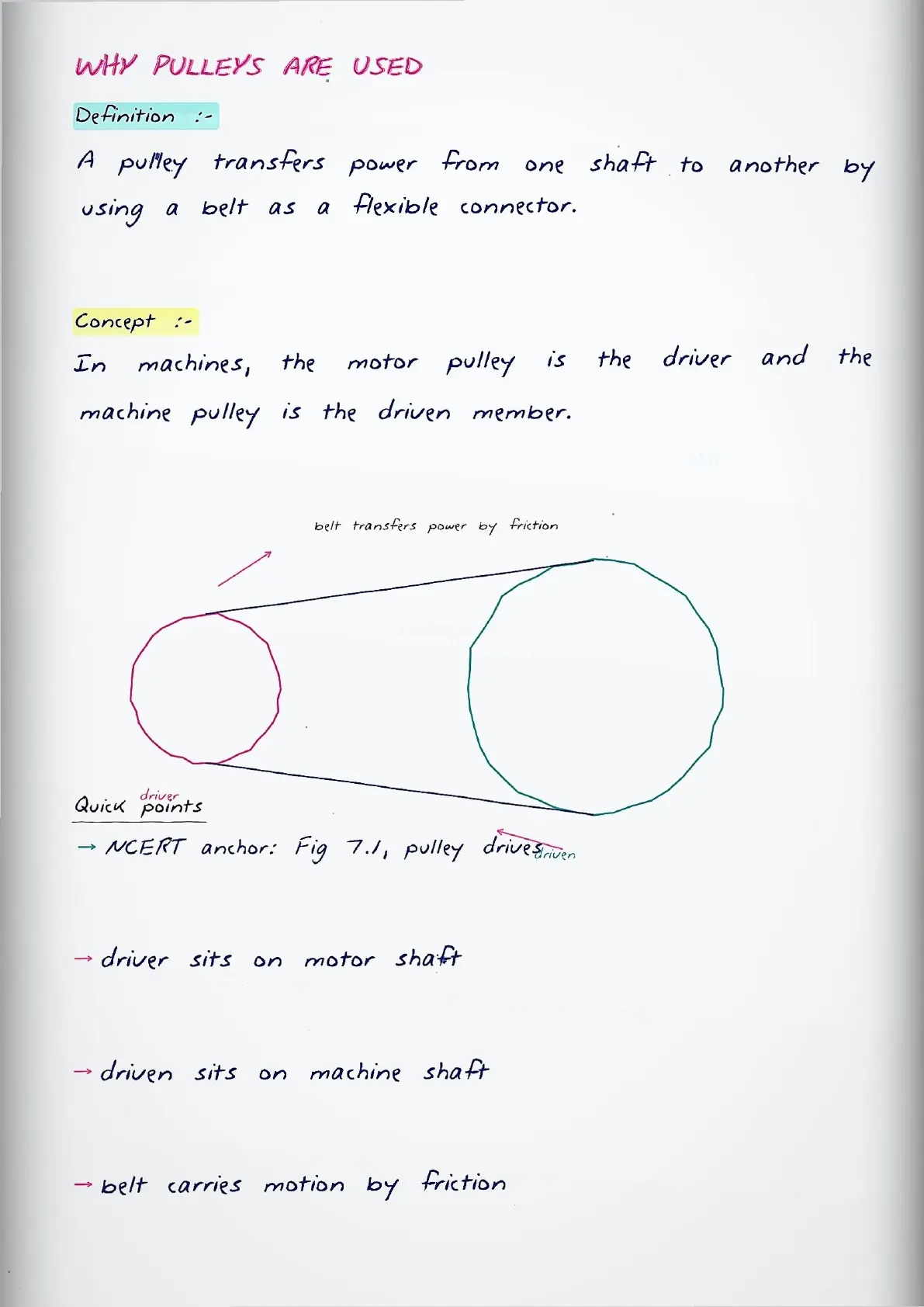

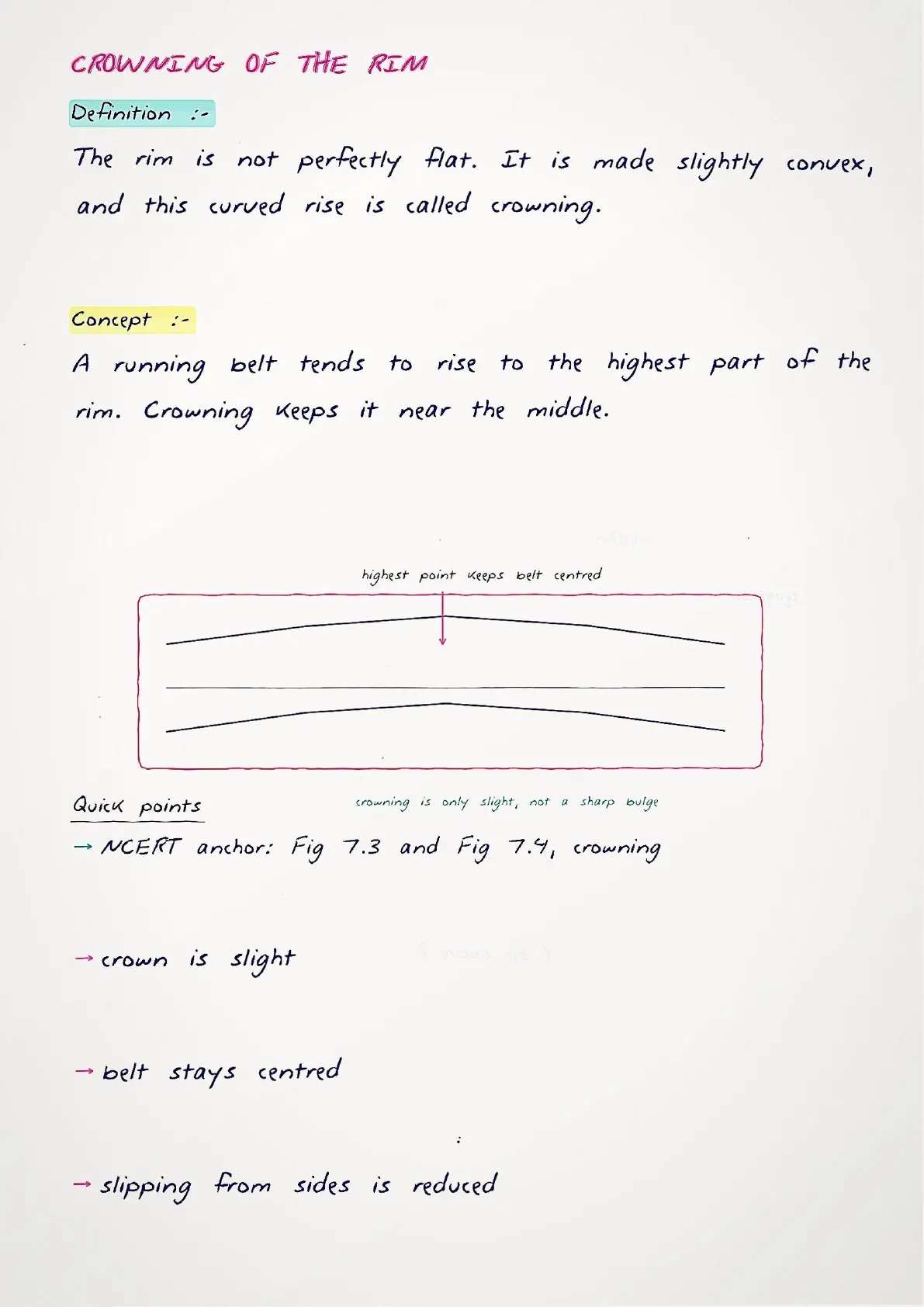

The notes start with the function of pulleys in transmitting motion through belts. They then move to solid cast iron pulley proportions, V-belt pulley profile, web and spoke layout, boss construction, keyway placement and final sheet presentation.
- Solid C.I. pulley and V-belt pulley drawing sequence.

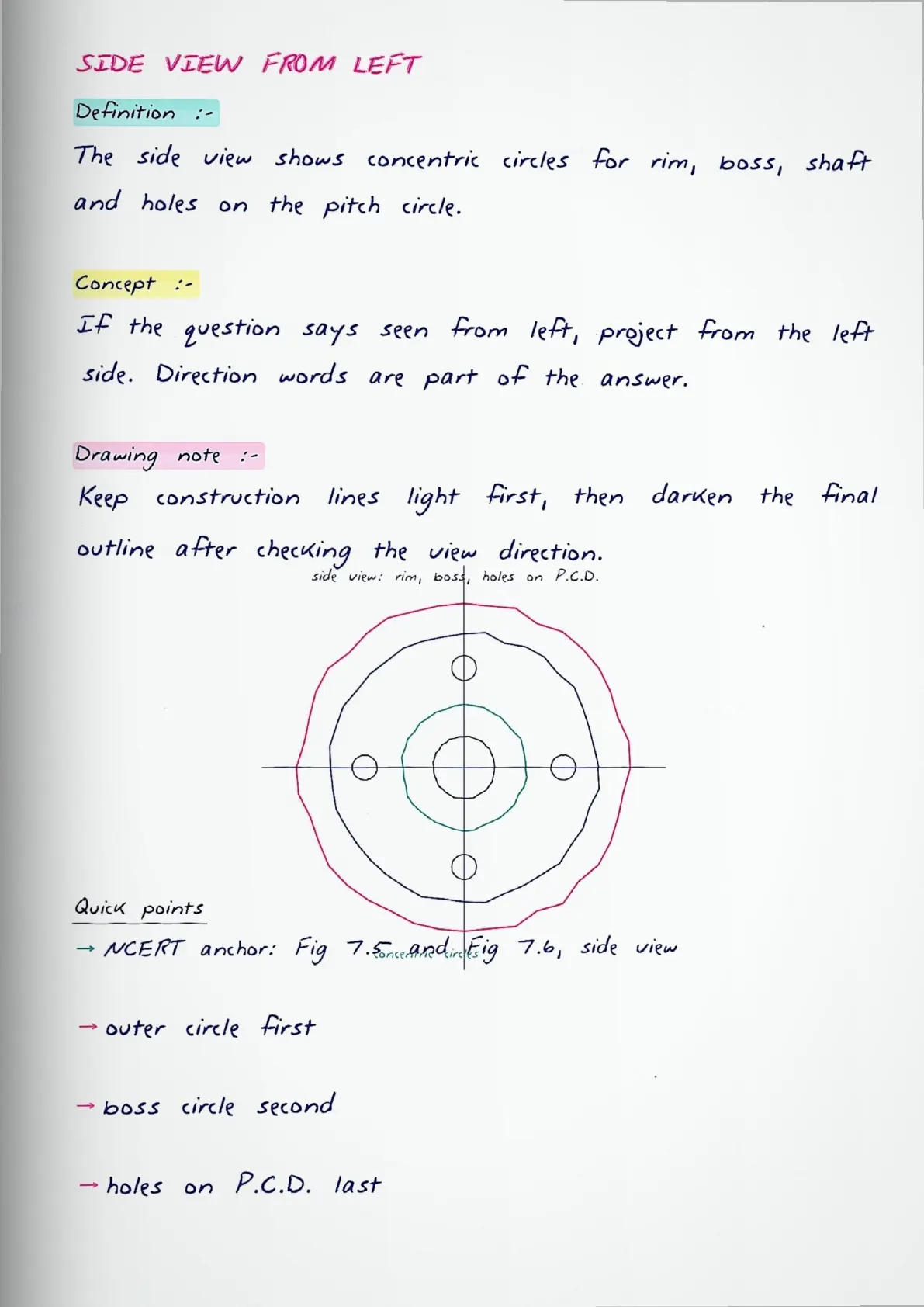

- Front view, side view, sectional half and rim profile checks.

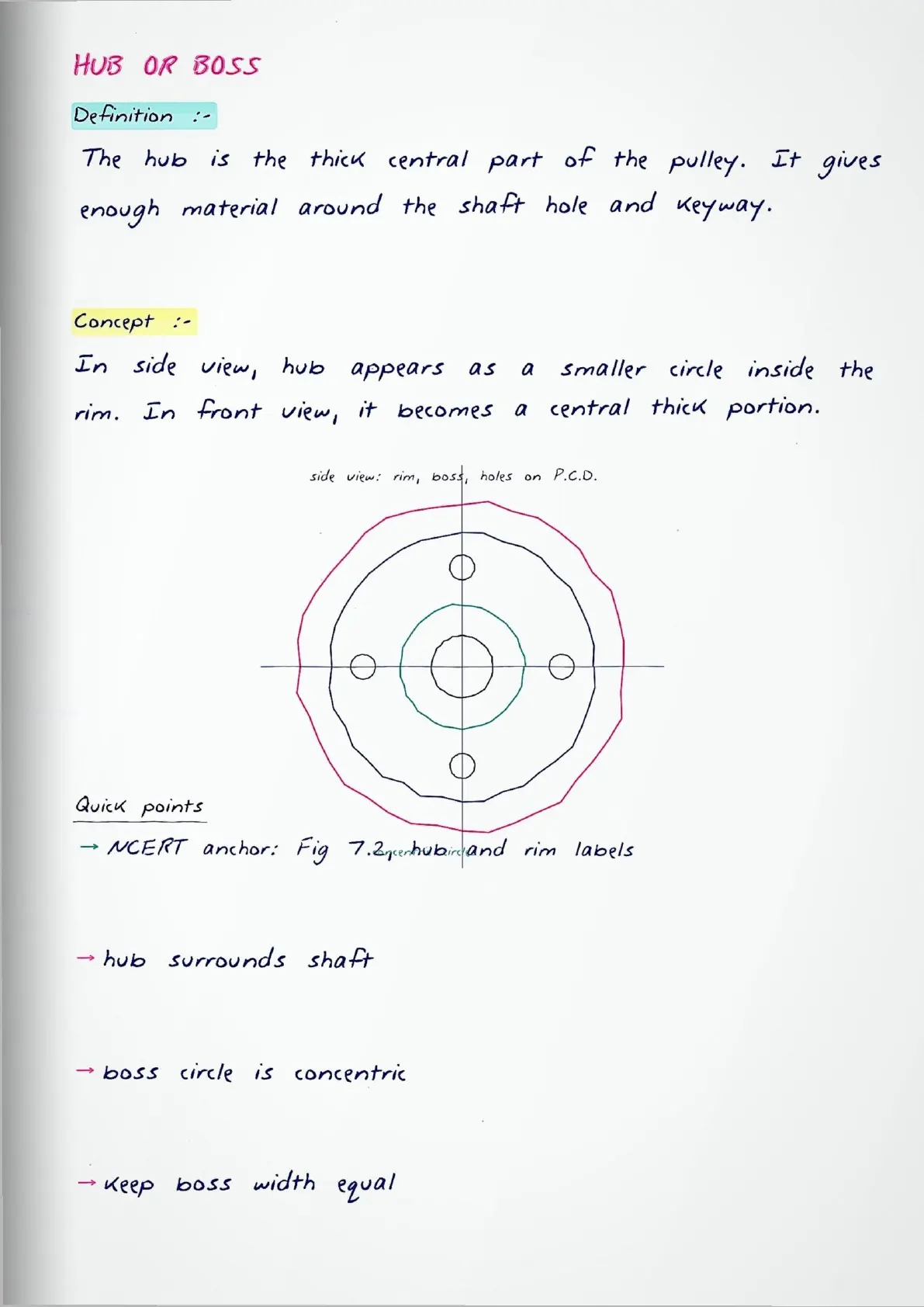

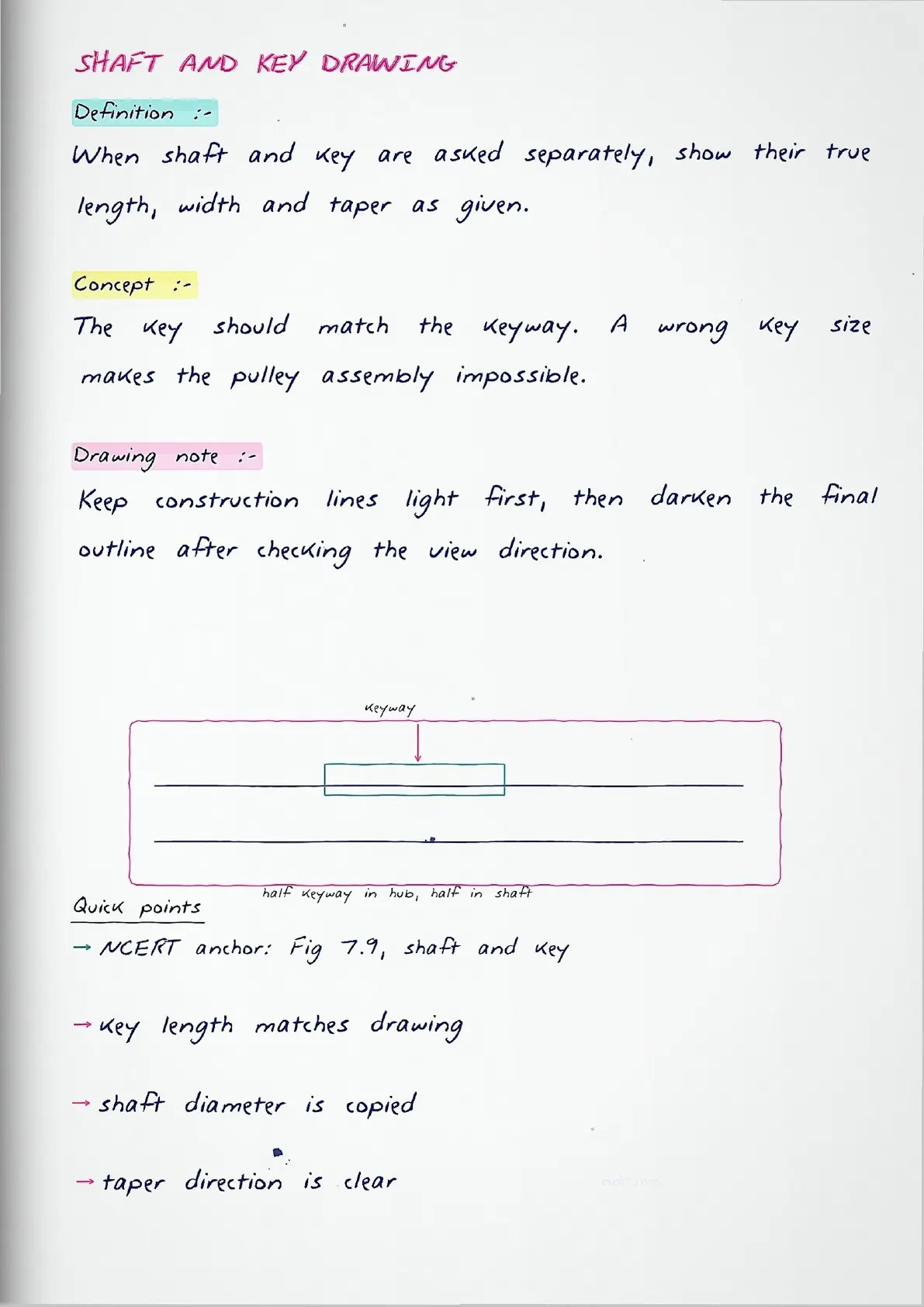

- Taper direction, web thickness, boss length and keyway marking.

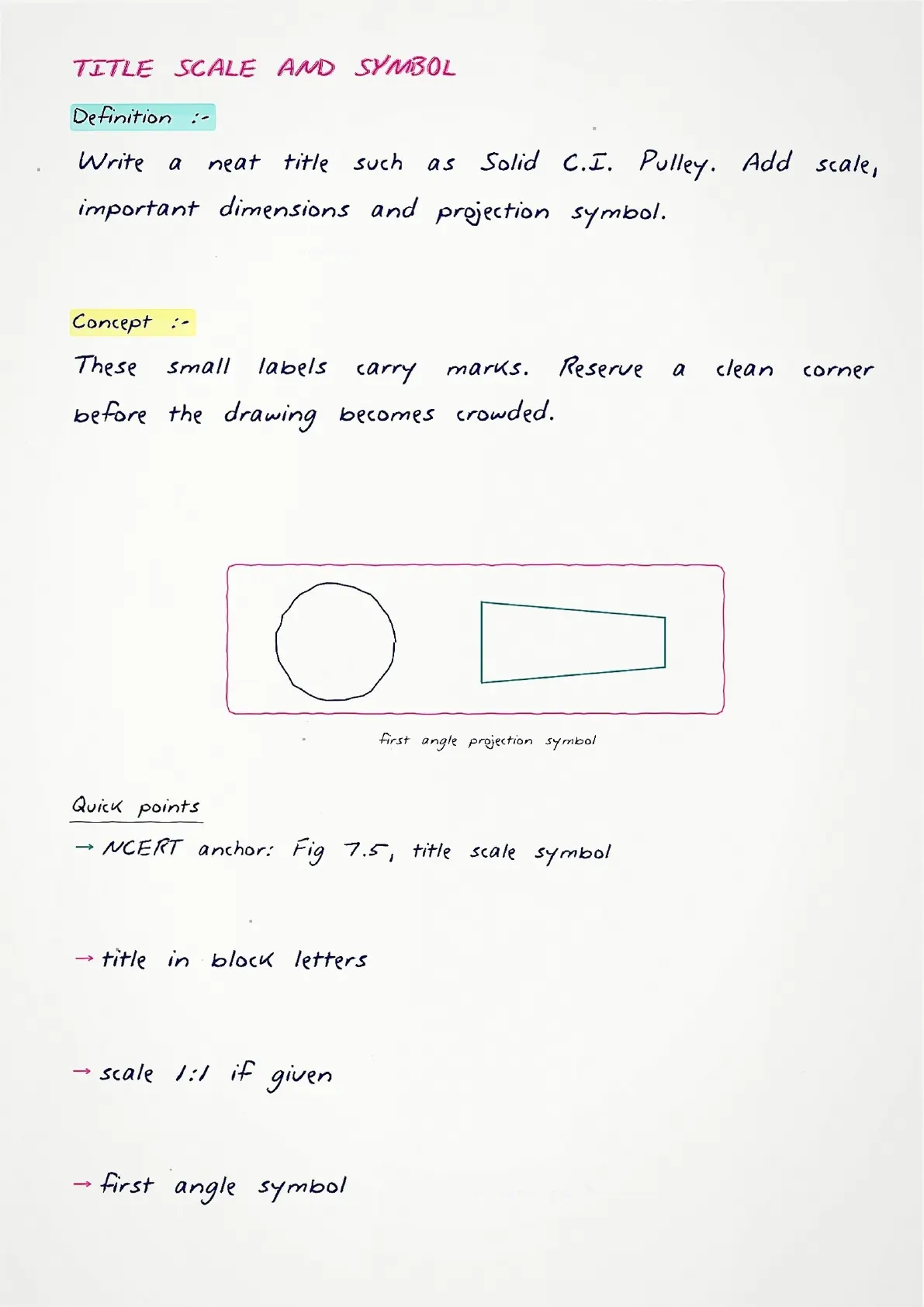

- Projection symbol, scale, titles and final dimension verification.
Pulley Assembly Drawing Video
Source: Million Mangesh on YouTube

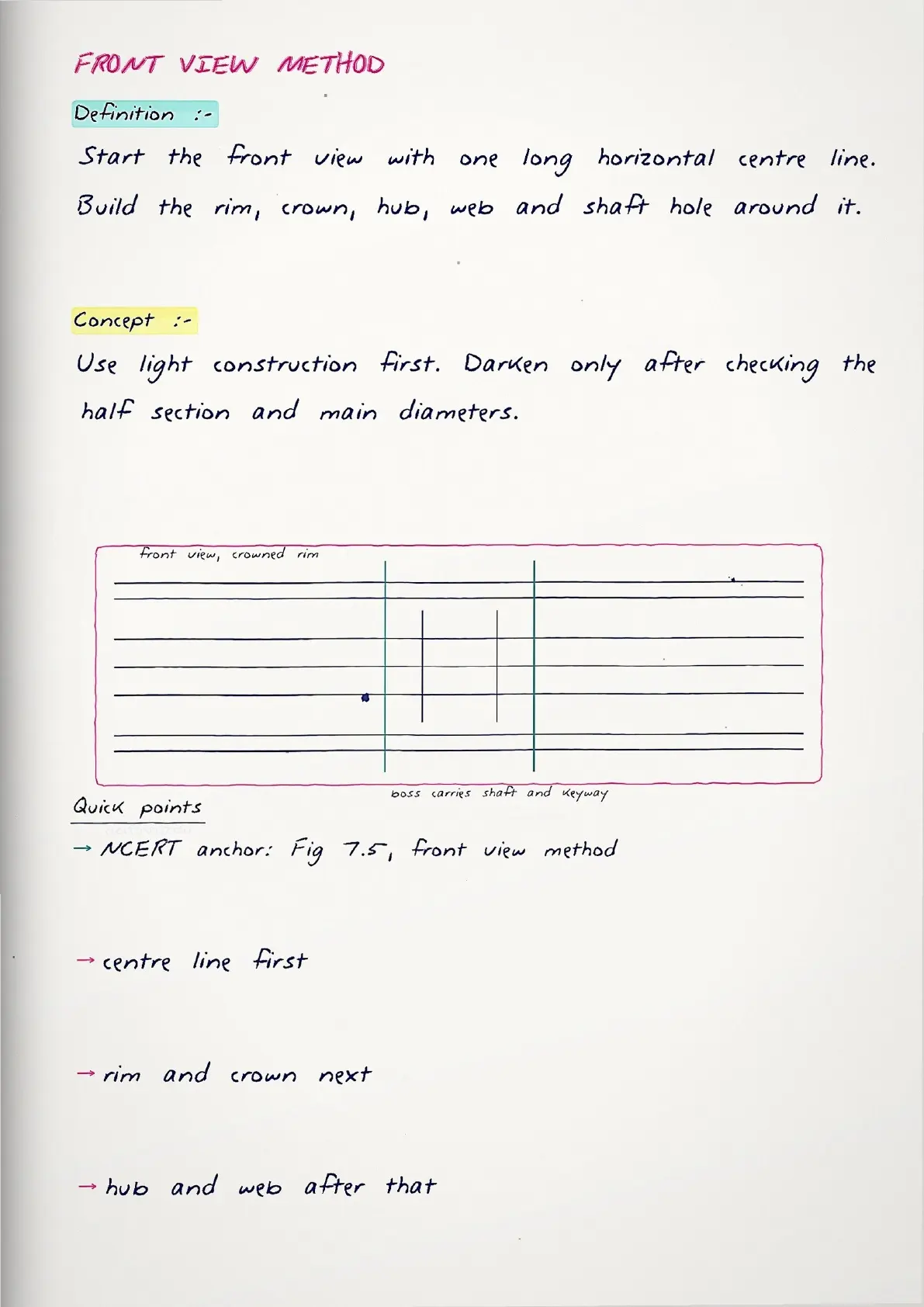

Pulley Drawing Workflow for Engineering Graphics

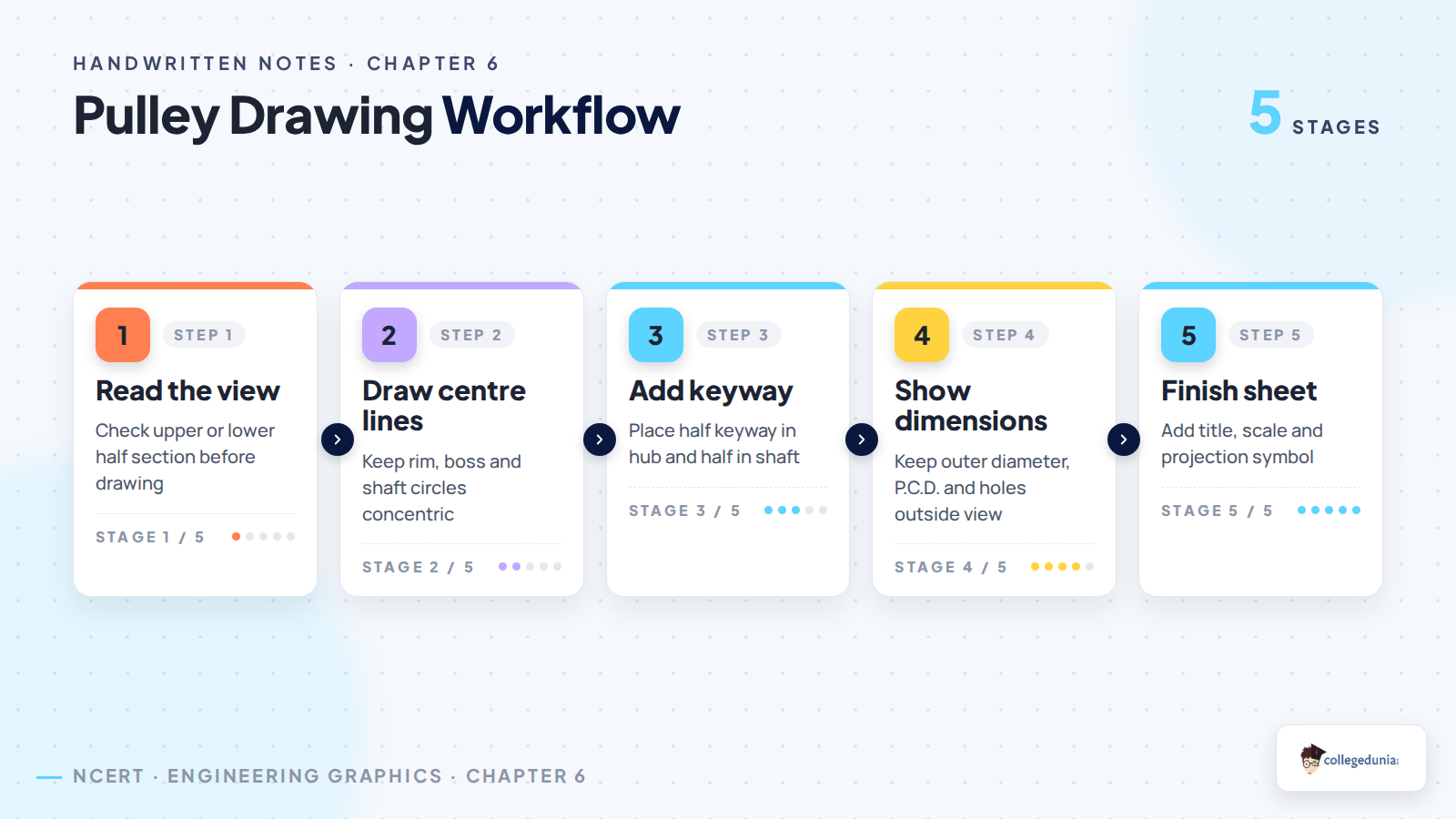

A pulley answer becomes easier when the drawing is built in a fixed order. Start from the axis and pitch reference. Then add the rim, boss, web or spokes, belt groove, keyway, sectioning and dimensions.
- Keep the shaft axis and pulley centre line common in both views.
- Show the rim before adding spokes or web details.

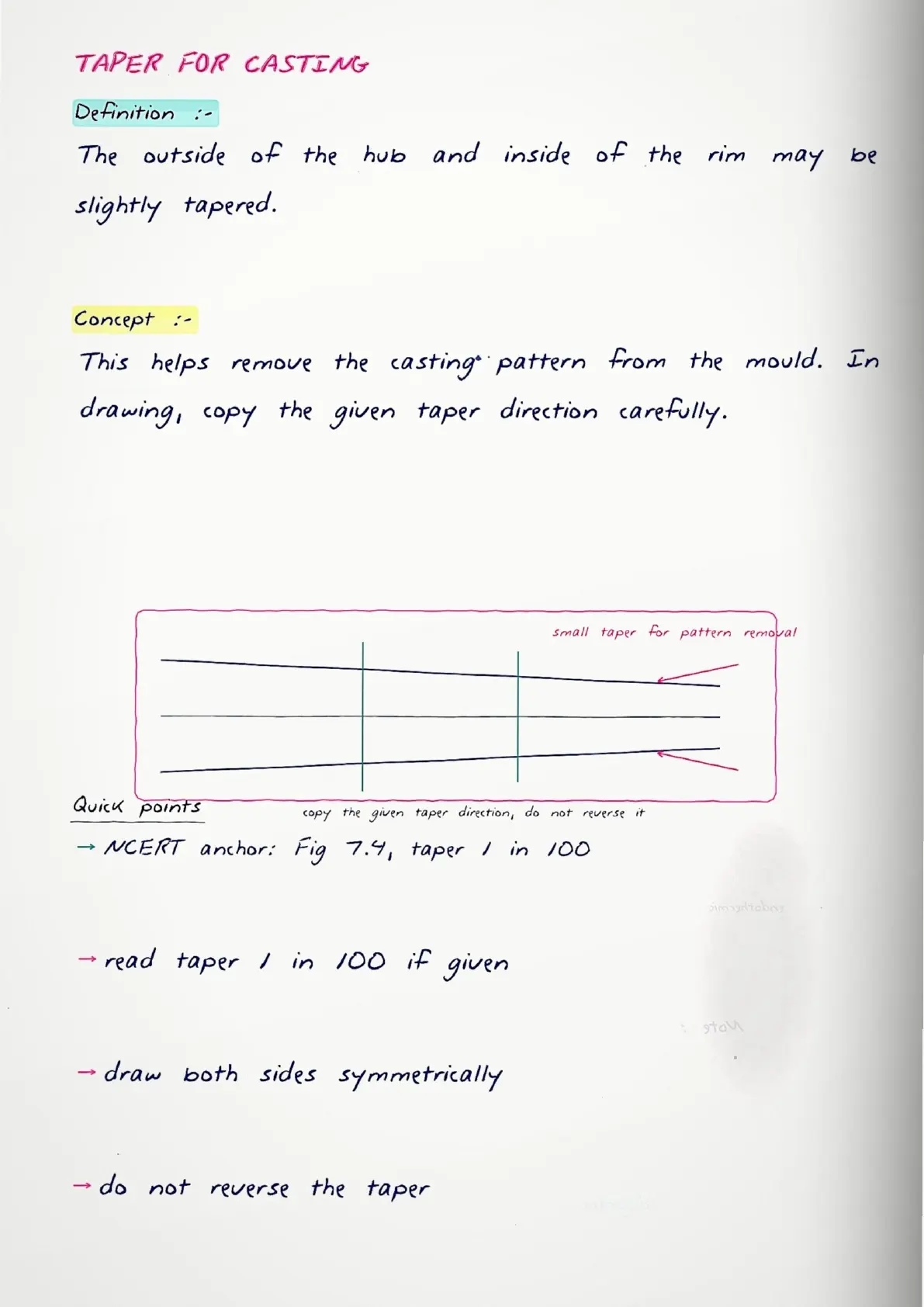

- Mark taper direction before dimensioning the groove.
- Check that section hatching is used only on the cut solid material.

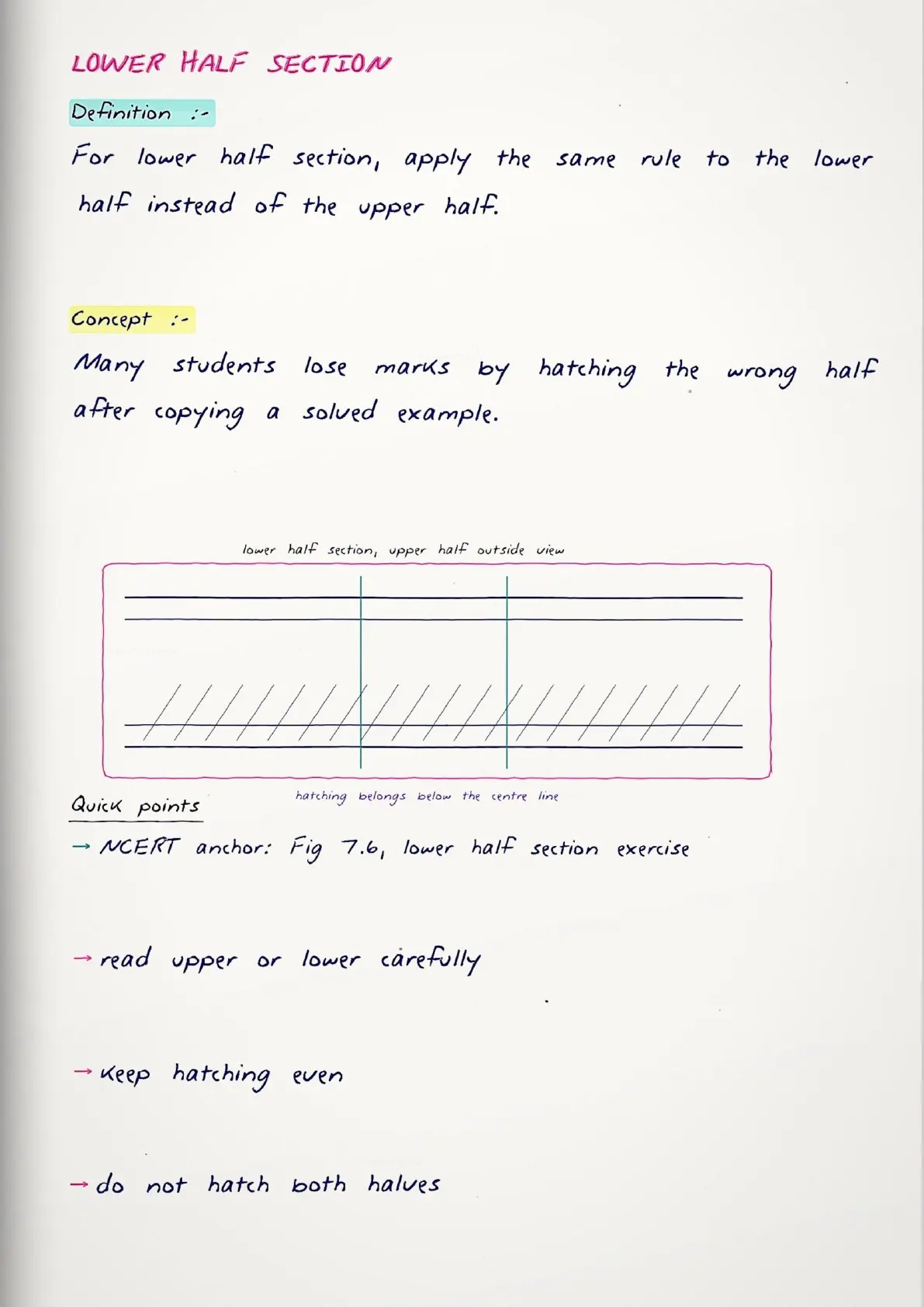

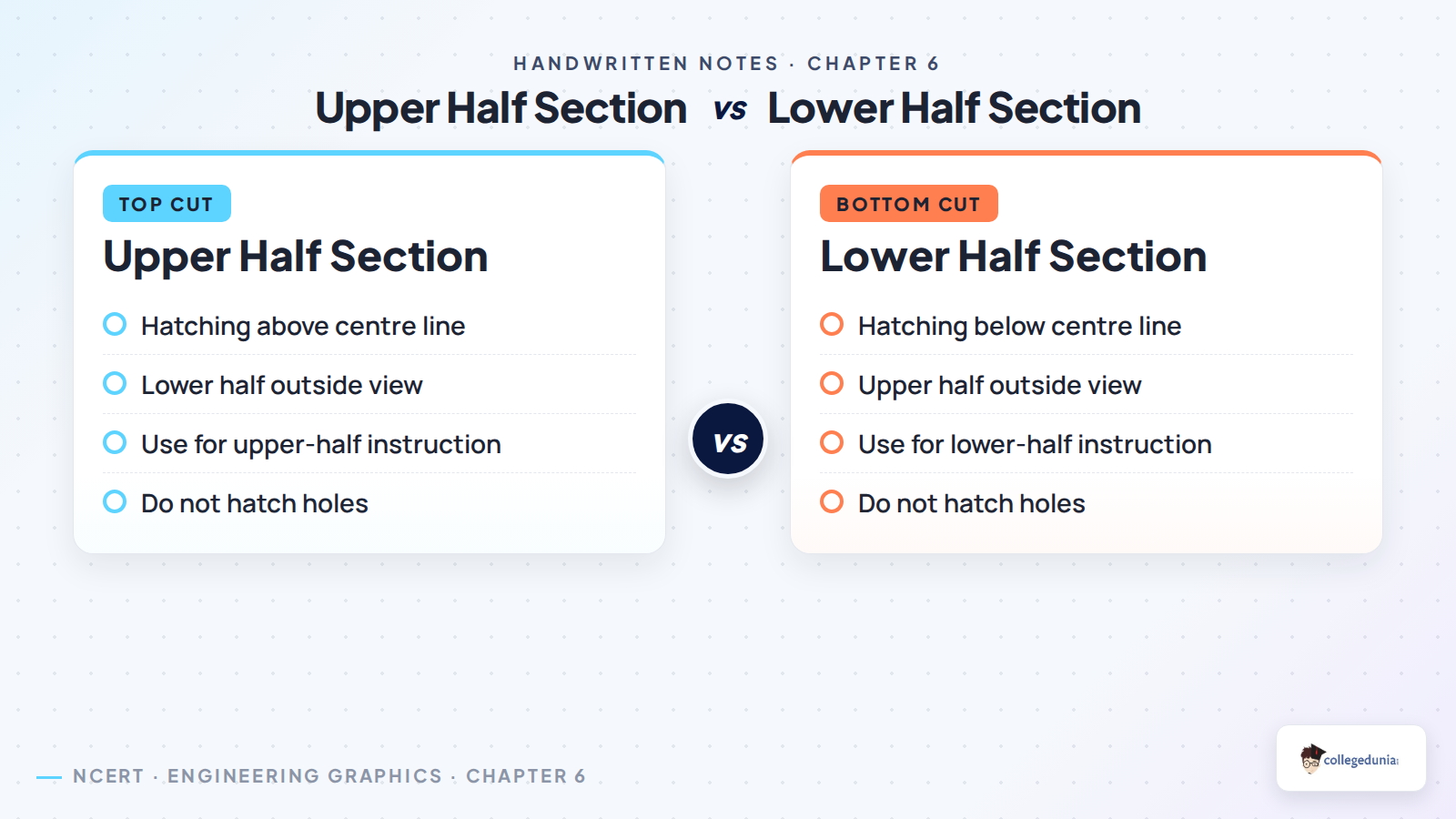

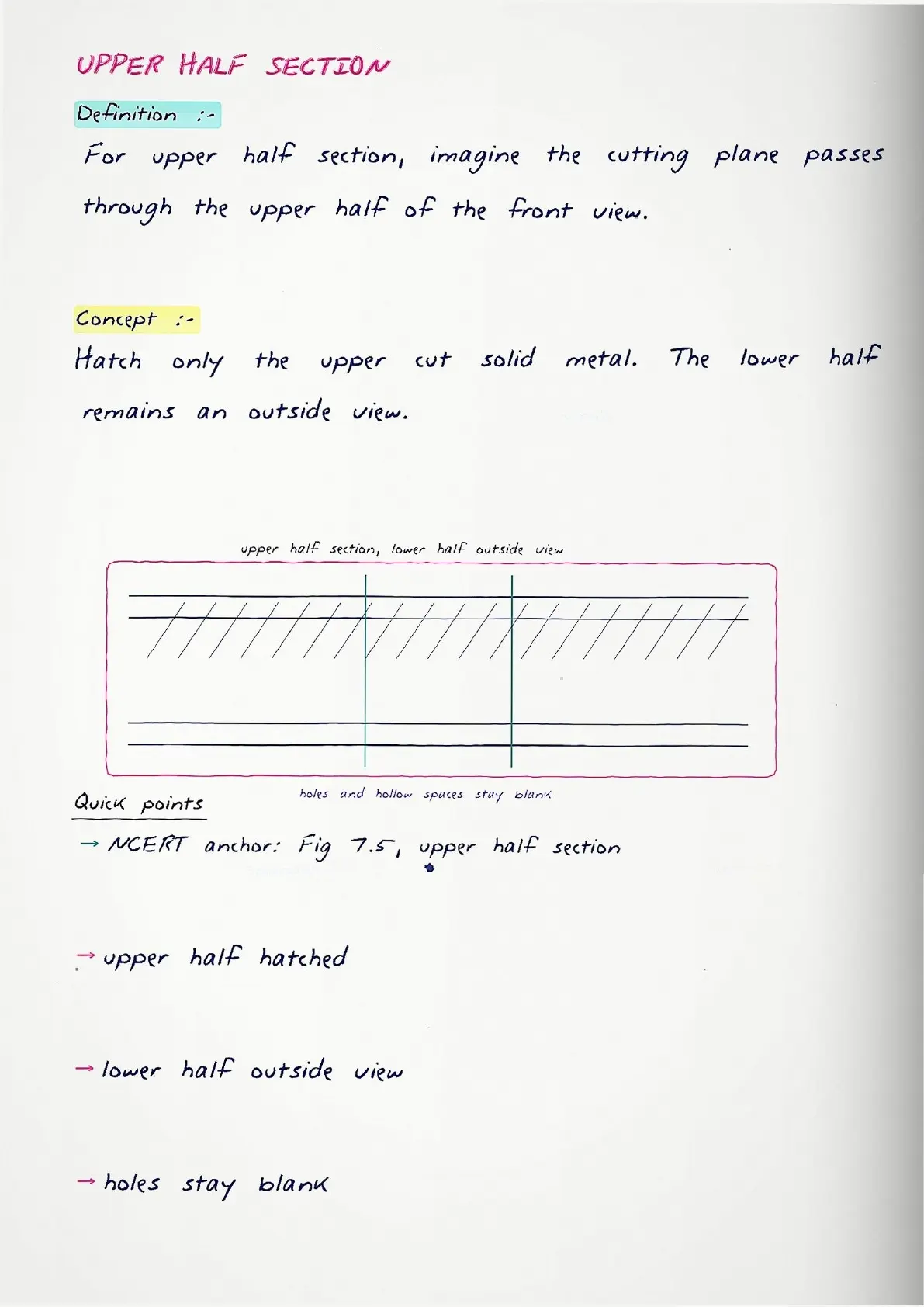

Upper Half and Lower Half Section in Pulley Views

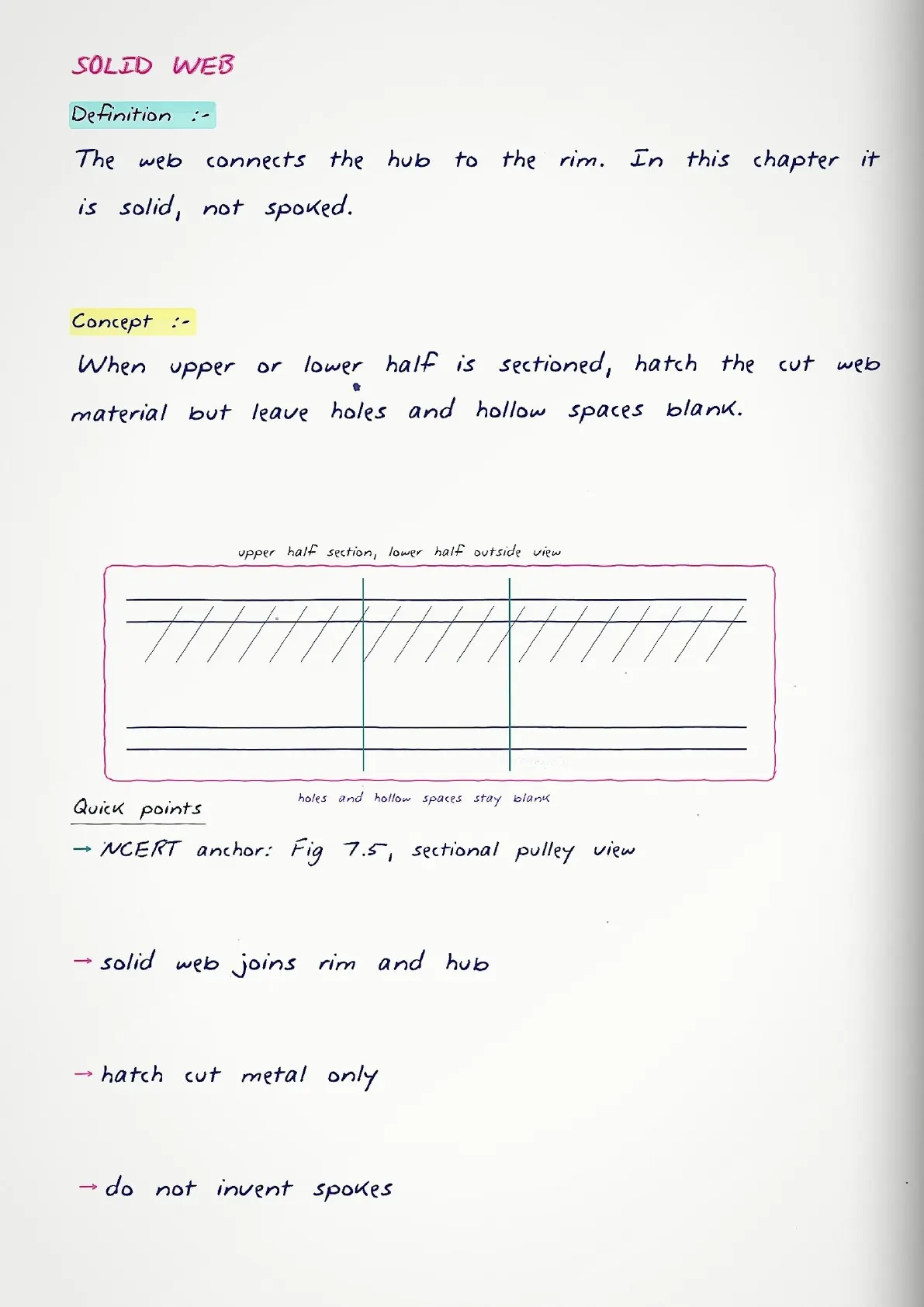

Machine drawing questions often expect one half as the outside view and the other half as the sectional view. For pulleys, this distinction is important because rim, web, boss and shaft cuts must not be hatched blindly across the full view.
| View area | What to show | Common error |
|---|---|---|
| Upper half | Outside profile, rim outline, boss and visible edges | Hatching the outside view |
| Lower half | Sectioned material with clean hatch direction | Leaving the section blank |
| Centre line | Continuous reference for front and side views | Offsetting the boss or groove from the axis |

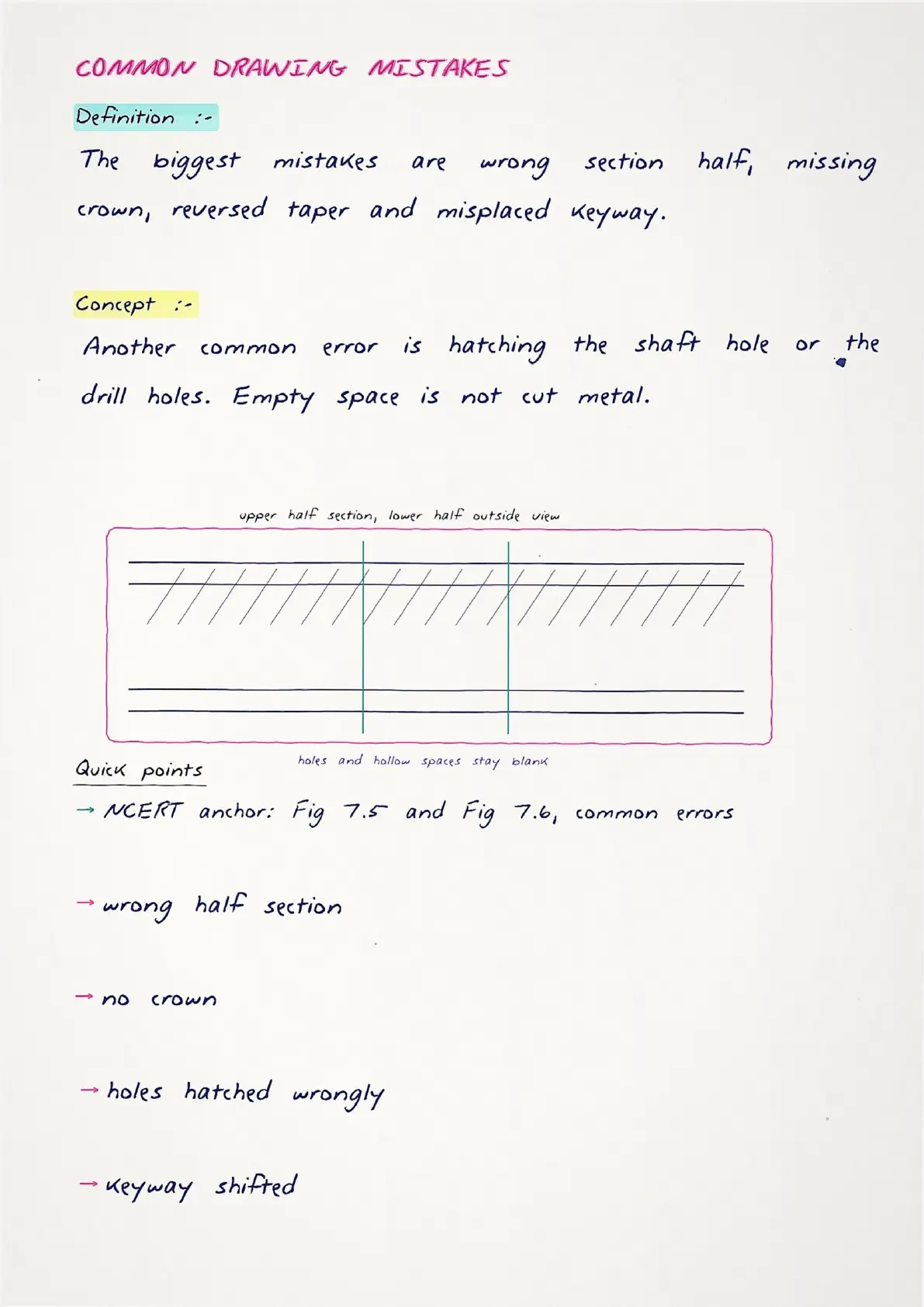

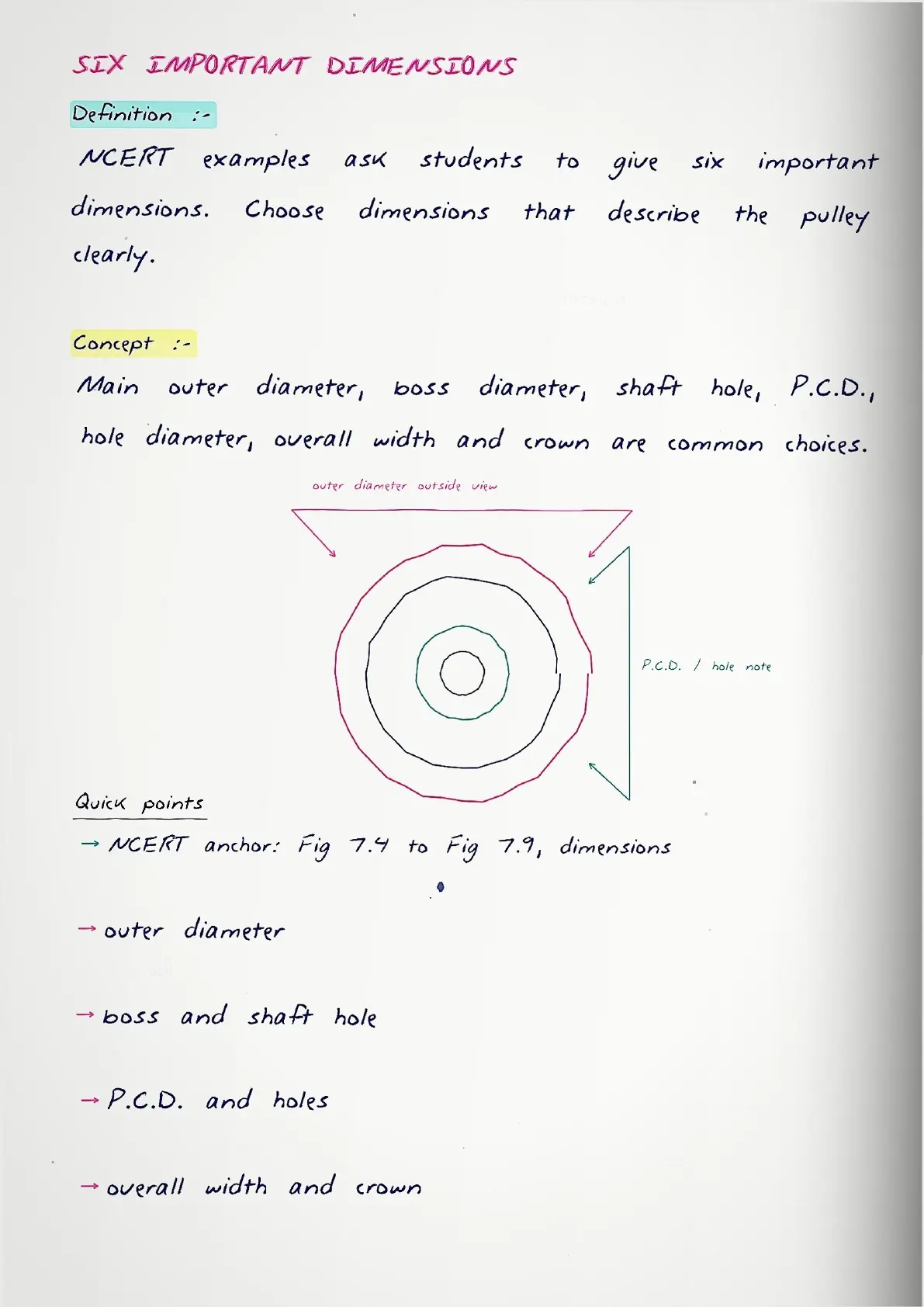

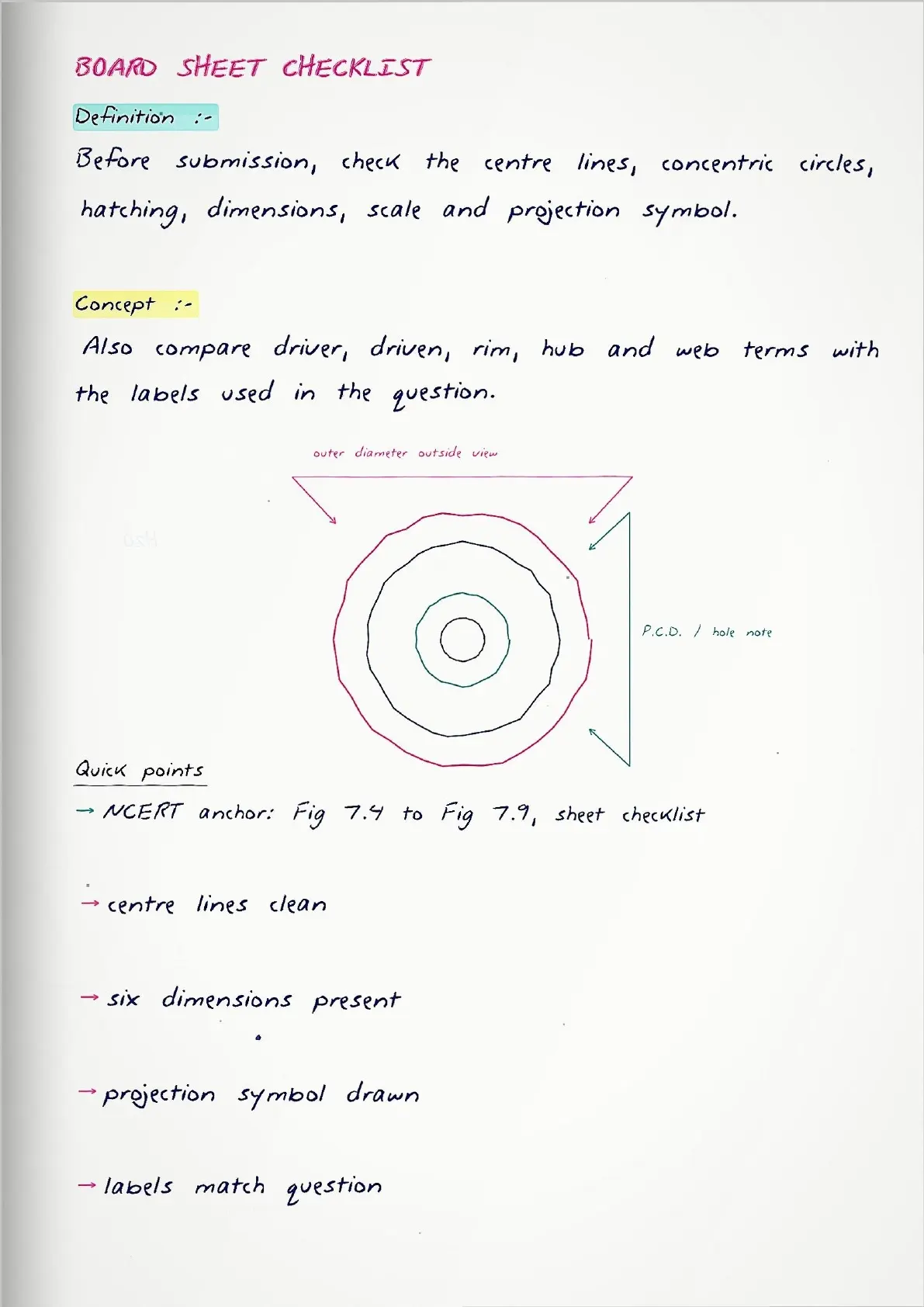

Important Drawing Checks for Pulleys
The most common marks are lost after the main outline is already correct. Students should verify the rim thickness, web slope, boss length, keyway position and dimension arrows before considering the answer complete.
- Do not reverse the taper direction of a V-belt pulley groove.
- Keep the boss concentric with the rim and shaft axis.
- Avoid crossing dimension leaders through the side view.
- Use centre lines for circular features and hidden edges only where required.
Other Resources for Pulleys Class 12
| Resource | Use it for |
|---|---|
| Pulleys Notes | Revise textbook-style definitions, parts and drawing sequence. |
| Pulleys NCERT Book PDF | Read the source chapter before solving drawing sheets. |
| Shaft Couplings Handwritten Notes | Revise the previous machine drawing unit. |
All Chapters Handwritten Notes for Class 12 Engineering Graphics
| Chapter | Handwritten Notes |
|---|---|
| Engineering Graphics Chapter 1 | Isometric Projection of Solids Handwritten Notes |
| Engineering Graphics Chapter 2 | Machine Drawing Bearings Handwritten Notes |
| Engineering Graphics Chapter 3 | Machine Drawing Rod Joints Handwritten Notes |
| Engineering Graphics Chapter 4 | Tie-rod and Pipe Joints Handwritten Notes |
| Engineering Graphics Chapter 5 | Shaft Couplings Handwritten Notes |
| Engineering Graphics Chapter 6 | Pulleys Handwritten Notes |
Pulleys Class 12 Handwritten Notes FAQs
Ques. What is included in the Pulleys Class 12 handwritten notes?
Ans. The PDF includes pulley parts, solid C.I. pulley drawing, V-belt groove, boss, web, taper direction, sectioning and dimensions.
Ques. Are pulley sectional views covered in the PDF?
Ans. Yes. The notes cover upper-half outside view, lower-half section view, hatching checks and centre-line alignment.
Ques. Why is taper direction important in pulley machine drawing?
Ans. Taper direction controls the V-groove profile. Reversing it changes the pulley shape and can make the side view incorrect.
Ques. How should students revise Pulleys before a drawing test?
Ans. Revise part names first, then practise one solid pulley, one V-belt pulley, one sectioned view and one dimensioned sheet.
