Curved mirrors and lenses form different images by reflecting or bending light, and the type of image depends on the shape of the mirror or lens and the position of the object. Class 8 Science Chapter 10 Light: Mirrors and Lenses builds this idea step by step. These class 8 science handwritten notes chapter 10 Light: Mirrors and.
- CBSE Class 8 Weightage: a scoring chapter in the Science paper, asked in short and long answers.
- What the notes cover: spherical mirrors, concave and convex mirrors, images formed by spherical mirrors, uses of concave and convex mirrors.
- Best for: quick revision before Class 8 exams and a strong base for Class 9.

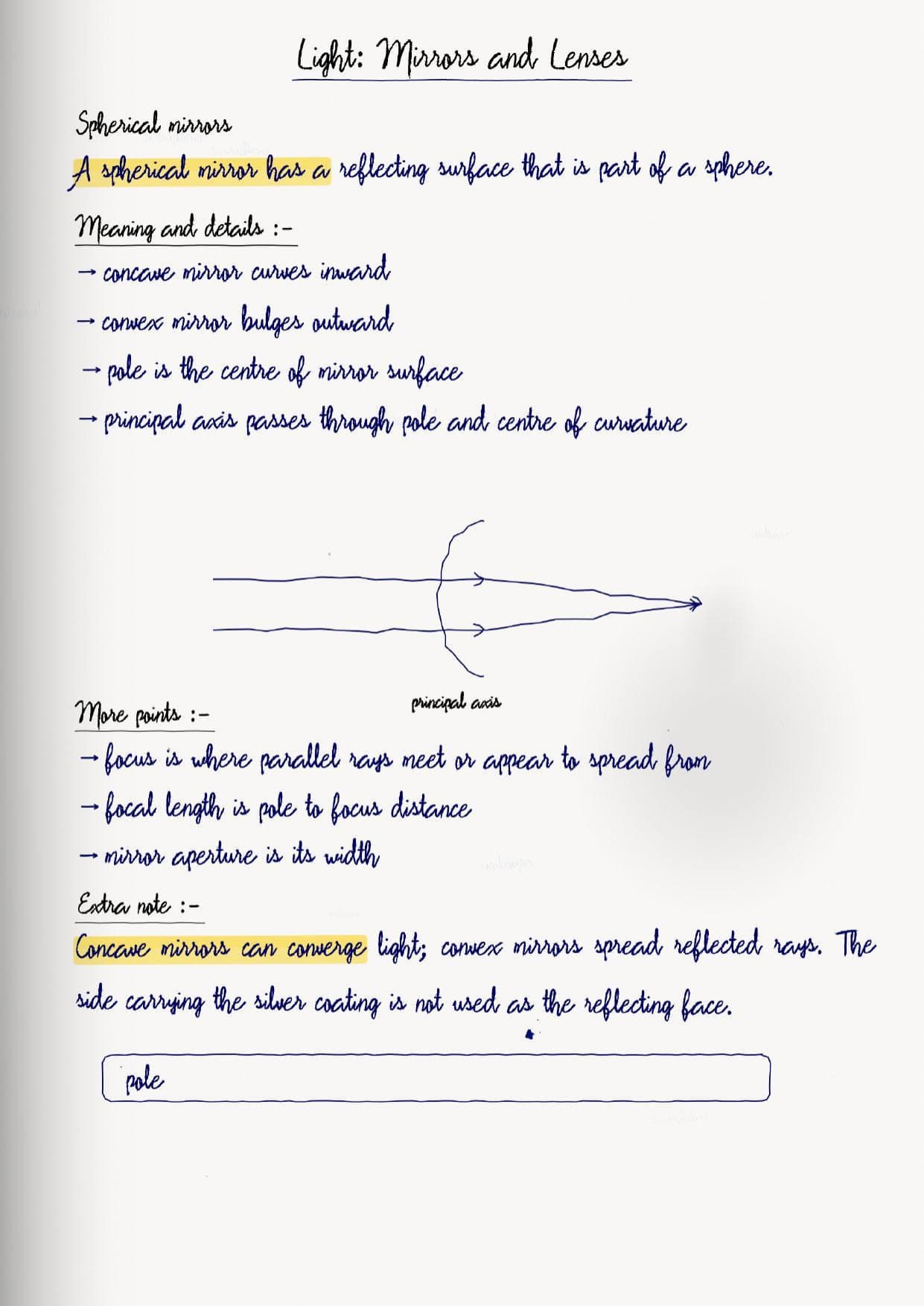

You can read the complete class 8 science handwritten notes for Light: Mirrors and Lenses, with key terms, boxed definitions, and quick revision points, in the PDF below.
These handwritten notes are written by subject teachers, mapped to the 2026-27 NCERT, and checked against the last five years of CBSE Class 8 Science papers.
Key Terms and Ideas in Light: Mirrors and Lenses
These are the terms and ideas the exam asks about most. Learn each one so you can define it and use it in your answers.
| Term / Idea | What it means |
|---|---|

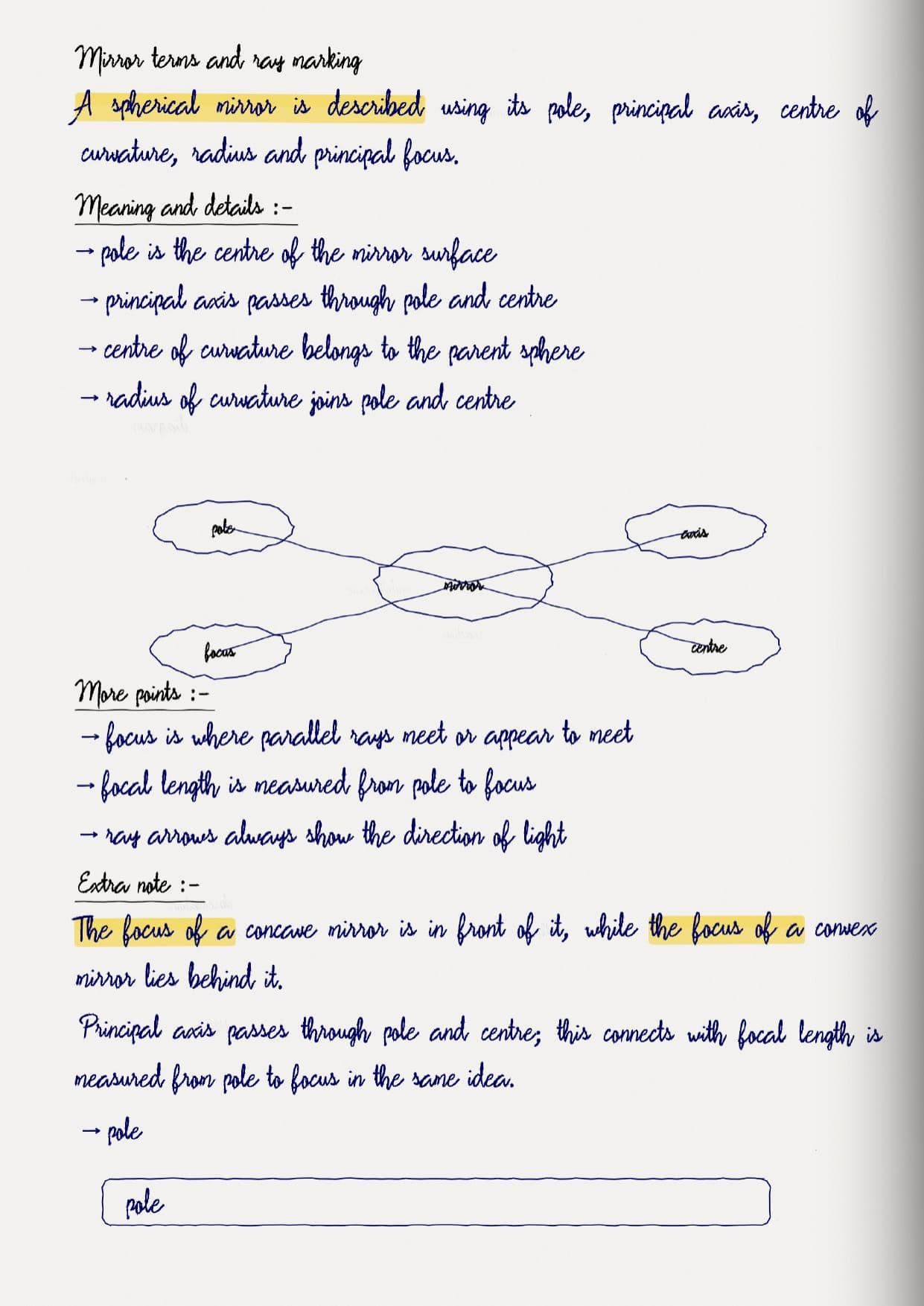

| Spherical mirror | a mirror whose reflecting surface is a part of a hollow sphere |
| Concave mirror | a spherical mirror that curves inwards and can converge light |
| Convex mirror | a spherical mirror that curves outwards and always spreads light |
| Incident ray | the ray of light that falls on the mirror |
| Reflected ray | the ray of light that comes back from the mirror |
| Normal | the line drawn at 90 degrees to the mirror at the point where light strikes |

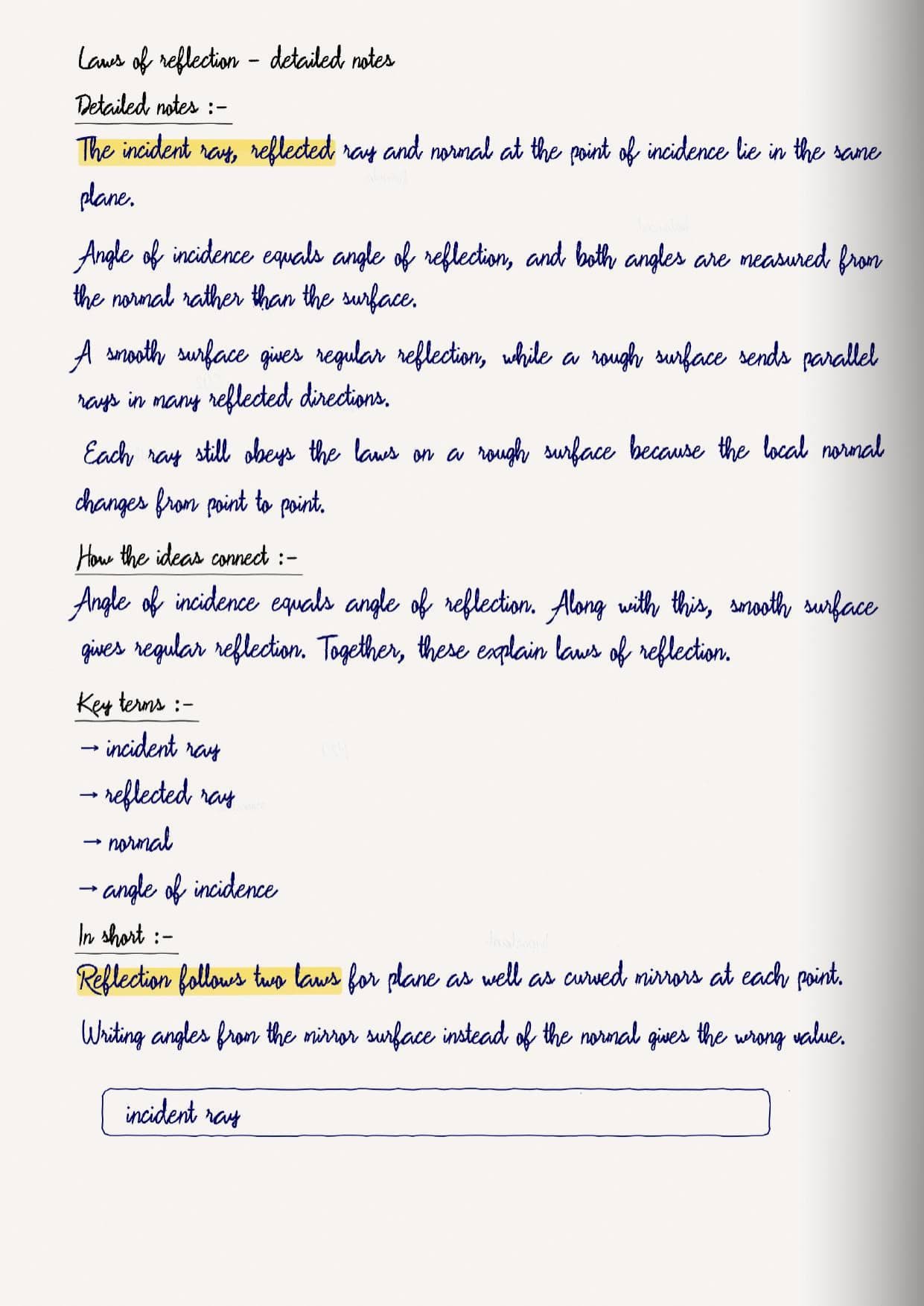

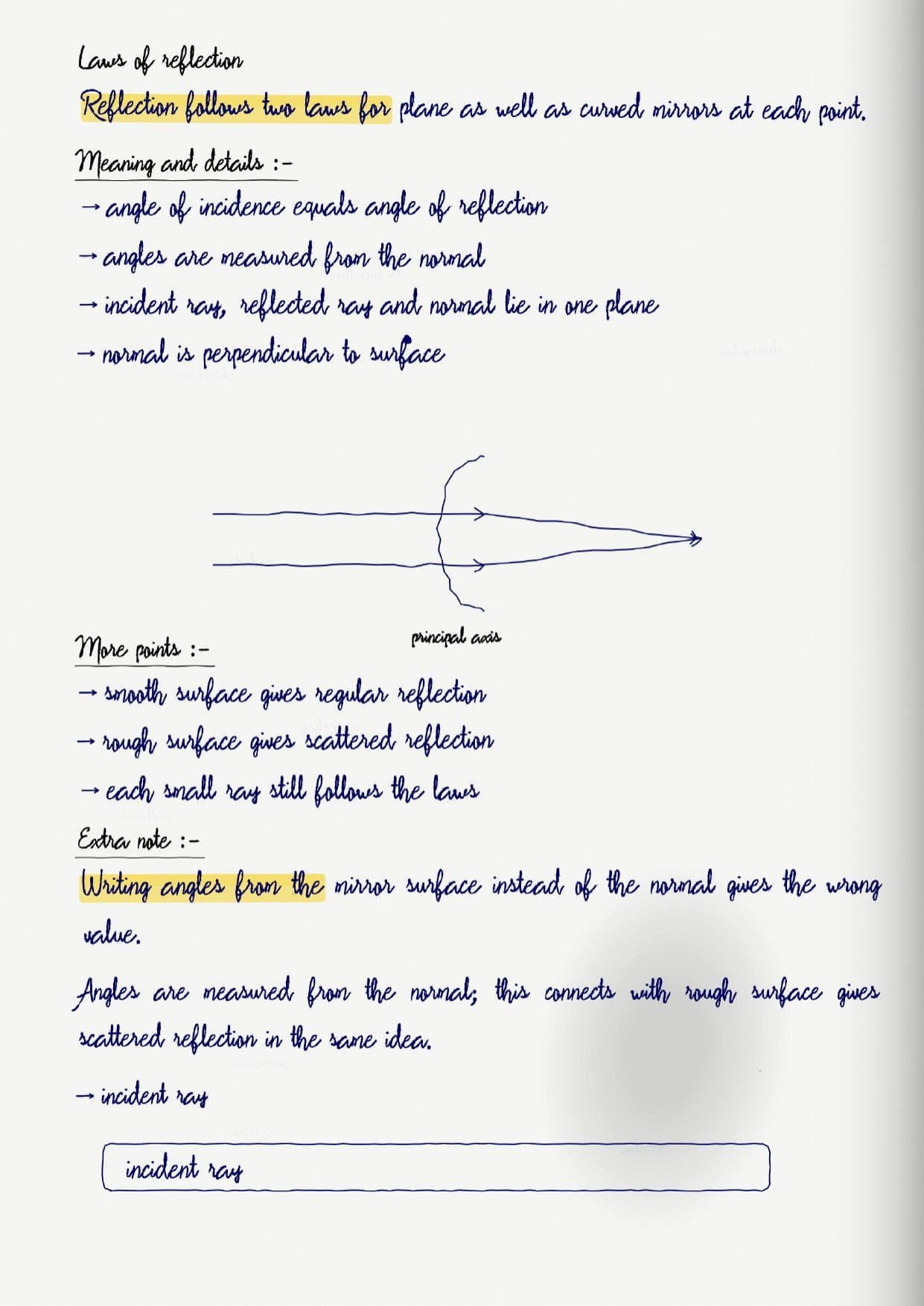

| Law of reflection | the angle of incidence is equal to the angle of reflection |
| Lens | a piece of transparent material with curved surfaces that light passes through |

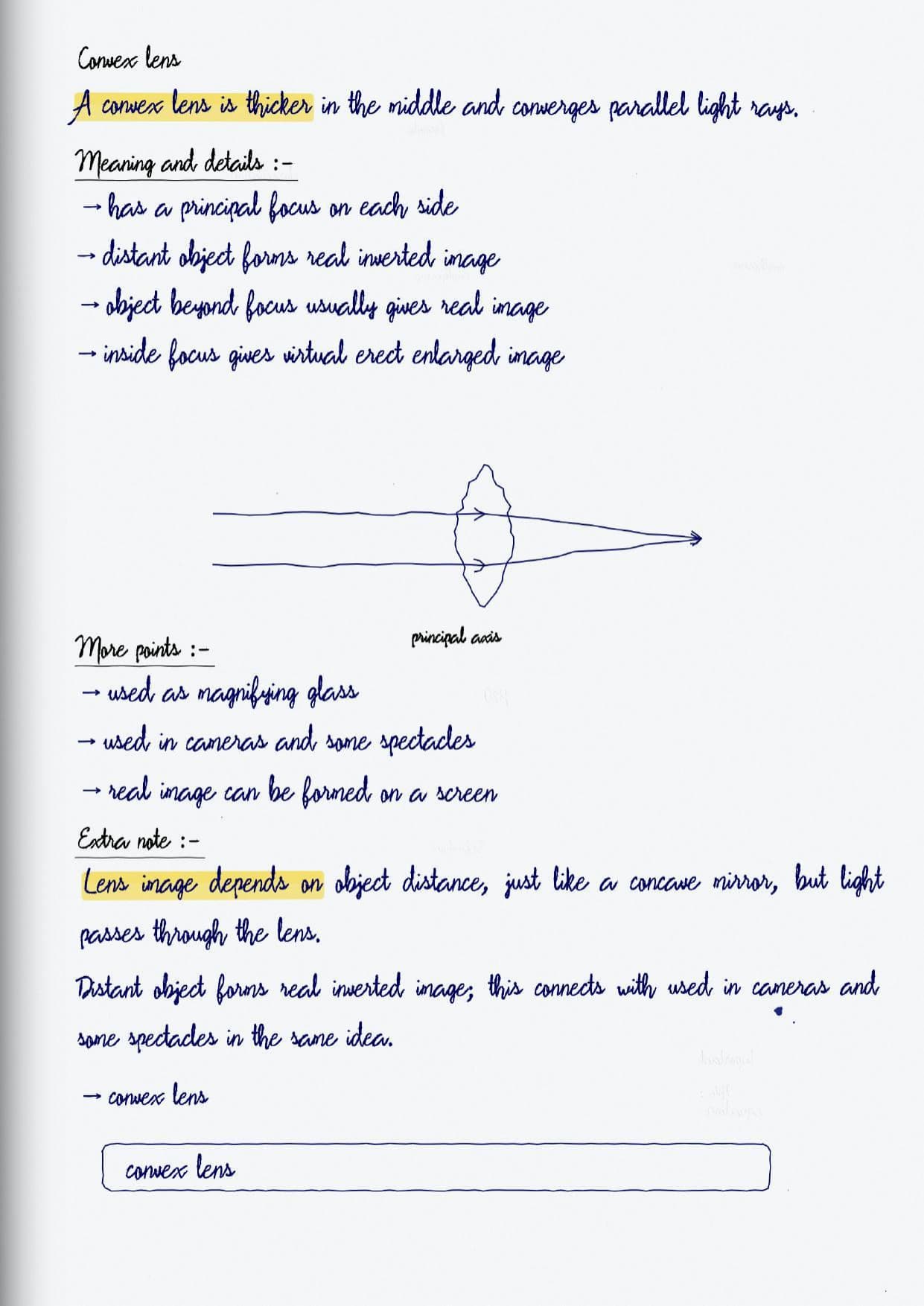

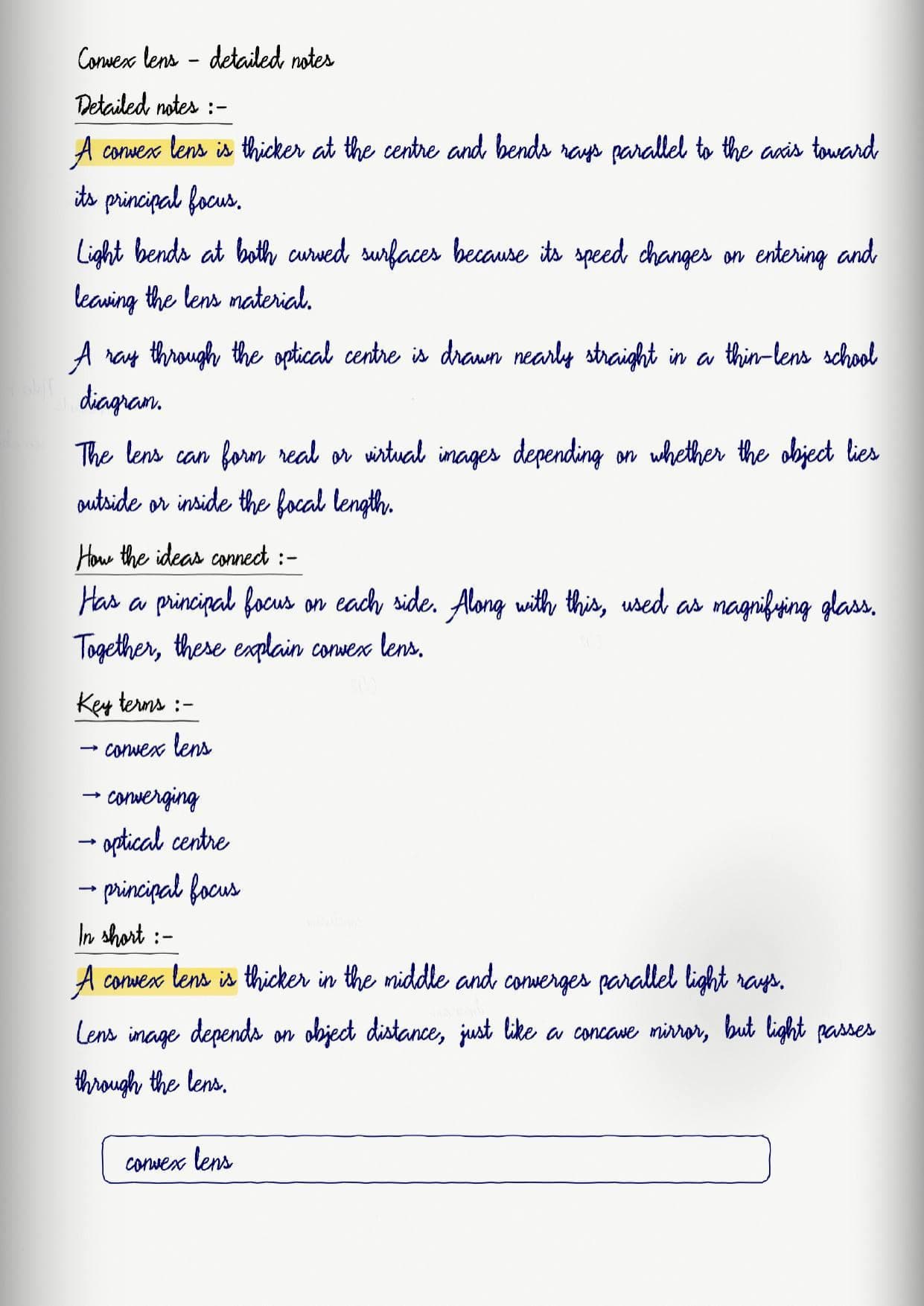

| Convex lens | a lens thicker in the middle that converges light, also called a converging lens |

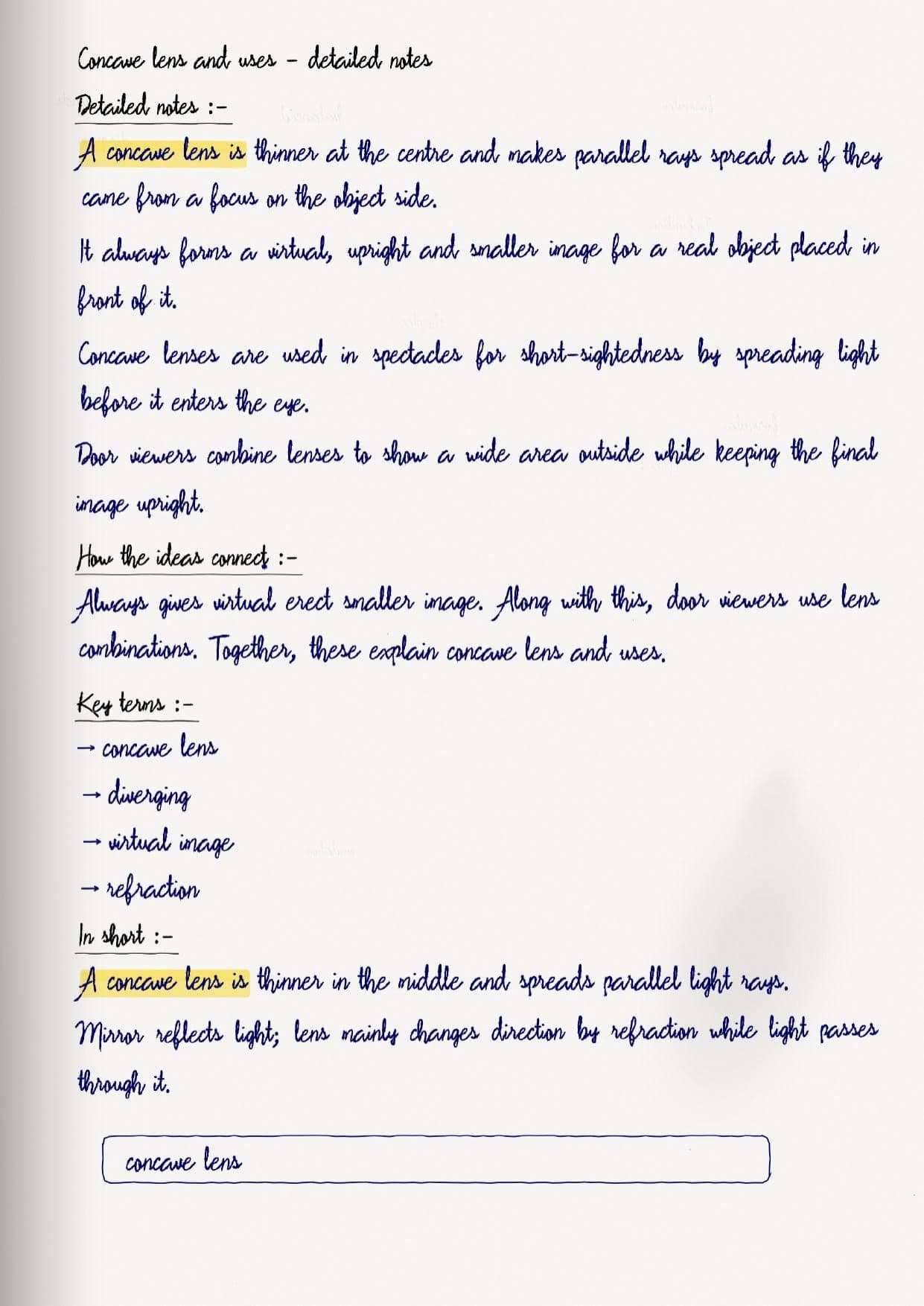

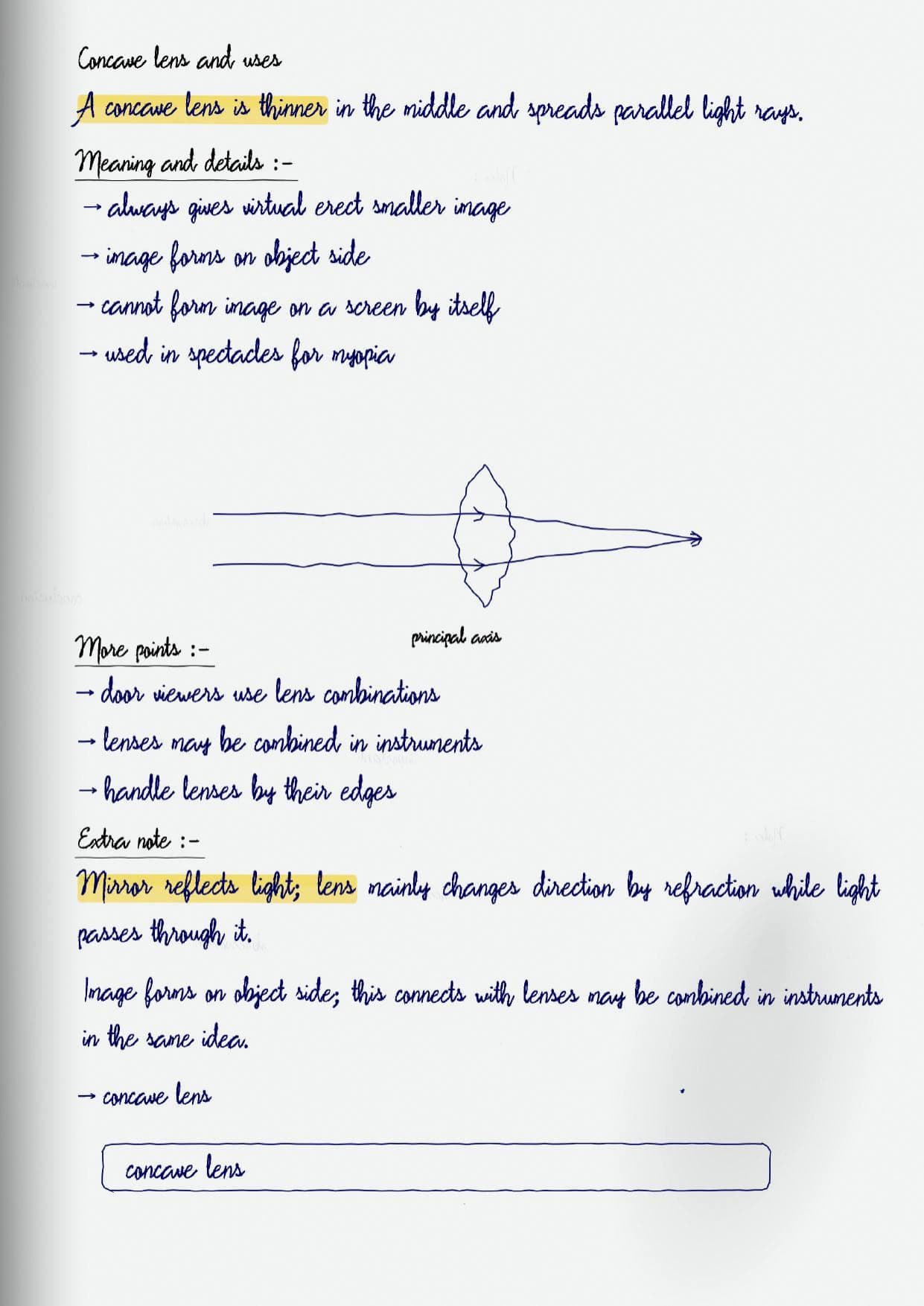

| Concave lens | a lens thicker at the edges that diverges light, also called a diverging lens |
What the Light: Mirrors and Lenses Handwritten Notes Cover
This chapter looks at how curved mirrors and lenses form images. It covers concave and convex mirrors, the laws of reflection, convex and concave lenses, and where these are used in daily life.

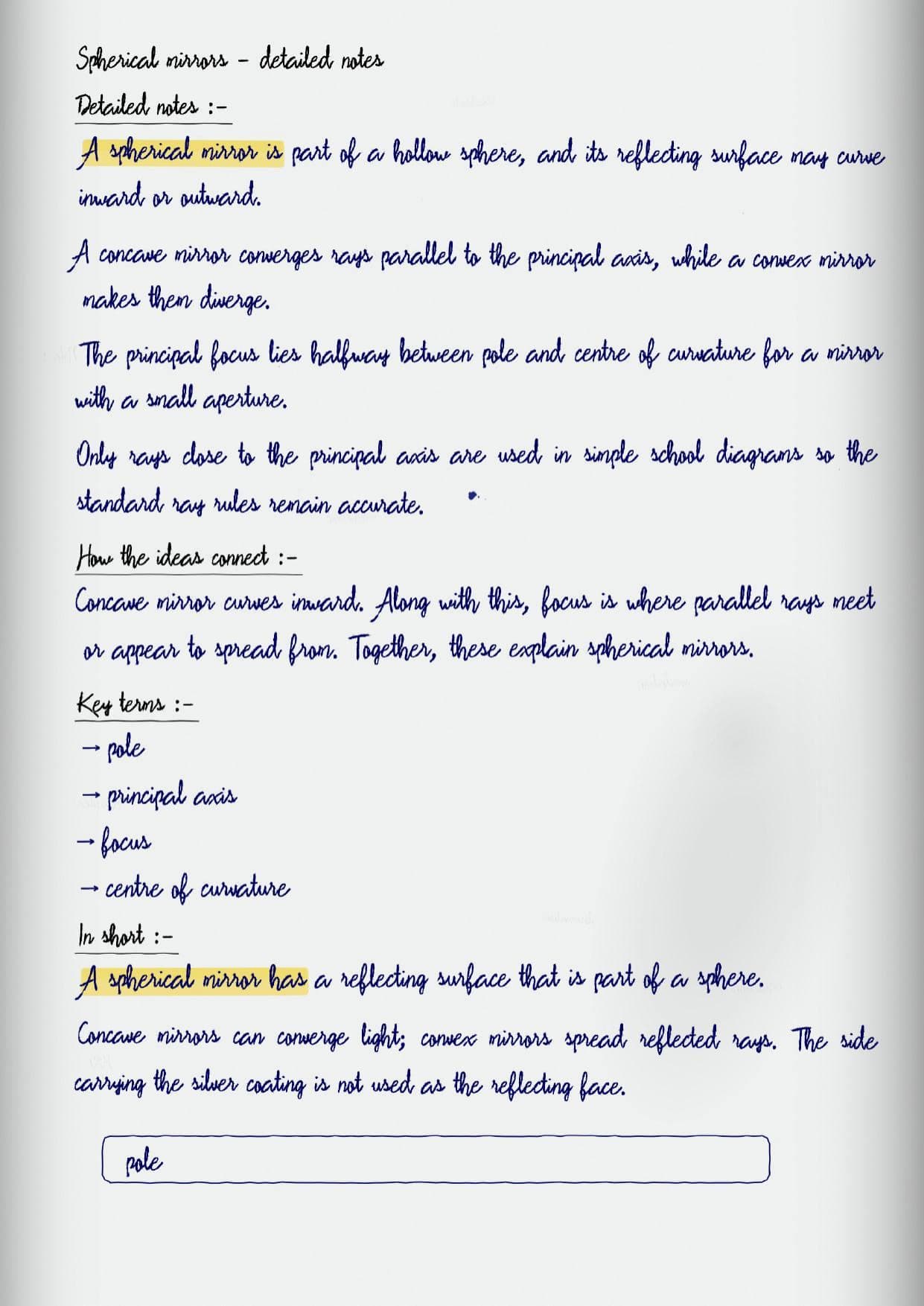

- Spherical mirrors
- Concave and convex mirrors

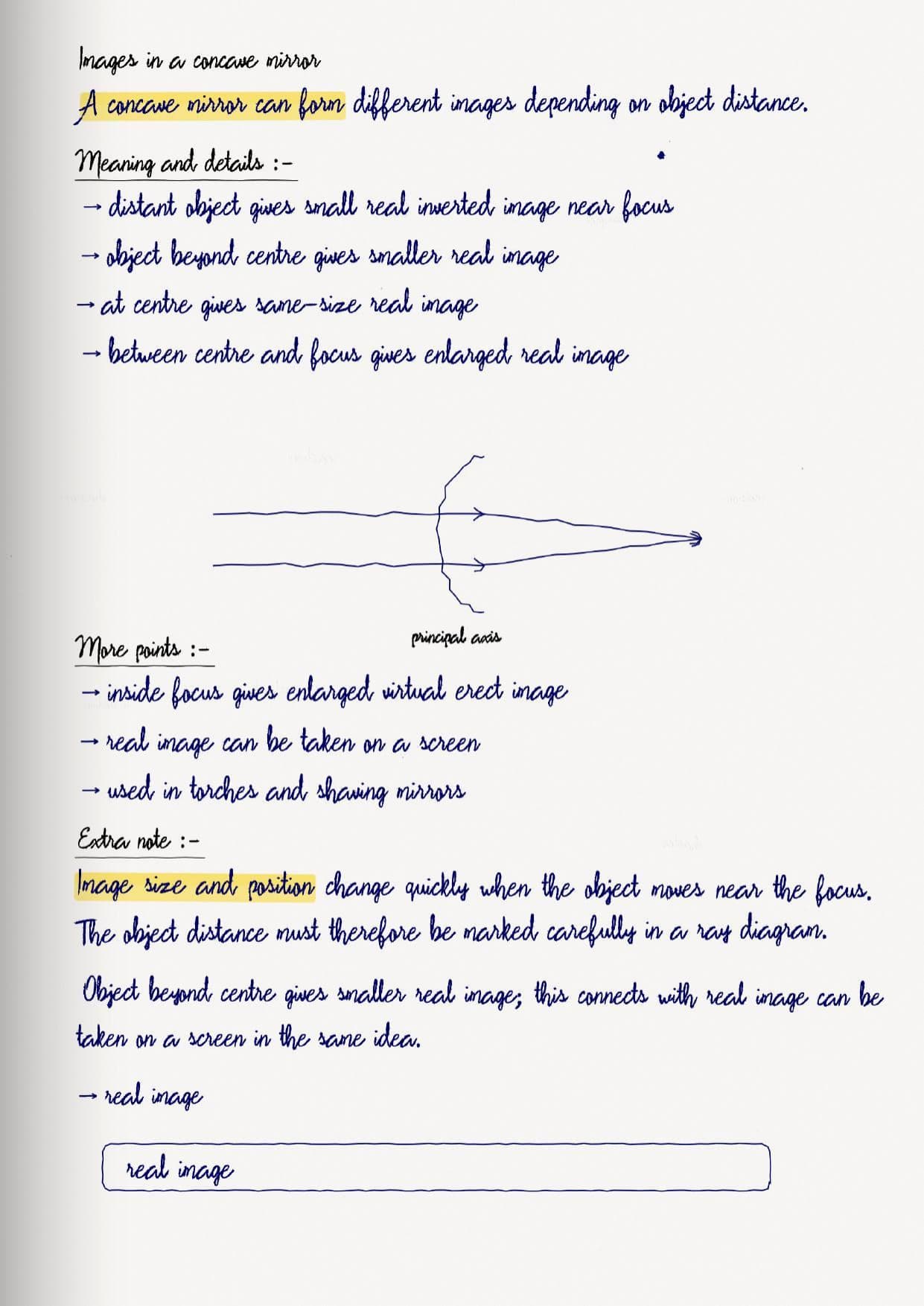

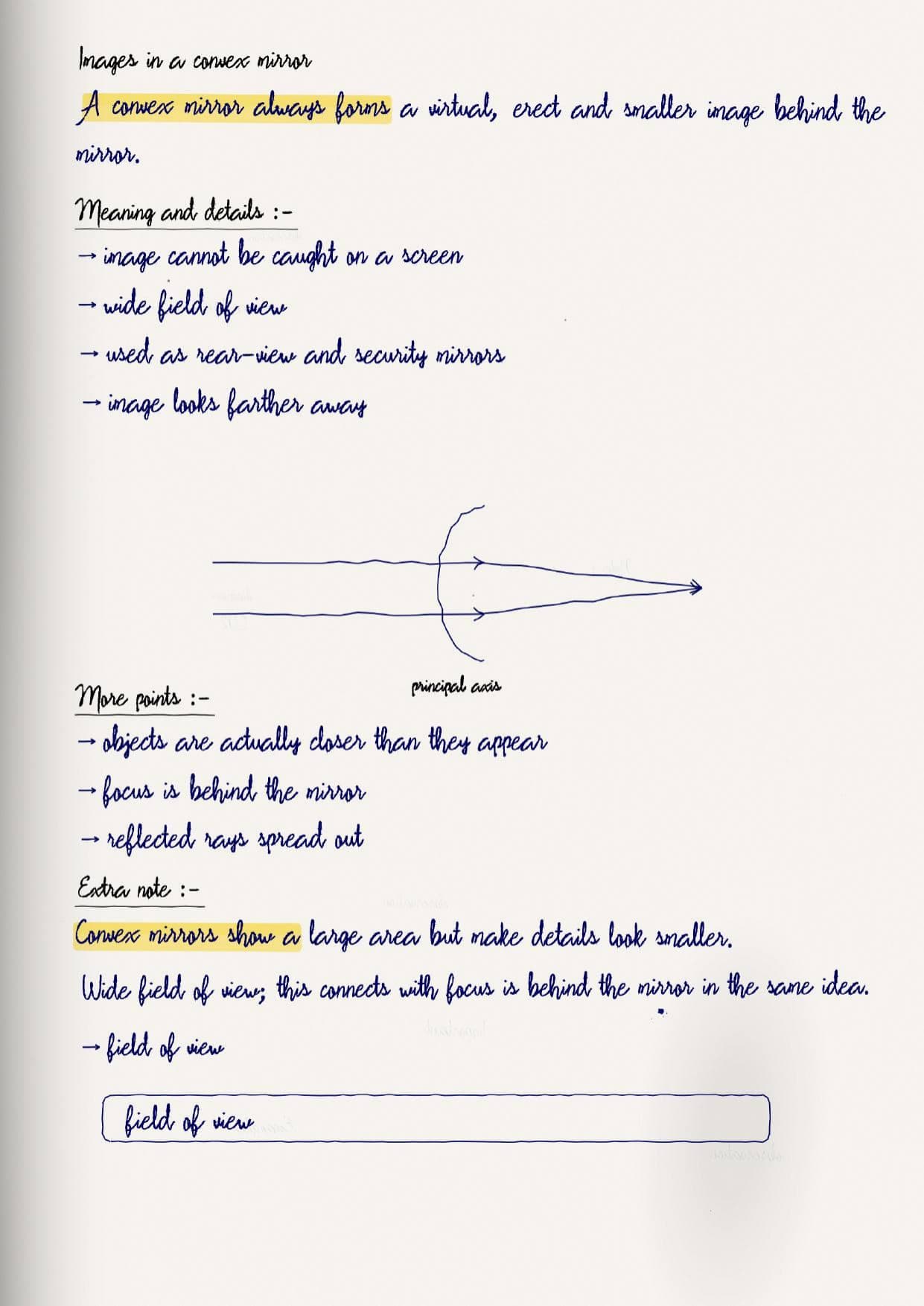

- Images formed by spherical mirrors
- Uses of concave and convex mirrors
- Laws of reflection
- Converging and diverging of light
- What is a lens
- Convex and concave lenses

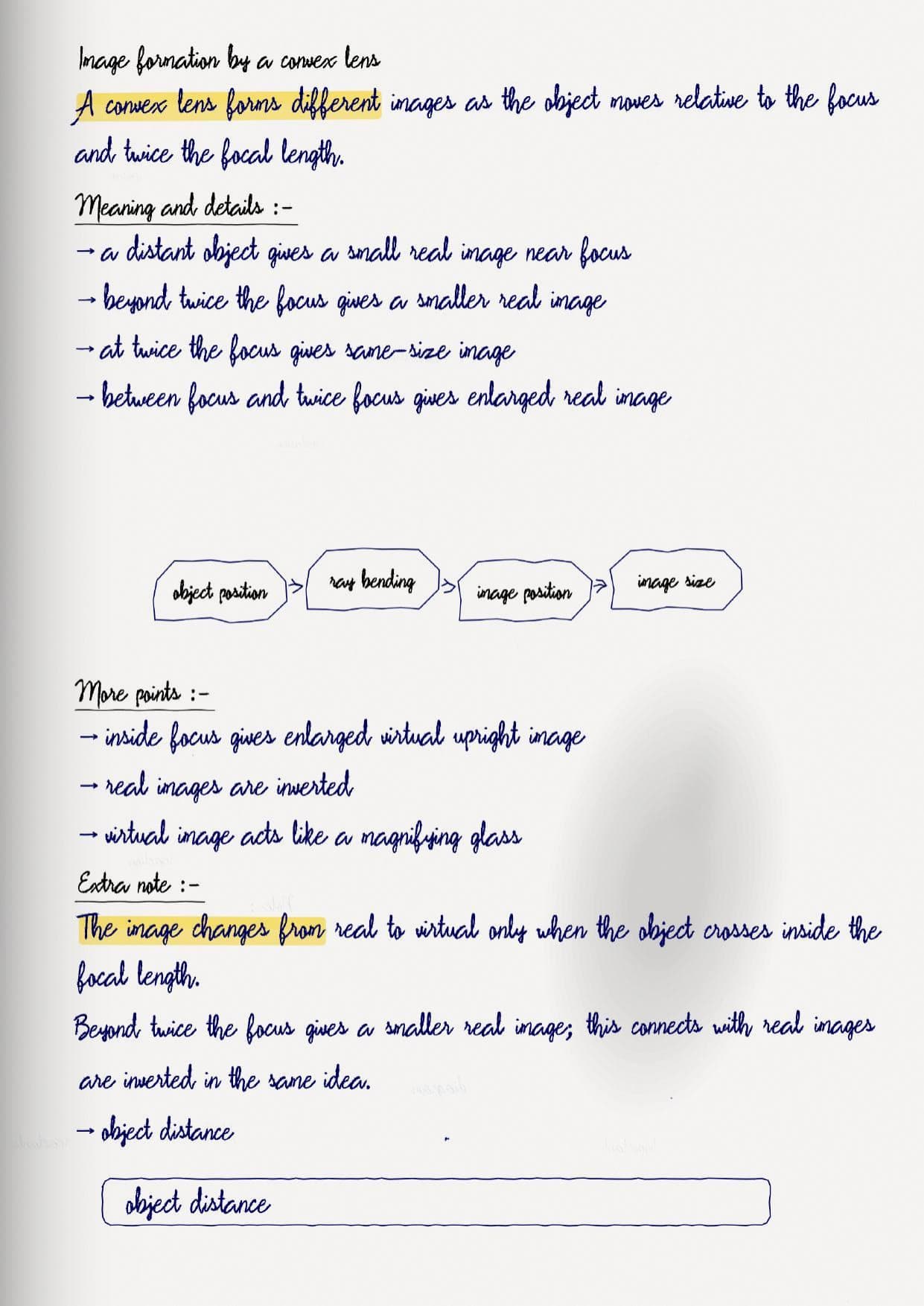

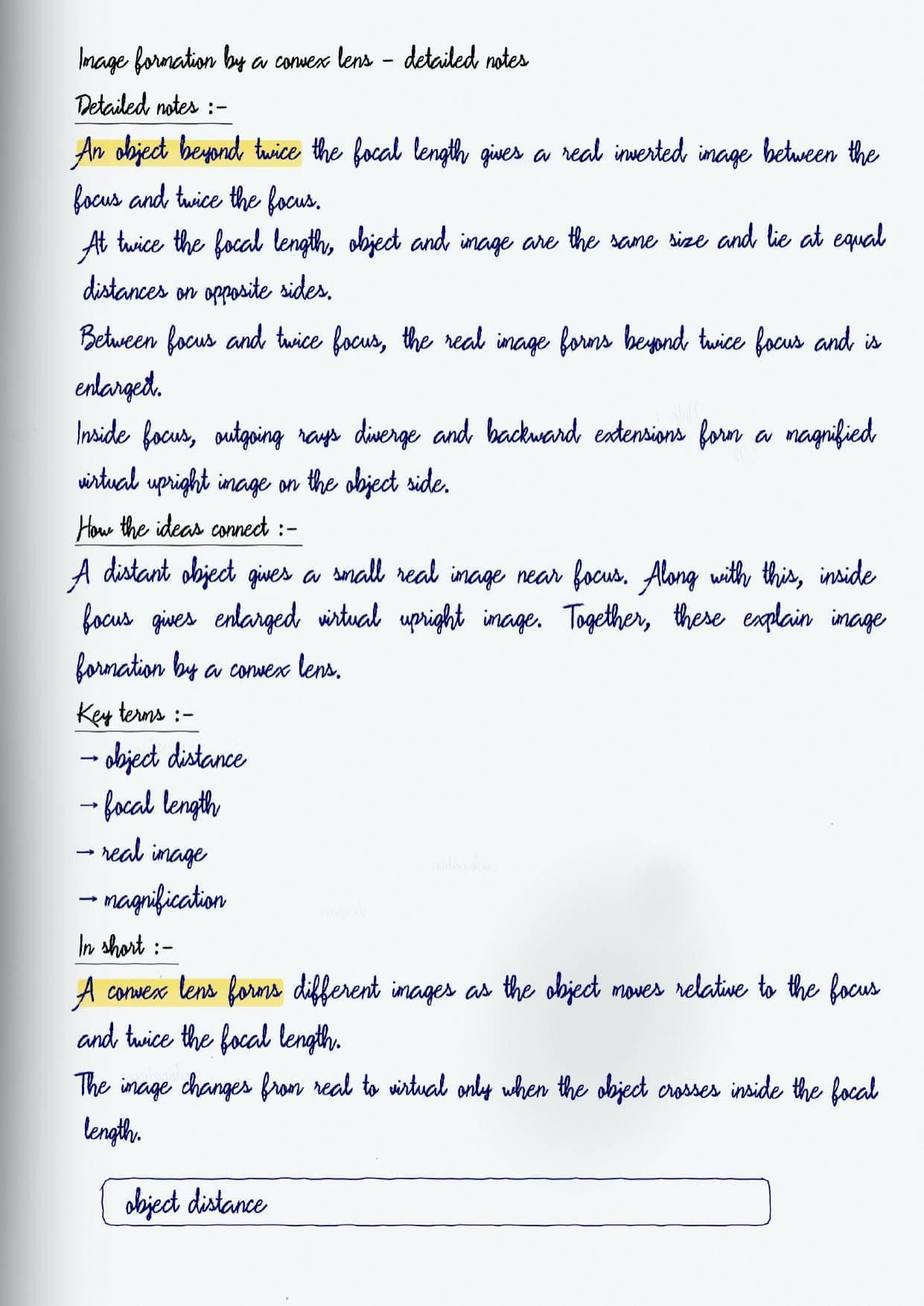

- Images formed by lenses
- Uses of lenses
Light: Mirrors and Lenses Topic-wise Weightage for CBSE Class 8 Science
Some parts of this chapter are asked more often than others. The table below shows which sub-topics to revise first, based on recent CBSE Class 8 question trends.
| Sub-topic | Weightage | CBSE Frequency |
|---|---|---|
| Concave and convex mirrors and their images | High | asked often |
| Laws of reflection | High | asked often |
| Convex and concave lenses and their images | High | asked often |
| Uses of mirrors and lenses | Medium | asked sometimes |
| Converging and diverging of light | Medium | asked sometimes |
| Difference between mirrors and lenses | Low | asked rarely |
How Collegedunia's Handwritten Notes Help You Revise Light: Mirrors and Lenses
These notes are made for the night before the exam. They keep the facts short and easy to scan. Collegedunia maps every point to the 2026-27 NCERT.
- Clear handwriting: each topic is written in neat, easy-to-read handwriting.
- Boxed key terms: the main terms and definitions are boxed by hand for fast recall.
- Diagrams and tables: simple hand-drawn tables and charts make ideas clear.
- Colour-coded headings: new sub-topics stand out, so you find any section in seconds.
Light: Mirrors and Lenses Self-Assessment Quiz
Try these quick questions after you read the notes. Tap each question to check your answer. They cover the points CBSE asks most often.
A convex mirror always forms an image that is?
(a) enlarged and inverted (b) erect and diminished (c) same size (d) inverted and smaller
Answer: (b) erect and diminished - a convex mirror always spreads light
The law of reflection states that the angle of incidence is?
(a) greater than the angle of reflection (b) less than the angle of reflection (c) equal to the angle of reflection (d) always zero
Answer: (c) equal to the angle of reflection - the two angles match
A lens that is thicker in the middle is a?
(a) concave lens (b) convex lens (c) plane mirror (d) concave mirror
Answer: (b) convex lens - it converges the light passing through it
Which mirror is used in vehicle side-view mirrors?
(a) plane (b) concave (c) convex (d) none
Answer: (c) convex - it gives an erect image and a wider view of traffic behind
A concave lens always forms an image that is?
(a) enlarged (b) inverted (c) erect and diminished (d) same size
Answer: (c) erect and diminished - a concave lens always diverges light
How to Use These Handwritten Notes for Class 8 Science Revision
Use these class 8 science handwritten notes in two passes. Read them slowly once for the full chapter. Then, near the exam, read only the boxes and key terms for a fast recall.
- Read the notes once with the NCERT chapter open beside you.
- Say each key term and idea in your own words.
- Practise one long-answer question from a past paper.
- On the last day, revise only the key terms and the boxes.
Class 8 Science Handwritten Notes for All Chapters
The table below links the class 8 science handwritten notes for every chapter. Use it to jump to any other chapter's notes.
Light: Mirrors and Lenses Class 8 Science Handwritten Notes FAQs
Ques. Where can I download Light: Mirrors and Lenses Class 8 Science Handwritten Notes PDF?
Ans. You can download the Light: Mirrors and Lenses Class 8 Science Handwritten Notes PDF directly from this page. Both the Normal and HD versions are free.
Ques. Are these handwritten notes aligned with the 2026-27 NCERT?
Ans. Yes. These notes follow the current 2026-27 syllabus for Class 8 Science. the difference between a concave and a convex mirror
Ques. How many pages is the Class 8 Science Light: Mirrors and Lenses Handwritten Notes PDF?
Ans. The notes run about 20 pages. They cover the full chapter with key terms, hand-drawn boxes, and a short self-assessment quiz.
Ques. What is the main idea of the 8th standard Science chapter Light: Mirrors and Lenses?
Ans. The chapter explains how spherical mirrors and lenses form images by reflecting or bending light. The kind of image, whether erect or inverted and larger or smaller, depends on the shape of the mirror or lens and how far the object is placed from it.
Ques. Are these Light: Mirrors and Lenses notes enough for the CBSE Class 8 exam?
Ans. Yes, for revision. The Collegedunia handwritten notes cover every key point and exam term. Read them with the NCERT chapter and practise past questions.
