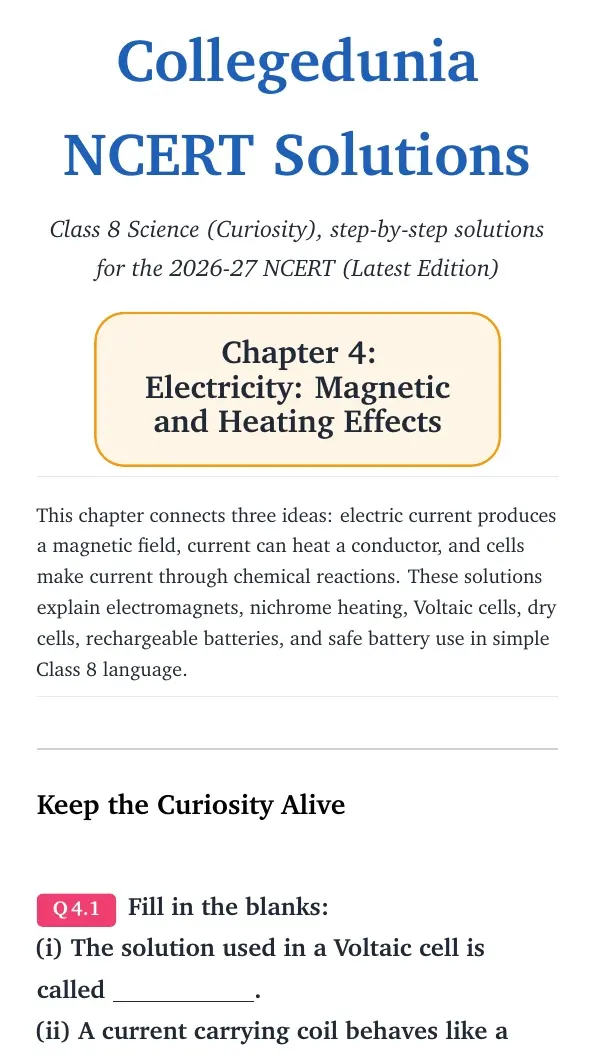

NCERT Solutions for Class 8 Science Chapter 4 Electricity Magnetic and Heating Effects help students solve all 11 exercise questions from the 2026-27 NCERT Curiosity textbook. The chapter explains magnetic effect, electromagnets, heating effect, Voltaic cells, dry cells and rechargeable batteries through activity-based questions.
- Best for homework: includes fill in the blanks, True or False, matching, reasoning and figure-based answers.
- Important for revision: covers current in a coil, nichrome heating and lemon-cell electricity.
- Free PDF: download the step-by-step solutions with source figures and expert explanations.
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=1&dpi=150)
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=2&dpi=150)
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=3&dpi=150)
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=4&dpi=150)
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=5&dpi=150)
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=6&dpi=150)
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=7&dpi=150)
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=8&dpi=150)
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=9&dpi=150)
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=10&dpi=150)
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=11&dpi=150)
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=12&dpi=150)
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=13&dpi=150)
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=14&dpi=150)
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=15&dpi=150)
Chapter4Electricity:MagneticandHeatingEffectsSolutions.pdf?page=16&dpi=150)
Student Feedback: In a Collegedunia poll of 12,400 Class 8 students, most students found Chapter 4 easier after separating it into magnetic effect, heating effect and battery chemistry.
NCERT Solutions Class 8 Science Chapter 4 Overview

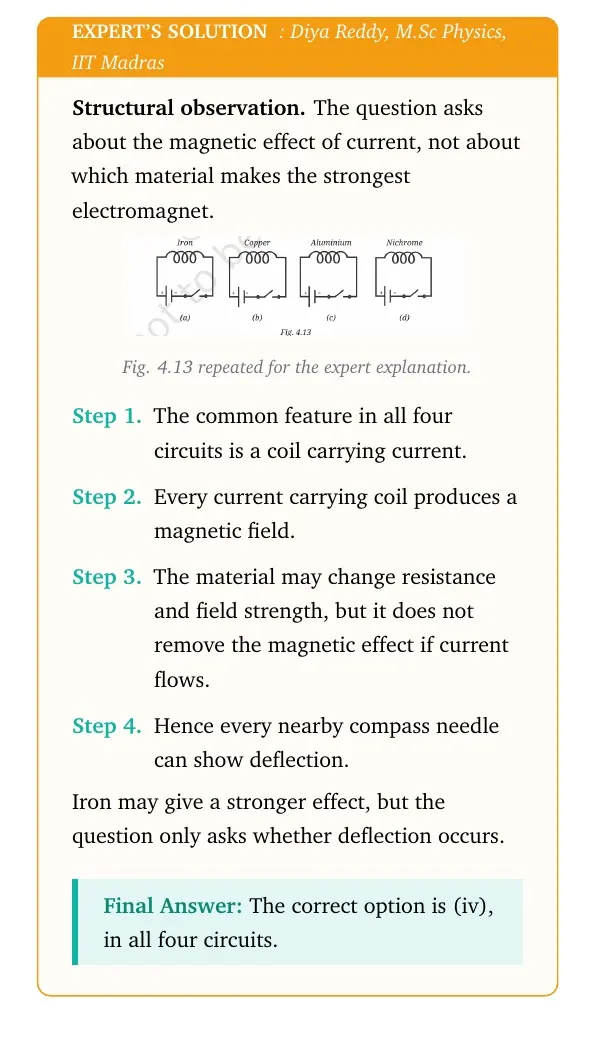

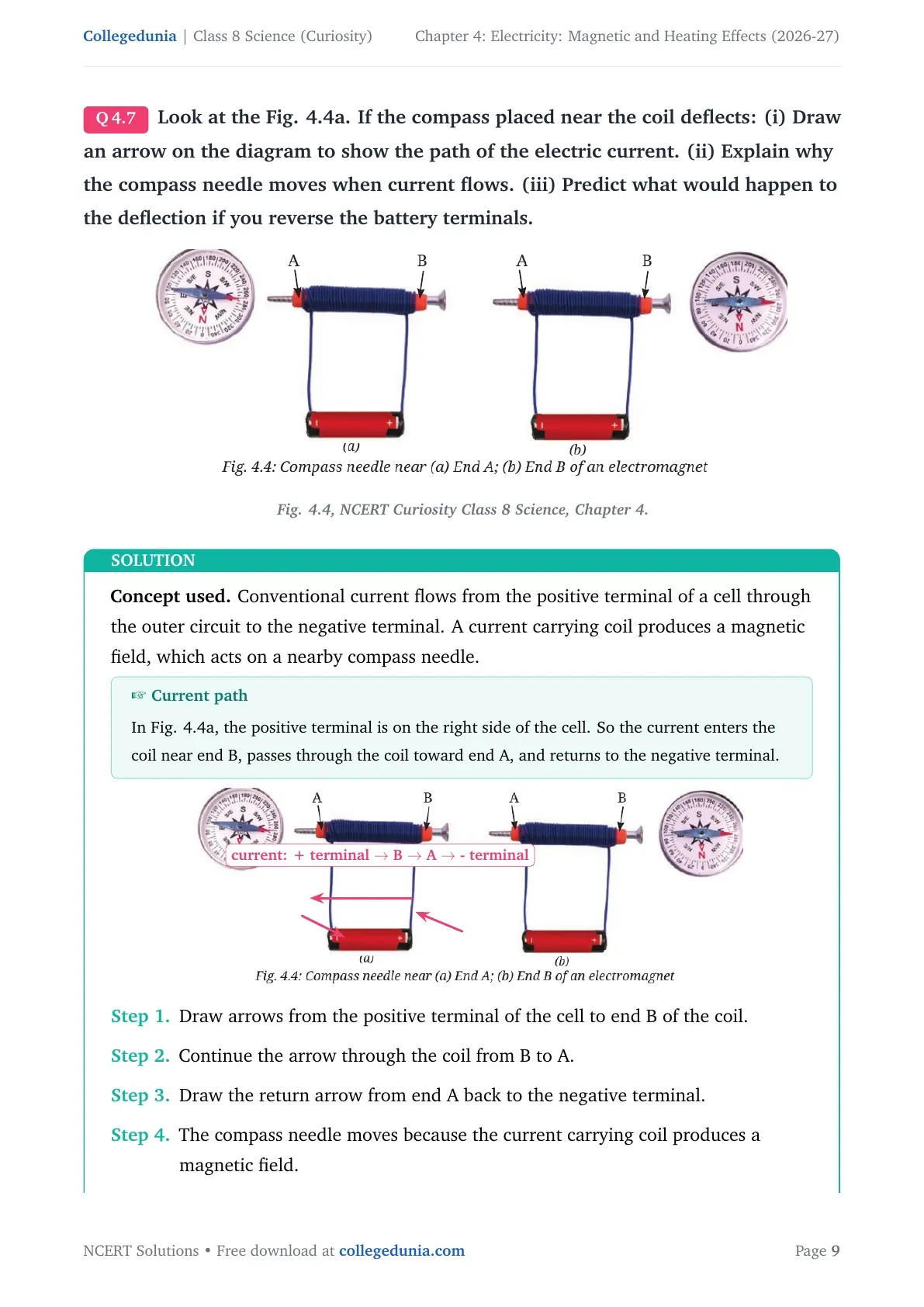

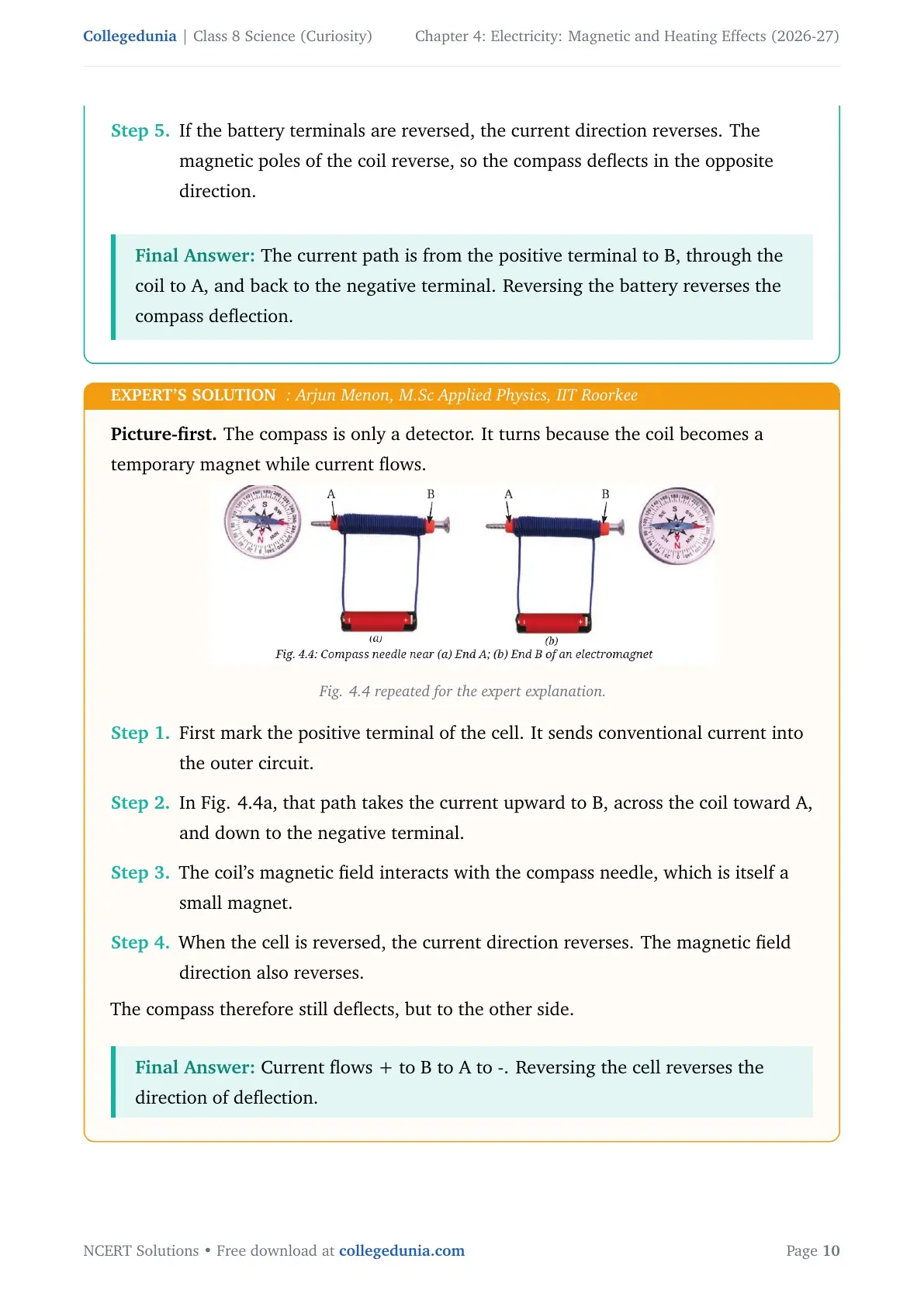

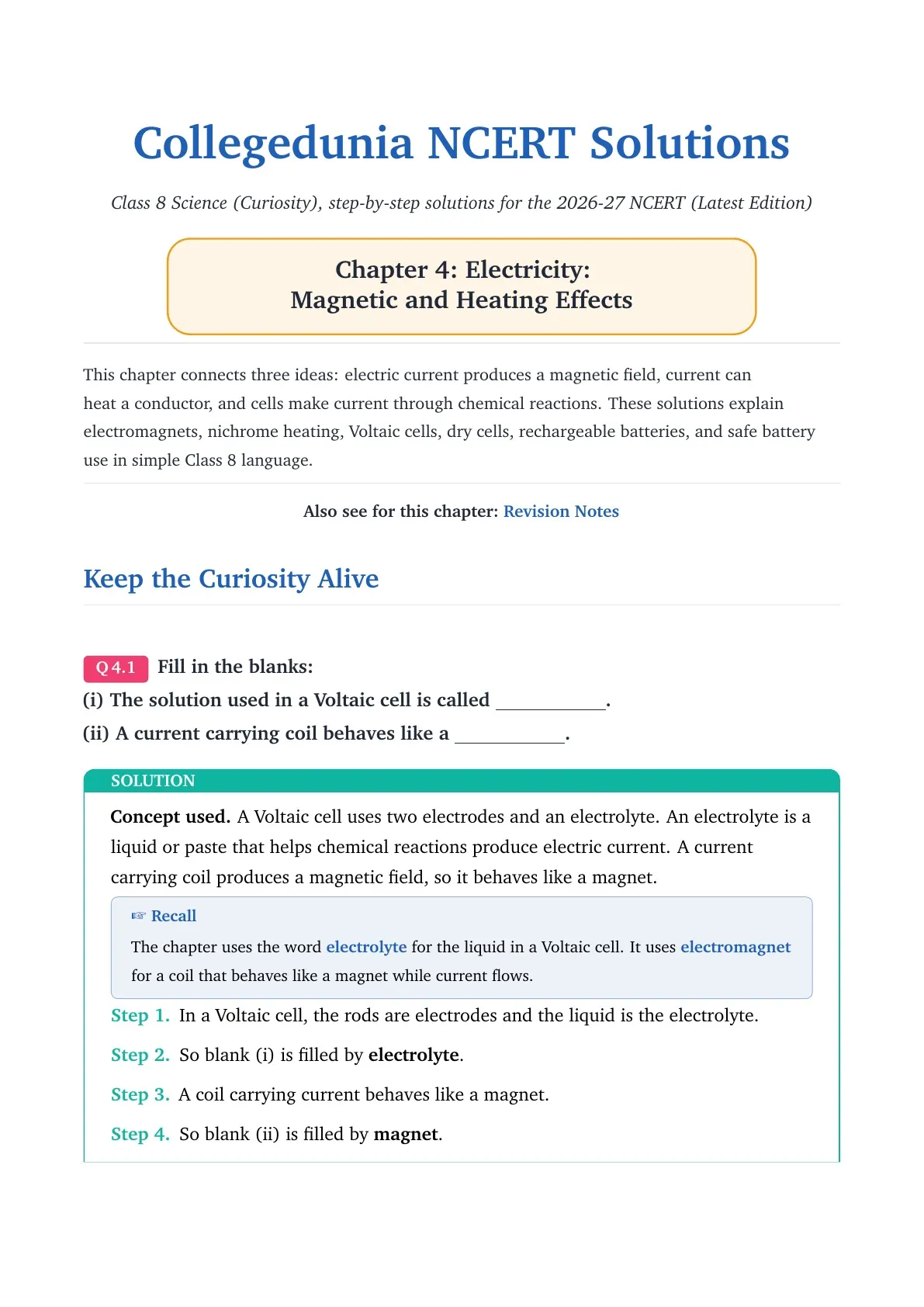

The NCERT Solutions PDF explains every exercise answer in a student-friendly order. It starts with direct definitions such as electrolyte and electromagnet, then moves to reasoning questions based on Fig. 4.4, Fig. 4.12 and Fig. 4.13. All 11 textbook questions are solved with a main answer and an expert explanation.
These Class 8 Science Chapter 4 solutions follow the official 2026-27 NCERT Curiosity textbook and keep source figures inside the PDF for better answer writing.
Electricity Magnetic and Heating Effects Video Lesson
Source: Magnet Brains on YouTube
Class 8 Science Chapter 4 Exercise Answer Key

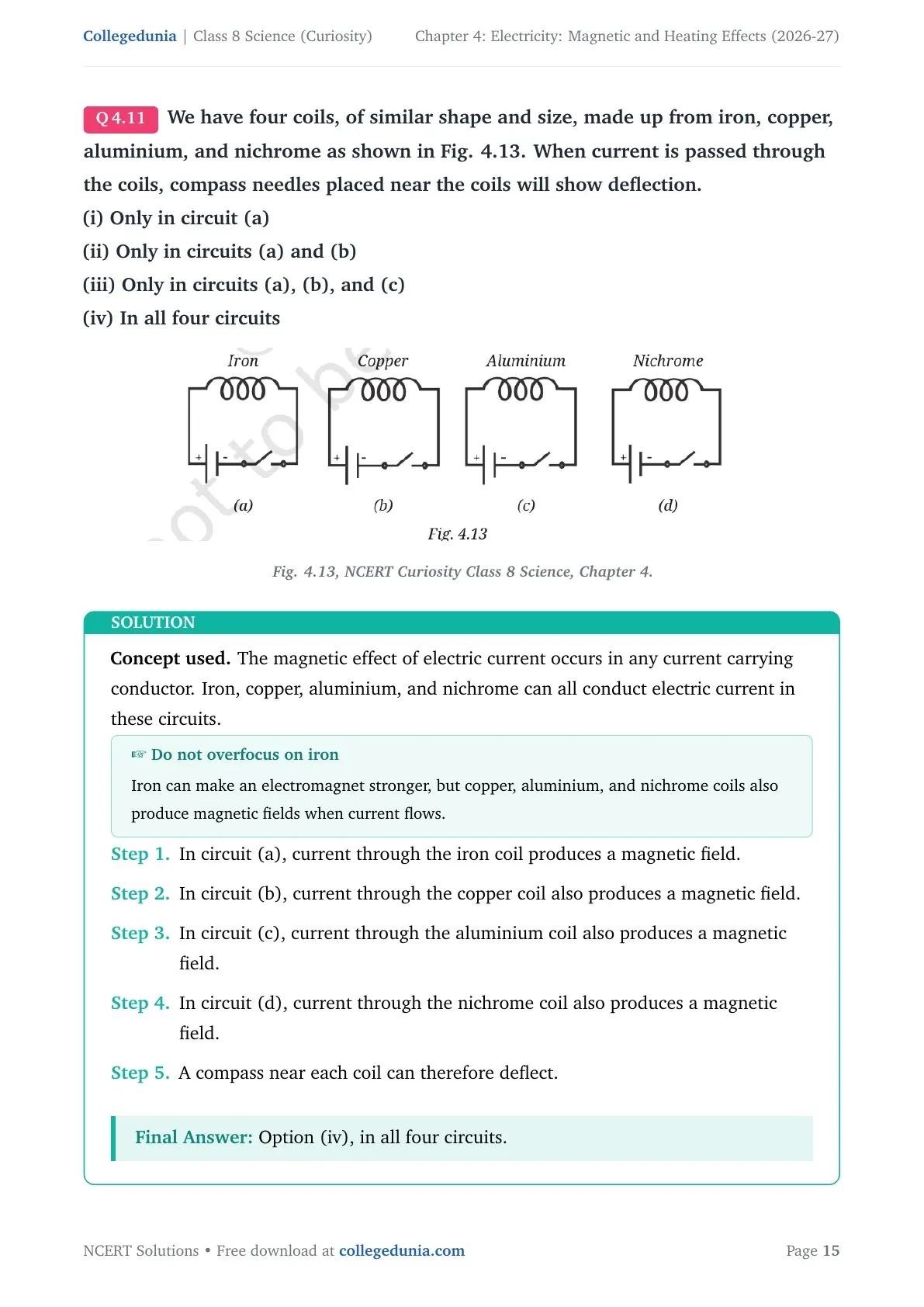

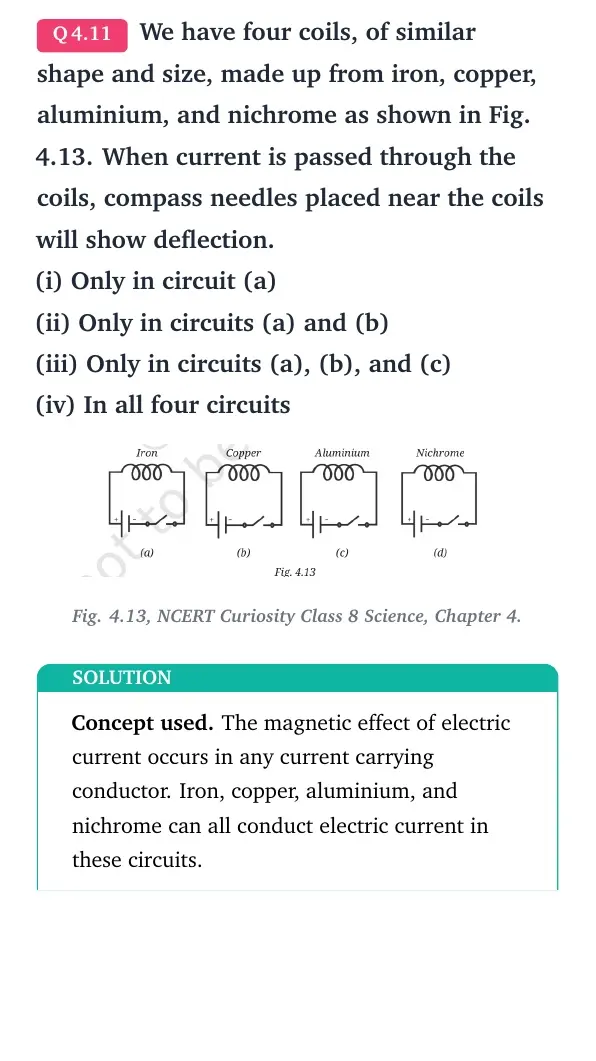

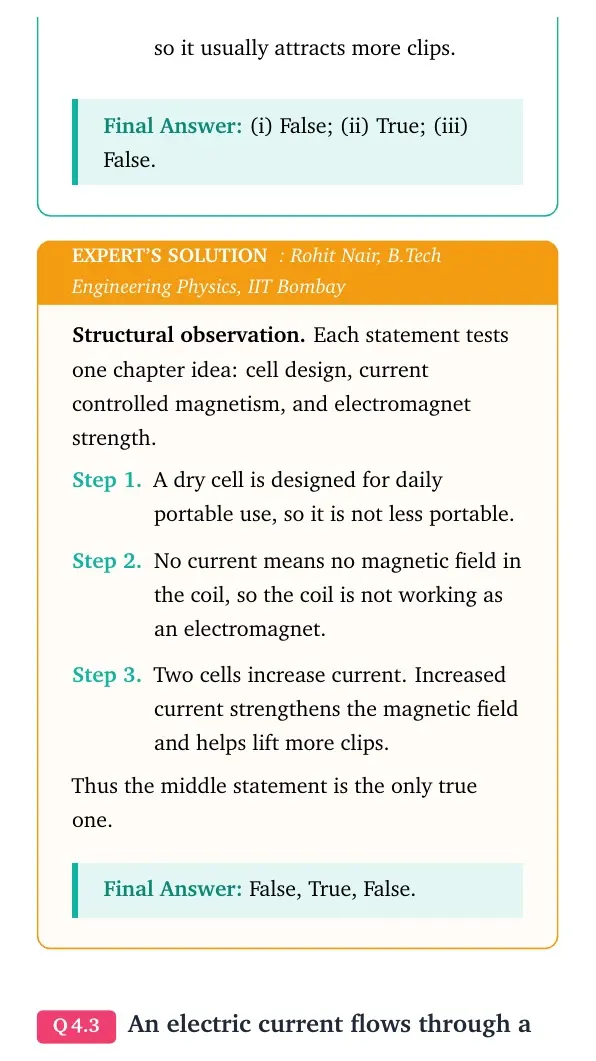

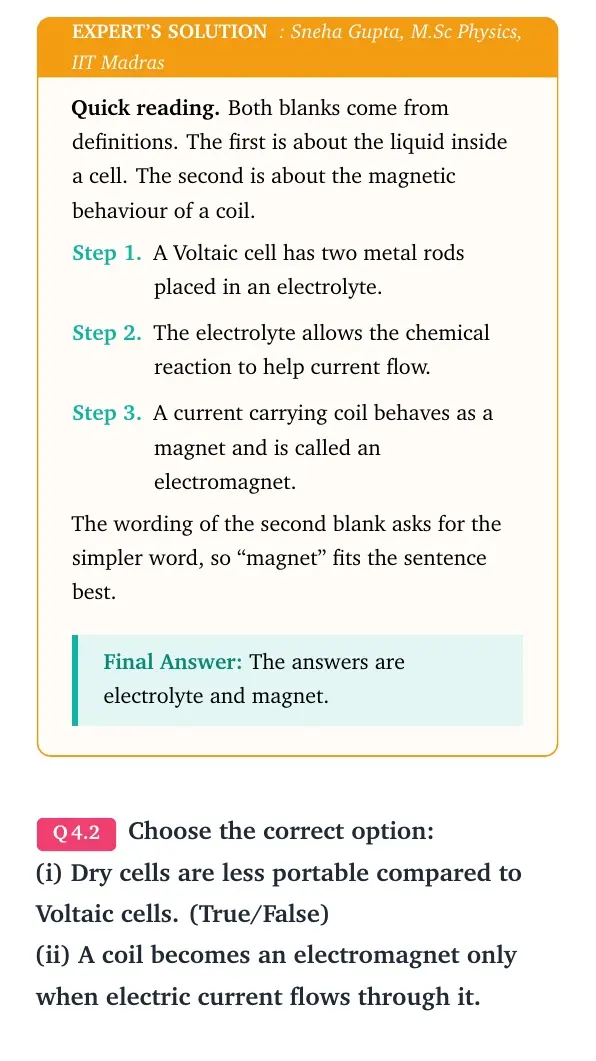

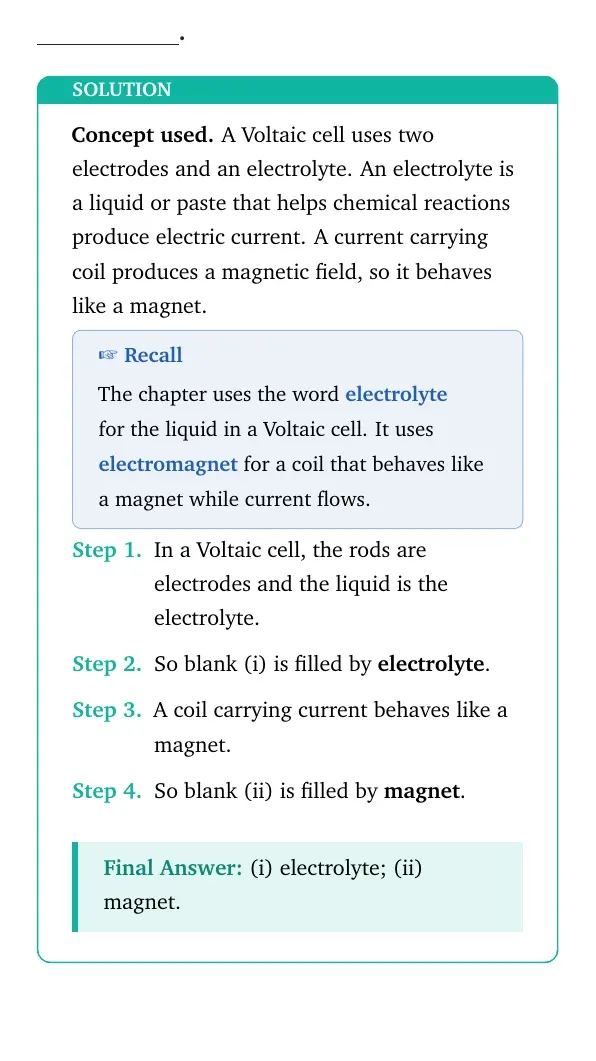

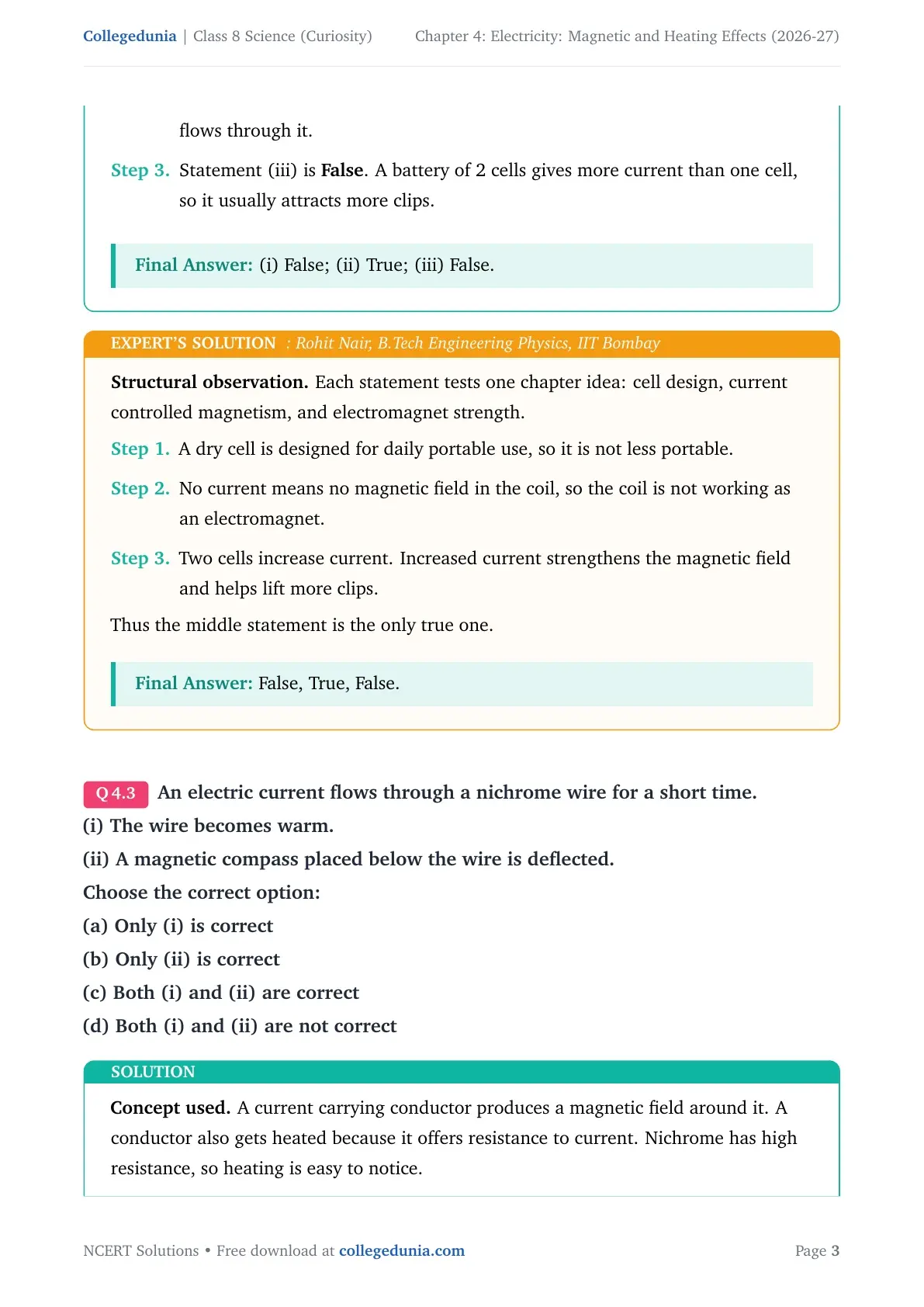

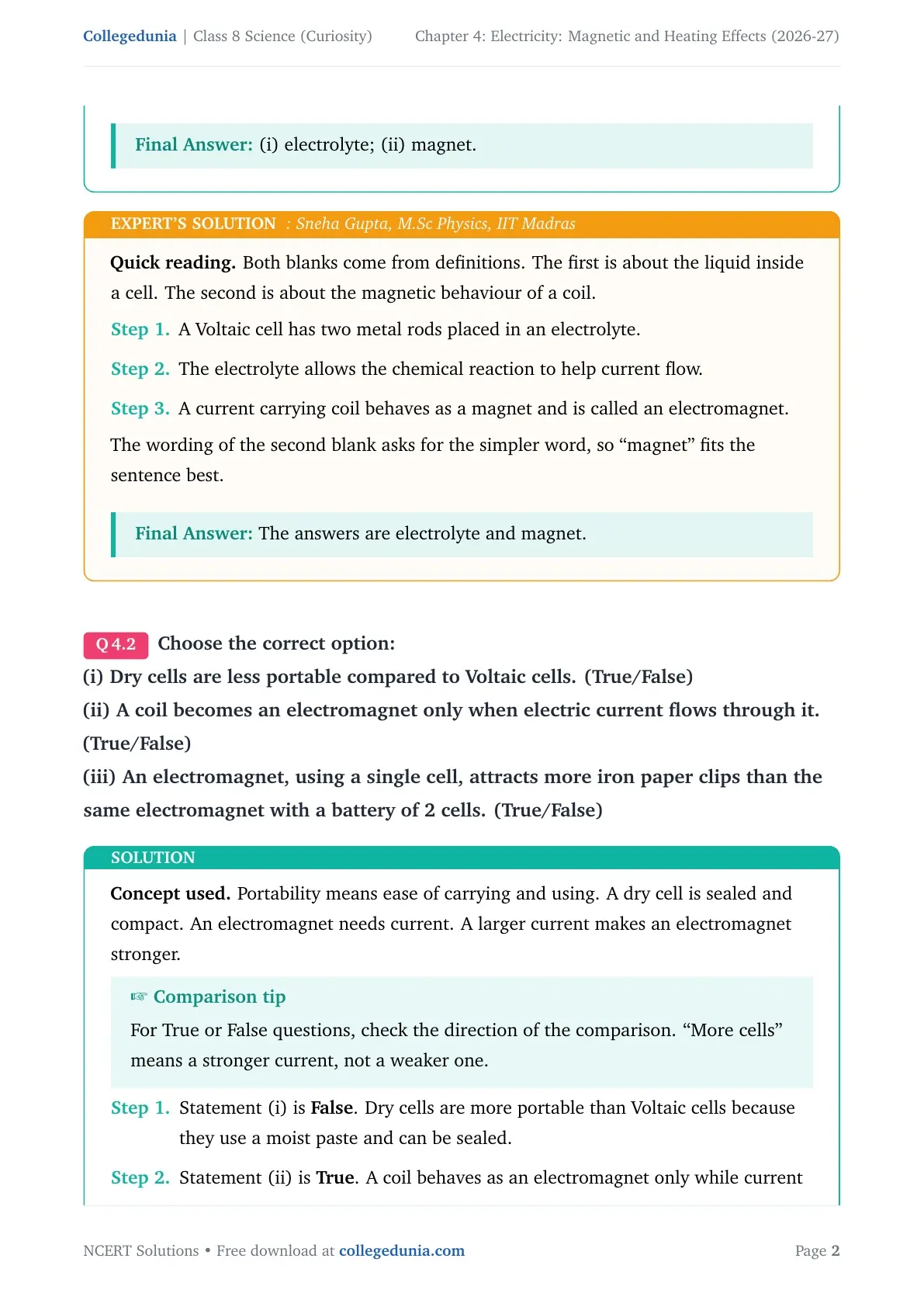

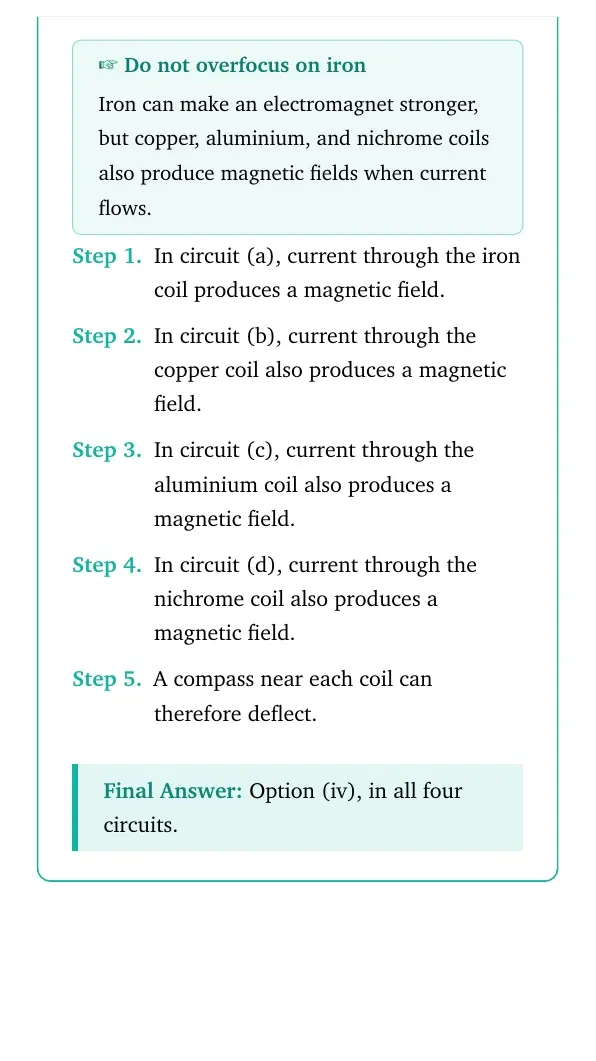

The chapter has a mix of short answers and reasoning questions. The answer key starts with electrolyte, magnet, False, True, False, option (c) for the nichrome wire question, and option (iv) for the four-coil question. The detailed PDF explains why these choices are correct.
How to Use the NCERT Solutions PDF
Students should first read the question in the textbook, then check the final answer box in the PDF. For figure questions, compare the source figure with the explanation before writing the final response. The PDF is most useful when used after one self-attempt, not before reading the chapter.
- Use the main solution for school notebook answers.
- Use the expert solution when the question asks for reasoning.
- Use the questions page below for quick revision before class tests.
Magnetic and Heating Effects in Chapter 4 Solutions

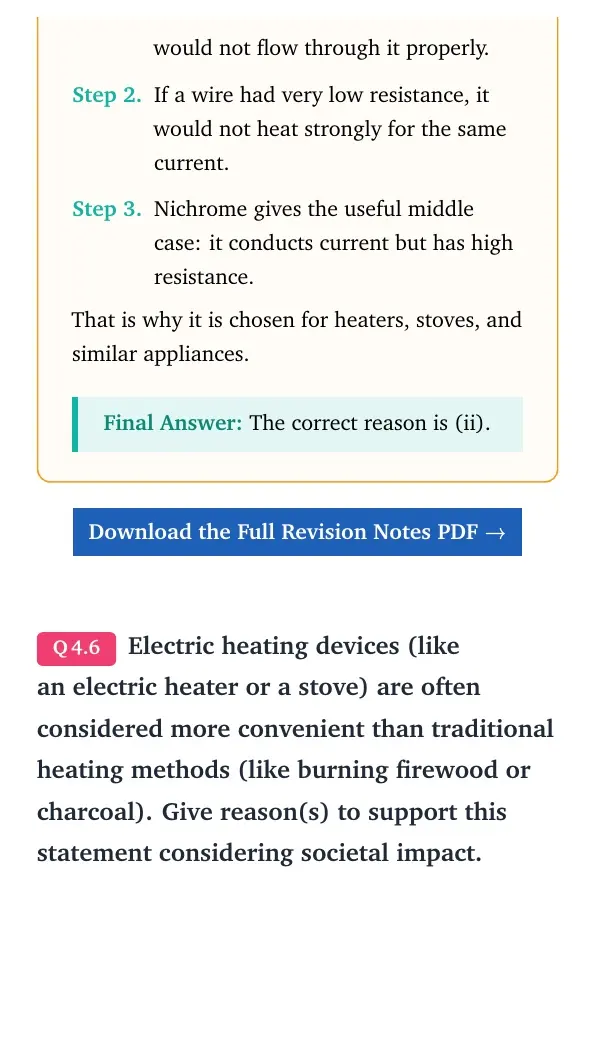

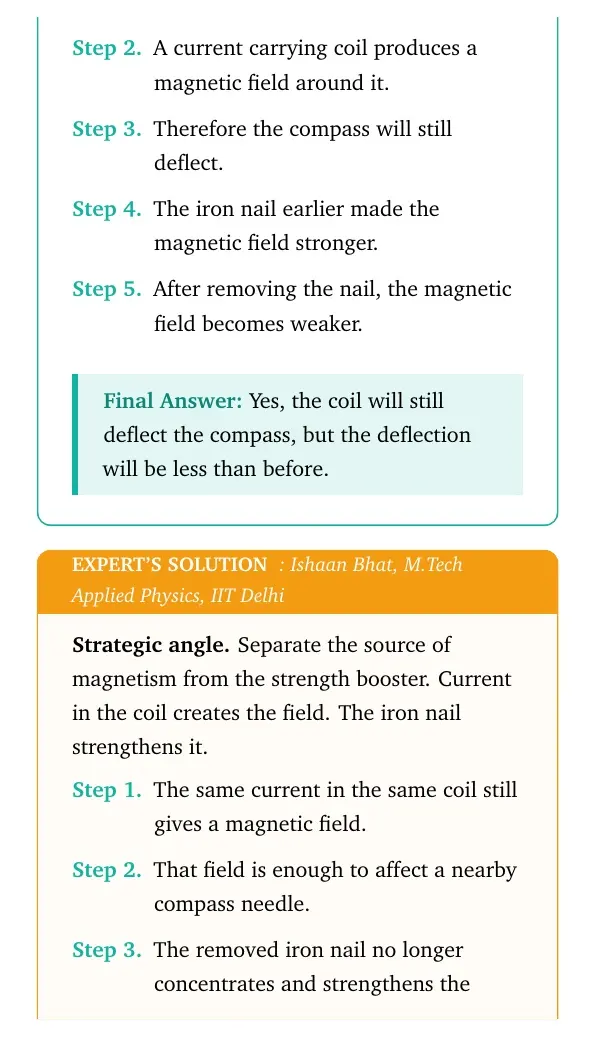

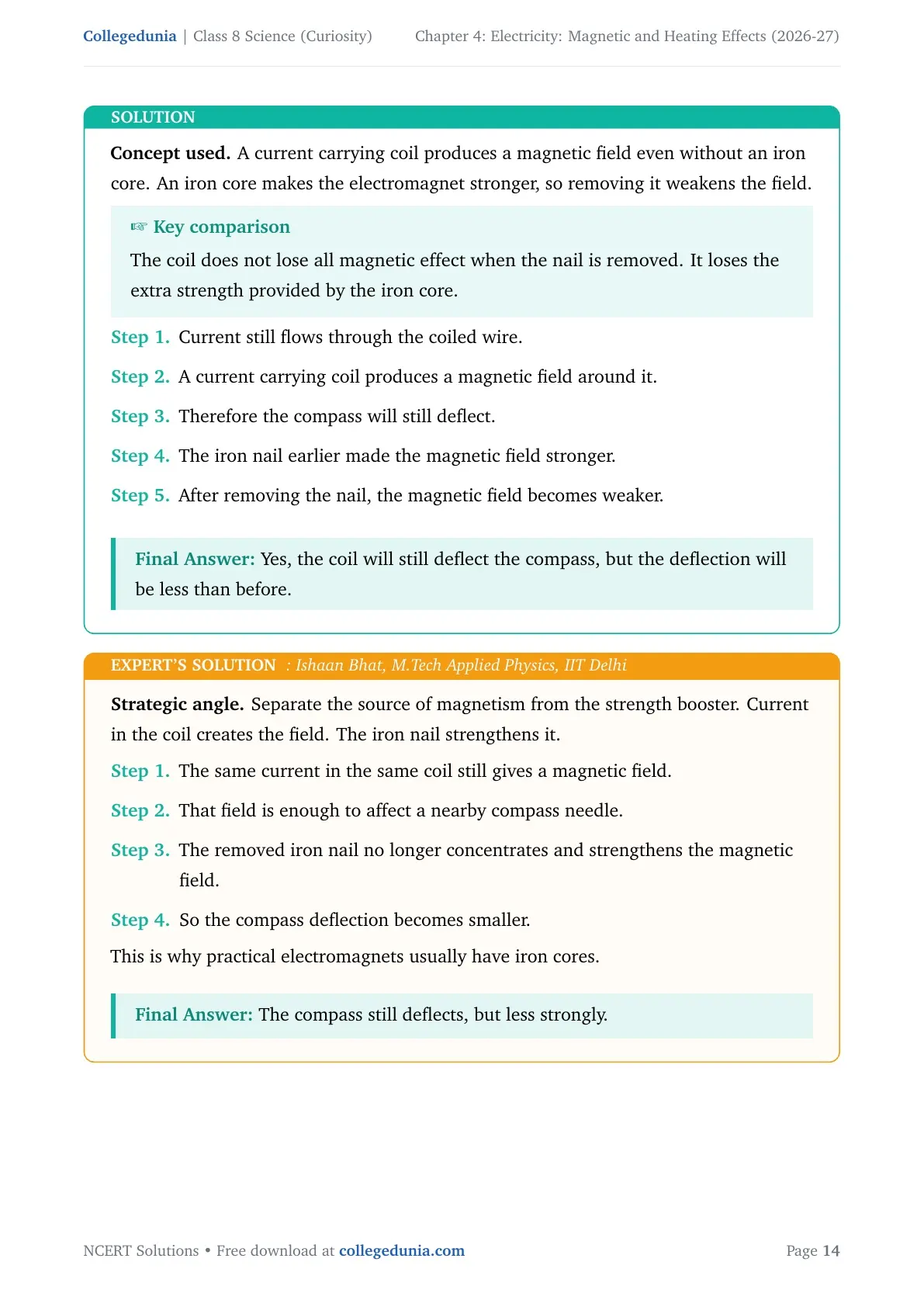

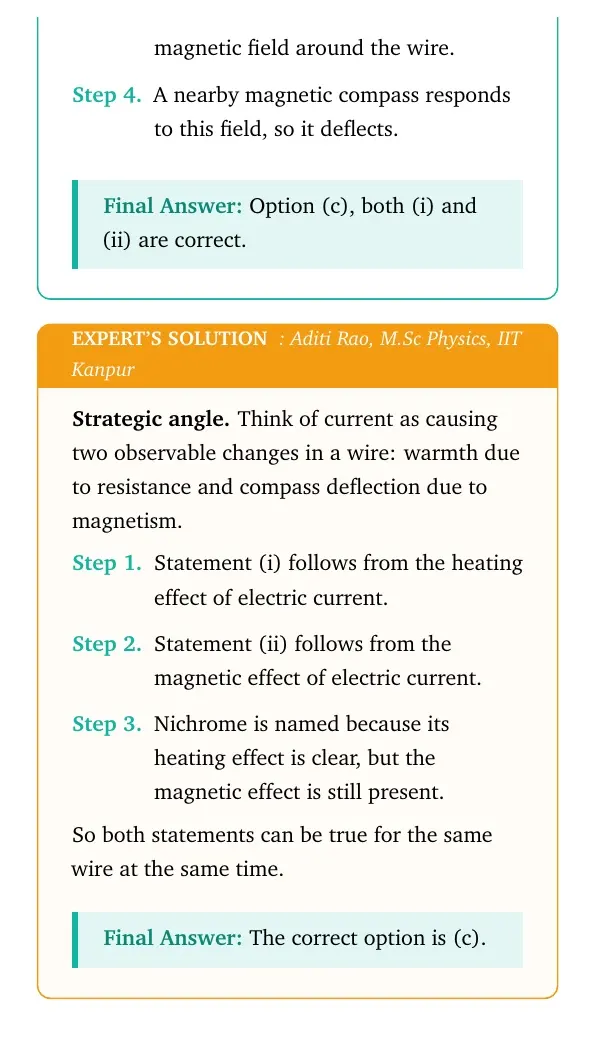

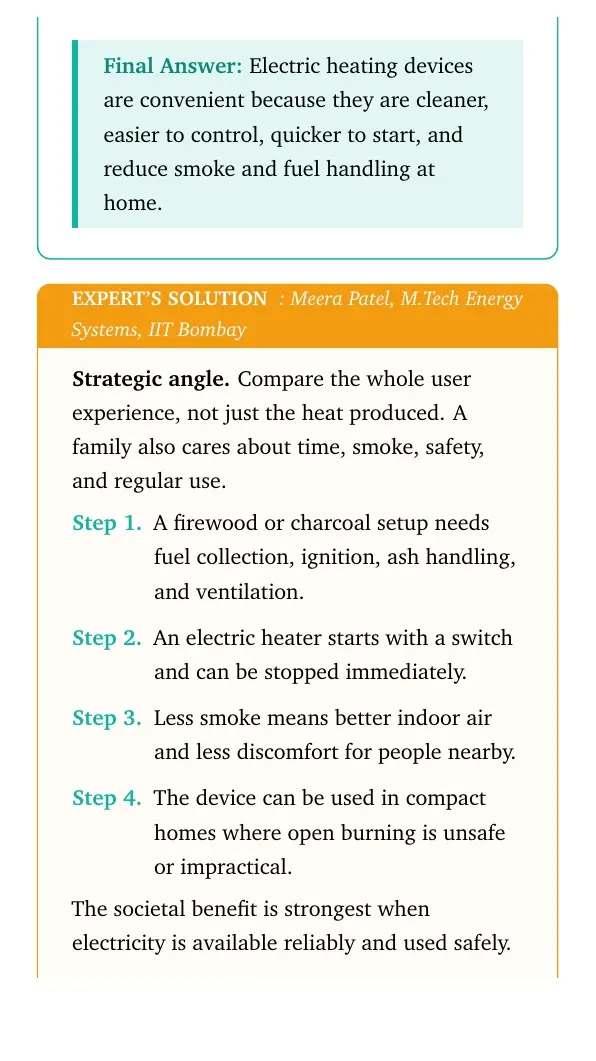

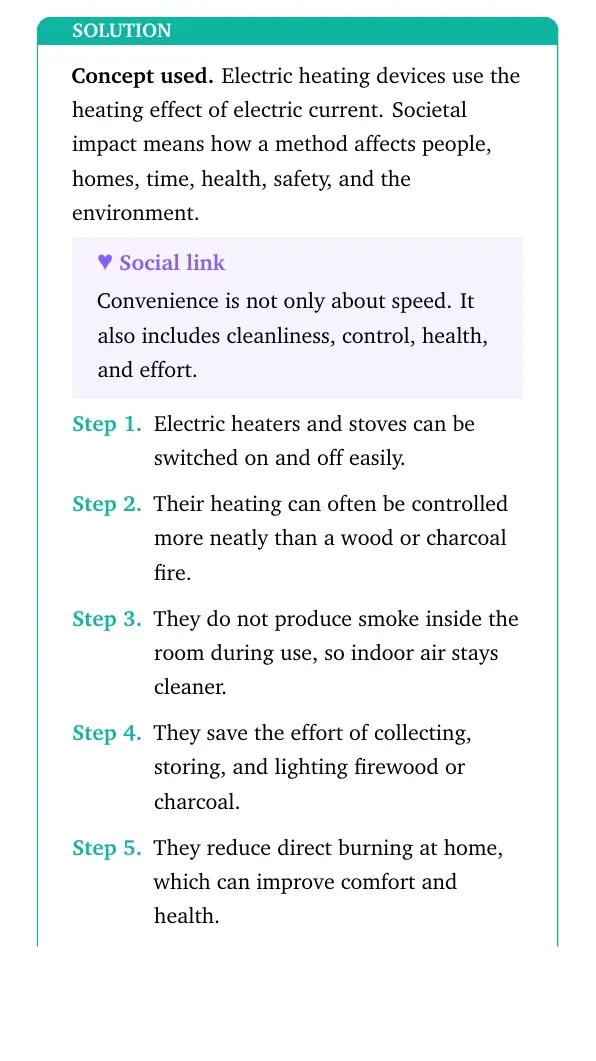

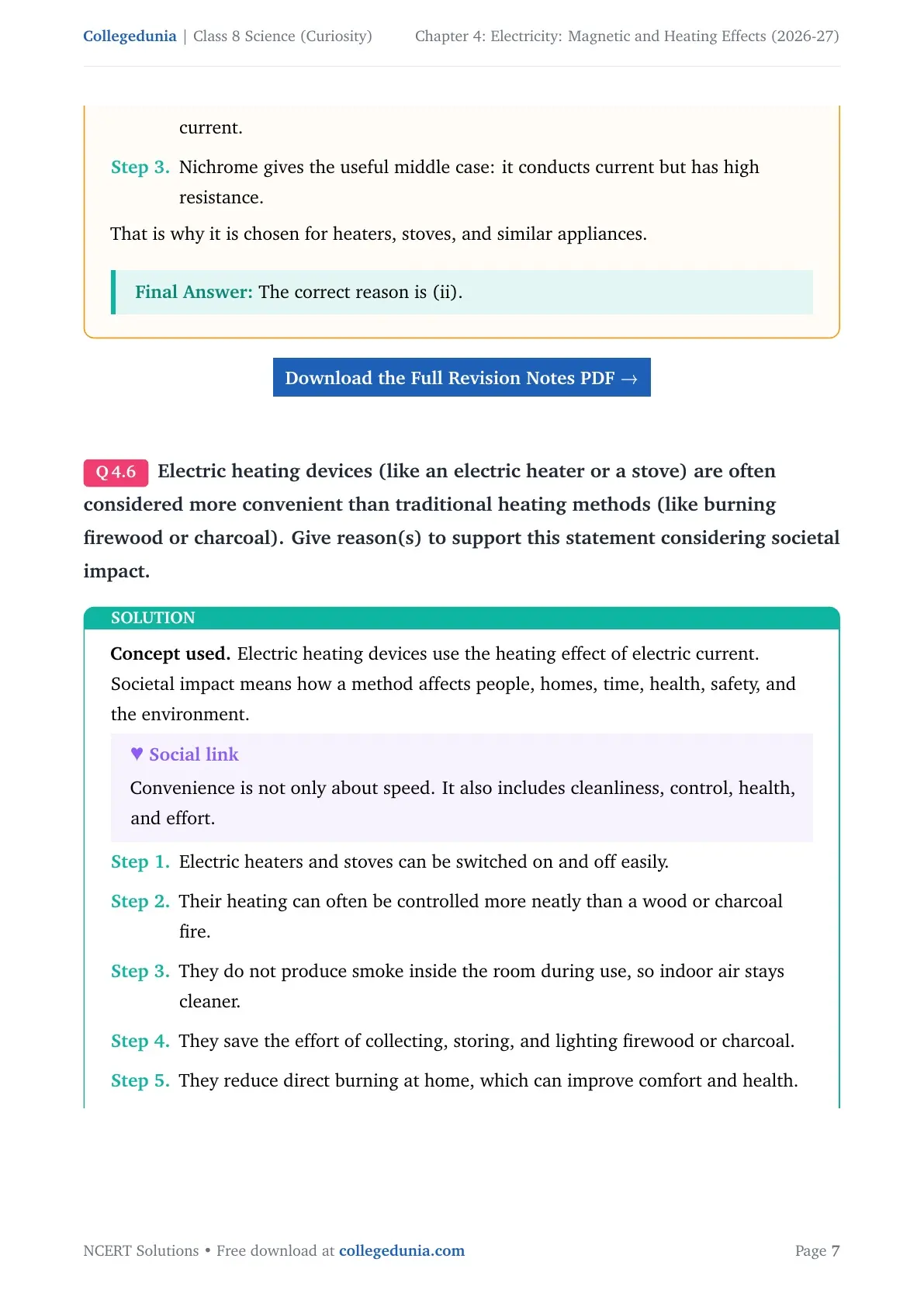

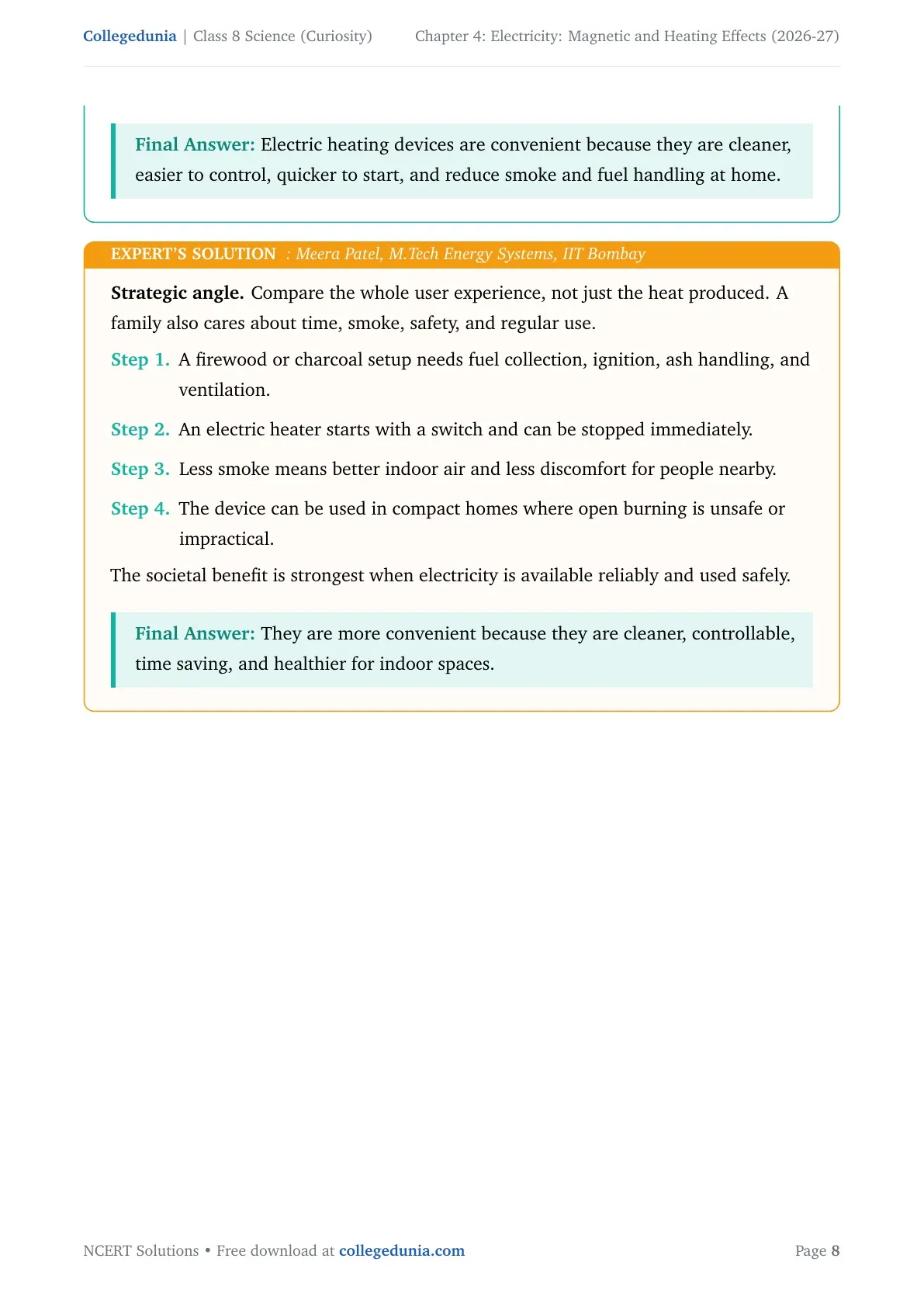

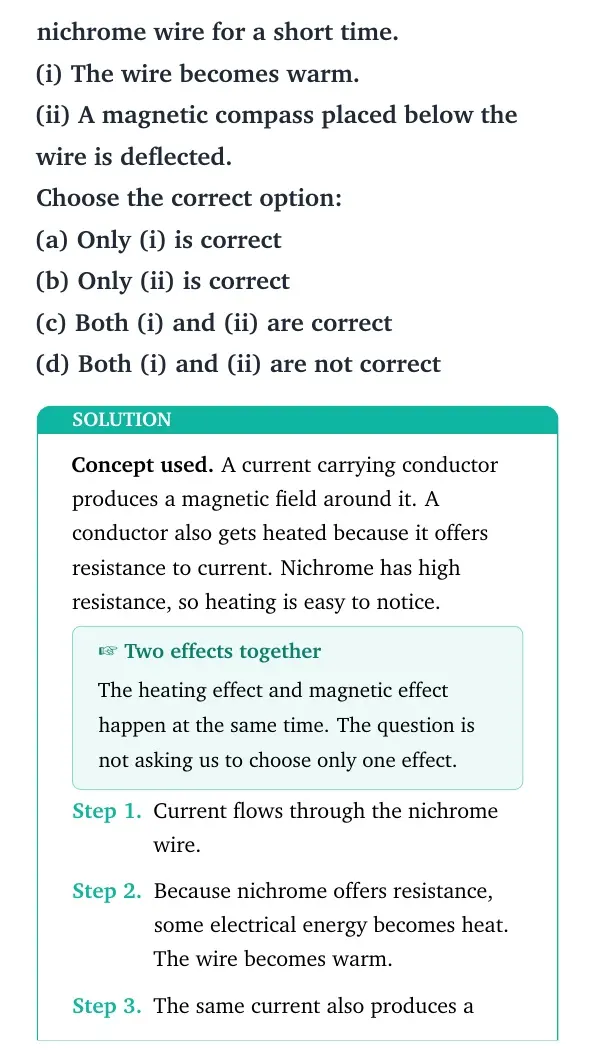

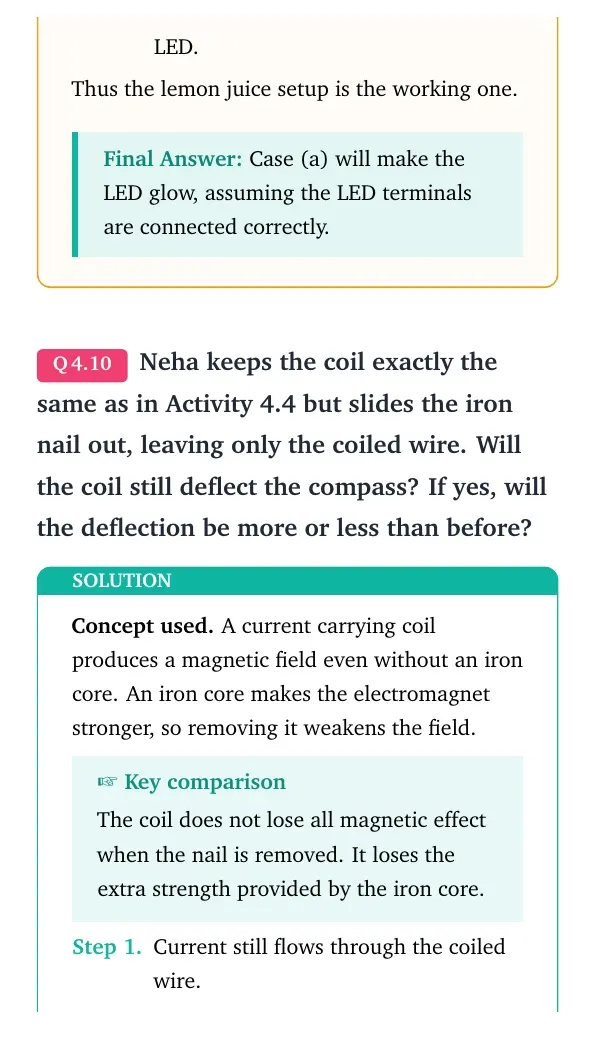

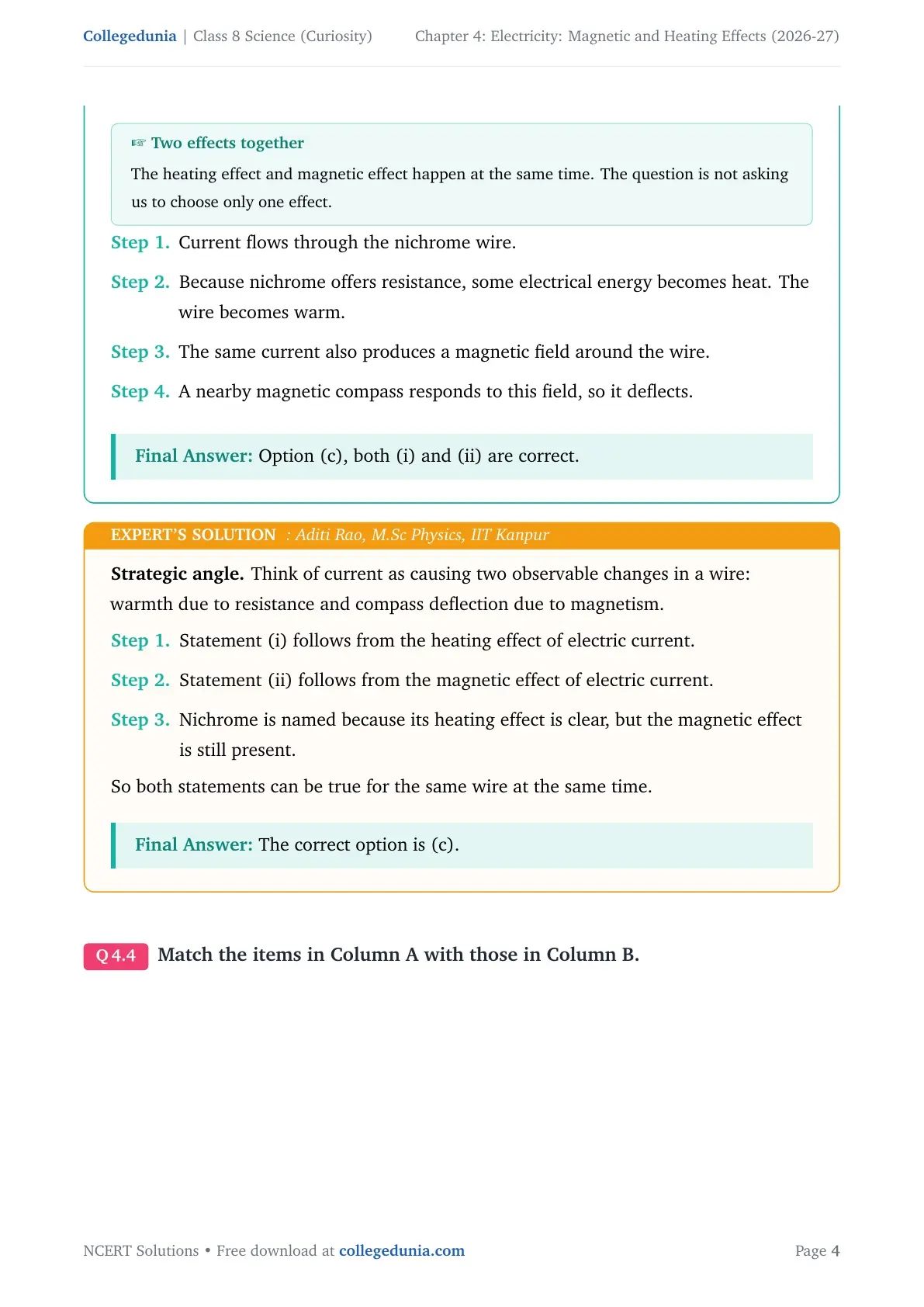

The magnetic-effect questions ask why a compass needle deflects near a current carrying coil. The heating-effect questions ask why nichrome wire becomes warm and why electric heaters are convenient. Both effects come from the same idea: current changes the region around a conductor and also heats it due to resistance.

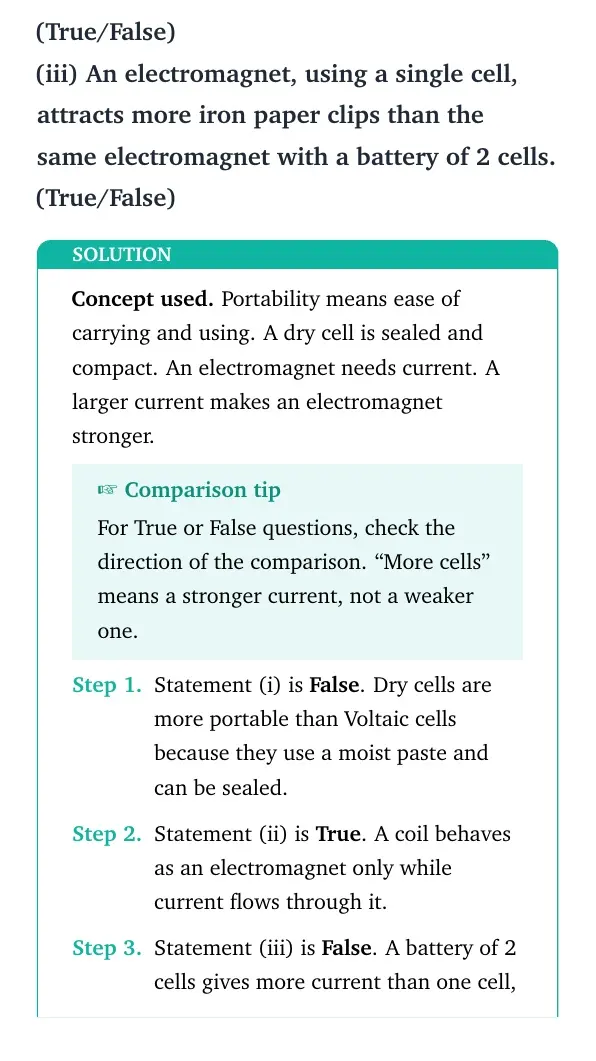

Voltaic Cells Batteries and Rechargeable Cells

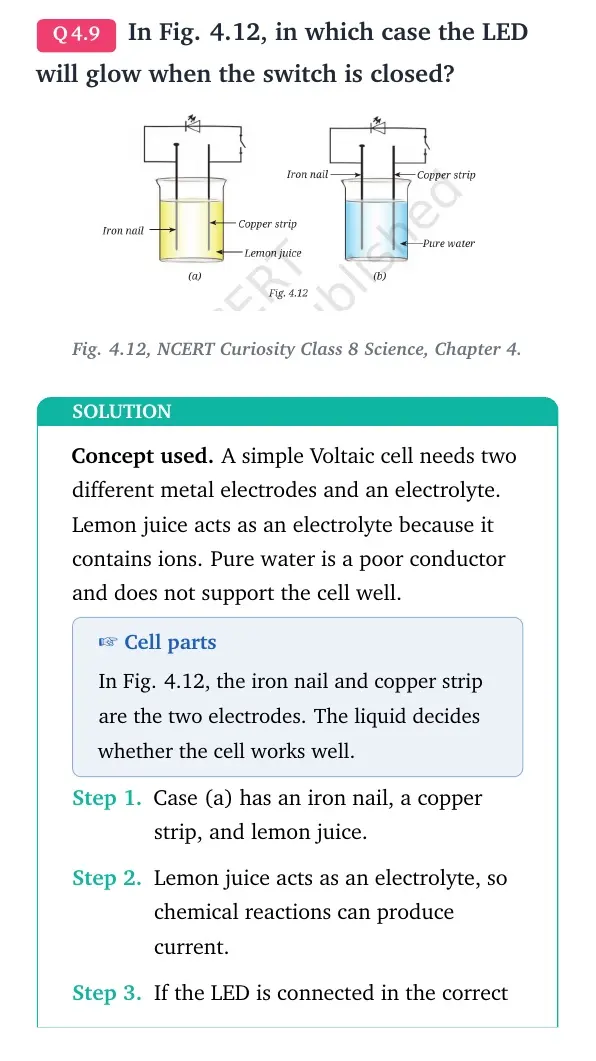

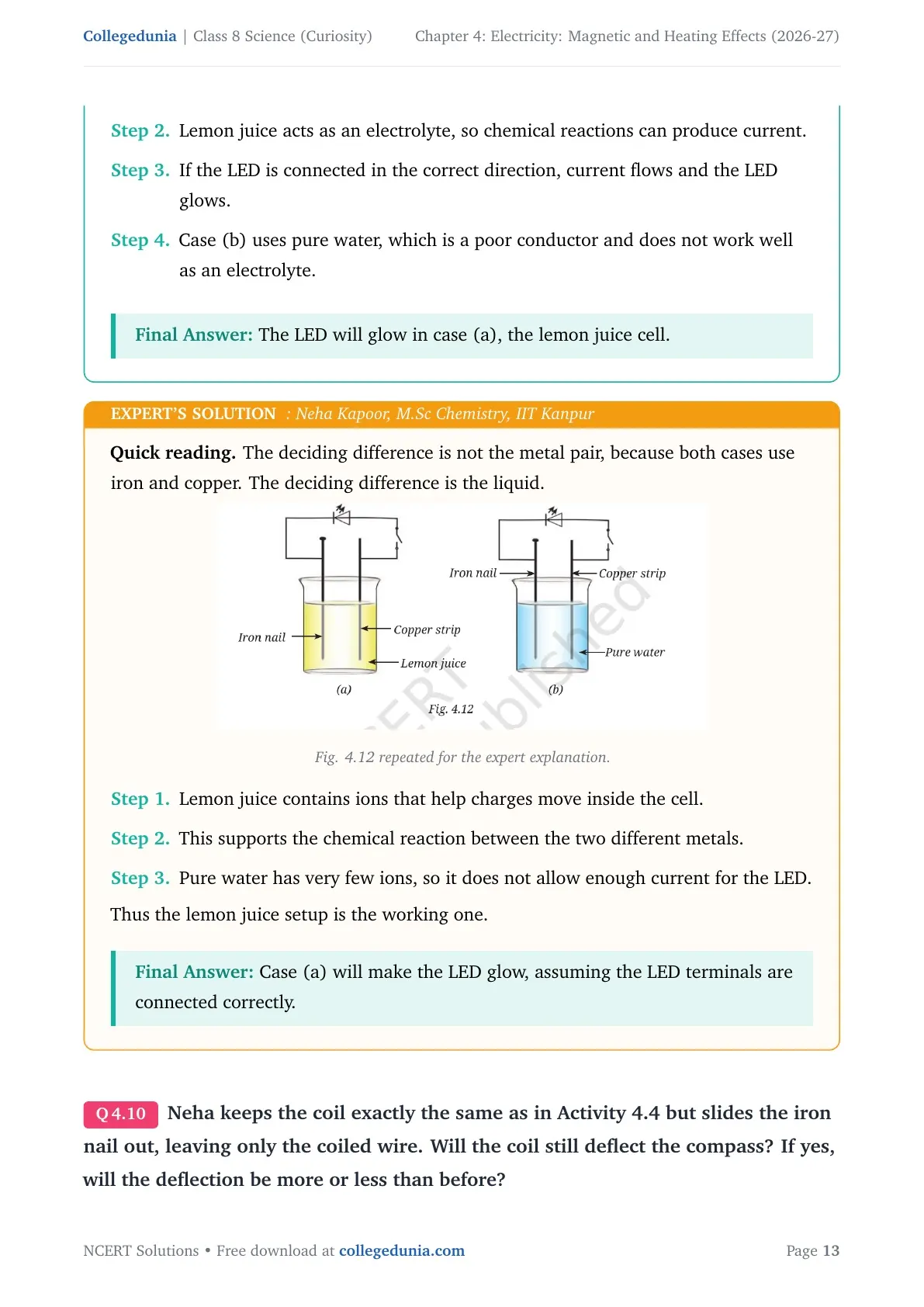

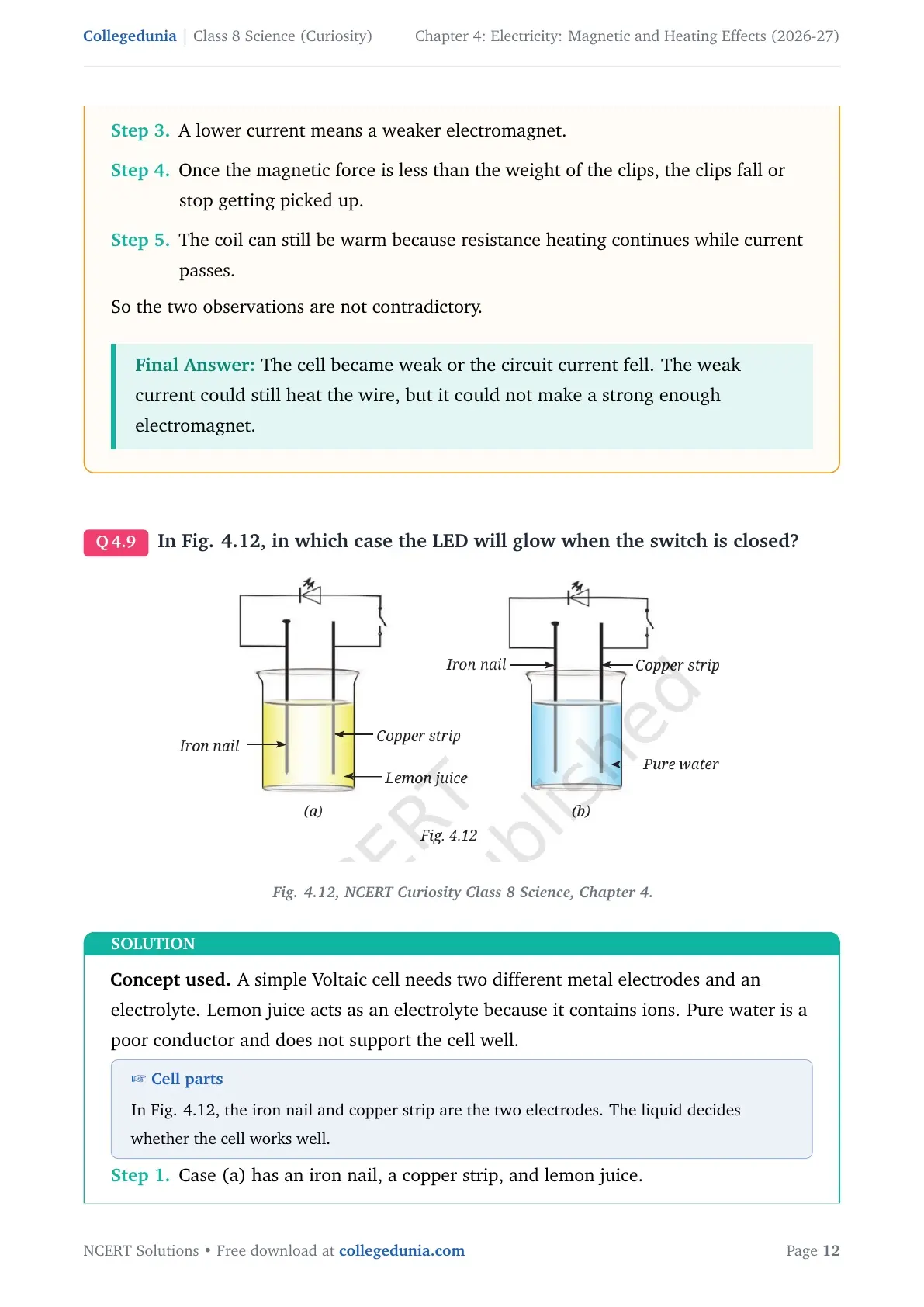

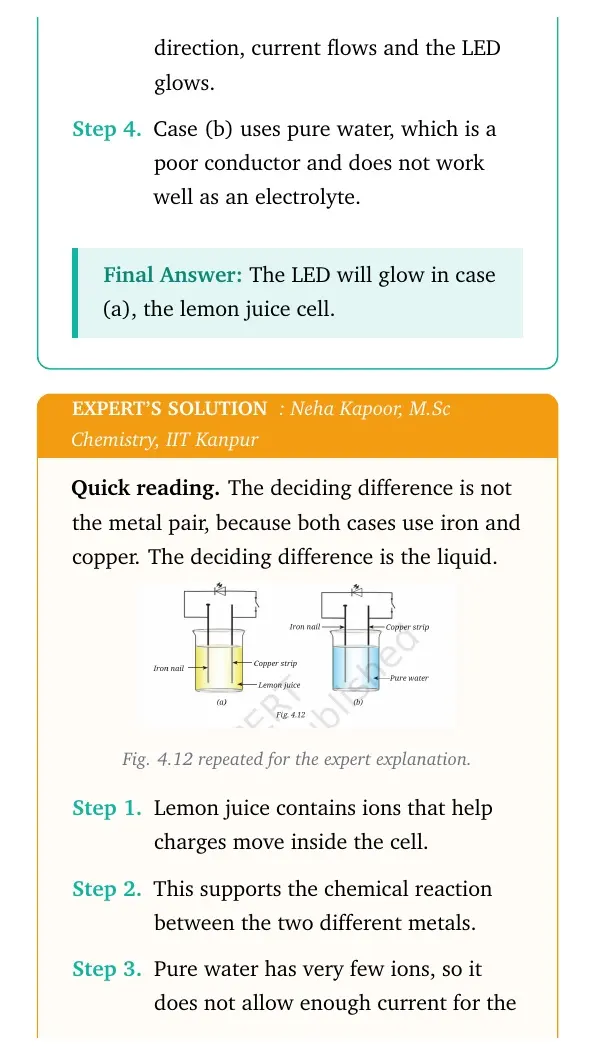

Questions on cells focus on electrodes, electrolyte and chemical reactions. In Fig. 4.12, the LED glows in case (a) because lemon juice works as the electrolyte. Pure water in case (b) is a poor conductor, so it does not support the cell well.
| Topic | Answer clue |
|---|---|
| Voltaic cell | Generates current by chemical reactions |
| Dry cell | More portable because the electrolyte is a moist paste |
| Rechargeable battery | Can be recharged and reused many times |
Practice NCERT Questions with Check Solution Tabs
Use the question-card page for quick practice. Each question has a Check Solution tab and an Expert Solution tab, so students can revise the answer without scrolling through the full PDF.
Chapter 4 Question Bank: Open all solved NCERT questions for Electricity Magnetic and Heating Effects
Related Resources for Class 8 Science Chapter 4
| Resource | Link |
|---|---|
| Revision Notes | Class 8 Science Chapter 4 Notes |
| NCERT Book PDF | Class 8 Science Chapter 4 NCERT Book PDF |
| Class 8 Science Hub | Class 8 Science Curiosity All Chapters |
NCERT Solutions for Class 8 Science Curiosity All Chapters
| Chapter | Solutions |
|---|---|
| Chapter 1 | Exploring the Investigative World of Science Solutions |
| Chapter 2 | The Invisible Living World Beyond Our Naked Eye Solutions |
| Chapter 3 | Health The Ultimate Treasure Solutions |
| Chapter 4 | Electricity Magnetic and Heating Effects Solutions |
Student Doubts on Electricity Magnetic and Heating Effects
Electricity Magnetic and Heating Effects Class 8 NCERT Solutions FAQs
Ques. What are the main answers in Class 8 Science Chapter 4?

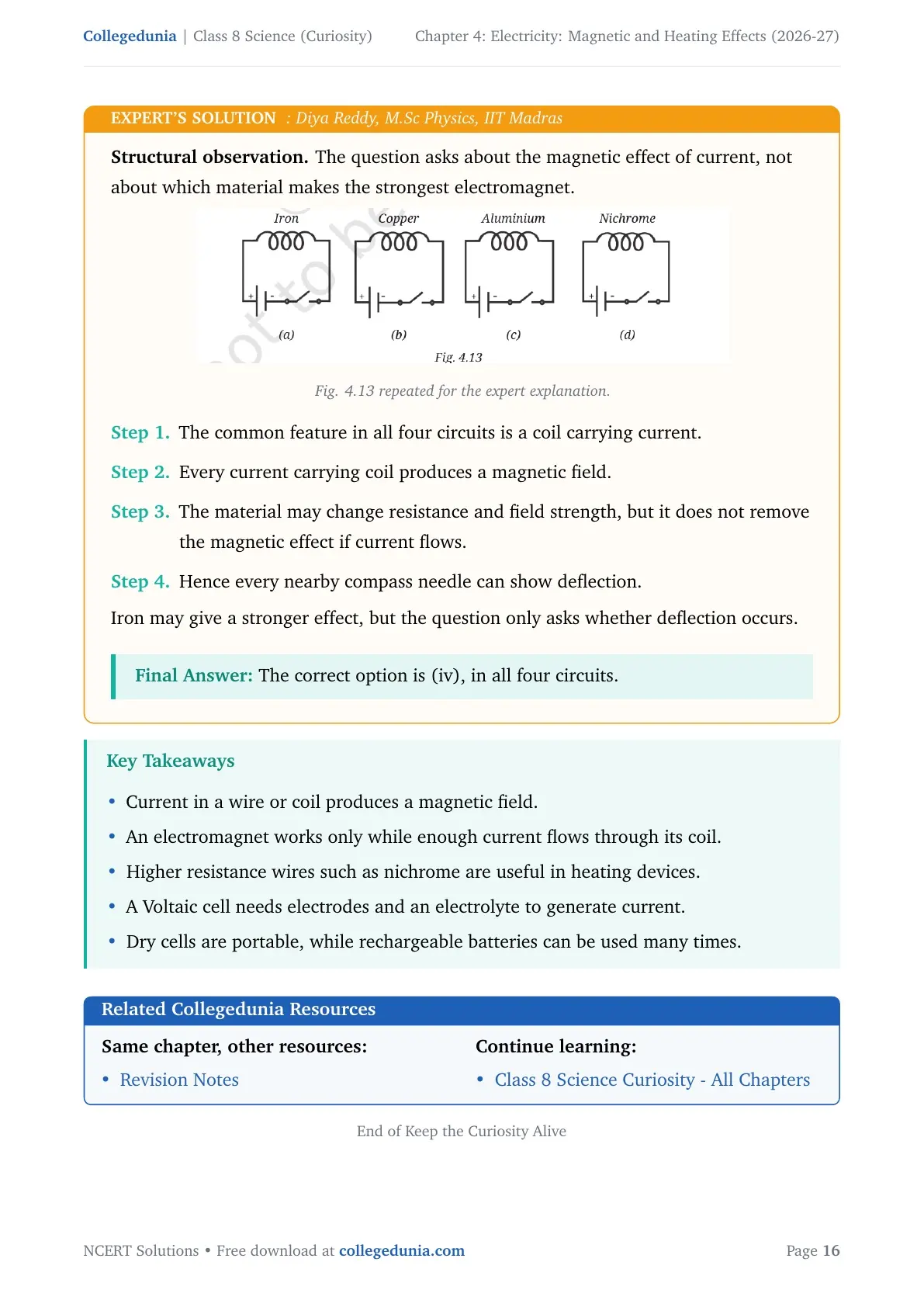

Ans. Important answers include electrolyte, magnet, option (c) for the nichrome wire question, case (a) for the lemon cell and option (iv) for all four coils.

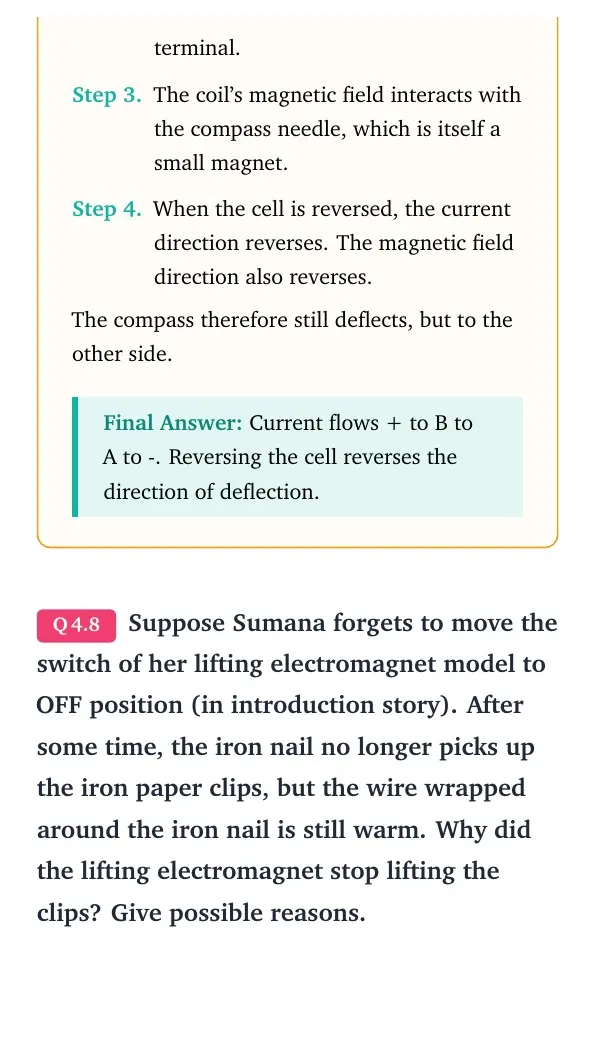

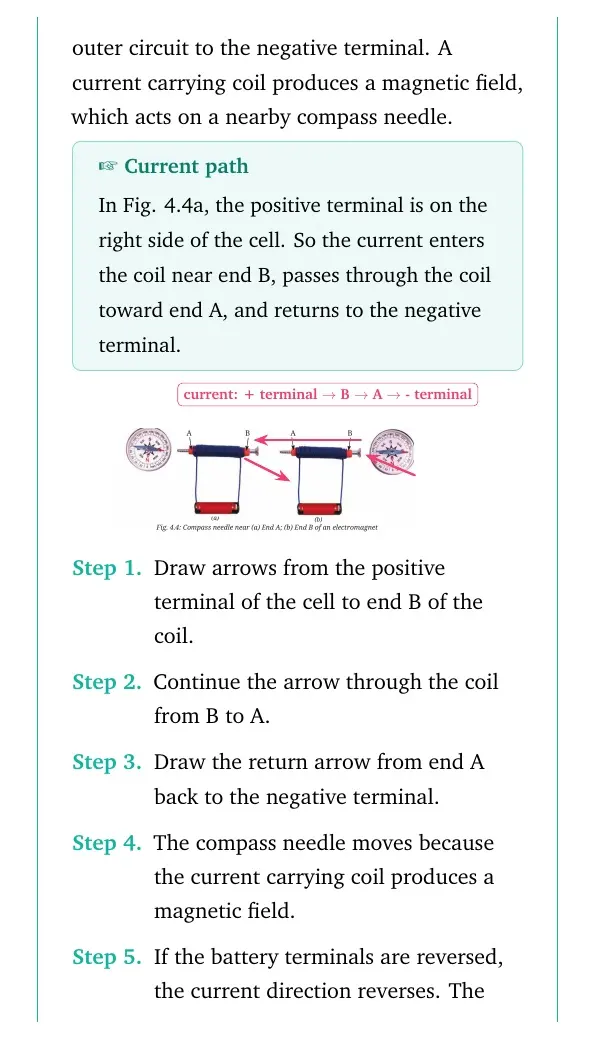

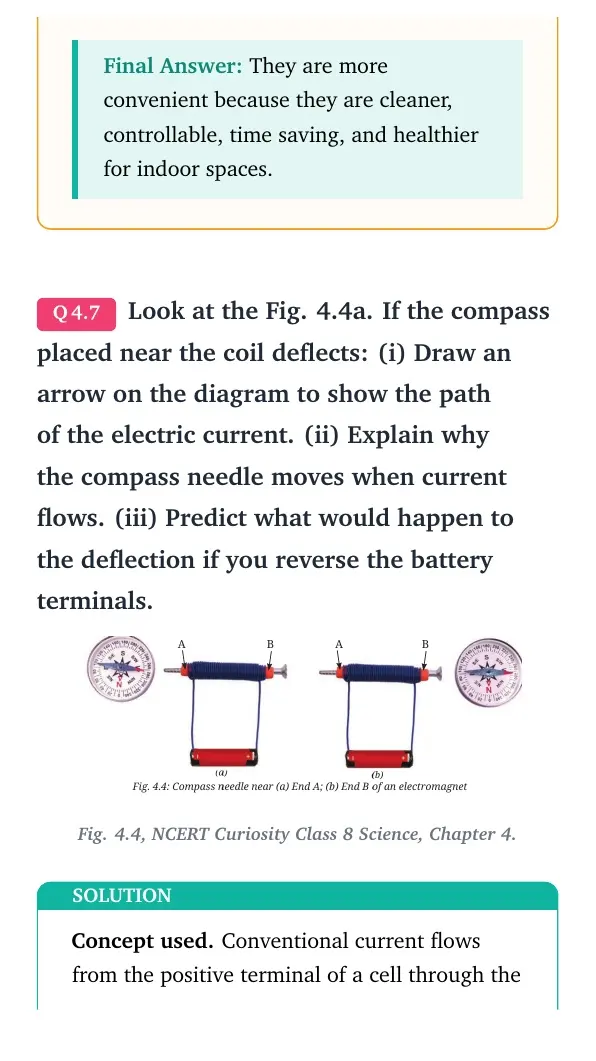

Ques. Why does a compass needle deflect near a current carrying coil?

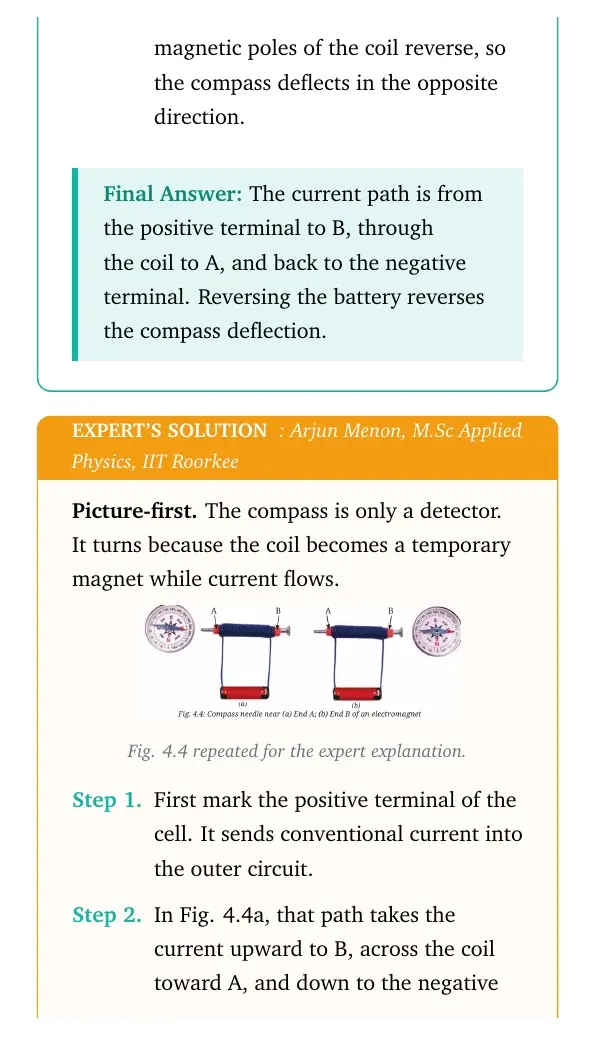

Ans. A current carrying coil produces a magnetic field. The compass needle is a small magnet, so it responds to this field and deflects.

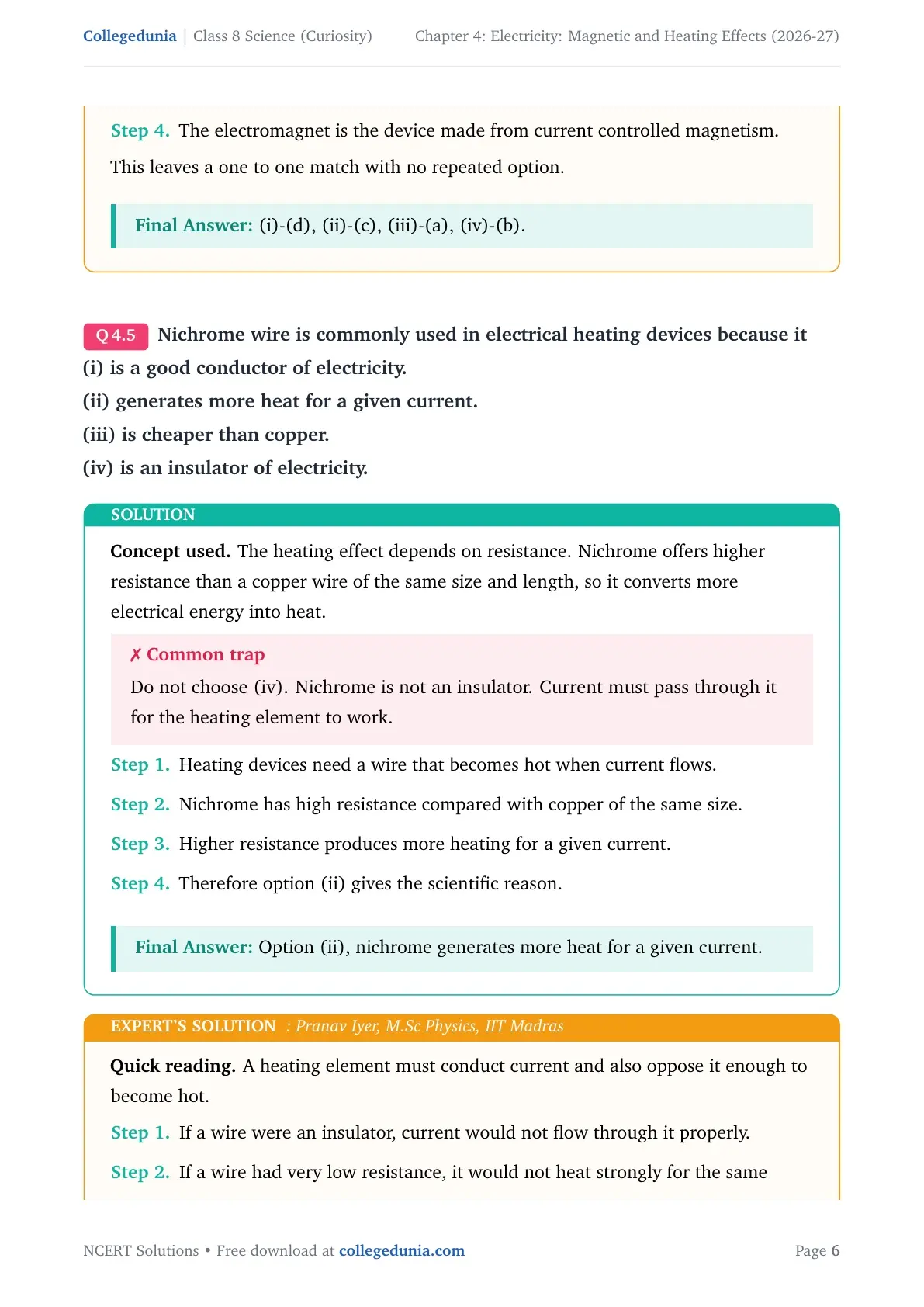

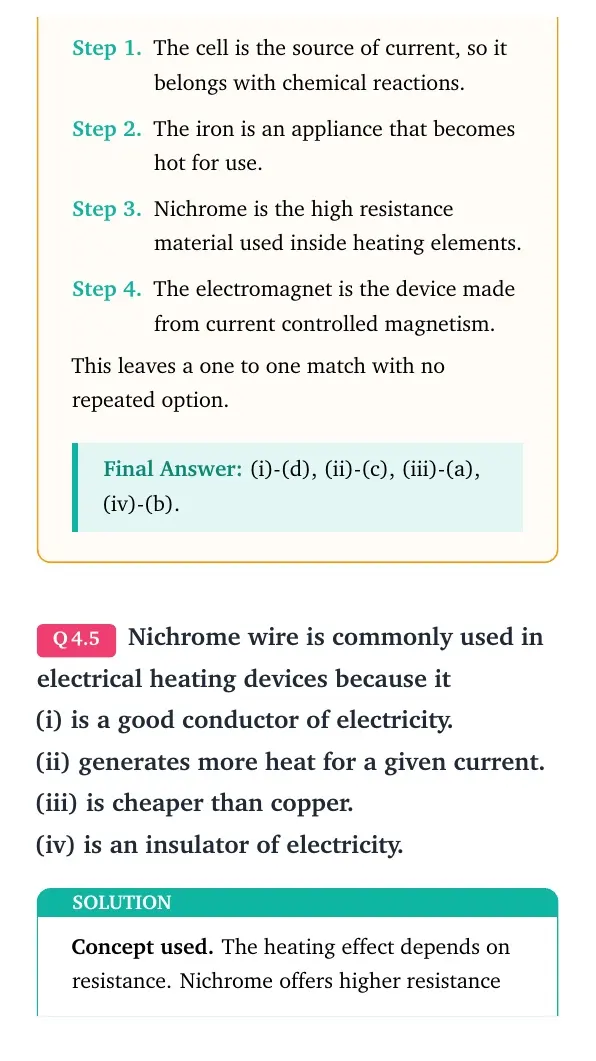

Ques. Why is nichrome used in heating devices?

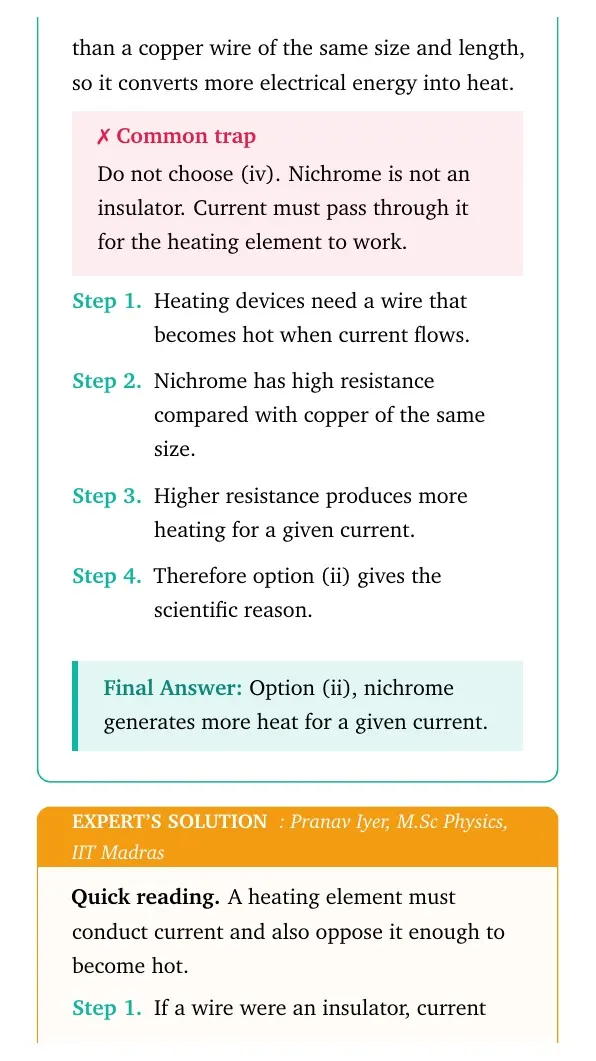

Ans. Nichrome has high resistance and generates more heat for a given current, so it is useful in heaters, stoves and electric irons.
Ques. Where can I download the Class 8 Science Chapter 4 NCERT Solutions PDF?
Ans. Students can download the free NCERT Solutions PDF from the PDF card at the top of this page.
