The handwritten notes on Class 6 Mathematics Ganita Prakash Chapter 8 Playing with Constructions have been prepared for quick 2026-27 revision. The PDF covers compass work, circles, squares, rectangles, diagonals and equal-distance constructions.
- Best use: revise ruler and compass steps before school tests and notebook correction.
- PDF focus: construction order, labelled diagrams, common mistakes and final property checks.
- Chapter value: construction work builds the base for geometry in higher classes.

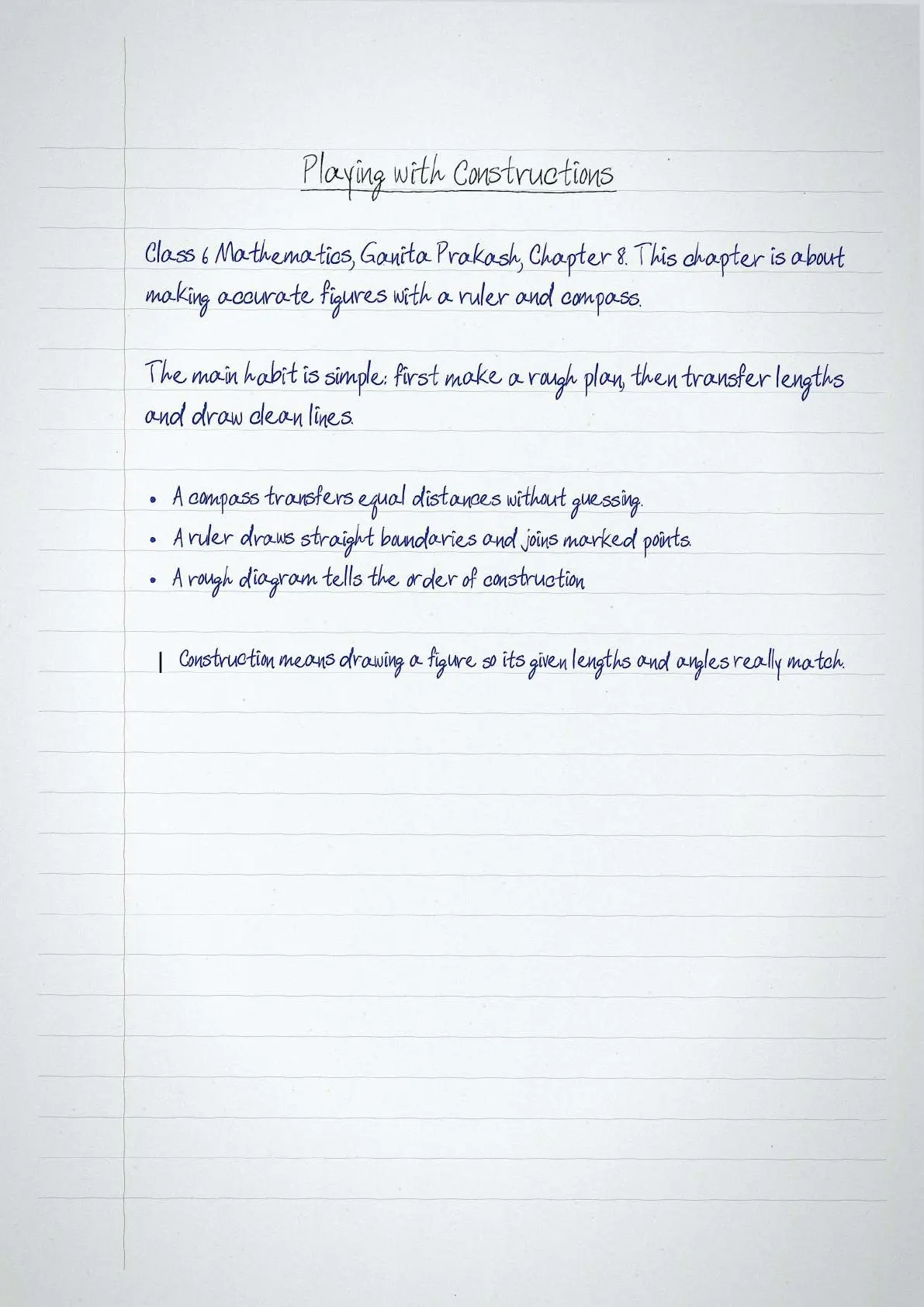

Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=1&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=2&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=3&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=4&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=5&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=6&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=7&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=8&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=9&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=10&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=11&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=12&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=13&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=14&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=15&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=16&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=17&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=18&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=19&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=20&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=21&dpi=150)
Chapter8PlayingwithConstructionsHandwrittenNotes.pdf?page=22&dpi=150)
Each Playing with Constructions handwritten notes page is checked against the 2026-27 NCERT Class 6 Ganita Prakash textbook and arranged for fast revision.
Student Feedback: In a Collegedunia study check of 11,180 Class 6 students, most students found constructions easier after writing the rough figure before using the ruler and compass.
Class 6 Mathematics Playing with Constructions Handwritten Notes Overview

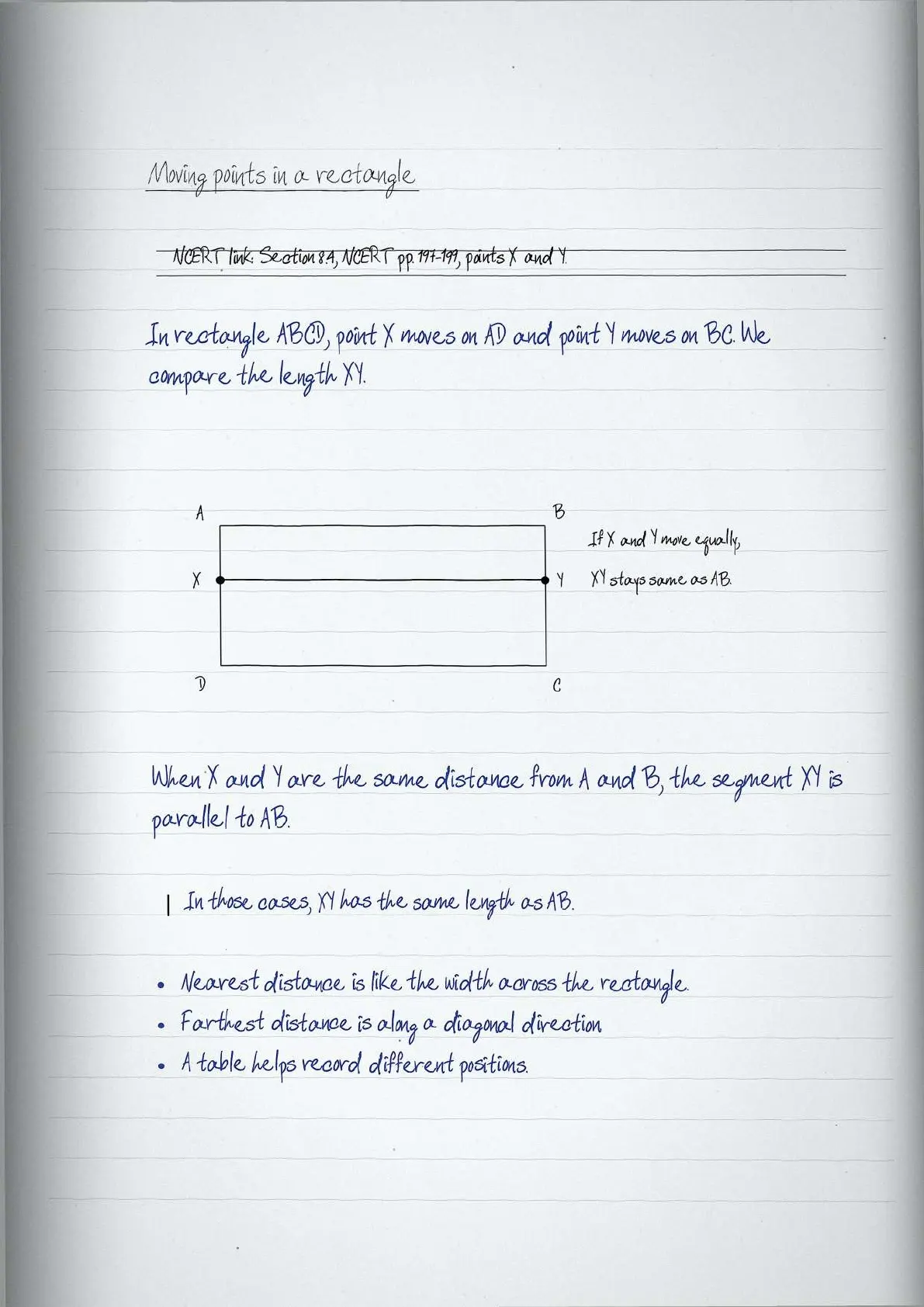

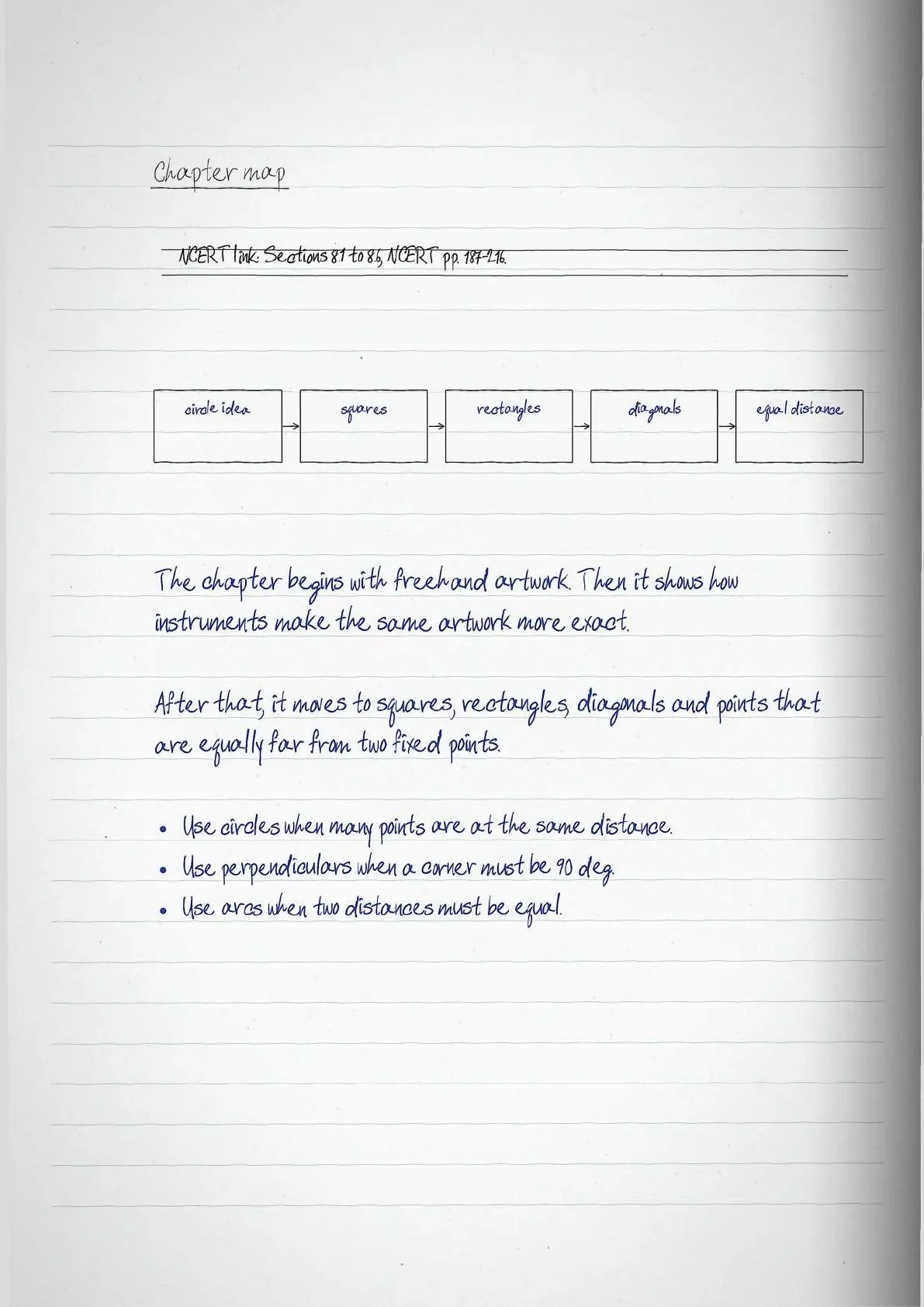

Playing with Constructions teaches students to draw shapes by rule, not by guesswork. The handwritten PDF starts with circles and arcs. It then moves to squares, rectangles, moving points, diagonals and points that are equally far from two fixed points.
The main habit is simple: draw a rough plan first. After that, use the compass to copy distances and the ruler to join only the final required lines.
Playing with Constructions Video Revision for Class 6 Ganita Prakash
Source: Magnet Brains on YouTube
What the Playing with Constructions Handwritten Notes PDF Covers
The PDF has 22 handwritten pages. Each page focuses on one construction idea, so students can revise the method without reading the full textbook again.

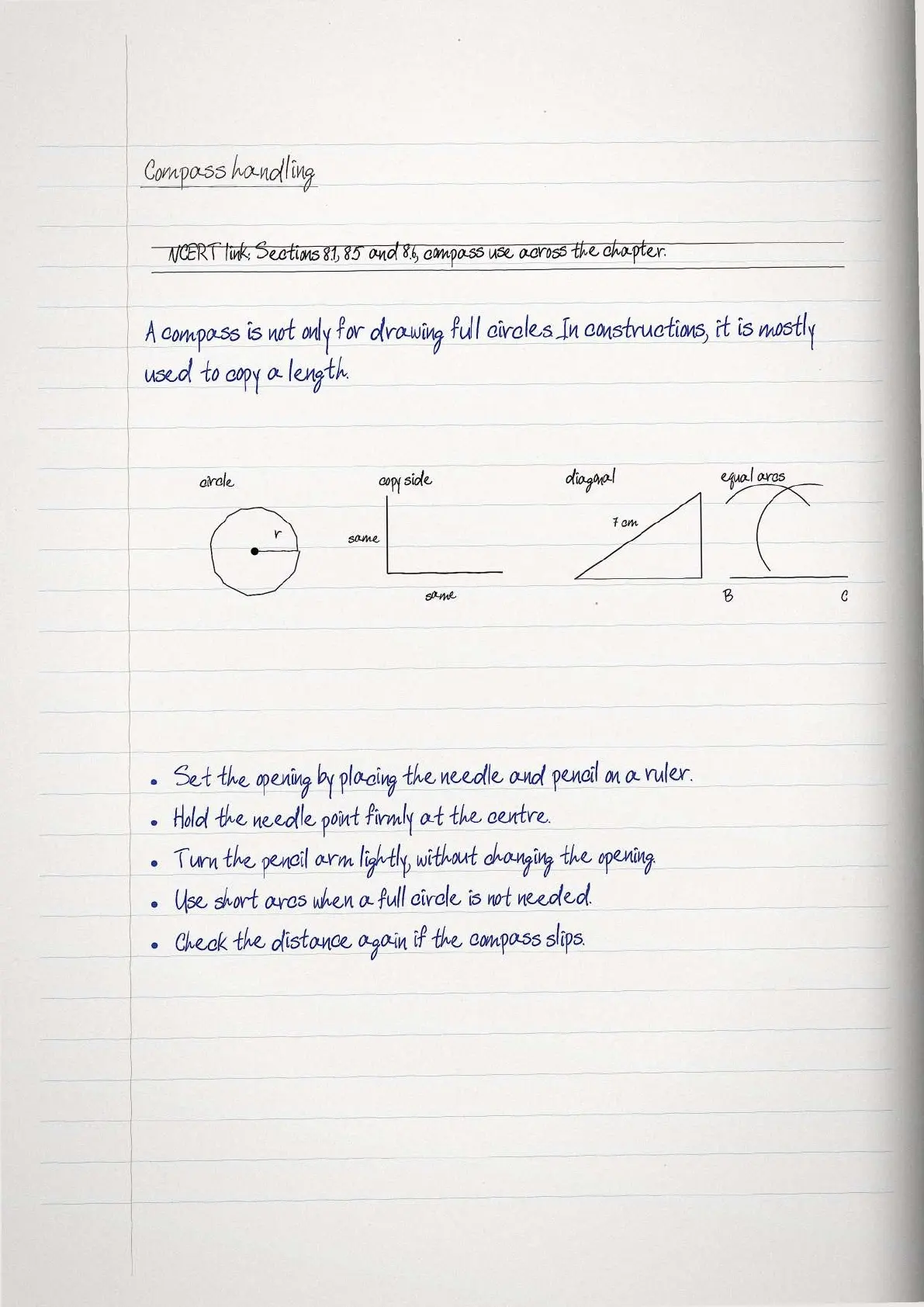

- Compass work: centre, radius, circle and arc construction.
- Shapes: square and rectangle properties with labelled sketches.
- Construction order: base line, perpendicular, copied side and final join.
- Checks: equal sides, right angles, diagonals and equal-distance arcs.
Circle, Arc and Compass Ideas in Playing with Constructions

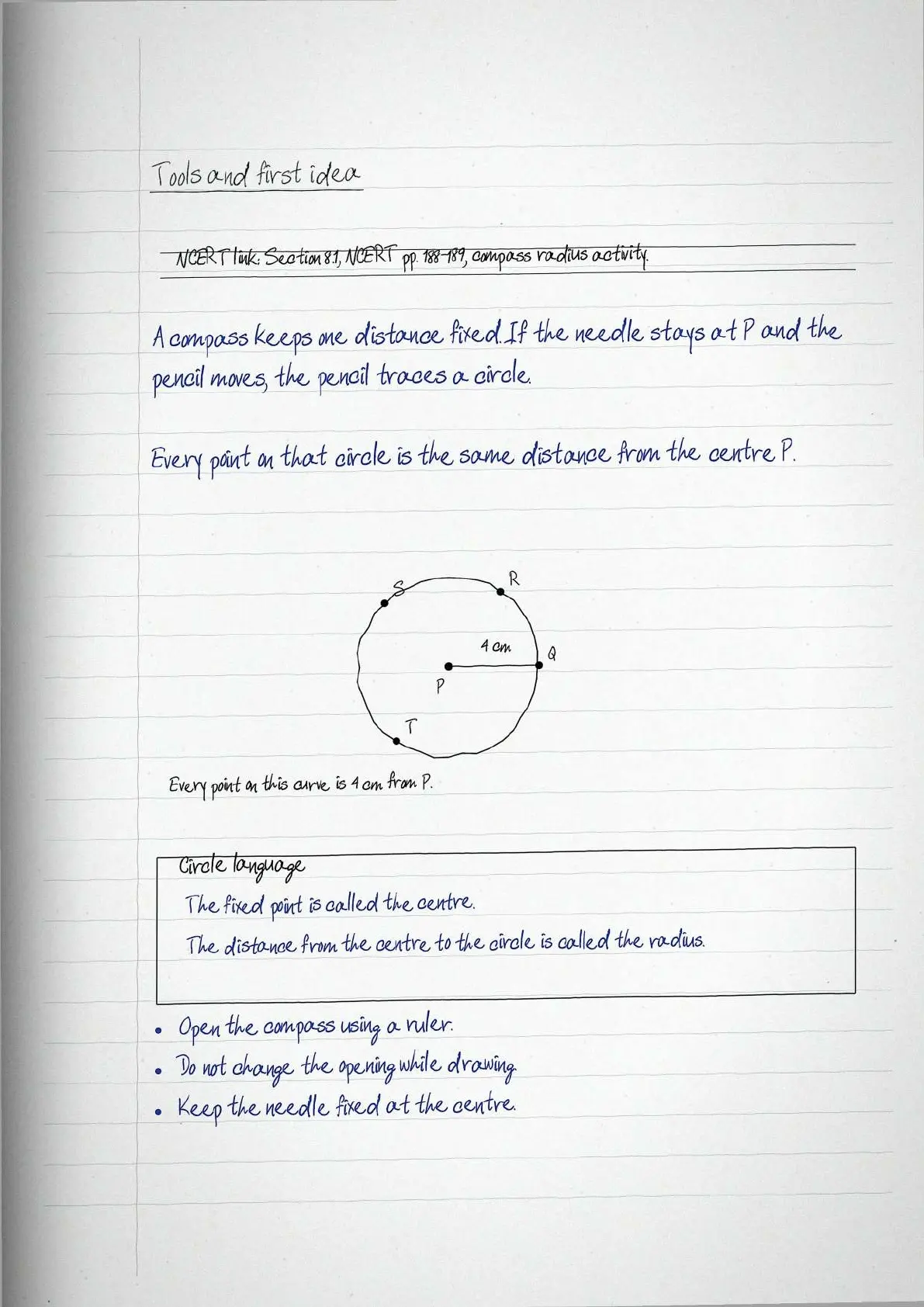

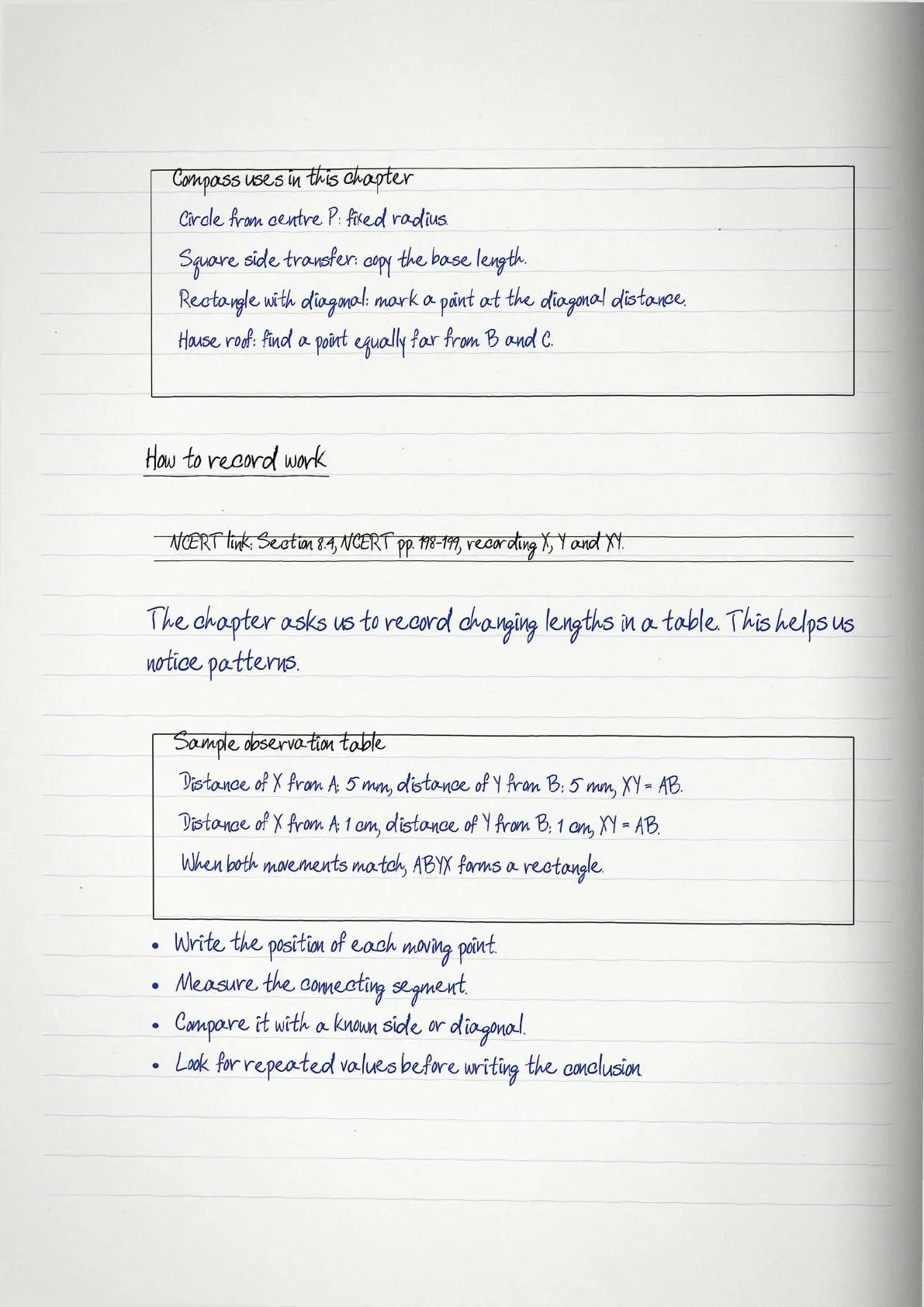

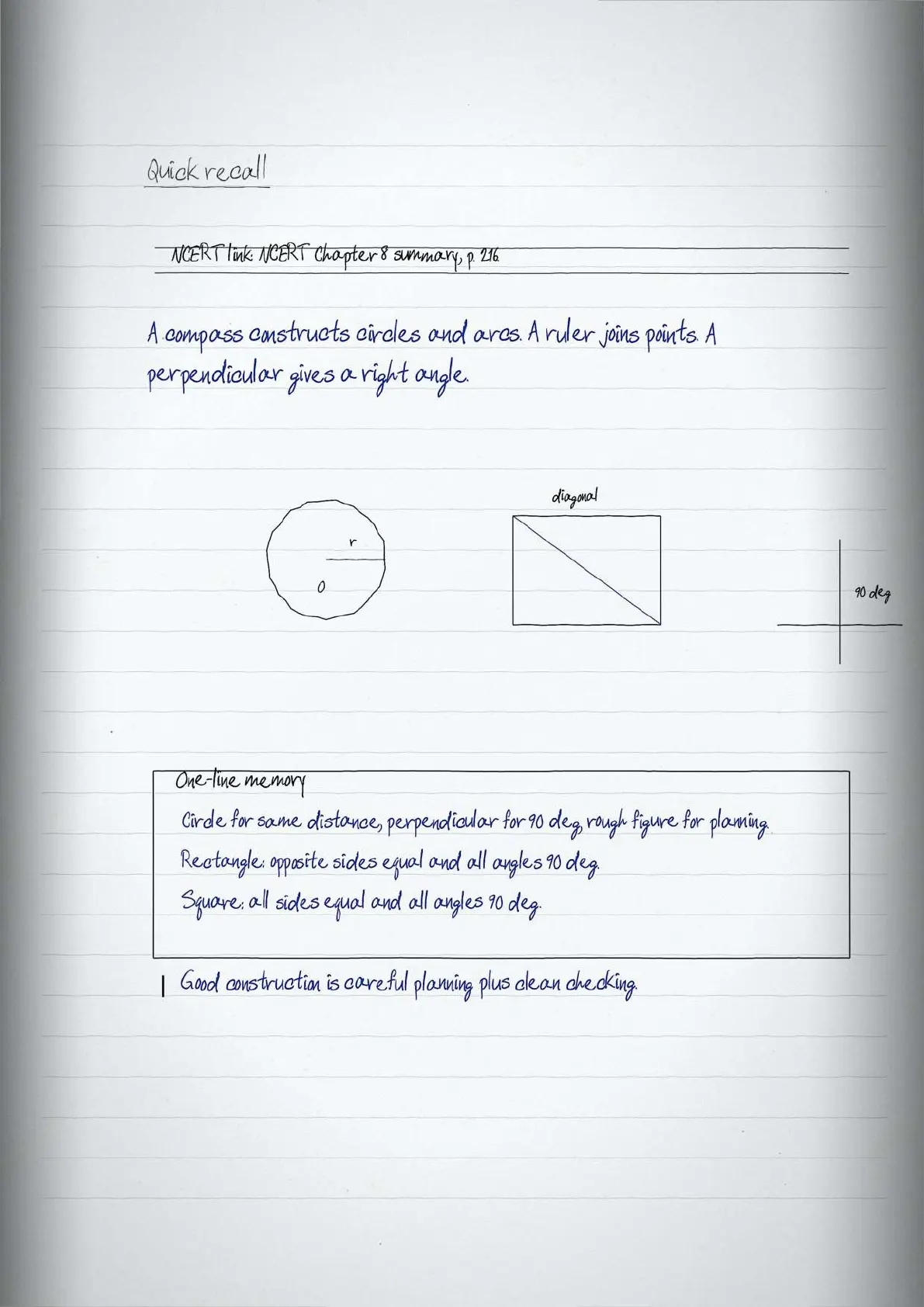

A compass keeps one distance fixed. If the needle stays at point P and the pencil moves around it, the pencil draws a circle. Every point on that circle is the same distance from P.

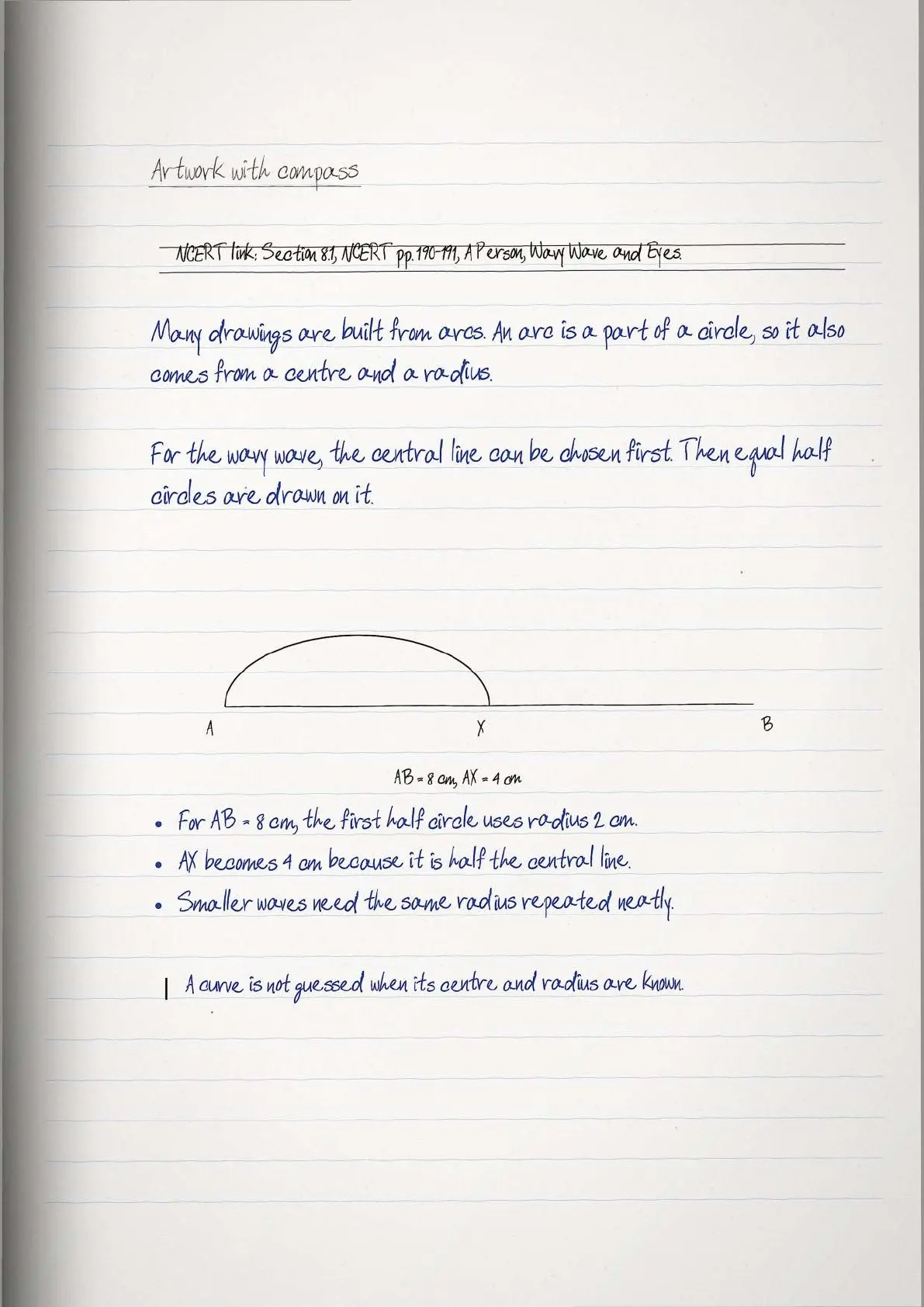

That fixed distance is the radius. In the wavy-wave activity, the semicircle is not guessed. It is drawn from a chosen centre and a chosen radius.

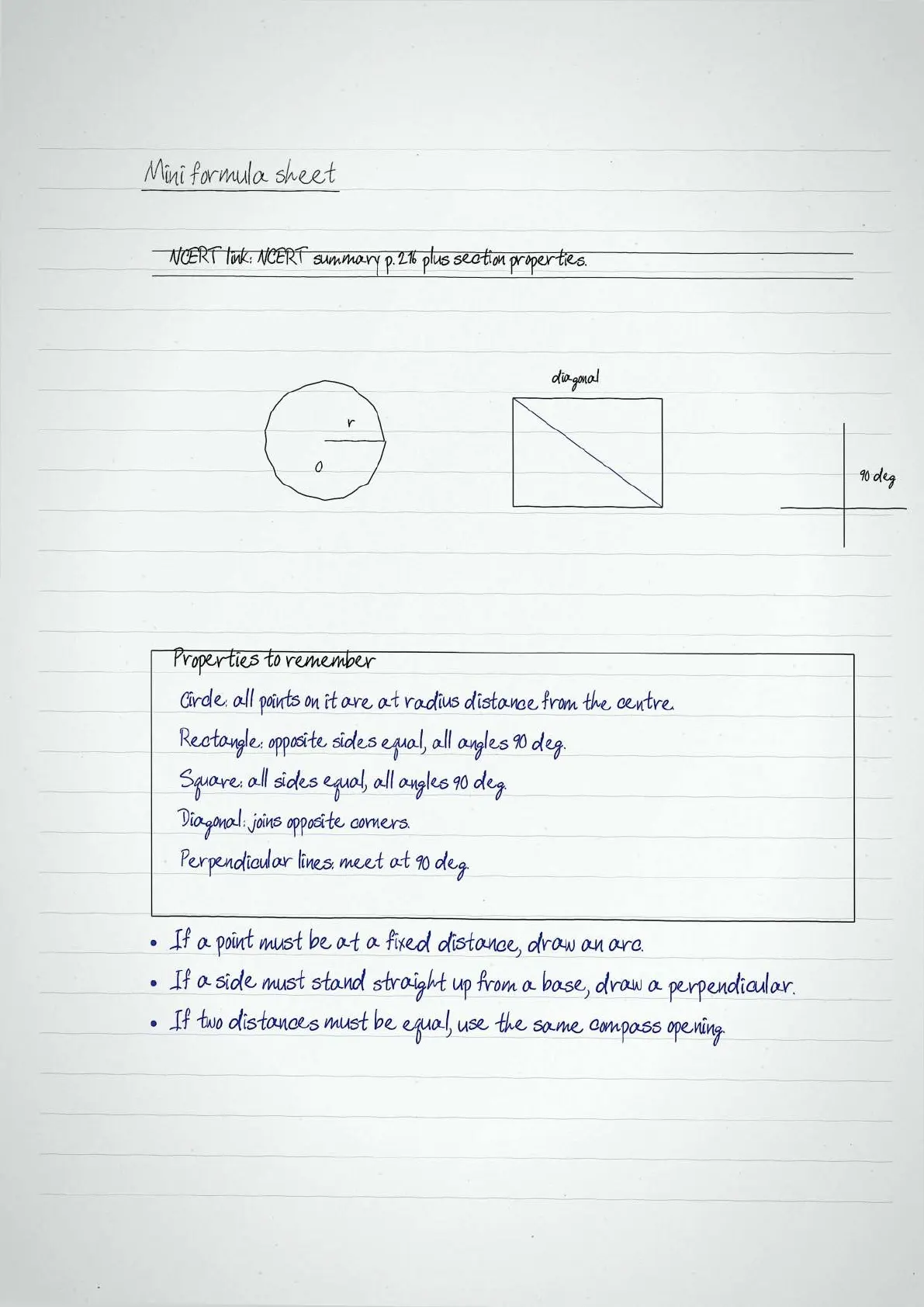

| Term | Meaning | Notebook check |
|---|---|---|
| Centre | Fixed point of a circle | Needle point stays here |
| Radius | Distance from centre to circle | Compass opening stays fixed |
| Arc | Part of a circle | Use a short compass turn |

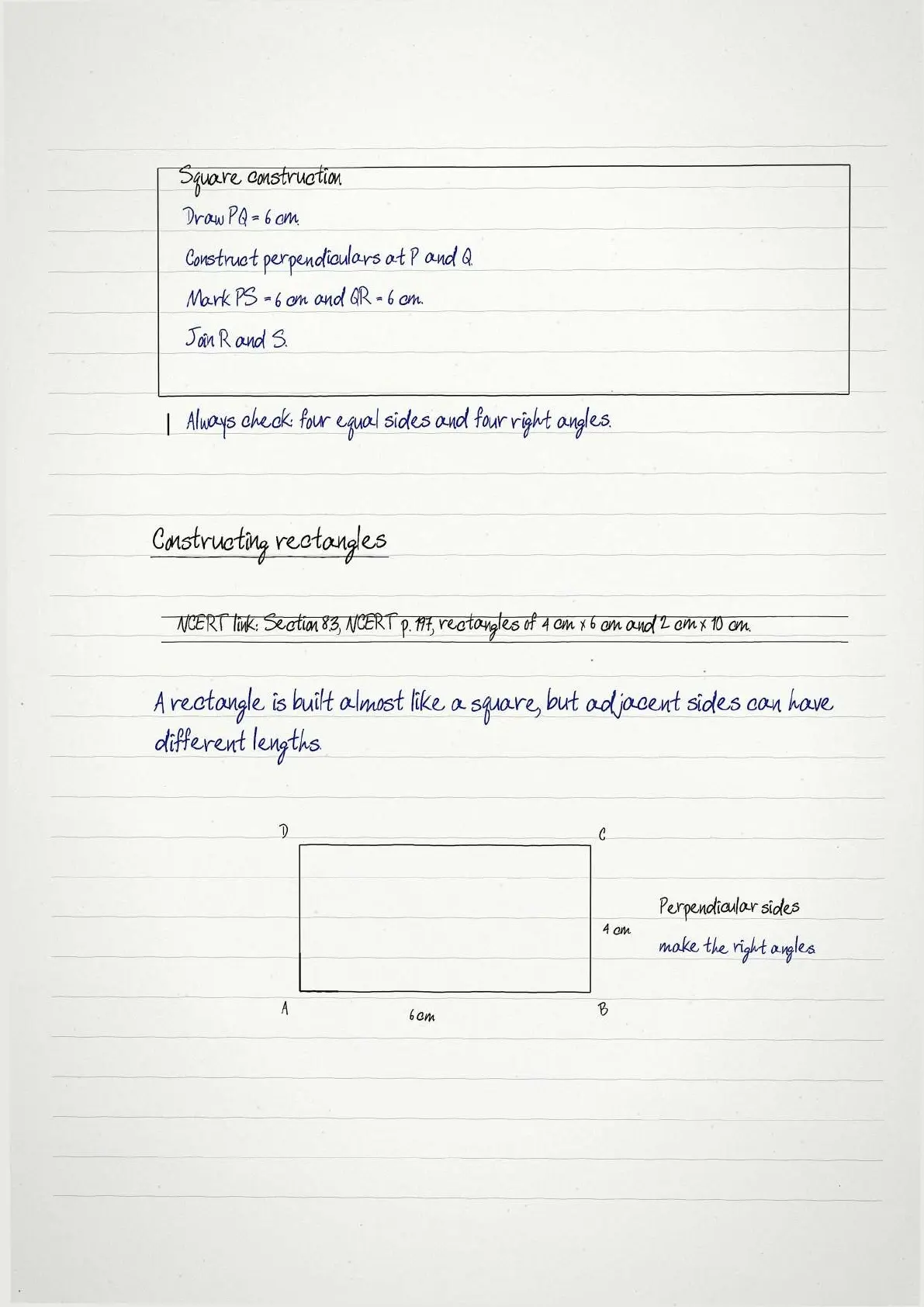

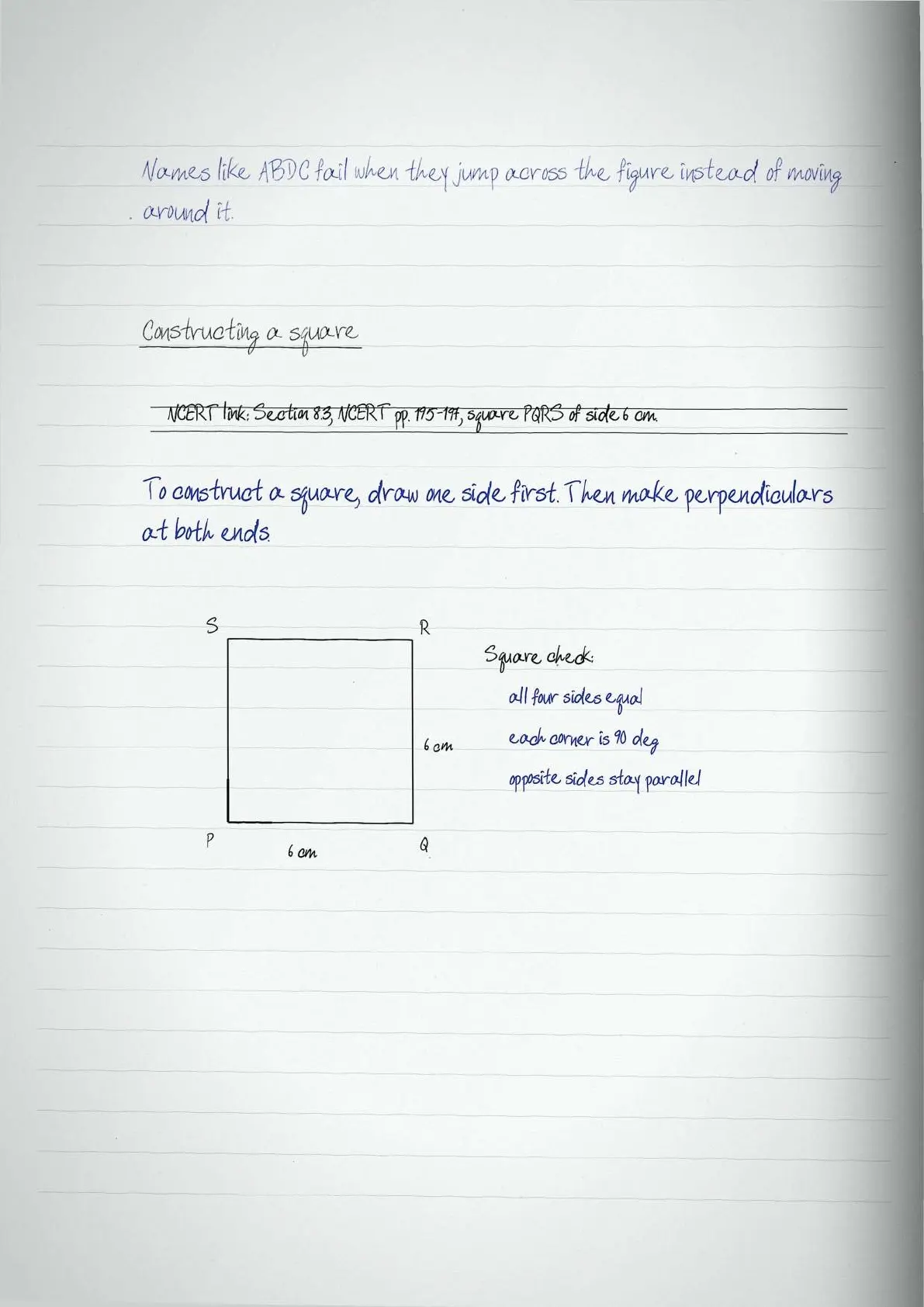

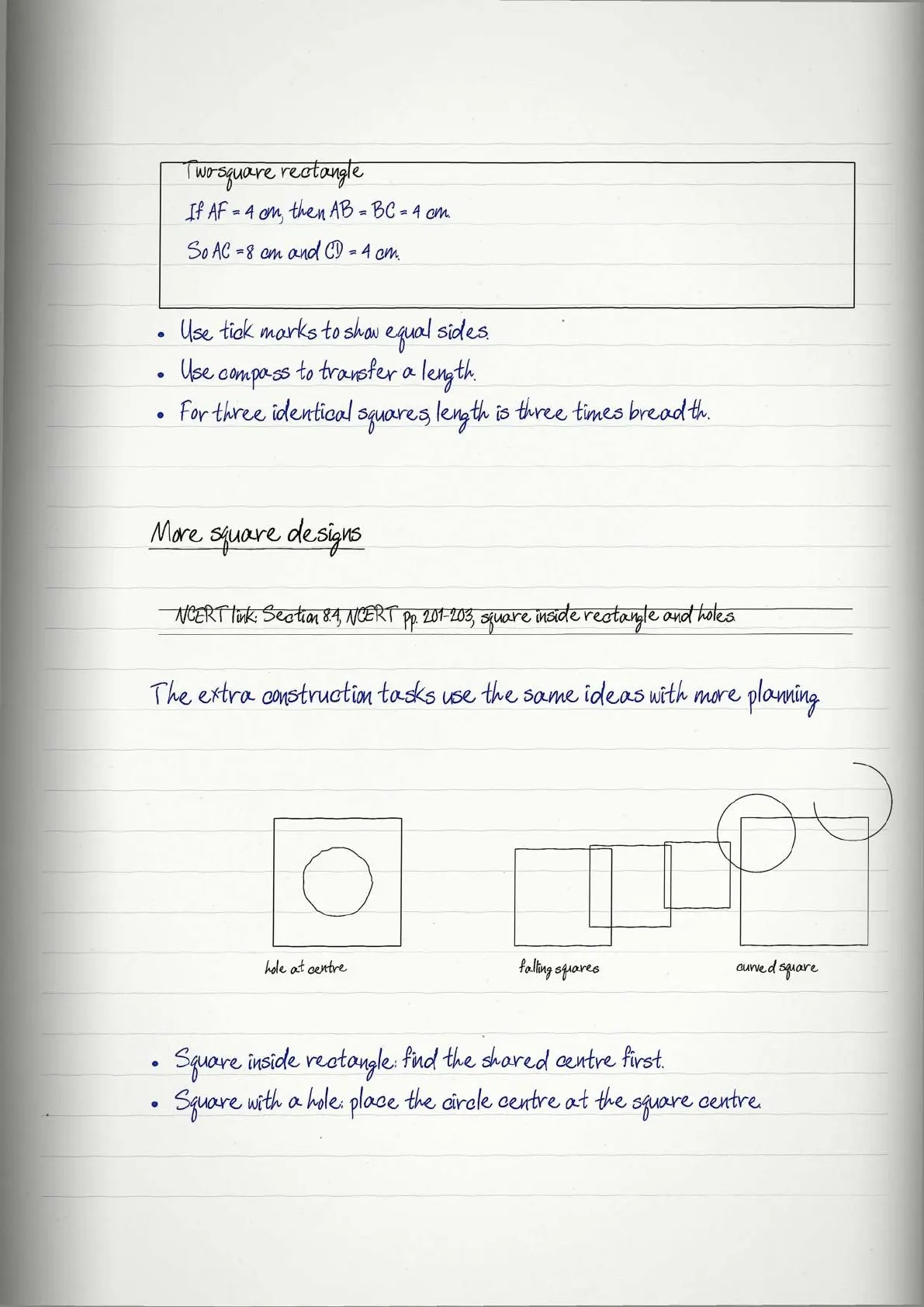

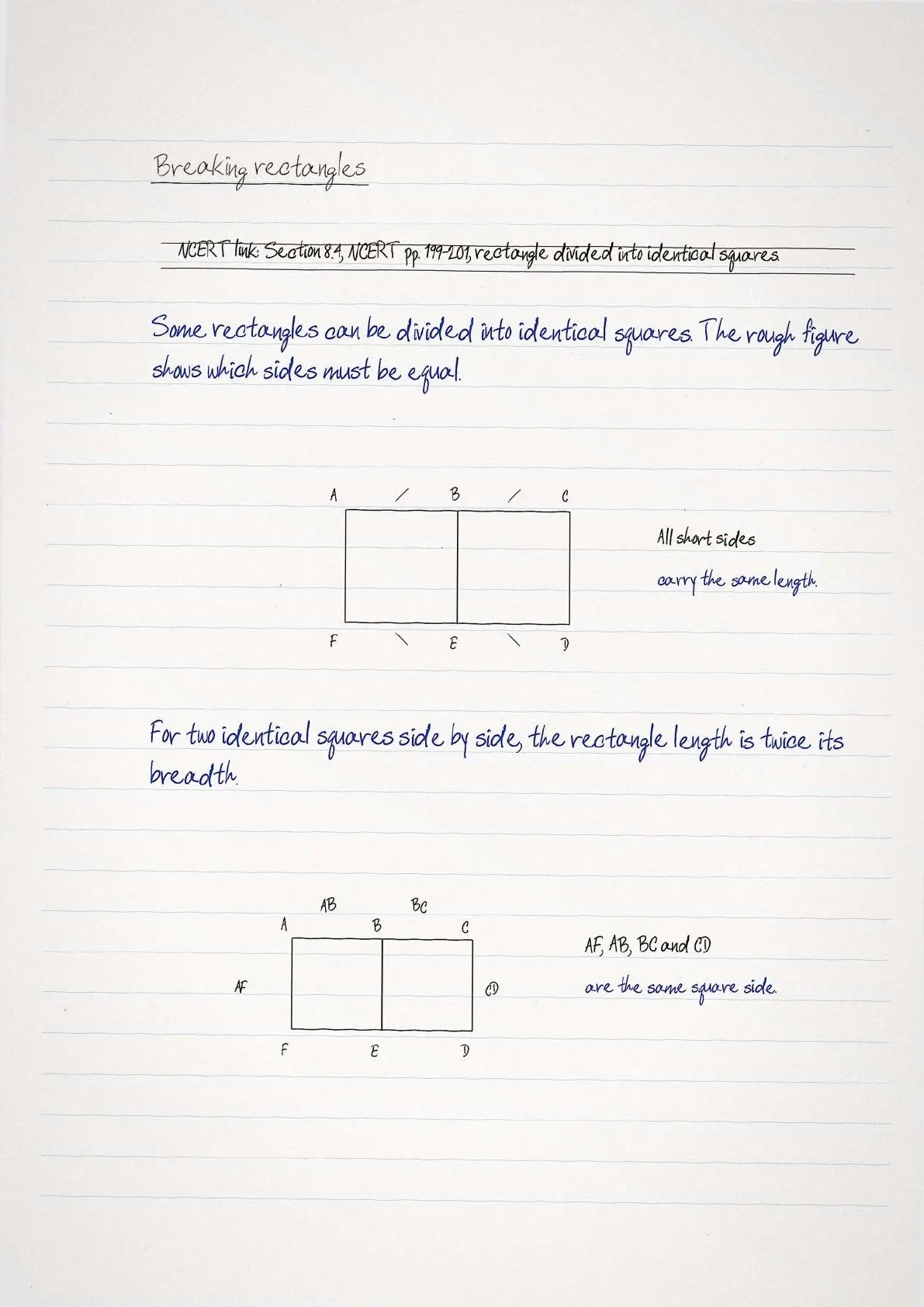

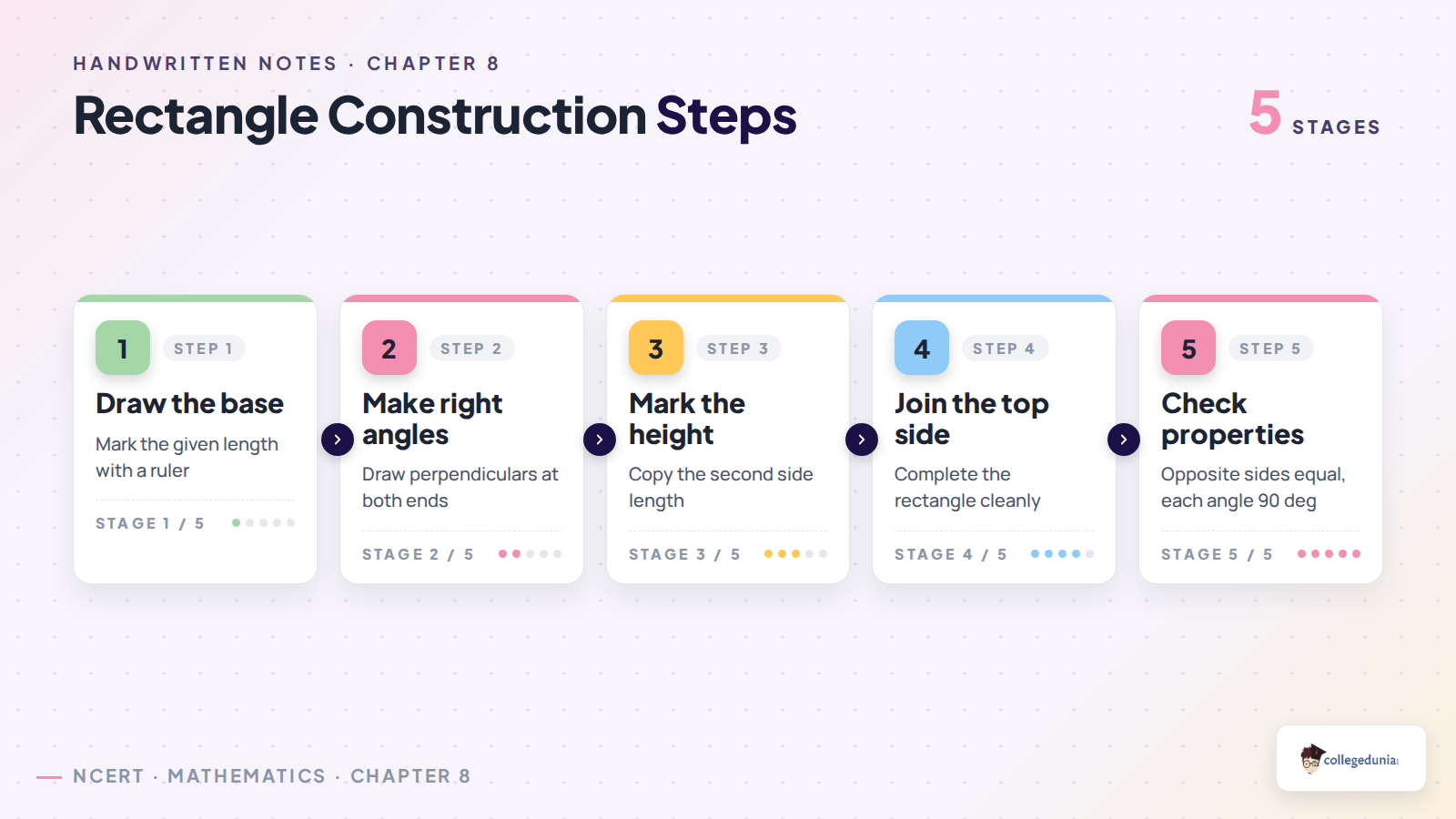

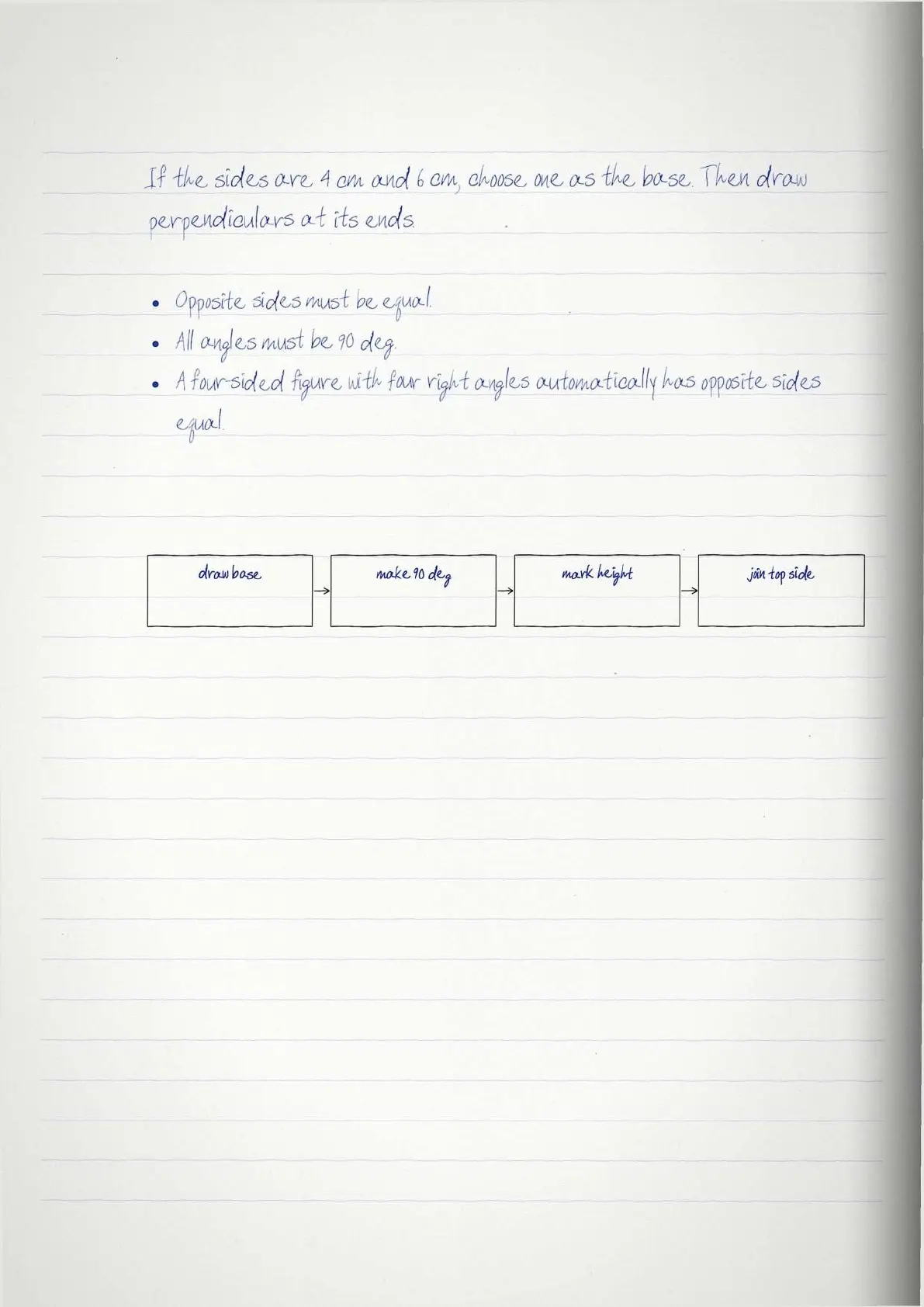

Square and Rectangle Construction Steps for Class 6 Students
A square or rectangle is built from a base line and right angles. The rough figure shows which side is drawn first and which length must be copied next.
- Draw the base with the given length.
- Make perpendiculars at the base ends.
- Mark the second side length on both perpendiculars.
- Join the top points and check every angle.

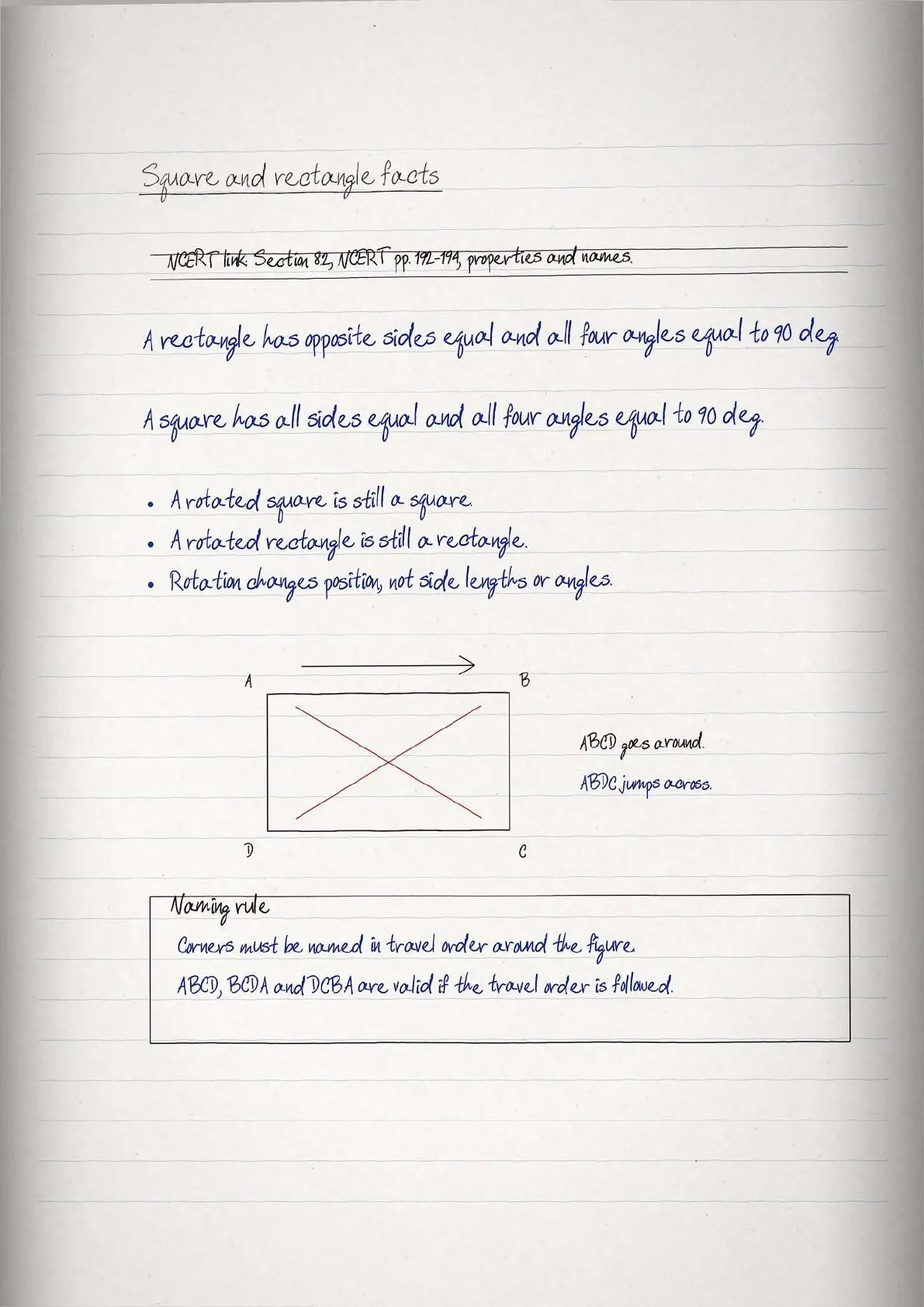

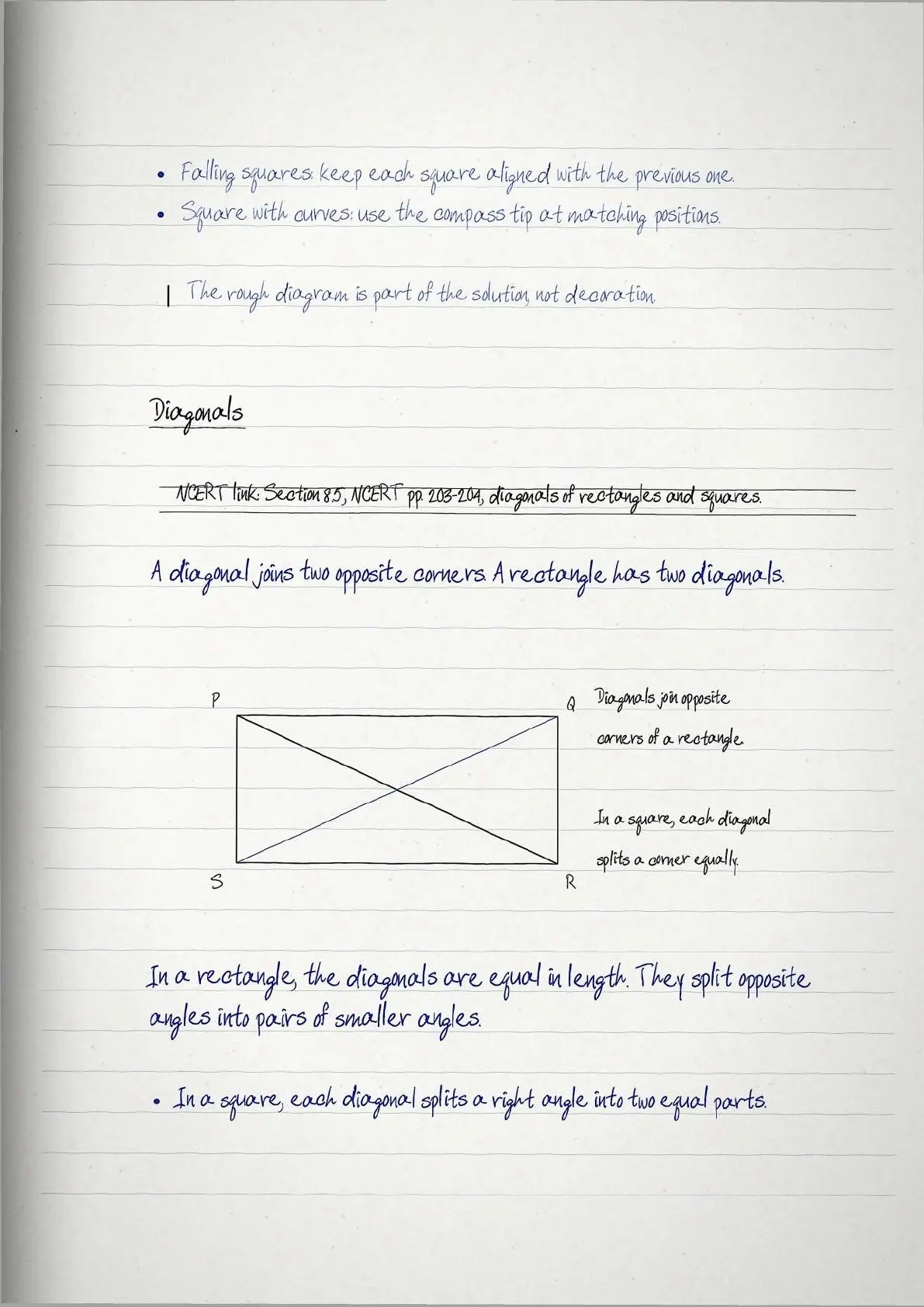

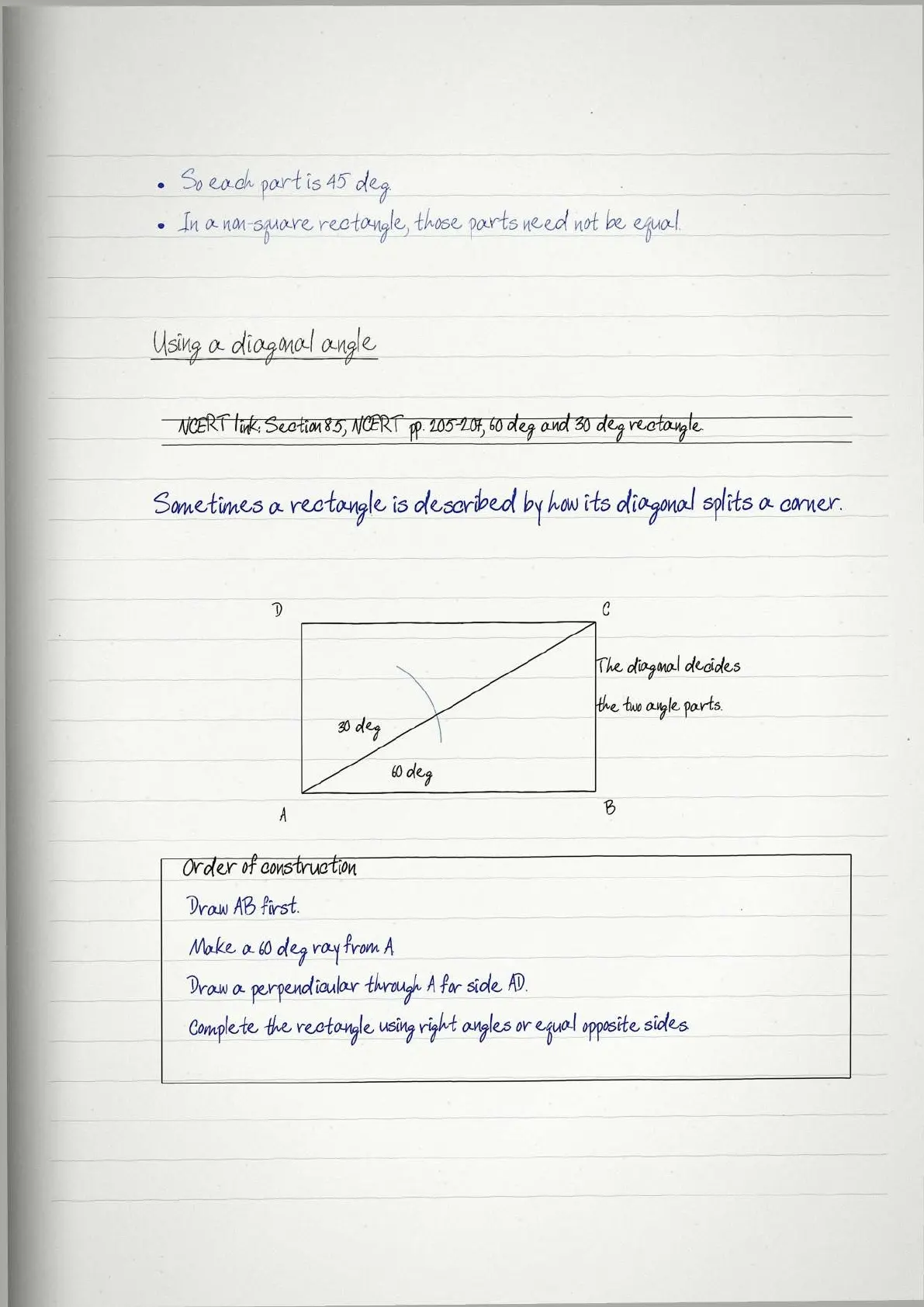

Diagonals and Equal-Distance Constructions in Chapter 8
A diagonal joins opposite corners of a rectangle or square. In a square, the diagonal also splits each right angle into two equal parts. This fact helps students check angle-based construction questions.

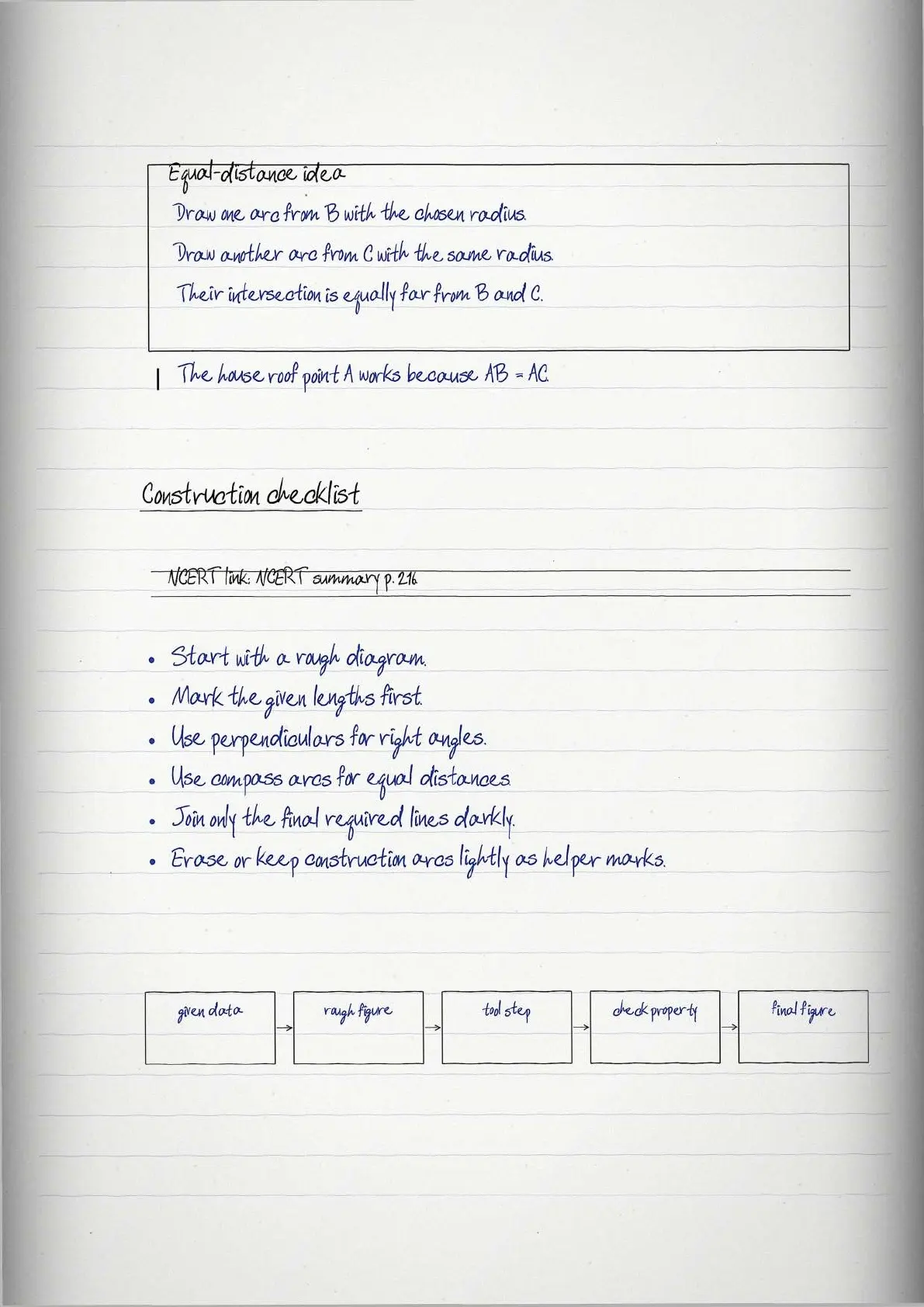

For equal-distance points, draw two arcs using the same compass opening. The intersection point is equally far from both fixed points.

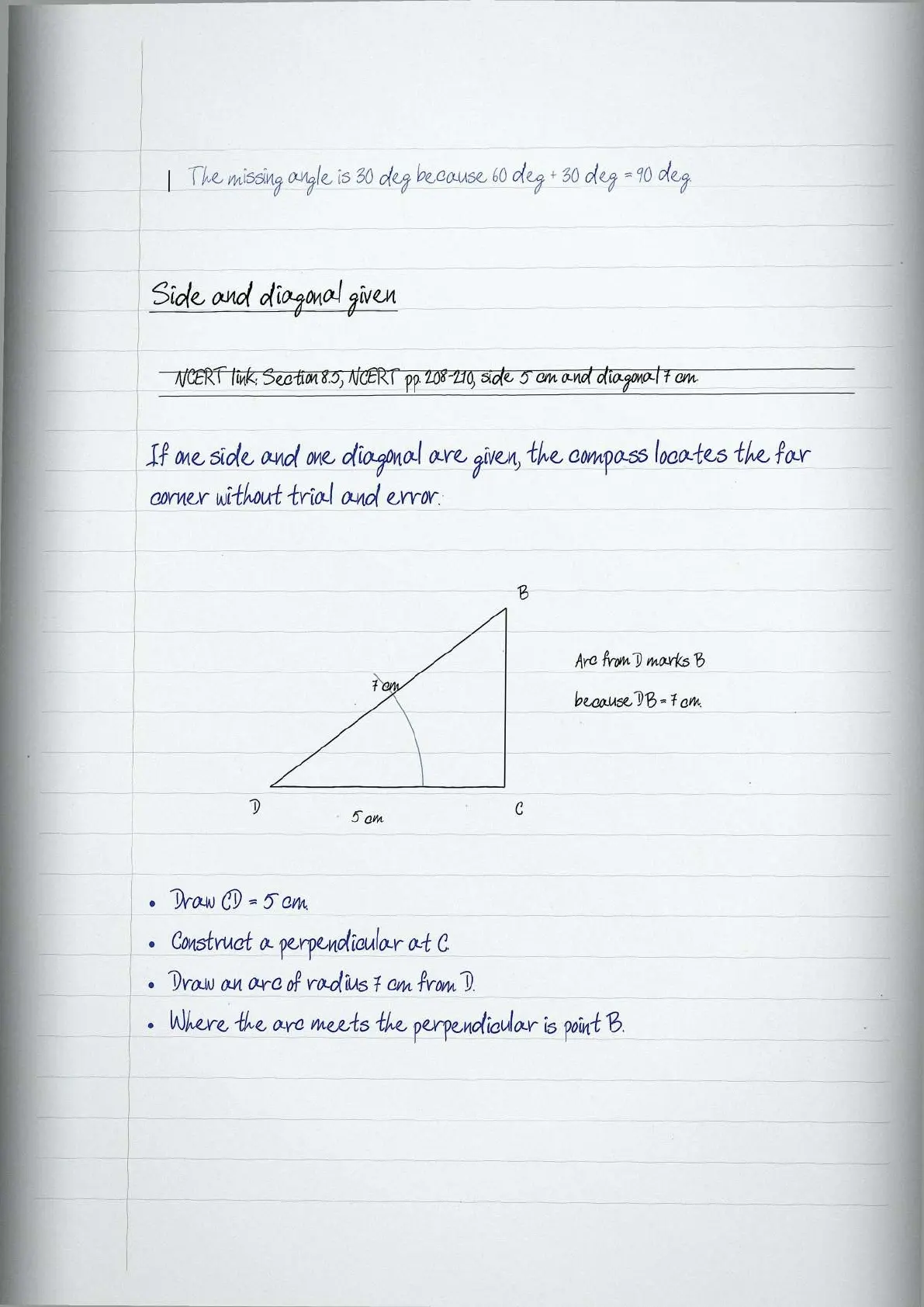

- Side plus diagonal: draw the side first, then use the diagonal as a compass radius.

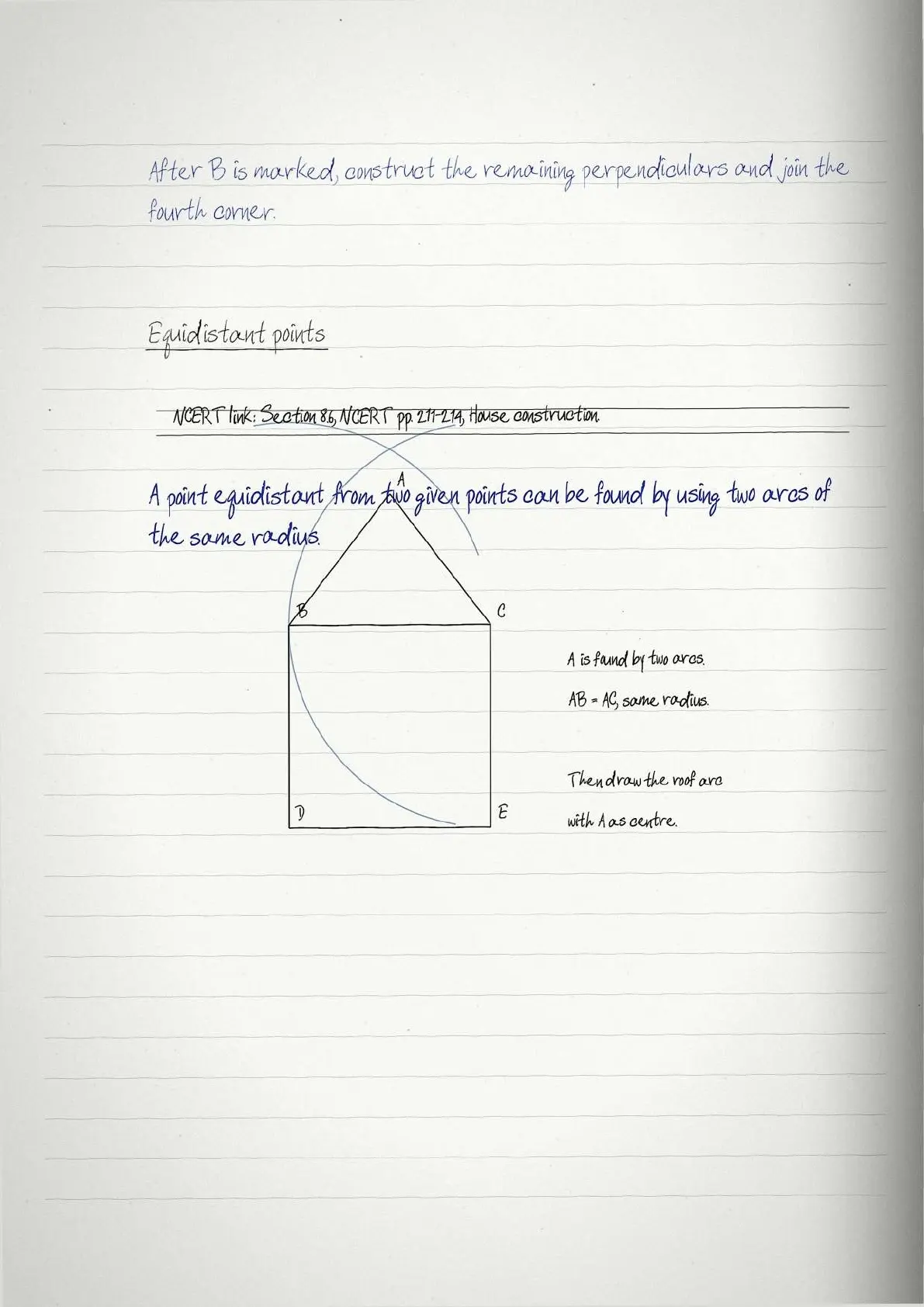

- House construction: equal arcs from B and C locate the roof point A.
- Final check: label every point before writing the construction steps.

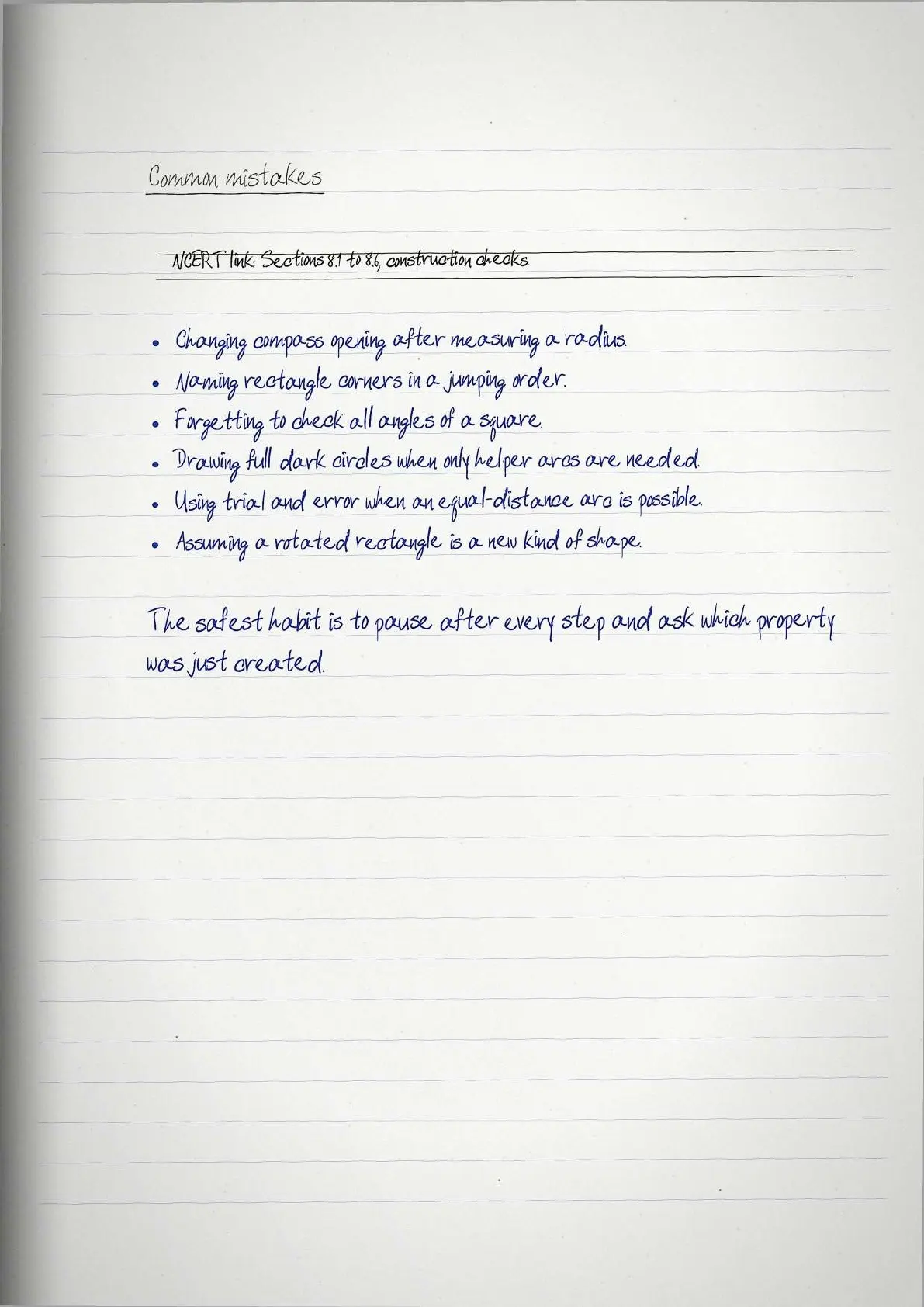

Common Mistakes Students Make in Playing with Constructions
Most construction mistakes come from skipping the rough diagram. Students may name corners in a jumping order or change the compass opening after measuring a side.
- Do not name corners by jumping across the figure.
- Do not change the compass opening after copying a length.
- Do not use a triangle diagram for a rectangle question.
- Do not skip the final property check.
Tip: write the given data beside the rough figure before starting the final drawing.
Related NCERT Resources for Playing with Constructions Class 6
| Resource | Link |
|---|---|
| NCERT Solutions | Class 6 Mathematics Chapter 8 NCERT Solutions |
| NCERT Book PDF | Class 6 Mathematics Chapter 8 Book PDF |
| NCERT Notes | Class 6 Mathematics Chapter 8 Notes |
More Class 6 Mathematics Handwritten Notes
| Chapter | Handwritten Notes |
|---|---|
| Chapter 1 | Patterns in Mathematics |
| Chapter 2 | Lines and Angles |
| Chapter 3 | Number Play |
| Chapter 4 | Data Handling and Presentation |
| Chapter 5 | Prime Time |
| Chapter 6 | Perimeter and Area |
| Chapter 7 | Fractions |
Playing with Constructions Class 6 Handwritten Notes FAQs
Ques. What is covered in Class 6 Playing with Constructions handwritten notes?
Ans. The notes cover compass work, circles, arcs, squares, rectangles, moving points, diagonals and equal-distance constructions.
Ques. Are these notes based on the 2026-27 Ganita Prakash textbook?
Ans. Yes. The PDF follows Class 6 Mathematics Ganita Prakash Chapter 8 Playing with Constructions for the 2026-27 session.
Ques. How should students revise Playing with Constructions from this PDF?
Ans. Students should revise compass radius first, then square and rectangle steps, diagonals and equal-distance arc constructions.
Ques. Why are handwritten notes useful for construction chapters?
Ans. Handwritten notes keep each construction step beside a labelled sketch, which helps students remember the order faster.
