The NCERT Book PDF for Class 11 Engineering Graphics Chapter 7 Section of Solids gives students the textbook pages on section planes, sectional views, hatching, points of intersection and true shape of sections for the 2026-27 CBSE course.
- Page count: 56 pages from the Engineering Graphics textbook section on sectioning simple solids.

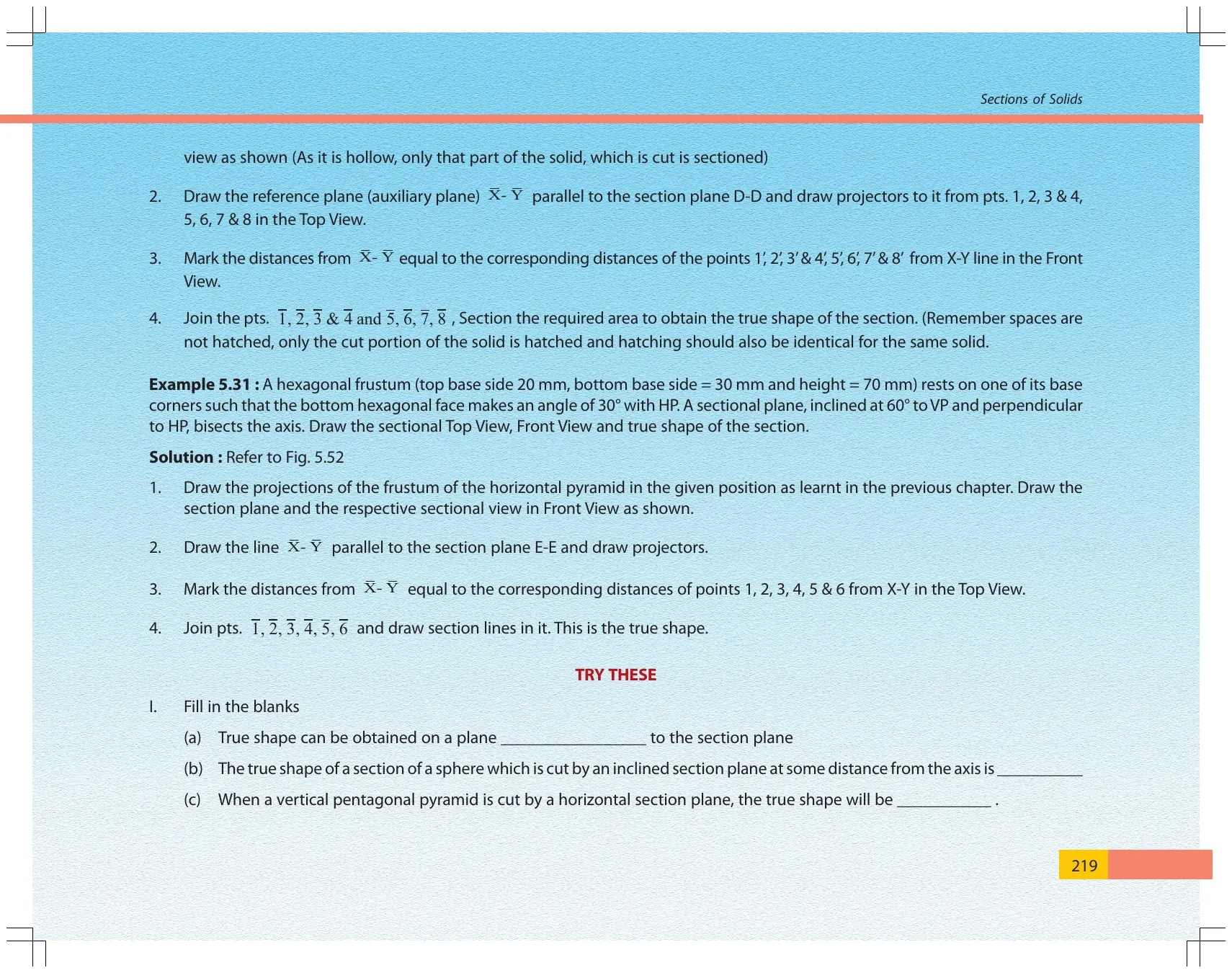

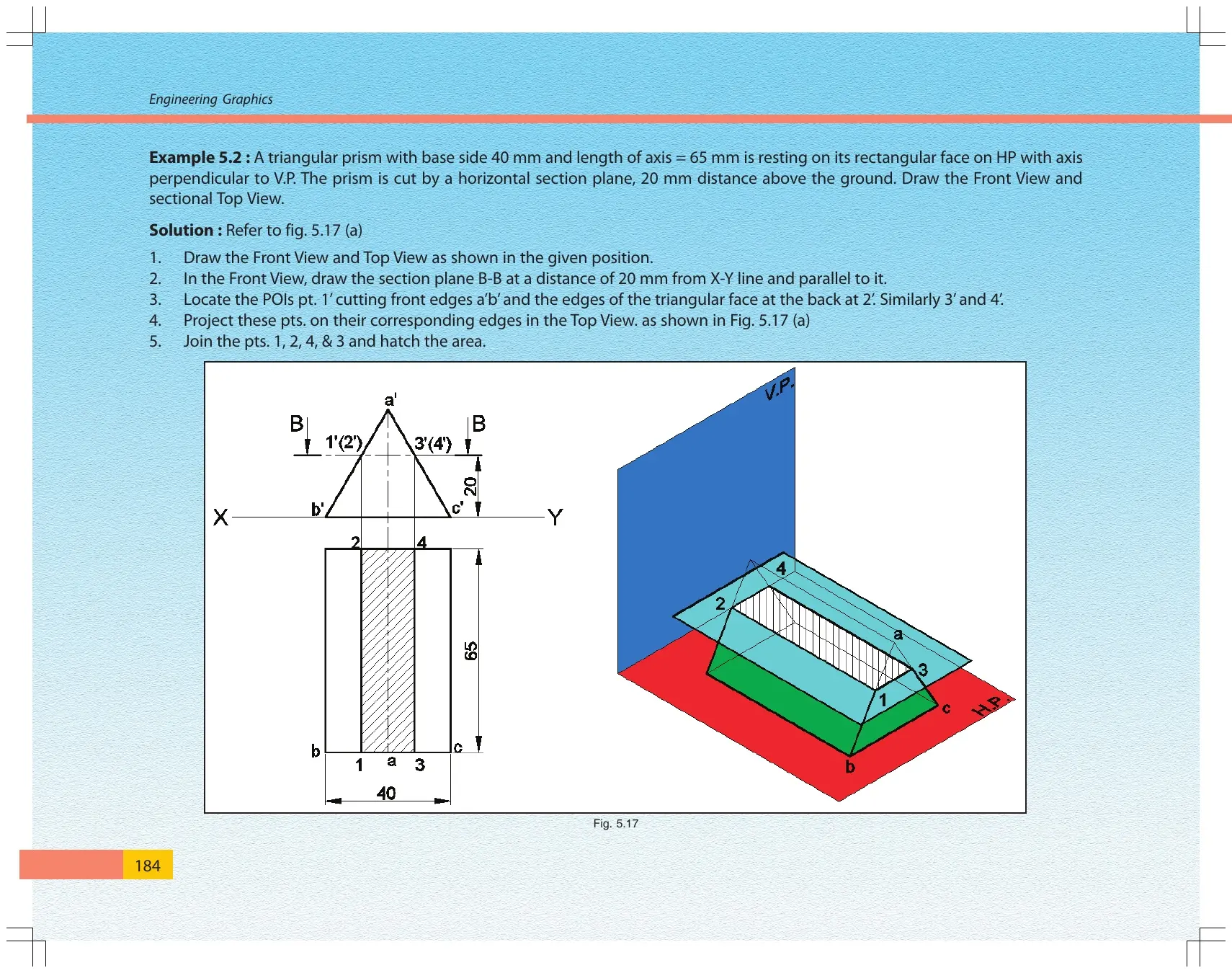

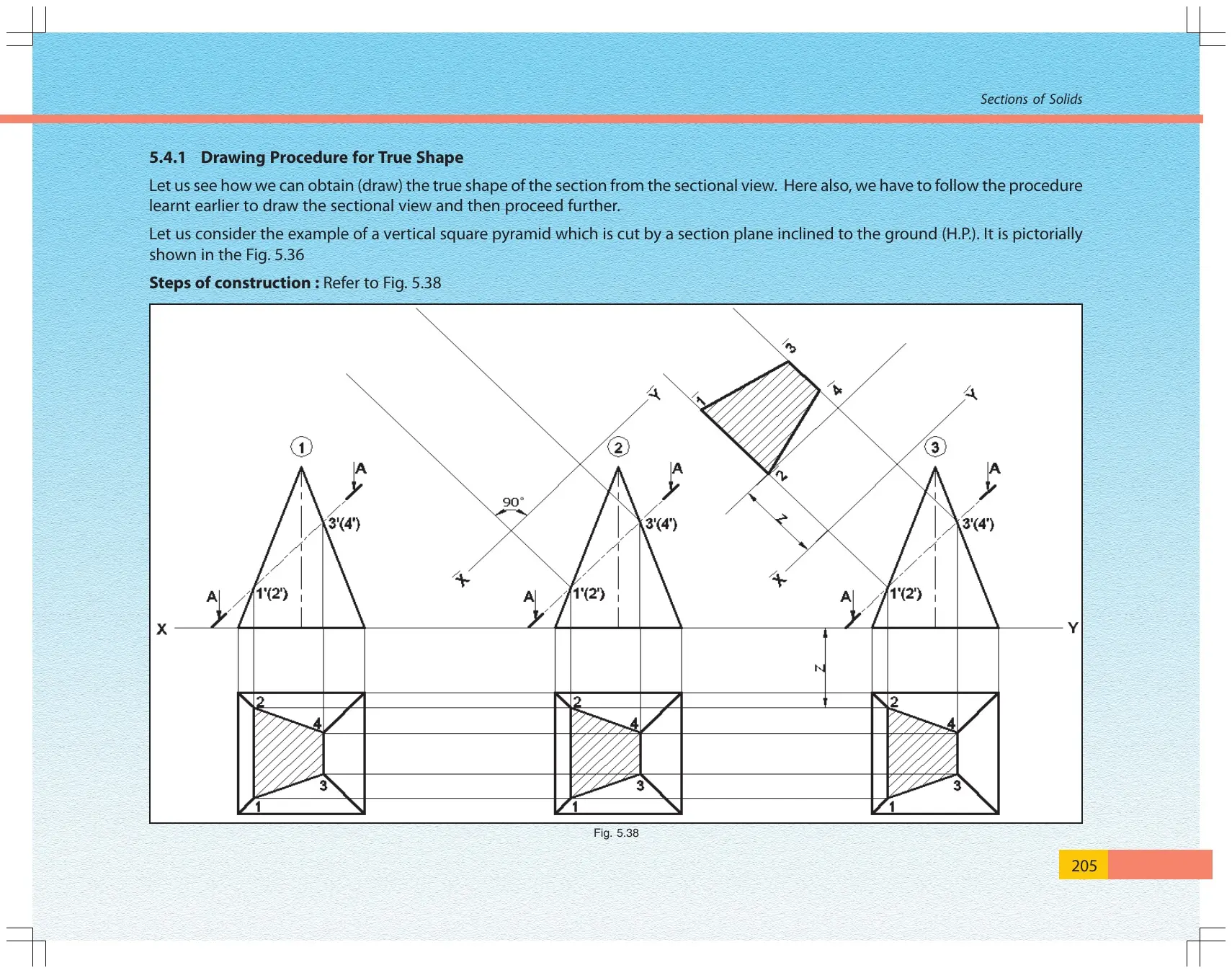

- Core focus: prisms, pyramids, cylinders, cones, spheres, cutting planes, section lines and auxiliary true shape construction.
- Best use: study one construction at a time, then redraw the front view and top view with a light pencil before hatching the section.
Student feedback: In internal revision checks, students made fewer sectioning mistakes after marking the cutting plane arrows before drawing the sectional view.
Chapter Highlights

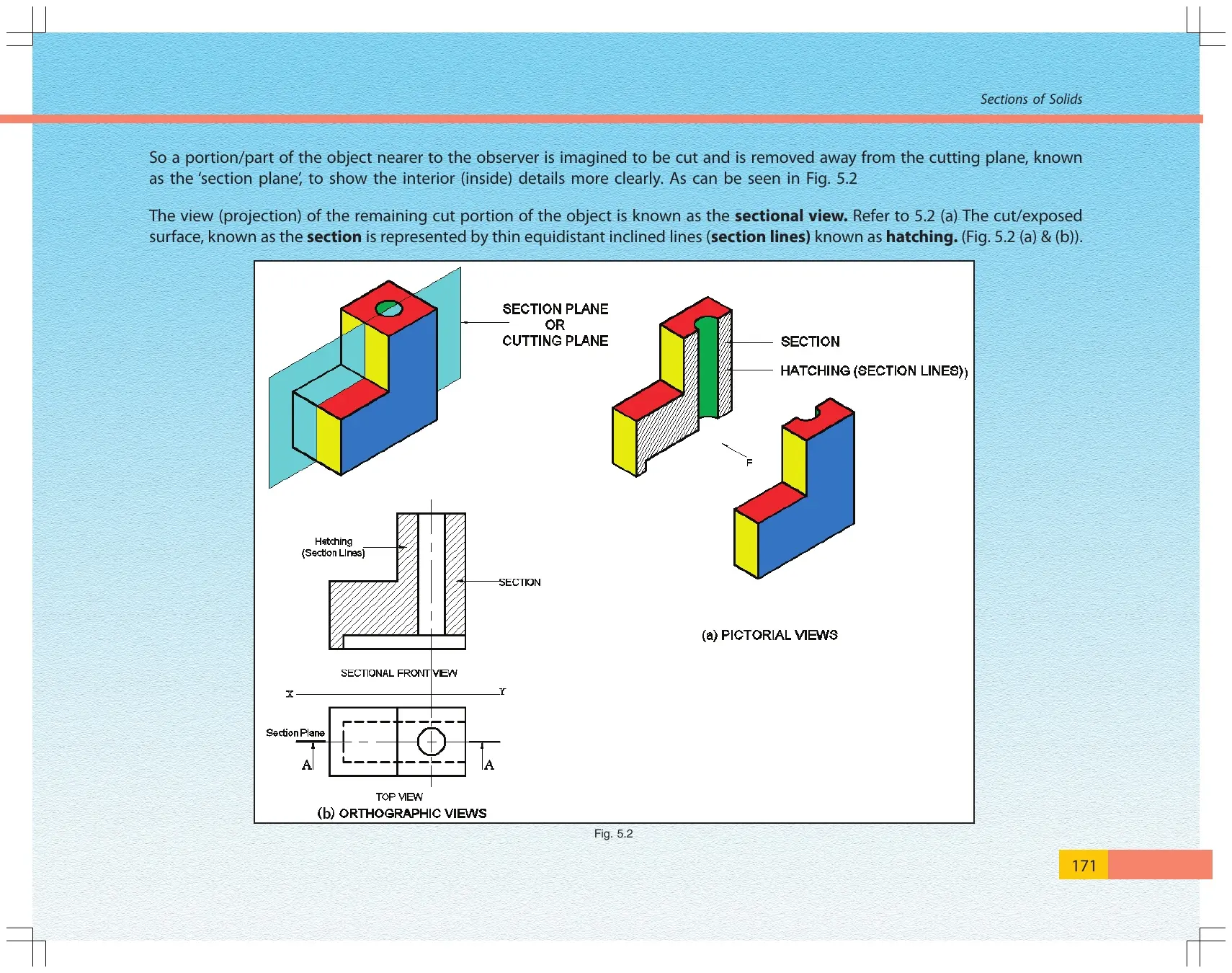

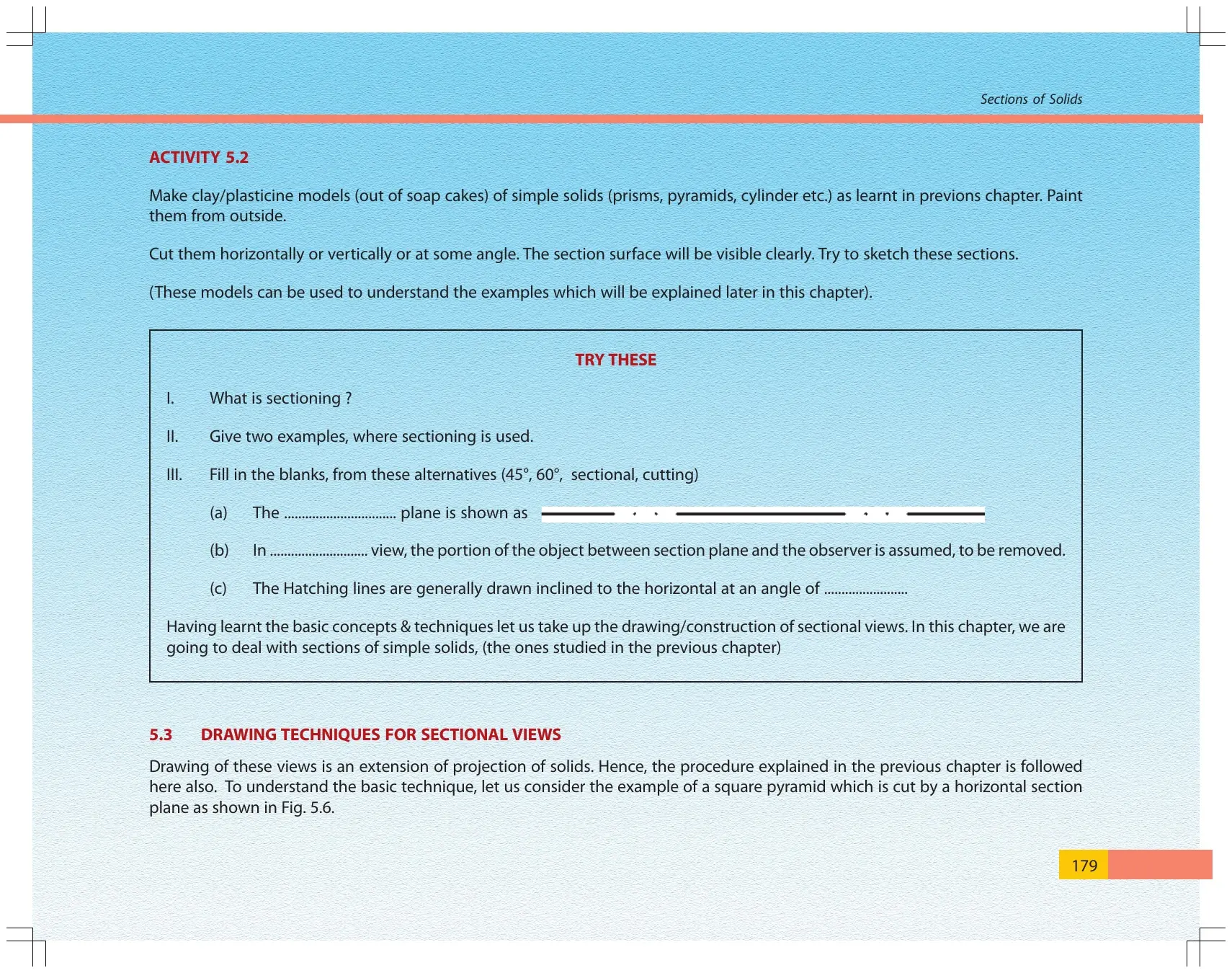

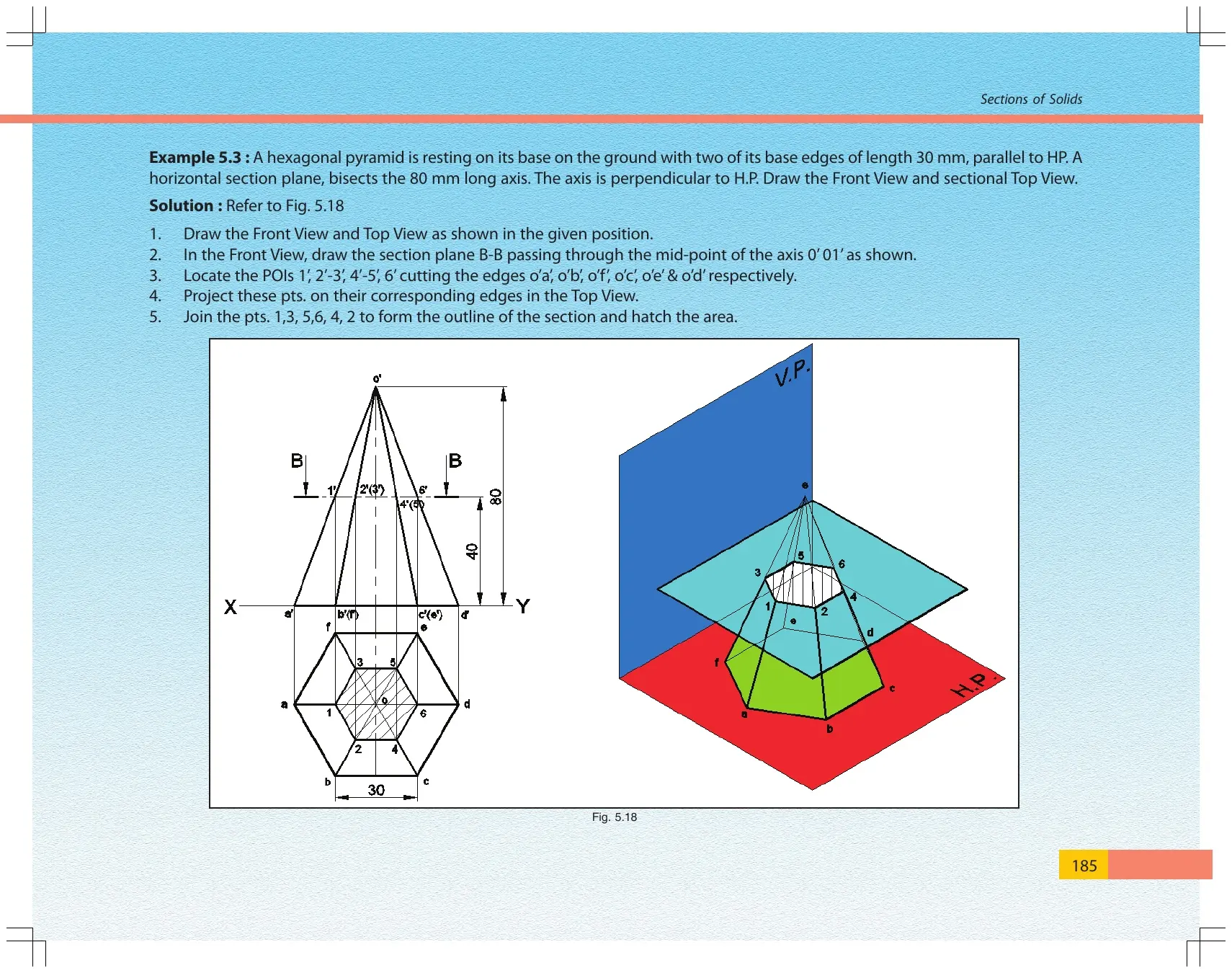

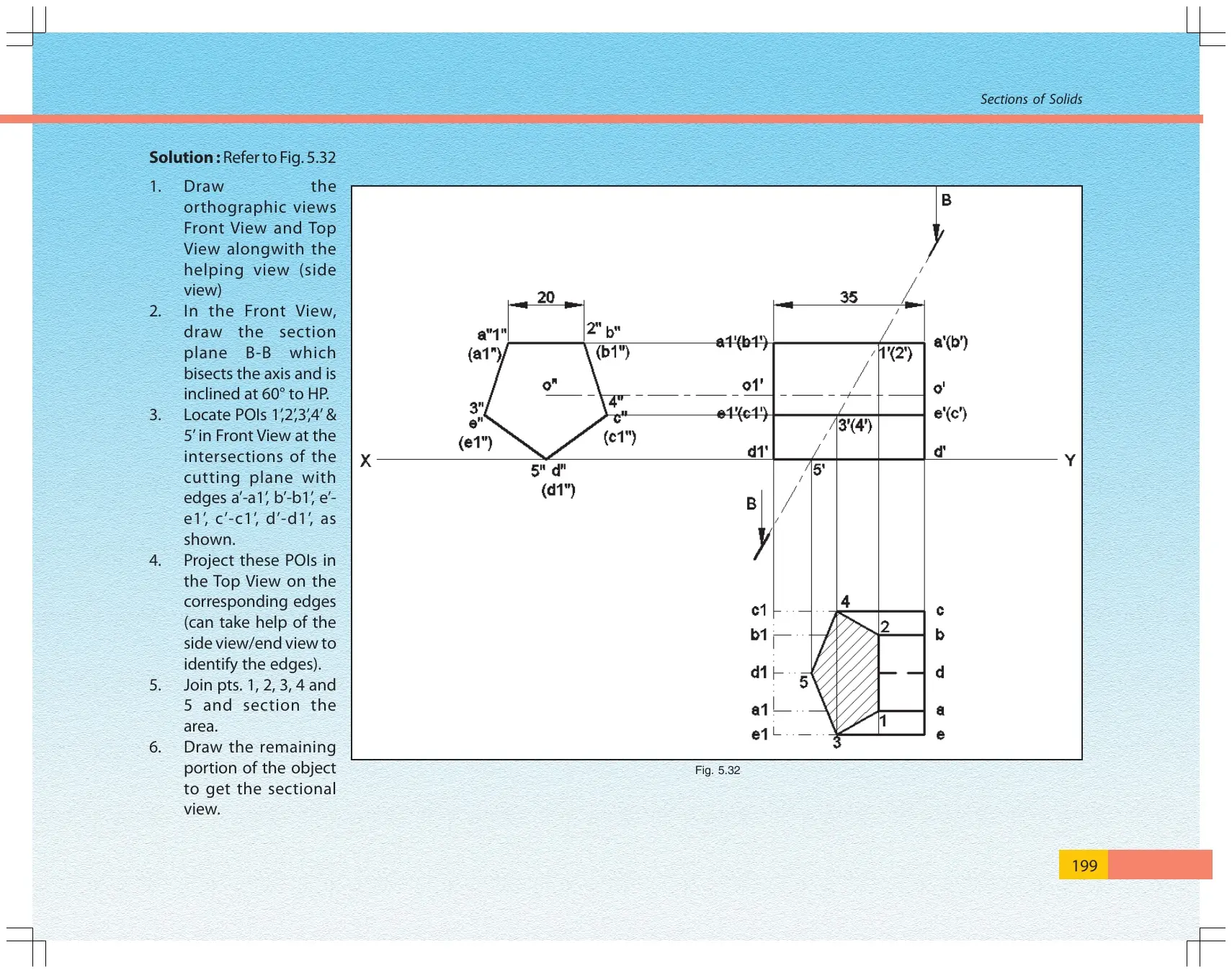

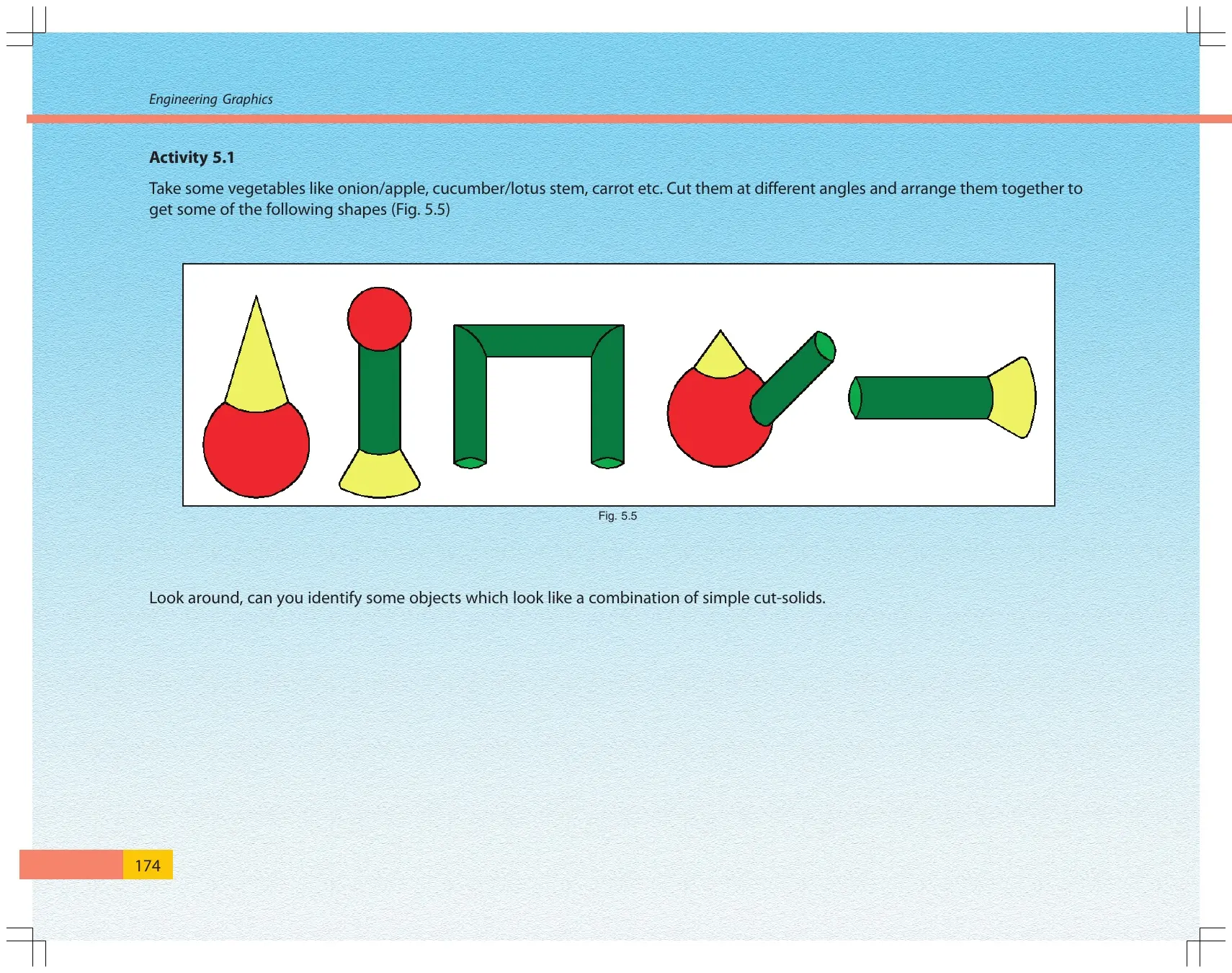

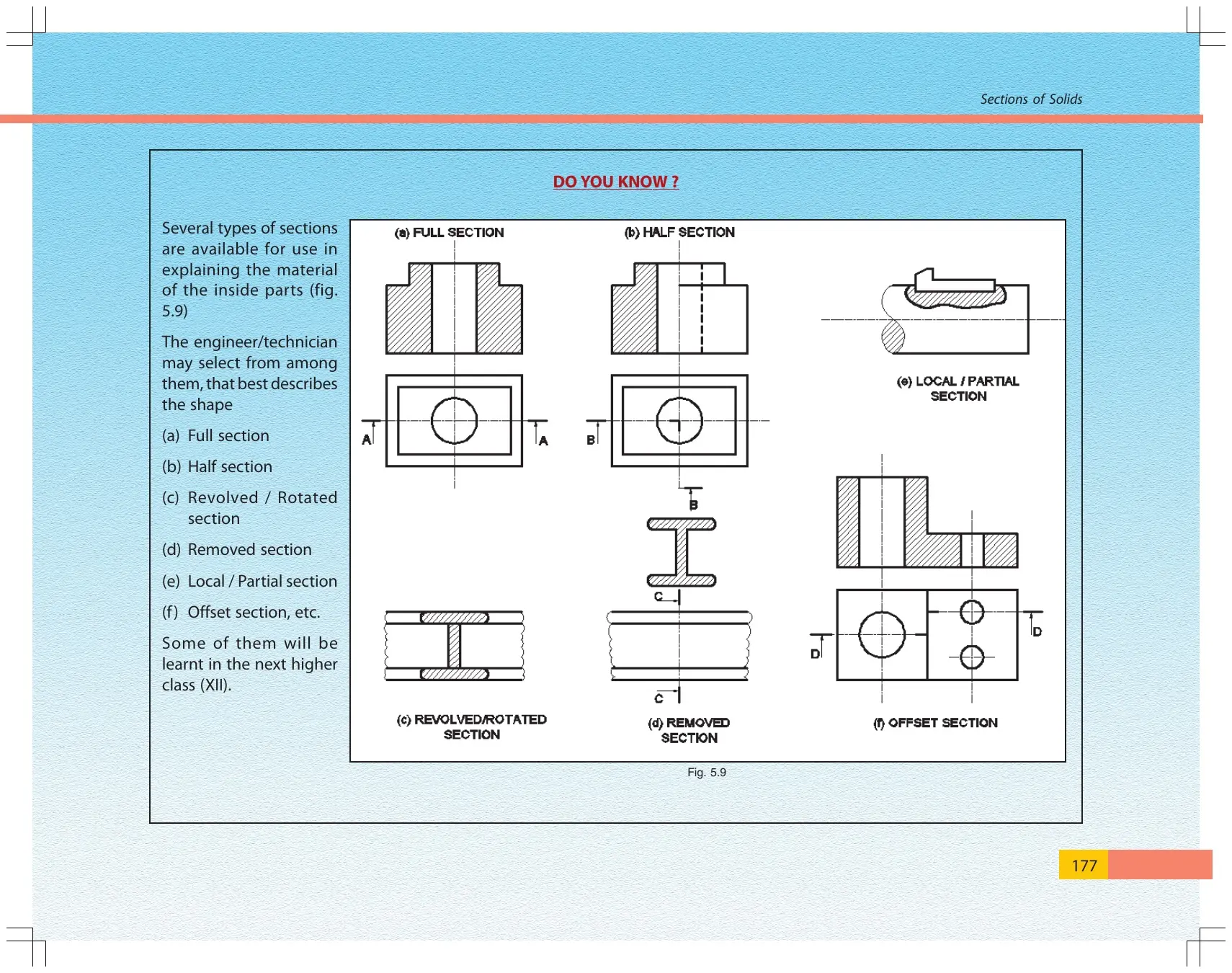

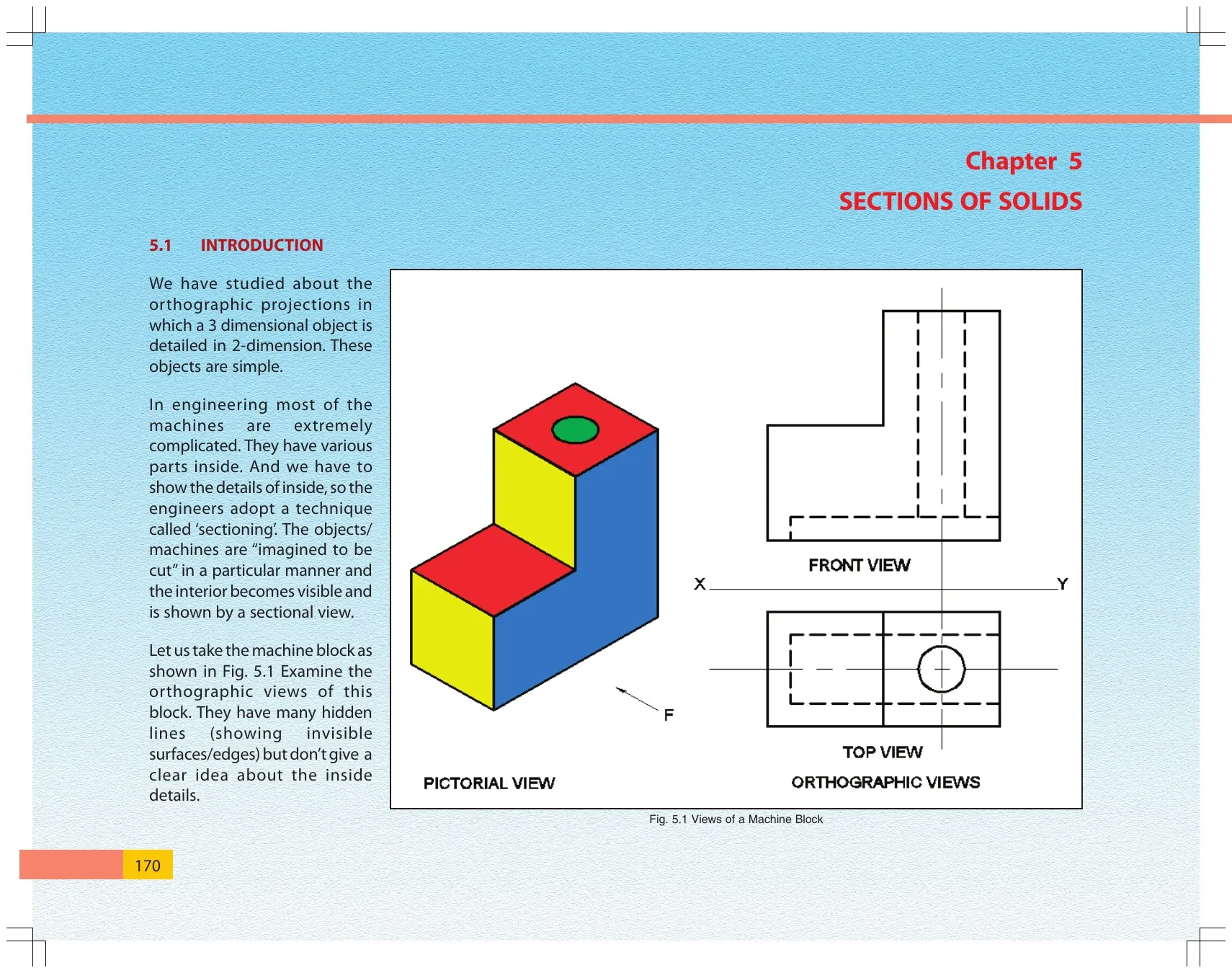

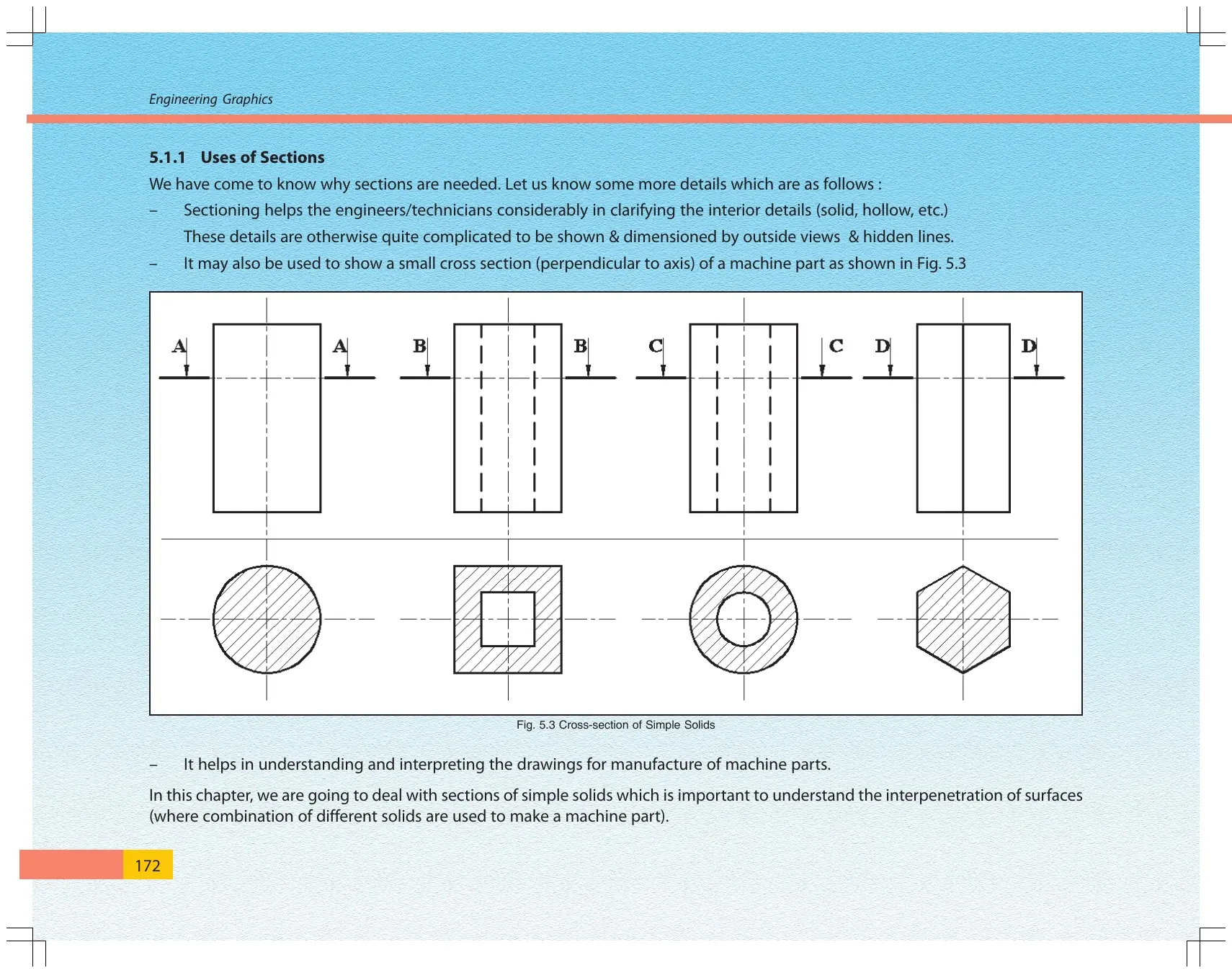

Chapter 7 explains how an imaginary cutting plane is used to reveal the internal details of a solid. The sectional view replaces a normal outside view when hidden details would otherwise make the drawing crowded. Students learn how to identify the section plane, project points of intersection and show the cut surface using neat hatching.

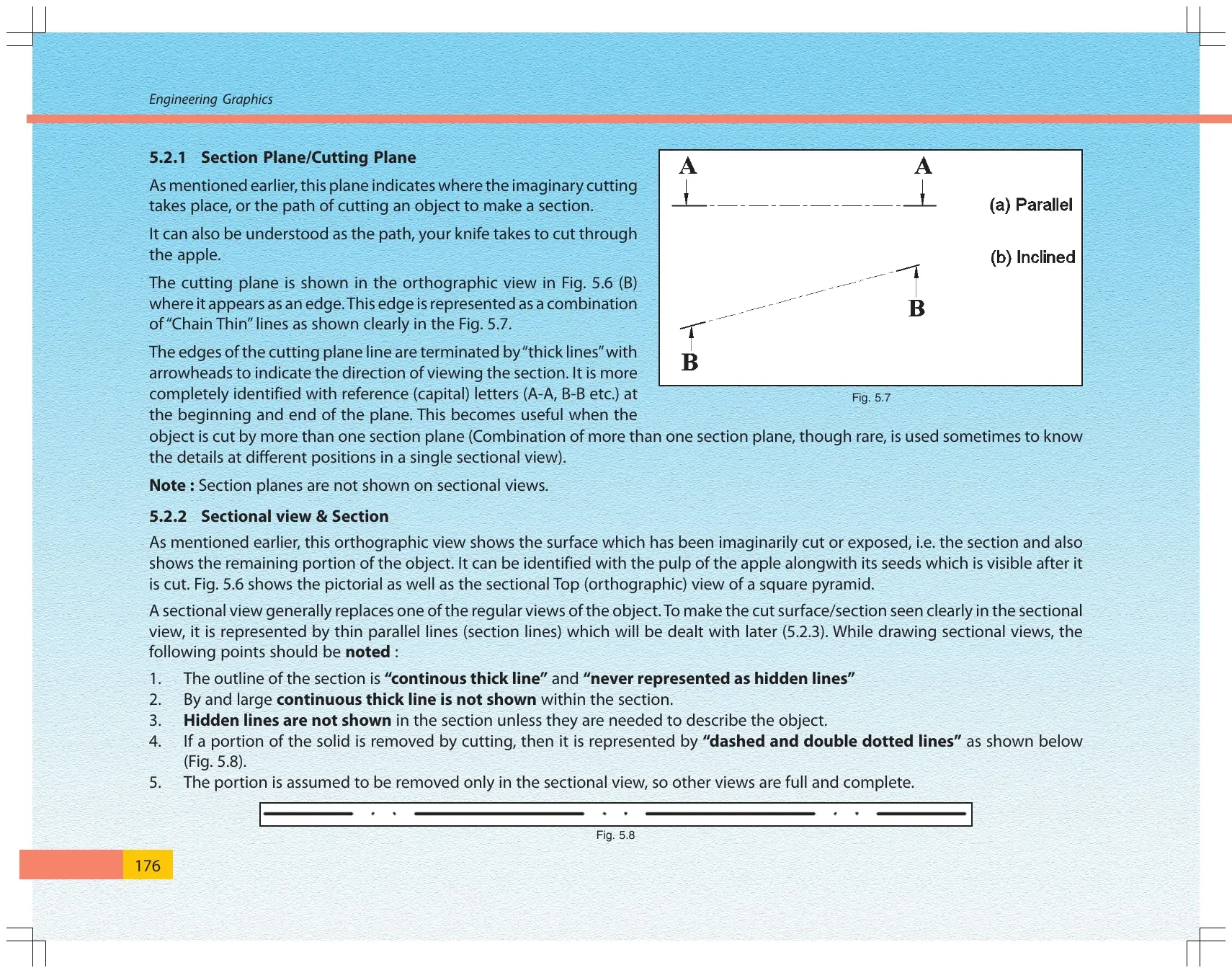

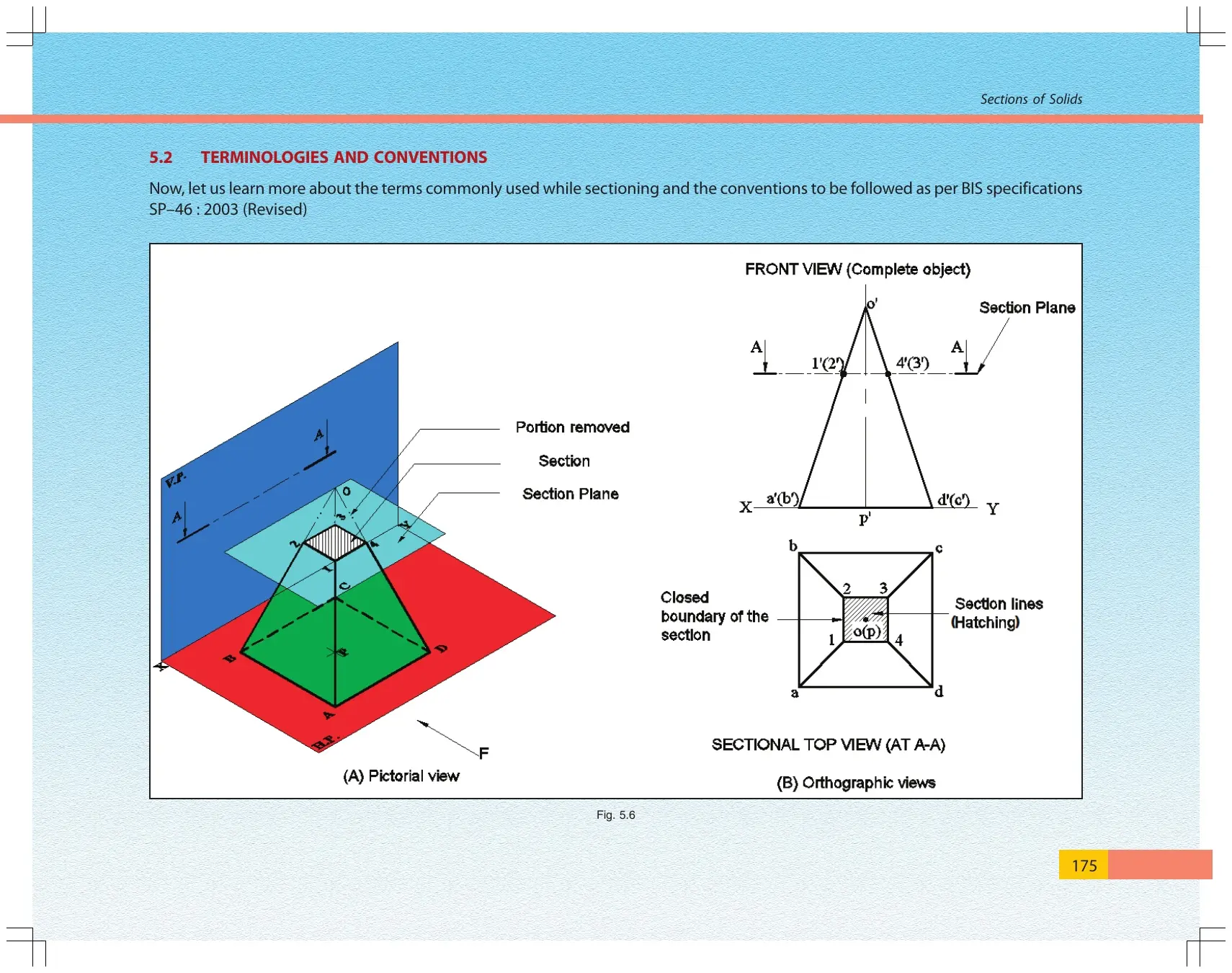

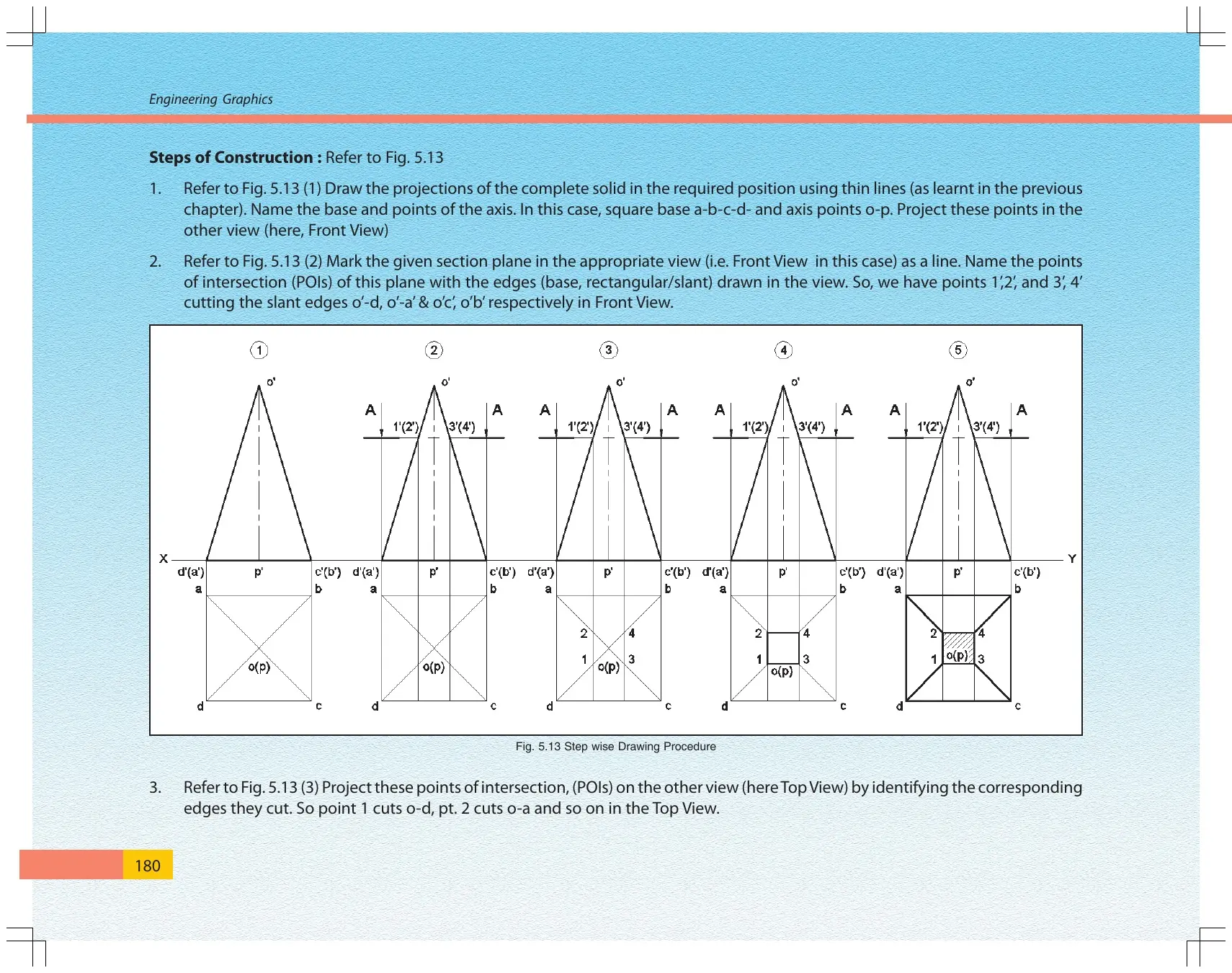

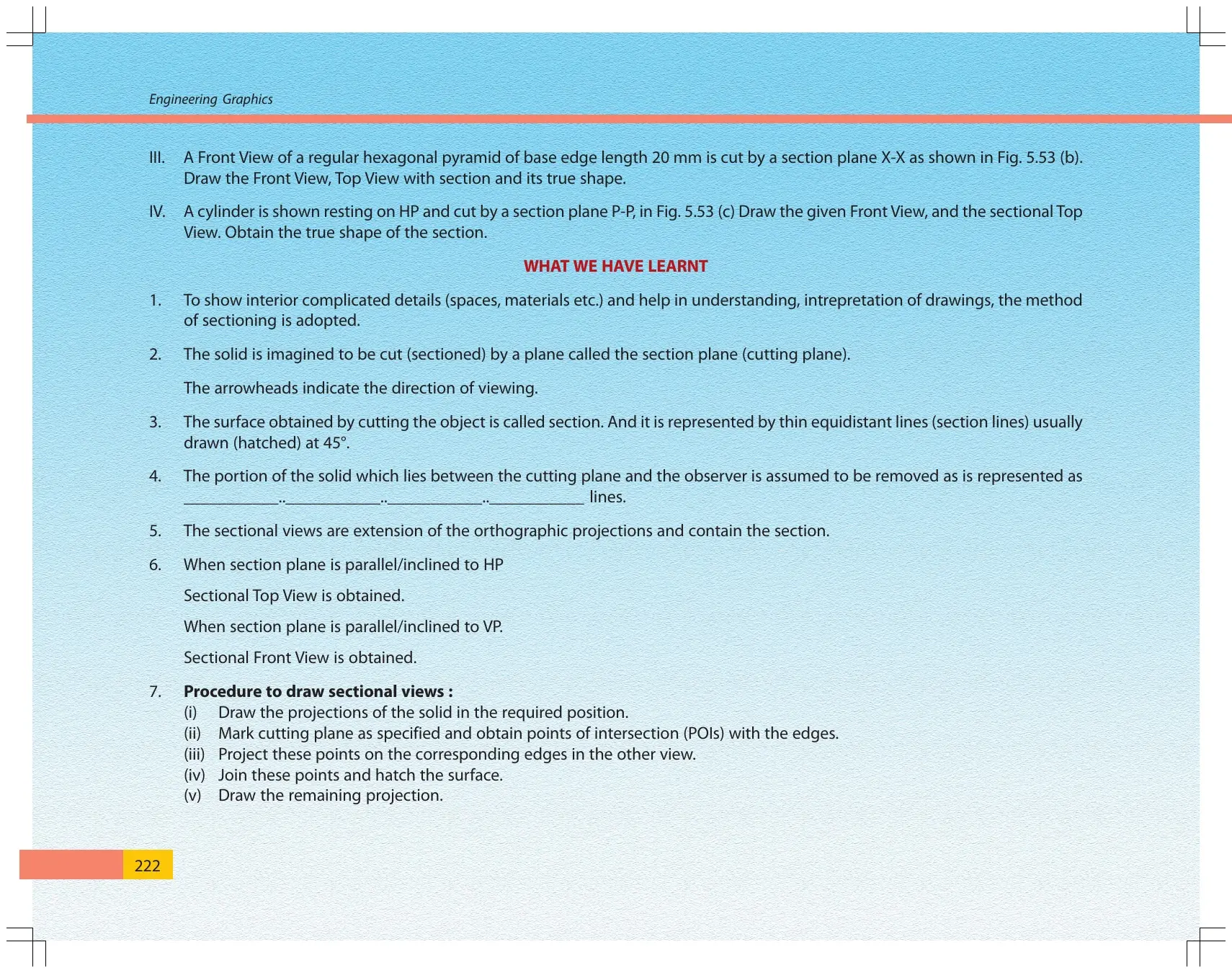

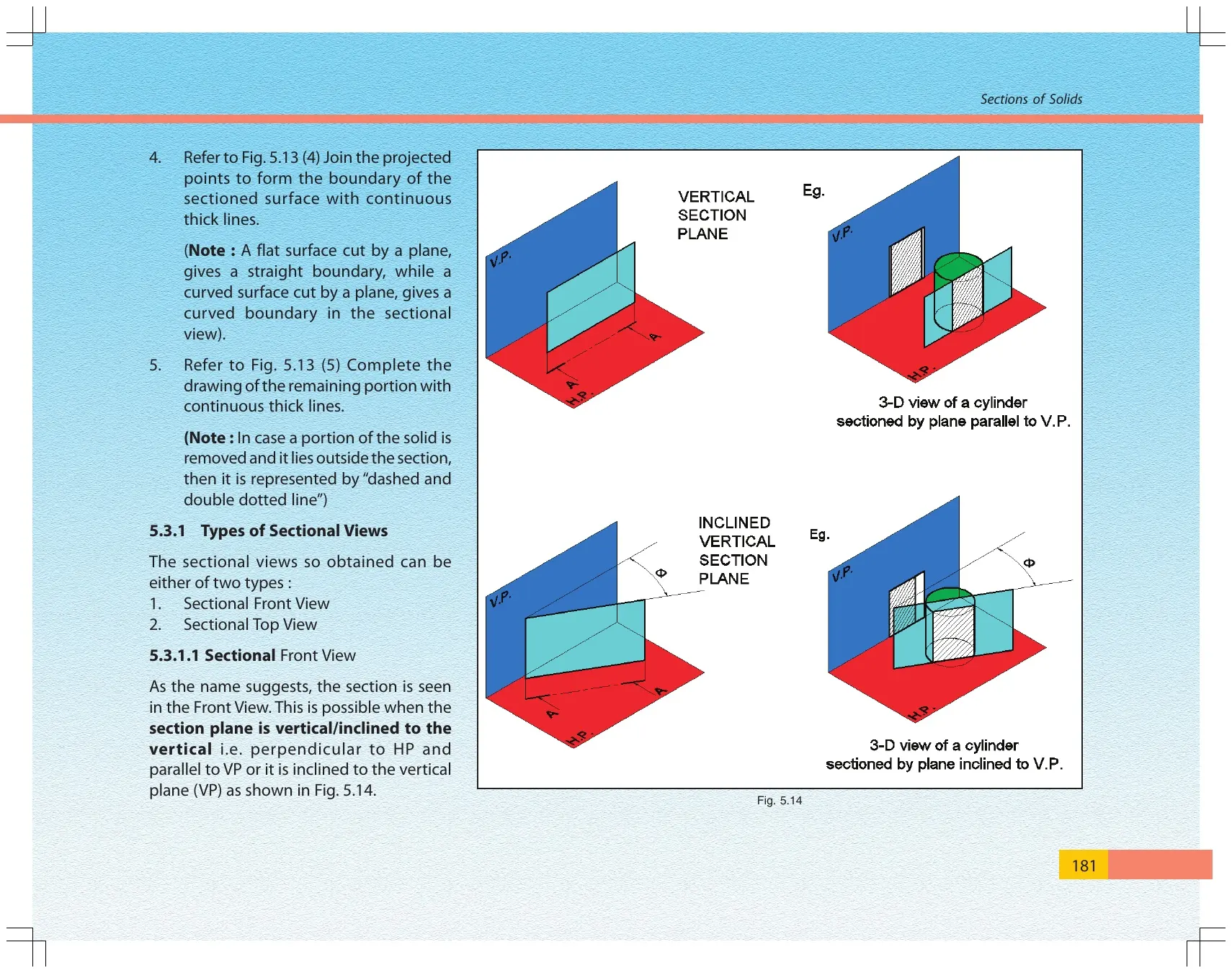

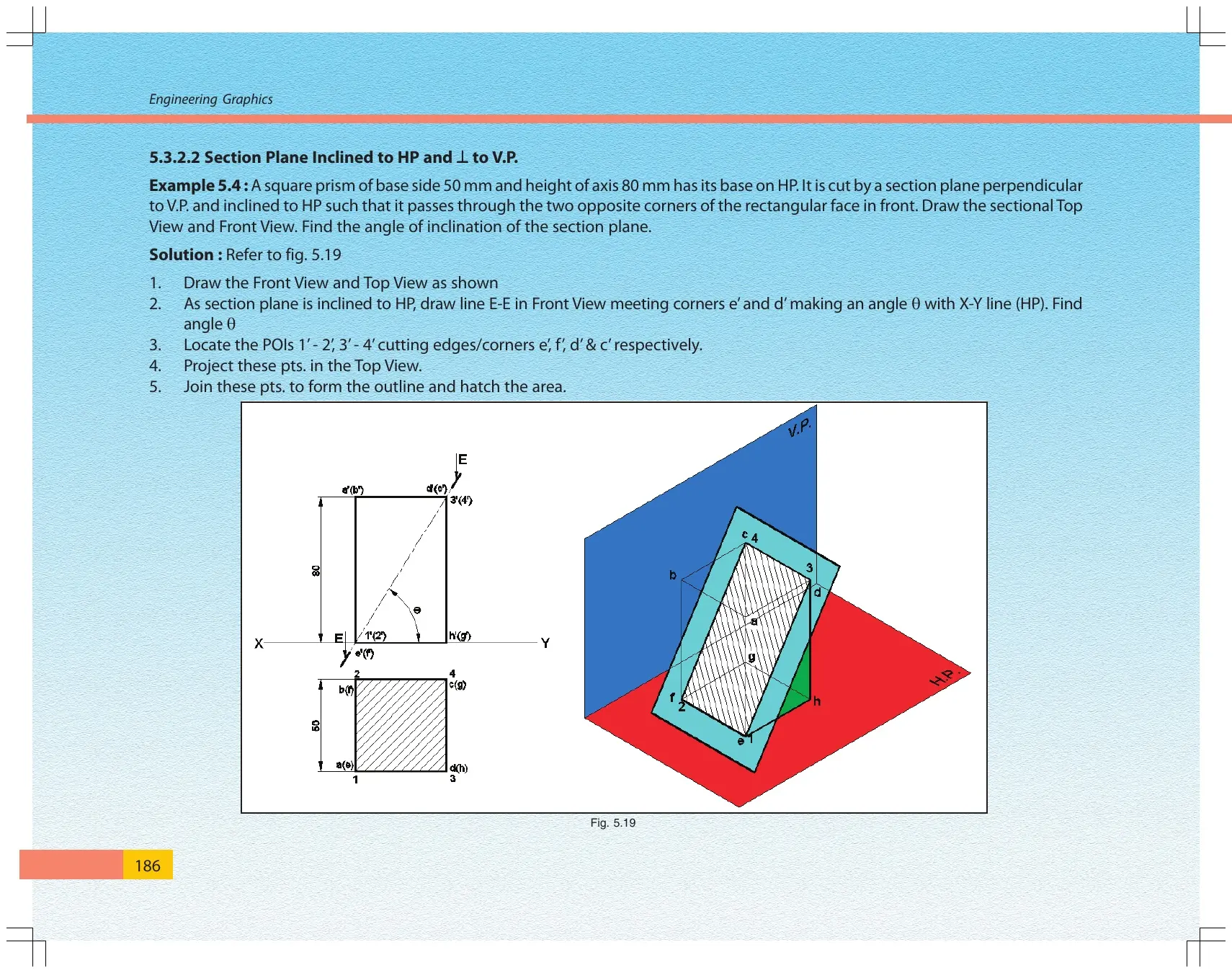

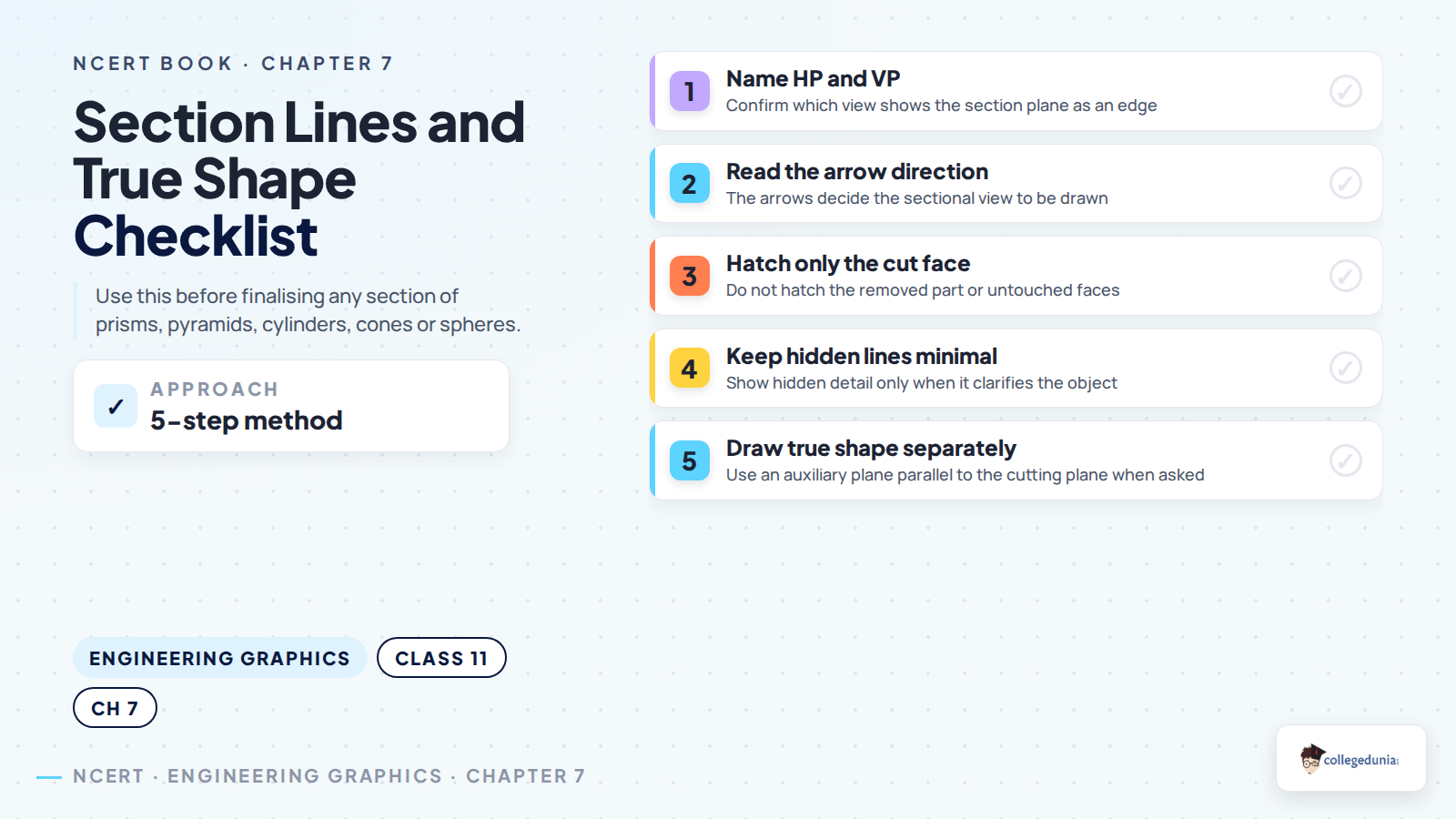

- The cutting plane is shown by a chain thin line with labelled ends and arrows.

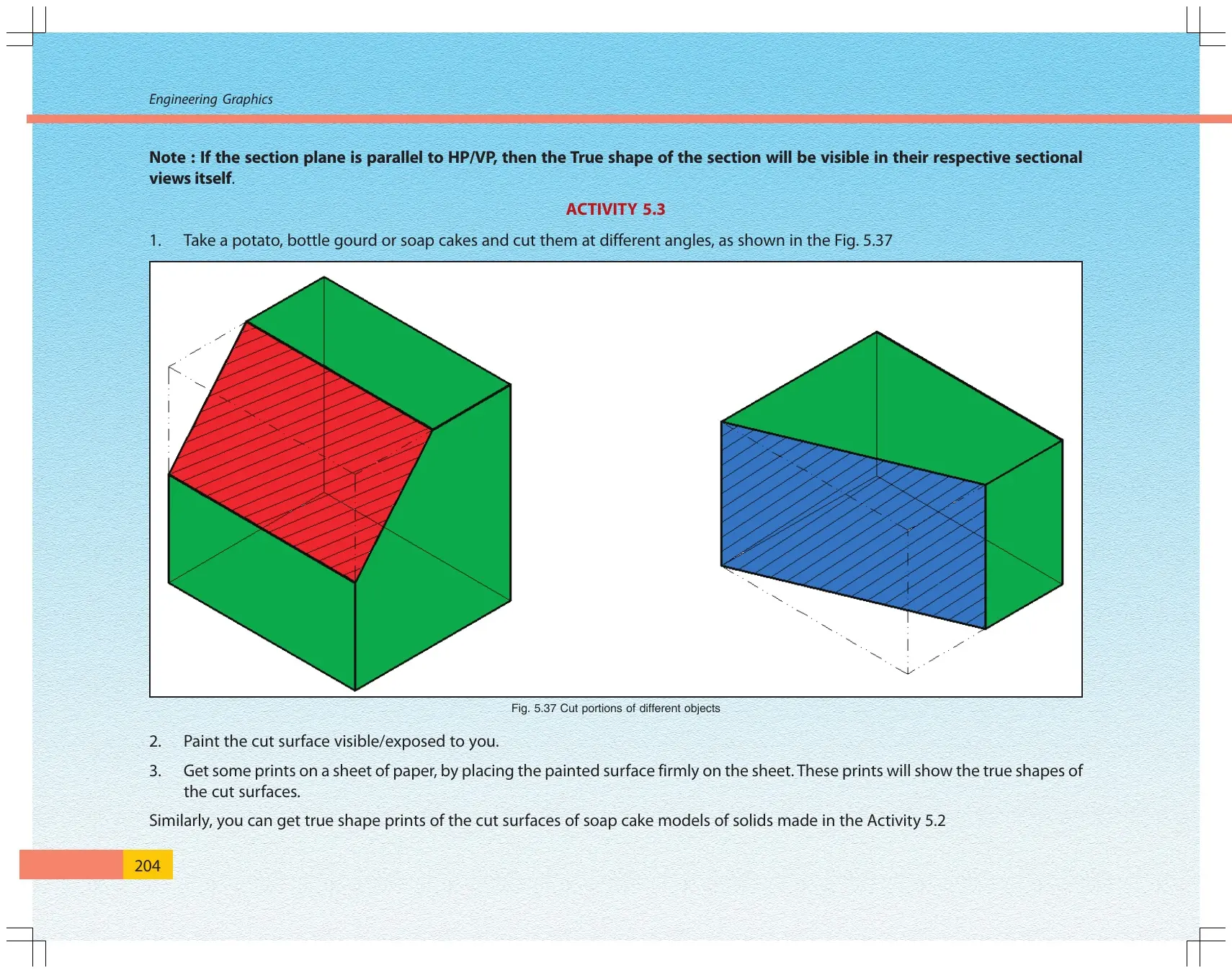

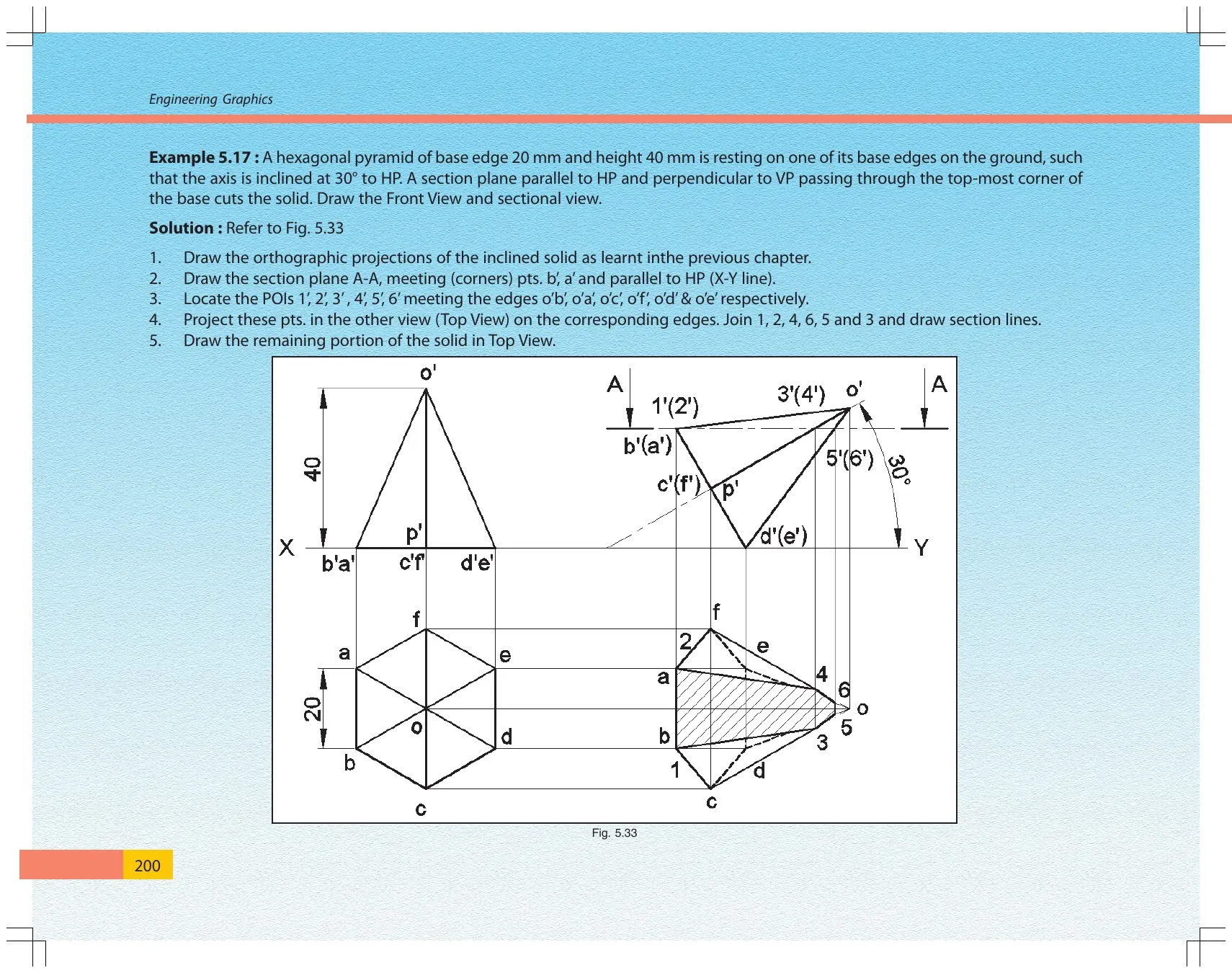

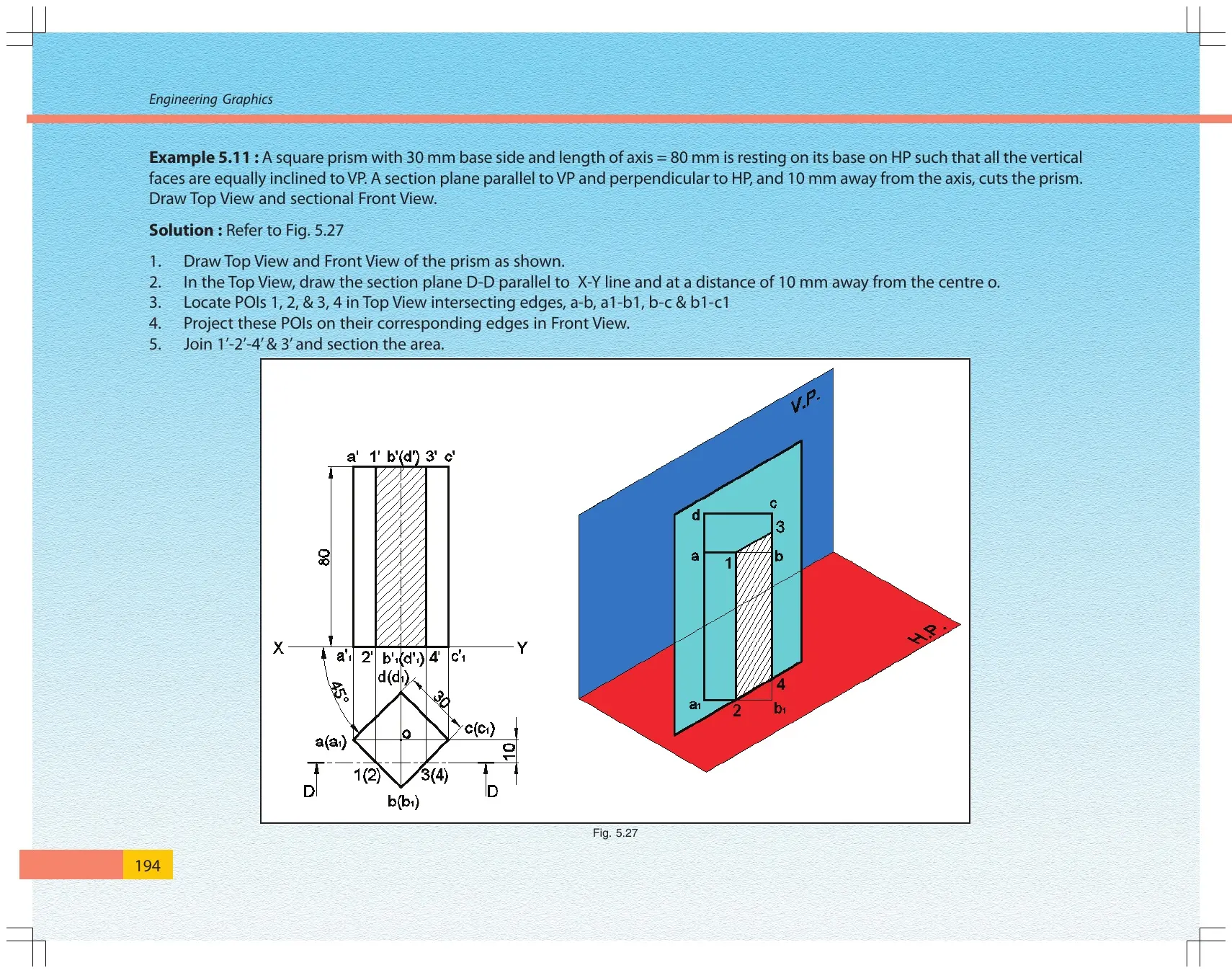

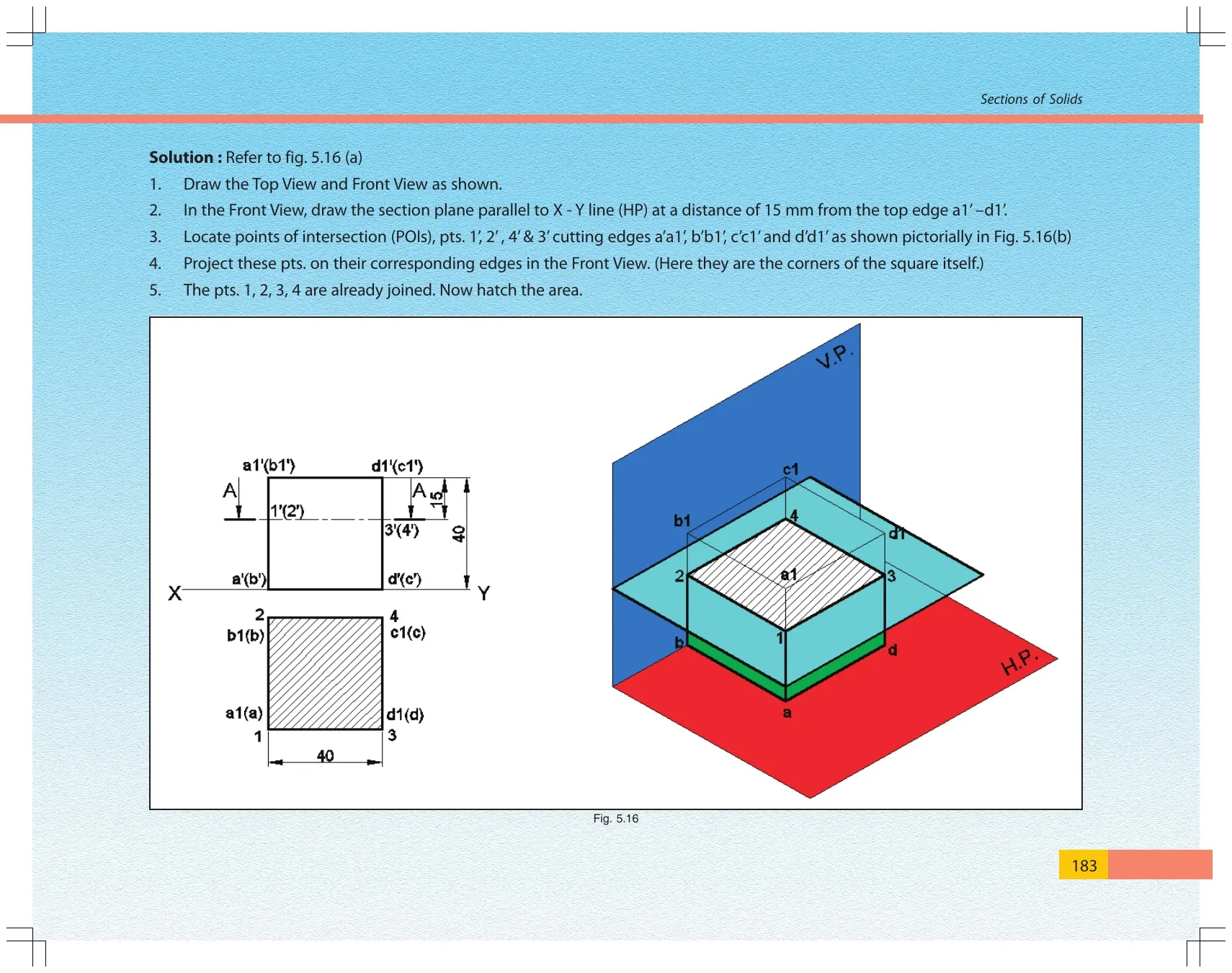

- The exposed cut surface is hatched with thin parallel section lines.

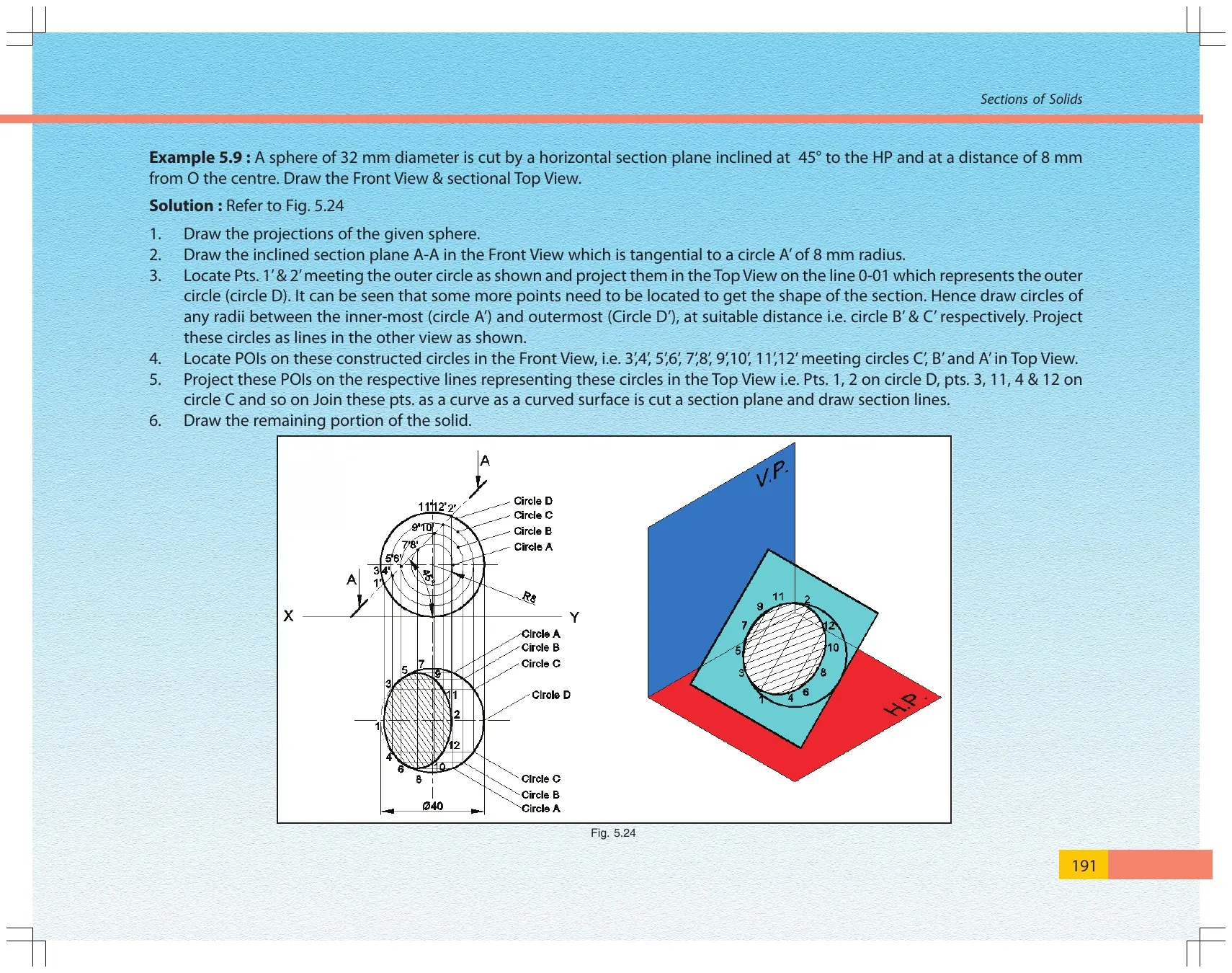

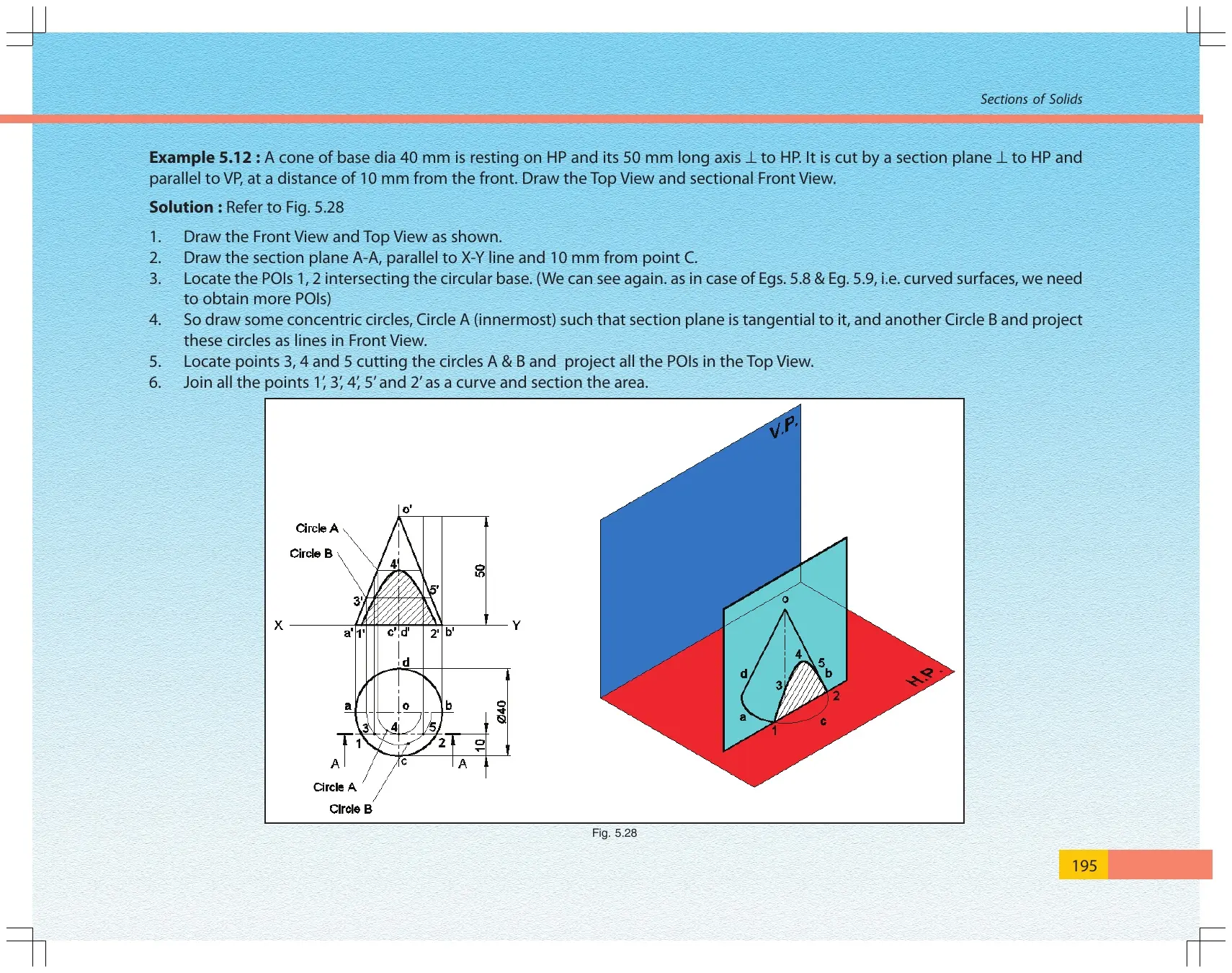

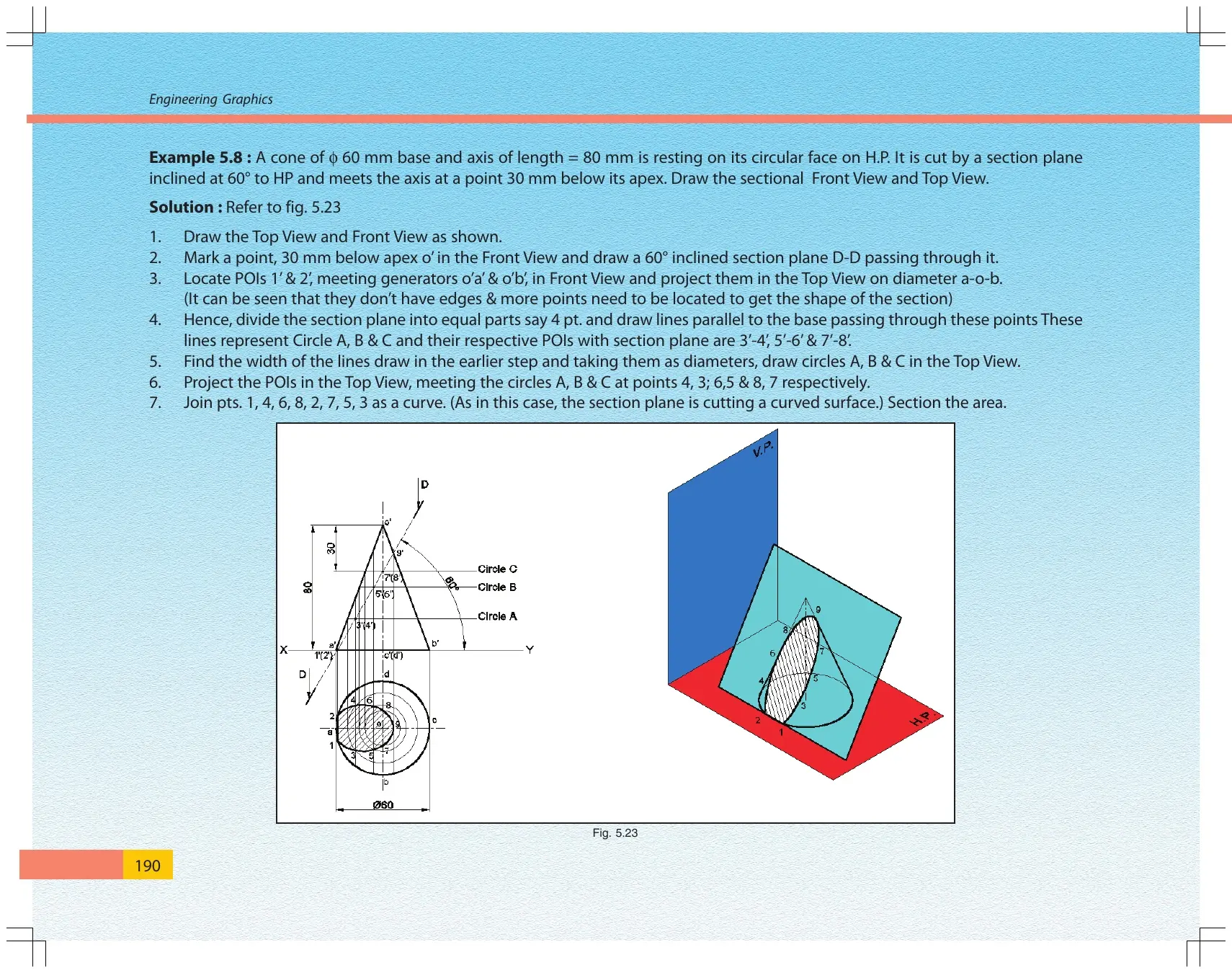

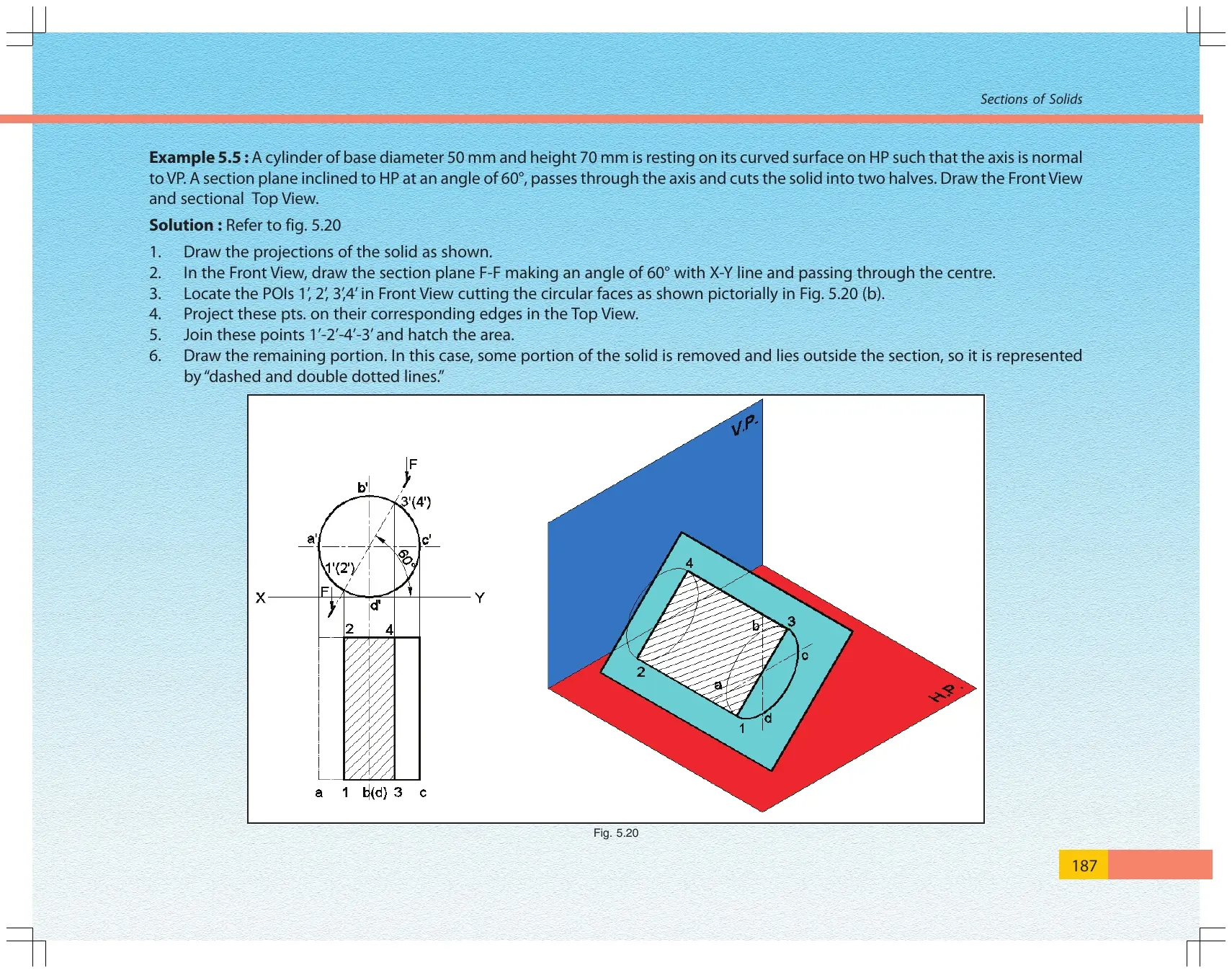

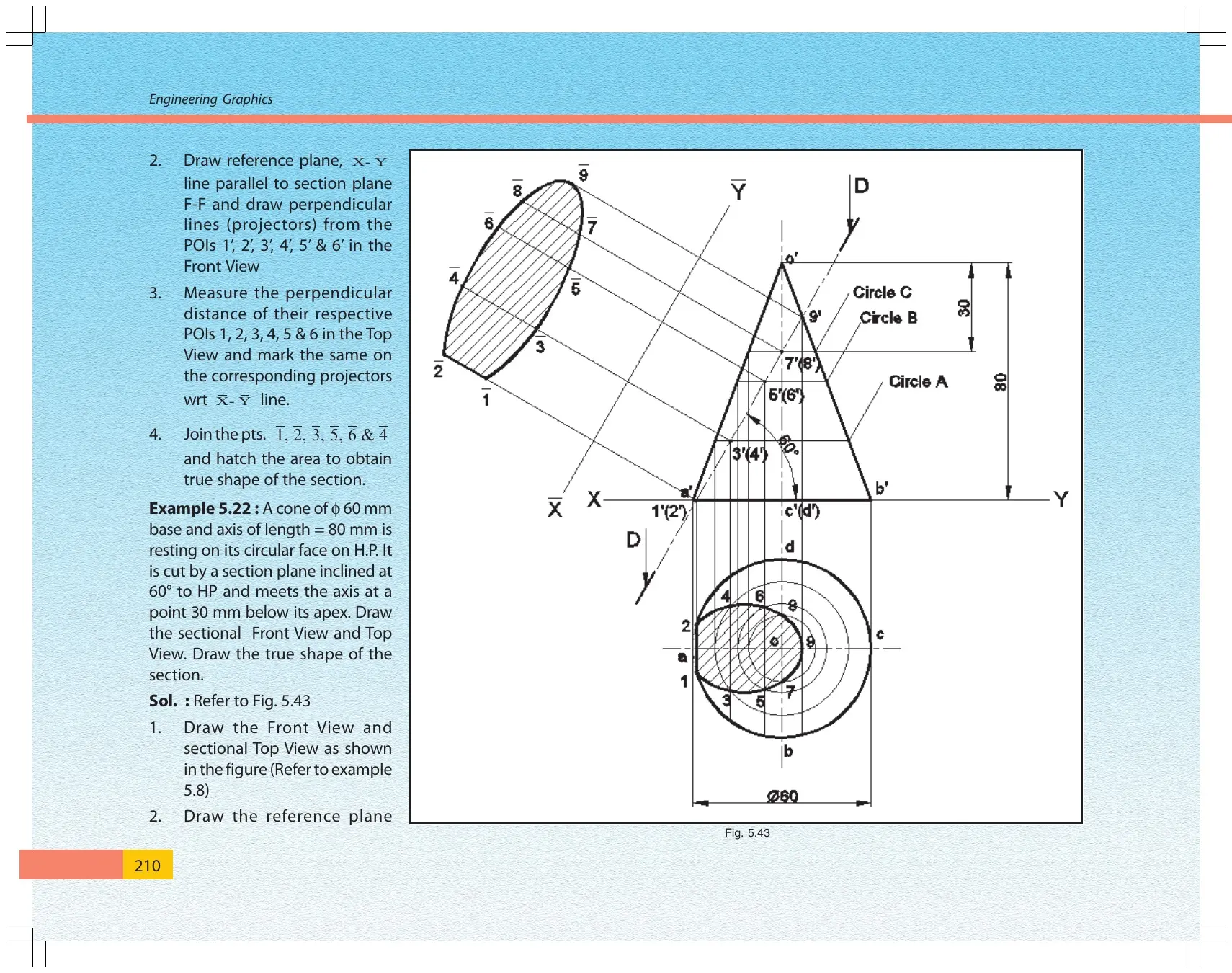

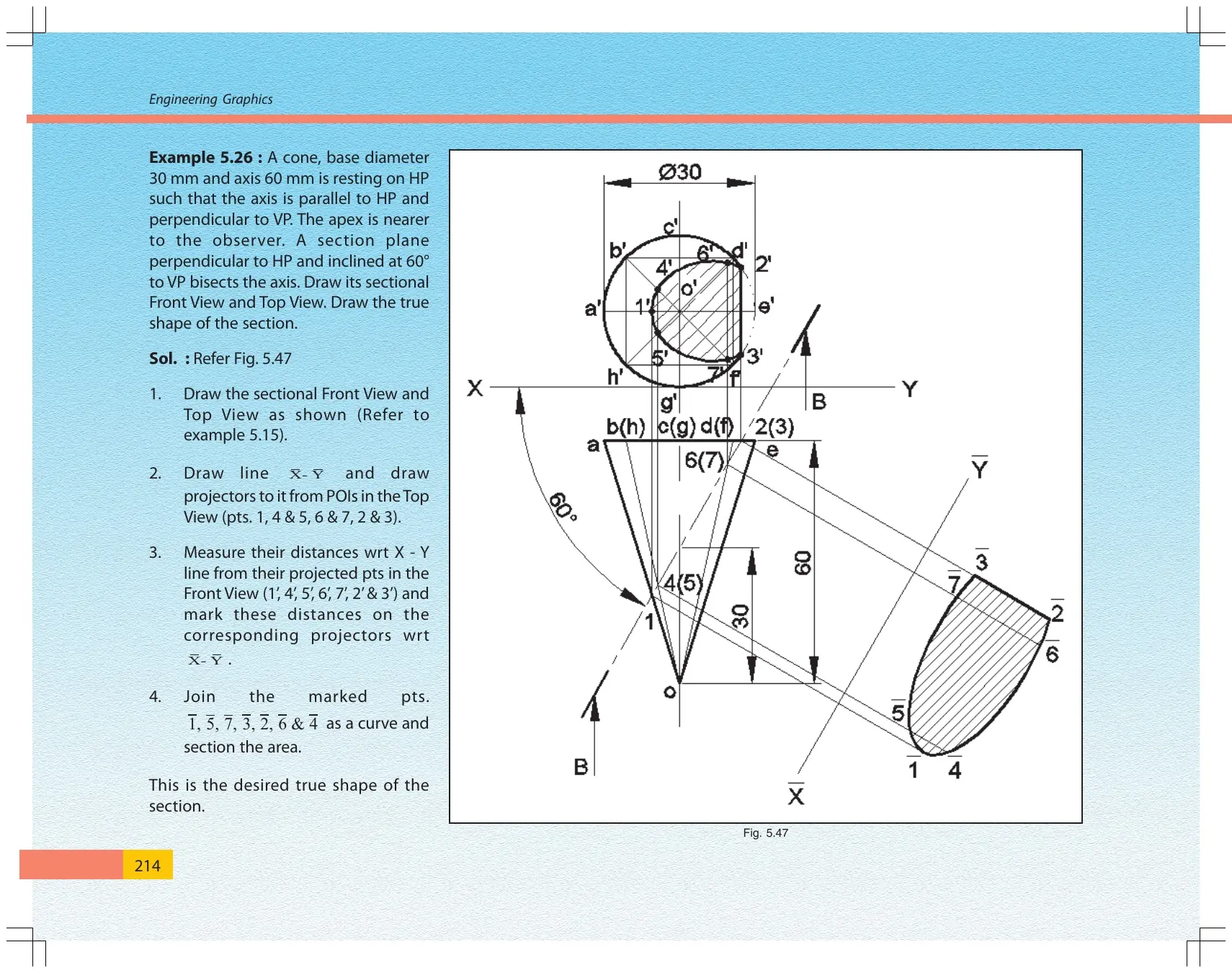

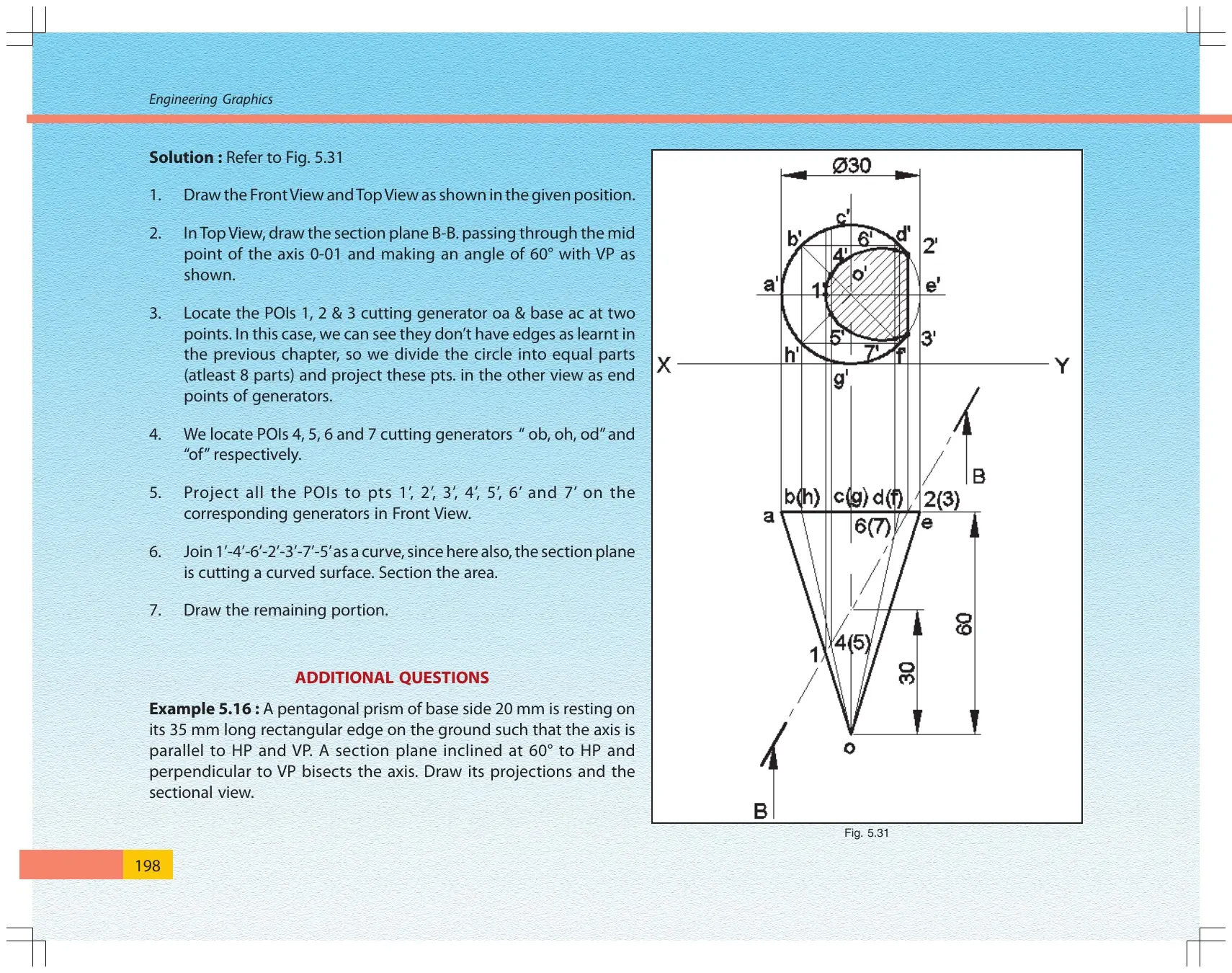

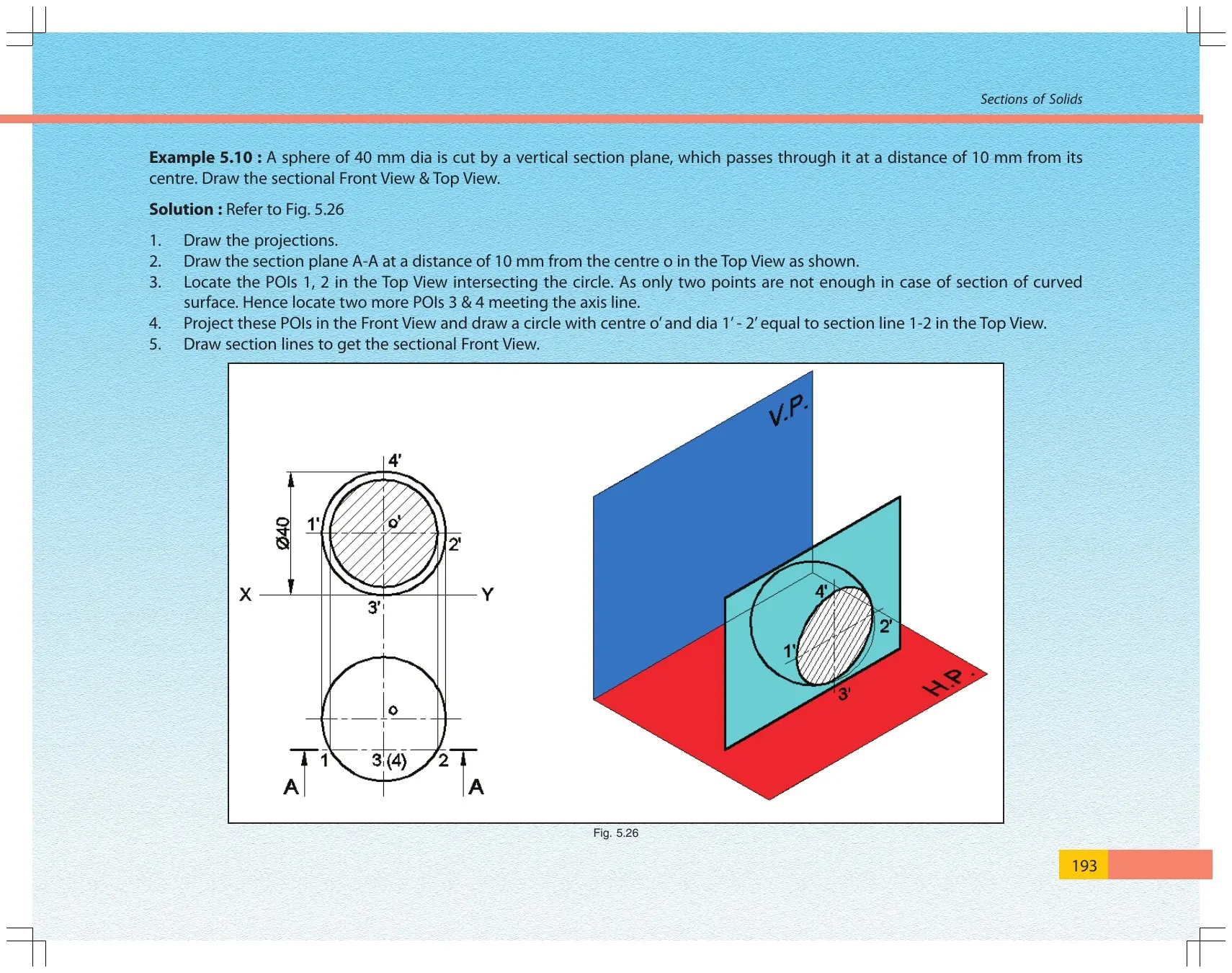

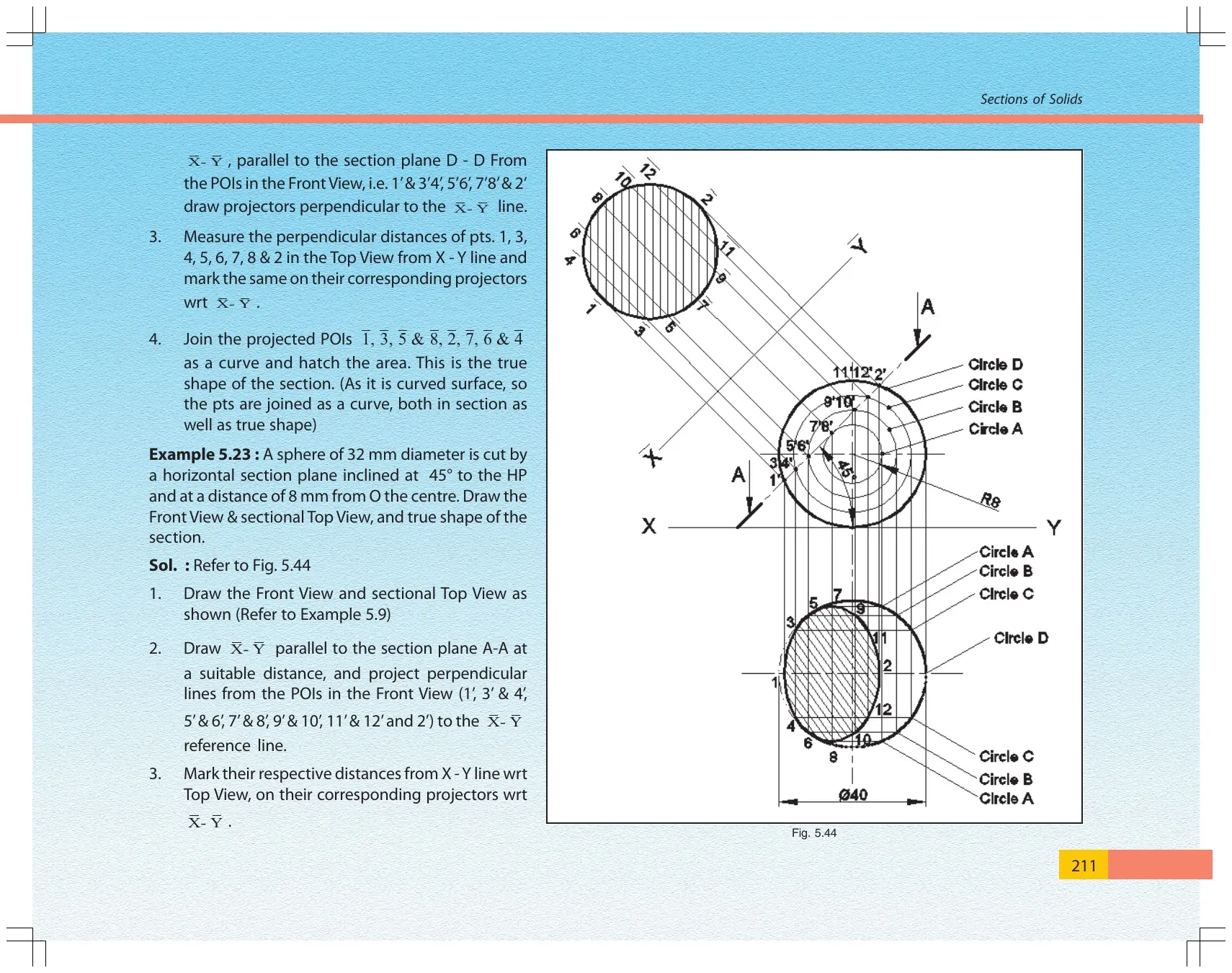

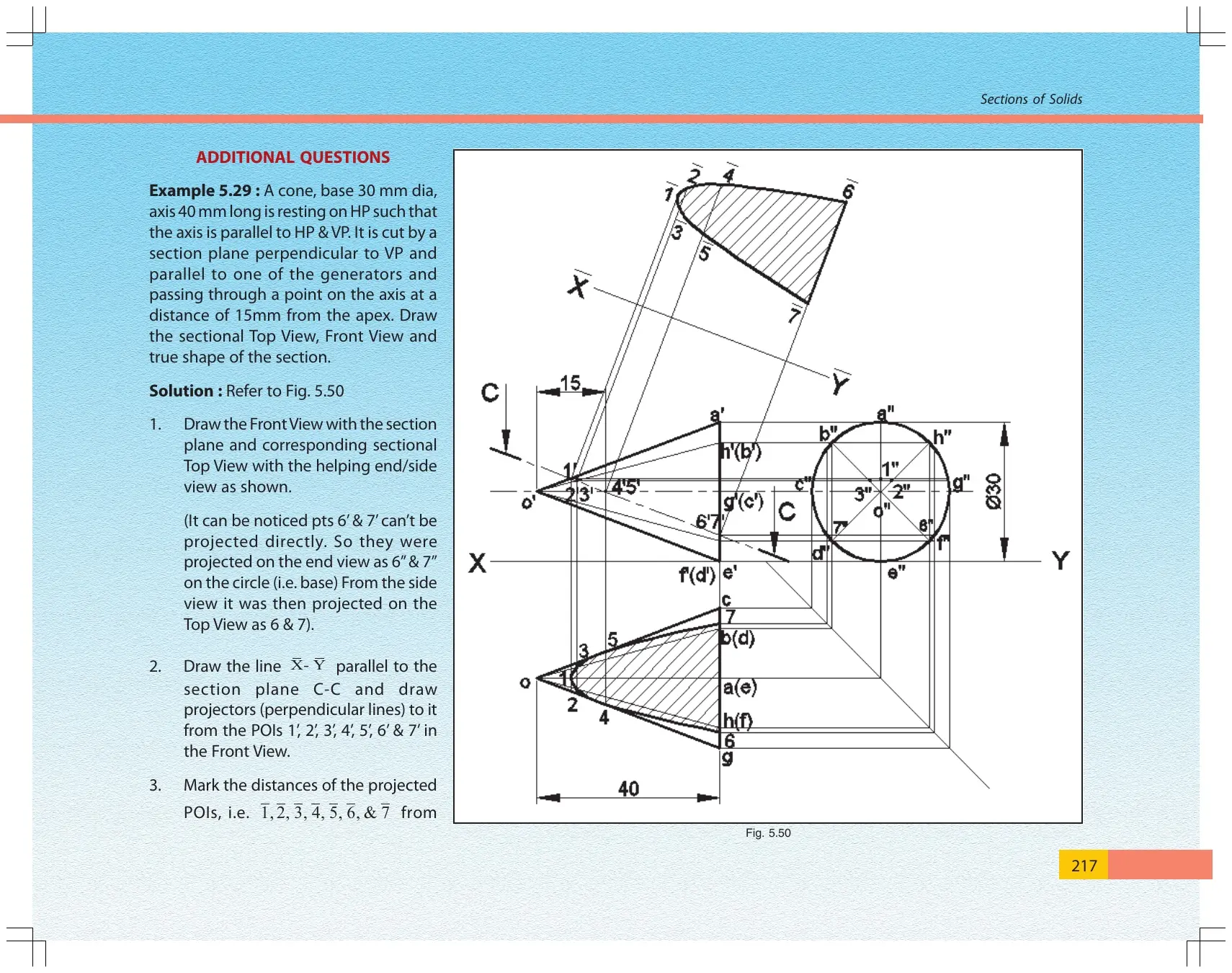

- Curved solids need careful POI transfer so the sectional boundary is smooth.
How to Use This PDF

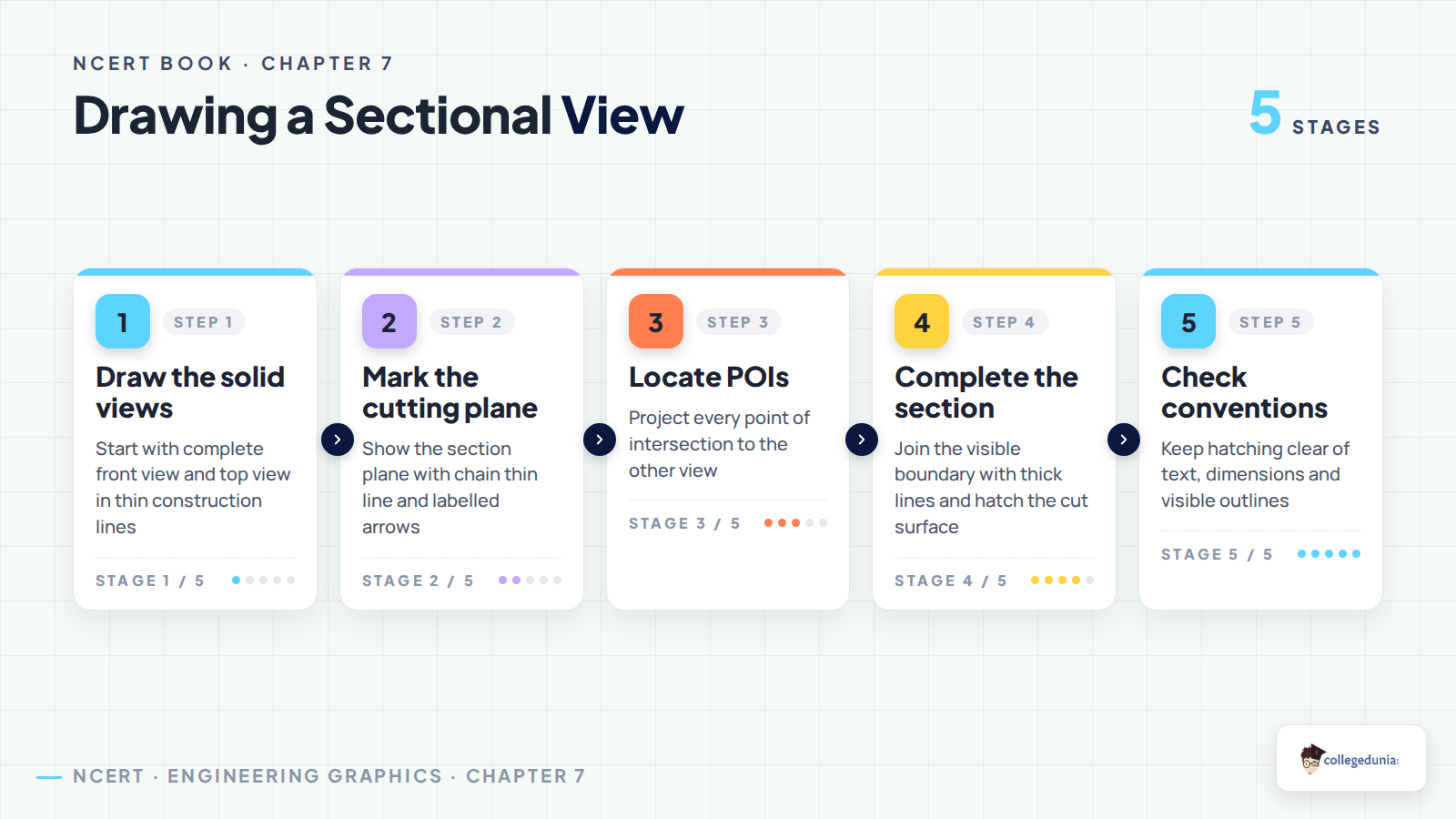

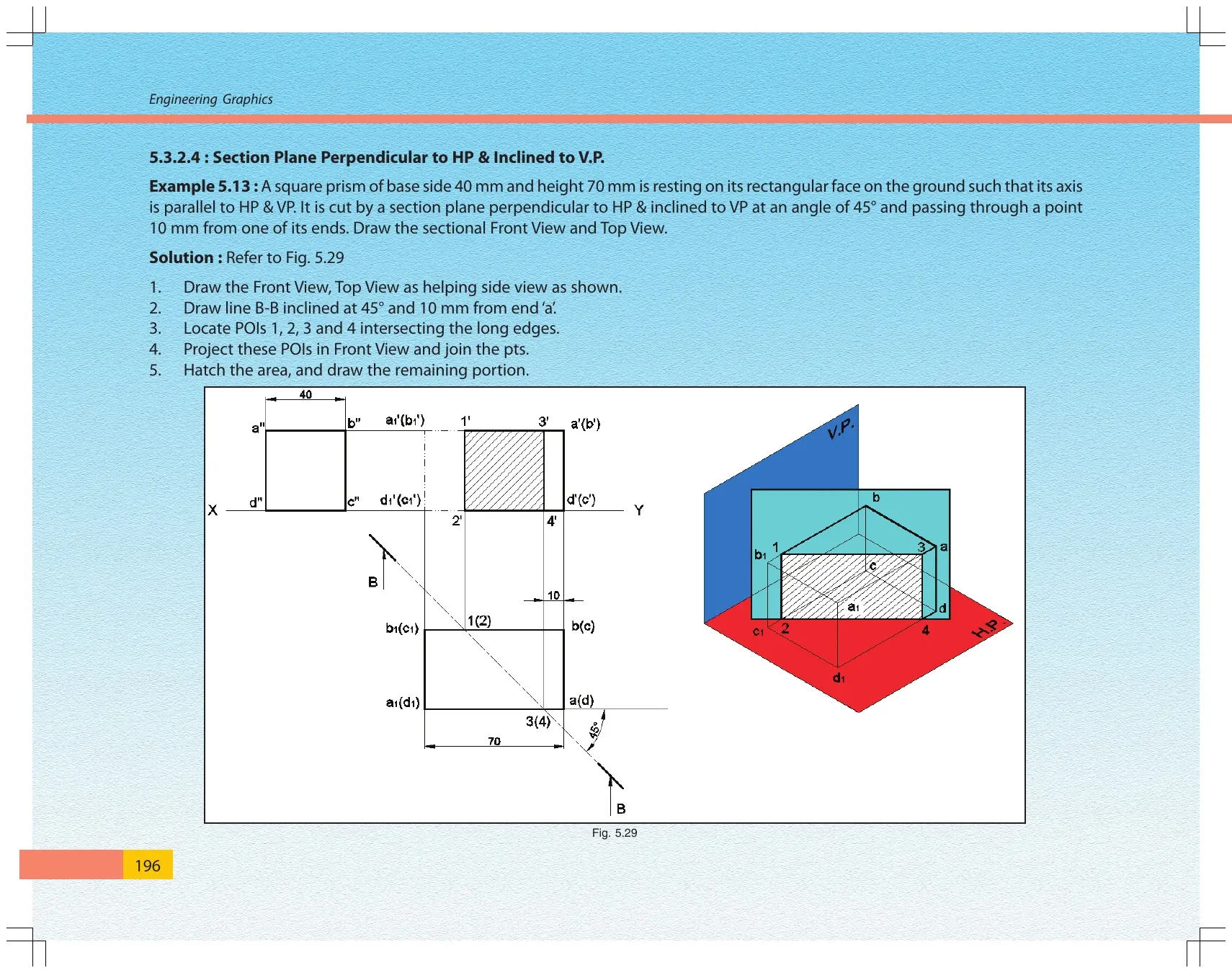

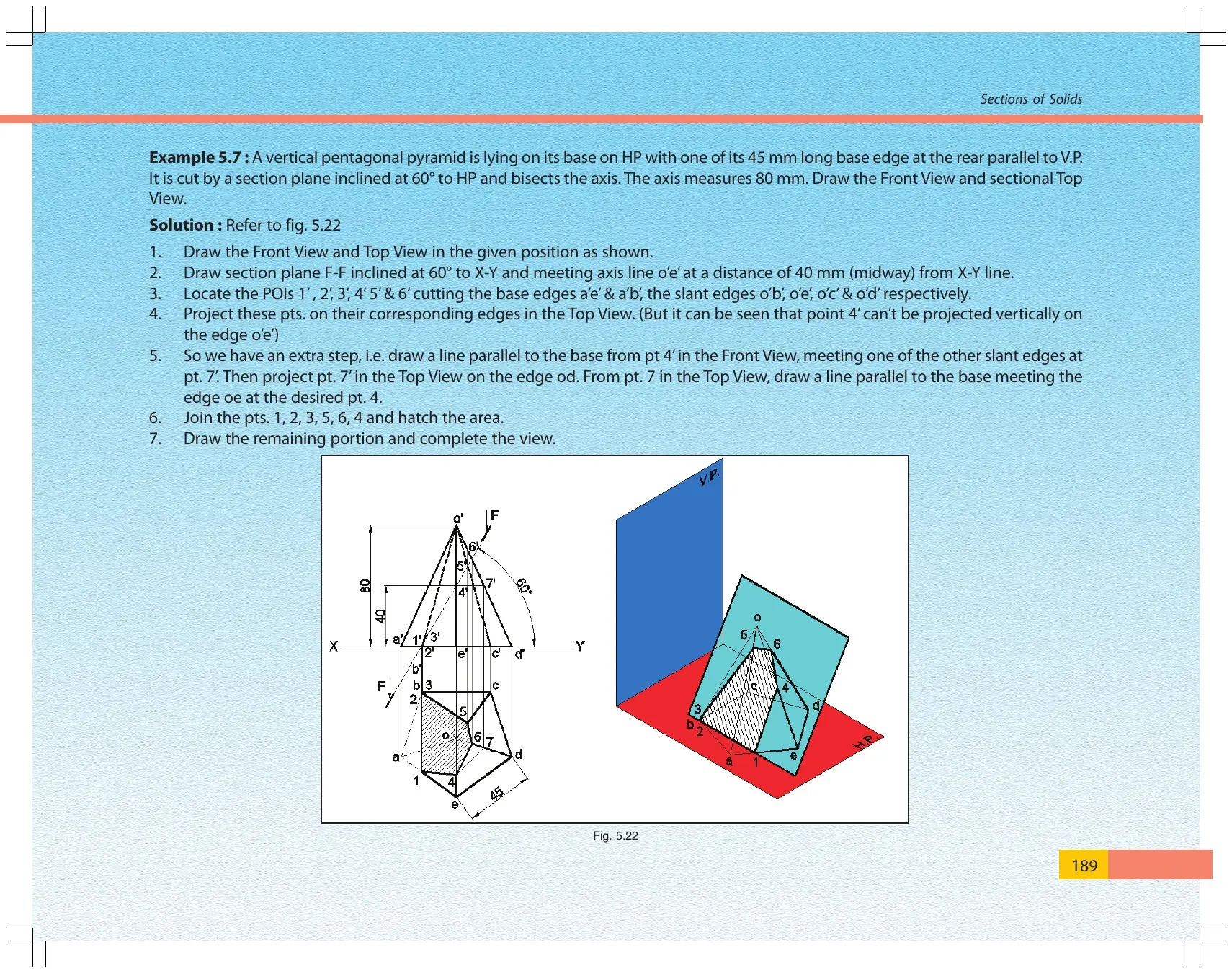

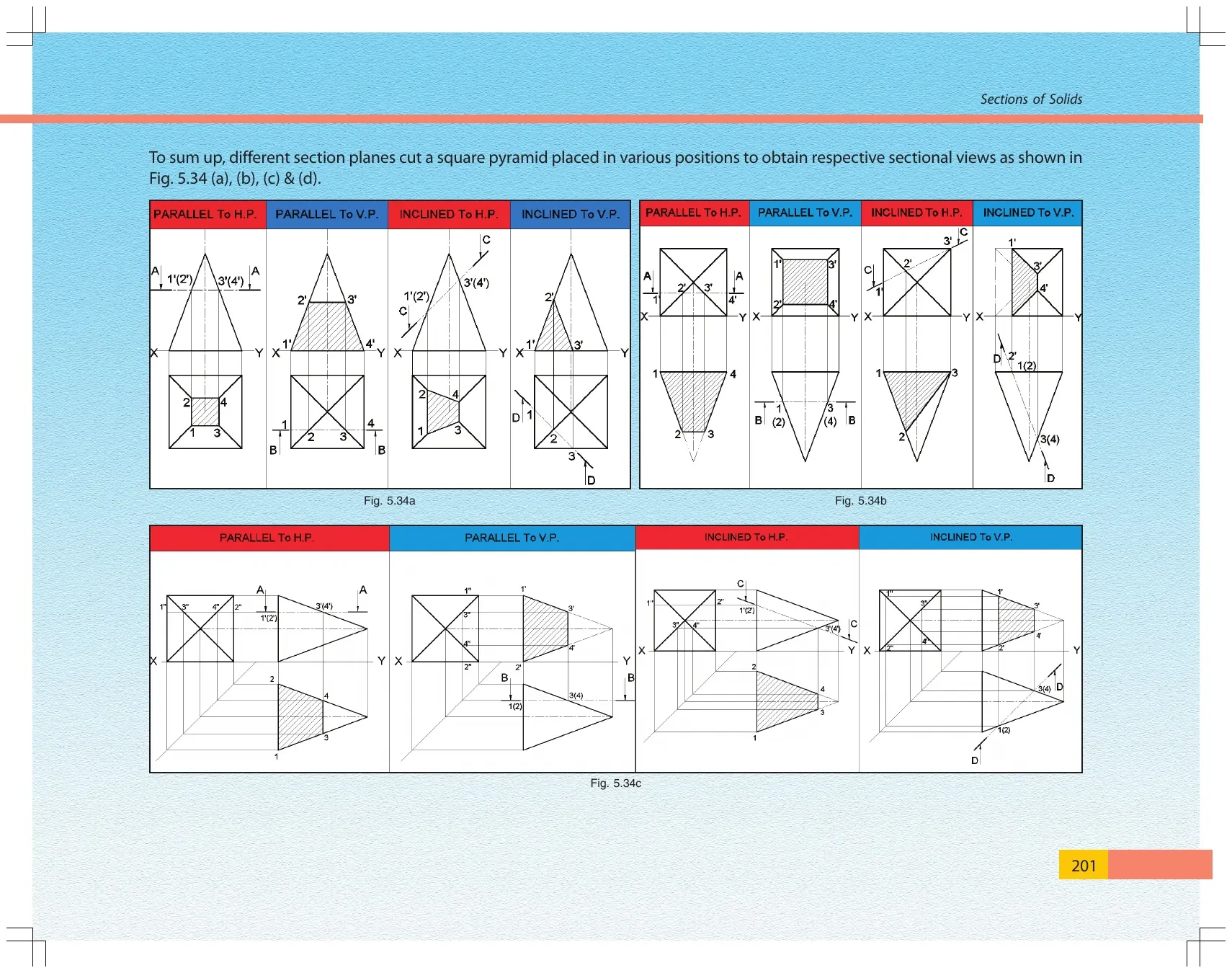

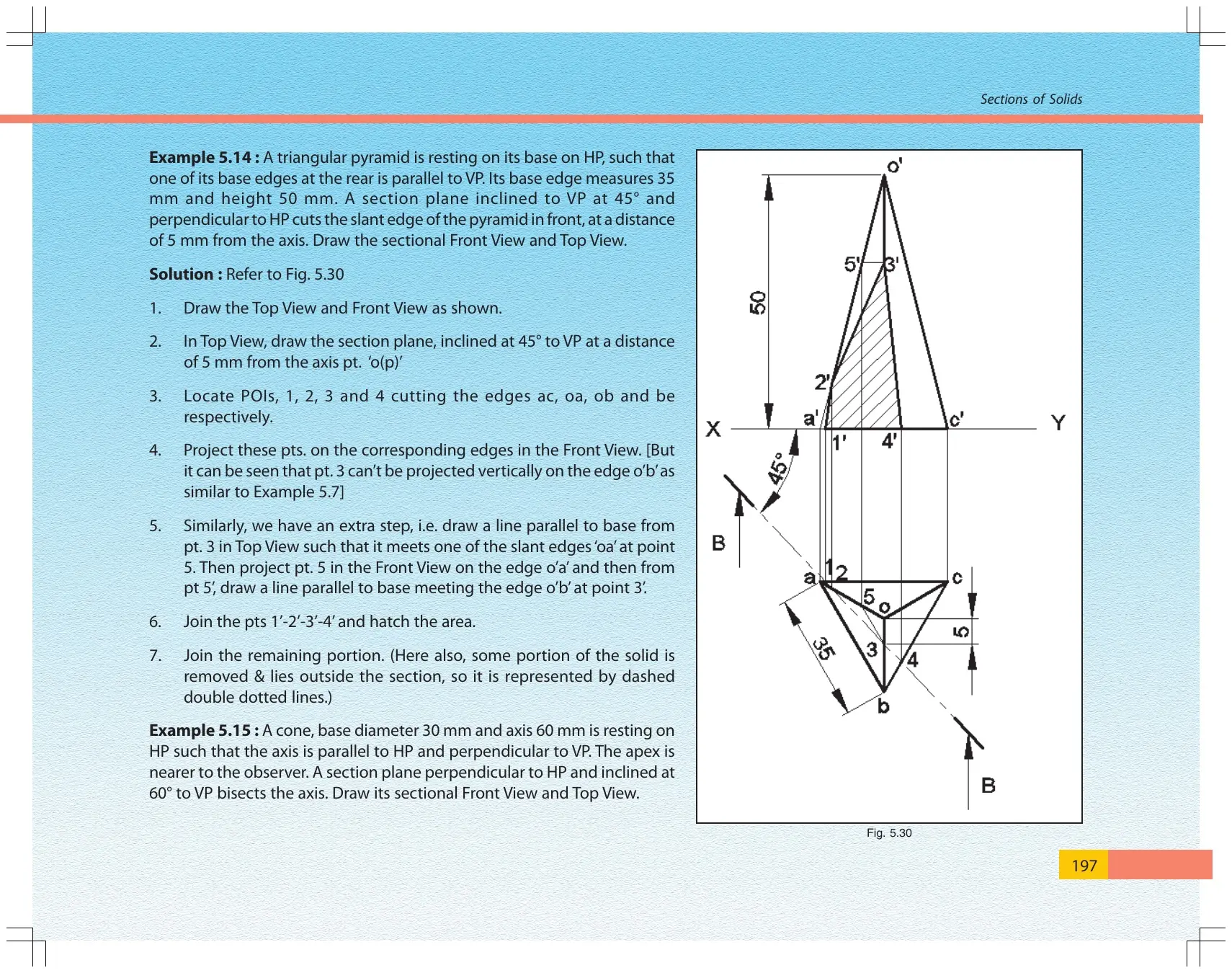

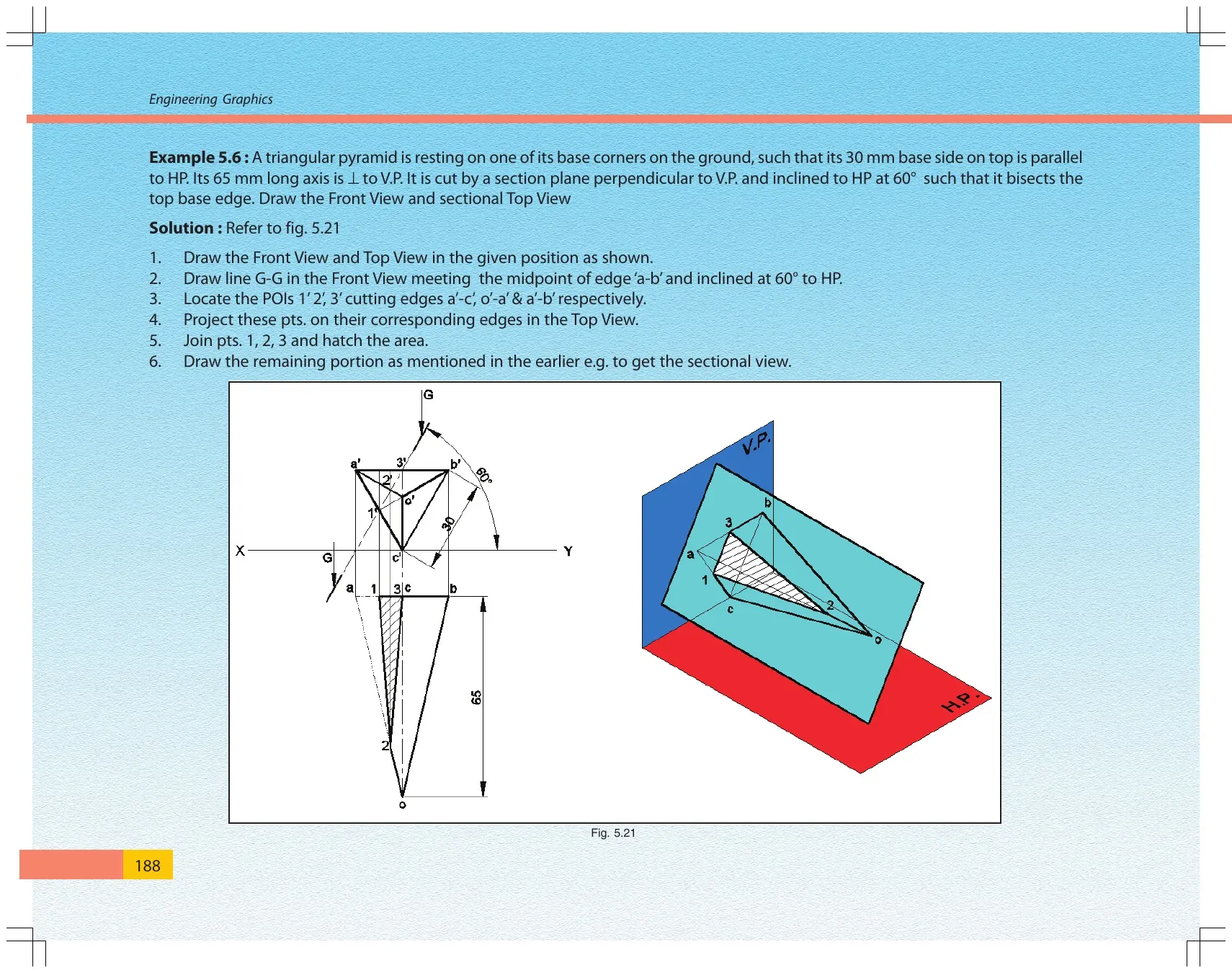

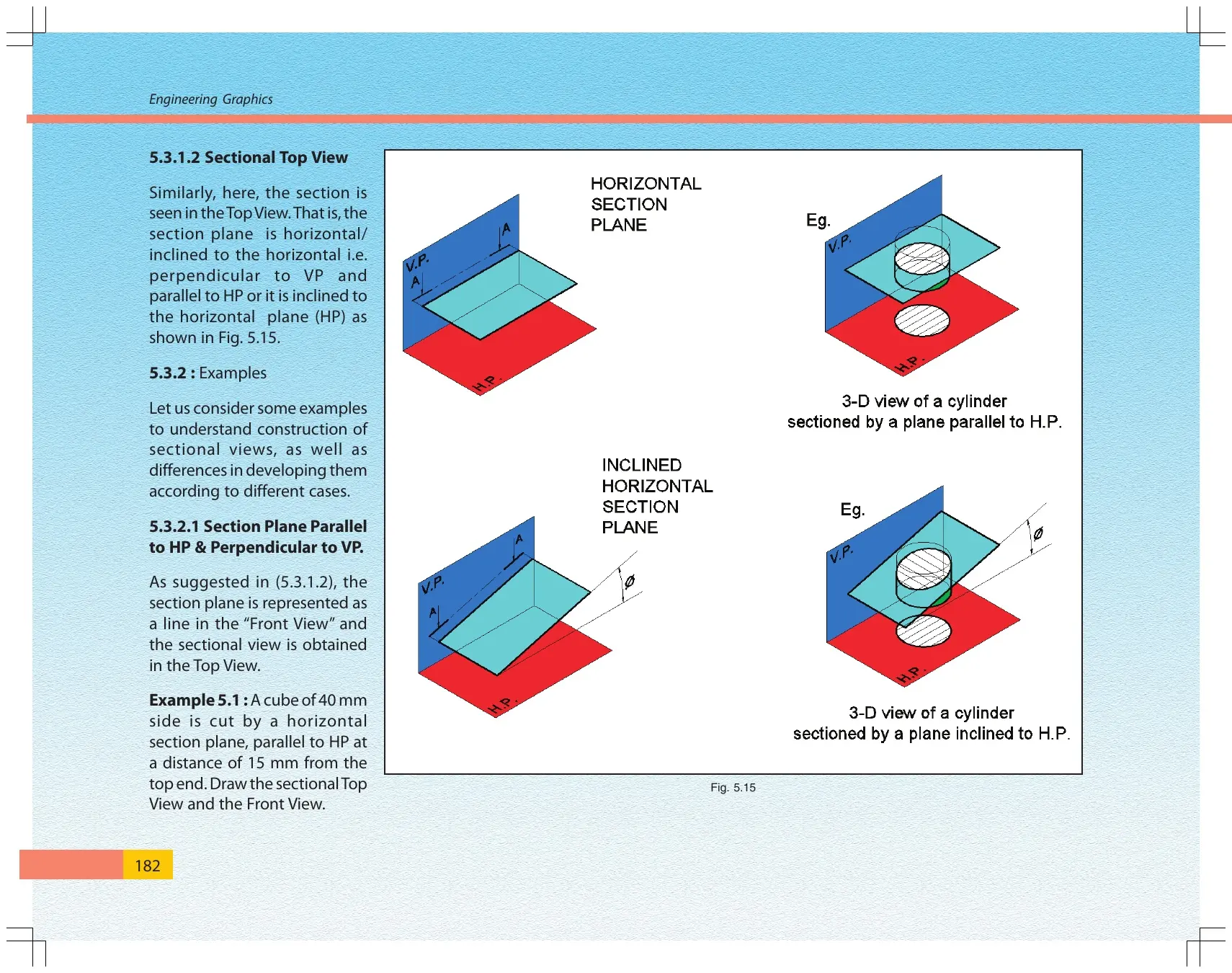

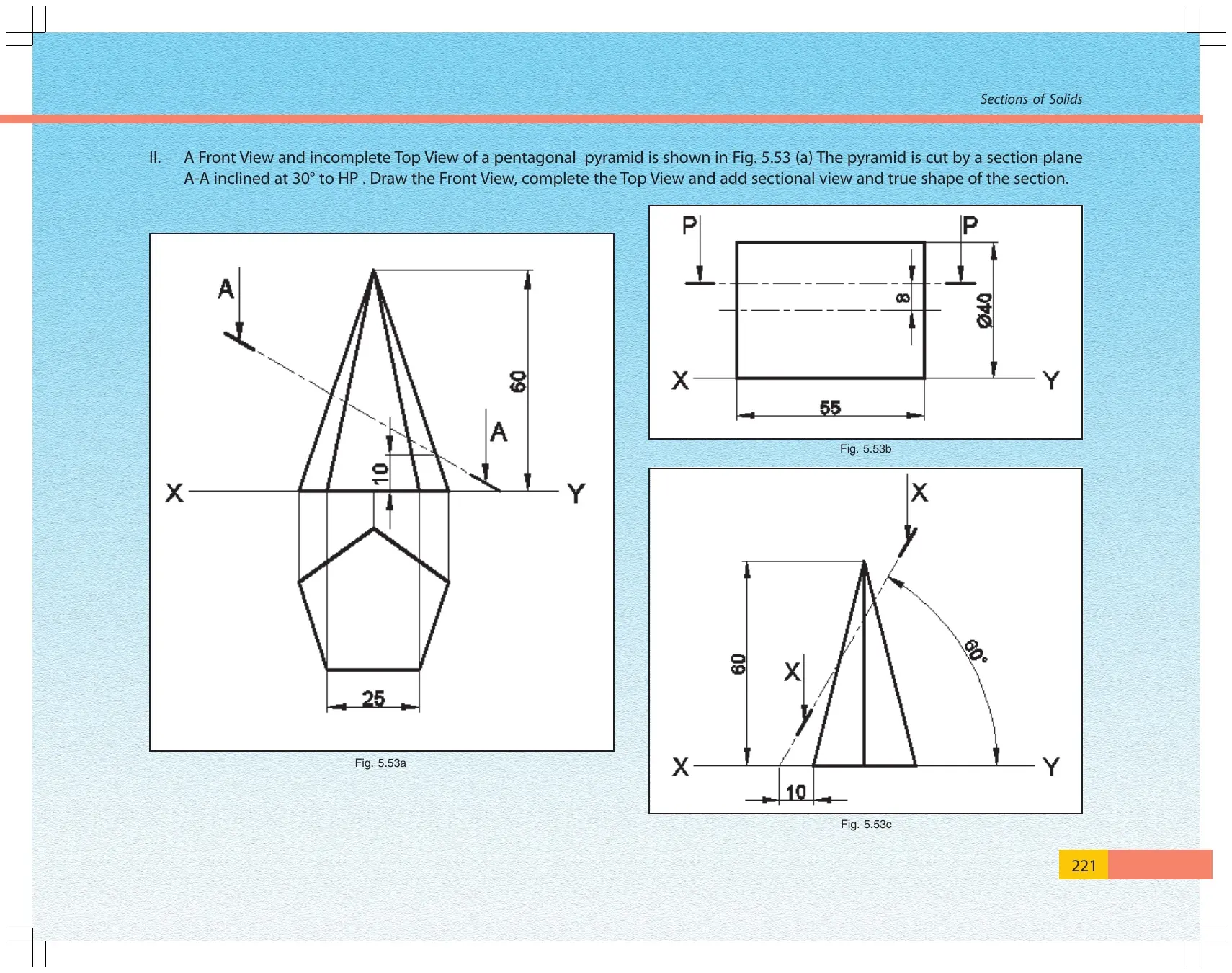

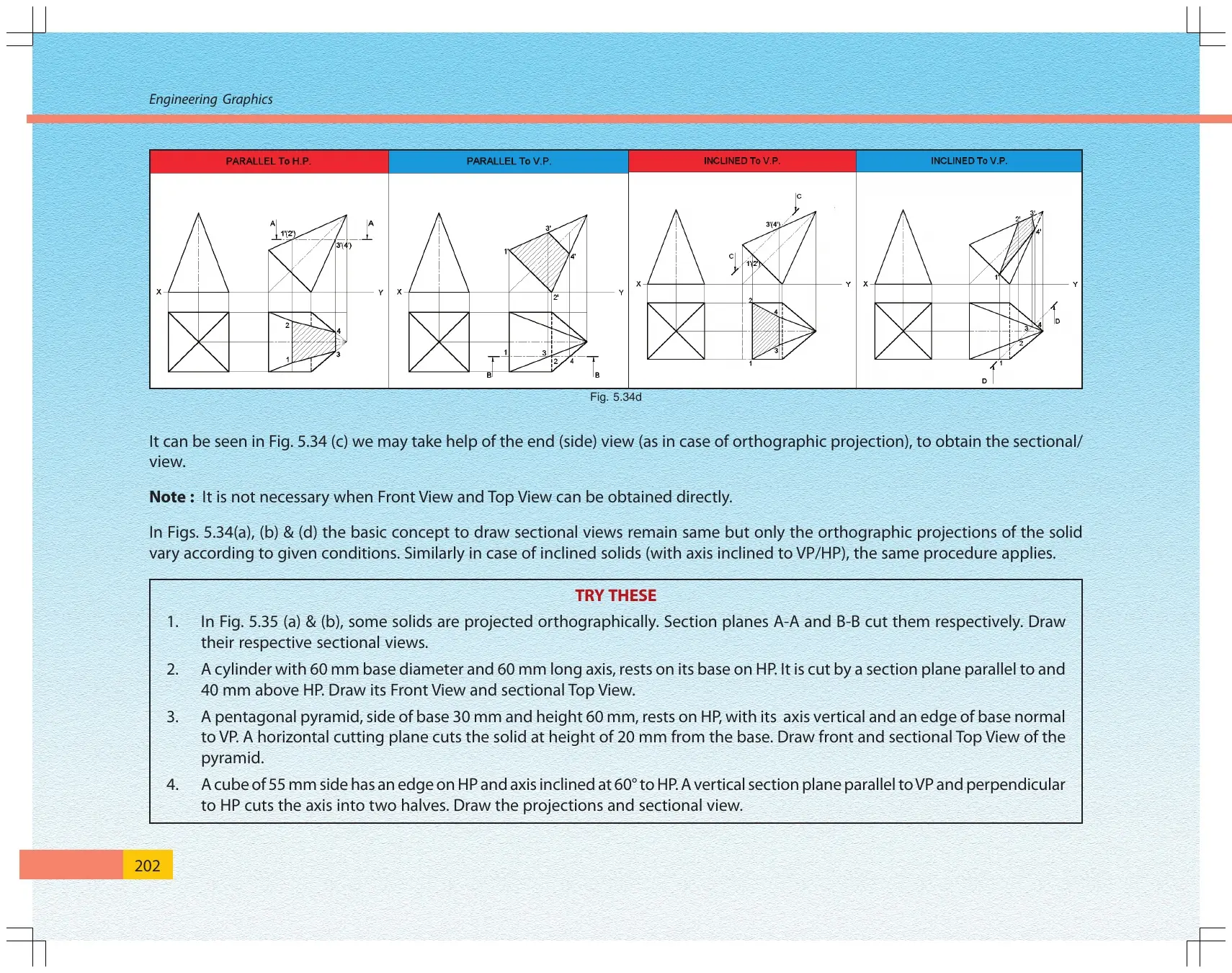

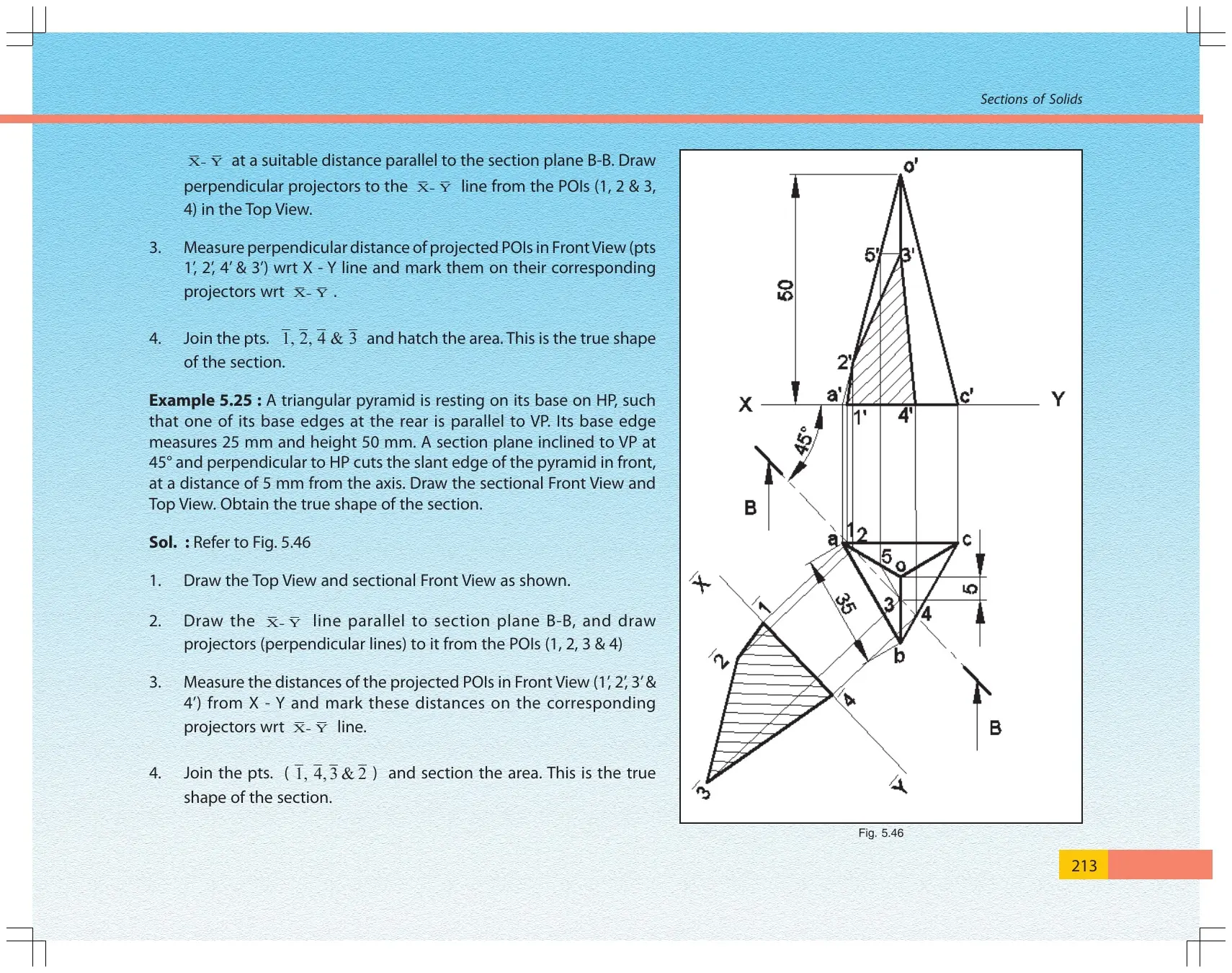

Use the PDF with a drawing sheet, mini drafter or set-square, compass, scale and sharp pencil. Read the problem statement first, then decide whether the cutting plane is parallel to HP, parallel to VP, inclined to HP or inclined to VP. This decision tells you where to mark the section plane and which view becomes sectional.

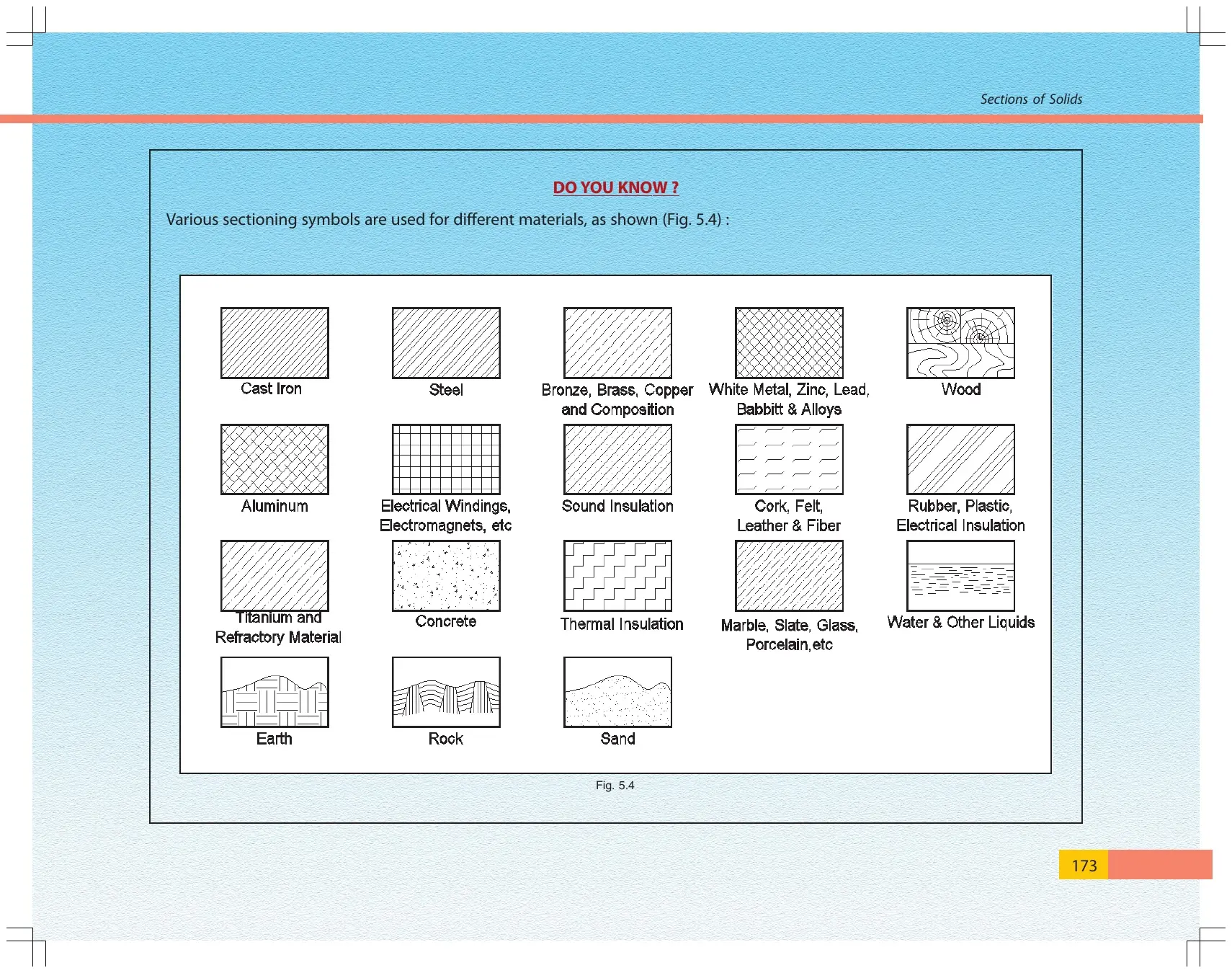

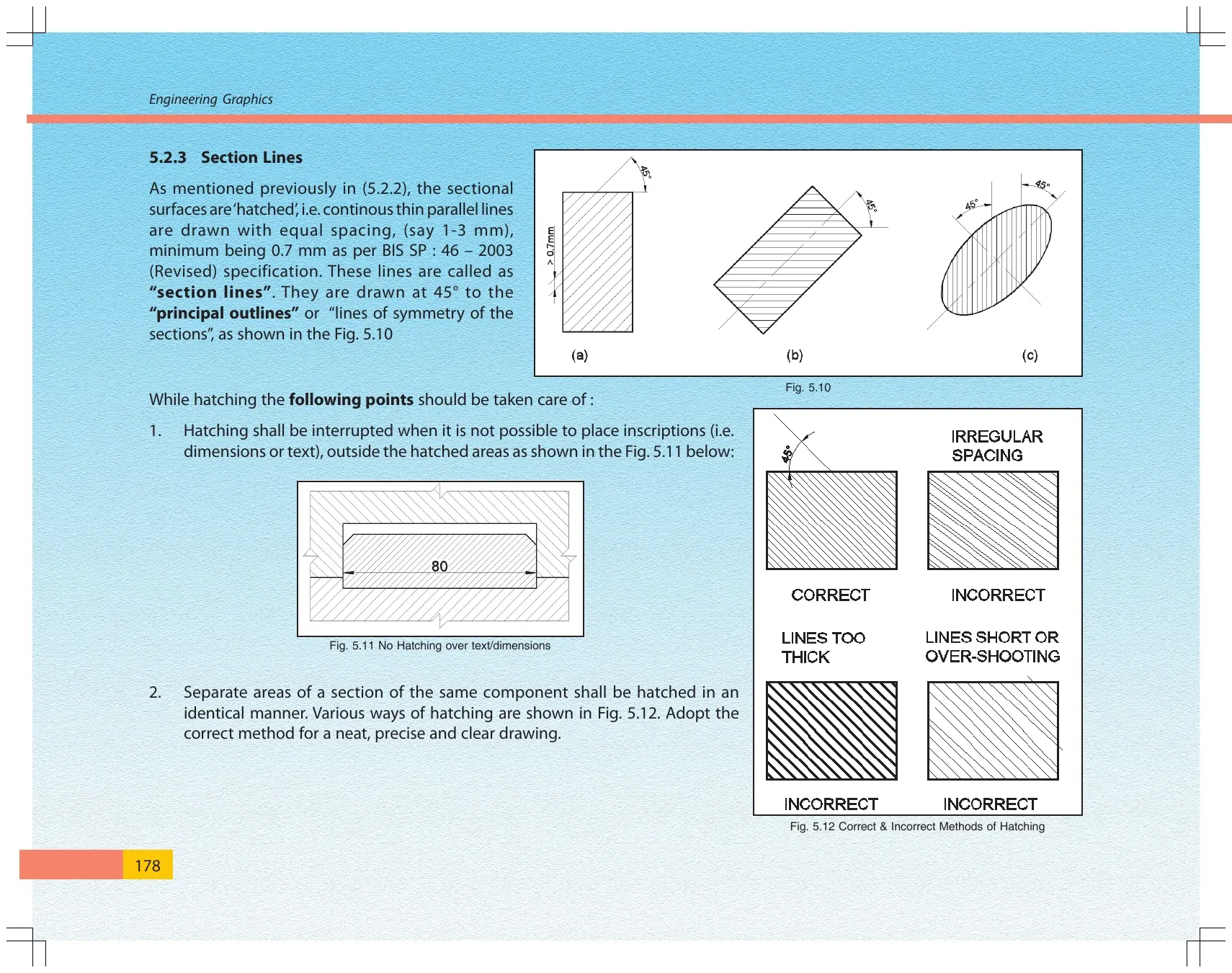

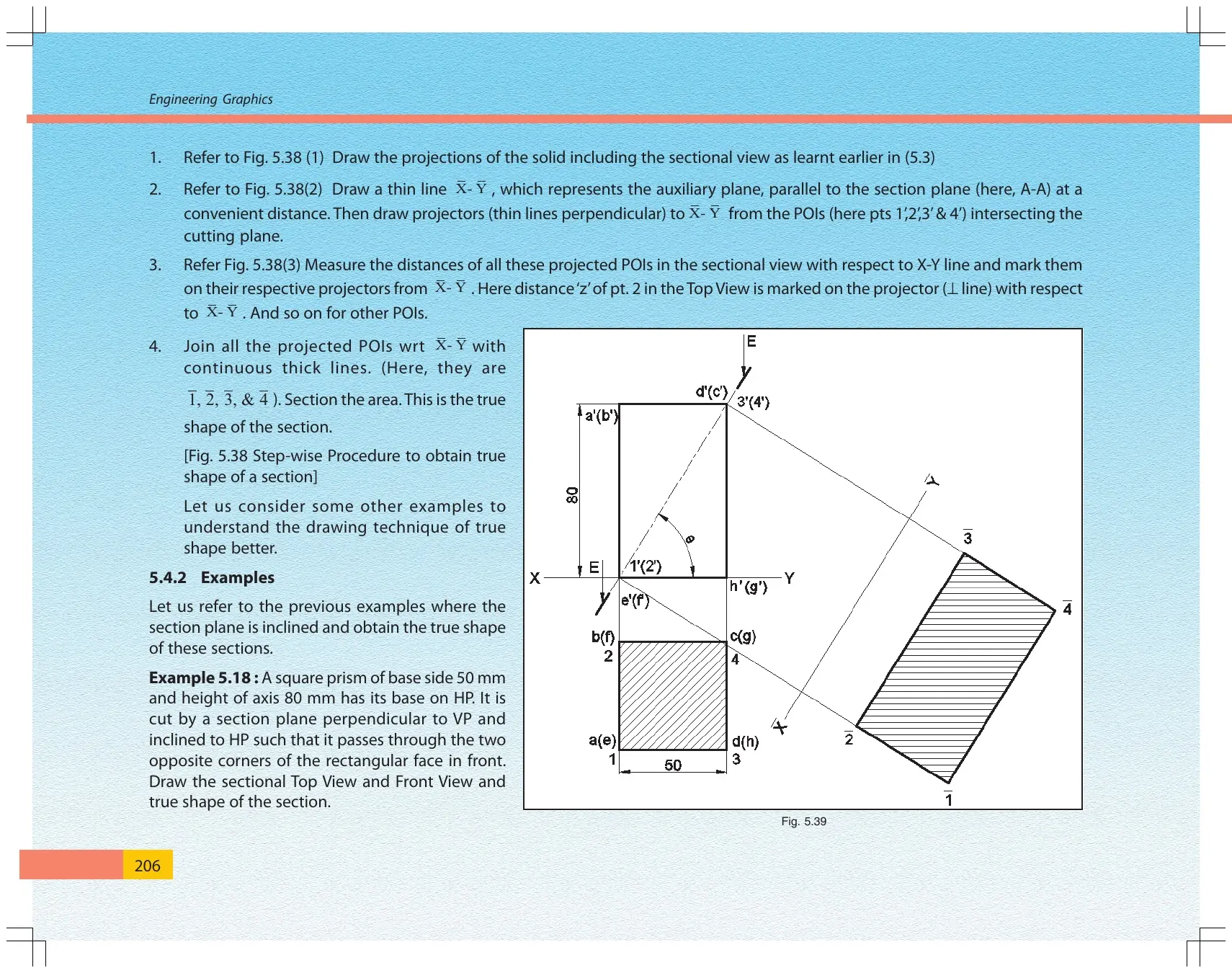

Important: do not hatch the entire object. Only the surface actually exposed by the cutting plane is hatched, and the hatching should not run through dimensions or labels.
Section of Solids Video
Source: Engineering Funda
Related Resources
| Resource | Link |
|---|---|
| Chapter 3 Book PDF | Circles, Inscribing and Circumscribing of Circles |
| Chapter 4 Book PDF | Orthographic Projection of Points and Lines |
| Chapter 5 Book PDF | Orthographic Projection of Regular Plane Figures |
| Chapter 6 Book PDF | Orthographic Projection of Right Regular Solids |
Class 11 Engineering Graphics NCERT Book PDFs
| Chapter | Book PDF |
|---|---|
| Chapter 3 | Circles and Tangents PDF |
| Chapter 4 | Projection of Points and Lines PDF |
| Chapter 5 | Projection of Regular Plane Figures PDF |
| Chapter 6 | Projection of Right Regular Solids PDF |
| Chapter 7 | Section of Solids PDF |
Class 11 Engineering Graphics Chapter 7 NCERT Book PDF FAQs
Ques. What does Class 11 Engineering Graphics Chapter 7 cover?

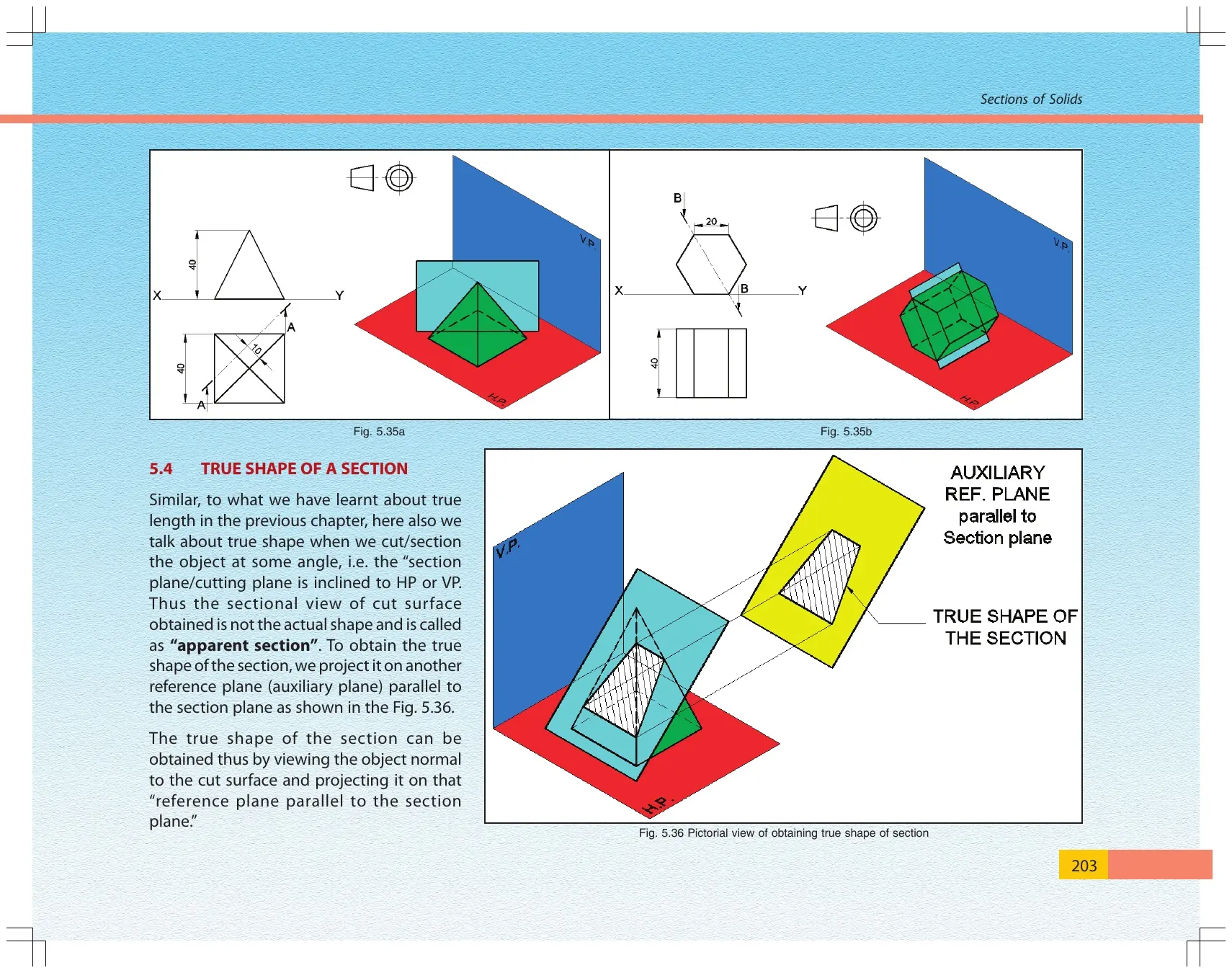

Ans. It covers section planes, sectional views, hatching conventions, sectioning of prisms, pyramids, cylinders, cones and spheres, and true shape construction.
Ques. How many pages are in this Chapter 7 PDF?
Ans. This extracted book PDF has 56 pages from the Engineering Graphics textbook section on sections of solids.

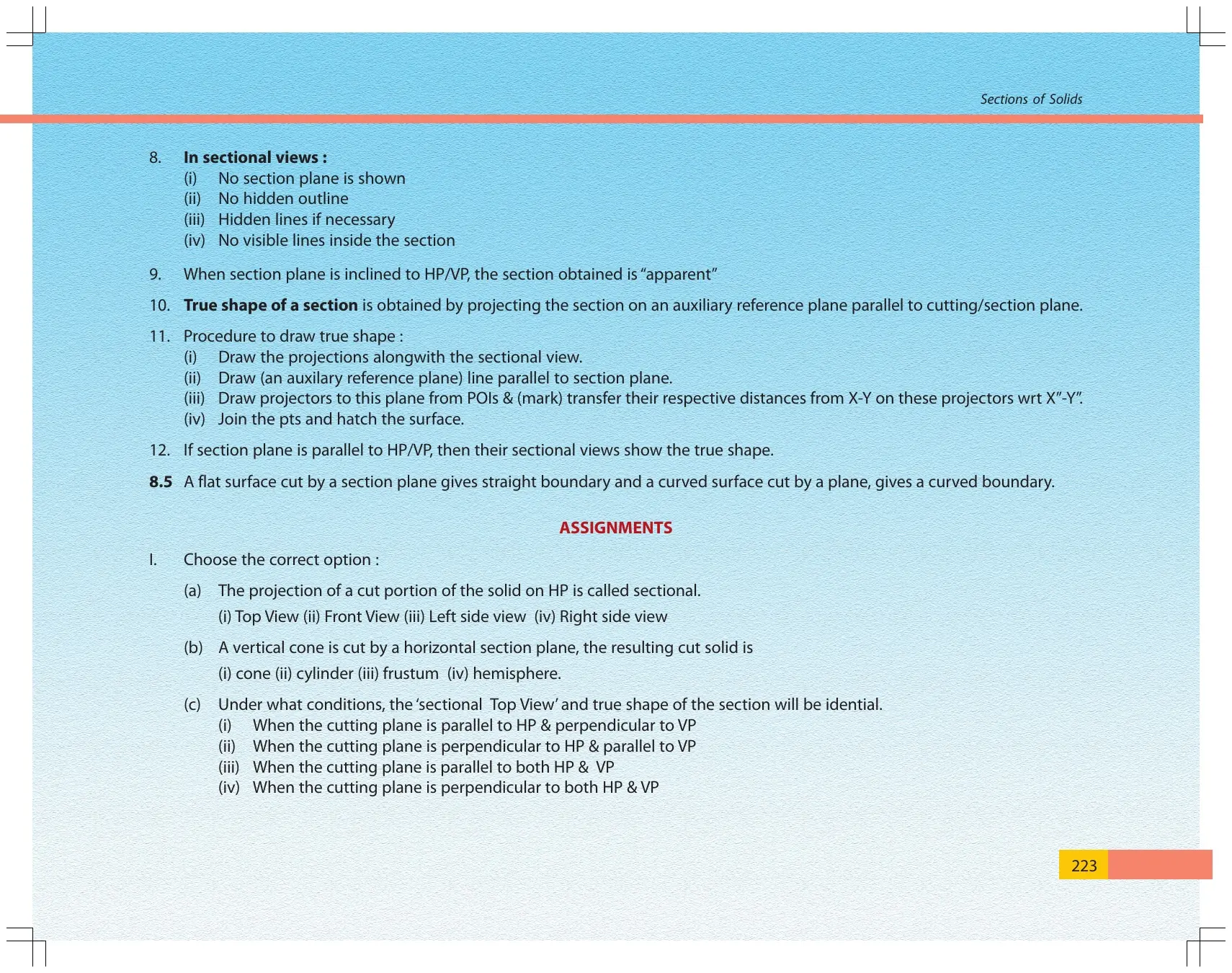

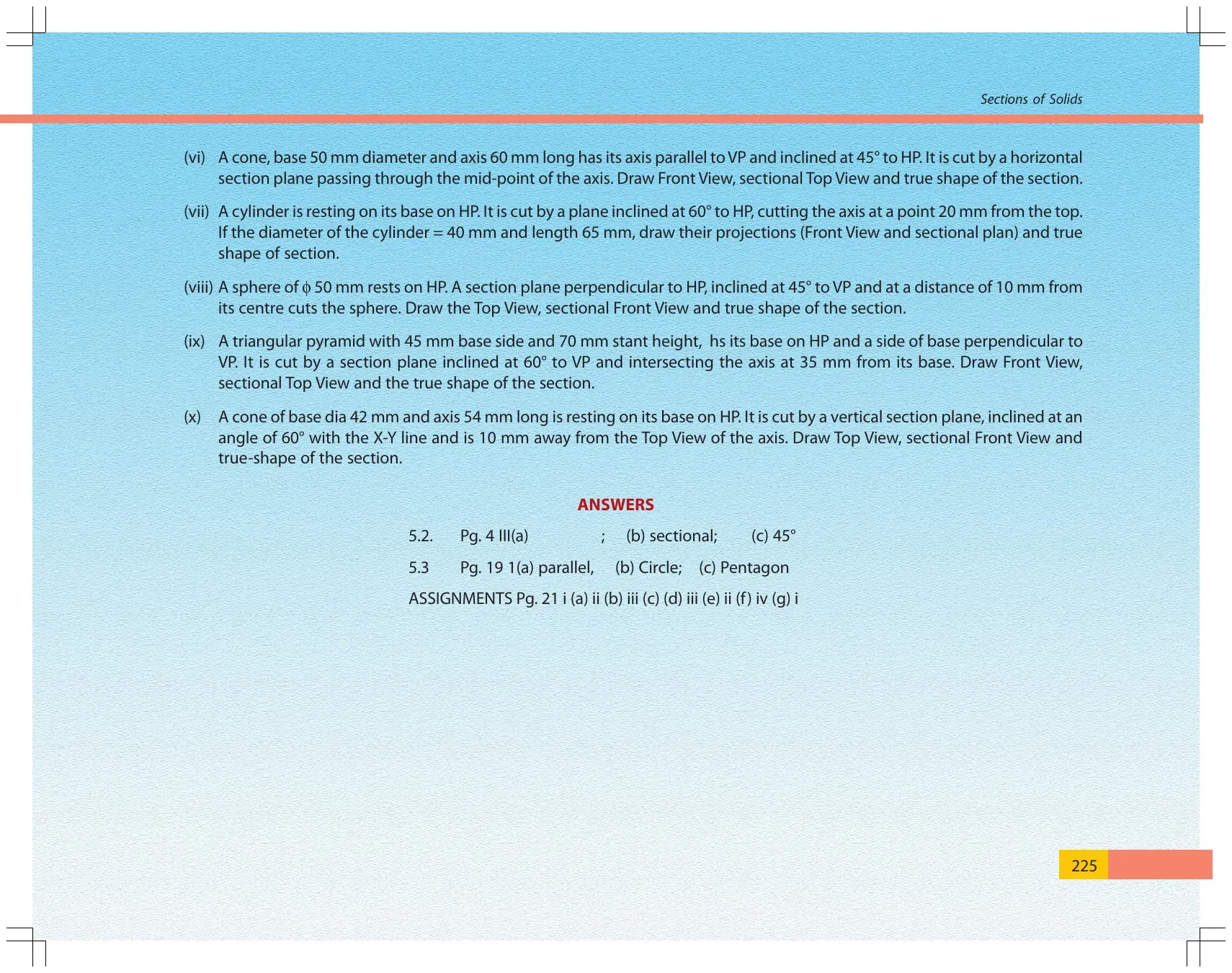

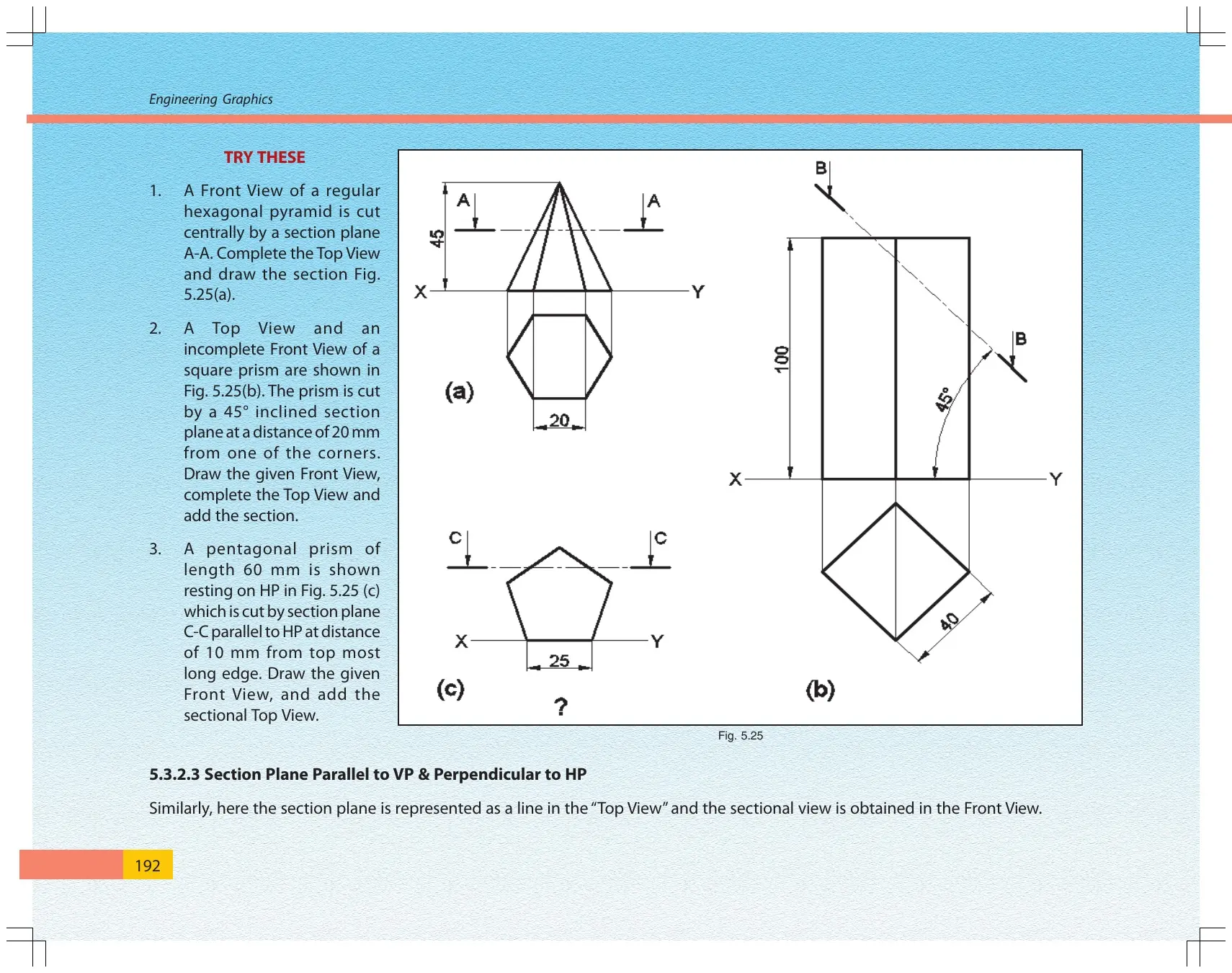

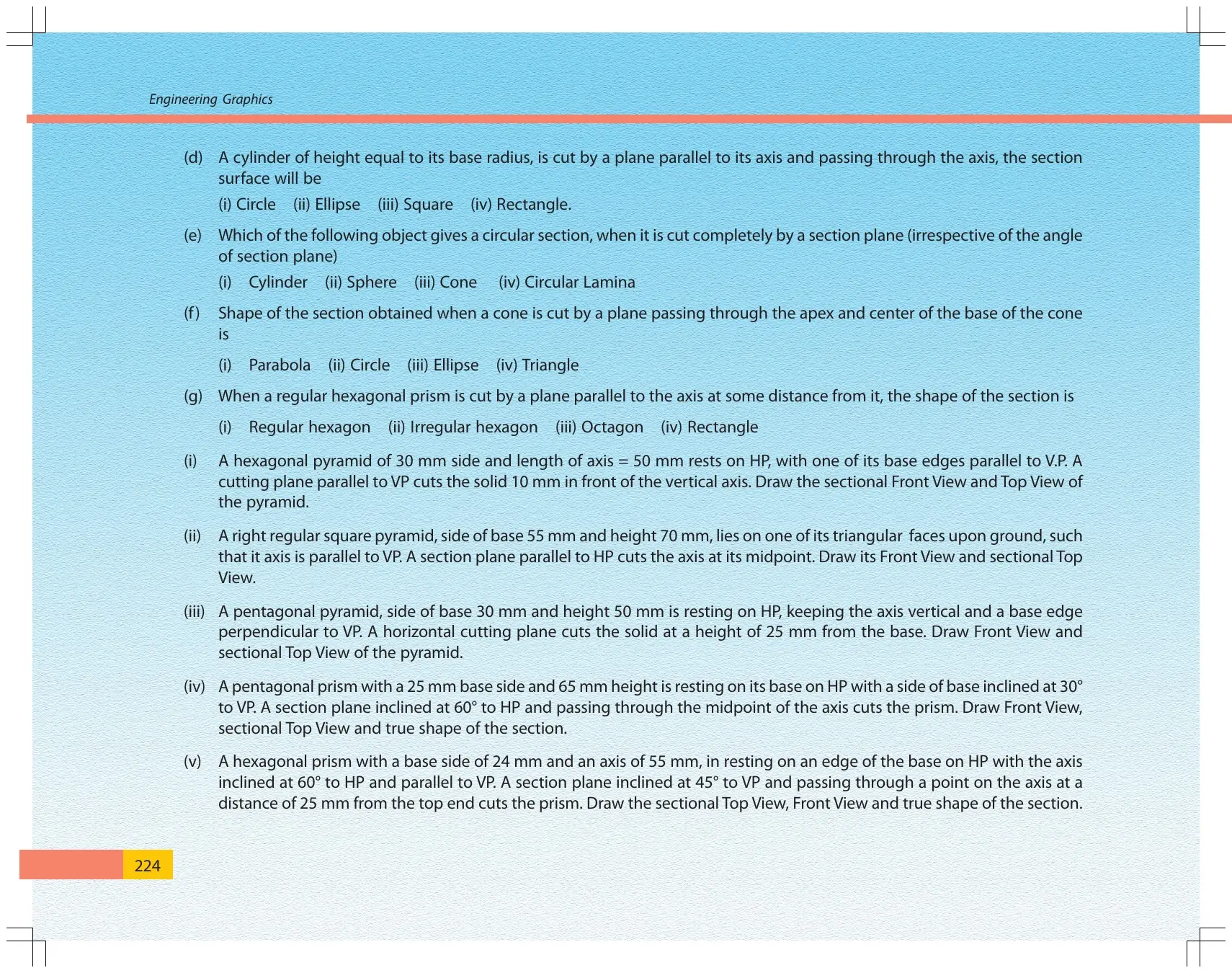

Ques. What should students practise after reading this chapter?

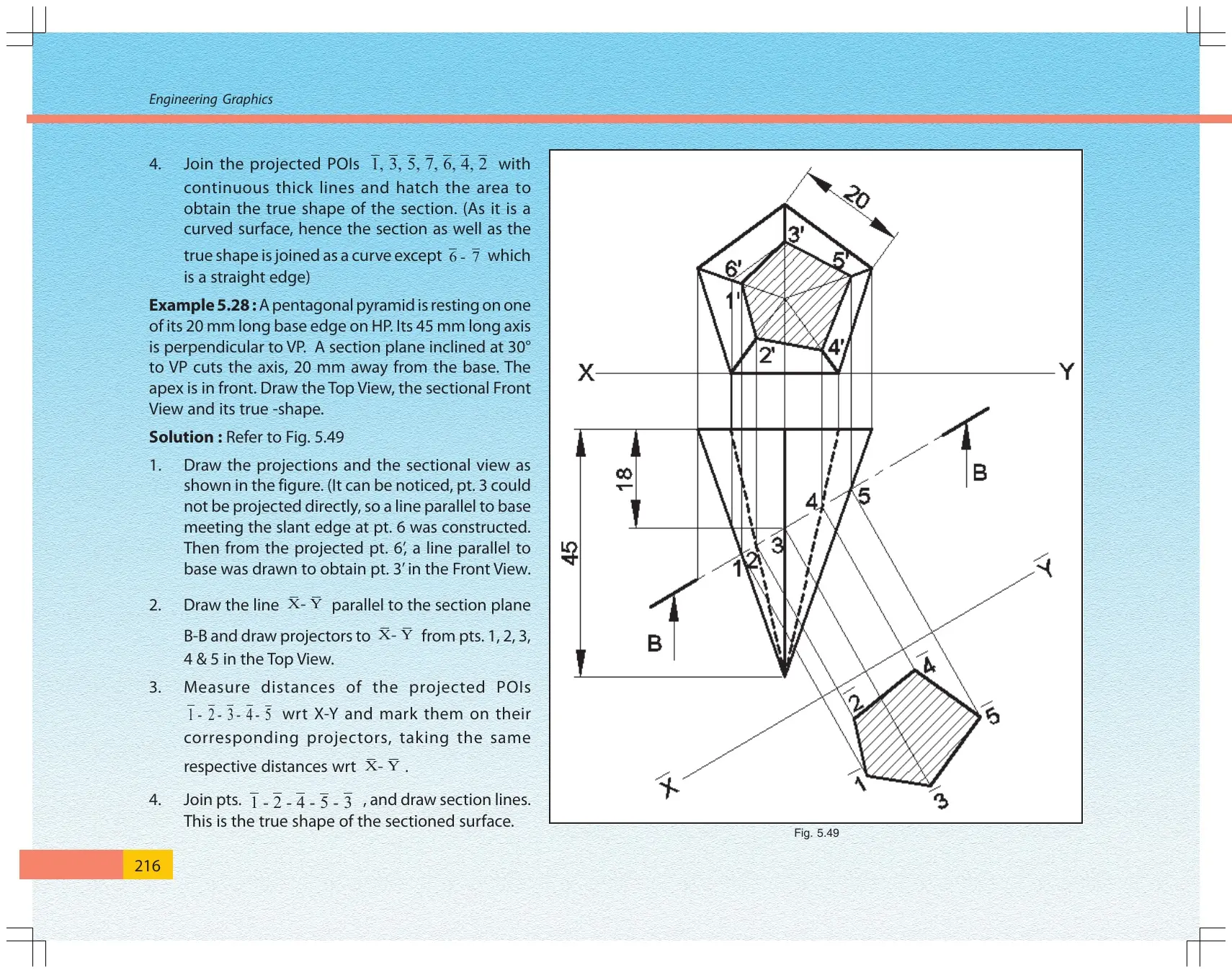

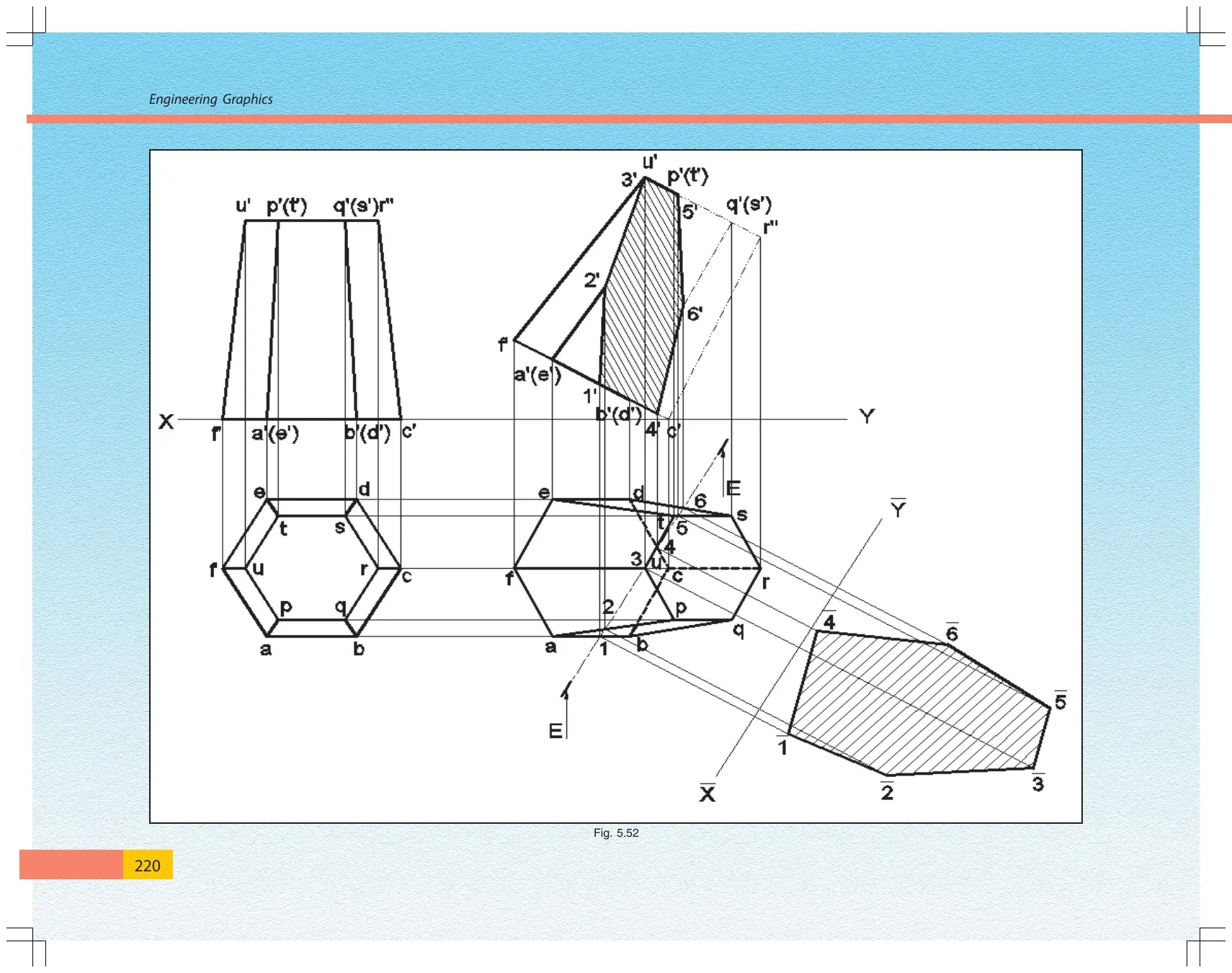

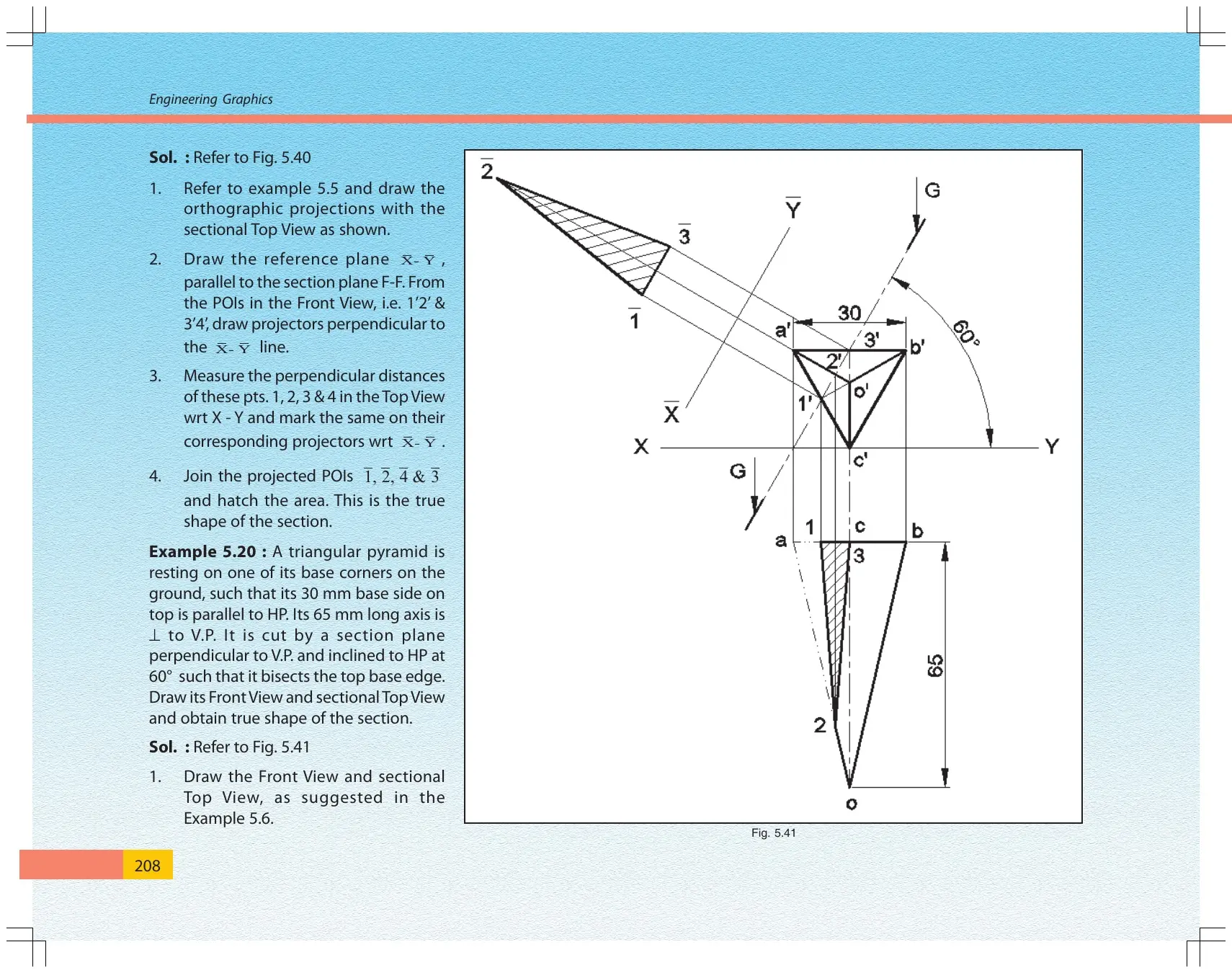

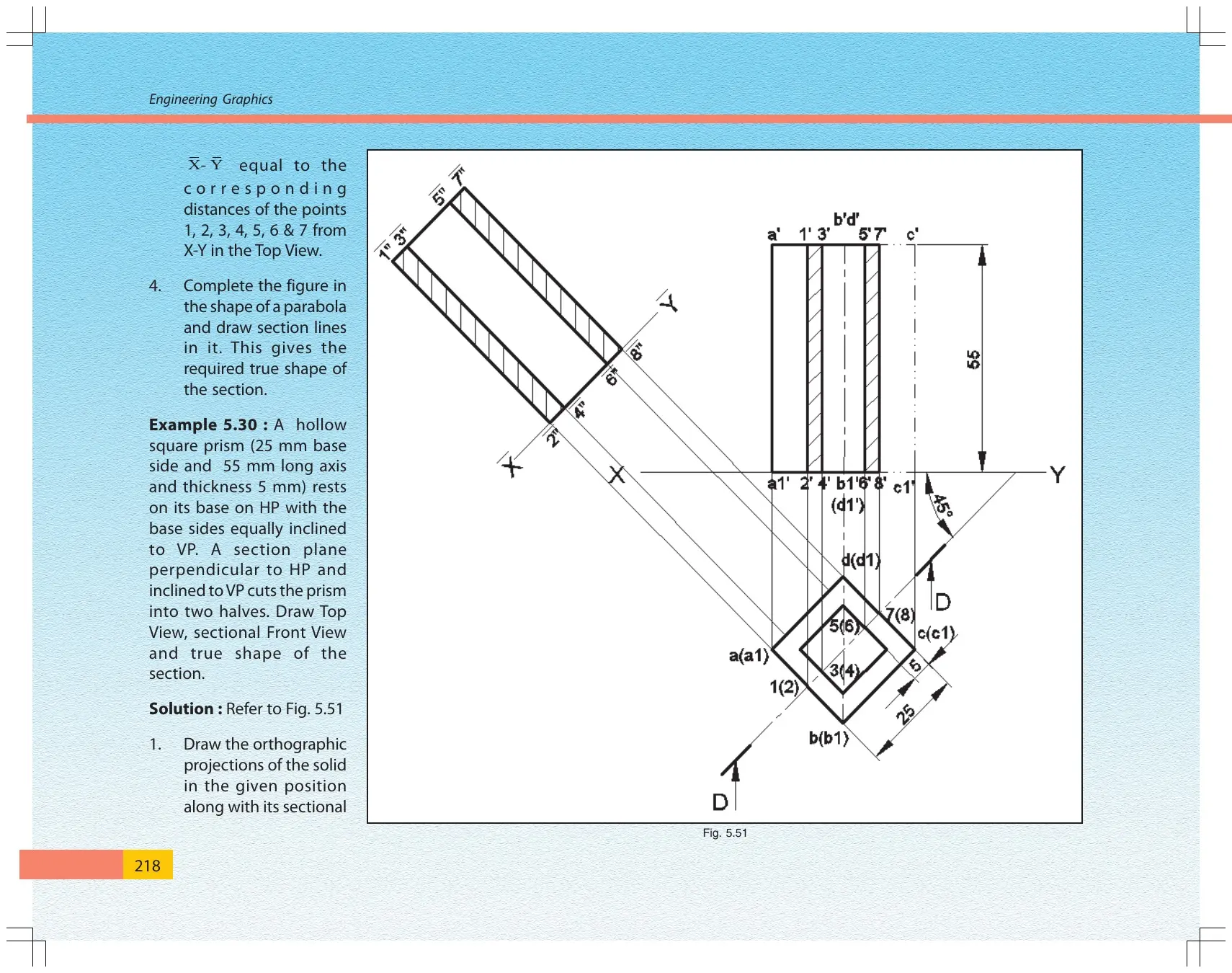

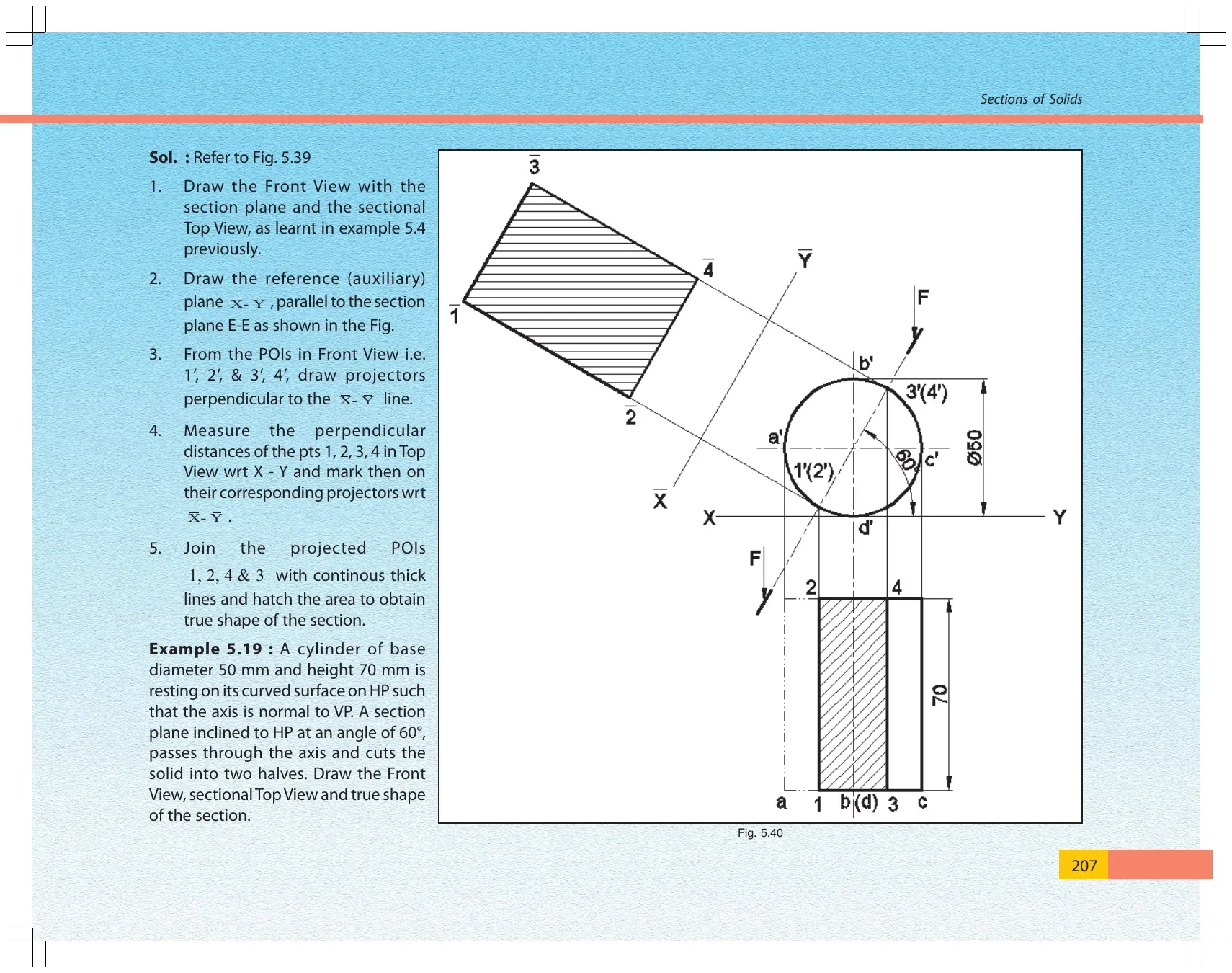

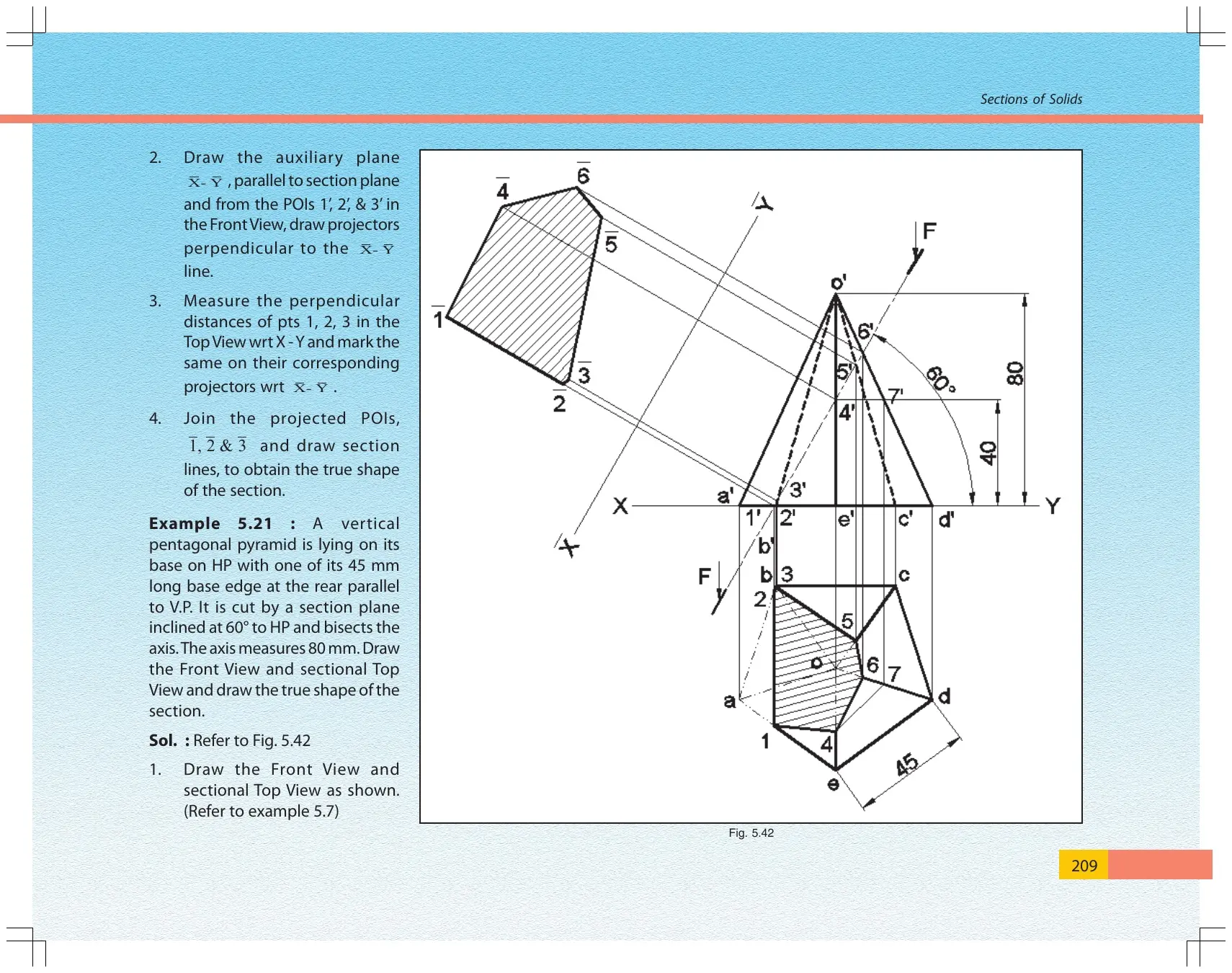

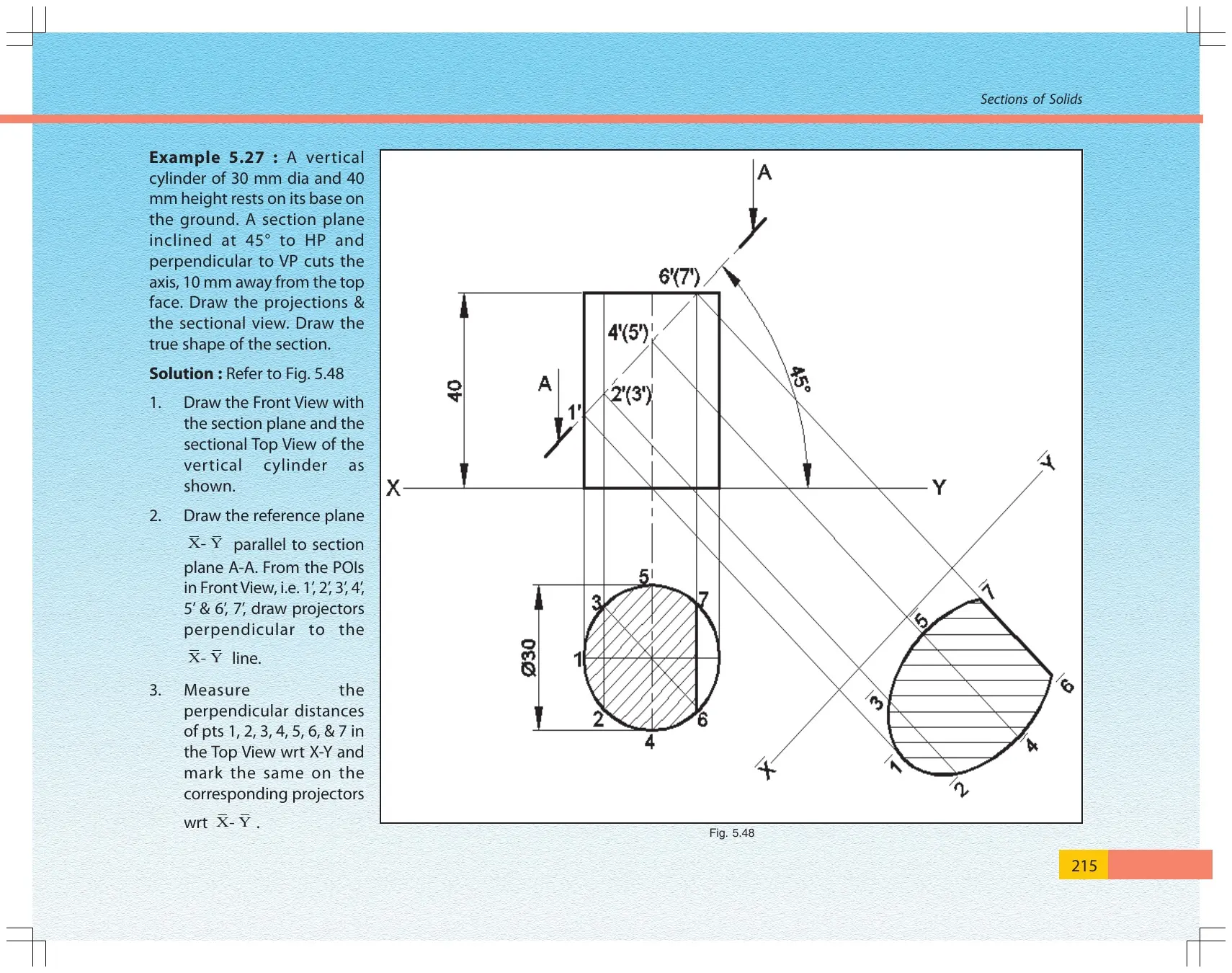

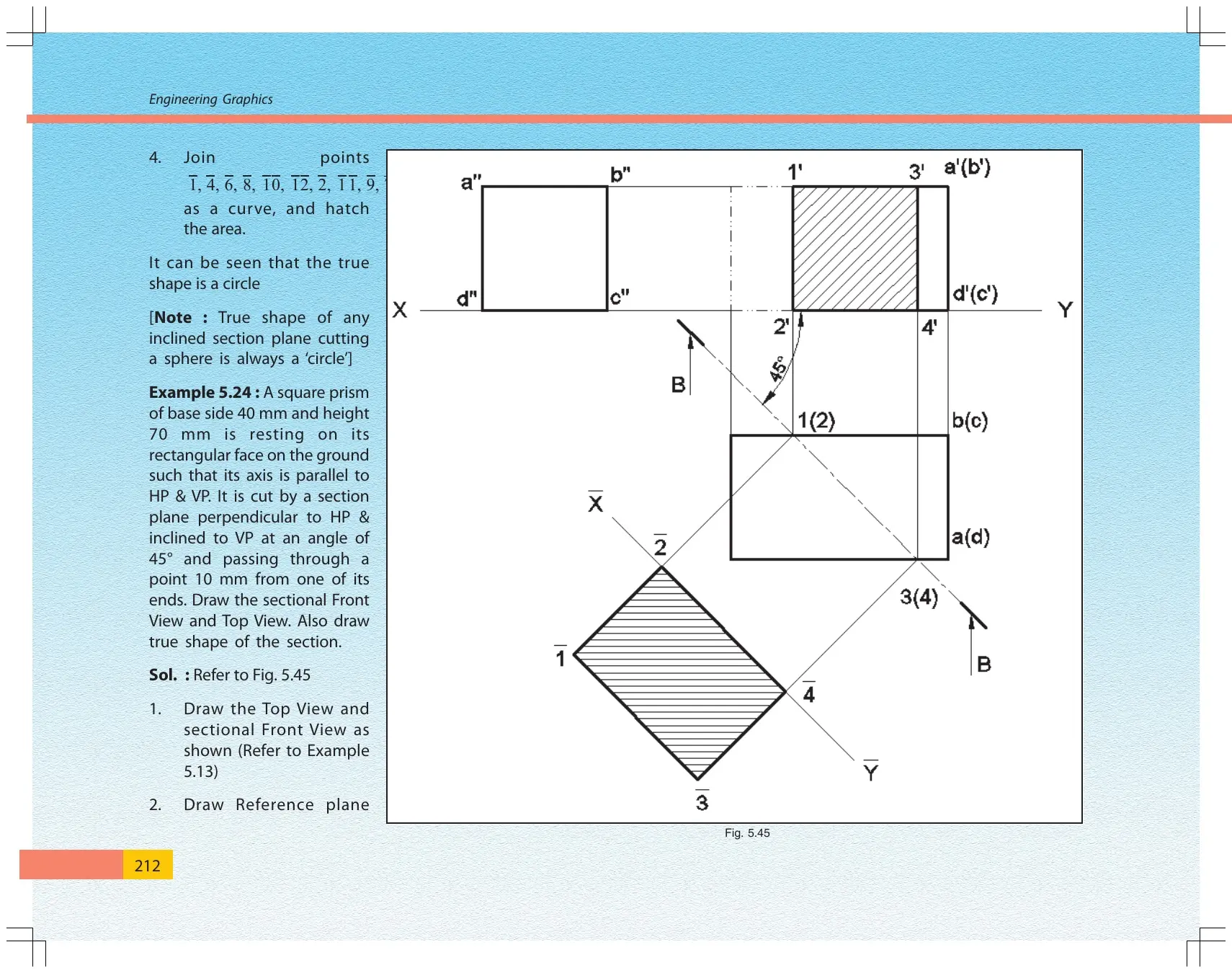

Ans. Students should practise marking cutting planes, transferring points of intersection, hatching only the cut surface and drawing true shape with an auxiliary reference plane.
