MHT CET PYQs for Current electricity with Solutions: Practice MHT CET Previous Year Questions

Current Electricity is a Class 12 chapter in the Physics section of the MHT CET for candidates who are preparing for the PCM (Physics, Chemistry, and Mathematics).

The key topics covered in Current Electricity PYQs are:

Potentiometer, meter bridge and Wheatstone bridge
Galvanometer, ammeter and voltmeter
Cells, emf and internal resistance
Kirchhoff's laws and resistor networks
Resistivity, drift velocity and the temperature dependence of resistance

Practising Current Electricity MHT CET PYQ helps candidates to understand question pattern, improve calculation speed, and identify concepts which were asked in previous exams.

Based on chapter-wise analysis of the MHT CET Physics paper, you can get about 2 marks per paper by covering Current Electricity. The chapter recorded 174 questions across the 80 shifts in the data, and 63 of them came in the 2025 and 2026 papers, where it contributed about 3.8% per shift.

MHT CET Current Electricity Chapter: Question Count, Marks and Weightage:

2.10 Average questions per shift (2018-2026)	63 Questions in the 2025 and 2026 papers (33 shifts)
174 Questions in the PDF (2016-2026)	4.2% Estimated Physics paper weightage (3.8% in 2025-2026)

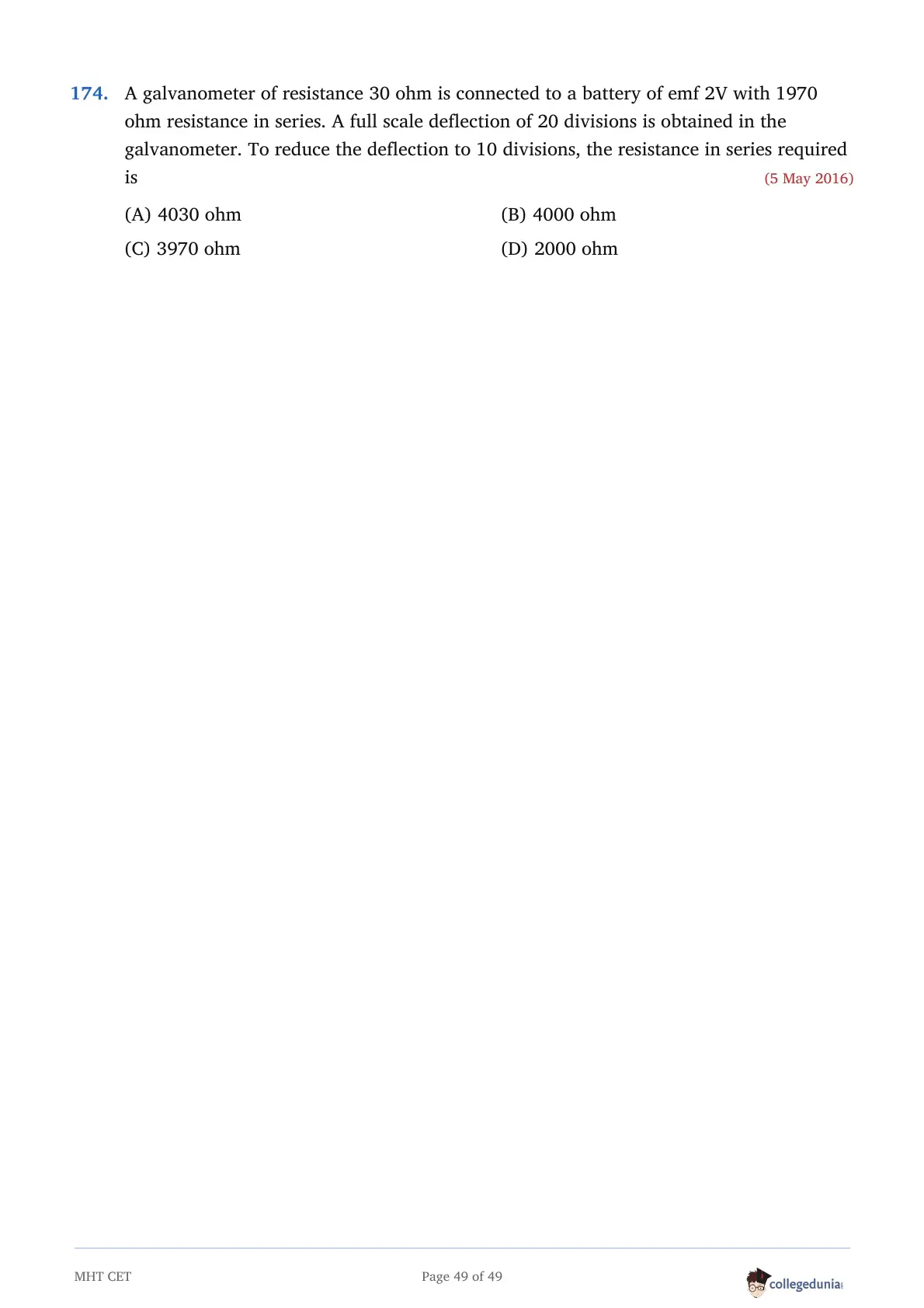

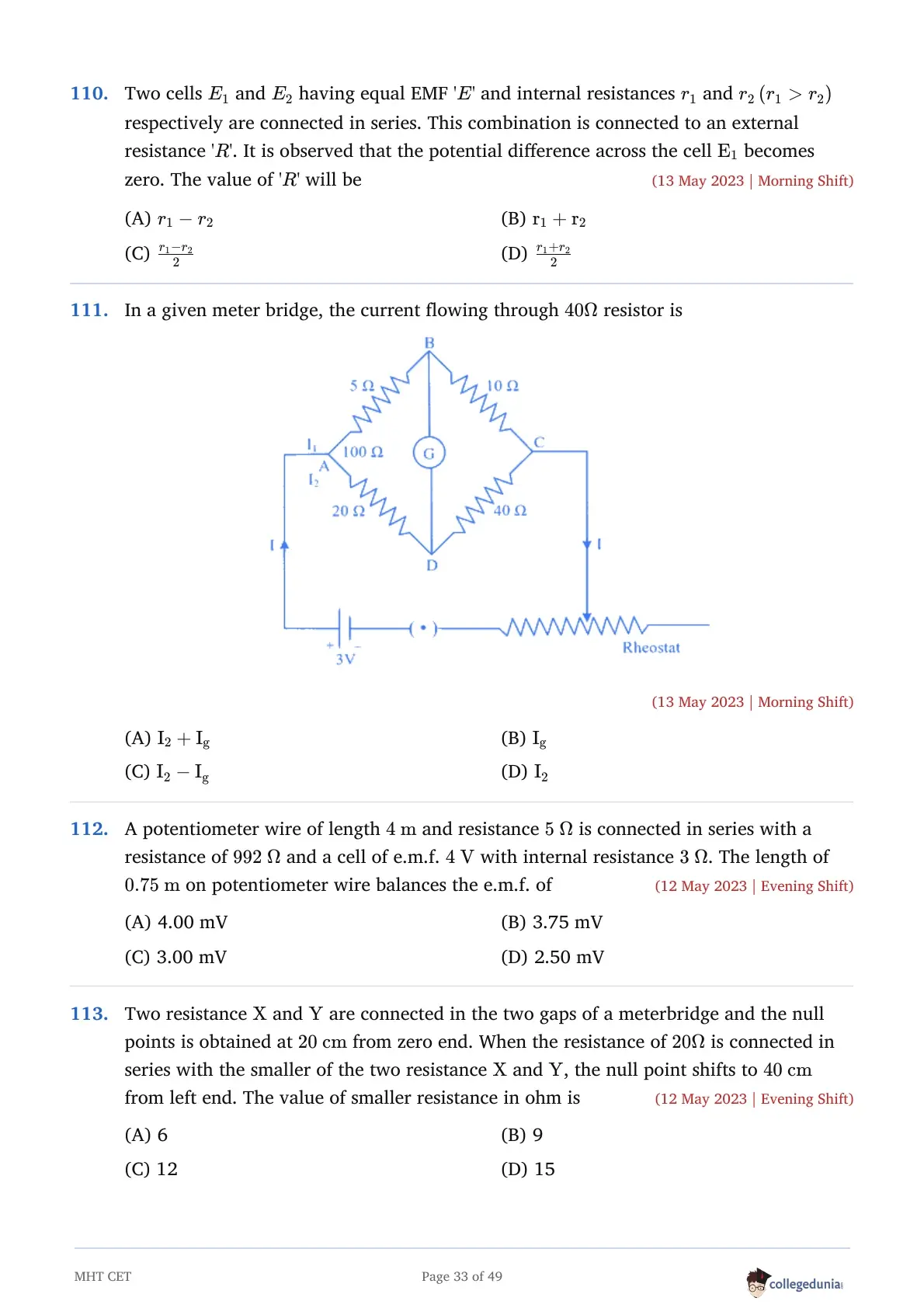

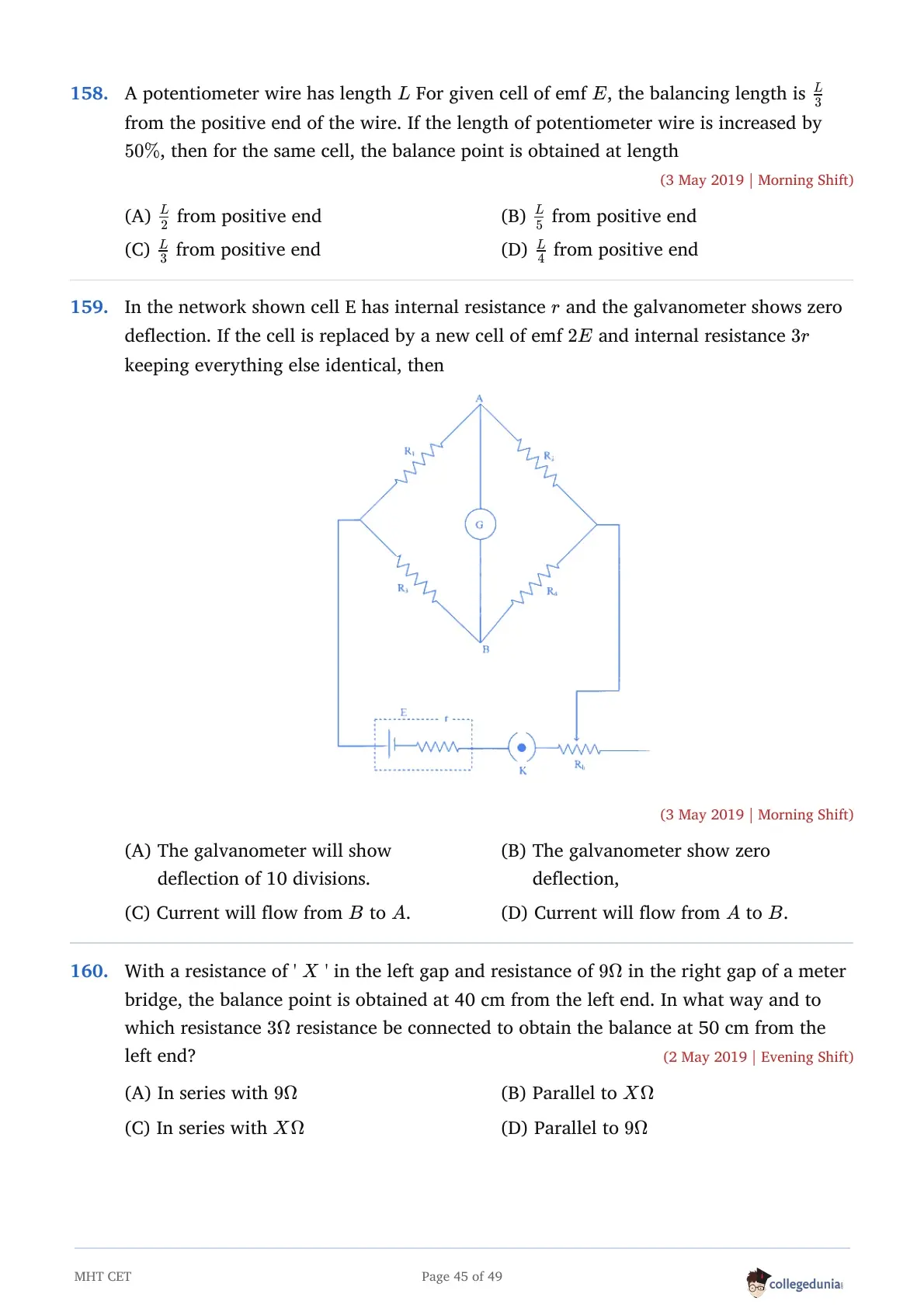

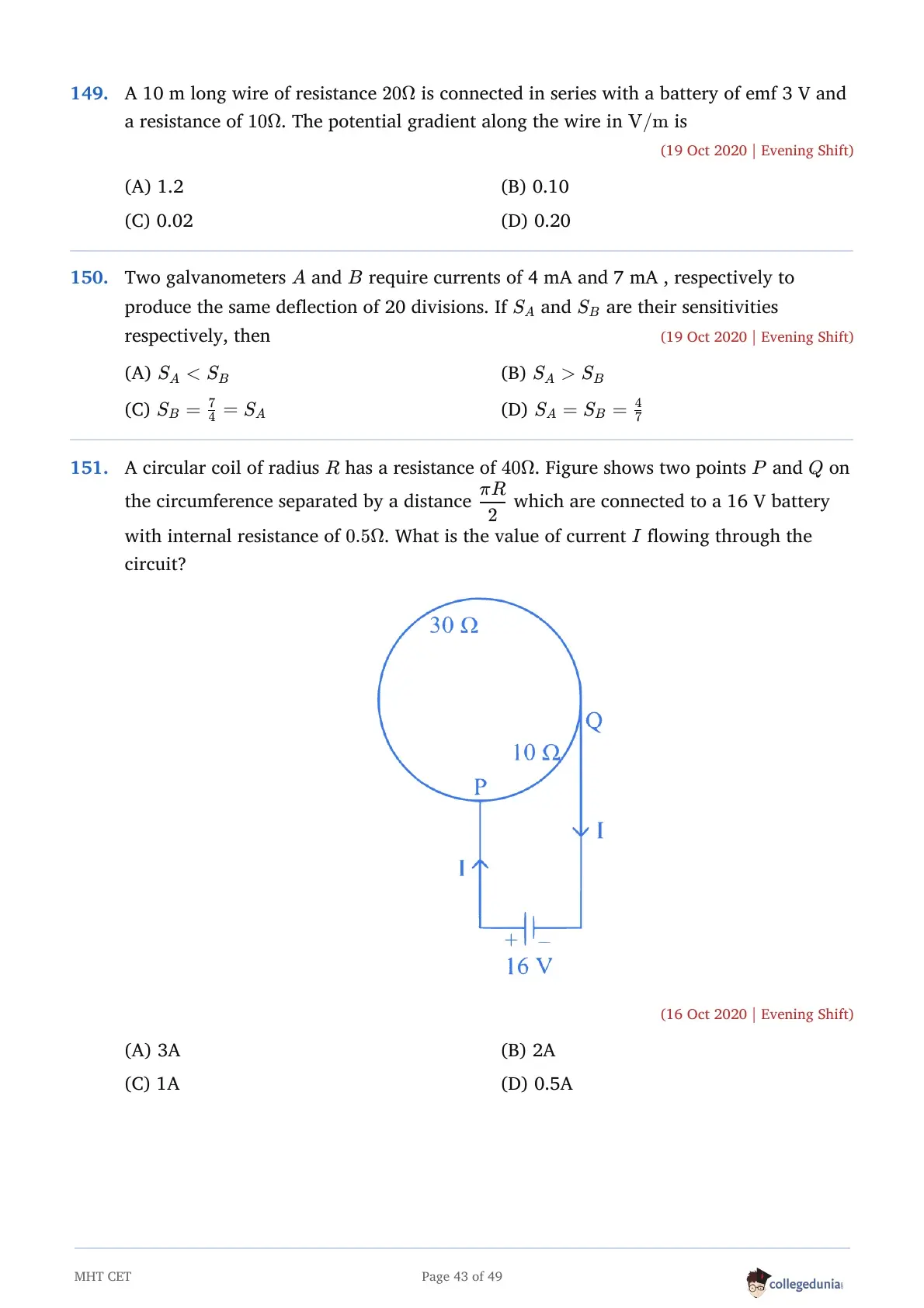

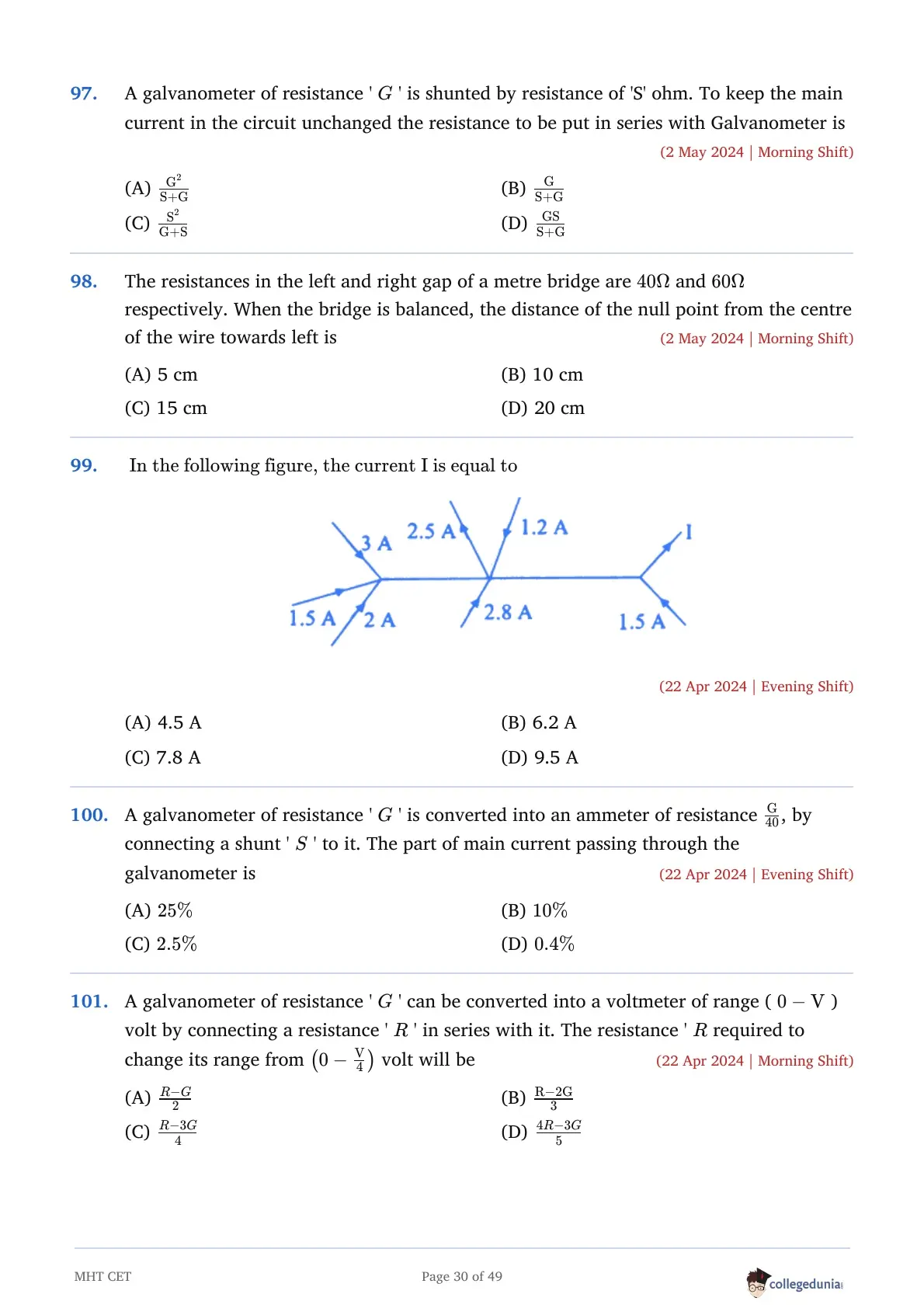

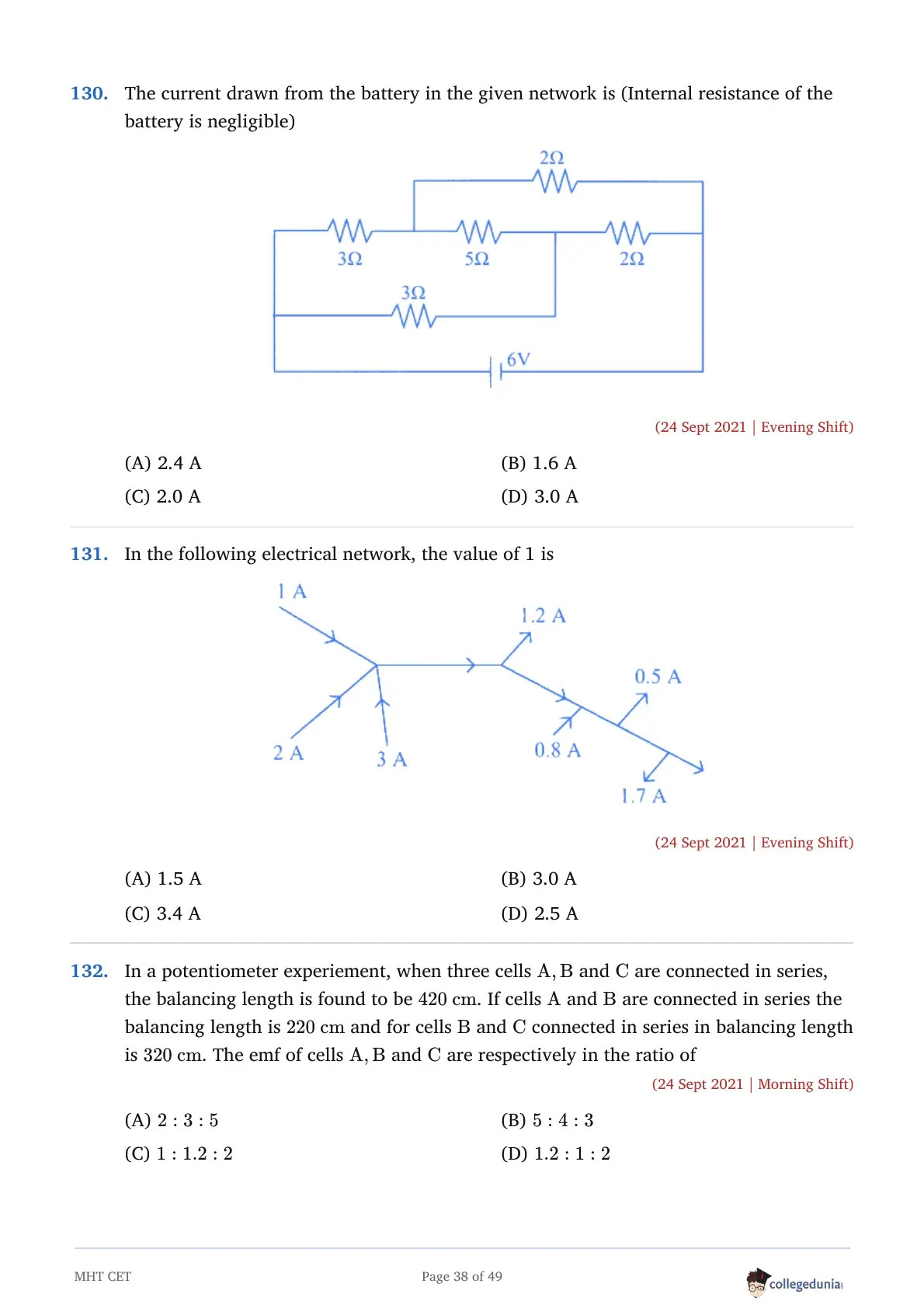

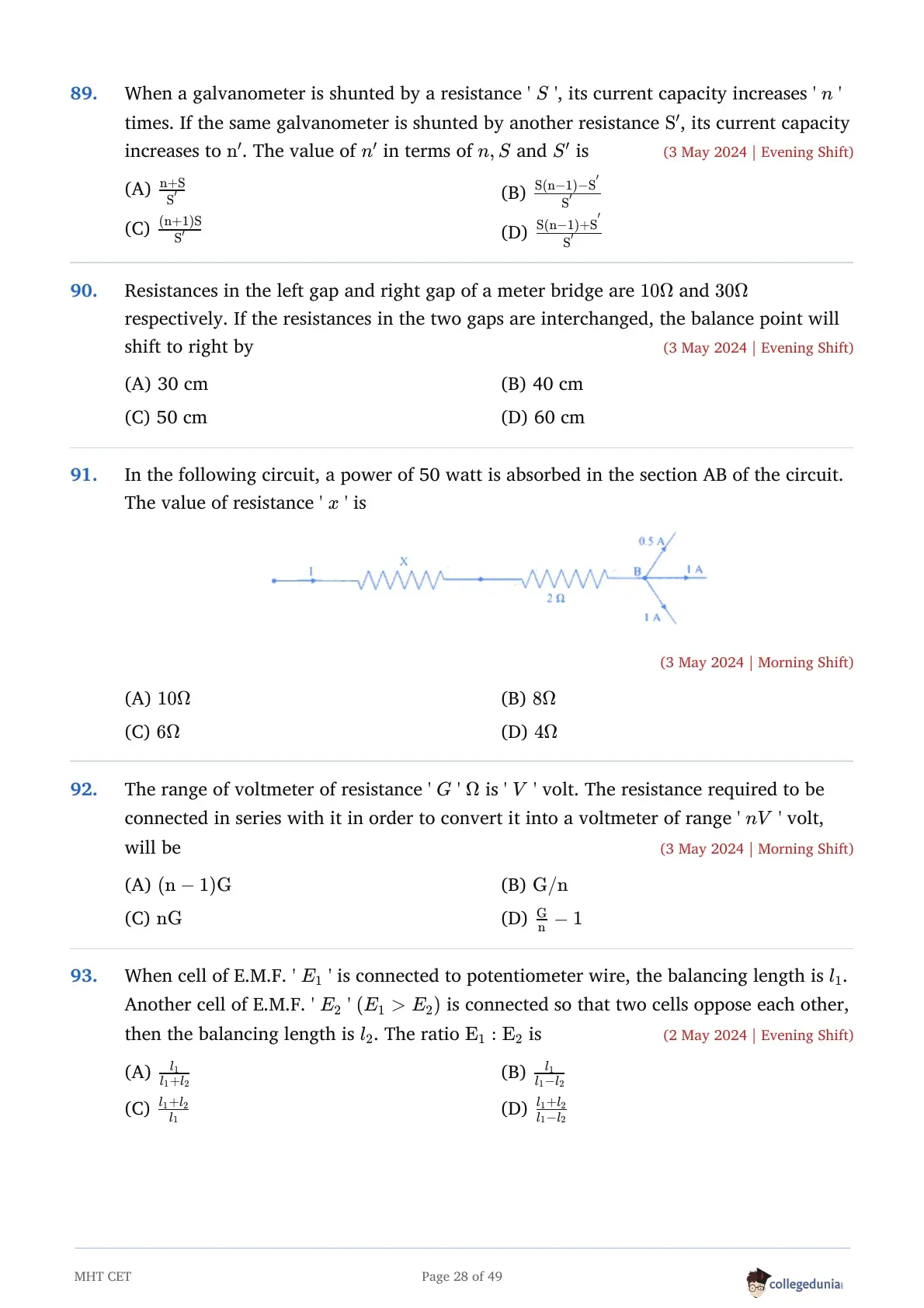

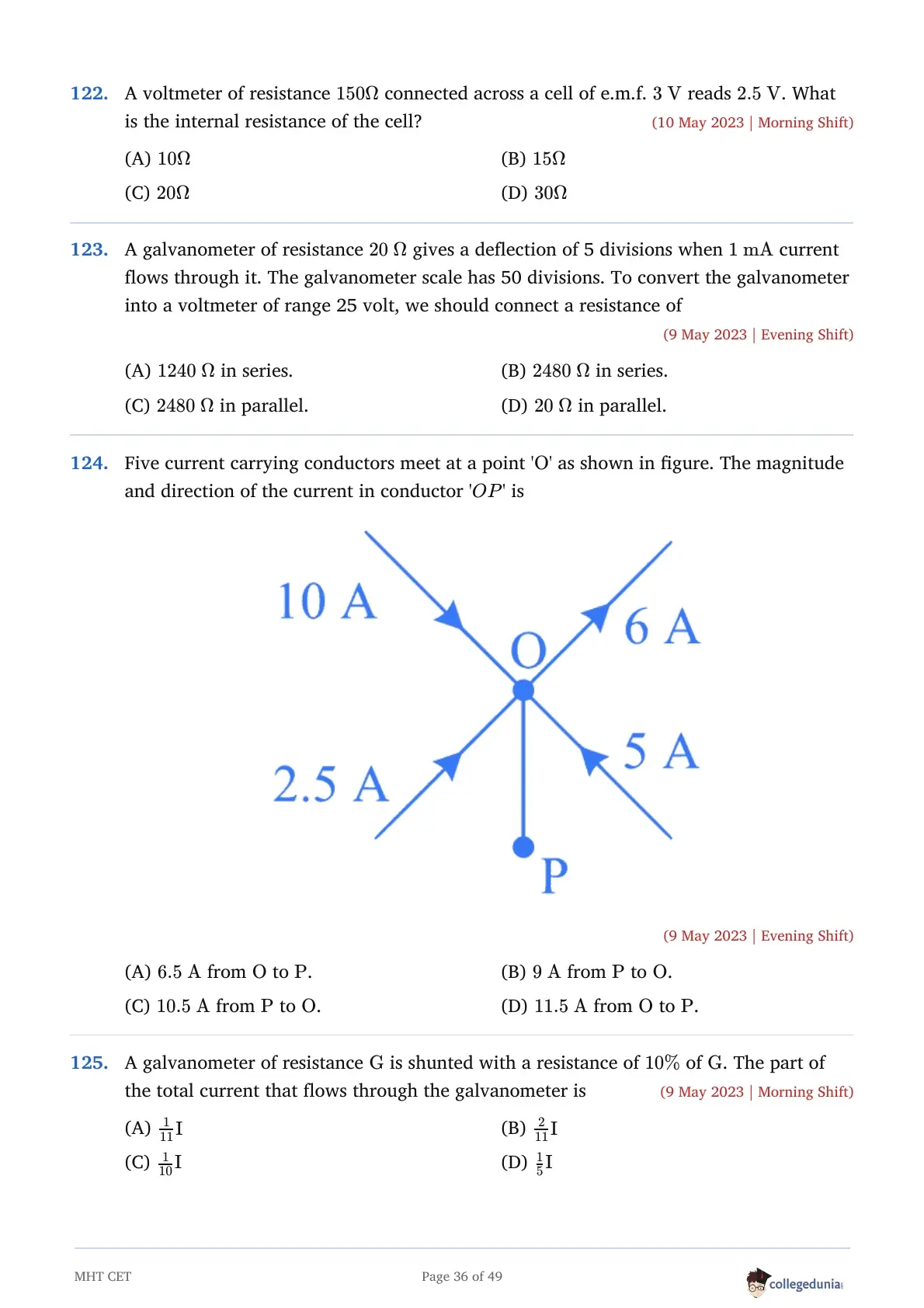

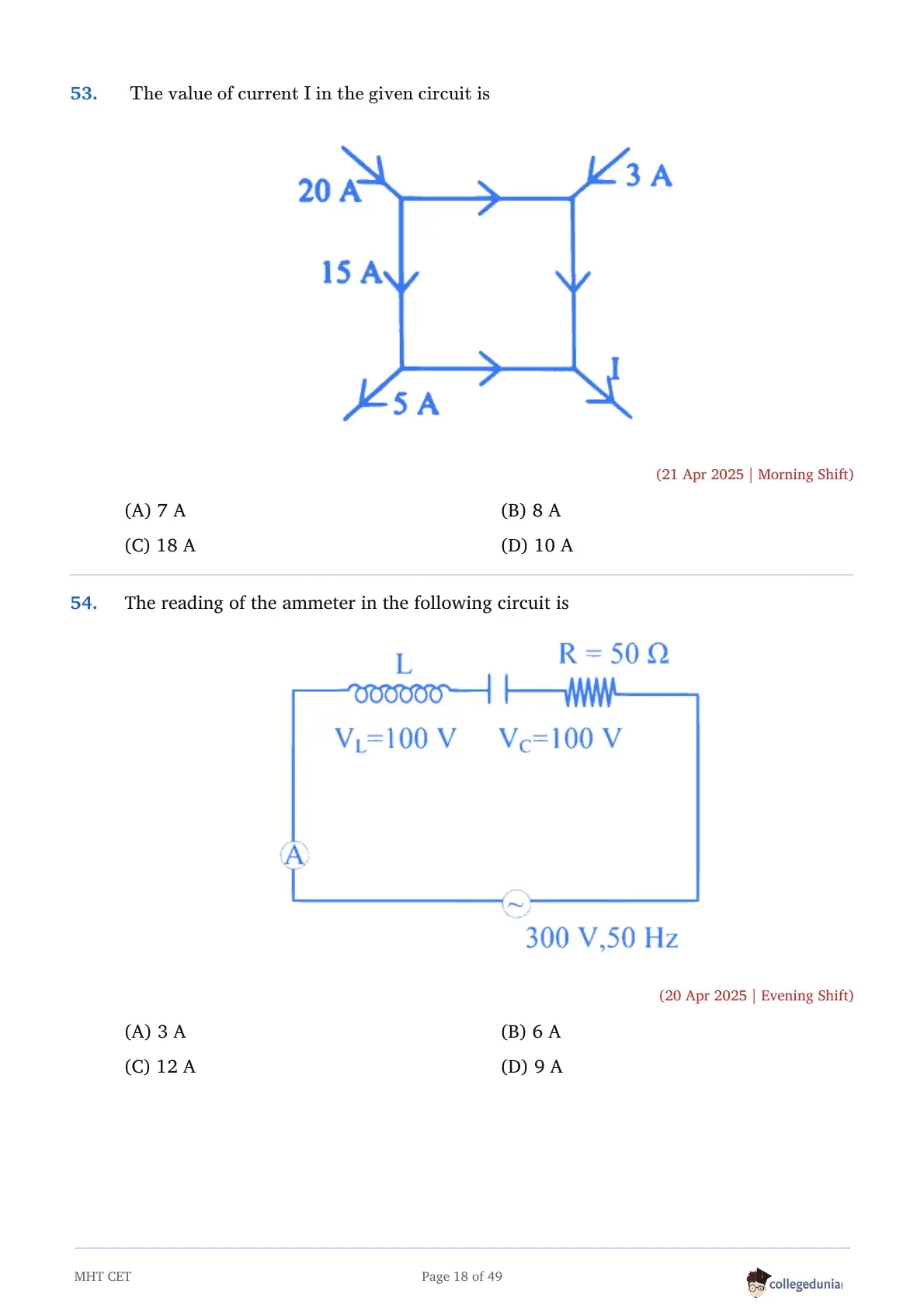

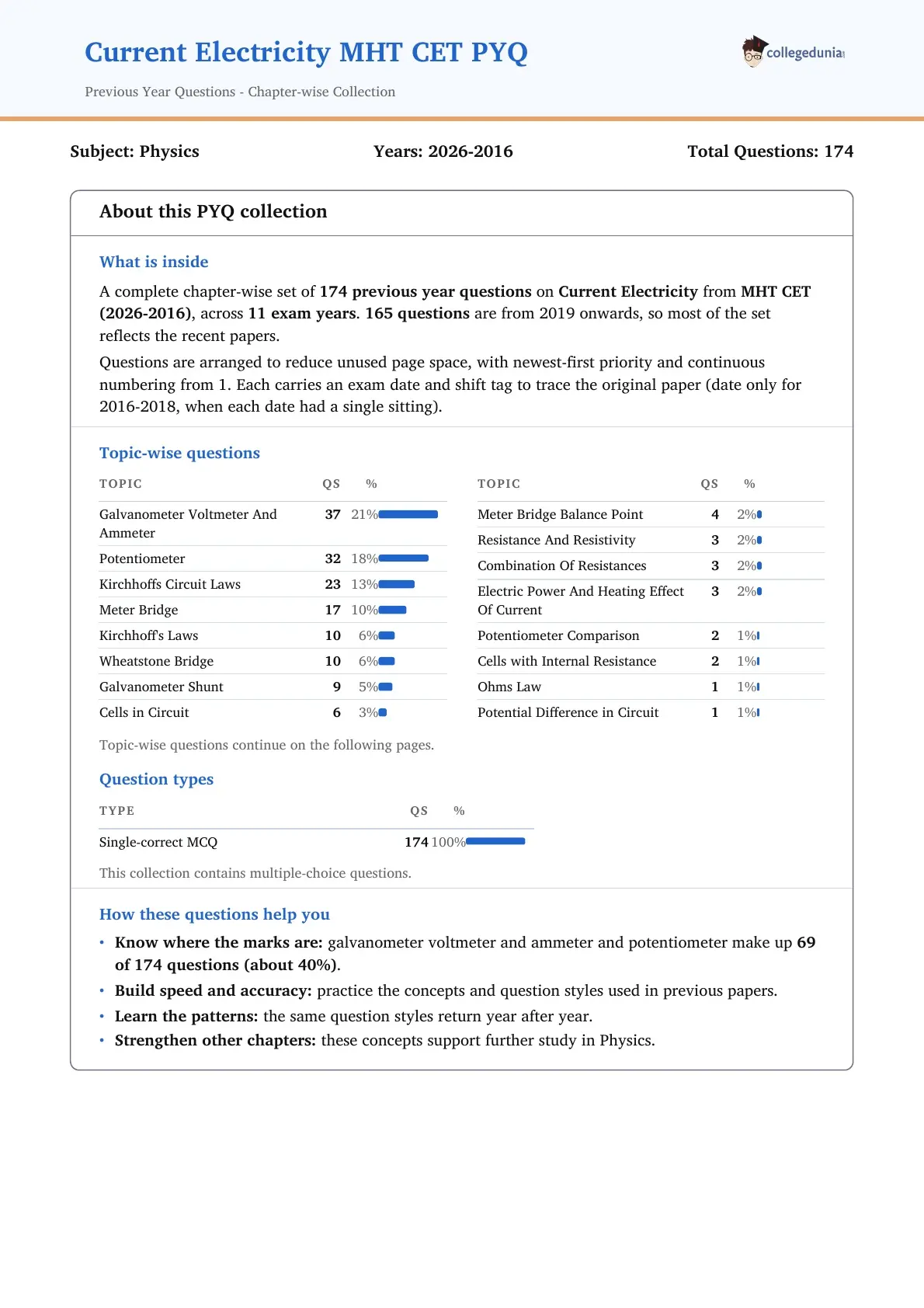

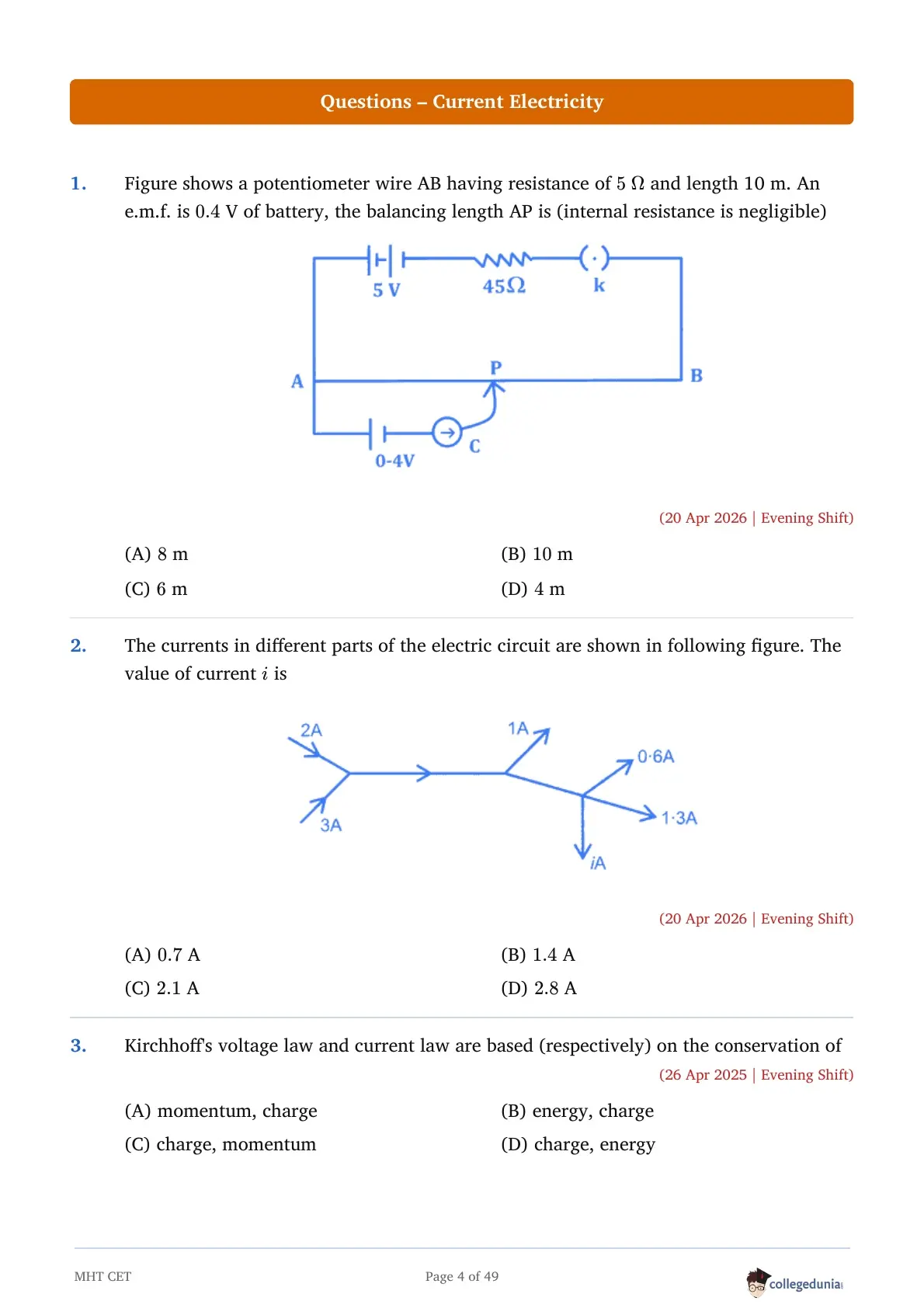

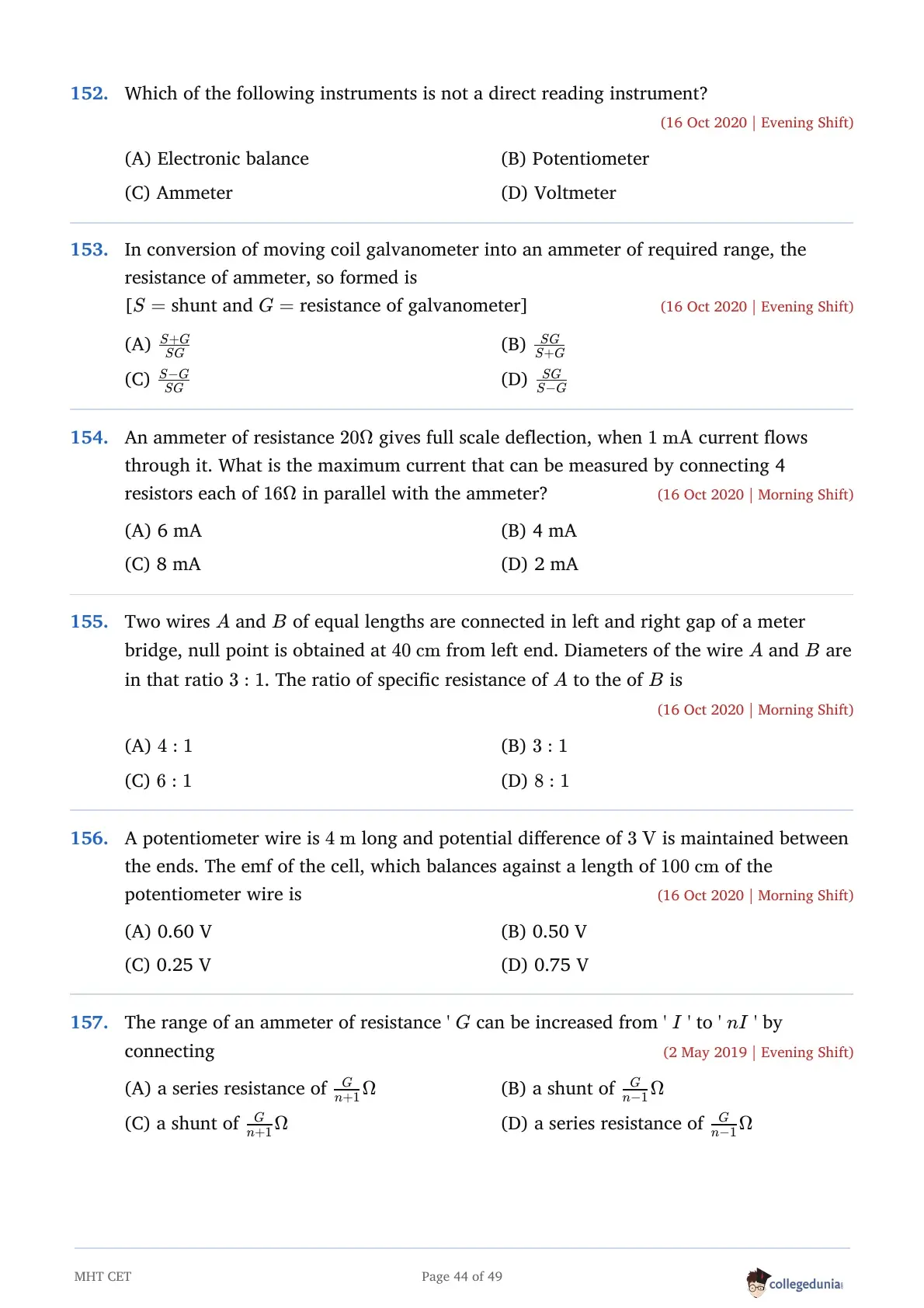

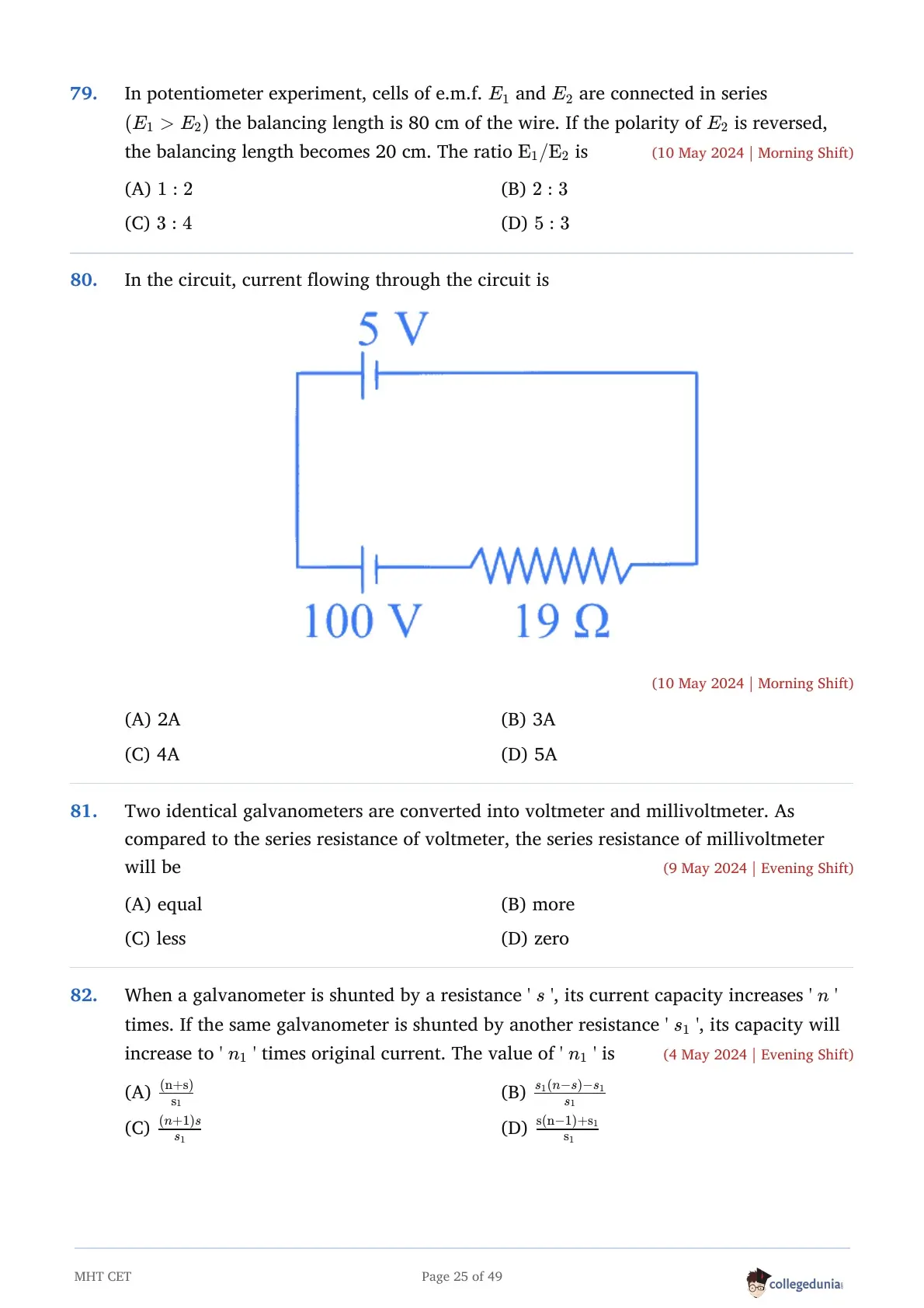

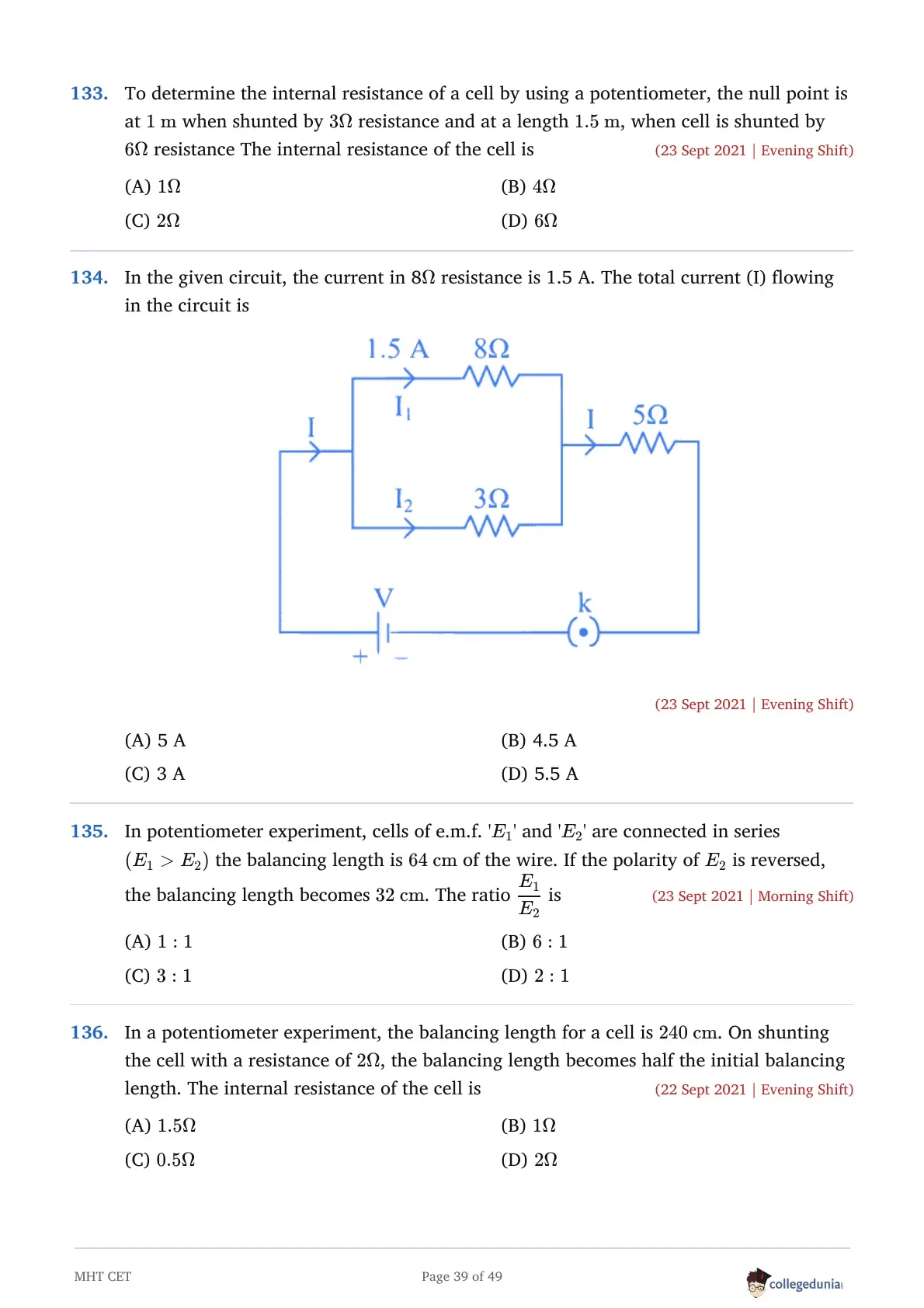

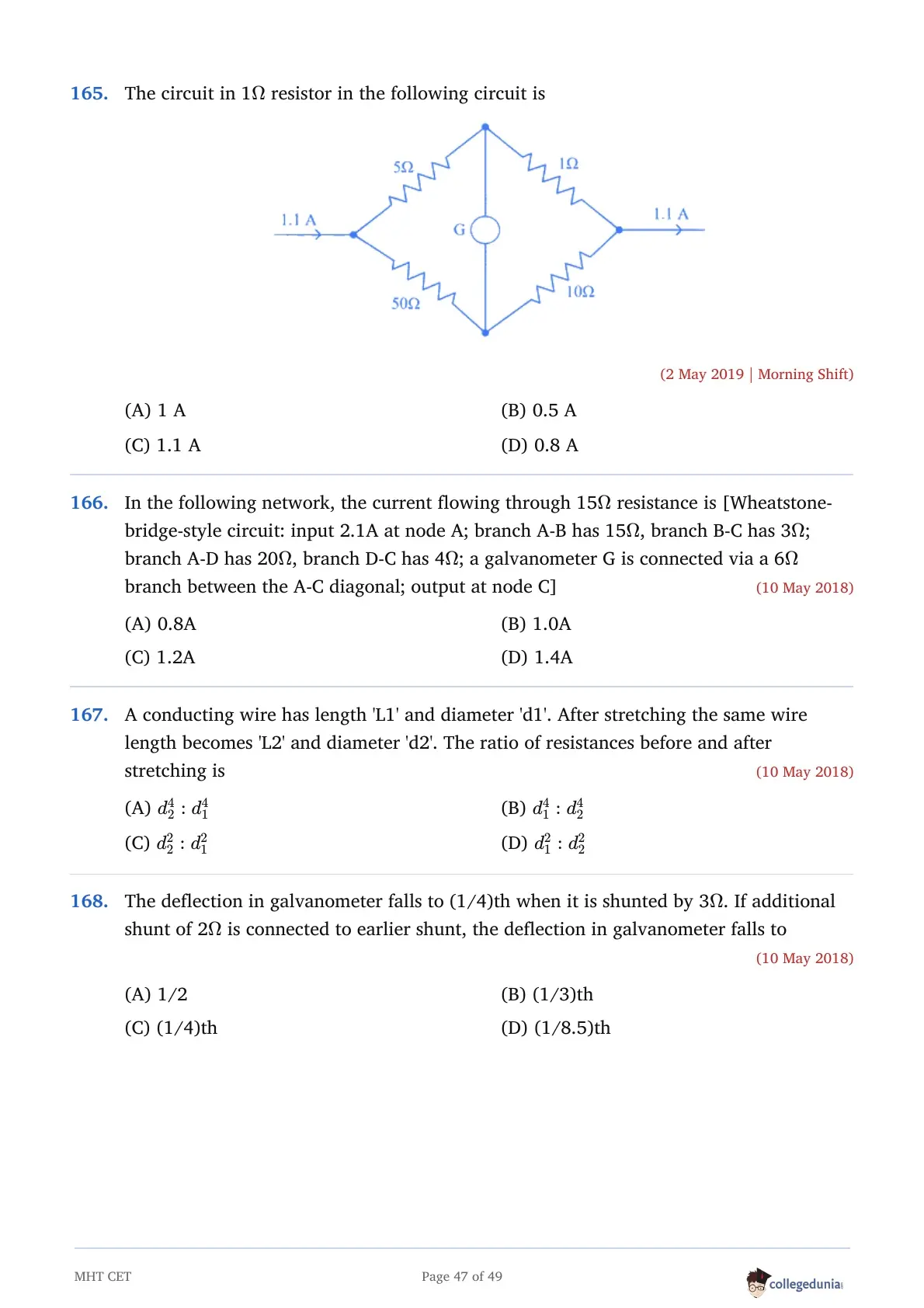

The PDF holds 174 questions from MHT CET 2026 to 2016, newest first, each with its exam date and shift. Options are as printed and answer keys are not included.

Current Electricity PYQ Statistics (2022-2026)

The table below shows the number of questions asked in MHT CET Current Electricity PYQs. Every shift has 50 Physics questions, so the last column is the average per shift divided by 50.

Year	Total Questions (across shifts)	Shifts in the Data	Average per Shift	Weightage (out of 50 Physics Qs)
2026	28	16	1.75	3.5%
2025	35	17	2.06	4.1%
2024	39	18	2.17	4.3%
2023	24	12	2.00	4.0%
2022	2	1	2.00	4.0%

The 2018 to 2021 papers in the PDF add 40 more questions: 2021 had 18, 2020 had 10, 2019 had 9, 2018 had 3; the papers before 2018 add 3 from 2017, 3 from 2016.

MHT CET Current Electricity Important Questions: Based on the Last 5 Years

The major types of questions asked from Current Electricity in MHT CET cover the following topics:

Topic	Questions in the PDF	Questions in 2022-2026	Average per Shift (2022-2026)
Potentiometer, meter bridge and Wheatstone bridge	60	45	0.70
Galvanometer, ammeter and voltmeter	53	39	0.61
Cells, batteries and internal resistance	12	9	0.14
Resistor networks, Kirchhoff's laws, power and resistivity	49	35	0.55

Pair PYQs with Other Study Material for MHT CET 2027

Click on the link to practise problems and time management skills:

Resource	Link
MHT CET Sample Paper	Check Here
MHT CET Mock Test	Check Here

Question Style in MHT CET Current Electricity PYQs

Every question in this PDF is a single-correct MCQ. About a third are on the potentiometer, meter bridge or Wheatstone bridge, and more than a quarter are on converting or using a galvanometer.

Question Style	What it Tests
Potentiometer	A potentiometer wire AB of 5 Ω and 10 m length, and the comparison of two cells' emfs from balancing lengths
Meter bridge	Two resistances X and Y in the gaps of a meter bridge and the null point on the wire
Galvanometer conversion	The shunt that lets 10% of the main current through a galvanometer of 99 Ω, and the resistance of 980 Ω in series to make a voltmeter
Cells and batteries	Two batteries of 4 V and 8 V with different internal resistances connected in a circuit, and the current drawn from a battery

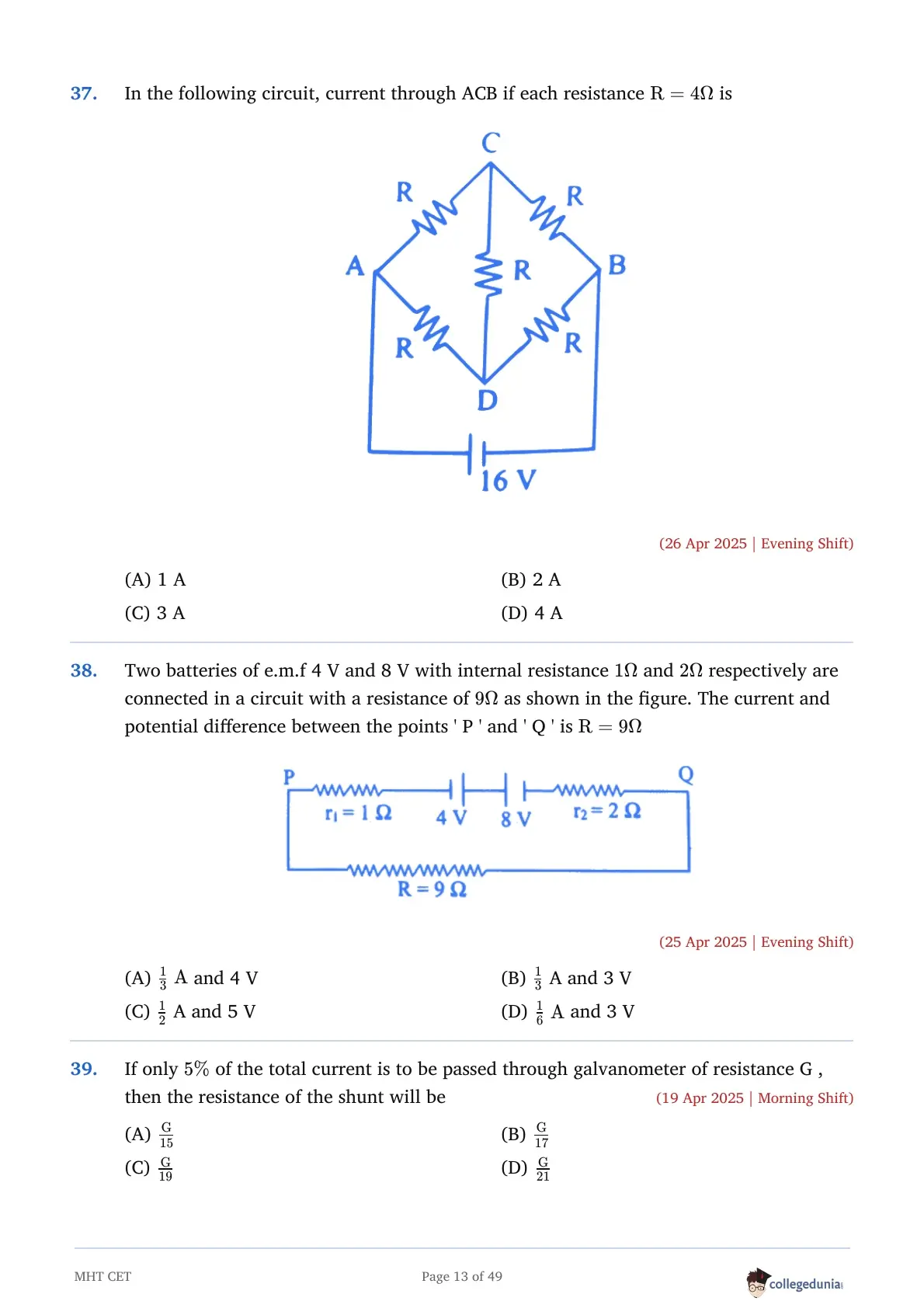

Resistor networks	The current through a 15 Ω resistance in a network, the current through ACB when each resistance is 4 Ω, and the equivalent resistance when no current flows in one resistor

How to Use the Current Electricity PYQ PDF for MHT CET

Start with the 2025 and 2026 papers first, because they hold 63 of the 174 questions.
Revise the balance condition of the Wheatstone bridge and the meter bridge, since they settle the largest group of questions.
For shunt and series-resistance questions, write the current through the galvanometer first and then the formula for the resistor.
Solve year-wise PYQs by timing yourself, as time management is crucial.
Re-attempt only the questions you got wrong, and note which formula or step you missed.

Video: Current Electricity PYQs and MCQs

Source: Ajju Sir Physics

Current Electricity PYQ for MHT CET Physics FAQs

Ques. How many questions come from Current Electricity every year?

Ans. In this PDF, the questions are 28 from 2026, 35 from 2025, 39 from 2024, 24 from 2023 and 2 from 2022 and the rest from earlier papers. In 2025 and 2026 together the chapter had 63 questions across 33 shifts, about 1.91 per shift.

Ques. Which topics are asked most frequently in MHT CET Current Electricity?

Ans. Potentiometer, meter bridge and Wheatstone bridge is the largest group with 60 of the 174 questions, about 34%.

Ques. What kind of questions are asked from Current Electricity?

Ans. Single-correct MCQs, mostly numerical. Common ones use the potentiometer or meter bridge balance, the shunt or series resistance of a galvanometer, or the current in a network of resistors and cells.

Ques. What is the best way to practise Current Electricity PYQs?

Ans. First solve the 2025 and 2026 questions completely, then the older ones, and finally re-attempt the questions you got wrong.

Ques. Can I score full marks from Current Electricity?

Ans. In 2025 and 2026 together the chapter had 63 questions across 33 shifts. Learning the bridge balance conditions and the galvanometer conversions is enough to secure it. Each Physics question in MHT CET is worth 1 mark.

Ques. Does the Current Electricity PYQ PDF include solutions?

Ans. No. The PDF contains the questions with their exam date and shift, without answer keys or solutions.

MHT CET PYQs for Current electricity with Solutions: Practice MHT CET Previous Year Questions

Current Electricity PYQ Statistics (2022-2026)

MHT CET Current Electricity Important Questions: Based on the Last 5 Years

Pair PYQs with Other Study Material for MHT CET 2027

Question Style in MHT CET Current Electricity PYQs

How to Use the Current Electricity PYQ PDF for MHT CET

Video: Current Electricity PYQs and MCQs

Current Electricity PYQ for MHT CET Physics FAQs

1.
If the internal resistance of the cell is negligible, then the current flowing through the circuit is

3.

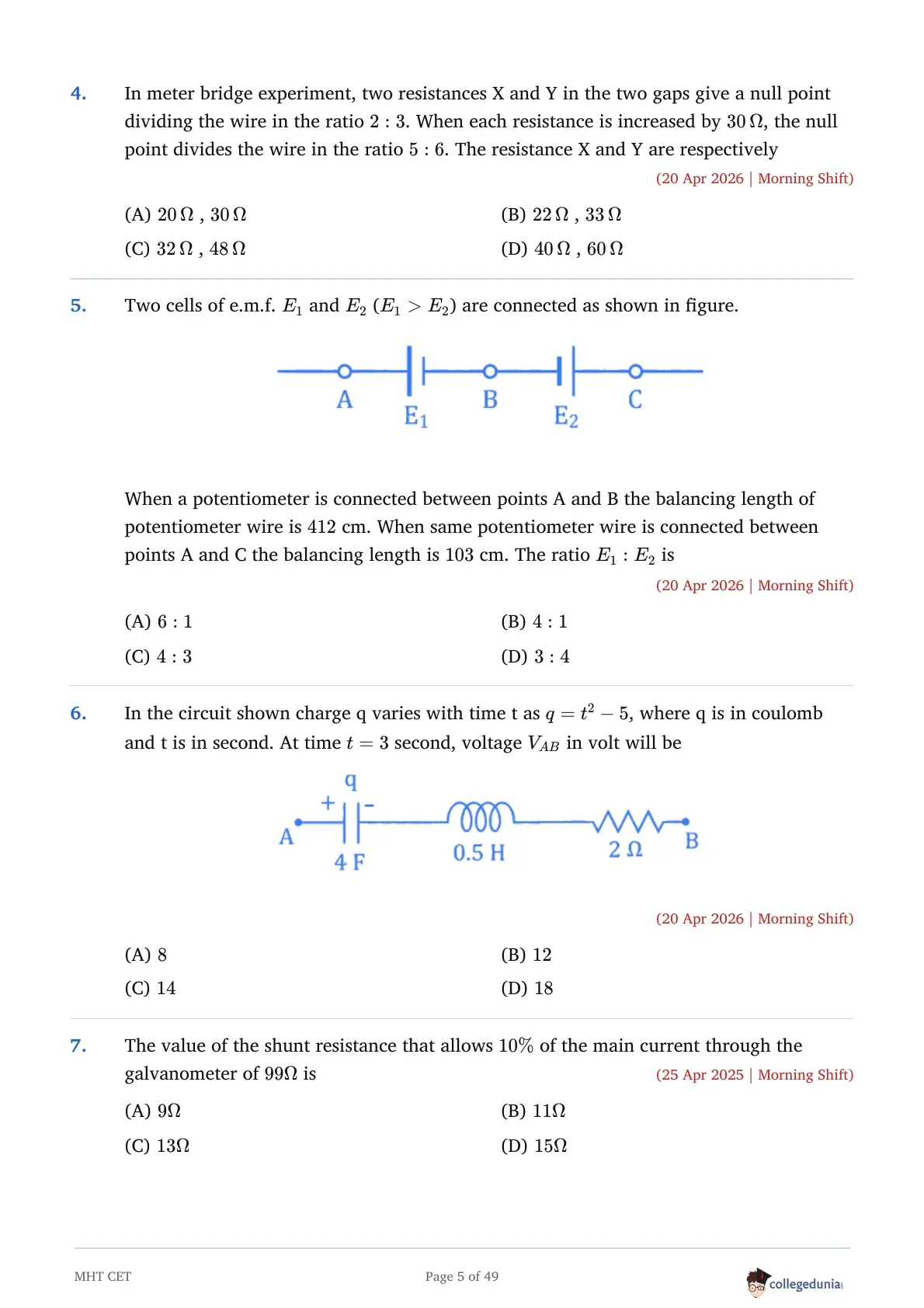

In meter bridge experiment, two resistances X and Y in the two gaps give a null point dividing the wire in the ratio \(2:3\). When each resistance is increased by \(30\,\Omega\), the null point divides the wire in the ratio \(5:6\). The resistance X and Y are respectively

4.

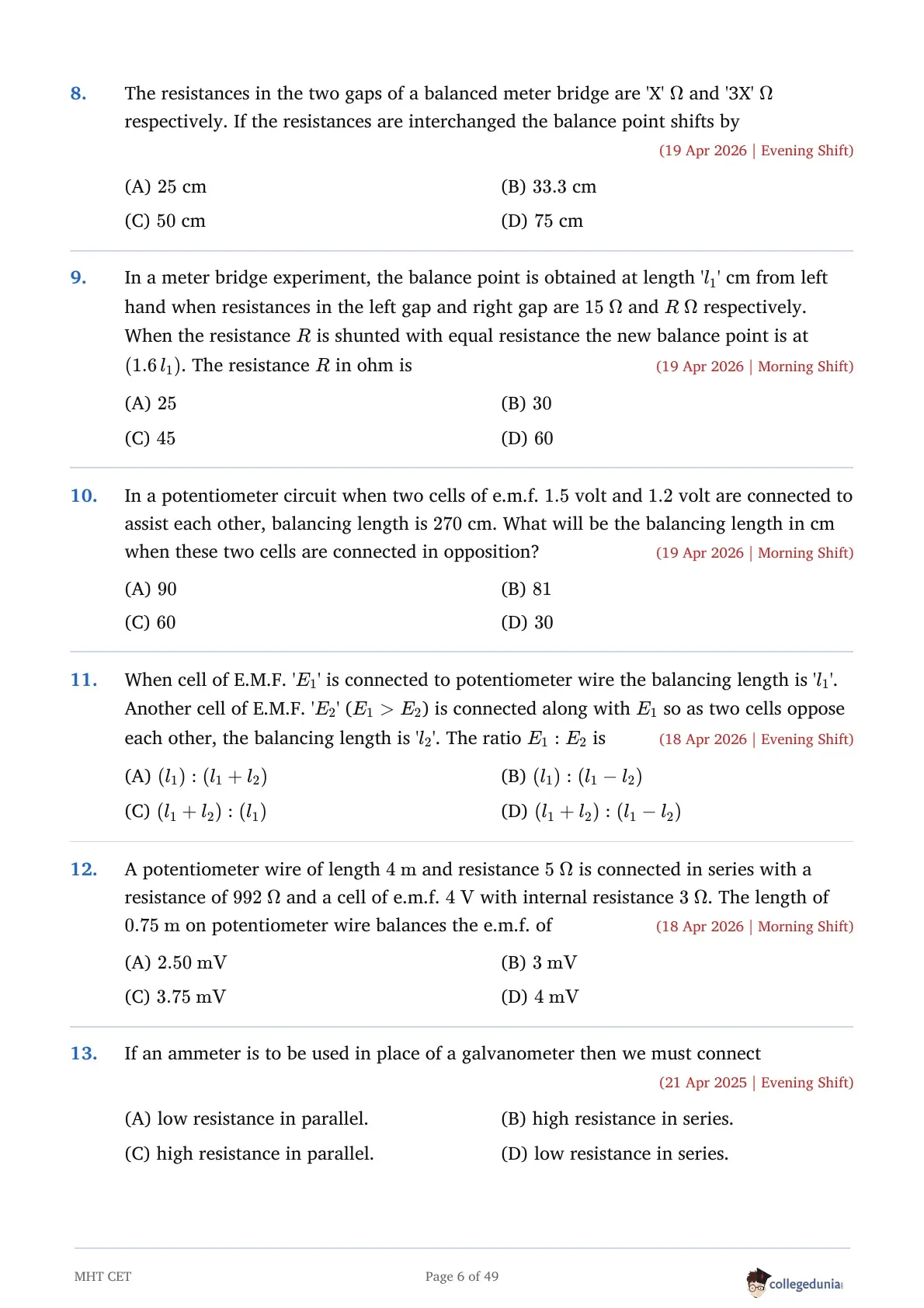

In a potentiometer circuit when two cells of e.m.f. \(1.5\) volt and \(1.2\) volt are connected to assist each other, balancing length is \(270\) cm. What will be the balancing length in cm when these two cells are connected in opposition?

5.
Two batteries of e.m.f 4 V and 8 V with internal resistance 1$\Omega$ and 2$\Omega$ respectively are connected in series (opposing) with a 9$\Omega$ resistor. The current and potential difference between points 'P' and 'Q' is \dots

6.
What is the shunt resistance \(S\) needed if the galvanometer current \(I_g\) is \(8\%\) of the total current \(I\)?

7.
The resistances in the two gaps of a balanced meter bridge are 'X' \(\Omega\) and '3X' \(\Omega\) respectively. If the resistances are interchanged the balance point shifts by

8.

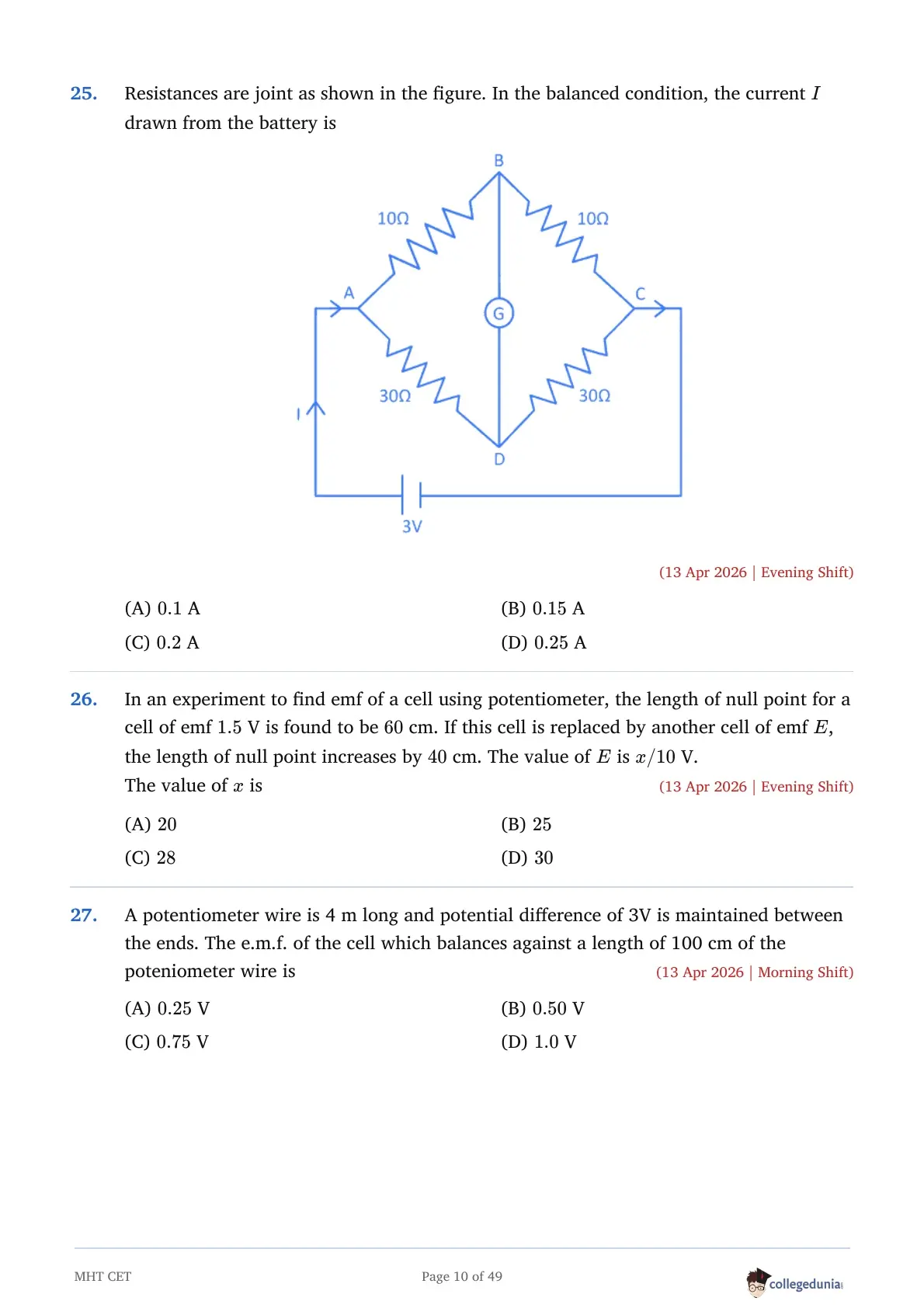

Resistances are joint as shown in the figure. In the balanced condition, the current \(I\) drawn from the battery is

9.
To convert a galvanometer into a voltmeter, one must connect a:

10.

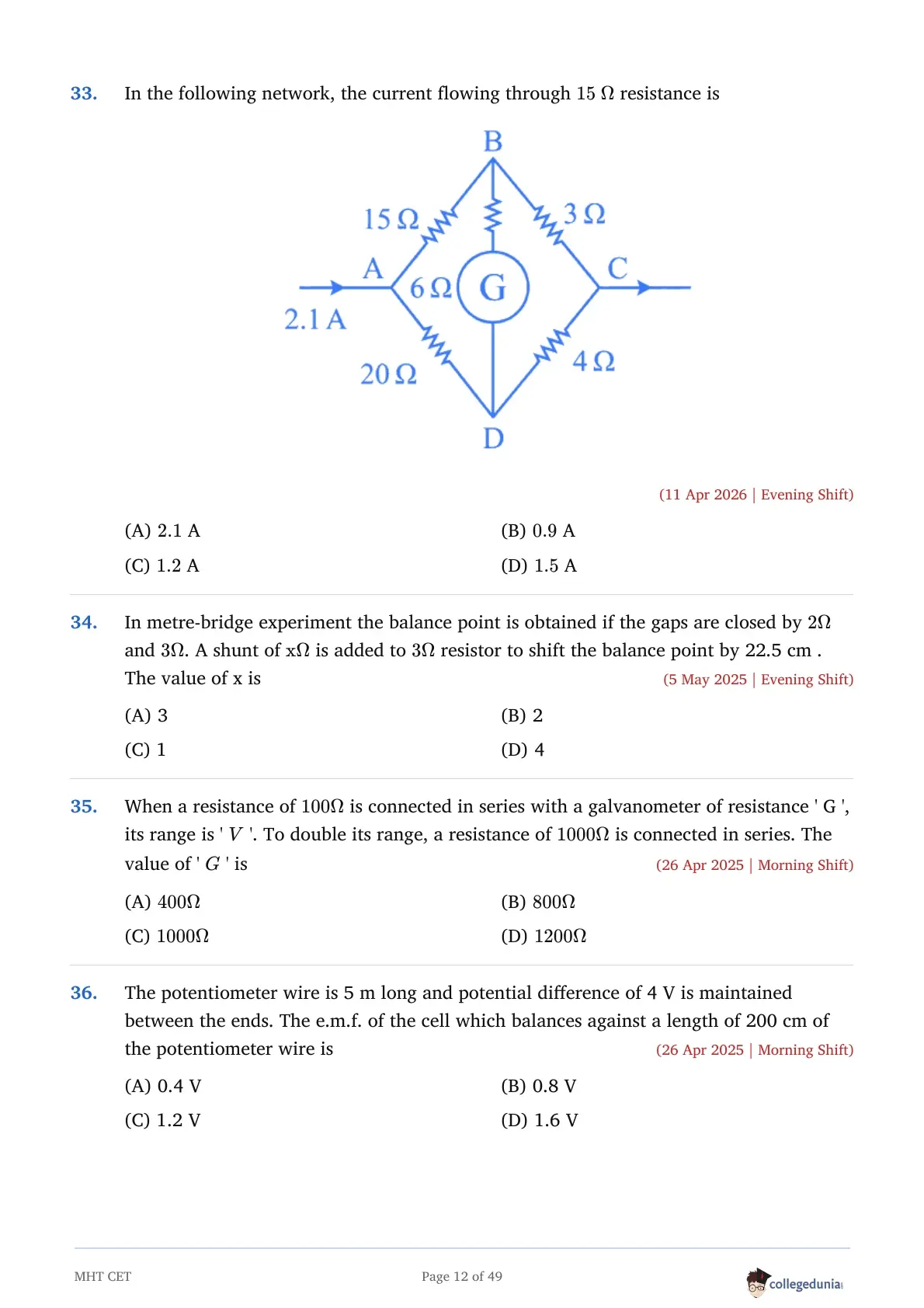

In the following network, the current flowing through \(15 \Omega\) resistance is

11.
According to Ohm’s law: ____.

12.
The potentiometer wire is 5 m long and potential difference of 4 V is maintained between the ends. The e.m.f. of the cell which balances against a length of 200 cm of the potentiometer wire is ______.

13.
Two stones of masses m and 3 m are whirled in horizontal circles, the heavier one in a radius $(\frac{r}{3})$ and lighter one in a radius r. The tangential speed of lighter stone is 'n' times the value of heavier stone. When the magnitude of centripetal force becomes equal the value of n is

15.

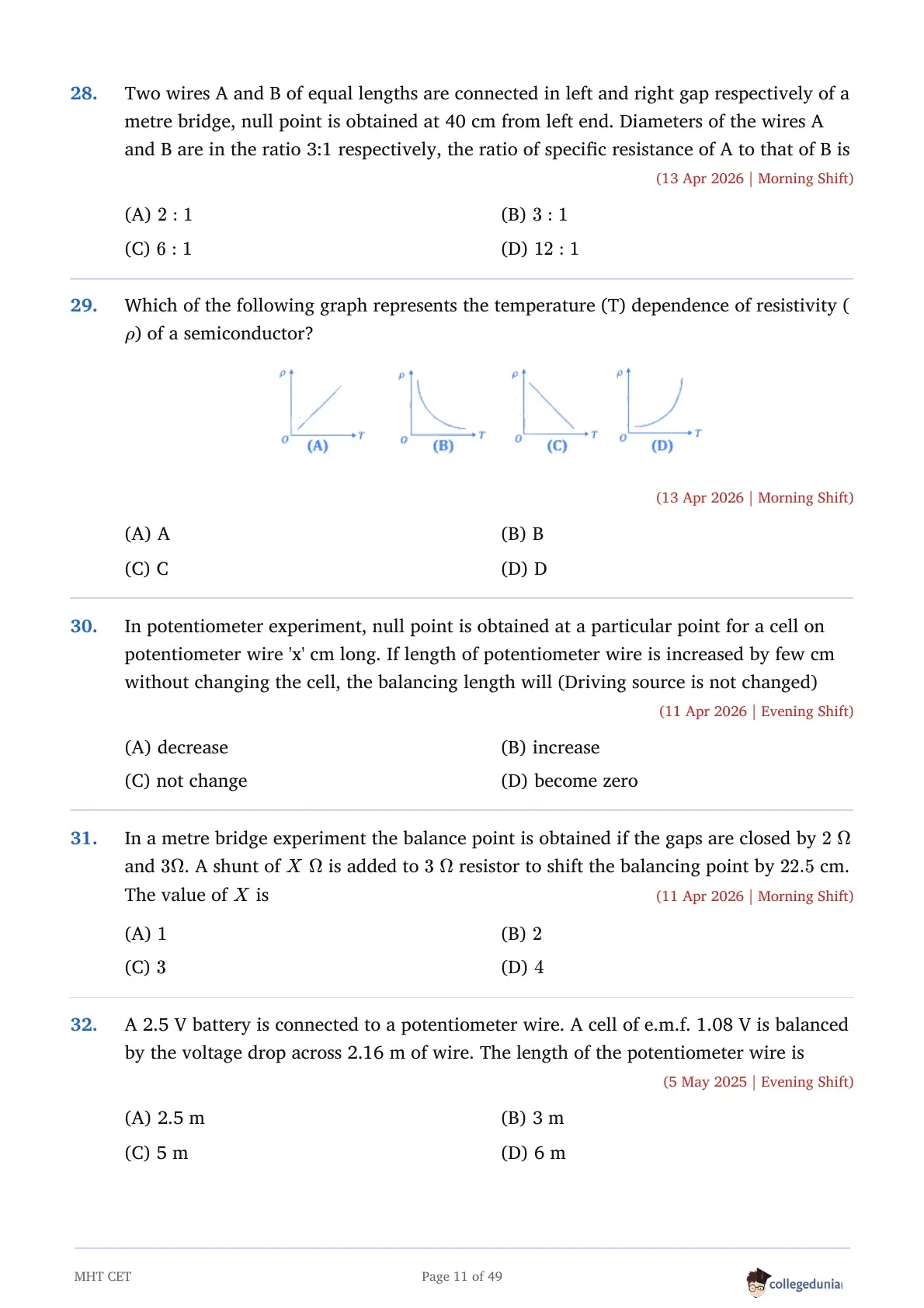

In a metre bridge experiment the balance point is obtained if the gaps are closed by \(2\) \(\Omega\) and \(3\Omega\). A shunt of \(X\) \(\Omega\) is added to \(3\) \(\Omega\) resistor to shift the balancing point by \(22.5\) cm. The value of \(X\) is
