MHT CET PYQs for Logic gates with Solutions: Practice MHT CET Previous Year Questions

Logic Gates is a Class 12 chapter in the Physics section of the MHT CET for candidates who are preparing for the PCM (Physics, Chemistry, and Mathematics).

The key topics covered in Logic Gates PYQs are:

AND, OR, NOT, NAND, NOR and XOR gates
Universal gates
Boolean expressions of gate combinations
Truth tables
Equivalent gates

Practising Logic Gates MHT CET PYQ helps candidates to understand question pattern, improve calculation speed, and identify concepts which were asked in previous exams.

Based on chapter-wise analysis of the MHT CET Physics paper, you can get about 1 mark per paper by covering Logic Gates. The chapter recorded 58 questions across the 80 shifts in the data, and 22 of them came in the 2025 and 2026 papers, where it contributed about 1.3% per shift.

MHT CET Logic Gates Chapter: Question Count, Marks and Weightage:

0.72 Average questions per shift (2018-2026)	22 Questions in the 2025 and 2026 papers (33 shifts)
58 Questions in the PDF (2021-2026)	1.4% Estimated Physics paper weightage (1.3% in 2025-2026)

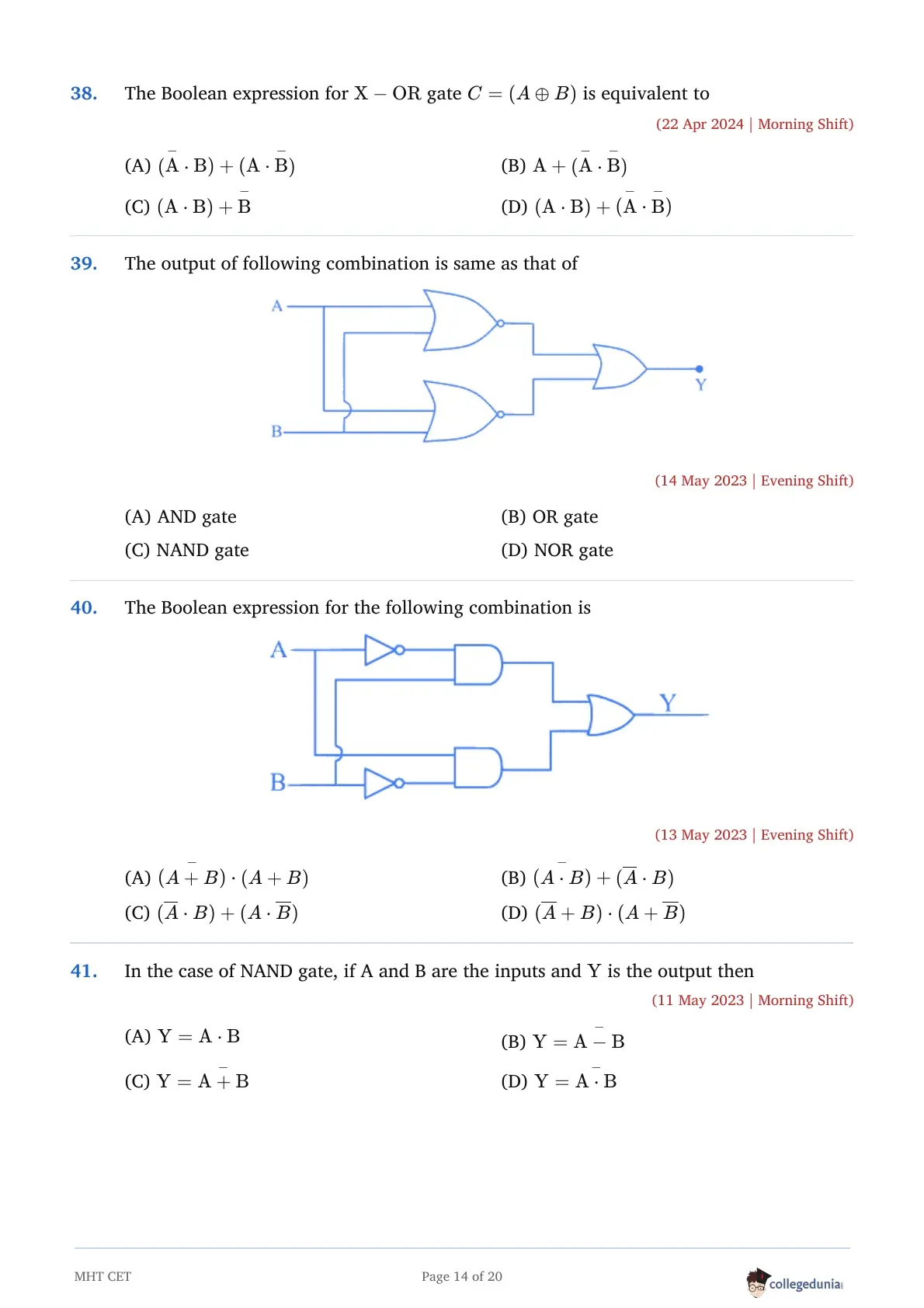

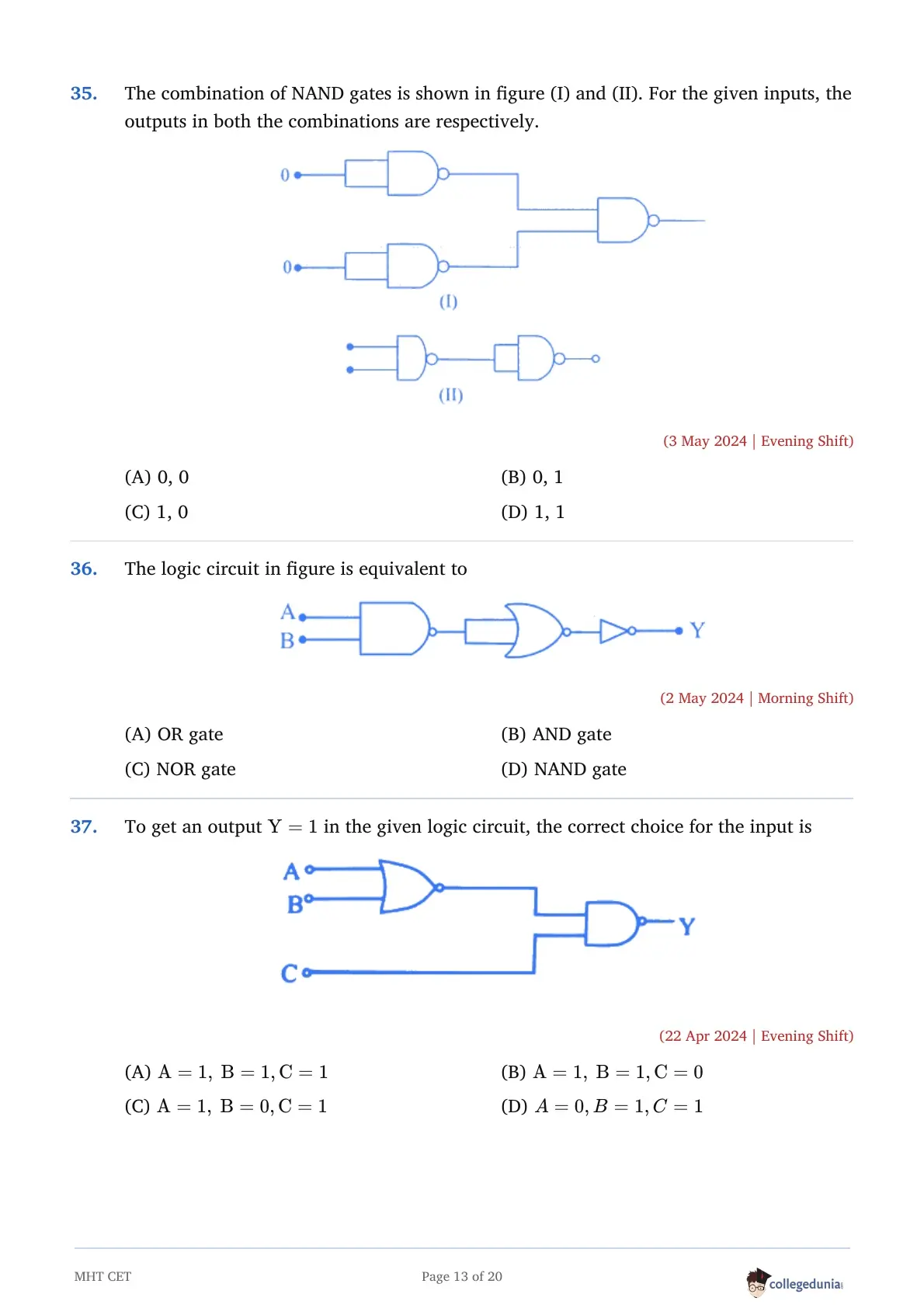

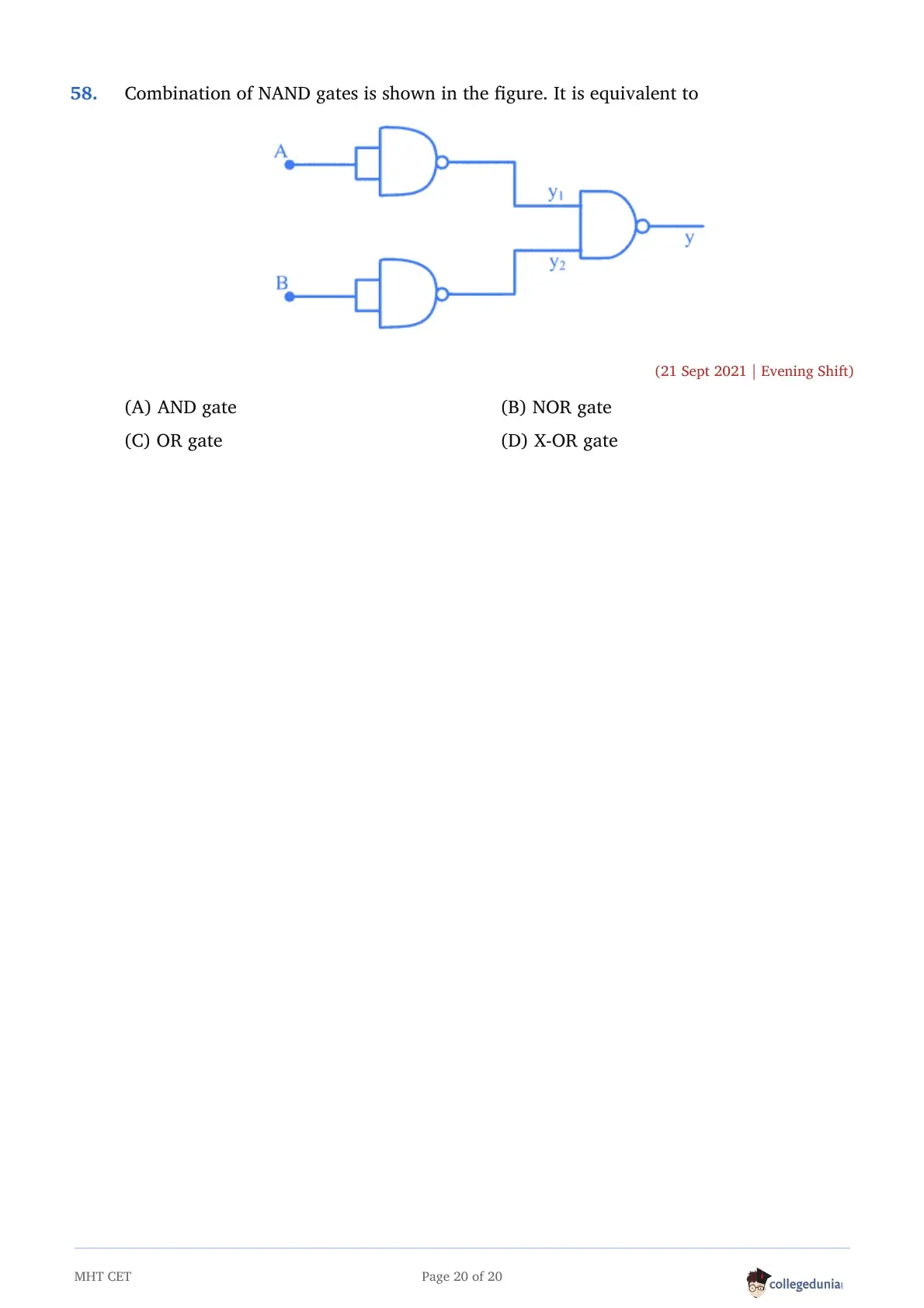

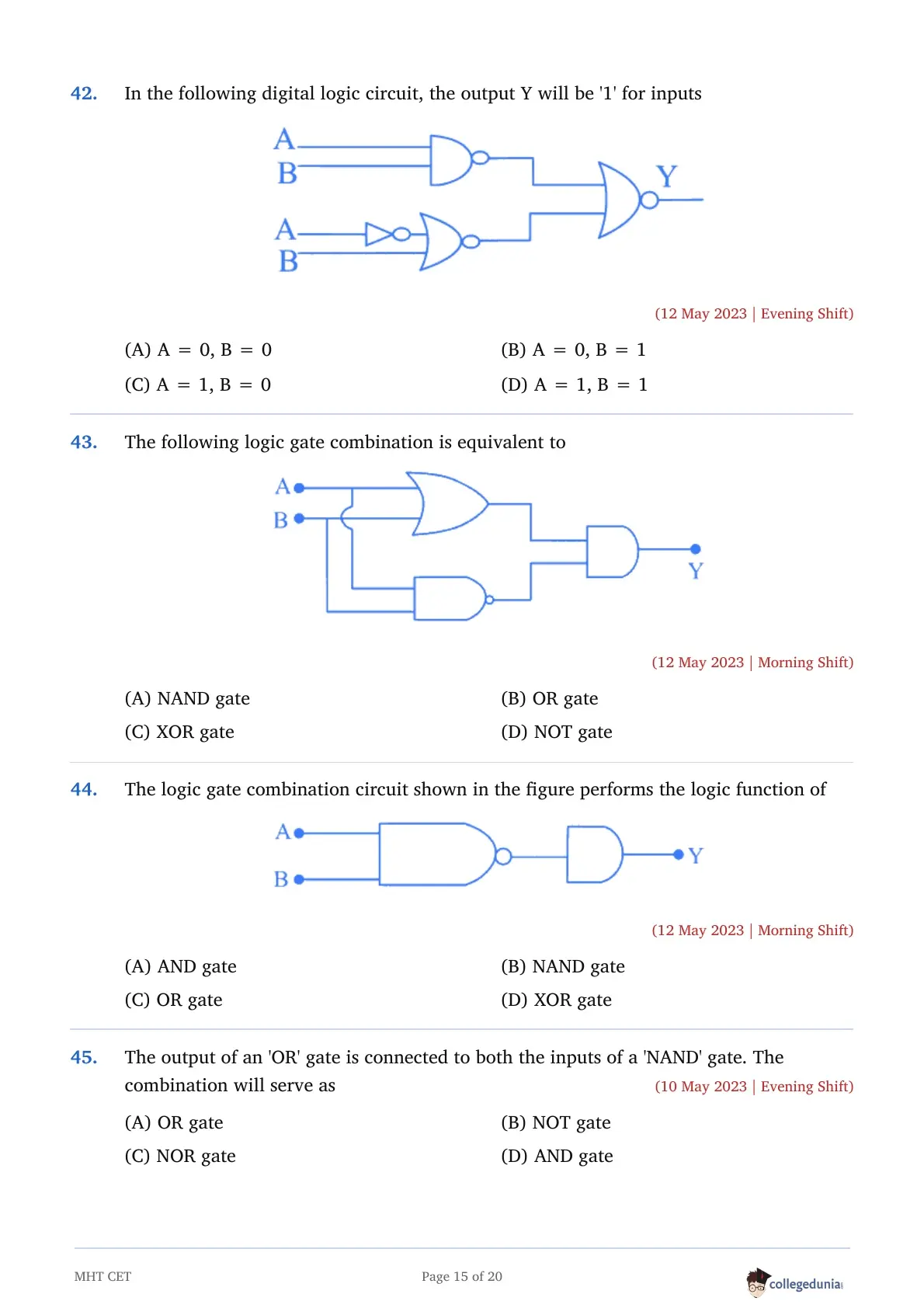

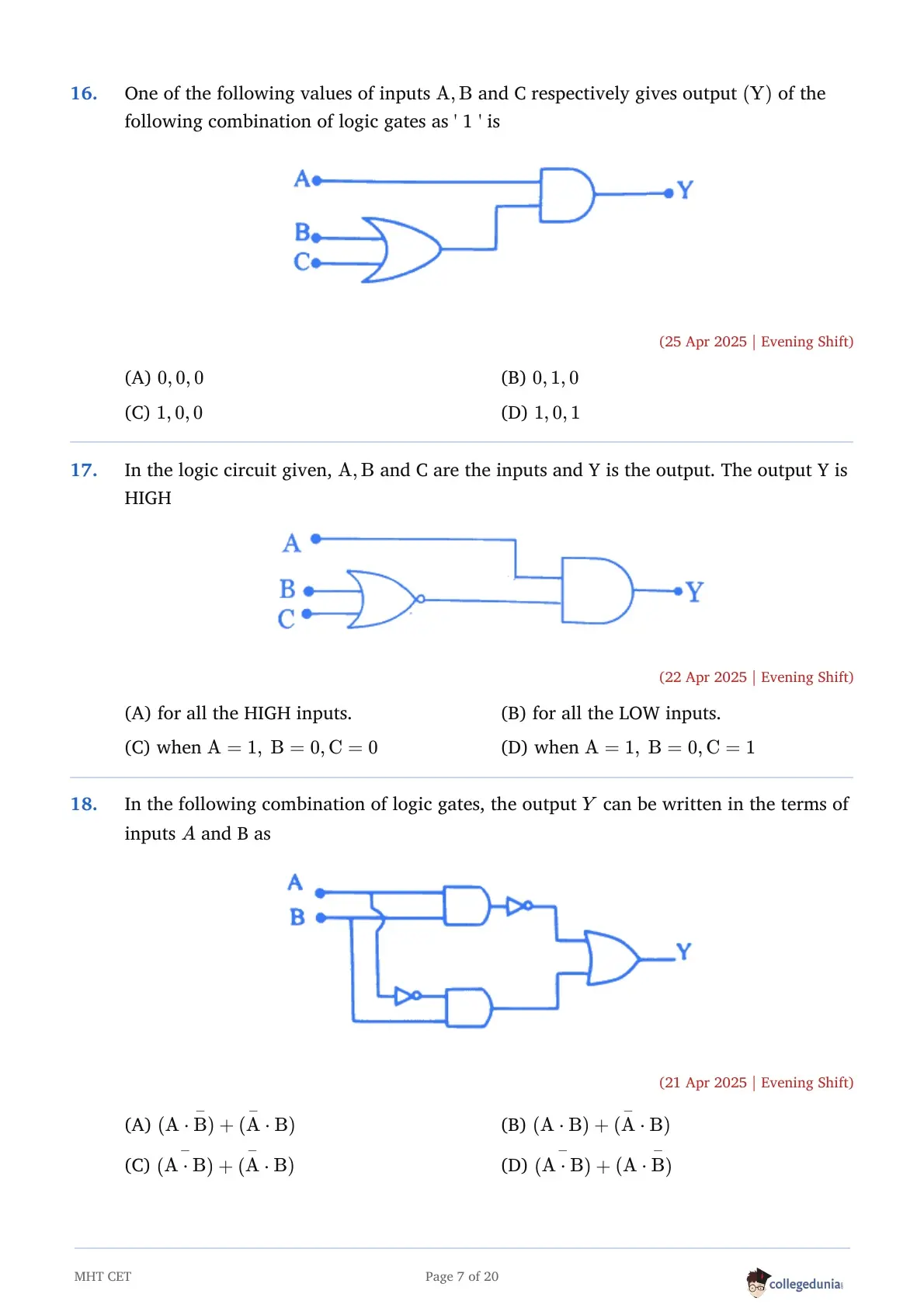

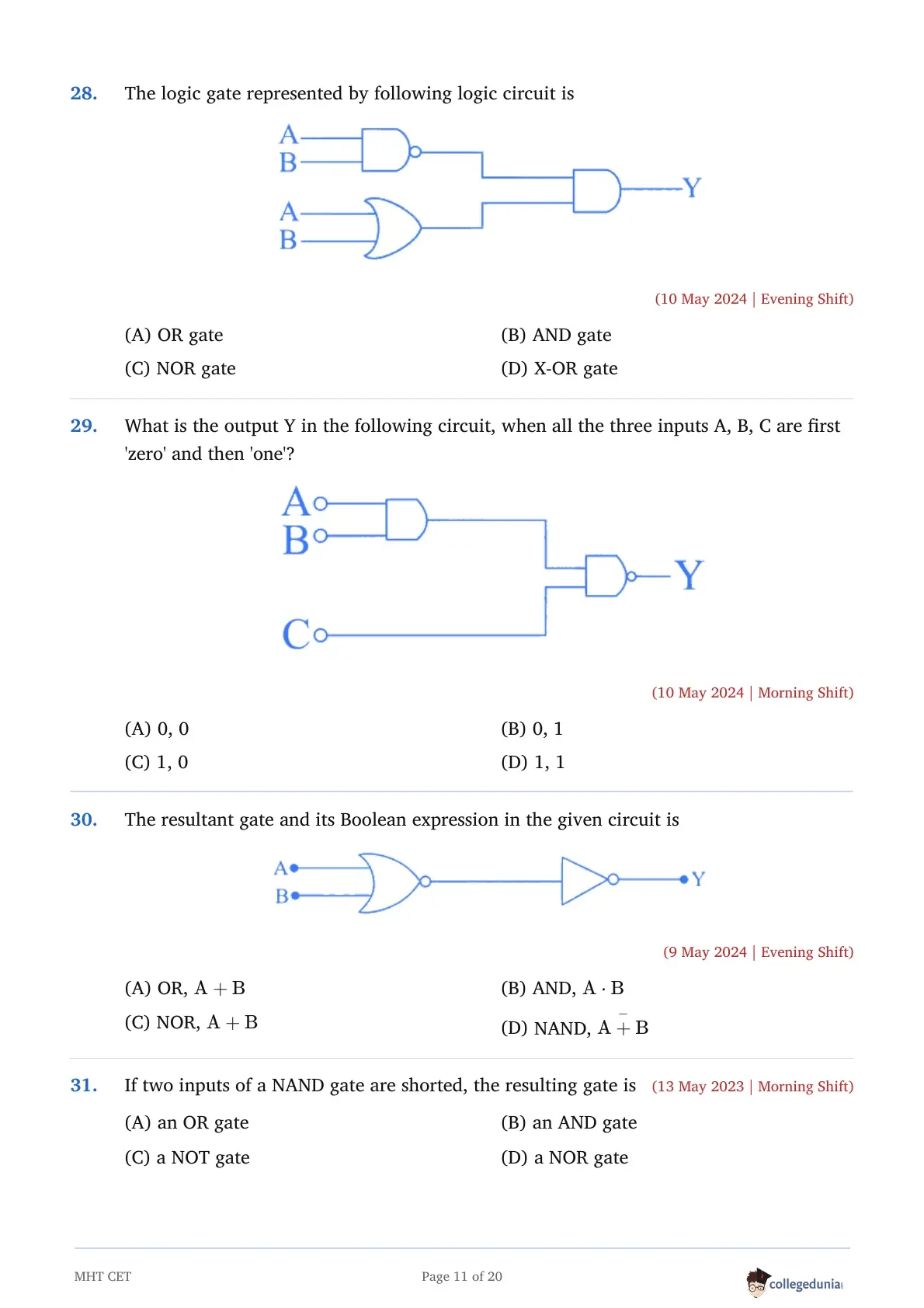

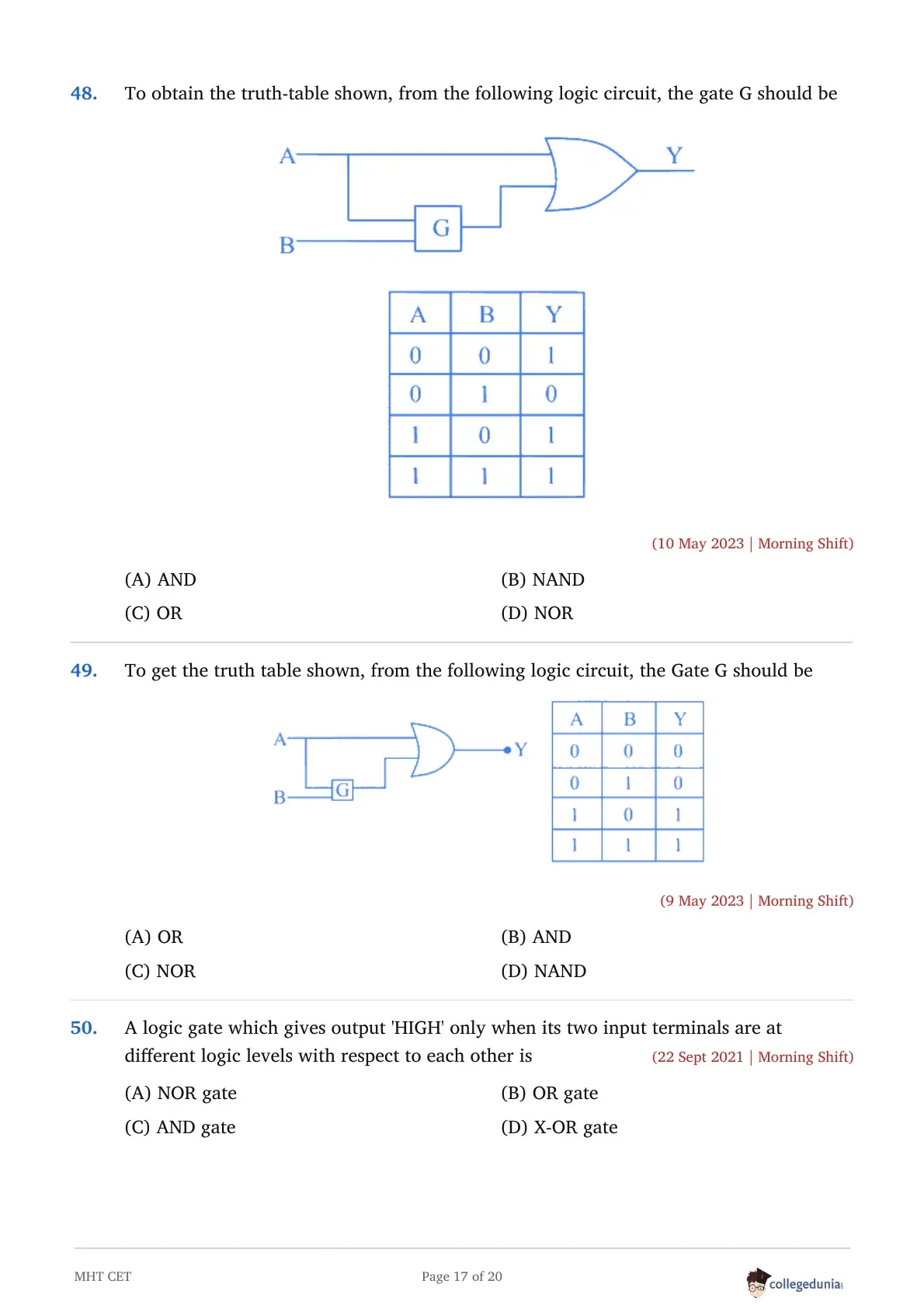

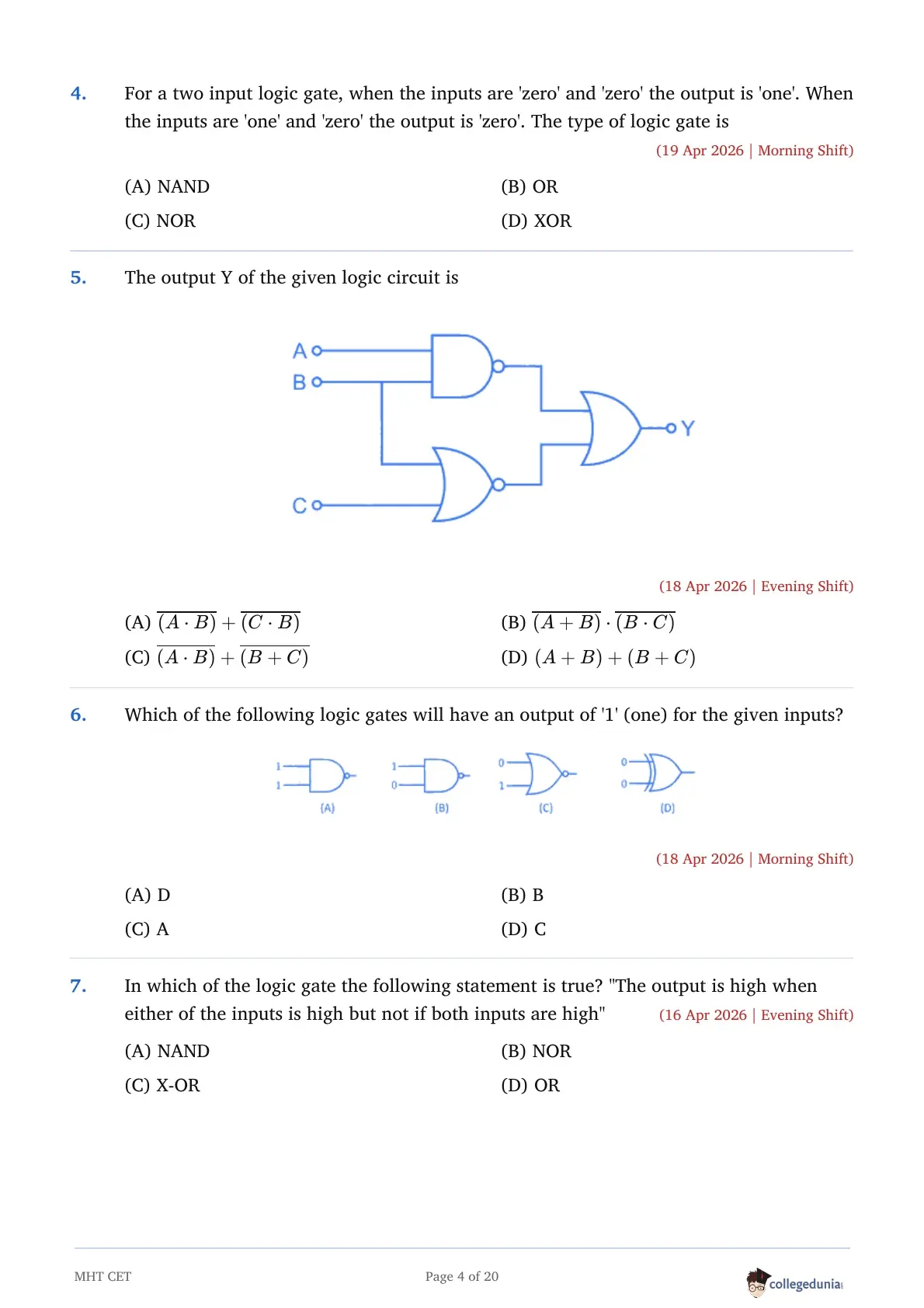

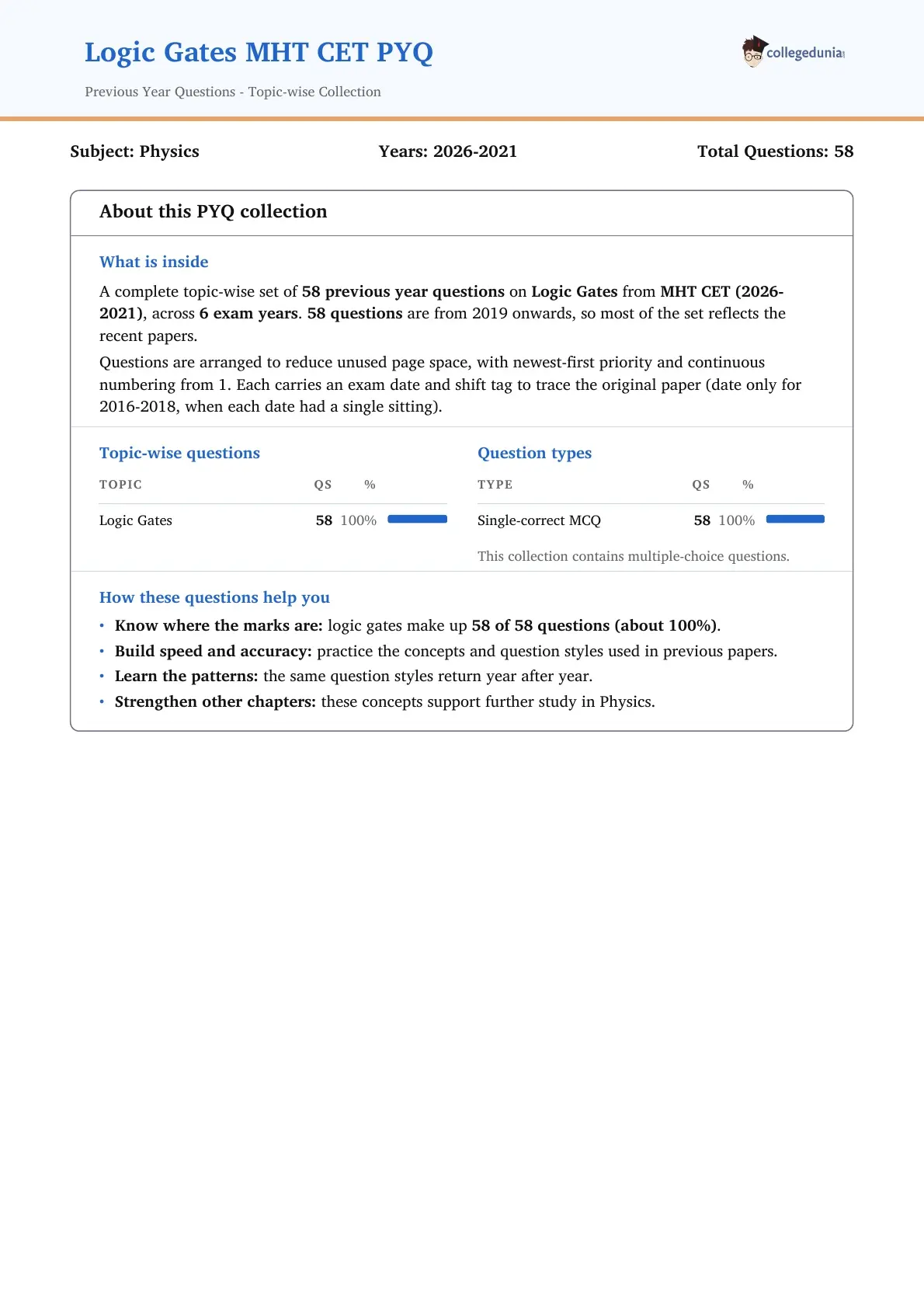

The PDF holds 58 questions from MHT CET 2026 to 2021, newest first, each with its exam date and shift. Options are as printed and answer keys are not included.

Logic Gates PYQ Statistics (2022-2026)

The table below shows the number of questions asked in MHT CET Logic Gates PYQs. Every shift has 50 Physics questions, so the last column is the average per shift divided by 50.

Year	Total Questions (across shifts)	Shifts in the Data	Average per Shift	Weightage (out of 50 Physics Qs)
2026	12	16	0.75	1.5%
2025	10	17	0.59	1.2%
2024	15	18	0.83	1.7%
2023	12	12	1.00	2.0%
2022	1	1	1.00	2.0%

The 2018 to 2021 papers in the PDF add 8 more questions: 2021 had 8, 2020 had none, 2019 had none, 2018 had none.

MHT CET Logic Gates Important Questions: Based on the Last 5 Years

The major types of questions asked from Logic Gates in MHT CET cover the following topics:

Topic	Questions in the PDF	Questions in 2022-2026	Average per Shift (2022-2026)
Boolean expression of a gate combination	11	10	0.16
Truth tables and finding the gate G for a given truth table	8	7	0.11
Output of a given logic circuit or an equivalent gate	37	31	0.48
Identifying a gate from its inputs and outputs	2	2	0.03

Pair PYQs with Other Study Material for MHT CET 2027

Click on the link to practise problems and time management skills:

Resource	Link
MHT CET Sample Paper	Check Here
MHT CET Mock Test	Check Here

Question Style in MHT CET Logic Gates PYQs

Every question in this PDF is a single-correct MCQ. Most are figure based, so the circuit has to be read gate by gate.

Question Style	What it Tests
Boolean expression	The Boolean expression for a given combination of gates, and for the XOR combination (A ⊕ B) · C
Output of a circuit	The inputs for which the output Y of a digital circuit is 1, and the output when all three inputs are first low and then high
Truth table	The gate G that gives a truth table shown for a logic circuit
Equivalent gate	What a combination of NAND gates is equivalent to, and the gate formed when two inputs of a NAND gate are shorted
Identifying a gate	The gate that gives output 1 only when the inputs differ, the universal gate, and a gate with output 1 for inputs 0 and 0

How to Use the Logic Gates PYQ PDF for MHT CET

Start with the 2025 and 2026 papers first, because they hold 22 of the 58 questions.
Learn the truth tables of AND, OR, NOT, NAND, NOR and XOR so you can read any circuit quickly.
Write the output after each gate on the circuit before combining, and remember that NAND and NOR are universal gates.
Solve year-wise PYQs by timing yourself, as time management is crucial.
Re-attempt only the questions you got wrong, and note which formula or step you missed.

Video: Logic Gates PYQs and MCQs

Source: Lwin Education - Nagpur

Logic Gates PYQ for MHT CET Physics FAQs

Ques. How many questions come from Logic Gates every year?

Ans. In this PDF, the questions are 12 from 2026, 10 from 2025, 15 from 2024, 12 from 2023 and 1 from 2022 and the rest from earlier papers. In 2025 and 2026 together the chapter had 22 questions across 33 shifts, about 0.67 per shift.

Ques. Which topics are asked most frequently in MHT CET Logic Gates?

Ans. Output of a given logic circuit or an equivalent gate is the largest group with 37 of the 58 questions, about 64%.

Ques. What kind of questions are asked from Logic Gates?

Ans. Single-correct MCQs, mostly figure based. Common ones ask for the Boolean expression or the output of a gate combination, the gate that gives a given truth table, or the gate equivalent to a NAND combination.

Ques. What is the best way to practise Logic Gates PYQs?

Ans. First solve the 2025 and 2026 questions completely, then the older ones, and finally re-attempt the questions you got wrong.

Ques. Can I score full marks from Logic Gates?

Ans. In 2025 and 2026 together the chapter had 22 questions across 33 shifts. Learning the truth tables and the Boolean identities is enough to secure it. Each Physics question in MHT CET is worth 1 mark.

Ques. Does the Logic Gates PYQ PDF include solutions?

Ans. No. The PDF contains the questions with their exam date and shift, without answer keys or solutions.
