MHT CET PYQs for Transistors with Solutions: Practice MHT CET Previous Year Questions

Transistors is a Class 12 chapter in the Physics section of the MHT CET for candidates who are preparing for the PCM (Physics, Chemistry, and Mathematics).

The key topics covered in Transistors PYQs are:

n-p-n and p-n-p transistors
Doping of emitter, base and collector
Common emitter configuration
Current gain α and β
Voltage and power gain of an amplifier

Practising Transistors MHT CET PYQ helps candidates to understand question pattern, improve calculation speed, and identify concepts which were asked in previous exams.

Based on chapter-wise analysis of the MHT CET Physics paper, you can get about 1 mark per paper by covering Transistors. The chapter recorded 41 questions across the 80 shifts in the data, and 22 of them came in the 2025 and 2026 papers, where it contributed about 1.3% per shift.

MHT CET Transistors Chapter: Question Count, Marks and Weightage:

0.51 Average questions per shift (2018-2026)	22 Questions in the 2025 and 2026 papers (33 shifts)
41 Questions in the PDF (2019-2026)	1.0% Estimated Physics paper weightage (1.3% in 2025-2026)

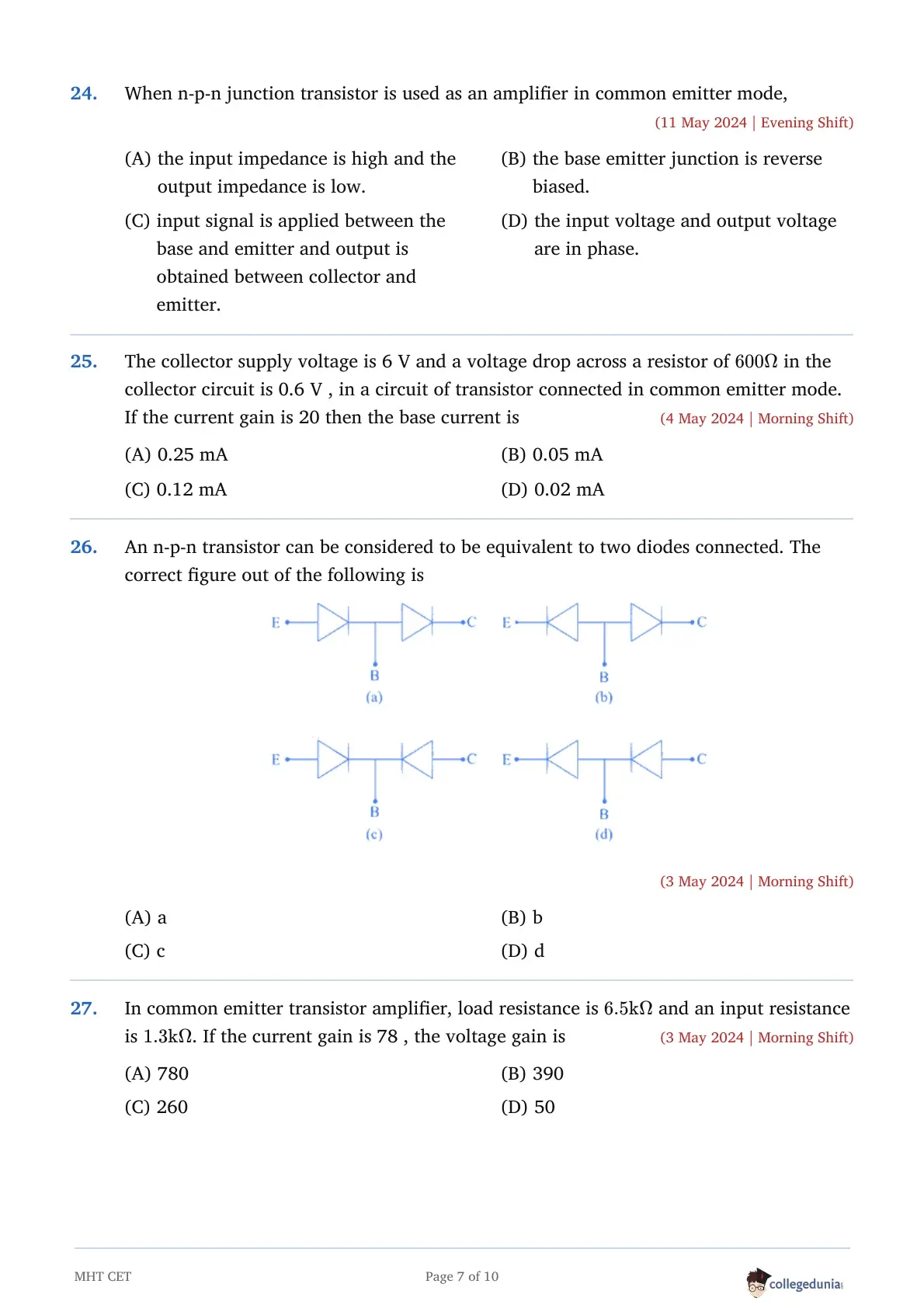

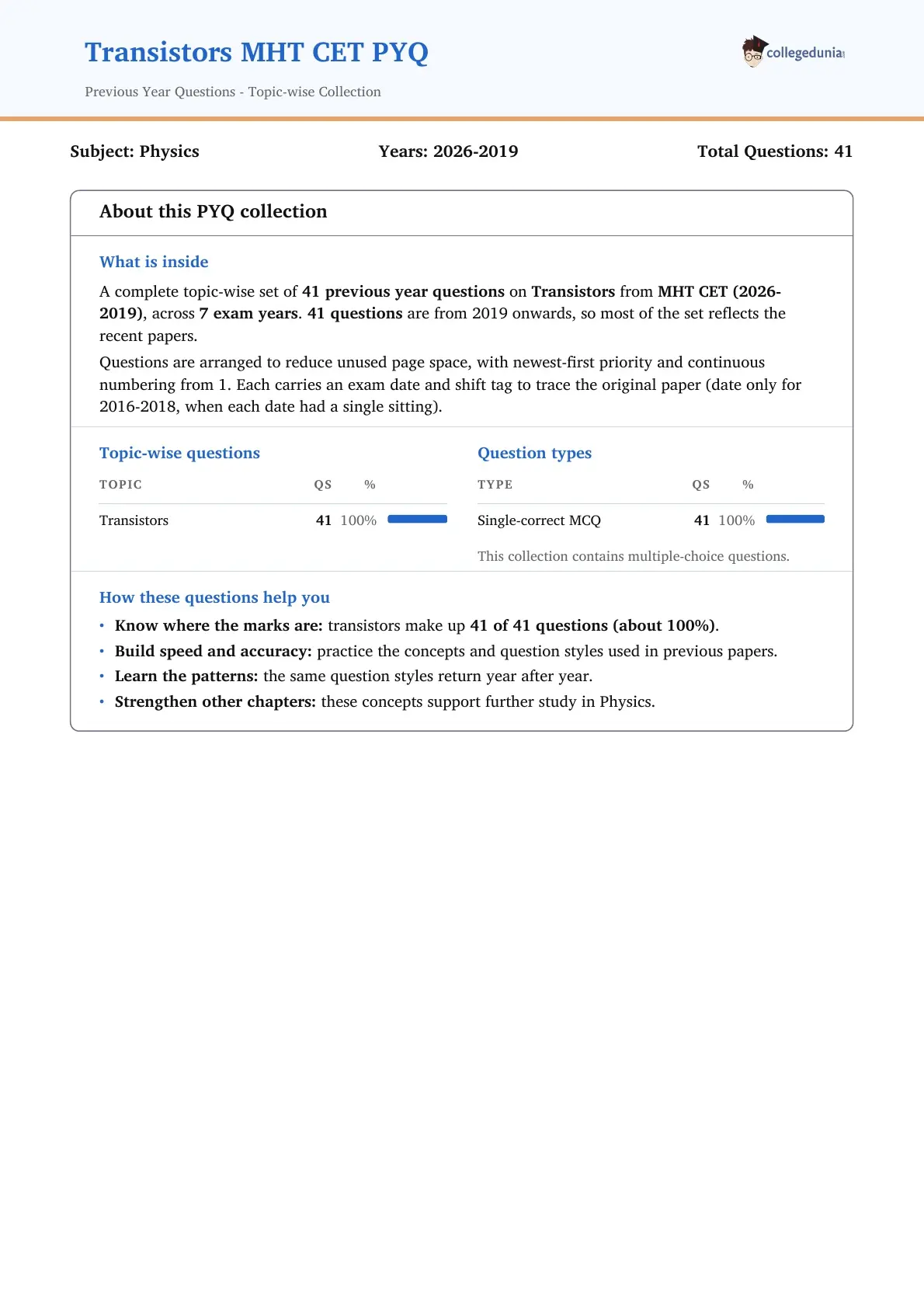

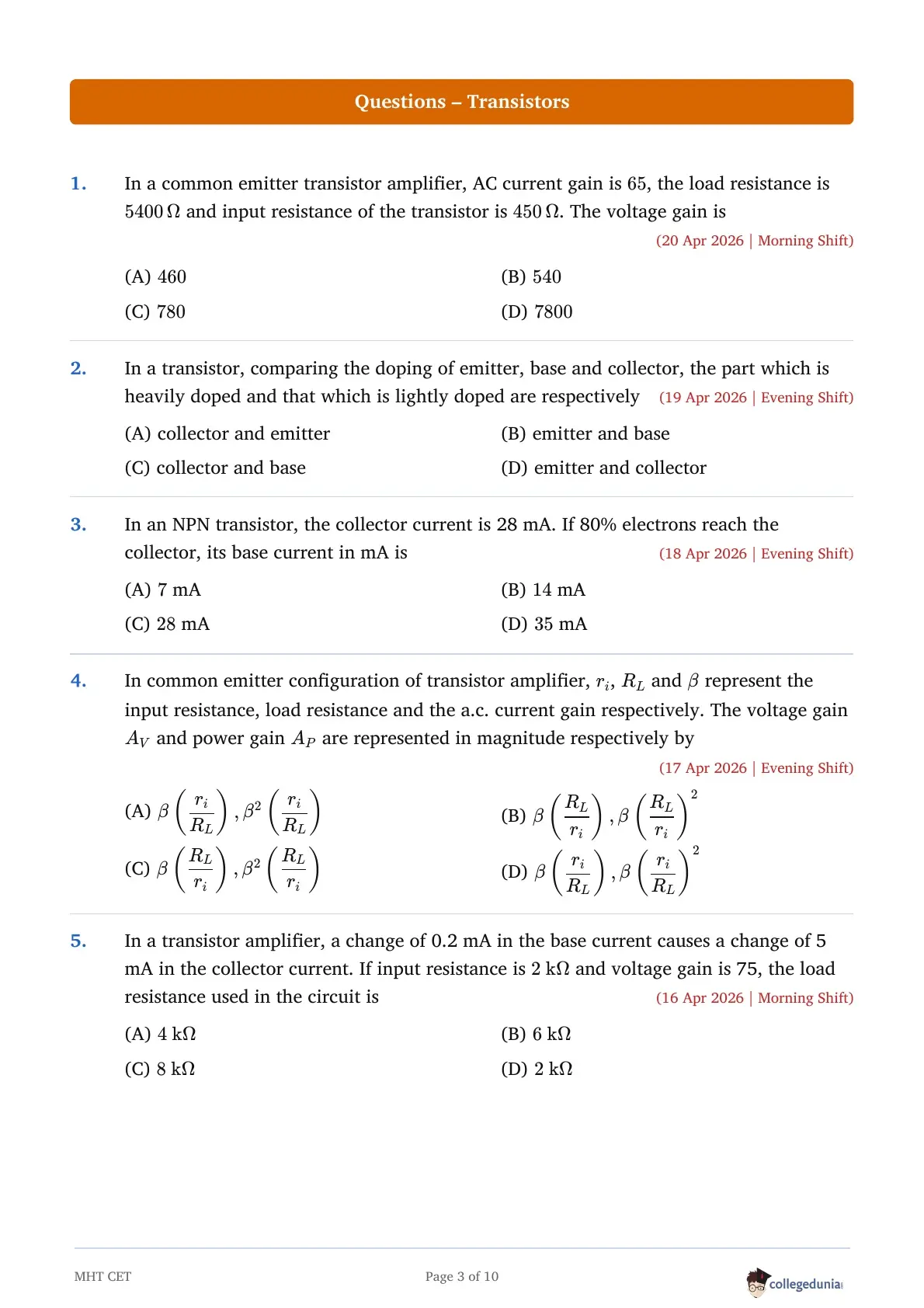

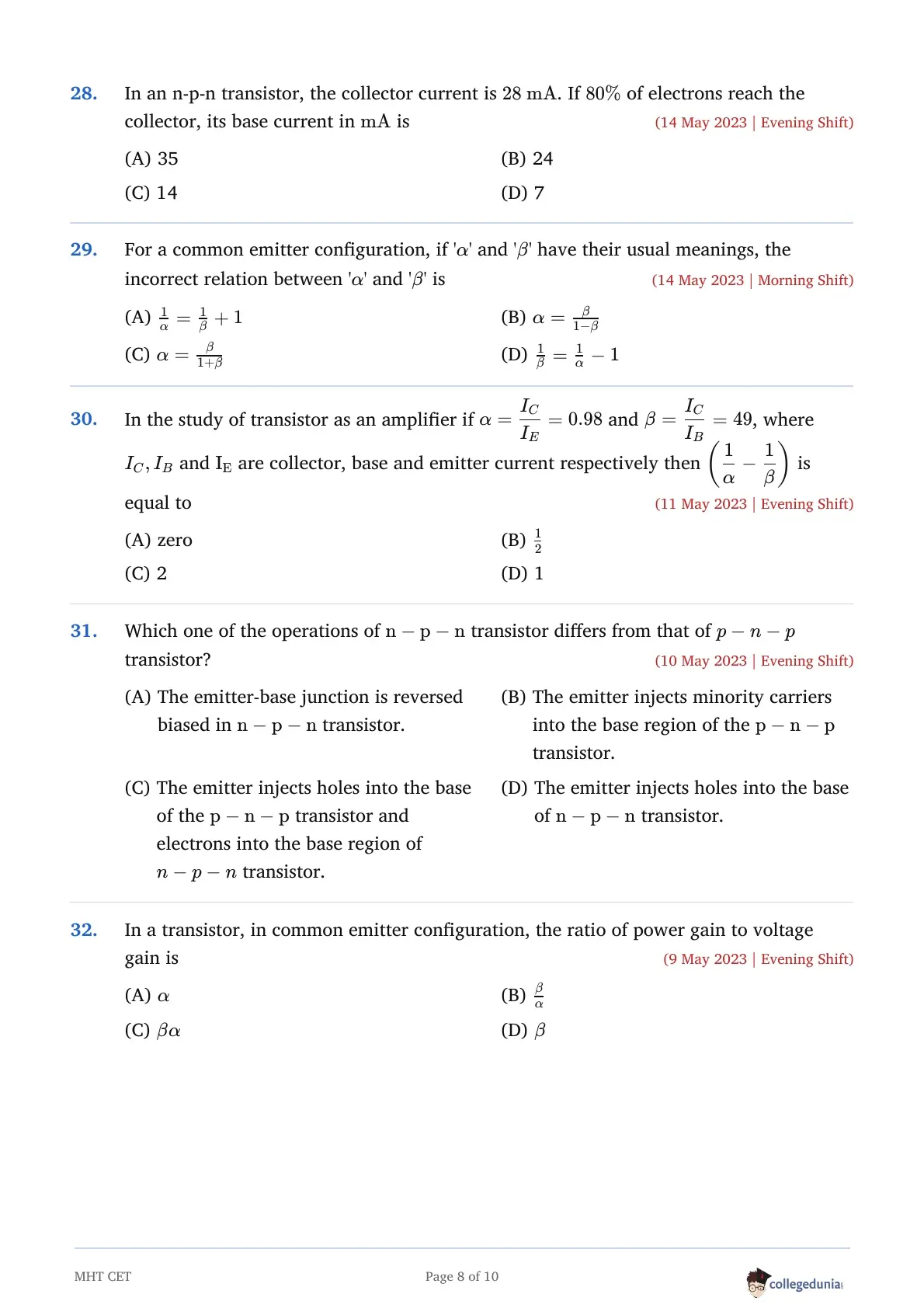

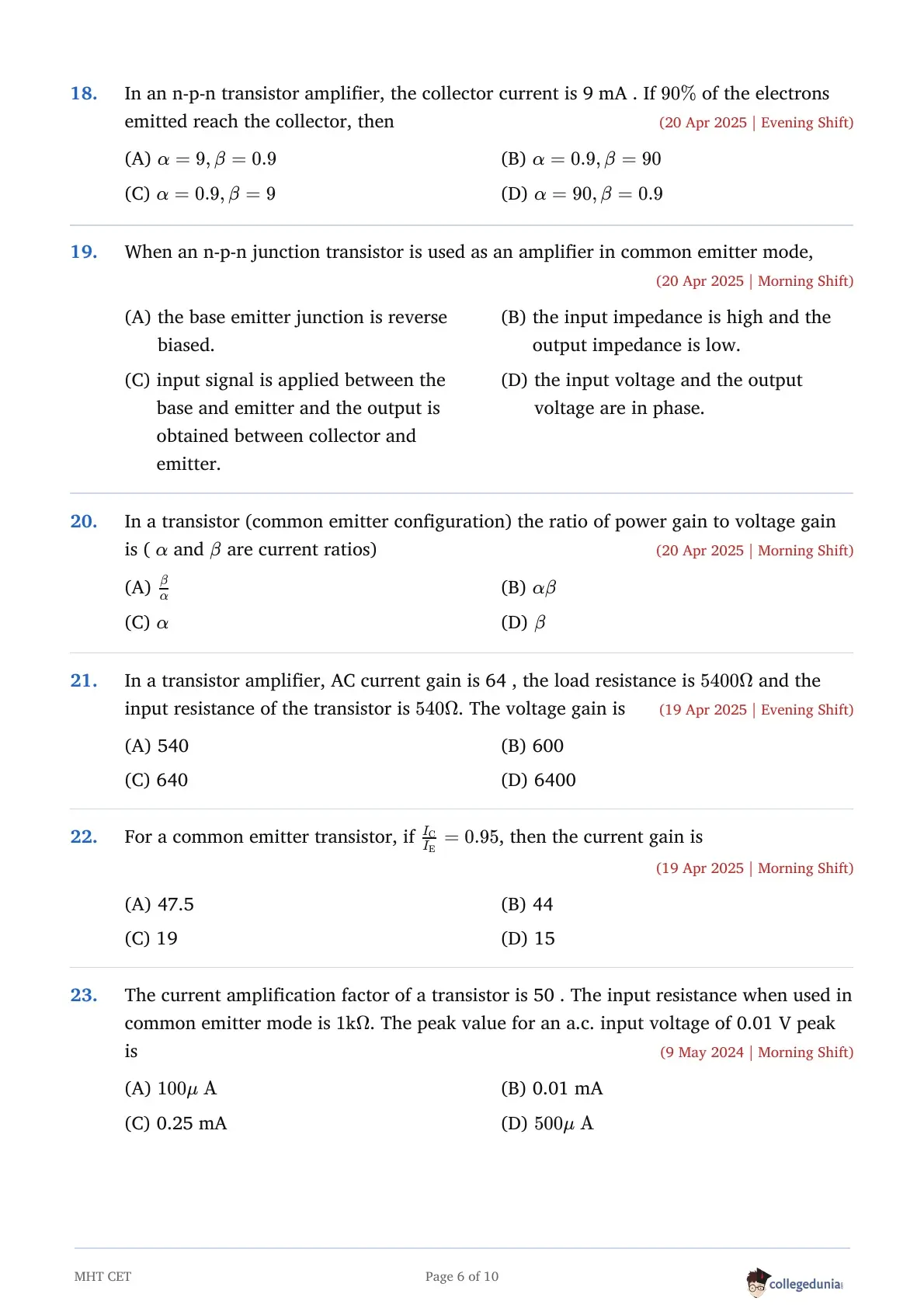

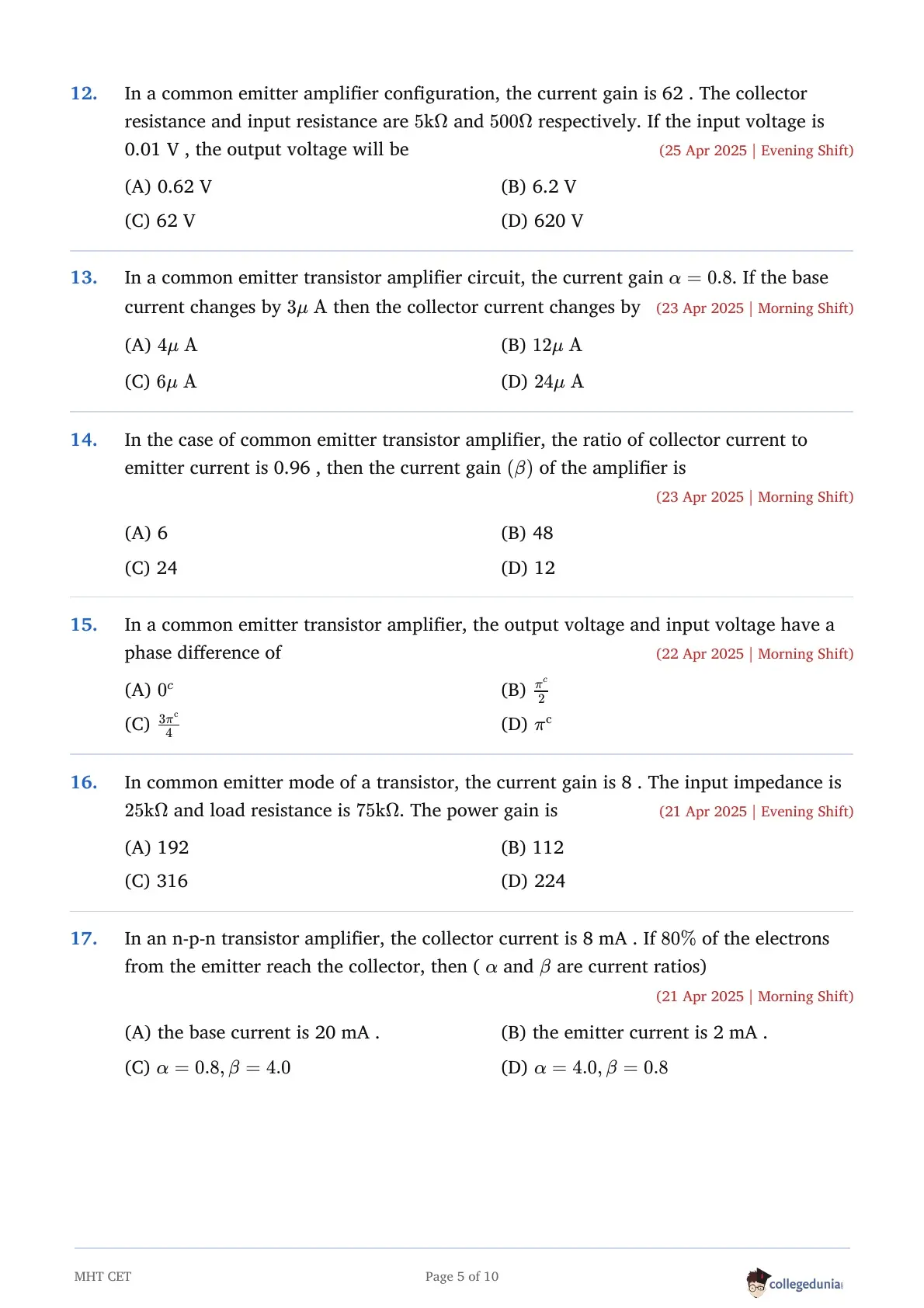

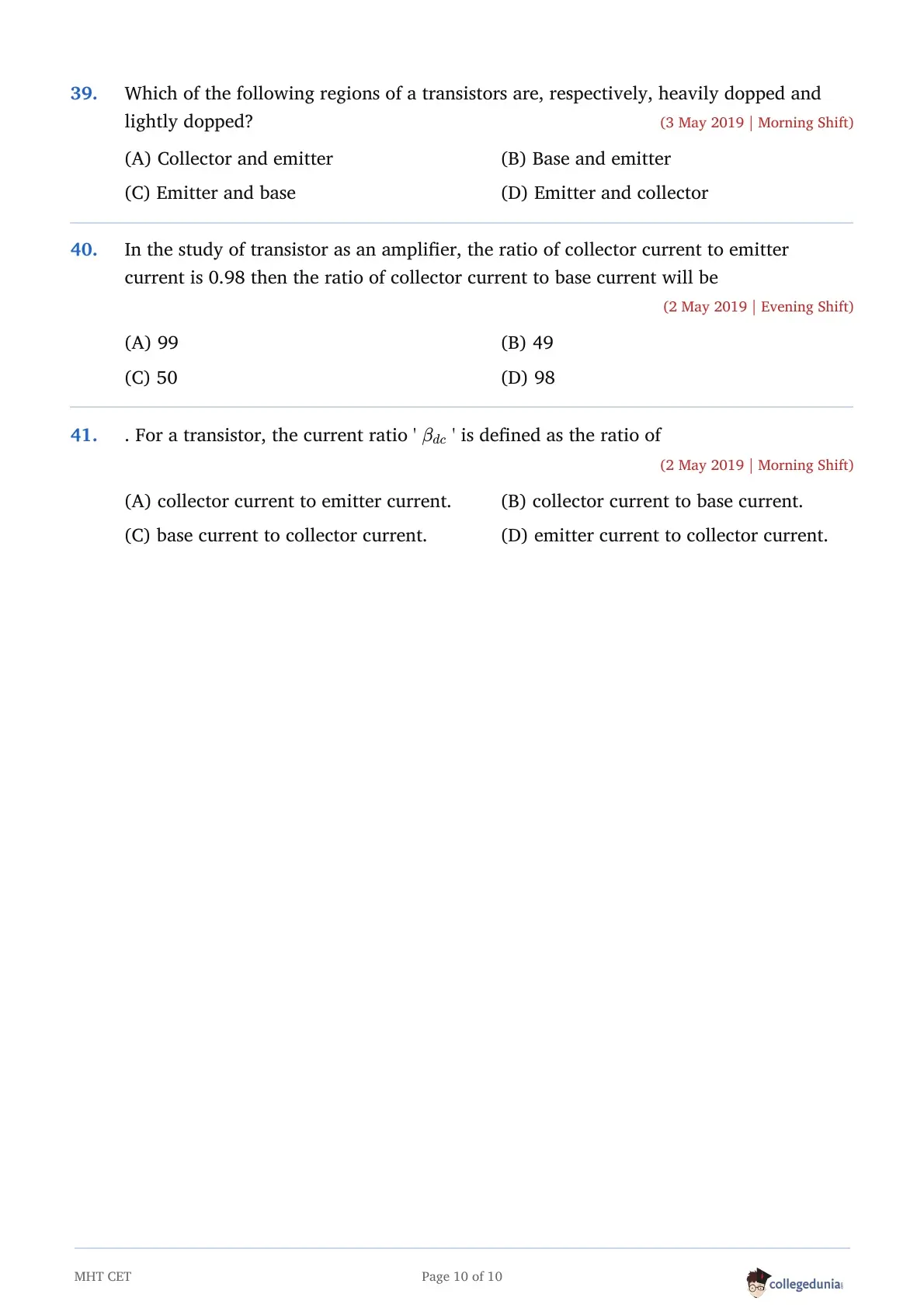

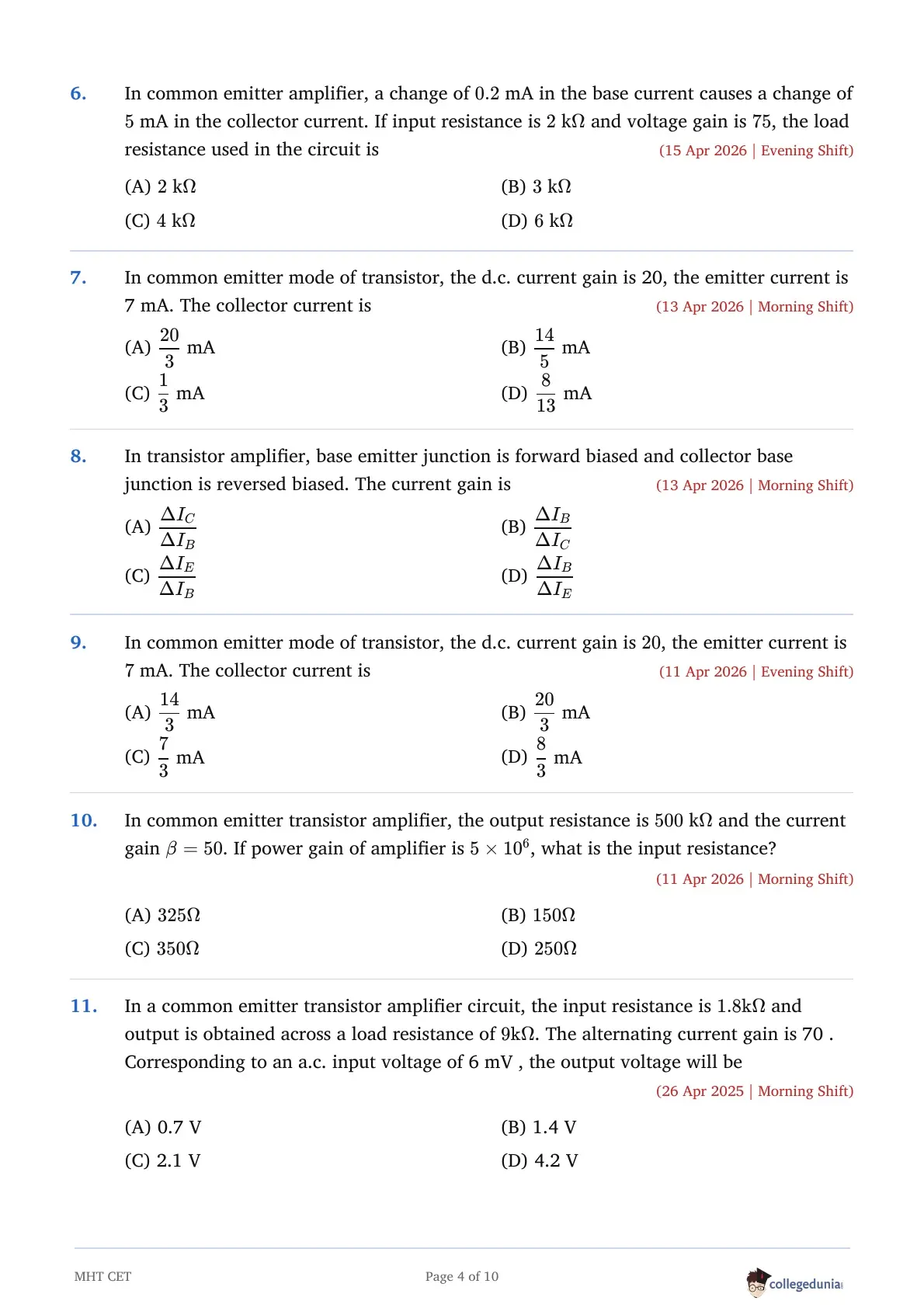

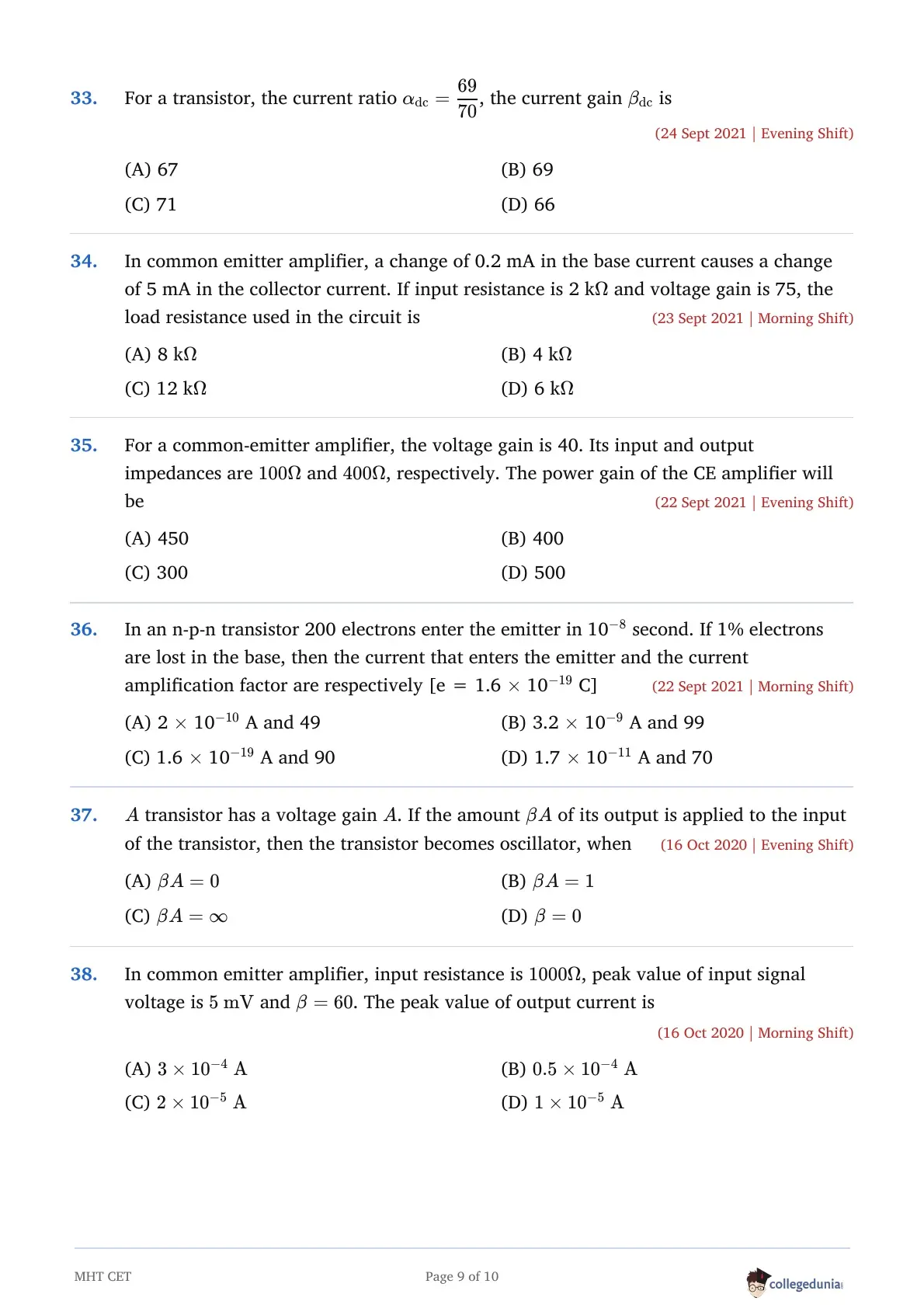

The PDF holds 41 questions from MHT CET 2026 to 2019, newest first, each with its exam date and shift. Options are as printed and answer keys are not included.

Transistors PYQ Statistics (2022-2026)

The table below shows the number of questions asked in MHT CET Transistors PYQs. Every shift has 50 Physics questions, so the last column is the average per shift divided by 50.

Year	Total Questions (across shifts)	Shifts in the Data	Average per Shift	Weightage (out of 50 Physics Qs)
2026	10	16	0.62	1.2%
2025	12	17	0.71	1.4%
2024	5	18	0.28	0.6%
2023	5	12	0.42	0.8%
2022	0	1	0.00	0.0%

The 2018 to 2021 papers in the PDF add 9 more questions: 2021 had 4, 2020 had 2, 2019 had 3, 2018 had none.

MHT CET Transistors Important Questions: Based on the Last 5 Years

The major types of questions asked from Transistors in MHT CET cover the following topics:

Topic	Questions in the PDF	Questions in 2022-2026	Average per Shift (2022-2026)
Common emitter amplifier: gains and resistances	33	27	0.42
Collector, base and emitter currents, α and β	7	4	0.06
Doping, biasing and structure of the regions	1	1	0.02

Pair PYQs with Other Study Material for MHT CET 2027

Click on the link to practise problems and time management skills:

Resource	Link
MHT CET Sample Paper	Check Here
MHT CET Mock Test	Check Here

Question Style in MHT CET Transistors PYQs

Every question in this PDF is a single-correct MCQ. Most of them (33 of 41) are short numerical questions on the common emitter amplifier.

Question Style	What it Tests
Current and voltage gain	A common emitter amplifier with an AC current gain of 65, a given load resistance and input resistance, and the voltage gain
Base and collector currents	An n-p-n transistor with a collector current of 28 mA when 80% of the electrons reach the collector, and the base current
Power gain	The ratio of power gain to voltage gain in common emitter configuration
α and β relations	The current gain when I_C / I_E = 0.95, and β from α = 0.98
Doping	Which of the emitter, base and collector is heavily doped and which is lightly doped

How to Use the Transistors PYQ PDF for MHT CET

Start with the 2025 and 2026 papers first, because they hold 22 of the 41 questions.
Keep α = Ic/Ie, β = Ic/Ib, Ie = Ib + Ic and the gain formulas for the common emitter amplifier on one page.
For the electron-count questions, convert the percentage of electrons reaching the collector into Ic/Ie first.
Solve year-wise PYQs by timing yourself, as time management is crucial.
Re-attempt only the questions you got wrong, and note which formula or step you missed.

Video: Transistors PYQs and MCQs

Source: i-SCIENCE Sharad Shrivastava

Transistors PYQ for MHT CET Physics FAQs

Ques. How many questions come from Transistors every year?

Ans. In this PDF, the questions are 10 from 2026, 12 from 2025, 5 from 2024, 5 from 2023 and 4 from 2021 and the rest from earlier papers. In 2025 and 2026 together the chapter had 22 questions across 33 shifts, about 0.67 per shift.

Ques. Which topics are asked most frequently in MHT CET Transistors?

Ans. Common emitter amplifier: gains and resistances is the largest group with 33 of the 41 questions, about 80%.

Ques. What kind of questions are asked from Transistors?

Ans. Single-correct MCQs, mostly short numerical questions on the common emitter amplifier. Common ones ask for the current, voltage or power gain, the base current, or the α and β of the transistor.

Ques. What is the best way to practise Transistors PYQs?

Ans. First solve the 2025 and 2026 questions completely, then the older ones, and finally re-attempt the questions you got wrong.

Ques. Can I score full marks from Transistors?

Ans. In 2025 and 2026 together the chapter had 22 questions across 33 shifts. Learning the α, β and gain relations is enough to secure it. Each Physics question in MHT CET is worth 1 mark.

Ques. Does the Transistors PYQ PDF include solutions?

Ans. No. The PDF contains the questions with their exam date and shift, without answer keys or solutions.

MHT CET PYQs for Transistors with Solutions: Practice MHT CET Previous Year Questions

Transistors PYQ Statistics (2022-2026)

MHT CET Transistors Important Questions: Based on the Last 5 Years

Pair PYQs with Other Study Material for MHT CET 2027

Question Style in MHT CET Transistors PYQs

How to Use the Transistors PYQ PDF for MHT CET

Video: Transistors PYQs and MCQs

Transistors PYQ for MHT CET Physics FAQs

1.
In a common emitter amplifier configuration, the current gain is 62. The collector resistance and input resistance are 5k$\Omega$ and 500$\Omega$ respectively. If the input voltage is 0.01 V, the output voltage will be ______.

2.
In a transistor, comparing the doping of emitter, base and collector, the part which is heavily doped and that which is lightly doped are respectively

3.
In common emitter amplifier, a change of \(0.2\) mA in the base current causes a change of \(5\) mA in the collector current. If input resistance is \(2\) k\(\Omega\) and voltage gain is \(75\), the load resistance used in the circuit is

4.
For a common emitter transistor configuration the ratio of \(\frac{I_C}{I_E} = 0.96\), then the current gain in this configuration is

5.
For a transistor, $\alpha_{dc}$ and $\beta_{dc}$ are the current ratios, then the value of $\frac{\beta_{dc}-\alpha_{dc}}{\alpha_{dc}\times\beta_{dc}}$ is}

6.
In common emitter mode of transistor, the d.c. current gain is \(20\), the emitter current is \(7\) mA. The collector current is

7.
In an NPN transistor, the collector current is 28 mA. If 80% electrons reach the collector, its base current in mA is

8.
If transistor having \(α = 0.9\), is used in CE configuration, then for a change of \(0.4\) mA in base current, what will be the change in collector current?

9.
In a common emitter transistor amplifier, AC current gain is \(65\), the load resistance is \(5400\,\Omega\) and input resistance of the transistor is \(450\,\Omega\). The voltage gain is

10.
In a transistor amplifier, a change of 0.2 mA in the base current causes a change of 5 mA in the collector current. If input resistance is \(2 \text{k}\Omega\) and voltage gain is 75, the load resistance used in the circuit is

11.
In common emitter mode of transistor, the d.c. current gain is 20, the emitter current is 7 mA. The collector current is

12.
In a common emitter transistor amplifier circuit, the input resistance is 1.8 k$\Omega$ and output is obtained across a load resistance of 9 k$\Omega$. The alternating current gain is 70. Corresponding to an a.c. input voltage of 6 mV, the output voltage will be ______.

13.
A semiconductor X is made by doping a germanium crystal with indium \((Z = 49)\). A second semiconductor Y is made by doping germanium crystal with arsenic \((Z = 33)\). Both are joined end to end and connected to a battery as shown. Which of the following statements is correct?

14.
In common emitter transistor amplifier, the output resistance is \(500\) k\(\Omega\) and the current gain \(β = 50\). If power gain of amplifier is \(5\times 10^6\), what is the input resistance?

15.
In transistor amplifier, base emitter junction is forward biased and collector base junction is reversed biased. The current gain is
