Two long straight wires P and Q carrying equal currents of 10A each were kept parallel to each other at a distance of 5cm. The magnitude of the magnetic force experienced by a 10cm length of wire P is F₁. If the distance between the wires is halved and the currents in them are doubled, the force F₂ on a 10cm length of wire P will be:

• (1) 8F₁
• (2) 10F₁
• (3) F₁/8
• (4) F₁/10

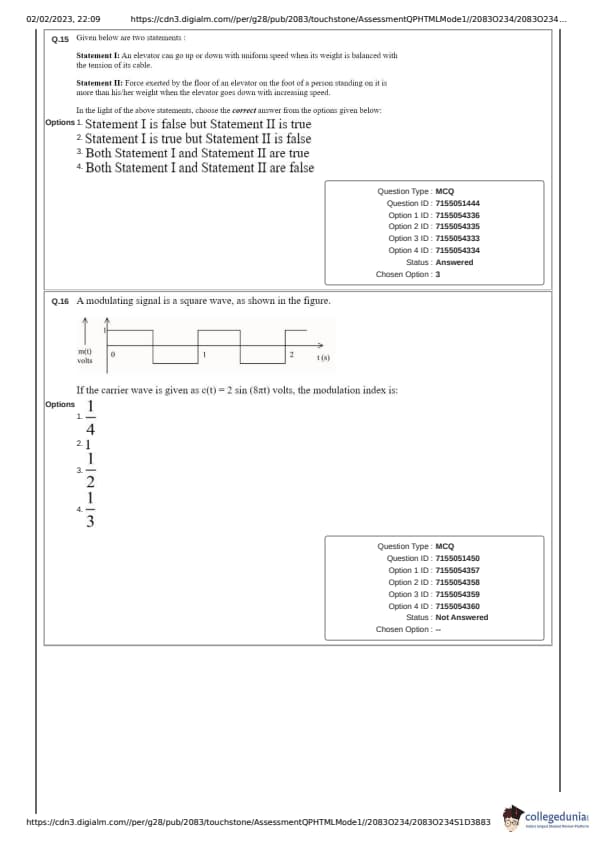

Given below are two statements: Statement-I : An elevator can go up or down with uniform speed when its weight is balanced with the tension of its cable. Statement-II : Force exerted by the floor of an elevator on the foot of a person standing on it is more than his/her weight when the elevator goes down with increasing speed. In the light of the above statements, choose the correct answer from the options given below:

• (1) Both statement I and statement II are false
• (2) Statement I is true but Statement II is false
• (3) Both Statement I and Statement II are true
• (4) Statement I is false but Statement II is true

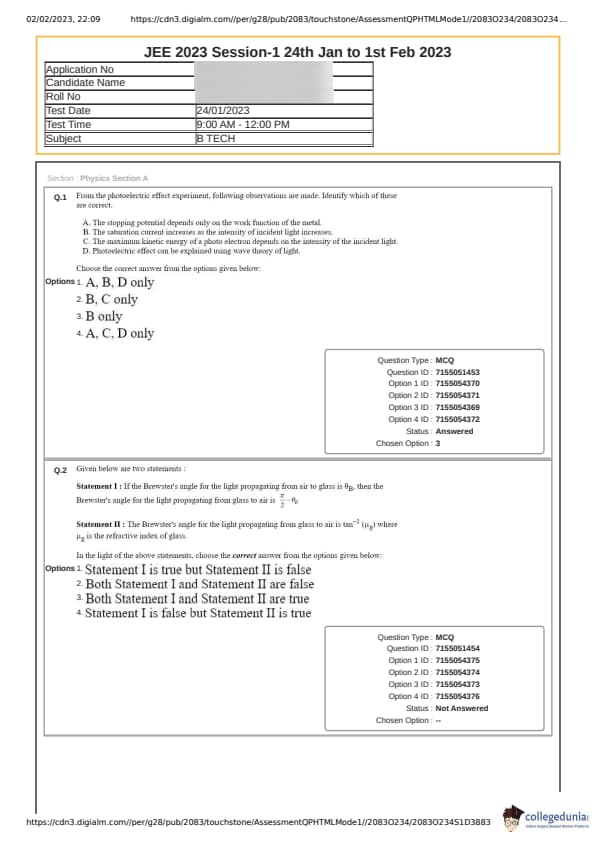

From the photoelectric effect experiment, the following observations are made. Identify which of these are correct: A. The stopping potential depends only on the work function of the metal. B. The saturation current increases as the intensity of incident light increases. C. The maximum kinetic energy of a photo electron depends on the intensity of the incident light. D. Photoelectric effect can be explained using wave theory of light. Choose the correct answer from the options given below:

• (1) B, C only
• (2) A, C, D only
• (3) B only
• (4) A, B, D only

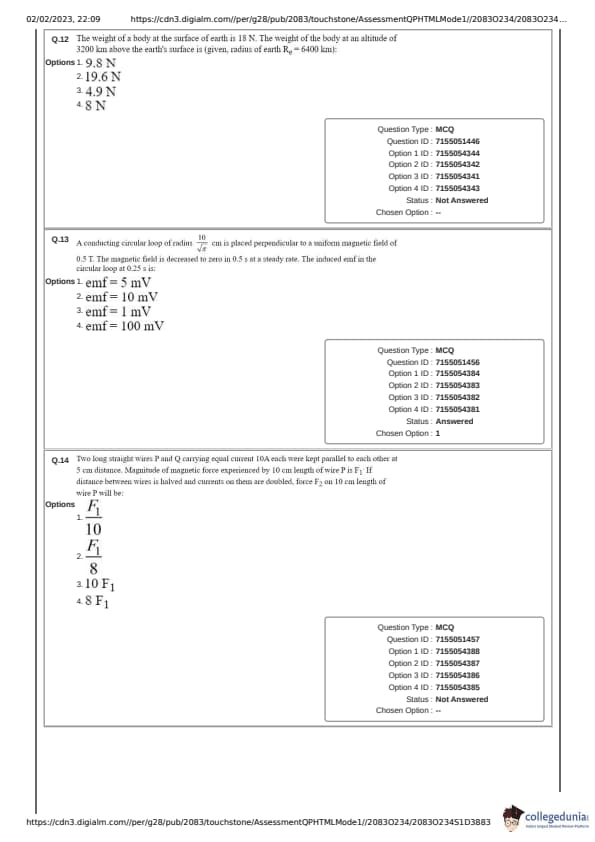

The weight of a body at the surface of Earth is 18 N. The weight of the body at an altitude of 3200 km above the Earth's surface is (given, radius of Earth Re = 6400 km):

• (1) 9.8N
• (2) 4.9N
• (3) 19.6N
• (4) 8N

A 100 m long wire having cross-sectional area 6.25 × 10⁻⁴ m² and Young's modulus is 10¹⁰ Nm⁻² is subjected to a load of 250 N, then the elongation in the wire will be:

• (1) 6.25 × 10⁻³ m
• (2) 4 × 10⁻⁴ m
• (3) 6.25 × 10⁻⁶ m
• (4) 4 × 10⁻³ m

1 g of a liquid is converted to vapour at 3 × 10⁵ Pa pressure. If 10% of the heat supplied is used for increasing the volume by 1600 cm³ during this phase change, then the increase in internal energy in the process will be :

• (1) 4320 J
• (2) 432000 J
• (3) 4800 J
• (4) 4.32 × 10⁸ J

A modulating signal is a square wave, as shown in the figure. If the carrier wave is given as c(t) = 2sin(8πt) volts, the modulation index is :

• (1) 1/4
• (2) 1
• (3) 1/1
• (4) 1/2

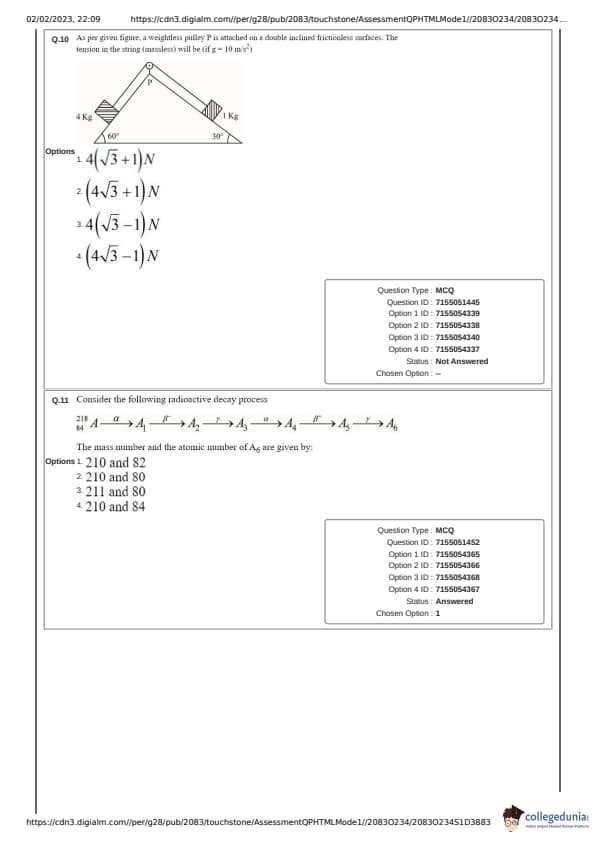

As per given figure, a weightless pulley P is attached on a double inclined frictionless surface. The tension in the string (massless) will be (if g = 10 m/s²): (Figure shows a pulley with a 4kg mass at 60 degrees incline and 1kg at 30 degree incline)

• (1) (4√3 + 1) N
• (2) 4(√3 + 1) N
• (3) 4(√3 – 1) N
• (4) (4√3 + 1) N

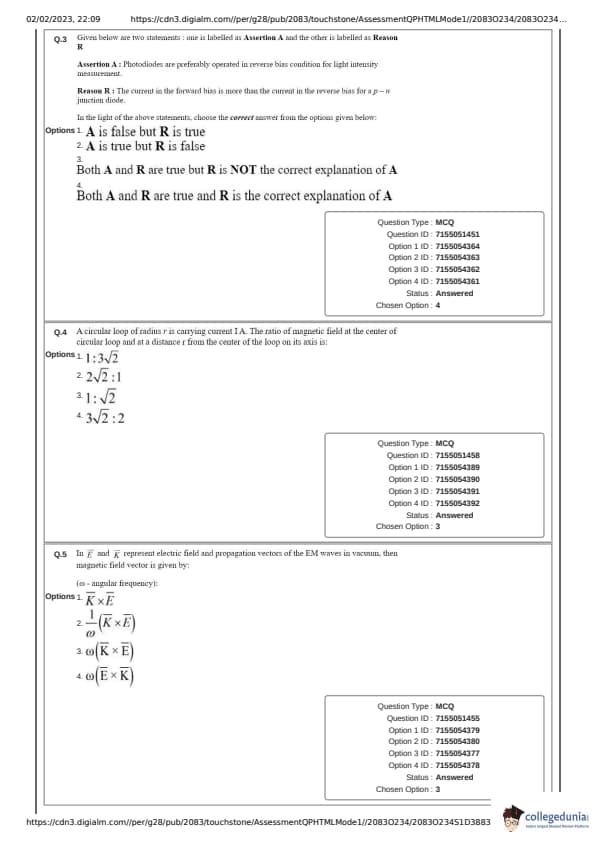

Given below are two statements: one is labelled as Assertion A and the other is labelled as Reason R: Assertion (A): Photodiodes are preferably operated in reverse bias condition for light intensity measurement. Reason (R): The current in the forward bias is more than the current in the reverse bias for a p-n junction diode. In the light of the above statements, choose the correct answer from the options given below:

• (1) A is false but R is true
• (2) Both A and R are true but R is NOT the correct explanation of A
• (3) A is true but R is false
• (4) Both A and R are true and R is the correct explanation of A

If E represents the electric field vector and K the propagation vector of electromagnetic waves in vacuum, then the magnetic field vector is given by (w - angular frequency):

• (1) B = (K X E)/w
• (2) B = w(E x K)
• (3) B = w(K × E)
• (4) (K × Ể)

A circular loop of radius r is carrying current I A. The ratio of magnetic field at the center of the circular loop and at a distance r from the center of the loop on its axis is:

• (1) 1:3√2
• (2) 3√2:2
• (3) 2√2:1
• (4) 1: √2

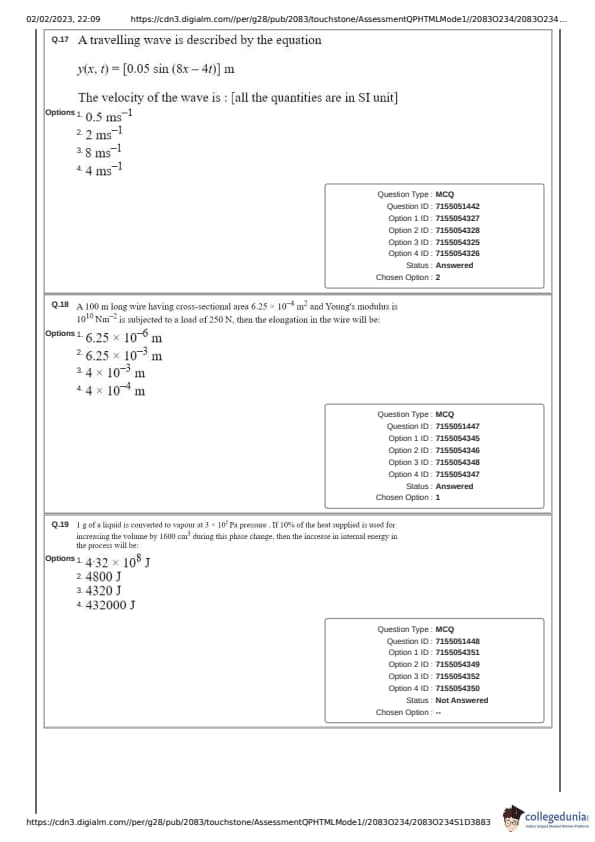

A travelling wave is described by the equation: y(x, t) = 0.05 sin(8x – 4t) m. The velocity of the wave is: (All quantities are in SI units.)

• (1) 4 ms⁻¹
• (2) 2 ms⁻¹
• (3) 0.5 ms⁻¹
• (4) 8 ms⁻¹

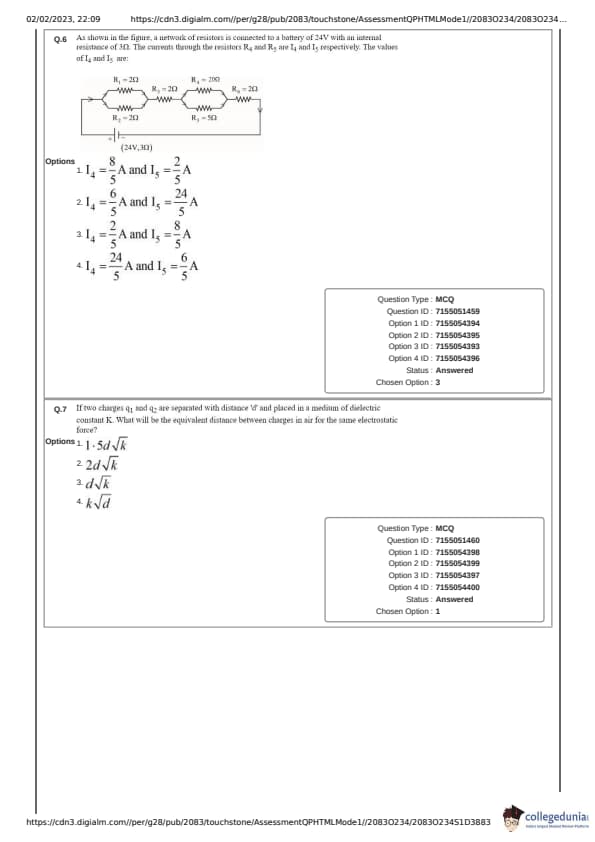

As shown in the figure, a network of resistors is connected to a battery of 24 V with an internal resistance of 3Ω. The currents through the resistors R₄ and R₅ are I₄ and I₅ respectively. The values of I₄ and I₅ are: (Figure shows a circuit diagram with various resistors)

• (1) I₄ = 2/5 A and I₅ = 8/5 A
• (2) I₄ = 8/5 A and I₅ = 2/5 A
• (3) I₄ = 3/4 A and I₅ = 3/4 A
• (4) I₄ = 2/5 A and I₅ = 2/5 A

Given below are two statements: Statement I: If the Brewster's angle for the light propagating from air to glass is θ_b, then Brewster's angle for the light propagating from glass to air is: π/2 - θ_b Statement II: The Brewster's angle for the light propagating from glass to air is tan⁻¹(μ_g), where μ_g is the refractive index of glass. In the light of the above statements, choose the correct answer from the options given below:

• (1) Both Statement I and Statement II are true.
• (2) Statement I is true but Statement II is false.
• (3) Statement I is false but Statement II is true.
• (4) Both Statement I and Statement II are false.

If two charges q₁ and q₂ are separated with distance d and placed in a medium of dielectric constant K, what will be the equivalent distance between charges in air for the same electrostatic force?

• (1) d√K
• (2) k√d
• (3) 1.5d√ K
• (4) 2d/K

Consider the following radioactive decay process: 218/84A → 214/82A₁→ 214/83A₂ → 214/83A₃ → 210/81A₄ → 210/80A₅→ 210/80A₆ The mass number and the atomic number of A₆ are given by:

• (1) 210 and 82
• (2) 210 and 84
• (3) 210 and 80
• (4) 211 and 80

Given below are two statements: Statement I: The temperature of a gas is −73°C. When the gas is heated to 527°C, the root mean square speed of the molecules is doubled. Statement II: The product of pressure and volume of an ideal gas will be equal to the translational kinetic energy of the molecules. In the light of the above statements, choose the correct answer from the options given below:

• (1) Both Statement I and Statement II are true.
• (2) Statement I is true but Statement II is false.
• (3) Both Statement I and Statement II are false.
• (4) Statement I is false but Statement II is true.

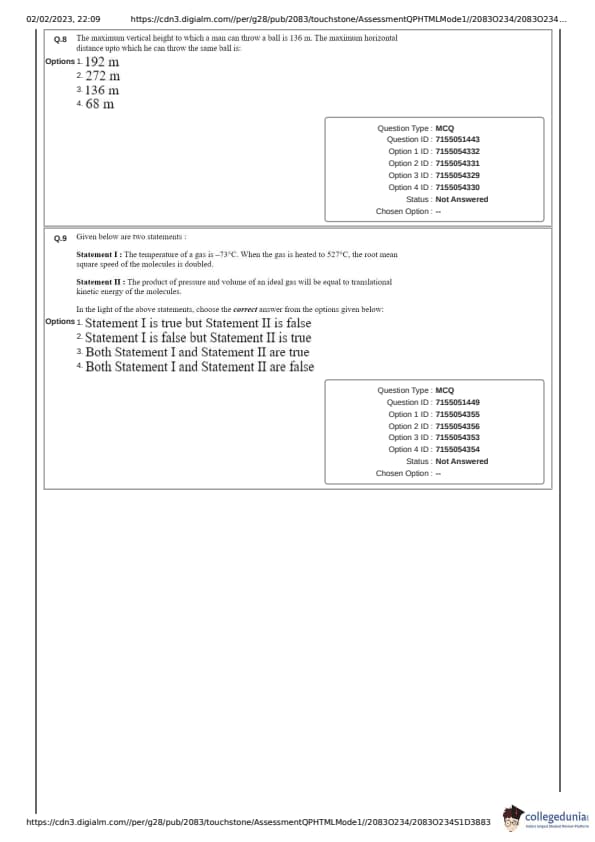

The maximum vertical height to which a man can throw a ball is 136 m. The maximum horizontal distance up to which he can throw the same ball is:

• (1) 192 m
• (2) 136 m
• (3) 272 m
• (4) 68 m

A conducting loop of radius π¹/² * (10) cm is placed perpendicular to a uniform magnetic field of 0.5 T. The magnetic field is decreased to zero in 0.5s at a steady rate. The induced emf in the circular loop at 0.25 s is:

• (1) 1 mV
• (2) 10 mV
• (3) 100 mV
• (4) 5 mV

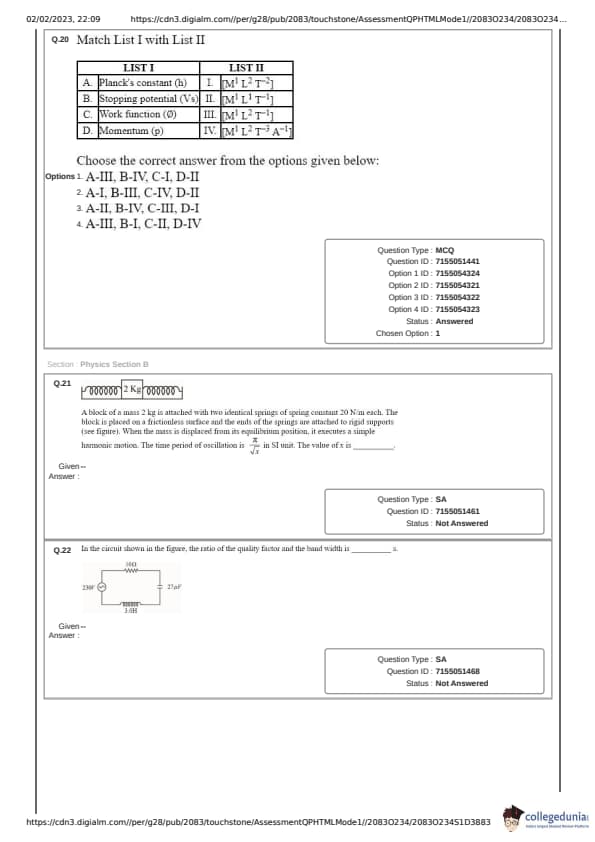

Match List I with List II:

List I
A. Planck's constant (h)
B. Stopping potential (Vₛ)
C. Work function (Φ)
D. Momentum (p)

List II
I. M¹L²T⁻²
II. M¹L¹T⁻¹
III. M¹L²T⁻¹
IV. M¹L²T⁻³A⁻¹

• (1) A-III, B-I, C-II, D-IV
• (2) A-III, B-IV, C-I, D-II
• (3) A-II, B-IV, C-III, D-I
• (4) A-I, B-III, C-IV, D-II

A spherical body of mass 2 kg starting from rest acquires a kinetic energy of 10000 J at the end of 5th second. The force acted on the body is _________ Ν.

A block of mass 2 kg is attached with two identical springs of spring constant 20 N/m each. The block is placed on a frictionless surface, and the ends of the springs are attached to rigid supports. When the mass is displaced from its equilibrium position, it executes simple harmonic motion. The time period of oscillation is given by π/√x in SI units. The value of x is:

A hole is drilled in a metal sheet. At 27°C, the diameter of the hole is 5 cm. When the sheet is heated to 177°C, the change in the diameter of the hole is Δd. The value of Δd will be, if the coefficient of linear expansion of the metal is 1.6 × 10⁻⁵/°C:

In the circuit shown in the figure, the ratio of the quality factor and the bandwidth is __________ s. (Figure shows a circuit diagram with various components)

A hollow cylindrical conductor has a length of 3.14m, while its inner and outer diameters are 4mm and 8mm, respectively. The resistance of the conductor is 2 × 10⁻³ Ω. If the resistivity of the material is 2.4 × 10⁻⁸ Ωm, the value of n is: 2 × 10⁻³ Ω.

As shown in the figure, a combination of a thin plano-concave lens and a thin plano-convex lens is used to image an object placed at infinity. The radius of curvature of both lenses is 30 cm, and the refractive index of the material for both lenses is 1.75. Both lenses are placed at a distance of 40 cm from each other. Due to the combination, the image of the object is formed at distance x cm, from the concave lens.

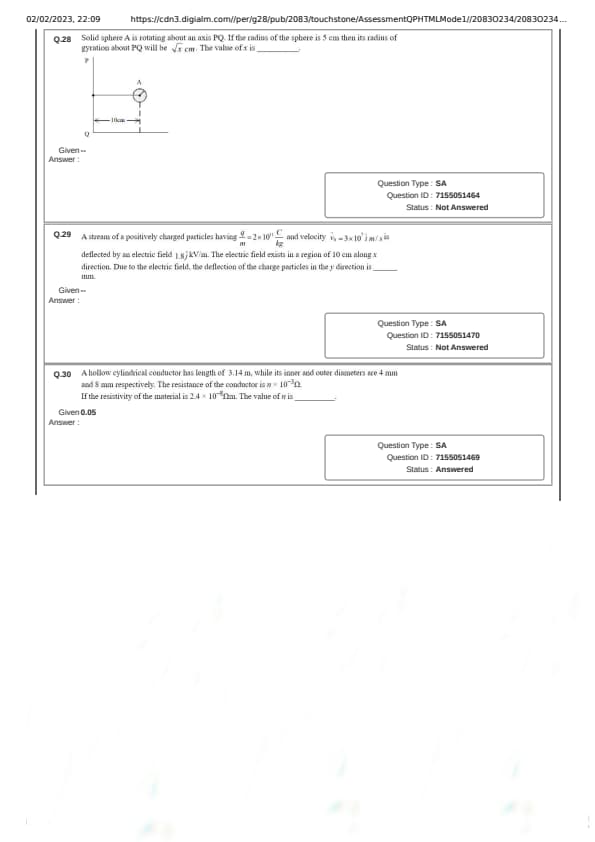

A solid sphere A is rotating about an axis PQ. If the radius of the sphere is 5 cm, then its radius of gyration about PQ will be √x cm. The value of x is:

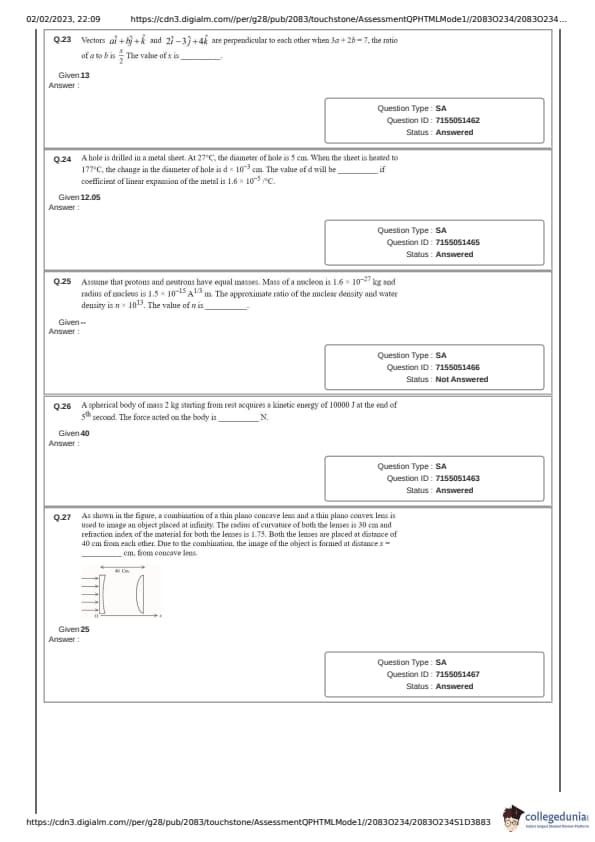

Vectors a = aì + bj + k and b = 2ì – 3ĵ + 4k are perpendicular to each other when 3a + 2b = 7. The ratio of a to b is x/2. The value of x is:

Assume that protons and neutrons have equal masses. The mass of a nucleon is 1.6×10⁻²⁷ kg, and the radius of a nucleus is 1.5×10⁻¹⁵ A¹/³ m. The approximate ratio of nuclear density to water density is n × 10¹³. The value of n is:

A stream of positively charged particles having q/m = 2 × 10¹¹ C/kg and velocity v₀ = 3 × 10⁷ m/s is deflected by an electric field Ē = 1.8 ĵ kV/m. The electric field exists in a region of 10 cm along the x-direction. Due to the electric field, the deflection of the charged particles in the y-direction is ____ mm.
