JEE Main 2023 April 12 Shift 2 B.Planning Question Paper with Solution PDF- Download Here

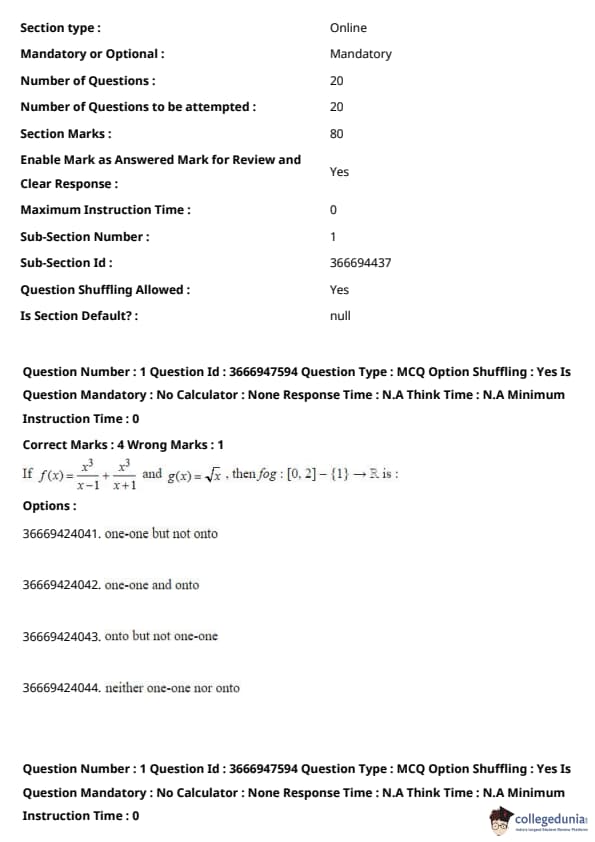

If \( f(x)=\frac{x^{3}}{x-1}+\frac{x^{3}}{x+1} \) and \( g(x)=\sqrt{x} \), then \( f \circ g:[0,2]-\{1\} \rightarrow \mathbb{R} \) is :

• (1) one-one but not onto
• (2) one-one and onto
• (3) onto but not one-one
• (4) neither one-one nor onto

The sum of squares of the values of \( \alpha \in \mathbb{R} \) such that the argument of \( \frac{\alpha+i}{\alpha-i} \) is \( 60^{\circ} \), \( i=\sqrt{-1} \), is :

• (1) 3
• (2) \( \frac{10}{3} \)
• (3) \( \frac{11}{3} \)
• (4) 4

For the system of equations
\( x+\lambda y-z=1 \)
\( x+2y+\lambda z=2 \)
\( x+2y+z=2 \),
which one of the following is NOT correct ?

• (1) it has unique solution if \( \lambda \) is not a root of the equation \( t^{2}-3t+2=0 \)
• (2) it has unique solution if \( \lambda \) is not a root of the equation \( t^{2}-t-2=0 \)
• (3) it has infinitely many solutions if \( \lambda=1 \)
• (4) it has no solution if \( \lambda=2 \)

If \[ a_n=(2n^2-n+2)(n!) , \] then \[ \sum_{n=1}^{20} a_n \] is equal to:

• (1) \(37(20!)-1\)

• (2) \(37(20!)+1\)

• (3) \(39(21!)+1\)

• (4) \(39(21!)-1\)

\( \lim_{x\rightarrow0^{+}}\frac{1}{\sqrt{x}}\left(\frac{1}{\sin x}-\frac{1}{x}\right) \)

• (1) is equal to 0
• (2) is equal to \( \frac{1}{5} \)
• (3) is equal to 1
• (4) does not exist

• (1) \(\displaystyle \frac{\ln 5+\ln 4}{2(\ln 5-\ln 4)}\)

• (2) \(\displaystyle \frac{\ln 5+\ln 4}{\ln 5-\ln 4}\)

• (3) \(\displaystyle \frac{\ln 5-\ln 4}{2(\ln 5+\ln 4)}\)

• (4) \(\displaystyle \frac{\ln 5-\ln 4}{\ln 5+\ln 4}\)

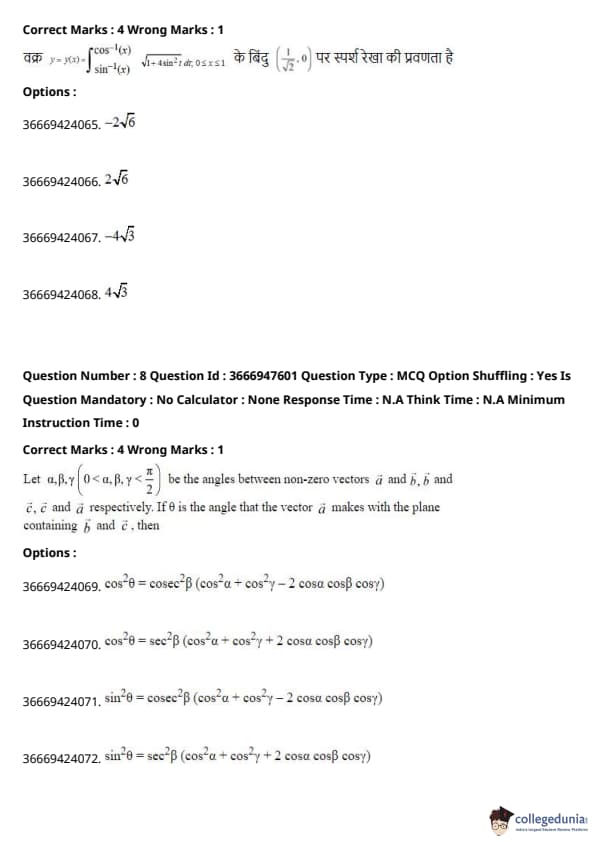

The slope of the tangent to the curve \( y=y(x)=\int_{\sin^{-1}(x)}^{\cos^{-1}(x)}\sqrt{1+4\sin^{2}t}\,dt\ ;\ 0\le x\le1 \) at the point \( \left(\frac{1}{\sqrt{2}},0\right) \) on the curve is :

• (1) \( -2\sqrt{6} \)
• (2) \( 2\sqrt{6} \)
• (3) \( -4\sqrt{3} \)
• (4) \( 4\sqrt{3} \)

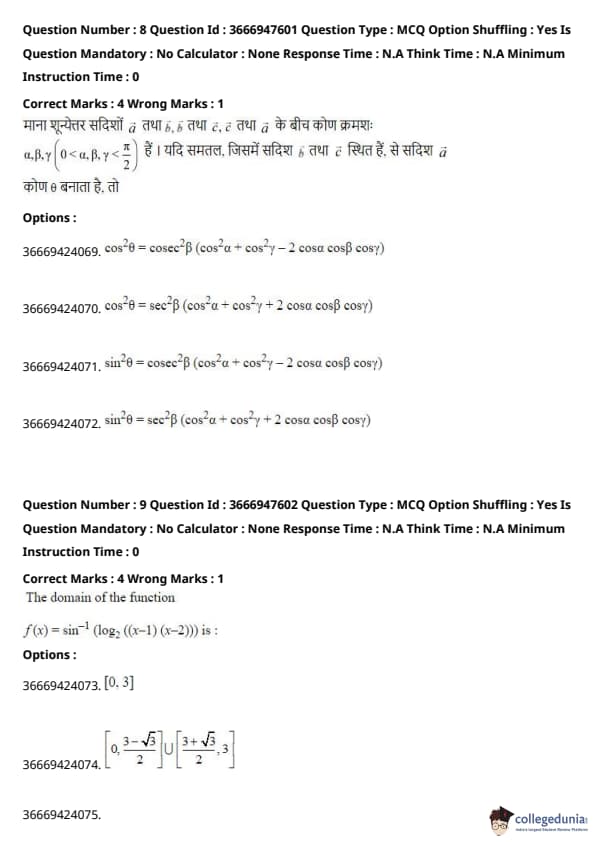

Let \( \alpha,\beta,\gamma\left(0<\alpha,\beta,\gamma<\frac{\pi}{2}\right) \) be the angles between non-zero vectors \( \vec{a} \) and \( \vec{b} \), \( \vec{b} \) and \( \vec{c} \), \( \vec{c} \) and \( \vec{a} \) respectively. If \( \theta \) is the angle that the vector \( \vec{a} \) makes with the plane containing \( \vec{b} \) and \( \vec{c} \), then

• (1) \( \cos^{2}\theta=\operatorname{cosec}^{2}\beta\left(\cos^{2}\alpha+\cos^{2}\gamma-2\cos\alpha\cos\beta\cos\gamma\right) \)
• (2) \( \cos^{2}\theta=\sec^{2}\beta\left(\cos^{2}\alpha+\cos^{2}\gamma+2\cos\alpha\cos\beta\cos\gamma\right) \)
• (3) \( \sin^{2}\theta=\operatorname{cosec}^{2}\beta\left(\cos^{2}\alpha+\cos^{2}\gamma-2\cos\alpha\cos\beta\cos\gamma\right) \)
• (4) \( \sin^{2}\theta=\sec^{2}\beta\left(\cos^{2}\alpha+\cos^{2}\gamma+2\cos\alpha\cos\beta\cos\gamma\right) \)

The domain of the function \(f(x)=\sin ^{-1}\left(\log _{2}((x-1)(x-2))\right)\) is :

• (1) \([0,3]\)
• (2) \(\left[0, \frac{3-\sqrt{3}}{2}\right] \cup\left[\frac{3+\sqrt{3}}{2}, 3\right]\)
• (3) \(\left(\frac{3-\sqrt{3}}{2}, 1\right) \cup\left(2, \frac{3+\sqrt{3}}{2}\right)\)
• (4) \(\left[0, \frac{3-\sqrt{6}}{2}\right] \cup\left[\frac{3+\sqrt{6}}{2}, 3\right]\)

Let \(\alpha\) and \(\beta\) be the roots of the equation \[ 2x^2-5x-1=0. \] For \(n\in\mathbb{N}\), let \[ P_n=\alpha^n+\beta^n. \] Then the value of \[ \frac{2P_{11}\,(2P_{10}-5P_9)}{P_8\,(5P_{10}+P_9)} \] is equal to:

• (1) \(-\dfrac{1}{2}\)

• (2) \(\dfrac{1}{2}\)

• (3) \(-1\)

• (4) \(1\)

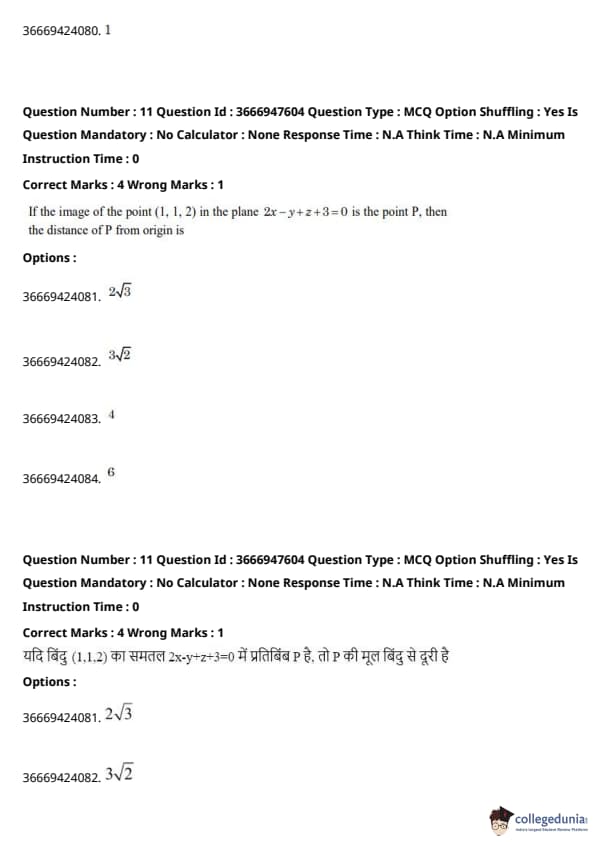

If the image of the point \((1,1,2)\) in the plane \(2 x-y+z+3=0\) is the point P, then the distance of P from origin is

• (1) \(2 \sqrt{3}\)
• (2) \(3 \sqrt{2}\)
• (3) 4
• (4) 6

For three non–coplanar vectors \(\vec a,\vec b,\vec c\), if \[ (\vec b+\vec c)\cdot\big((\vec c+\vec a)\times(\vec a+\vec b)\big) = \alpha \,[\vec a\,\vec b\,\vec c] \] and \[ (\vec a+\vec b)\cdot\big((\vec b+\vec c)\times(\vec a+\vec b+\vec c)\big) = \beta \,[\vec a\,\vec b\,\vec c], \] then \(\alpha+\beta\) is equal to:

• (1) \(-3\)

• (2) \(-1\)

• (3) \(1\)

• (4) \(3\)

If \(I(x)=\int \frac{d x}{1-2 \sin ^{2} x \cos ^{2} x}\), then \(\tan \left(\sqrt{2}\left(I\left(\frac{\pi}{8}\right)-I(0)\right)\right)\) is equal to :

• (1) \(\frac{1}{\sqrt{2}}\)
• (2) 1
• (3) \(\sqrt{2}\)
• (4) 2

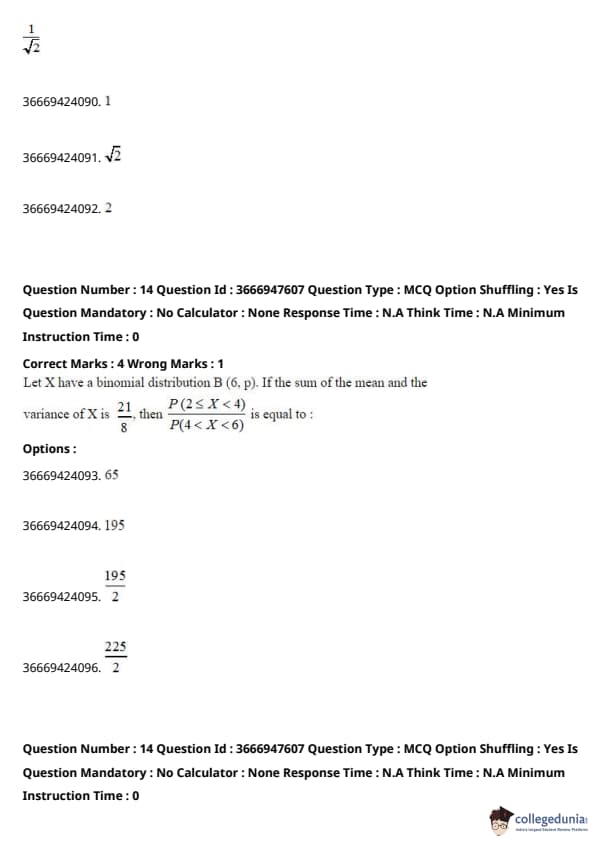

Let \(X\) have a binomial distribution \(B(6,p)\). If the sum of the mean and the variance of \(X\) is \(\dfrac{21}{8}\), then \[ \frac{P(2\le X<4)}{P(4<X<6)} \] is equal to:

• (1) \(65\)

• (2) \(195\)

• (3) \(\dfrac{195}{2}\)

• (4) \(\dfrac{225}{2}\)

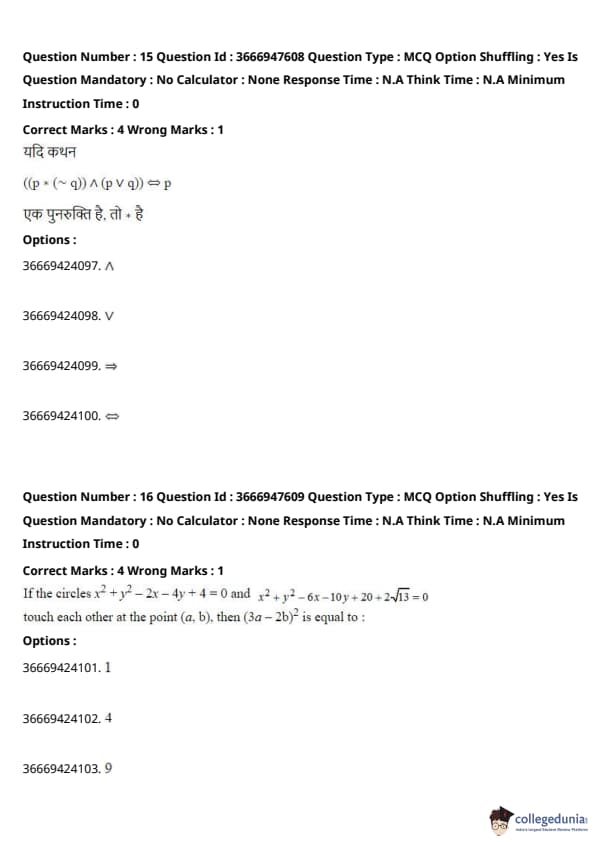

If the statement
\(((\mathrm{p} * (\sim \mathrm{q})) \wedge(\mathrm{p} \vee \mathrm{q})) \Leftrightarrow \mathrm{p}\)
is a tautology, then \(*\) is :

• (1) \(\wedge\)
• (2) \(\vee\)
• (3) \(\Rightarrow\)
• (4) \(\Leftrightarrow\)

If the circles \(x^{2}+y^{2}-2 x-4 y+4=0\) and \(x^{2}+y^{2}-6 x-10 y+20+2 \sqrt{13}=0\) touch each other at the point \((a, \mathrm{b})\), then \((3 a-2 \mathrm{b})^{2}\) is equal to :

• (1) 1
• (2) 4
• (3) 9
• (4) 13

If the angle between the line \(l: \frac{x-1}{2}=\frac{y+1}{1}=\frac{z-2}{2}\) and the plane \(\mathrm{P}: \lambda x+4y-7=0,\ \lambda \neq 0\), is \(\operatorname{cosec}^{-1}\left(\frac{3}{2}\right)\), then the sum of co-ordinates of the point where line \(l\) crosses the plane P is :

• (1) \(-33\)
• (2) \(-2\)
• (3) 3
• (4) 6

Let three distinct normal be drawn to the parabola \(y^{2}+4y-6x-8=0\) from a point \((a, \mathrm{b})\) on the axis of the parabola. Then :

• (1) \(a \in (1, \infty)\) and \(b=-2\)
• (2) \(a \in (0, \infty)\) and \(b=-2\)
• (3) \(a \in (1, \infty)\) and \(b=2\)
• (4) \(a \in (2, \infty)\) and \(b=2\)

Given \({}^{n}C_{r}=\frac{n!}{r!(n-r)!}\), \(0 \leq r \leq n\) and n is a non-negative integer. Then a possible value of k for which the equality
\({}^{50}C_{k-1}+\sum_{r=1}^{50}{}^{100-r}C_{k-2}={}^{100}C_{49}\) holds, is

• (1) 40
• (2) 49
• (3) 50
• (4) 25

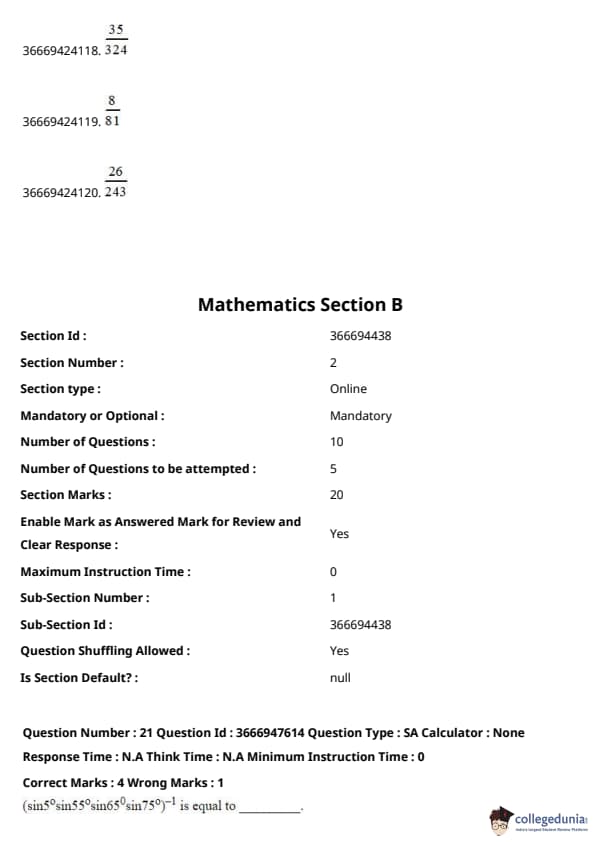

If an unbiased die, marked with \(-3,-2,-1,0,1,2\) on its faces, is thrown four times, then the probability of getting \(-1\) as the sum of outputs is :

• (1) \(\frac{7}{81}\)
• (2) \(\frac{35}{324}\)
• (3) \(\frac{8}{81}\)
• (4) \(\frac{26}{243}\)

\(\left(\sin 5^{\circ} \sin 55^{\circ} \sin 65^{\circ} \sin 75^{\circ}\right)^{-1}\) is equal to ________.

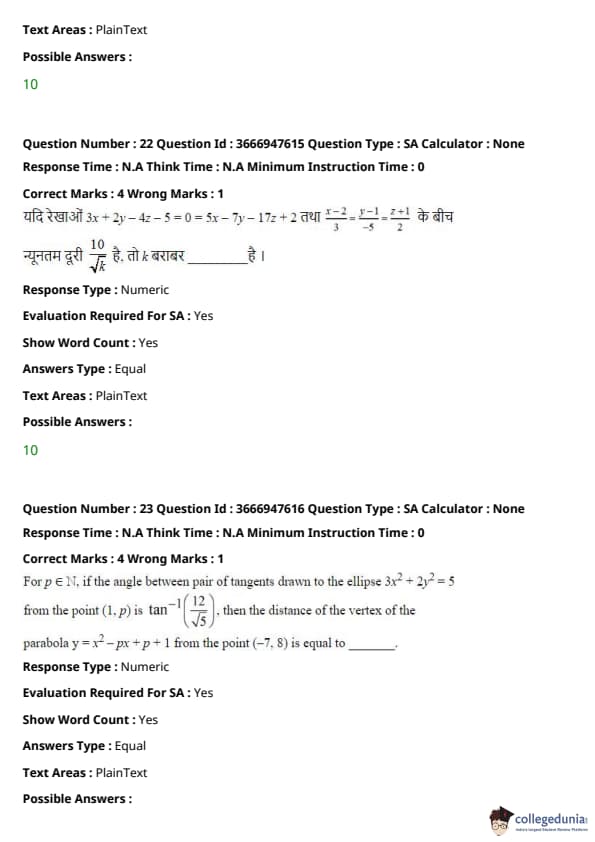

If the shortest distance between the lines \(3x+2y-4z-5=0=5x-7y-17z+2\) and \(\frac{x-2}{3}=\frac{y-1}{-5}=\frac{z+1}{2}\) is \(\frac{10}{\sqrt{k}}\), then \(k\) is equal to ________.

For \(p \in \mathbb{N}\), if the angle between pair of tangents drawn to the ellipse \(3x^{2}+2y^{2}=5\) from the point \((1, p)\) is \(\tan^{-1}\left(\frac{12}{\sqrt{5}}\right)\), then the distance of the vertex of the parabola \(y=x^{2}-px+p+1\) from the point \((-7,8)\) is equal to ________.

Let P be a polygon with \(n\) vertices such that the line segment joining any two points of P remains entirely in P. If the number of diagonals of P is \(n+25\), then \(n\) is equal to ________.

Let \(f(x)\) be a polynomial of degree 5 such that \(\lim_{x \to 0} \frac{f(x)}{x^{2}}=1\), \(f(-1)=-1\), \(f(x)-14x\) has an extrema at \(x=1\) and \(f(x)-10x\) has an extrema at \(x=-1\). Then \(f(2)\) is equal to ________.

The number of 7 digits integers formed by using the digits 2, 3, 4, 5 only and having the sum of digits equal to 18 is ________.

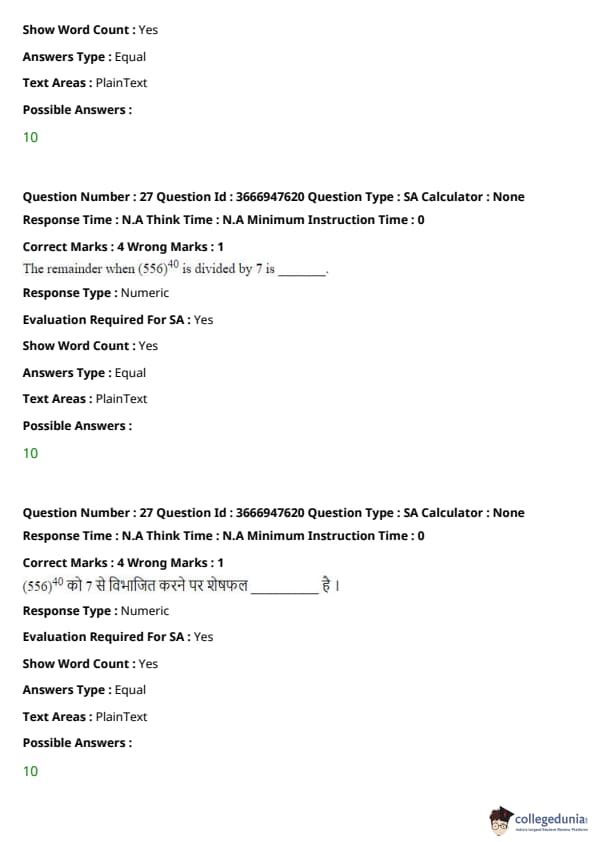

The remainder when \((556)^{40}\) is divided by 7 is ________.

Let \([\mathrm{t}]\) denote the greatest integer less than or equal to t. Then the value of \(10-10 \int_{-2}^{2}\left[x+x^{3}\right] dx\) is ________.

Let \(A=\frac{1}{\sqrt{2}}\left[\begin{array}{cc}1 & 1 \\ -1 & 1\end{array}\right]\) and \(B=\left[\begin{array}{cc}1 & 0 \\ 0 & -1\end{array}\right]\). If \(k, l \in \mathbb{N}\) be such that \(A^{k} B^{l}=I\), then the minimum value of \(k+l\) is ________.

Let \(\mathrm{A}_{1}=[1]\), \(\mathrm{A}_{2}=\left[\begin{array}{ll}2 & 3 \\ 4 & 5\end{array}\right]\), \(\mathrm{A}_{3}=\left[\begin{array}{ccc}6 & 7 & 8 \\ 9 & 10 & 11 \\ 12 & 13 & 14\end{array}\right], \ldots\) Then the sum of the diagonal elements of \(\mathrm{A}_{20}\) is ________.

Which of the following is not a sustainable development goal targeted to be achieved by 2030?

• (1) gender equality
• (2) zero hunger
• (3) good health & well being
• (4) space Research

KANDARIYA MAHADEV TEMPLE is situated in which state of India?

• (1) Madhya Pradesh
• (2) Maharashtra
• (3) Rajasthan
• (4) Karnataka

Vertical elements in a building are:-

• (1) Column, Lintel, Wall
• (2) Lintel, Beam, Arch
• (3) Column, Pier, Post
• (4) Floor, Column, Arch

Cavity Walls are used for

• (1) Waterproofing
• (2) Heat Insulation
• (3) Aesthetics
• (4) Cost saving

Lintel is related to:

• (1) Window
• (2) Roof
• (3) Foundation
• (4) Pipe

Choose the correct option among the following by looking at the image given above:

• (1) Lodhi Garden
• (2) Jantar Mantar
• (3) Rajghat
• (4) Bahai Temple

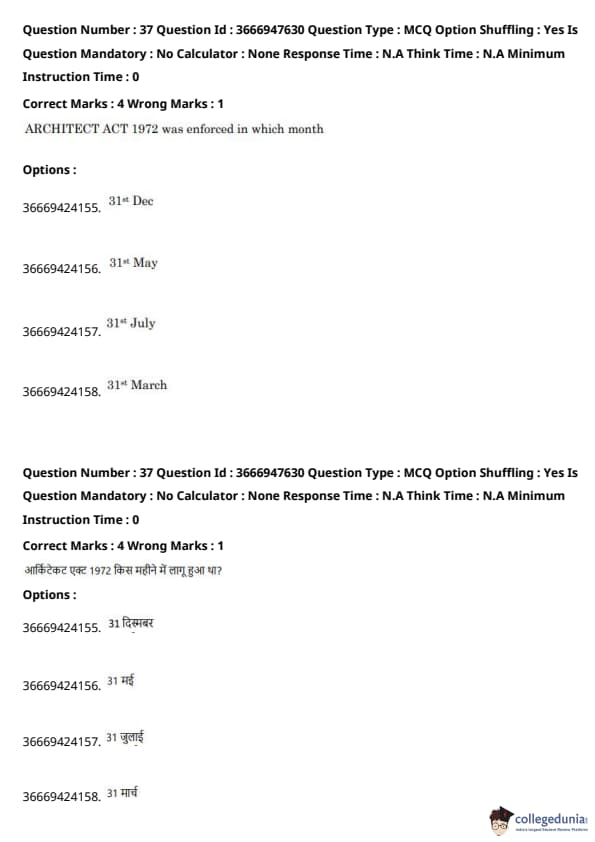

ARCHITECT ACT 1972 was enforced in which month

• (1) 31^st Dec
• (2) 31^st May
• (3) 31^st July
• (4) 31^st March

The dome of Rashtrapati Bhawan is influenced by which of the following:

• (1) Gurudwara
• (2) Mosque
• (3) Stupa
• (4) Temple

Dominion tower is designed by

• (1) Bjarke Ingels
• (2) Zaha Hadid
• (3) Frei otto
• (4) F.L. Wright

The largest river island of the world is present in which state of India?

• (1) Maharastra
• (2) Assam
• (3) Uttar Pradesh
• (4) West Bengal

Who prepared the first layout of the town of Jamshedpur?

• (1) Charles Correa
• (2) Otto Koenigsberger
• (3) Le Corbusier
• (4) Messrs Julian Kennedy Sahlin

Identify the historical monument which is given in the image.

• (1) Sanchi Stupa
• (2) Victory Tower
• (3) Sarnath Stupa
• (4) Nalanda

Who was known as “Father of modern concrete”?

• (1) John Paul
• (2) John Nash
• (3) John Smeaton
• (4) Joseph Stein

Who is the architect of TWA Airport, New York?

• (1) Eero Saarinen
• (2) Mies Vander Rohe
• (3) Joseph Allen Stein
• (4) Alvar Aalto

Starting from a point, Maria walked 12 meters towards North, she turned right and walked 10 meters. She again turned right and walked 12 meters, then she turned left and walked 5 meters. How far is she now and in which direction from the starting point? Consider the starting point is in south direction.

• (1) 27 meters towards East
• (2) 5 meters towards East
• (3) 10 meters towards West
• (4) 15 meters towards East

Who among the following is not Pritzker prize winner?

• (1) Wang Shu
• (2) B.V. Doshi
• (3) Arata Isozaki
• (4) Denise Scott Brown

Which of the following is not Antonio Gaudi’s project?

• (1) Casa Mila
• (2) Sagrada Familia
• (3) Casa Batllo
• (4) Casa Milano

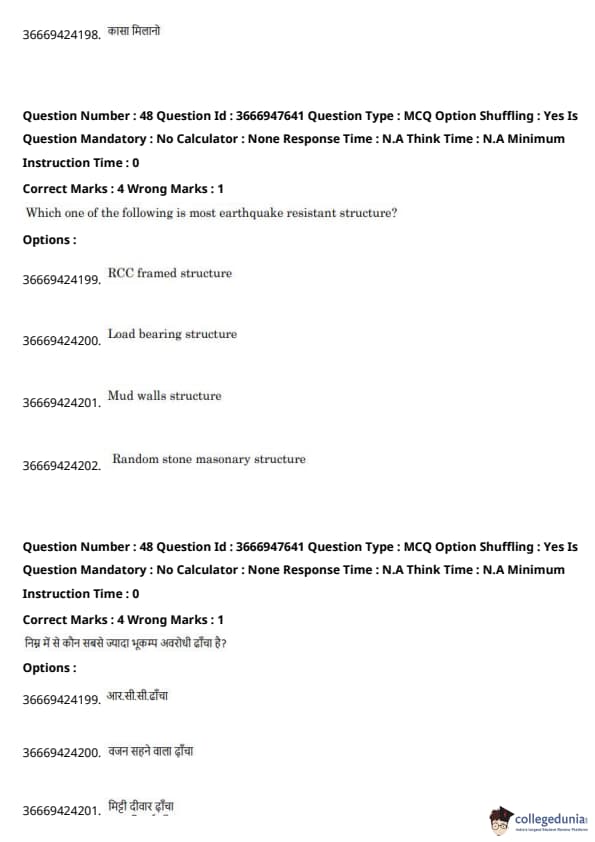

Which one of the following is most earthquake resistant structure?

• (1) RCC framed structure
• (2) Load bearing structure
• (3) Mud walls structure
• (4) Random stone masonry structure

"CHALK" belongs to which category?

• (1) Rock
• (2) Mineral
• (3) Wood
• (4) Polymer

What are the three parts of colour theory?

• (1) hyper, value and chrome
• (2) honey, violet and chroma
• (3) hue, value and chroma
• (4) hue, chrome and violet

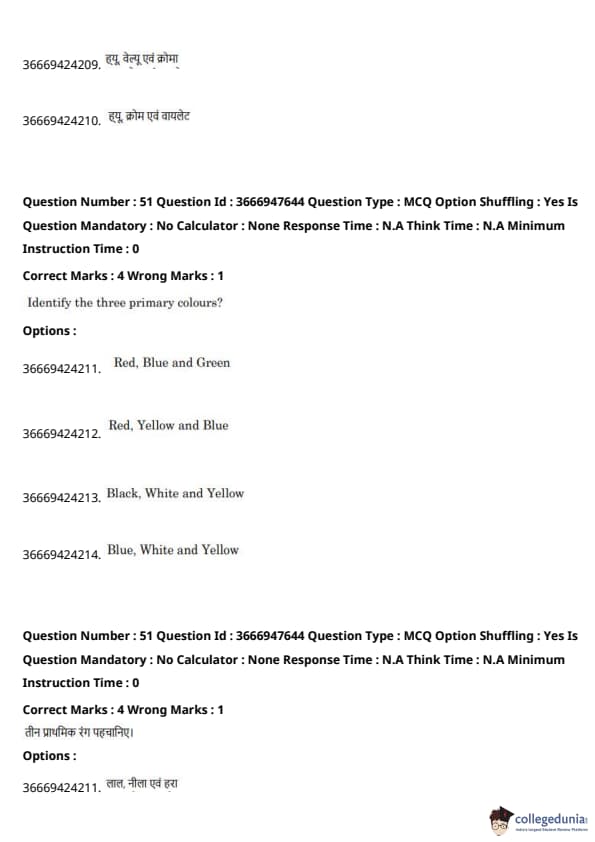

Identify the three primary colours?

• (1) Red, Blue and Green
• (2) Red, Yellow and Blue
• (3) Black, White and Yellow
• (4) Blue, White and Yellow

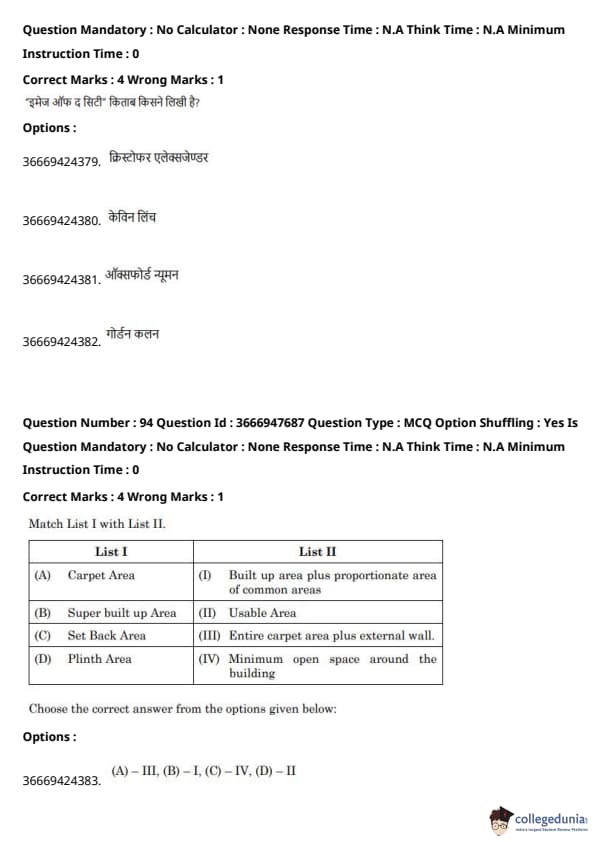

• (1) A-II, B-I, C-III, D-IV
• (2) A-IV, B-III, C-II, D-I
• (3) A-III, B-IV, C-I, D-II
• (4) A-I, B-II, C-IV, D-III

A square has an area of 100 sq.mt. How much will be its area on a scale of 1 : 20?

• (1) 5 sq.mt.
• (2) 50 sq.mt.
• (3) 0.25 sq.mt.
• (4) 25 sq.mt.

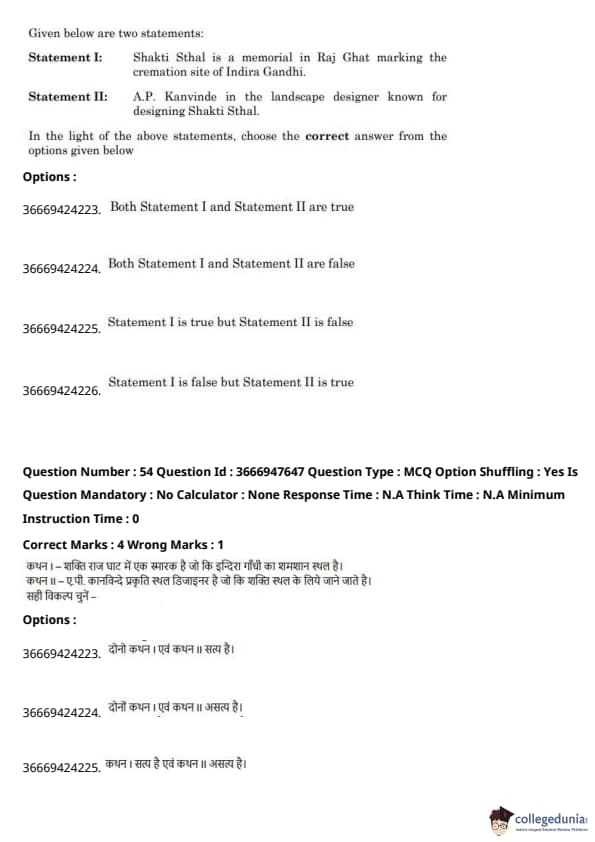

Given below are two statements:
Statement I: Shakti Sthal is a memorial in Raj Ghat marking the cremation site of Indira Gandhi.
Statement II: A.P. Kanvinde in the landscape designer known for designing Shakti Sthal.
In the light of the above statements, choose the correct answer from the options given below

• (1) Both Statement I and Statement II are true
• (2) Both Statement I and Statement II are false
• (3) Statement I is true but Statement II is false
• (4) Statement I is false but Statement II is true

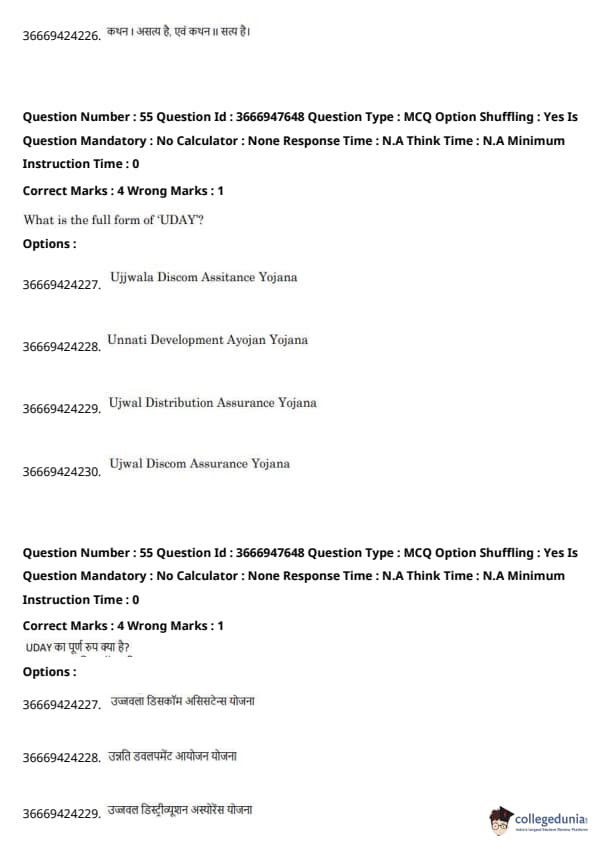

What is the full form of "UDAY"?

• (1) Ujjwala Discom Assitance Yojana
• (2) Unnati Development Ayojan Yojana
• (3) Ujwal Distribution Assurance Yojana
• (4) Ujwal Discom Assurance Yojana

What is the acronym for "AYUSH"?

• (1) Ayurveda, Yoga and Naturopathy, Unani, Siddha and Homeopathy
• (2) Ayurveda, Yogic and Unani Siddha and Homeopathy
• (3) Acroveda, Yoga, Unani, Siddha and Homeopathy
• (4) Ayurveda, Yoga, Naturopathy, Unani Surgery and Homeopathy

Select the correct option from answer figure which will be best suitable to continue the same pattern as established by the problem figure.

• (1)
• (2)
• (3)
• (4)

Choose the correct option from the answer figures which completes the question series.

• (1)
• (2)
• (3)
• (4)

Identify the number of surfaces in the given 3D object.

• (1) 12
• (2) 13
• (3) 10
• (4) 9

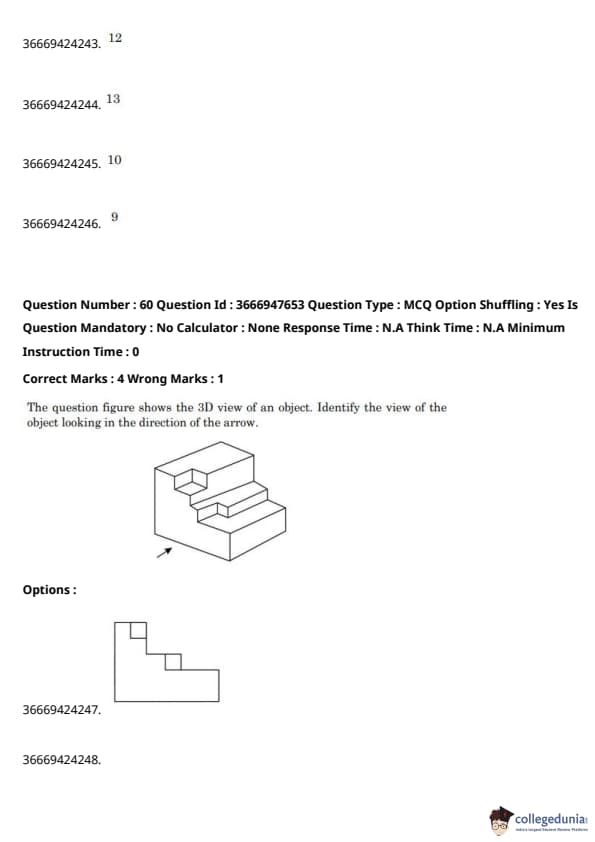

The question figure shows the 3D view of an object. Identify the view of the object looking in the direction of the arrow.

• (1)
• (2)
• (3)
• (4)

The 3D figure shows the view of an object. Identify the correct view looking in the direction of arrow, amongst the answer figures.

• (1)
• (2)
• (3)
• (4)

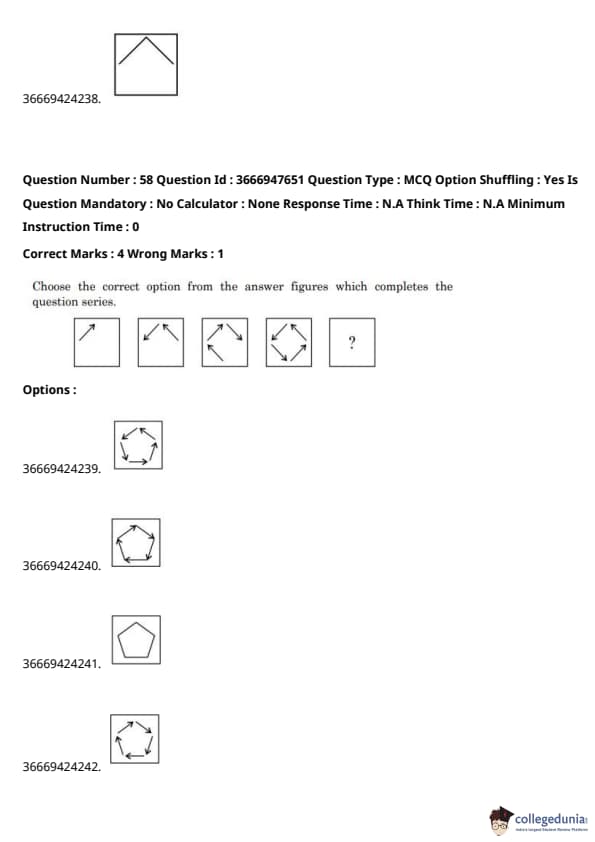

Choose the correct option from the answer figures which completes the sequence.

• (1)
• (2)
• (3)
• (4)

The question figure shows the 3D view of an object, identify the correct view looking in the direction of the arrow?

• (1)
• (2)
• (3)
• (4)

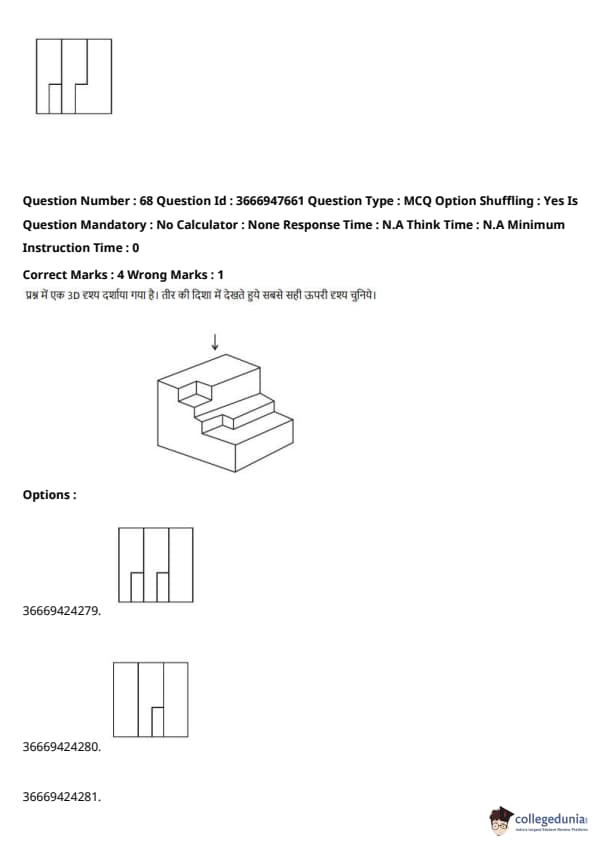

The question figure shows the 3D view of an object. Identify the top view of the object in the direction of the arrow.

• (1)
• (2)
• (3)
• (4)

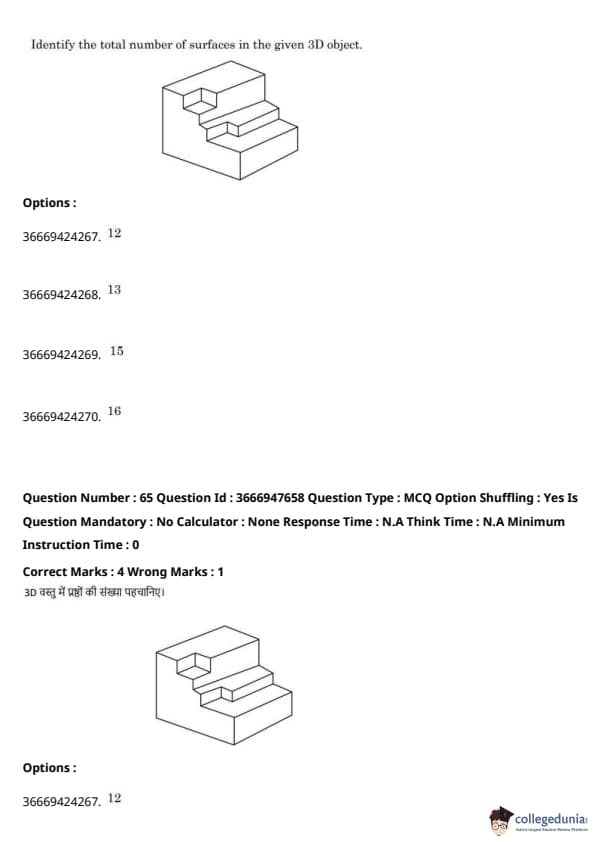

Identify the total number of surfaces in the given 3D object.

• (1) 12
• (2) 13
• (3) 15
• (4) 16

The question figure shows the 3D view of an object. Identify the correct view looking in the direction of the arrow.

• (1)
• (2)
• (3)
• (4)

In the question figure it is a 3D view of an object. Identify the correct top view among the given options.

• (1)
• (2)
• (3)
• (4)

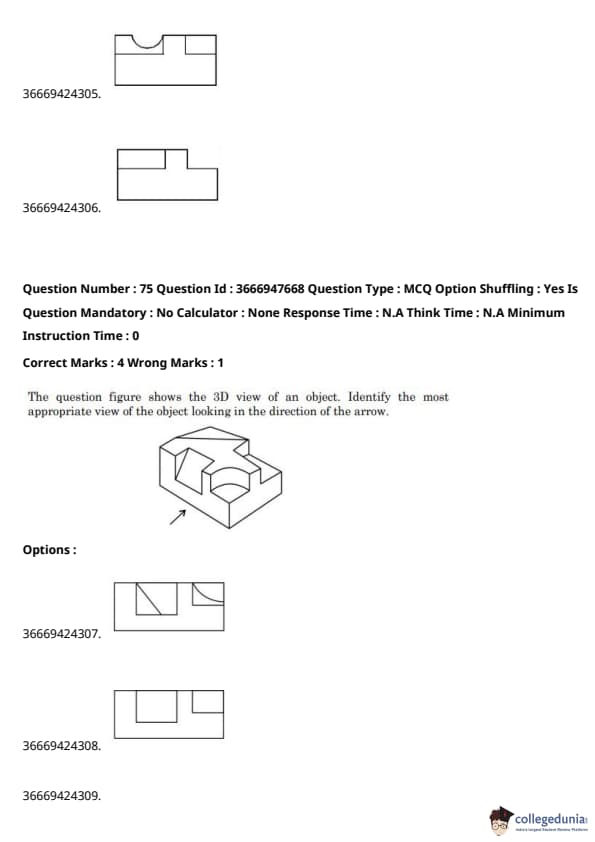

The question figure shows the 3D view of an object. Identify the most appropriate top view of the object from the given direction of the arrow.

• (1)
• (2)
• (3)
• (4)

Identify the total number of surfaces in the given object.

• (1) 13
• (2) 14
• (3) 11
• (4) 10

Identify the mirror image of the question figure, amongst the answer figures with respect to P-P.

• (1)
• (2)
• (3)
• (4)

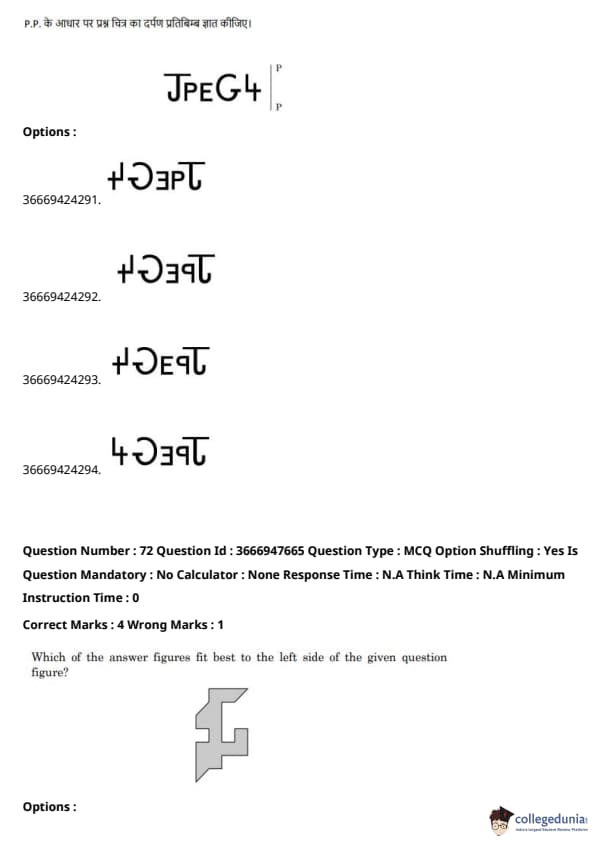

Identify the correct mirror image of the question image with respect to P-P.

• (1)
• (2)
• (3)
• (4)

Which of the answer figures fit best to the left side of the given question figure?

• (1)
• (2)
• (3)
• (4)

In the question figure, the top, front and right side view is given. Identify the most appropriate 3D view of the object from the answer figures.

• (1)
• (2)
• (3)
• (4)

The question figure shows the 3D view of an object. Identify the most appropriate elevation (front view) looking in the direction of arrow.

• (1)
• (2)
• (3)
• (4)

The question figure shows the 3D view of an object. Identify the most appropriate view of the object looking in the direction of the arrow.

• (1)
• (2)
• (3)
• (4)

The question figure is the 3D view of an object. Identify the most appropriate front view of the object looking in the direction of the arrow.

• (1)
• (2)
• (3)
• (4)

Question figure shows 3D view of an object. Identify the most appropriate top view of the given 3D object looking in the direction of an arrow, from the given answers figures.

• (1)
• (2)
• (3)
• (4)

Identify the number of surfaces in the problem figure.

• (1) 24
• (2) 25
• (3) 23
• (4) 20

The question figure shows 3D view of an object. Identify the most appropriate elevation of the given 3D object, looking in the direction of an arrow, from the given answer figures.

• (1)
• (2)
• (3)
• (4)

Find out the total number of surfaces of the 3D object.

• (1) 12
• (2) 13
• (3) 14
• (4) 15

GIS as a tool used for spatial connectedness for

• (1) Topology
• (2) Topography
• (3) Ecology
• (4) Climatology

Smart city scheme has been launched in which year?

• (1) 2012
• (2) 2016
• (3) 2015
• (4) 2014

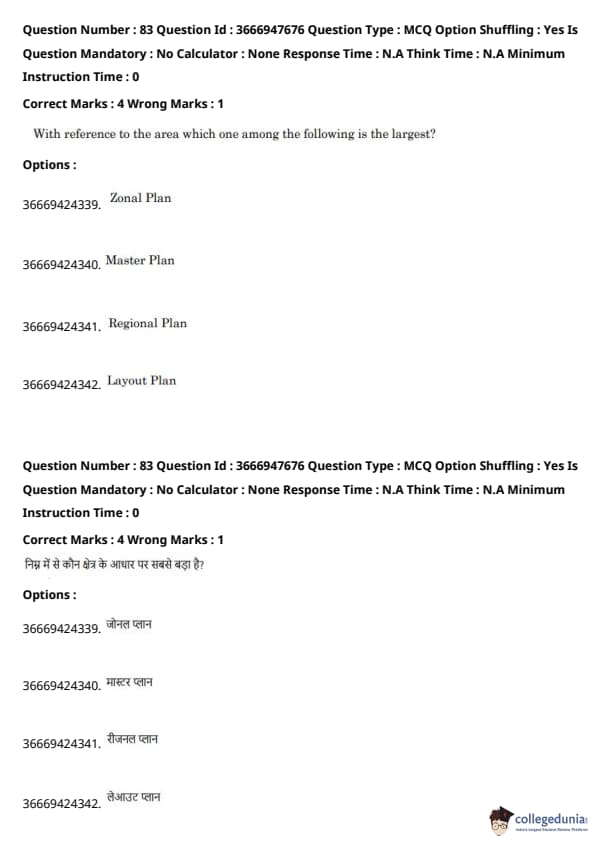

With reference to the area which one among the following is the largest?

• (1) Zonal Plan
• (2) Master Plan
• (3) Regional Plan
• (4) Layout Plan

Given below are two statements:
Statement I: Full form of NFDB is “National Fisheries Development Board”.
Statement II: Full form of NFDB is “National Forest Development & Board.
In the light of the above statements, choose the correct answer from the options given below

• (1) Both Statement I and Statement II are true
• (2) Both Statement I and Statement II are false
• (3) Statement I is true but Statement II is false
• (4) Statement I is false but Statement II is true

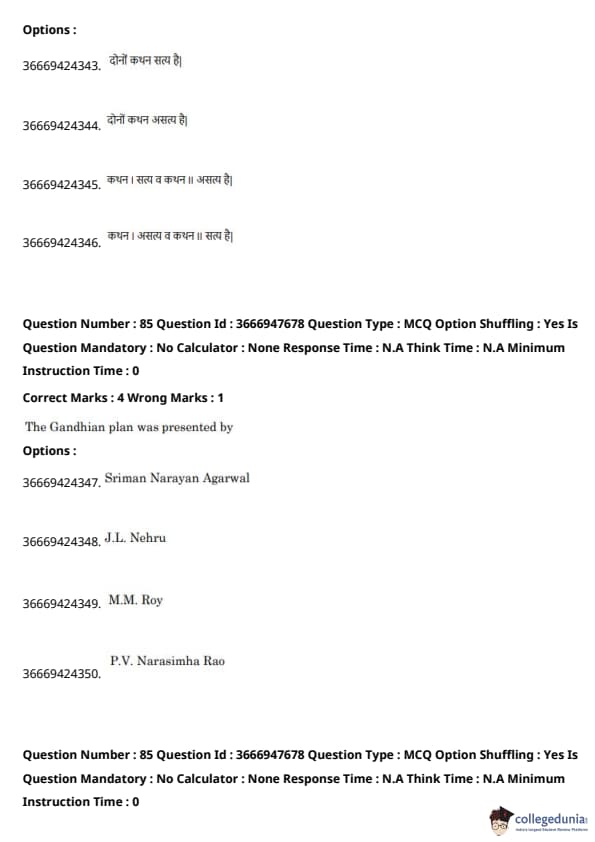

The Gandhian plan was presented by

• (1) Sriman Narayan Agarwal
• (2) J.L. Nehru
• (3) M.M. Roy
• (4) P.V. Narasimha Rao

In which 5 year plan, the growth, social justice and equality was focused.
(A) Second Five year plan
(B) Ninth Five year plan
(C) Third Five year plan
(D) Fourth Five year plan
Choose the correct answer from the options given below:

• (1) A only
• (2) B and D
• (3) B only
• (4) C only

In Urban Land Development, the model of sector theory was proposed by

• (1) Charles Corea
• (2) Ebenezer Howard
• (3) Le-Corbusier
• (4) Homer Hoyt

Who was the first Deputy Chairman of Planning Commission?

• (1) Gulzarilal Nanda
• (2) Sriman Narayan
• (3) M.M. Roy
• (4) P.V. Narasimha Rao

Grand Innovation Challenge was launched by:-

• (1) “NITI” Aayog
• (2) Finance Commission
• (3) Planning Commission
• (4) National Planning Committee

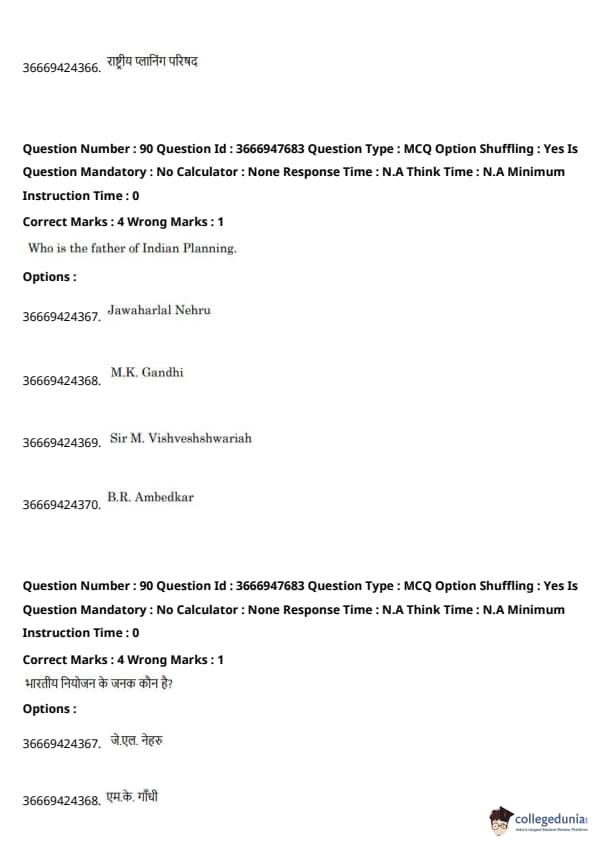

Who is the father of Indian Planning.

• (1) Jawaharlal Nehru
• (2) M.K. Gandhi
• (3) Sir M. Vishveshshwariah
• (4) B.R. Ambedkar

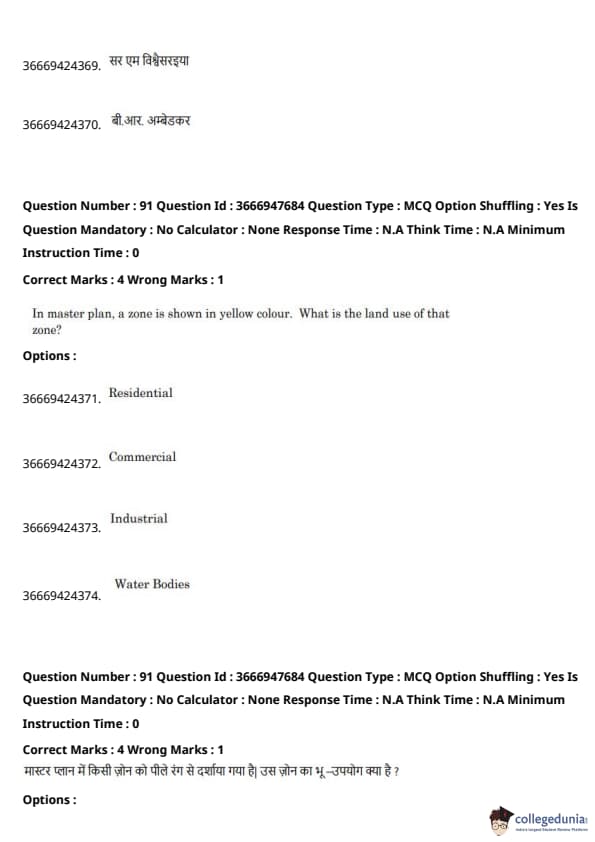

In master plan, a zone is shown in yellow colour. What is the land use of that zone?

• (1) Residential
• (2) Commercial
• (3) Industrial
• (4) Water Bodies

In master plan by which color, we show the industrial land use.

• (1) Purple
• (2) Grey
• (3) Red
• (4) Green

The book “Image of the City” is written by

• (1) Christopher Alexander
• (2) Kevin Lynch
• (3) Oxford Newman
• (4) Gorden Cullen

• (1) (A) – III, (B) – I, (C) – IV, (D) – II
• (2) (A) – IV, (B) – II, (C) – I, (D) – III
• (3) (A) – II, (B) – I, (C) – IV, (D) – III
• (4) (A) – II, (B) – IV, (C) – III, (D) – I

• (1) (A) – II, (B) – I, (C) – III, (D) – IV
• (2) (A) – I, (B) – III, (C) – II, (D) – IV
• (3) (A) – II, (B) – I, (C) – IV, (D) – III
• (4) (A) – III, (B) – IV, (C) – I, (D) – II

In which year, HRIDAY Launched?

• (1) 2014
• (2) 2012
• (3) 2015
• (4) 2011

Which type of plan is this?

• (1) Dandaka
• (2) Chaturmukha
• (3) Padmaka
• (4) Karmukha

The roman “FORUM” is also referred as:

• (1) River
• (2) Building
• (3) Park
• (4) Market Place

If all the directions are changed in the manner that North becomes South and Vice-Versa, then North-West will be

• (1) South-East
• (2) North-East
• (3) South-West
• (4) North-West

Inspector Shyam started from Police Station on inspection. After travelling straight for a distance of four (4) KM, he turned left for market and travelled straight 600 meters. He now turned left again and travelled straight for another 200 meters, and turned left and travelled straight for 600 meters. How far is Shyam from Police Station?

• (1) 3.4 Km
• (2) 4.8 Km
• (3) 3.8 Km
• (4) 4.4 Km

The highest body which approves five year plans of India is:

• (1) Parliament
• (2) Planning Commission
• (3) Union Cabinet
• (4) National Development Council

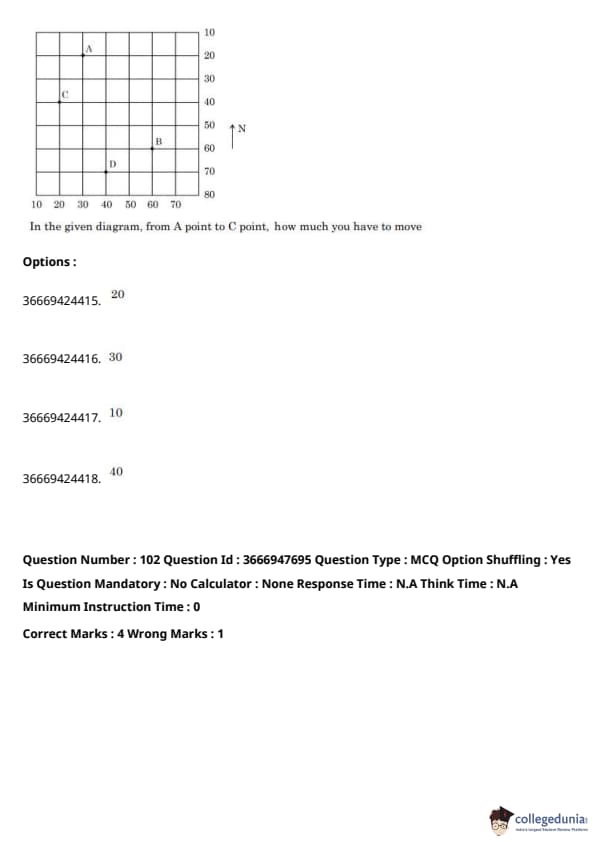

In the given diagram, from A point to C point, how much you have to move

• (1) 20
• (2) 30
• (3) 10
• (4) 40

In the given diagram, from point C to point B, which direction you have to move

• (1) East – North
• (2) North – South
• (3) South – East
• (4) West – South

With the reference to the diagram, choose the correct statement.

• (1) The distance from B to D is 20
• (2) The distance from B to D is 10
• (3) The distance from B to C is 10
• (4) The distance from B to D is 30

In the given diagram, northern most point is

• (1) C only
• (2) D only
• (3) B only
• (4) A only
