Foundation Engineering is a steady scorer in the GATE Civil Engineering paper, usually worth about 5 to 7 marks. It is part of the Geotechnical Engineering section and builds directly on Soil Mechanics, since the soil below decides how a footing behaves. These handwritten notes cover the full GATE syllabus in a compact, exam-focused form.

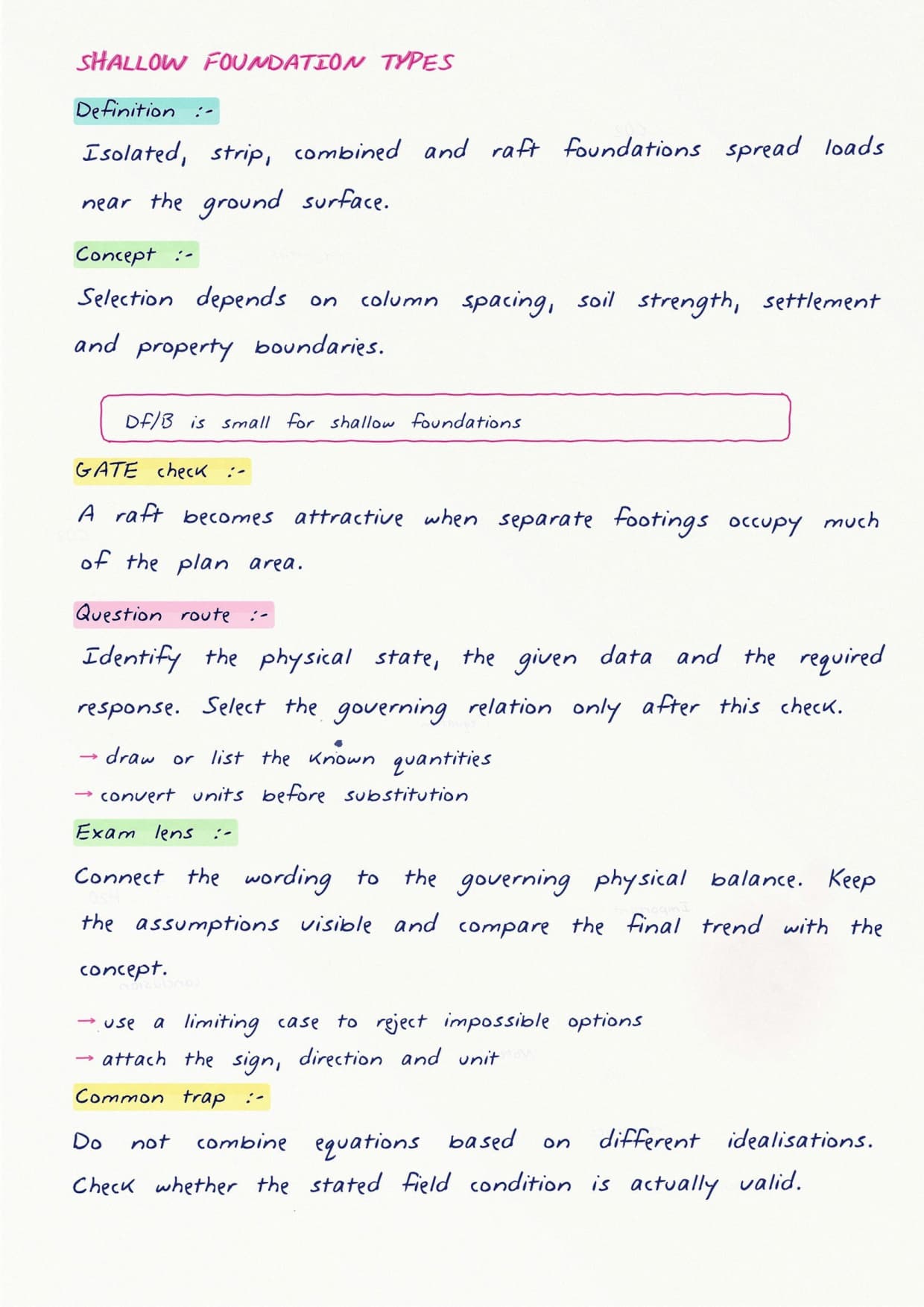

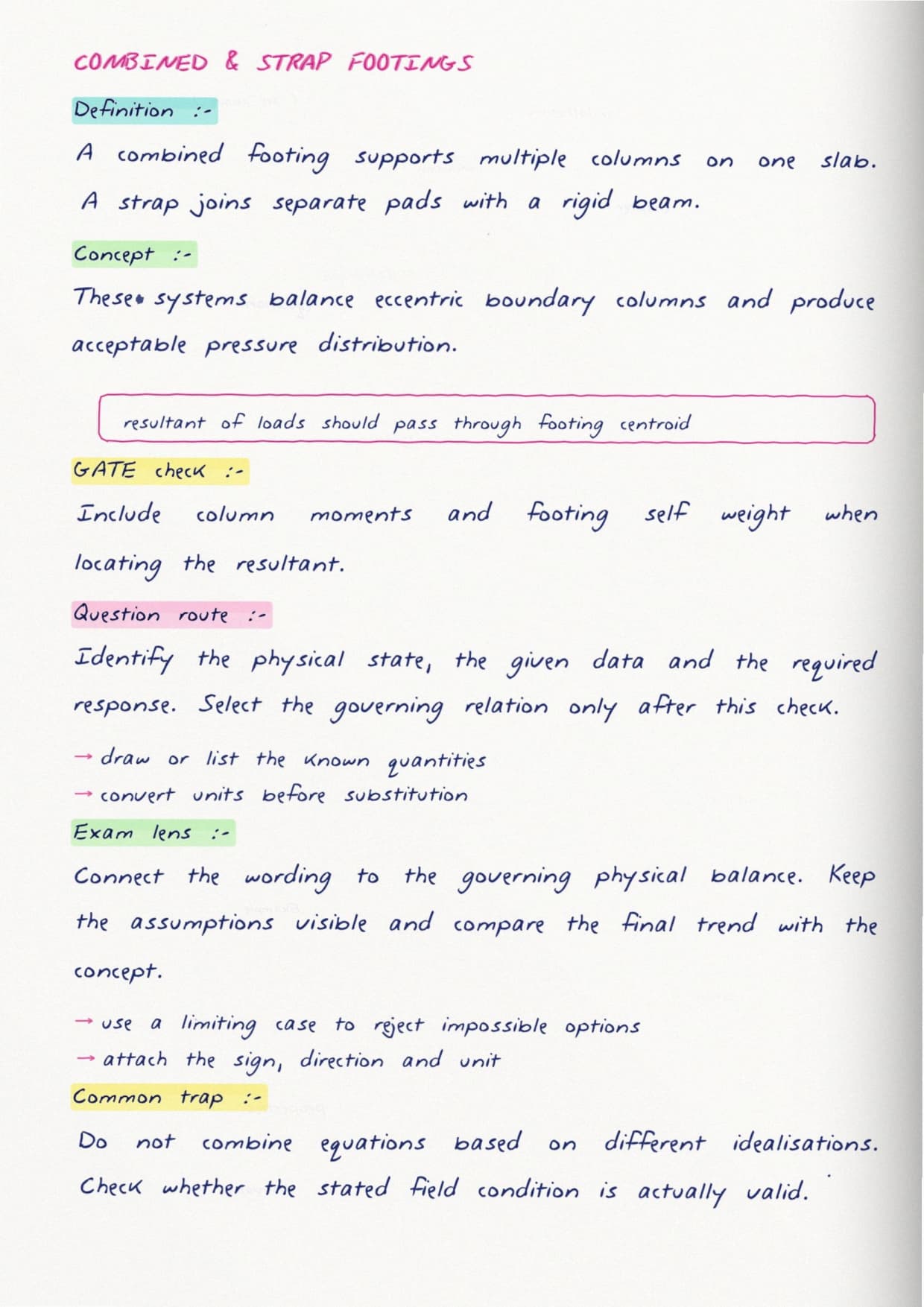

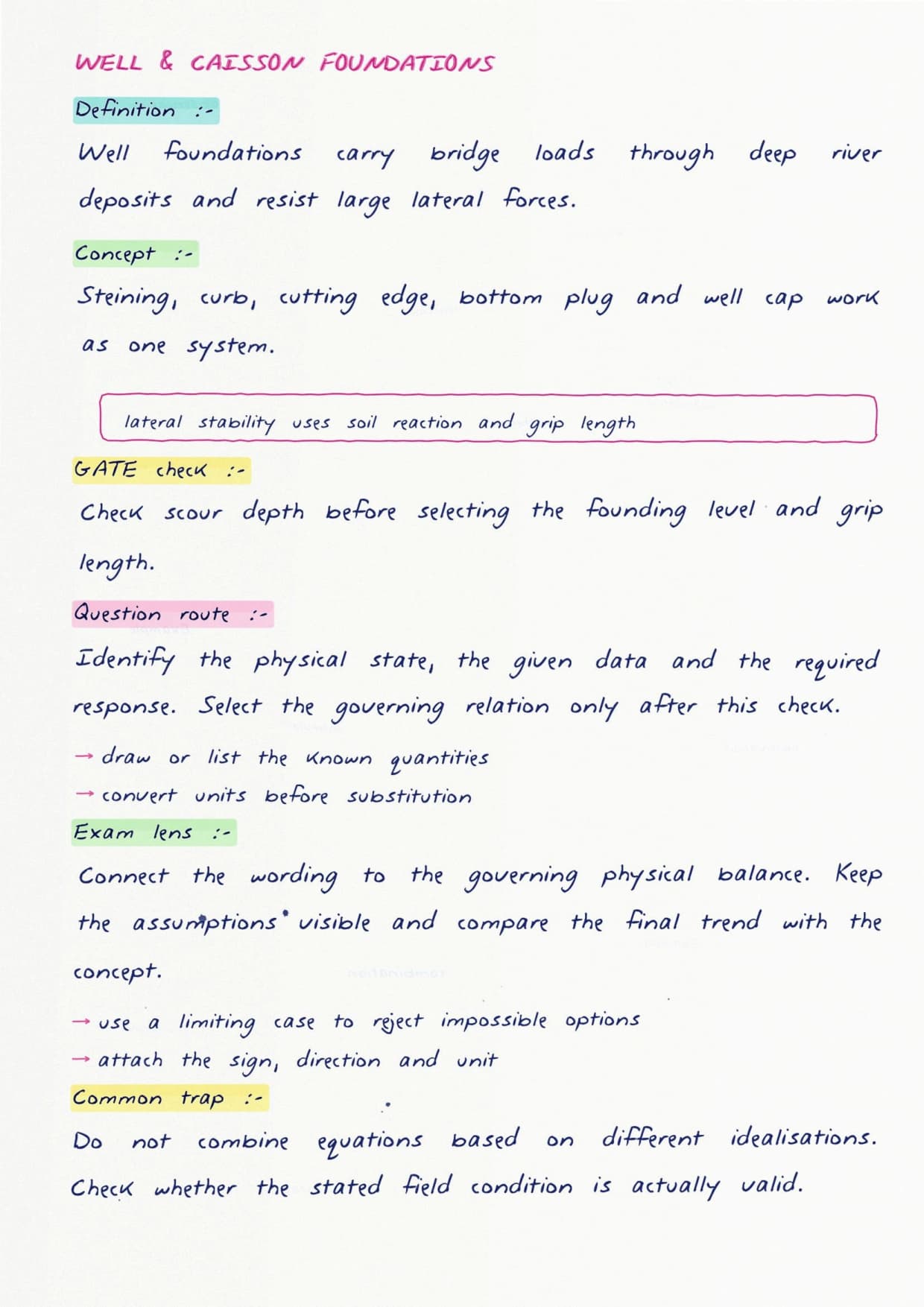

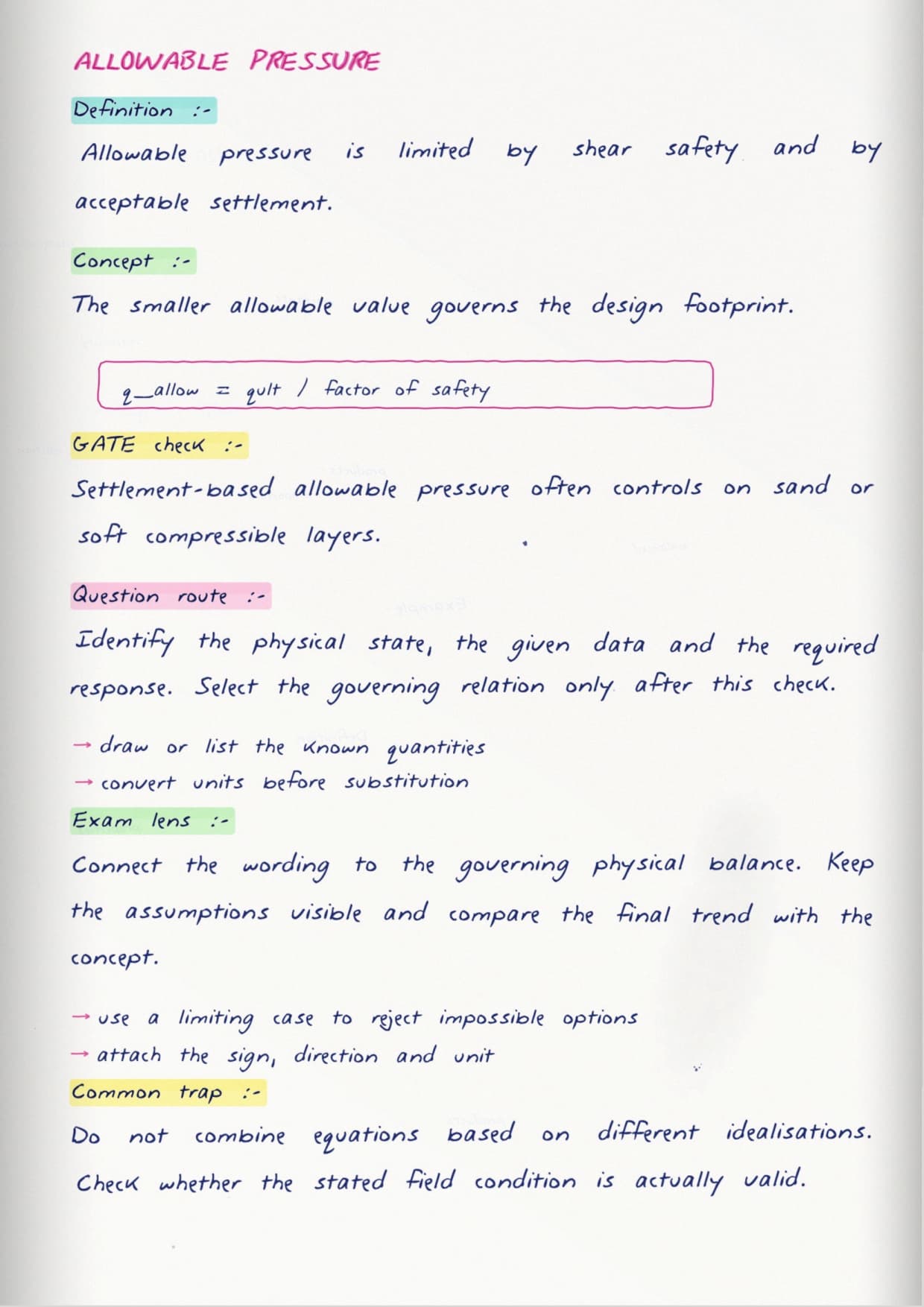

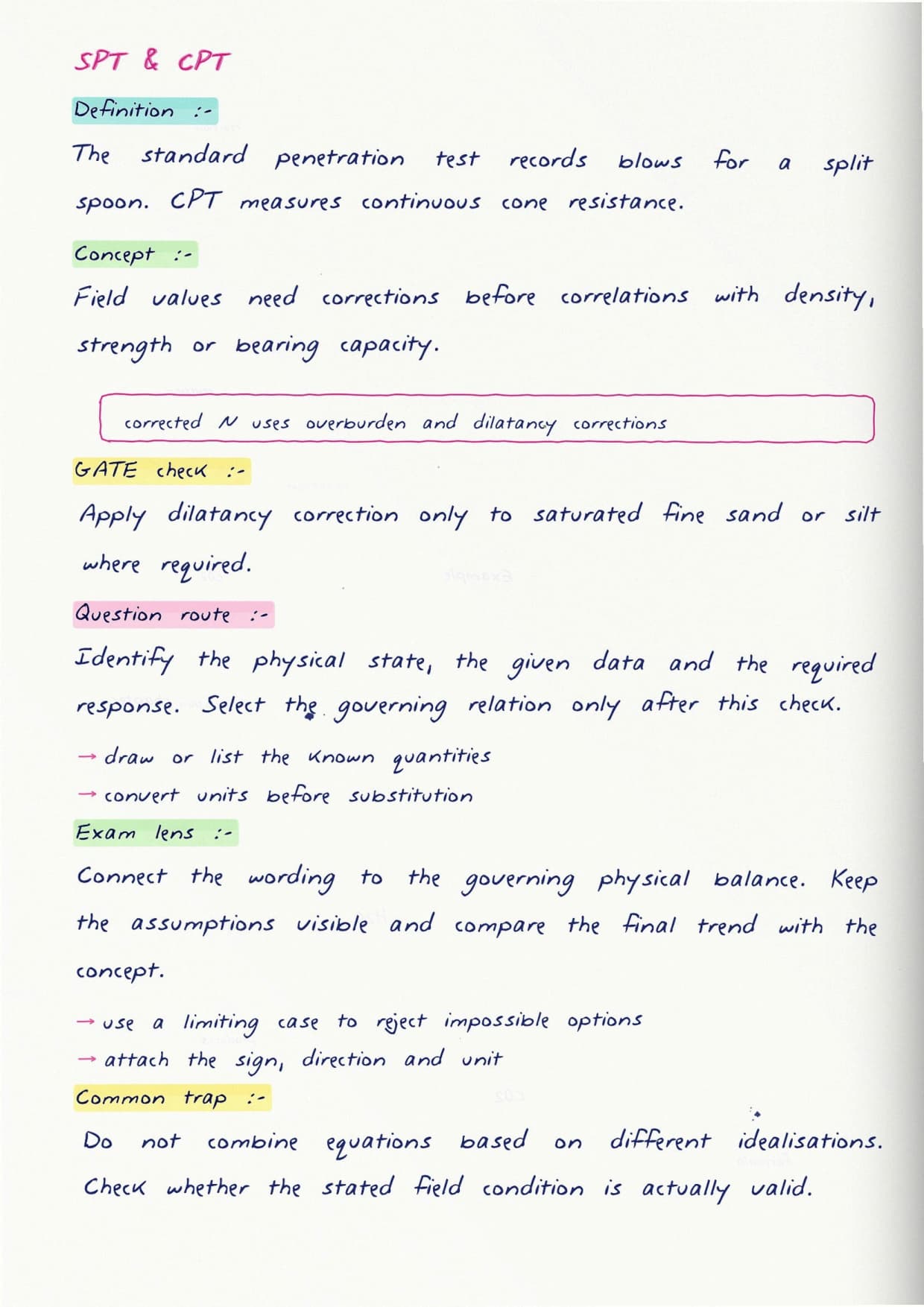

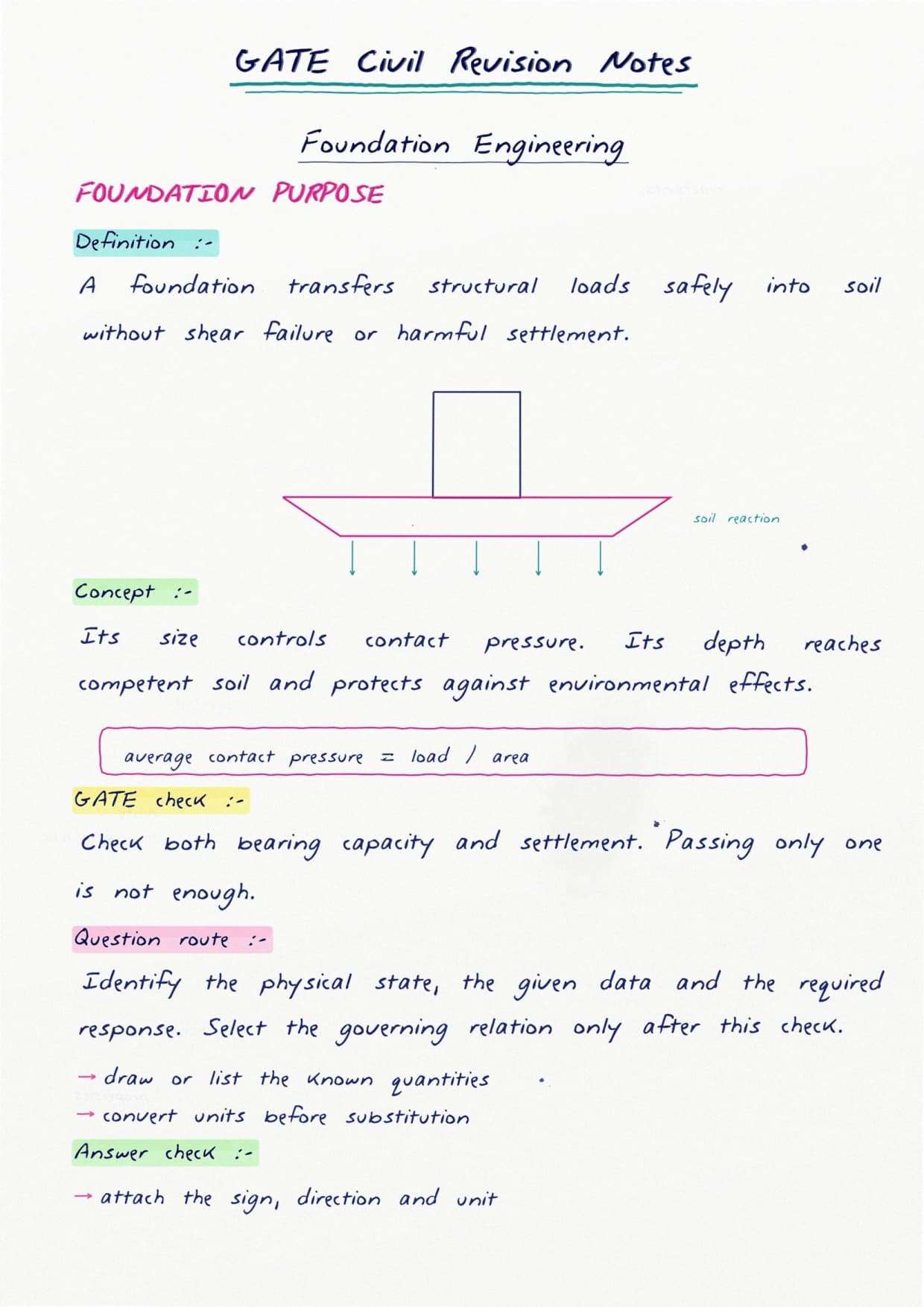

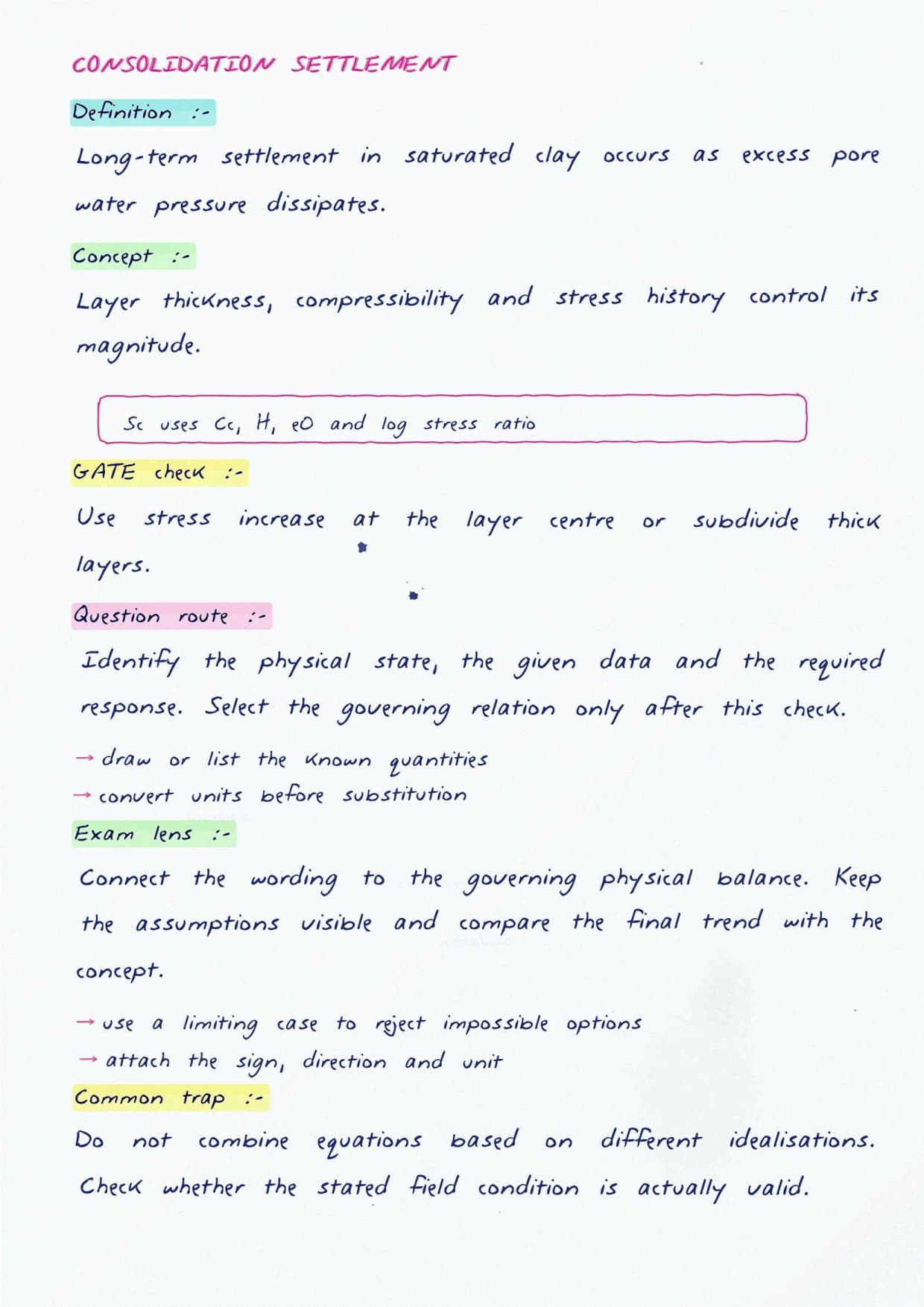

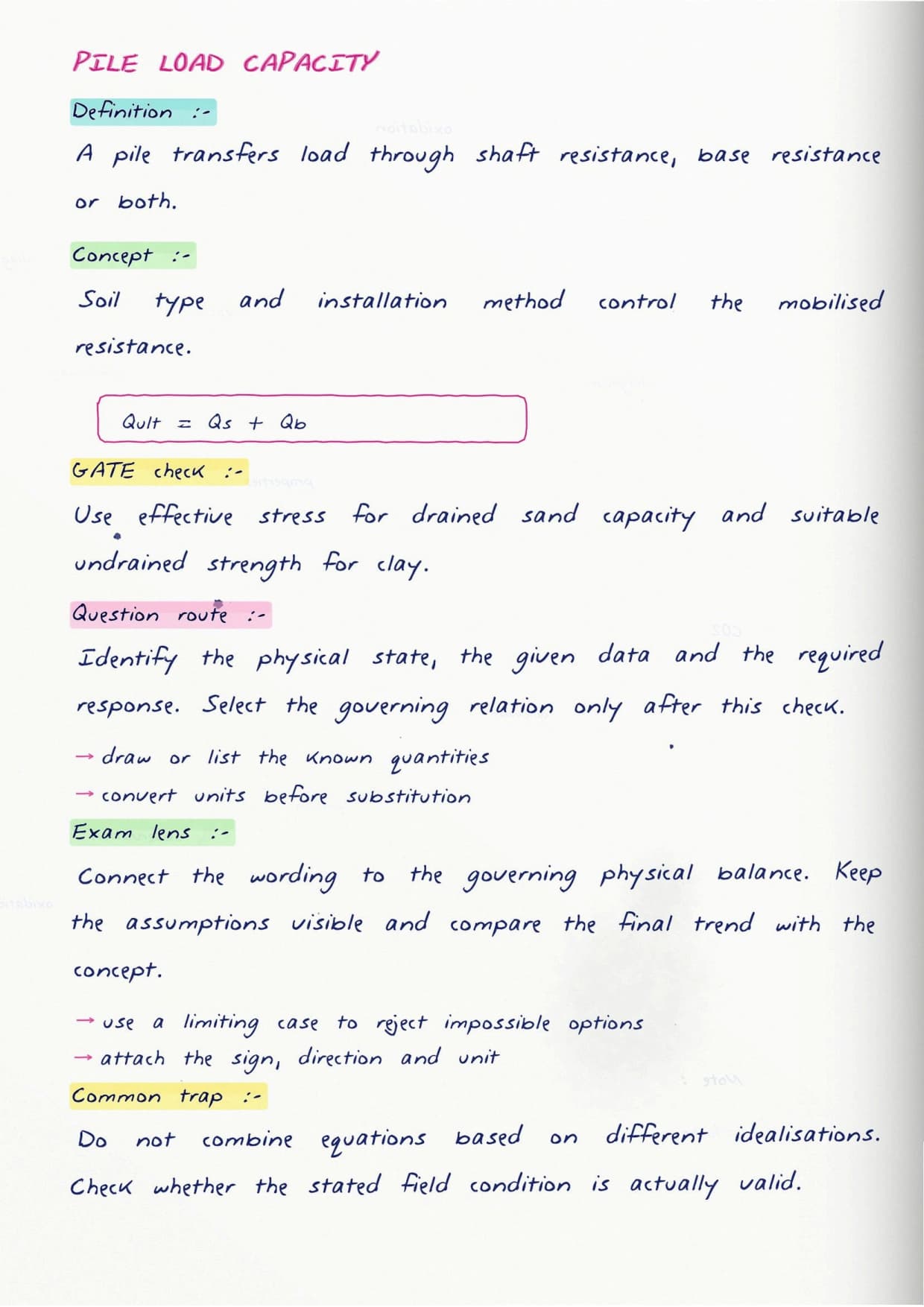

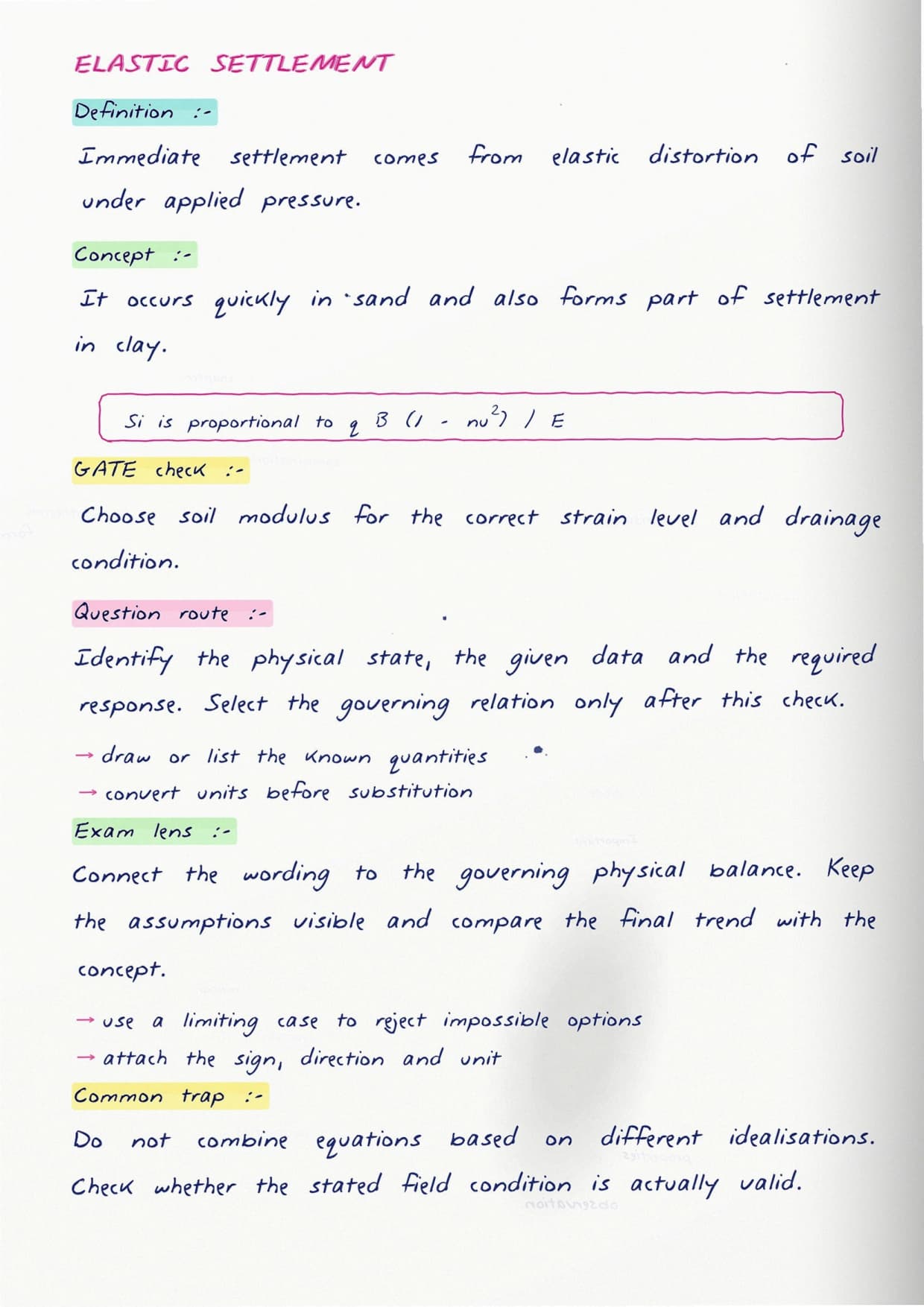

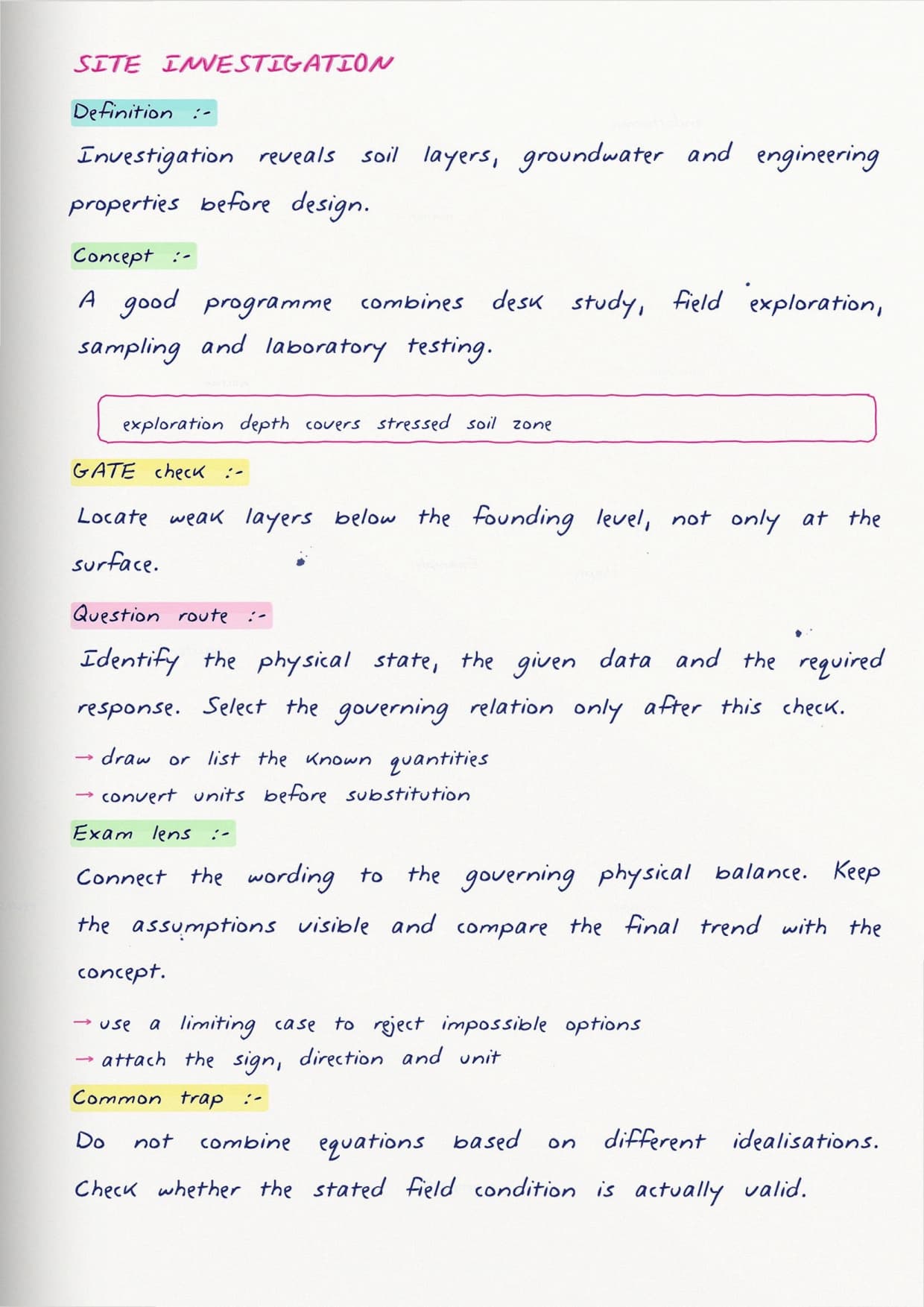

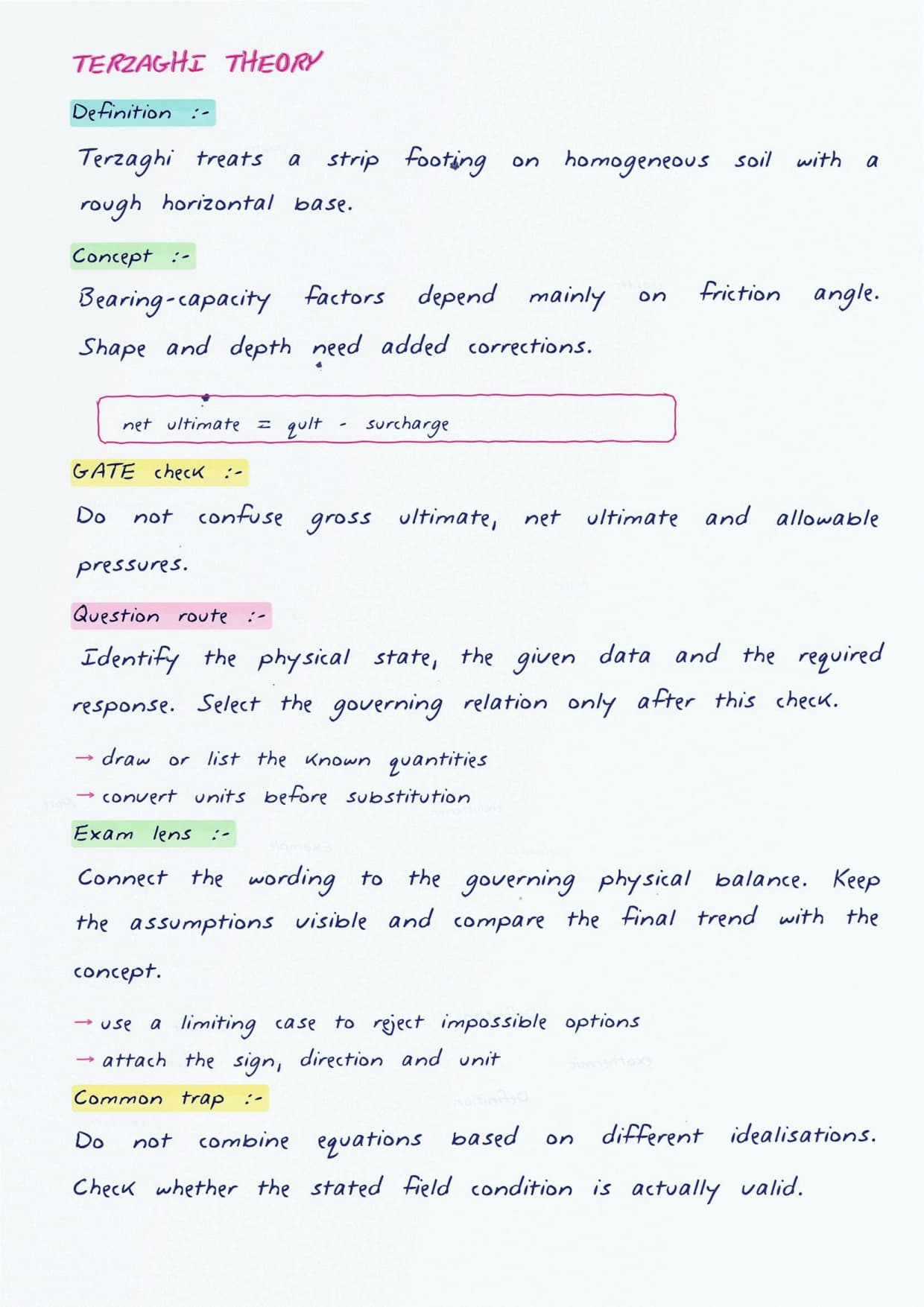

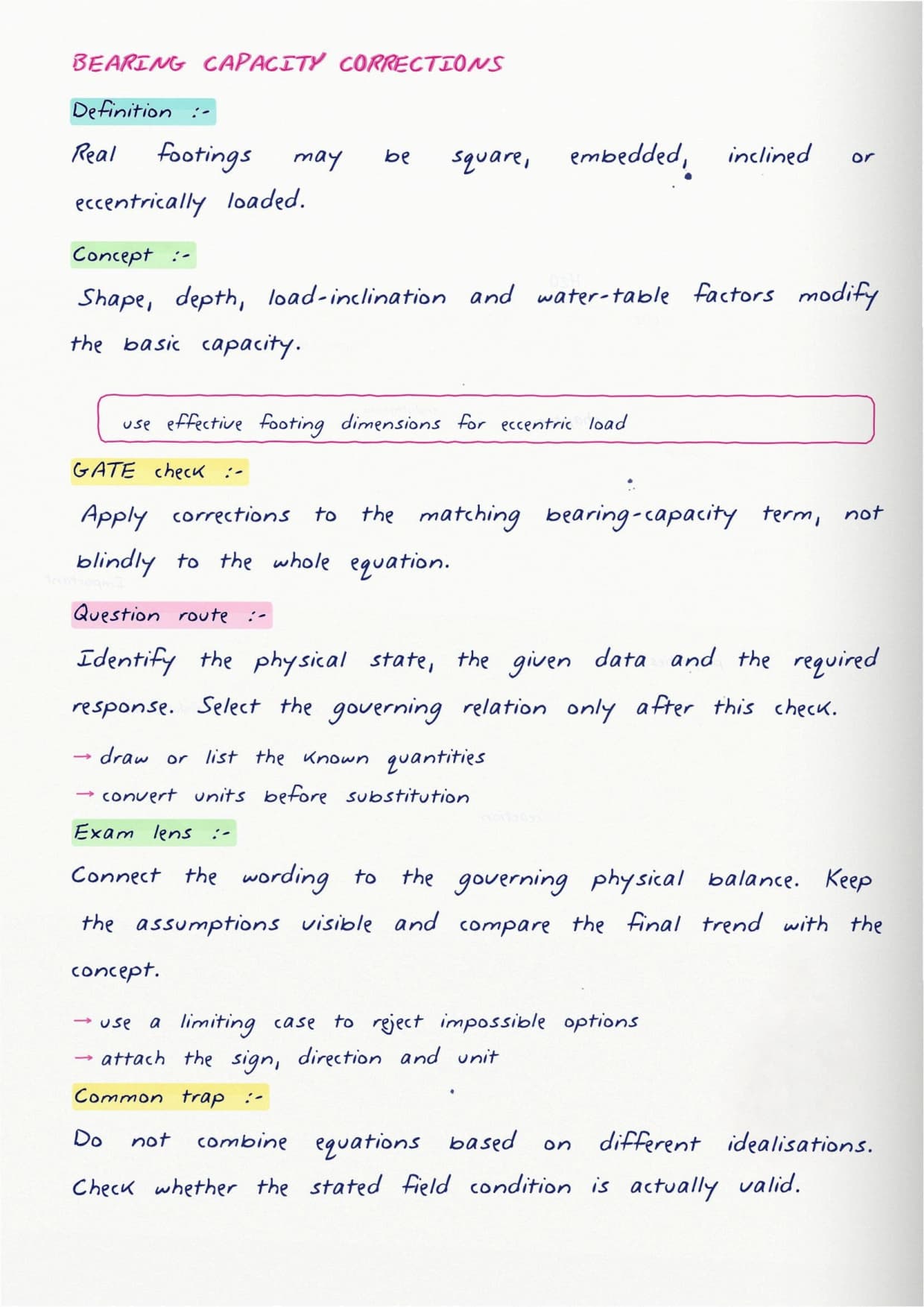

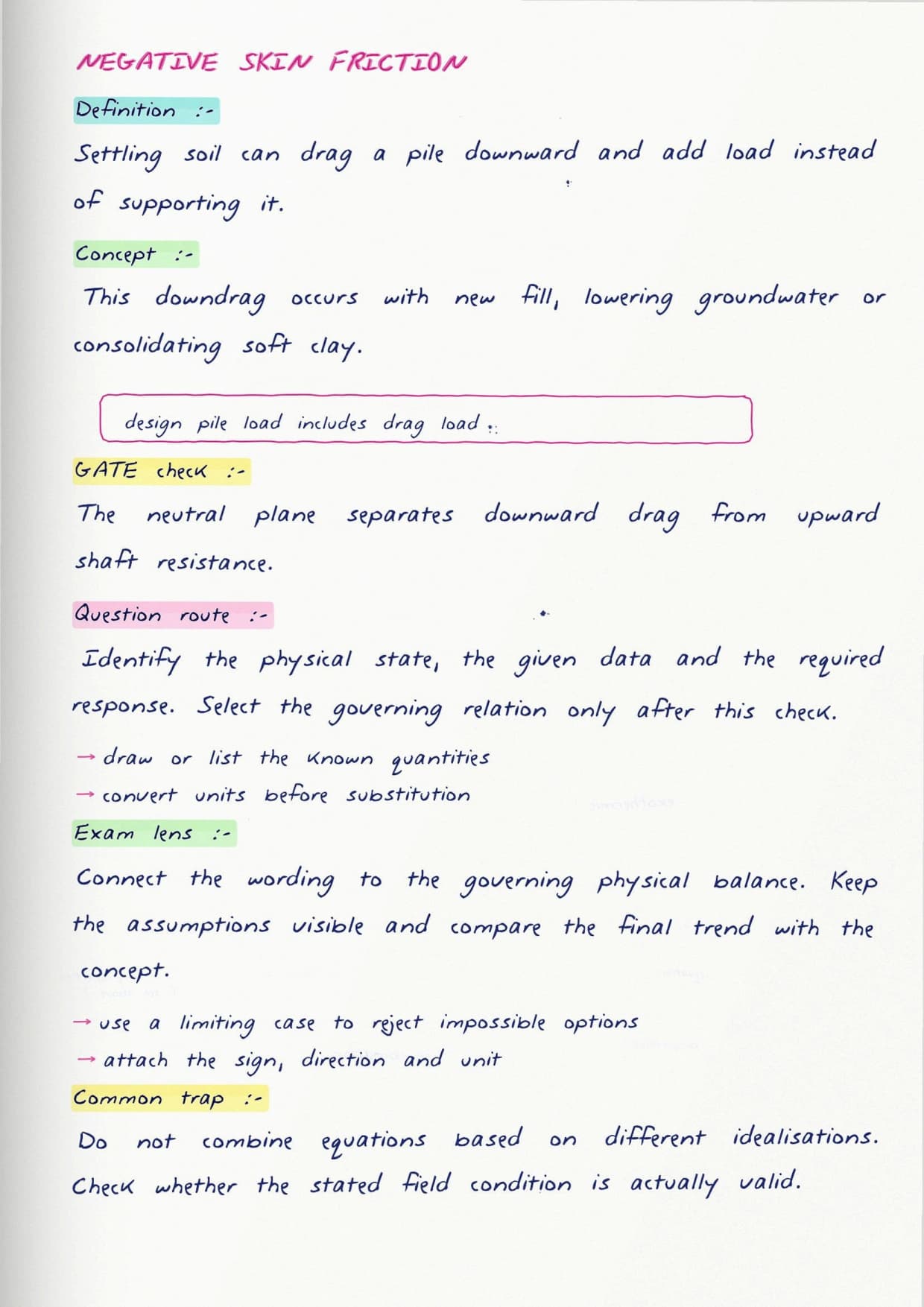

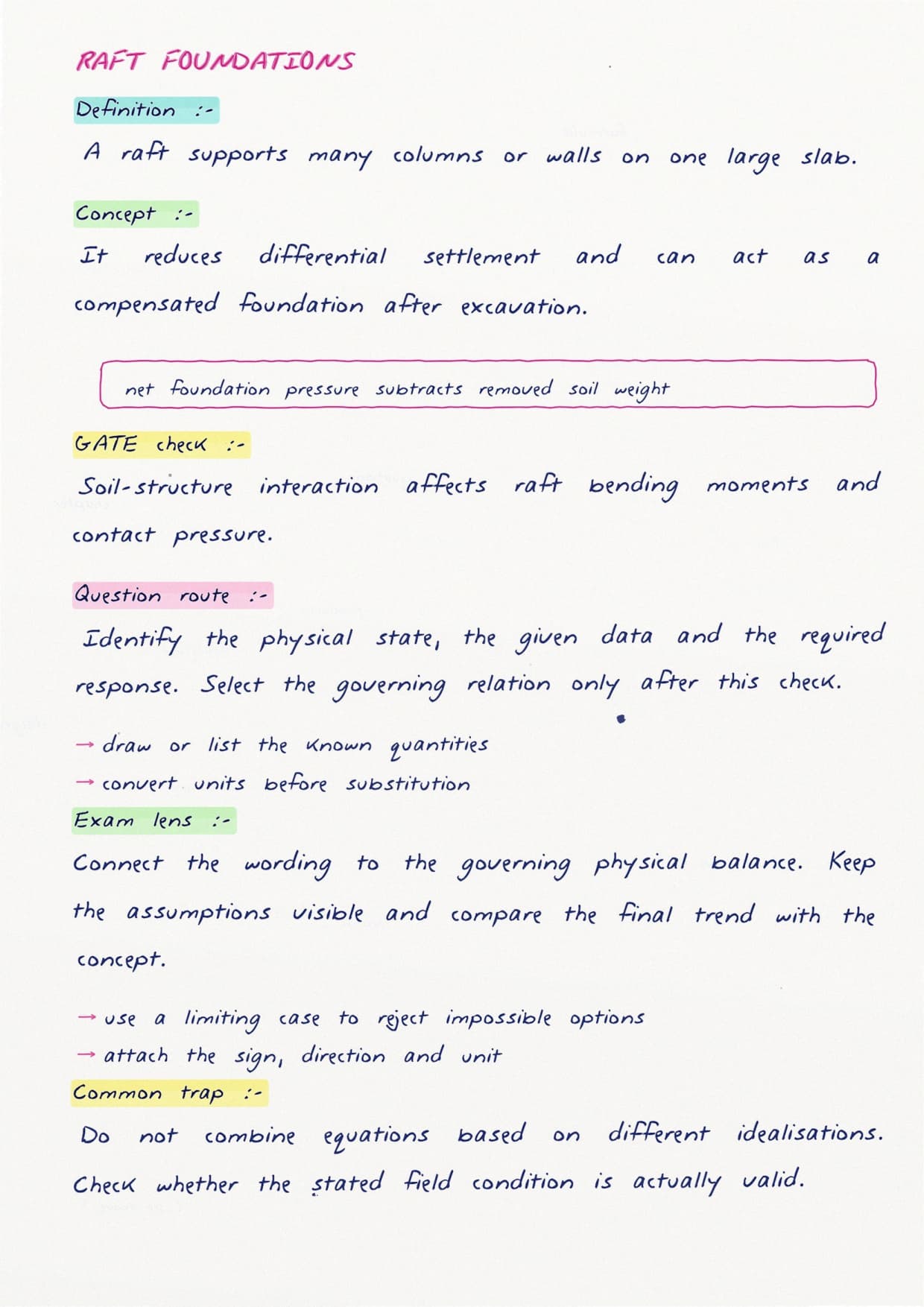

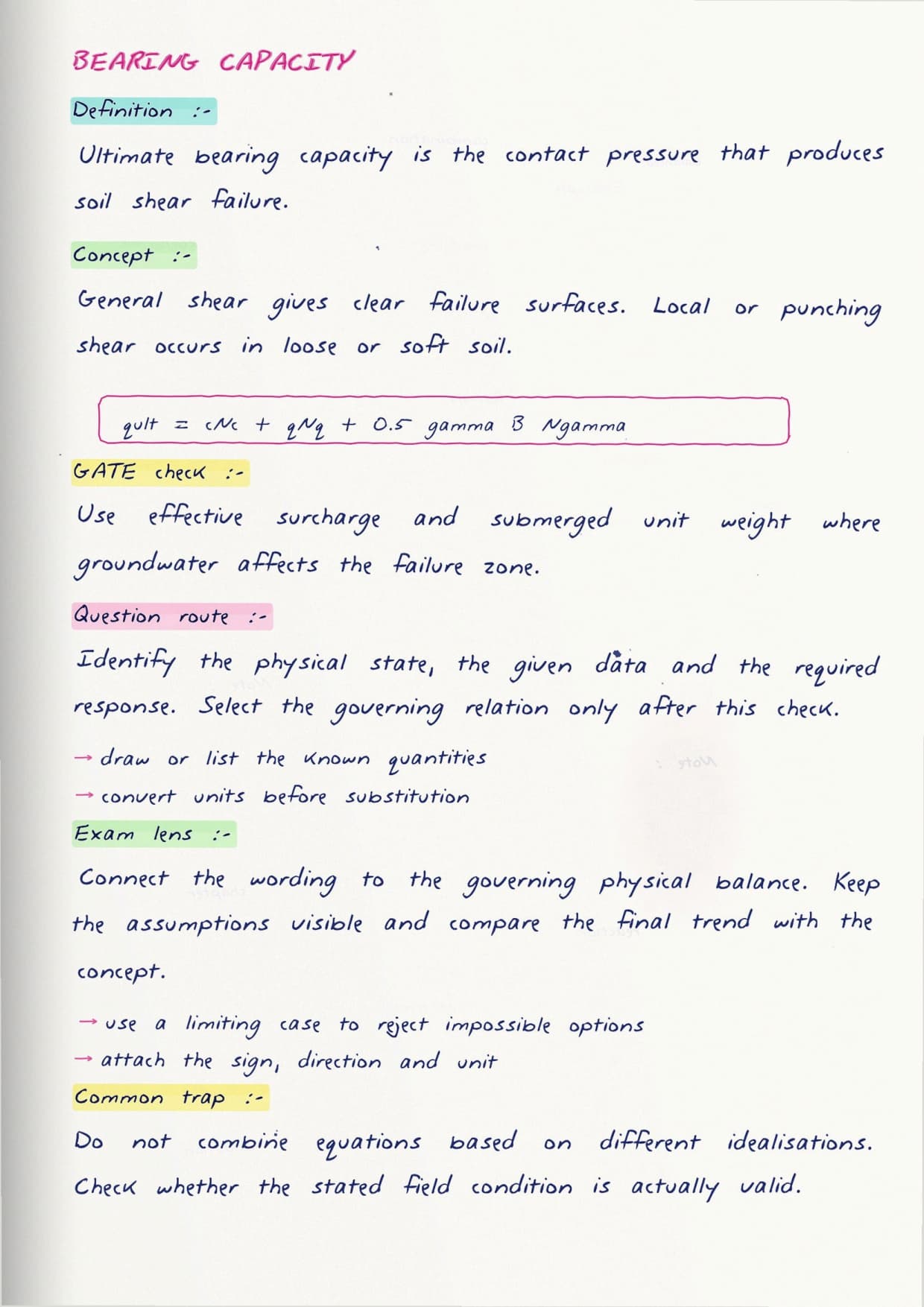

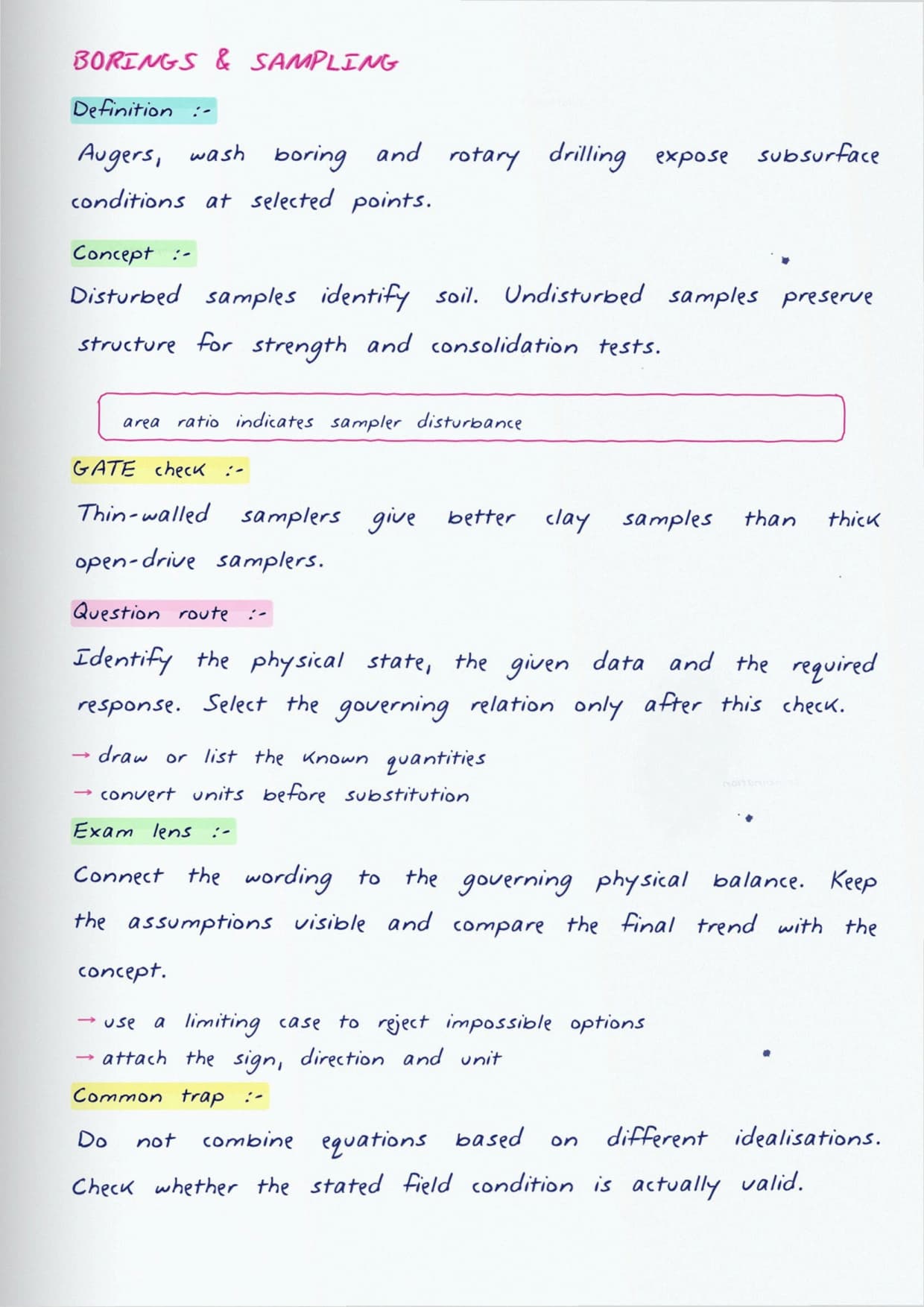

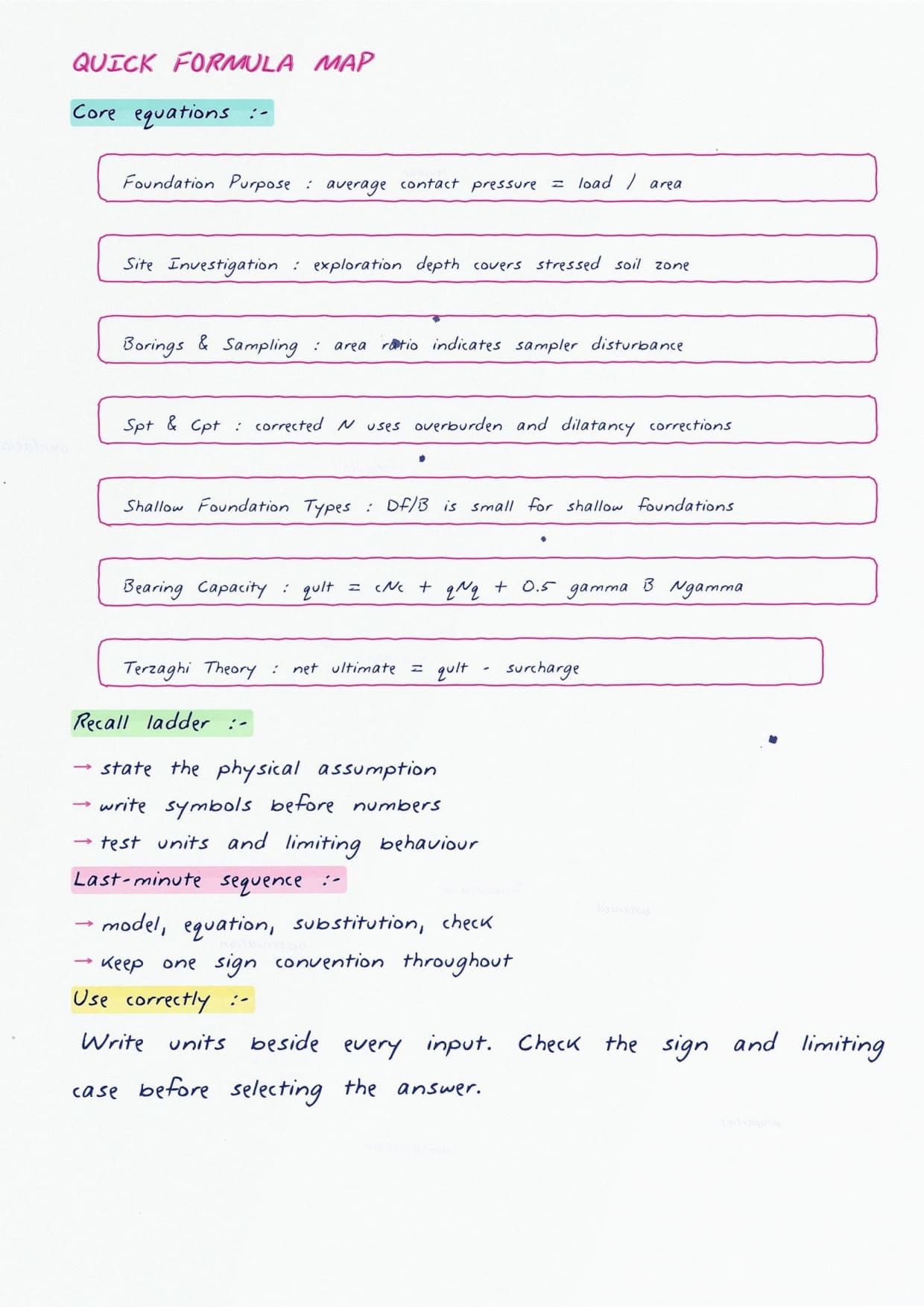

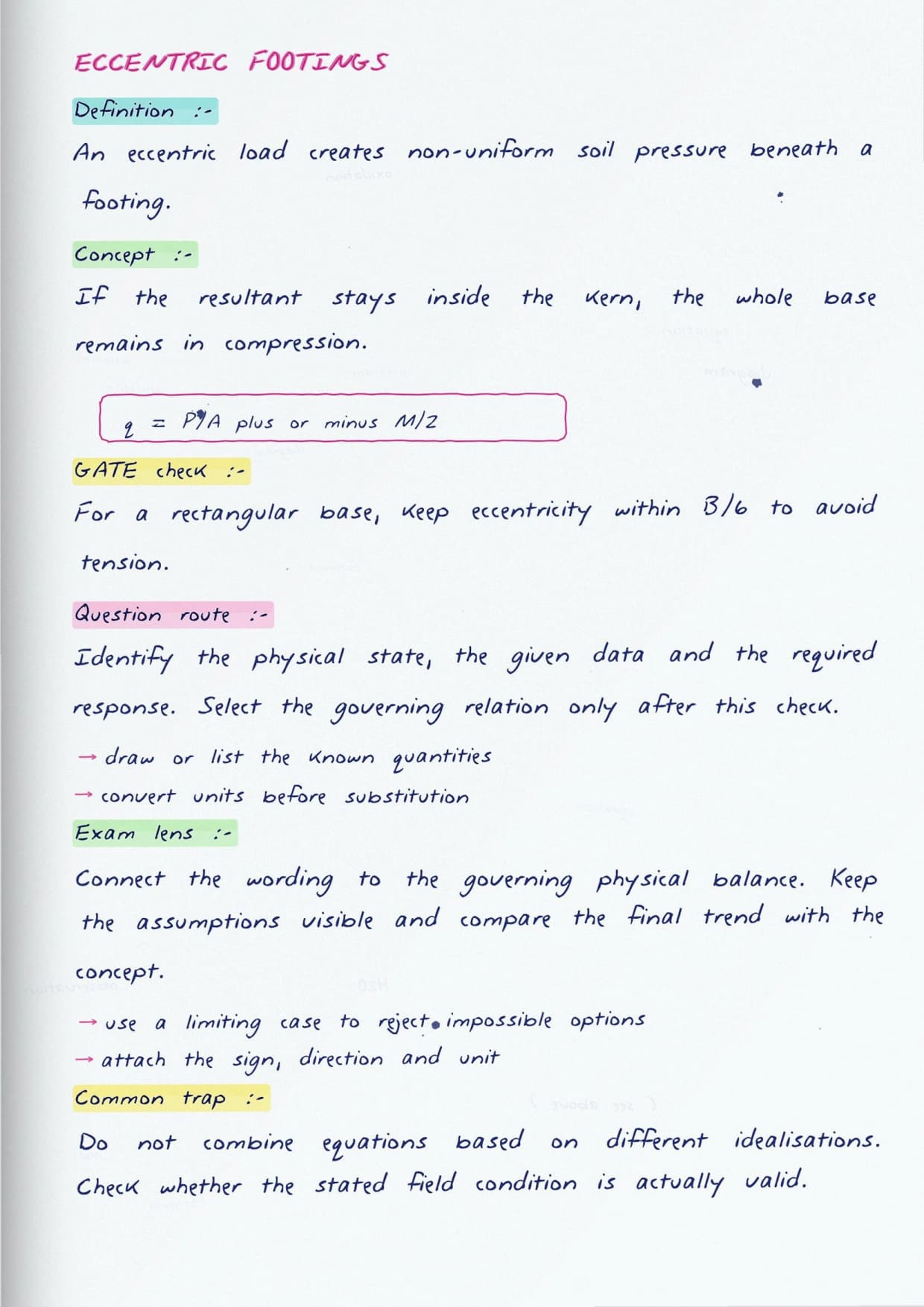

The notes carry hand-drawn diagrams for bearing capacity failure wedges, earth pressure blocks, retaining walls, and pile groups, along with a formula sheet you can revise in the last few days before the exam. Every major result is solved step by step, so you follow the logic instead of memorising a formula on its own.

• Full Foundation Engineering syllabus in one PDF, in the standard GATE order.
• Key formulas and rules for every topic, with the assumptions behind them.
• Hand-drawn diagrams and a formula sheet for fast last-day revision.

What These GATE Foundation Engineering Notes Cover

Foundation Engineering studies how a footing or pile carries the load of a structure into the soil without shear failure or settling too much. The notes explain each idea in plain language and then give the formula you apply in the exam, with the conditions under which it holds. They stay close to the GATE Civil syllabus, so nothing extra is added.

• Clear meaning of each term, with the formula that follows from it.
• Bearing capacity theories given with units and their limits of use.
• Hand-drawn figures for footings, retaining walls, and pile groups.
• A formula sheet that collects every result in one place.

GATE Foundation Engineering Quick Revision

Source: GATE Wallah - ME, CE, XE, CH, PI & ES on YouTube

Topics Covered in GATE Foundation Engineering

The notes follow the standard GATE Civil order, starting from shallow foundations and bearing capacity and building up to piles and ground improvement. Each topic connects to the one before it, so the subject reads as a single flow rather than a set of separate formulas. The full list below matches the official syllabus.

• Shallow and deep foundations, with the difference in how each carries load.
• Bearing capacity theories, including Terzaghi and the general shear equations.
• Settlement analysis for immediate and consolidation settlement.
• Earth pressure theories, with Rankine and Coulomb active and passive cases.
• Retaining walls and their checks for stability against sliding and overturning.

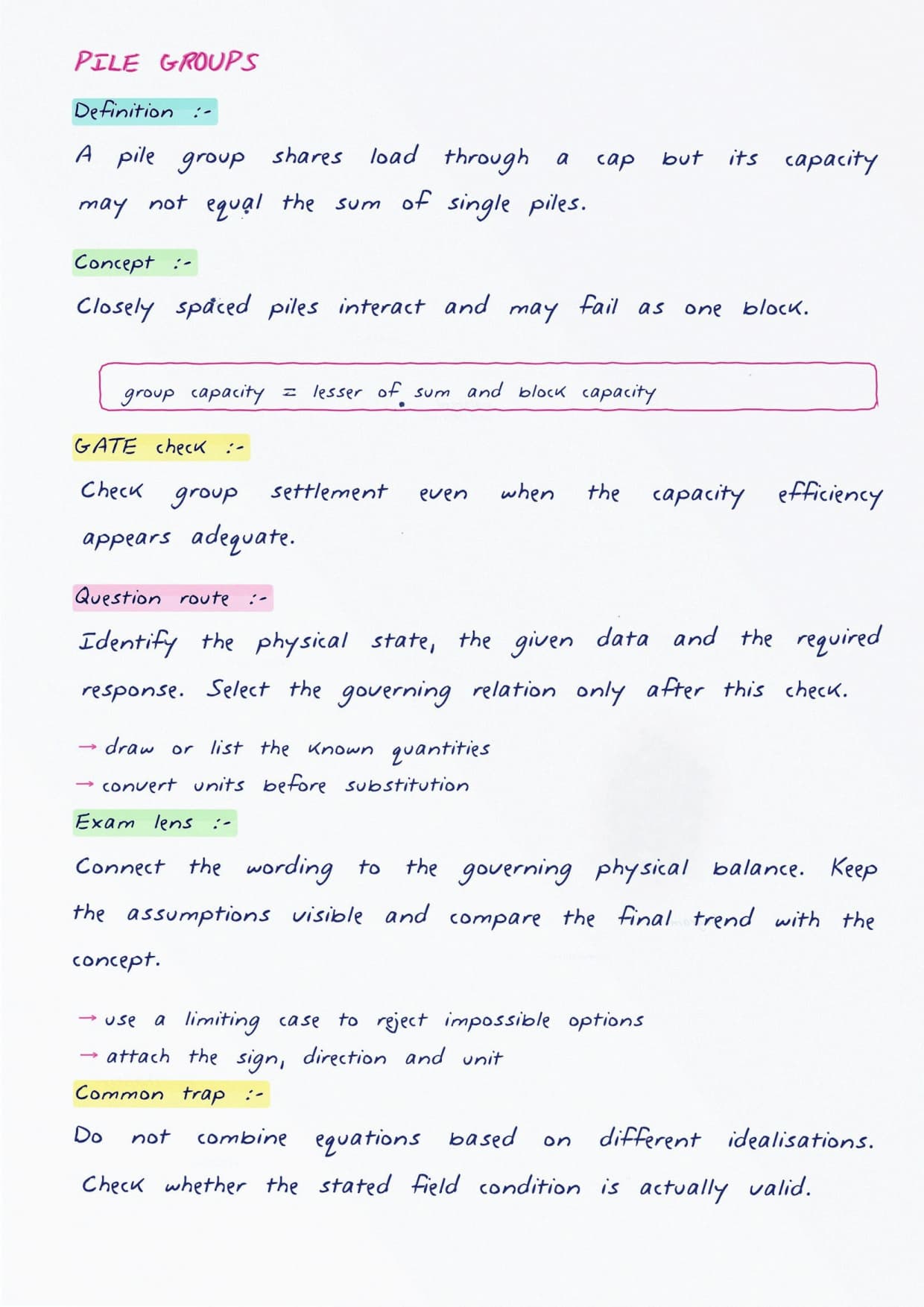

• Pile foundations, single pile and pile group capacity, and negative skin friction.
• The basics of ground improvement for weak and compressible soils.

How the Notes Are Organised

The material runs from the fundamentals to the harder topics, so you can read it straight through or open a single page for a quick recap. Shallow foundations and bearing capacity come first, while piles, earth pressure, and ground improvement come later once the basics are in place. A formula sheet near the end brings the key results together for revision.

Because each topic stands on its own, you can match it to whatever you are practising that day and revise only the part you need before an attempt.

How GATE Foundation Engineering Links to Other Subjects

Foundation Engineering does not stand alone in the GATE Civil paper. It builds on Soil Mechanics for soil strength and links to Structural Engineering, since footing and column loads decide the foundation size. The notes point out these links as they come up, so revising well earns marks in more than one place.

• Bearing capacity and settlement come straight from Soil Mechanics properties.
• Footing and column loads from structural design fix the foundation size.
• Earth pressure links to retaining wall and basement design.
• Pile group behaviour connects to deep foundation numericals.

Important Topics in GATE Foundation Engineering

A few topics appear in the GATE paper almost every year and carry most of the subject's marks. If your time is short, revise these first and make sure you can solve them quickly and without mistakes, since they are the surest source of marks.

• Bearing capacity by Terzaghi's theory, near-certain every year.
• Earth pressure by the Rankine and Coulomb methods.
• Pile capacity for single piles and pile groups.
• Settlement of shallow foundations on clay and sand.
• Common traps: the water table lowers bearing capacity, and group capacity is not just the sum of single piles.

How to Prepare GATE Foundation Engineering with Handwritten Notes

Foundation Engineering rewards steady problem solving more than reading, so use the notes as a theory and formula base beside daily practice. Read a topic, note its formula, then solve a few previous year questions on it before you move on. Return to the notes before mock tests to refresh the ideas quickly.

• First read: cover every topic once to build the base.
• Second pass: focus on bearing capacity, earth pressure, and piles.
• Solve previous year questions topic by topic beside the notes.

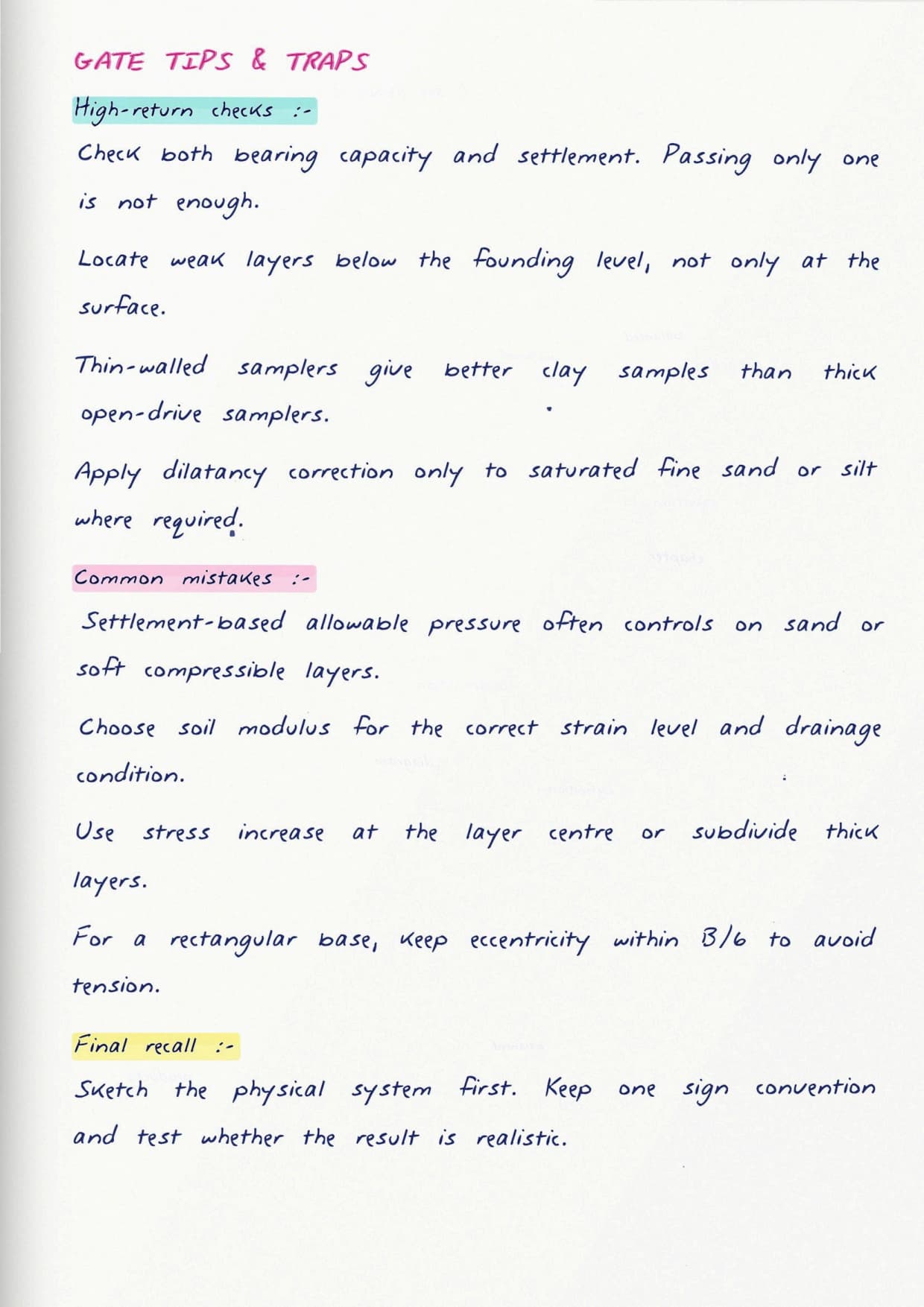

• Final week: revise the formula sheet and the tips page.

Why These Notes Help You Score Better

Handwritten notes are quick to scan and easy to recall under exam pressure, which is why they work well for revision in the final weeks. A short, visual page is faster to go through than a full textbook chapter, and each diagram is right next to the result it explains, so the link stays clear.
