GATE Civil Hydraulics and Open Channel Flow Handwritten Notes

Hydraulics and Open Channel Flow is one of the highest-scoring subjects in GATE Civil Engineering, usually worth about 7 to 9 marks in the paper. It belongs to the Water Resources Engineering section, and its flow equations return in Hydrology, Irrigation, and Environmental Engineering. These handwritten notes cover the full GATE syllabus in a compact, exam-focused form.

The notes carry hand-drawn diagrams for the hydraulic jump, the specific energy curve, velocity profiles, and the boundary layer, along with a formula sheet you can revise in the last few days before the exam. Every major result is solved step by step, so you follow the logic instead of memorising a formula on its own.

• Full Hydraulics syllabus in one PDF, in the standard GATE order.
• Key formulas for every topic, with the assumptions behind them.
• Hand-drawn diagrams and a formula sheet for fast last-day revision.

What These GATE Hydraulics and Open Channel Flow Notes Cover

This subject studies how water behaves at rest and in motion, and how that flow is measured in pipes and open channels. The notes explain each idea in plain language and then give the formula you apply in the exam, along with the conditions under which it holds. They stay close to the GATE Civil syllabus, so nothing extra is added and nothing important is left out.

• Clear meaning of each term, with the formula that follows from it.
• Key formulas given with units and their limits of use.
• Hand-drawn figures for pressure, pipe flow, and open channels.

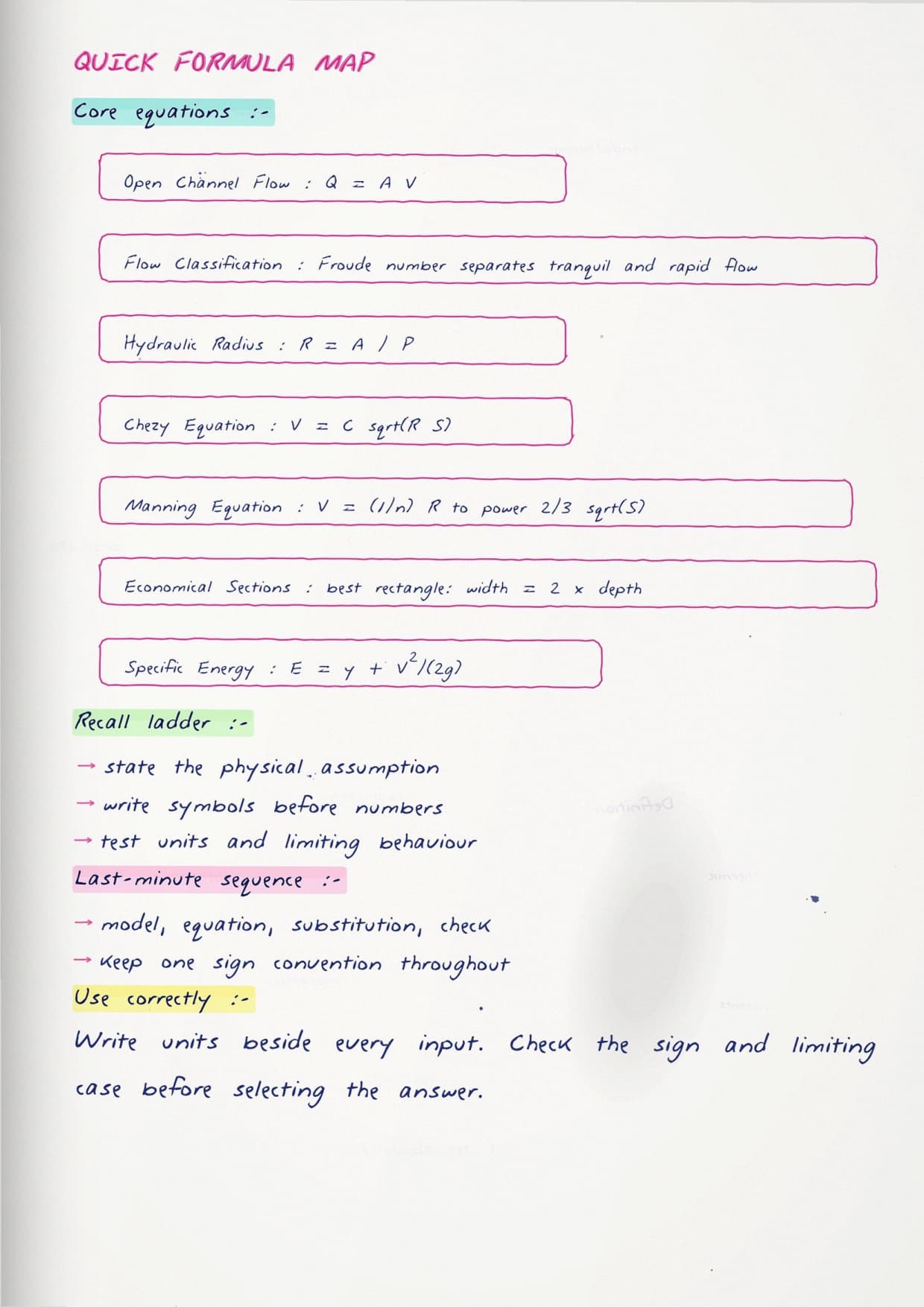

• A formula sheet that collects every result in one place.

GATE Hydraulics and Open Channel Flow Quick Revision

Source: GATE Wallah - ME, CE, XE, CH, PI & ES on YouTube

Topics Covered in GATE Hydraulics and Open Channel Flow

The notes follow the standard GATE Civil order, starting from fluid properties and hydrostatics and building up to open channel flow and the hydraulic jump. Each topic connects to the one before it, so the subject reads as a single flow rather than a set of separate formulas. The full list below matches the official syllabus.

• Fluid properties, including viscosity, surface tension, and compressibility.
• Hydrostatics, pressure measurement, and forces on submerged surfaces.
• The continuity, energy, and momentum equations for flowing fluids.
• Laminar and turbulent flow, with the Reynolds number as the divider.
• The boundary layer and its growth over a surface.
• Flow through pipes, major and minor losses, and pipe networks.

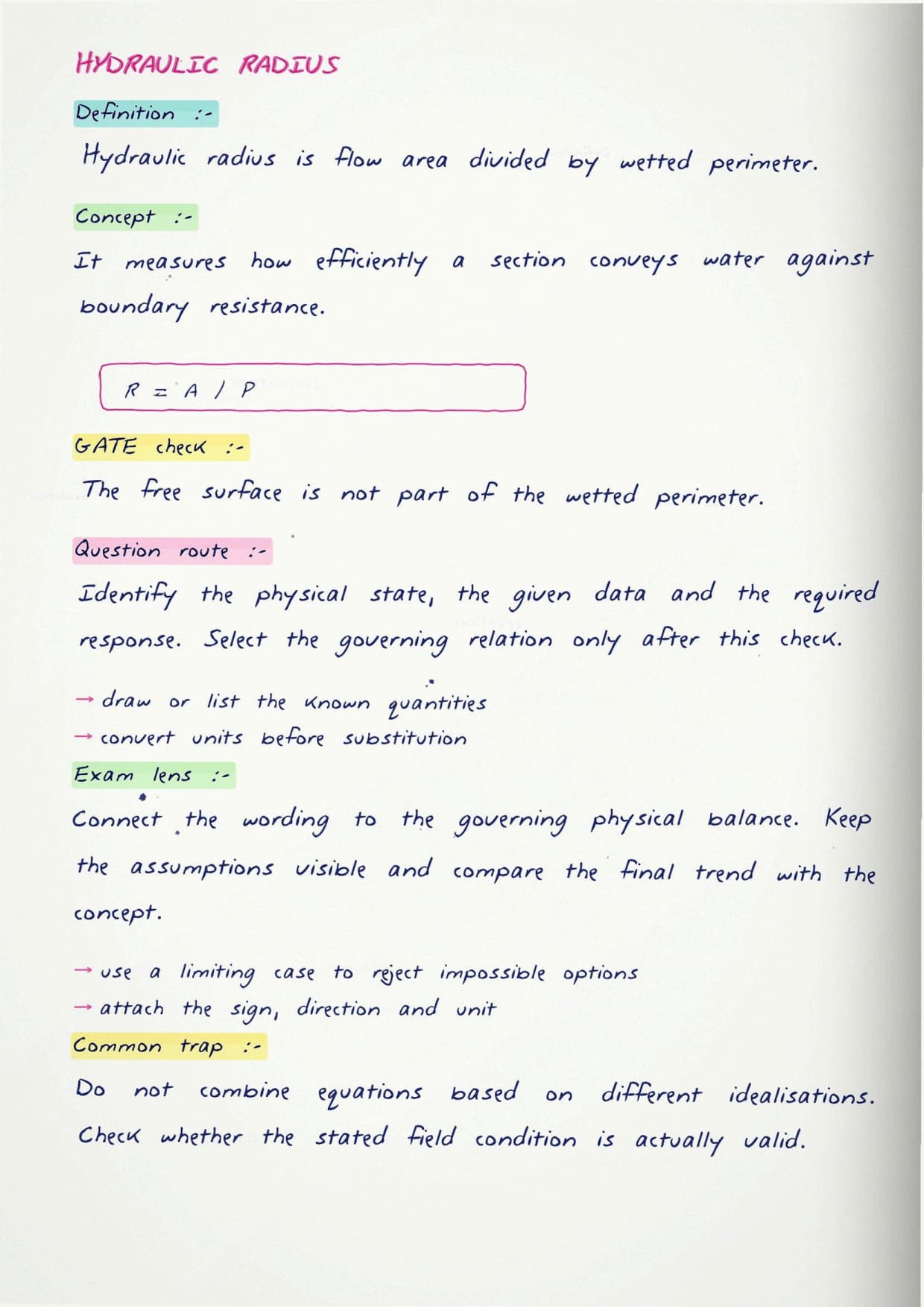

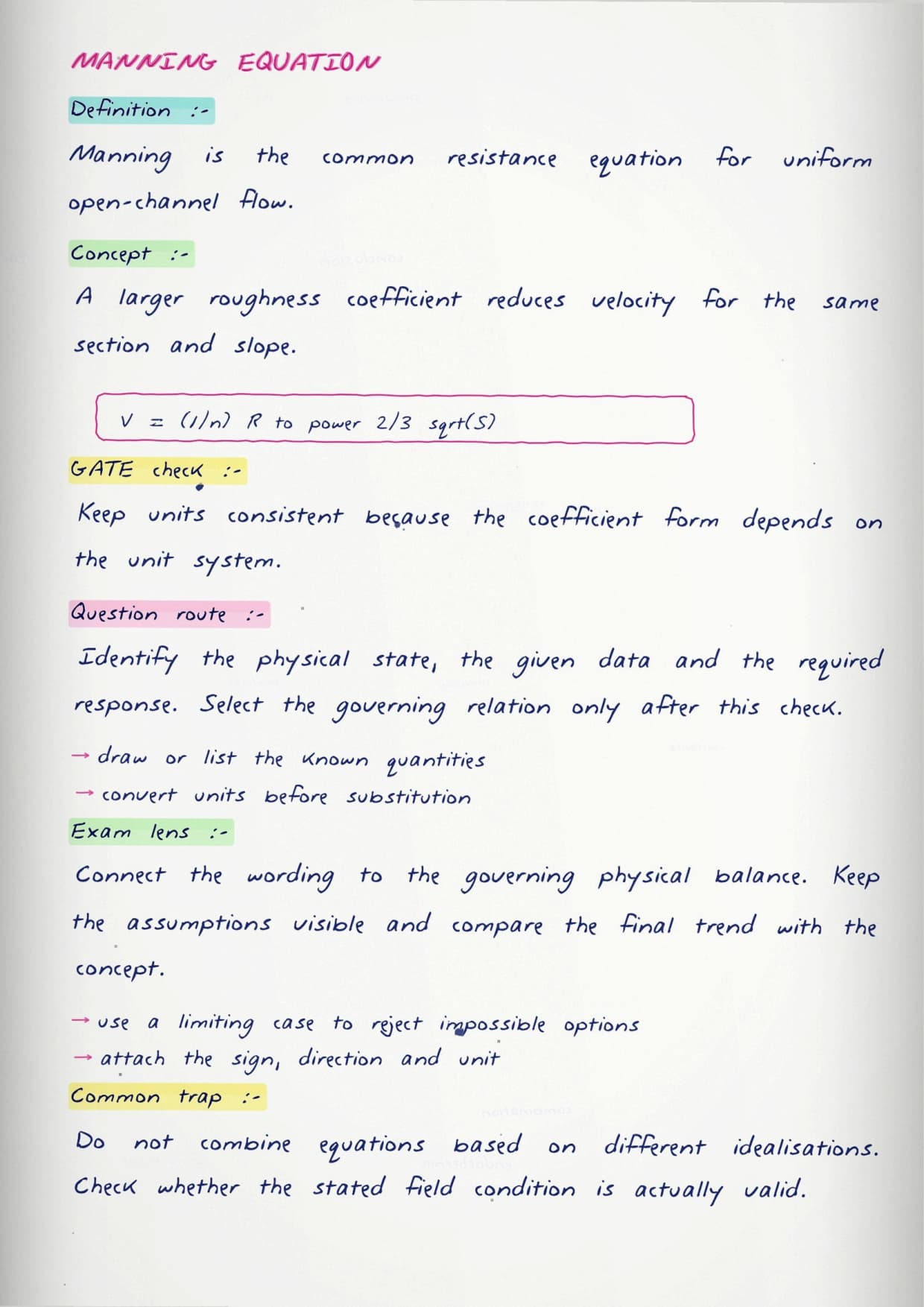

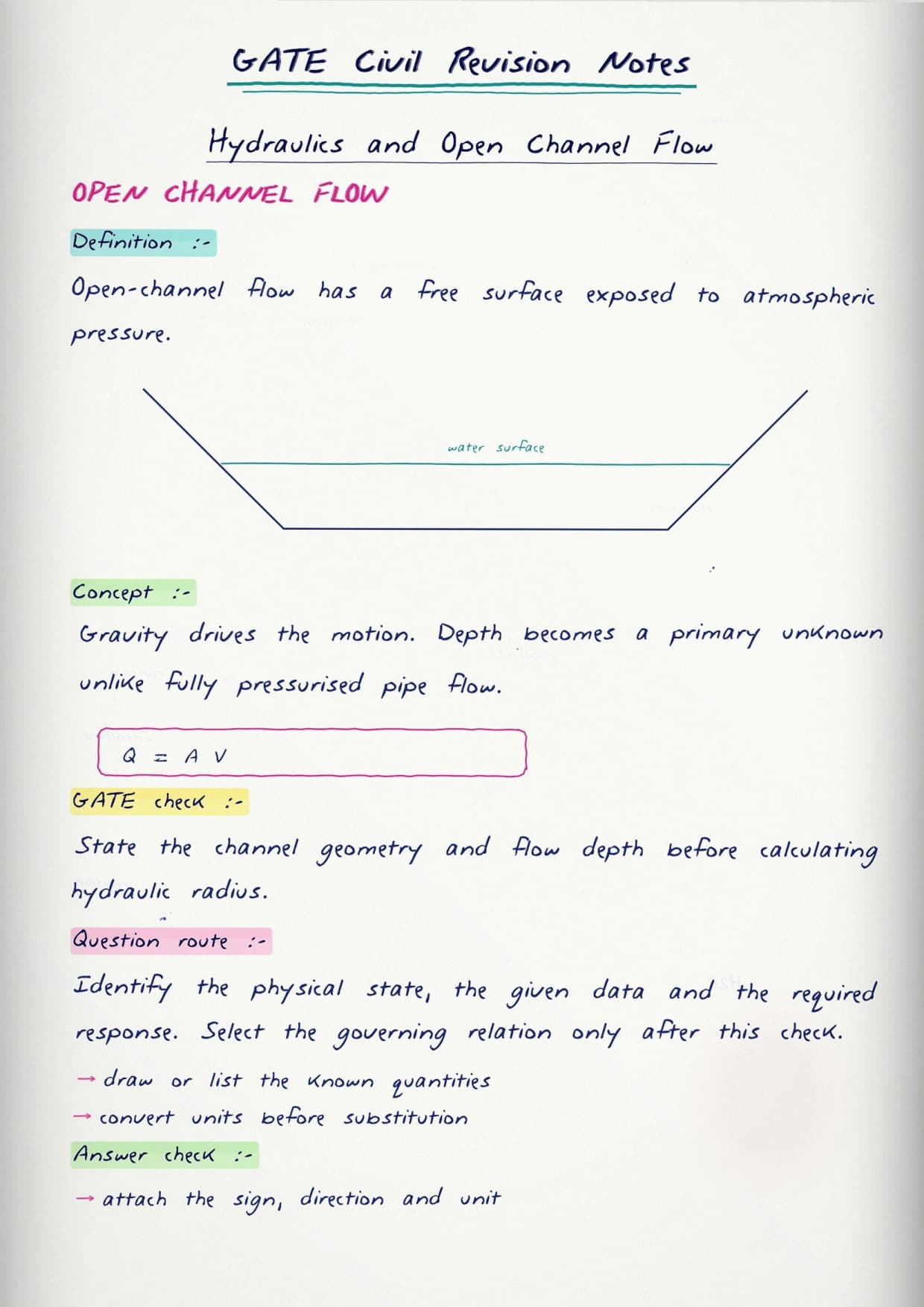

• Open channel flow, uniform flow, and the Manning and Chezy formulas.

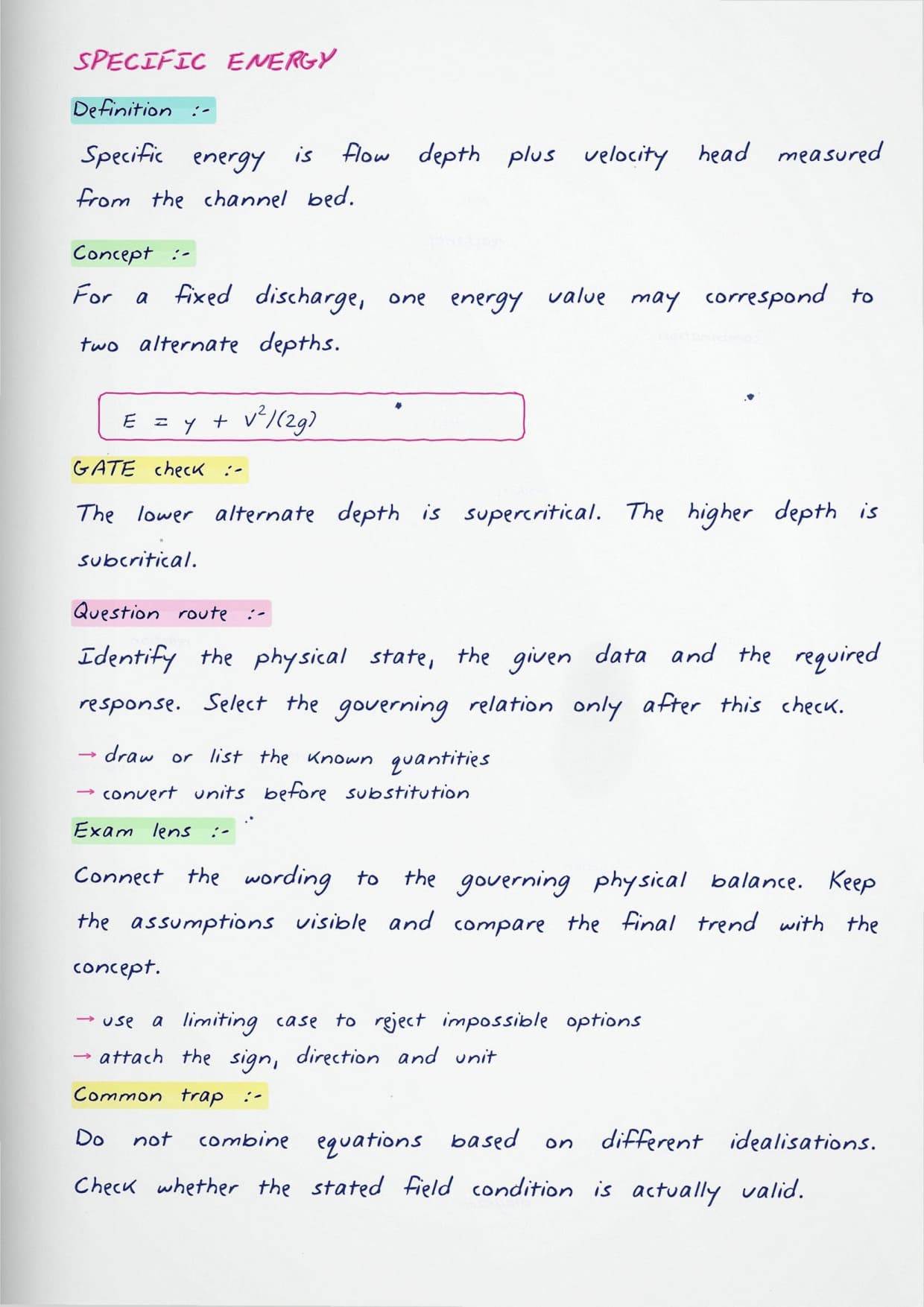

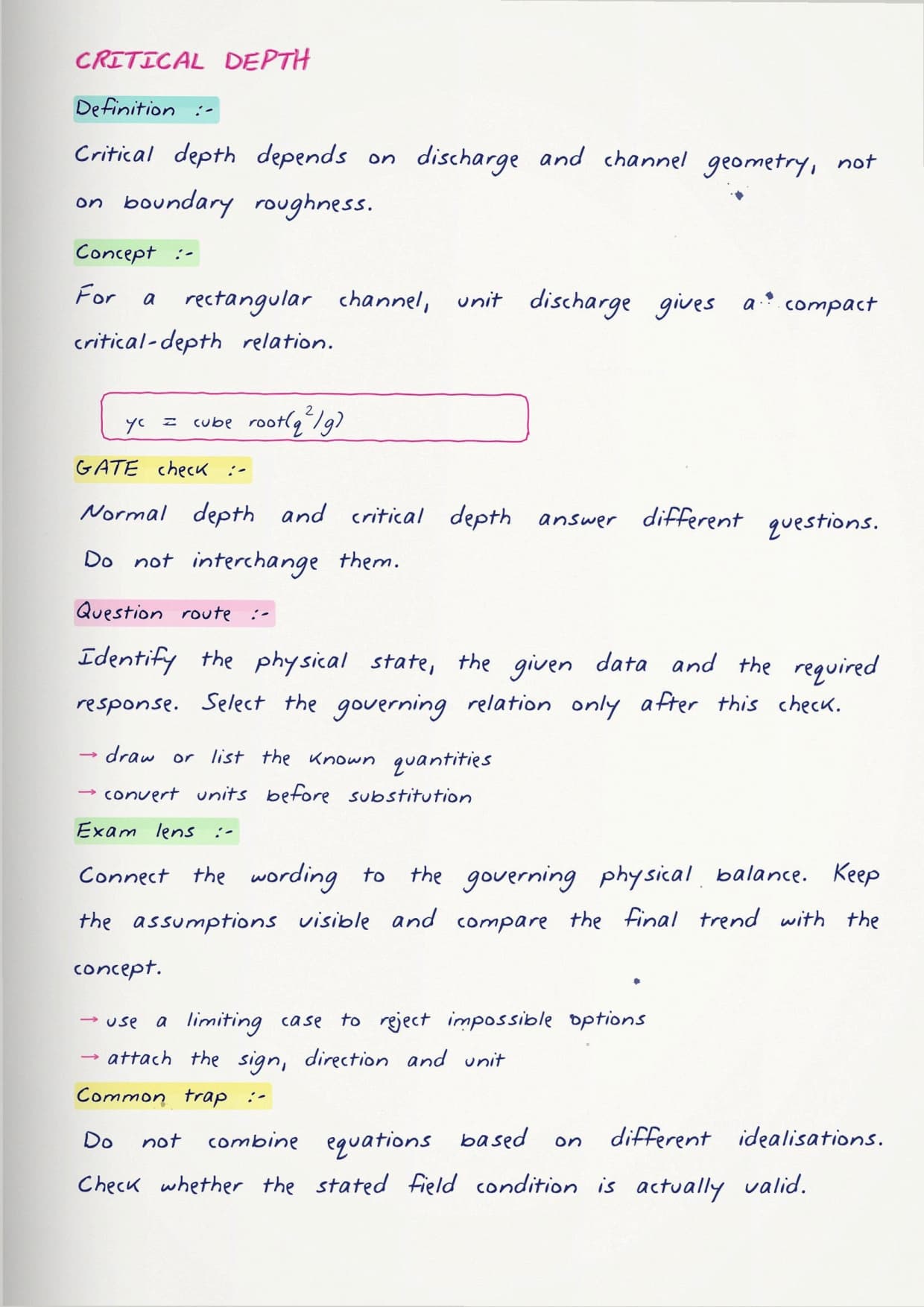

• Specific energy, critical depth, and the Froude number.

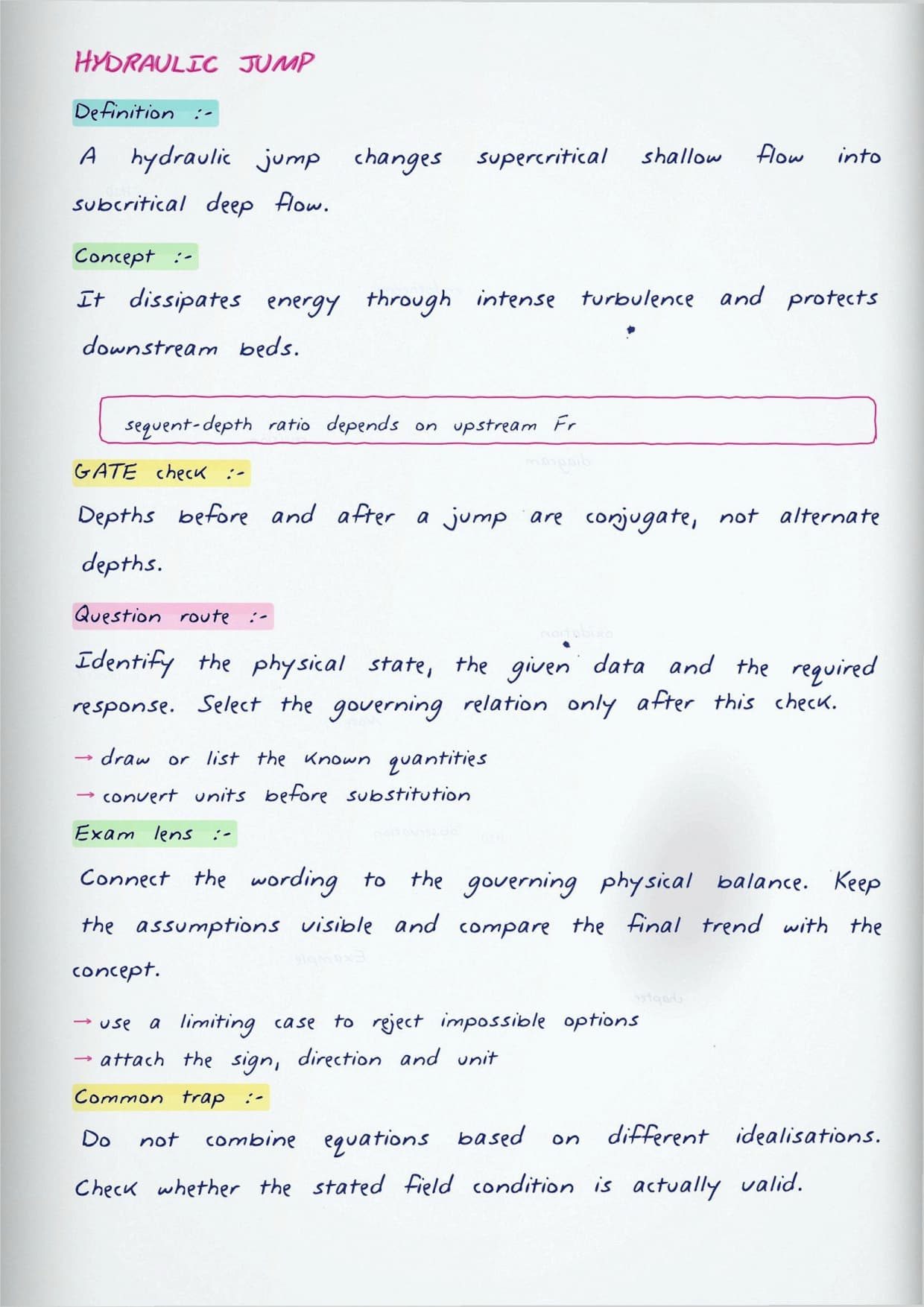

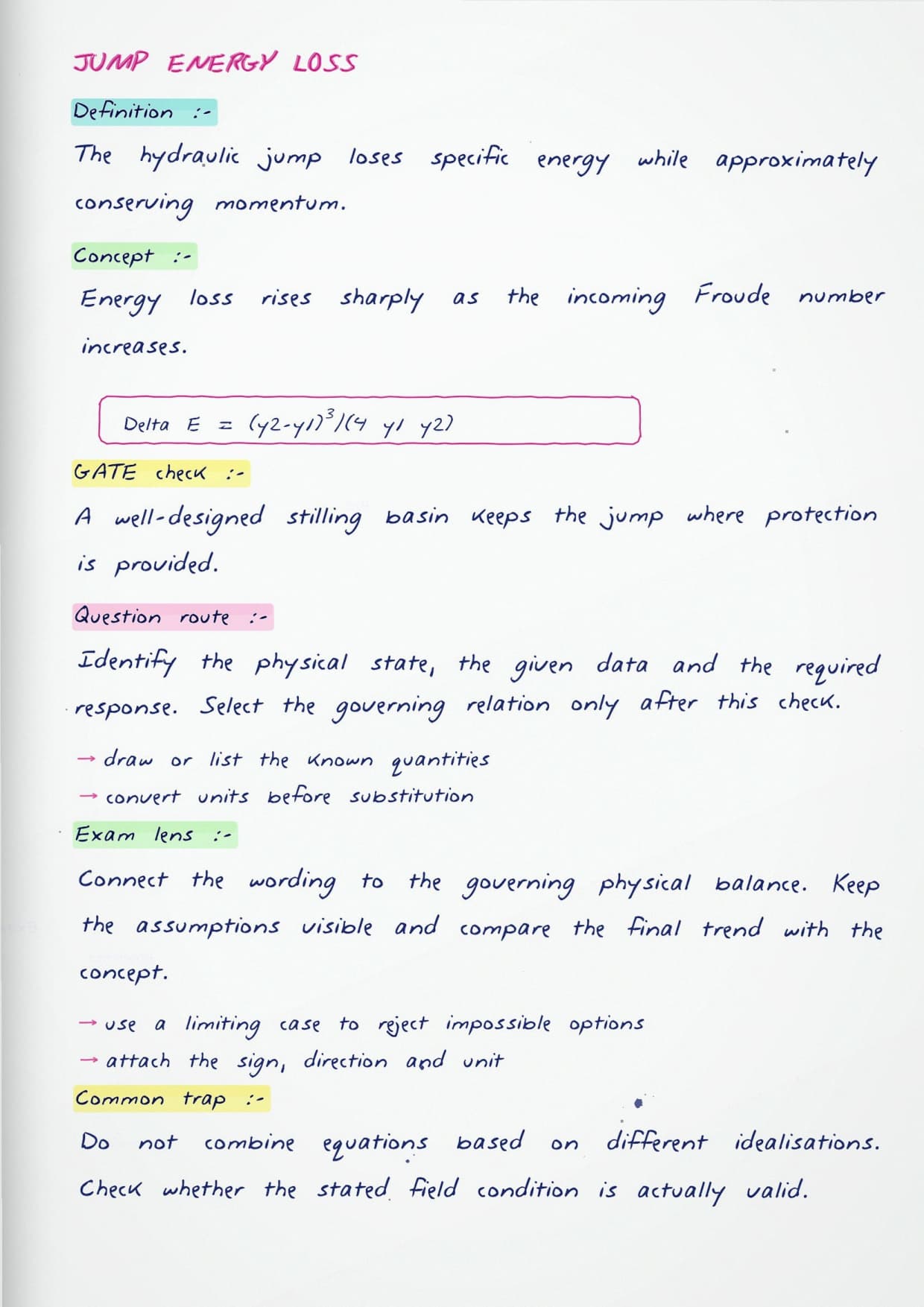

• The hydraulic jump, its depth relation, and the energy lost in it.
• Dimensional analysis and the common non-dimensional numbers.

How the Notes Are Organised

The material runs from the fundamentals to the harder topics, so you can read it straight through or open a single page for a quick recap. Simpler topics such as fluid properties and hydrostatics come first, while heavier ones like open channel flow and the hydraulic jump come later once the basics are in place. A formula sheet near the end brings the key results together for revision.

Because each topic stands on its own, you can match it to whatever you are practising that day and revise only the part you need before an attempt.

How GATE Hydraulics and Open Channel Flow Links to Other Subjects

Hydraulics does not stand alone in the GATE Civil paper. Its flow equations return in Hydrology, Irrigation, and Environmental Engineering, so revising it well earns marks in more than one place. The notes point out these links as they come up.

• Open channel flow feeds canal design in Irrigation Engineering.
• Pipe flow and energy loss return in water supply questions.
• Flow routing and runoff build on the same ideas in Hydrology.
• Flow through treatment units links to Environmental Engineering.

Important Topics in GATE Hydraulics and Open Channel Flow

A few topics appear in the GATE paper almost every year and carry most of the subject's marks. If your time is short, revise these first and make sure you can solve them quickly and without mistakes, since they are the surest source of marks.

• Specific energy and the hydraulic jump, near-certain every year.
• Open channel flow with the Manning and Chezy formulas.
• Flow through pipes, with major and minor head losses.
• Forces on submerged surfaces and the momentum equation.
• Dimensional analysis and the Reynolds and Froude numbers.

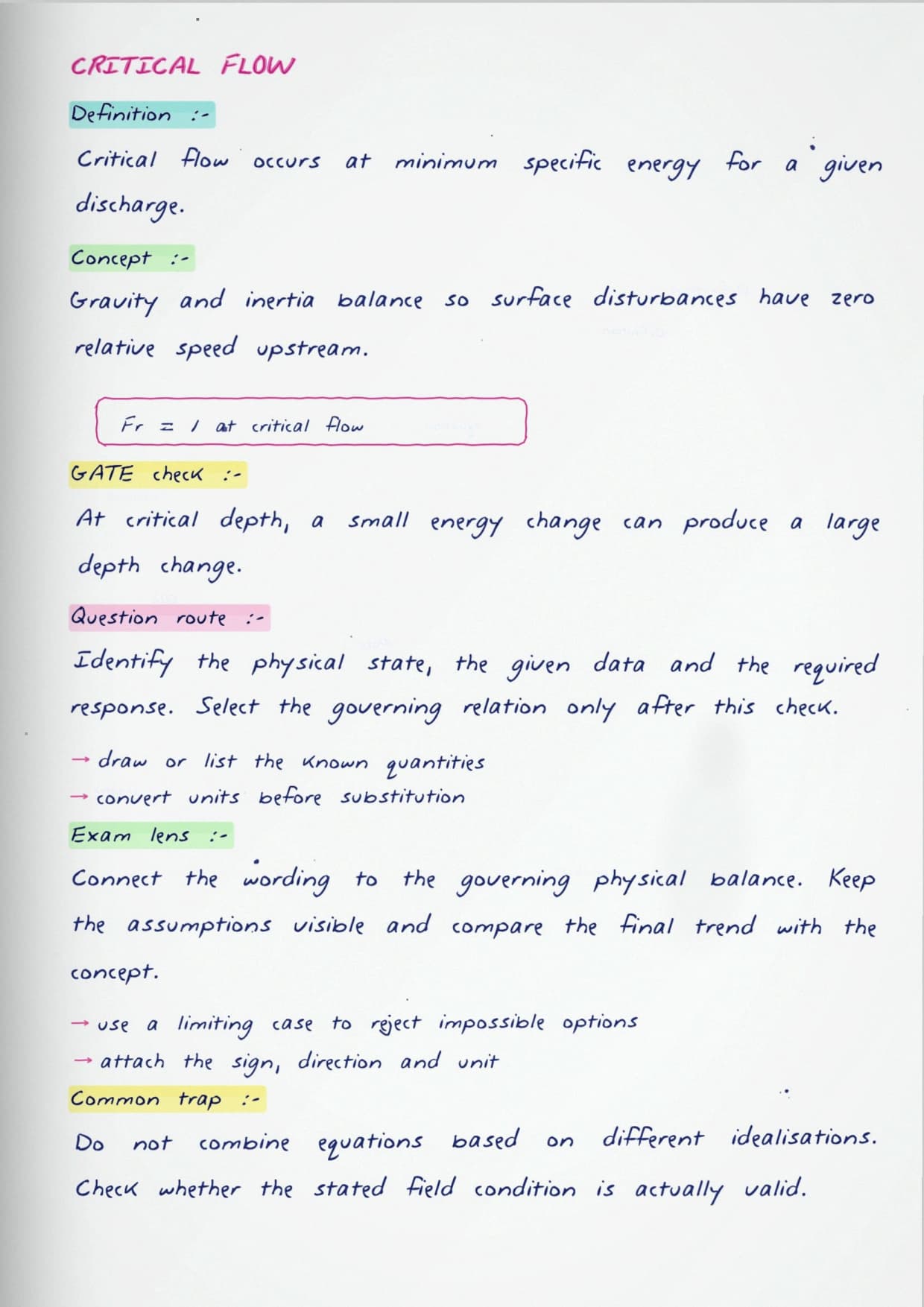

• Common trap: critical flow gives minimum specific energy for a given discharge.

How to Prepare GATE Hydraulics and Open Channel Flow with Handwritten Notes

Hydraulics rewards steady problem solving more than reading, so use the notes as a theory and formula base beside daily practice. Read a topic, note its formula, then solve a few previous year questions on it before you move on. Return to the notes before mock tests to refresh the ideas quickly.

• First read: cover every topic once to build the base.
• Second pass: focus on open channel flow, specific energy, and pipe flow.
• Solve previous year questions topic by topic beside the notes.

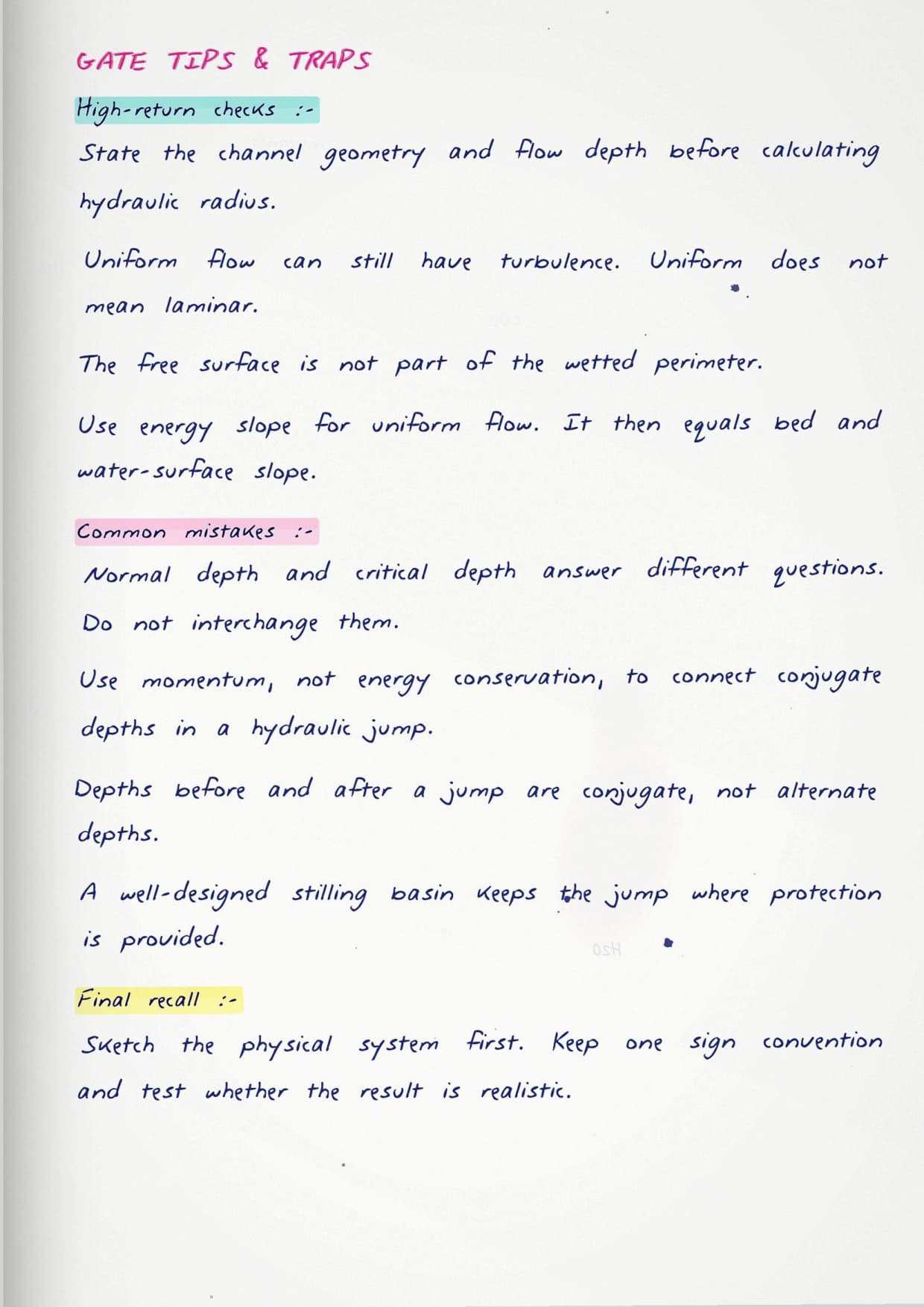

• Final week: revise the formula sheet and the tips page.

Why These Notes Help You Score Better

Handwritten notes are quick to scan and easy to recall under exam pressure, which is why they work well for revision in the final weeks. A short, visual page is faster to go through than a full textbook chapter, and each diagram is right next to the result it explains, so the link stays clear.
