GATE Civil Reinforced Concrete Structures Handwritten Notes

Reinforced Concrete Structures is a steady scoring subject in GATE Civil Engineering, usually worth about 5 to 7 marks in the paper. It belongs to the Structural Engineering section and builds on Strength of Materials and Structural Analysis. These handwritten notes cover the full GATE syllabus in a compact, exam-focused form.

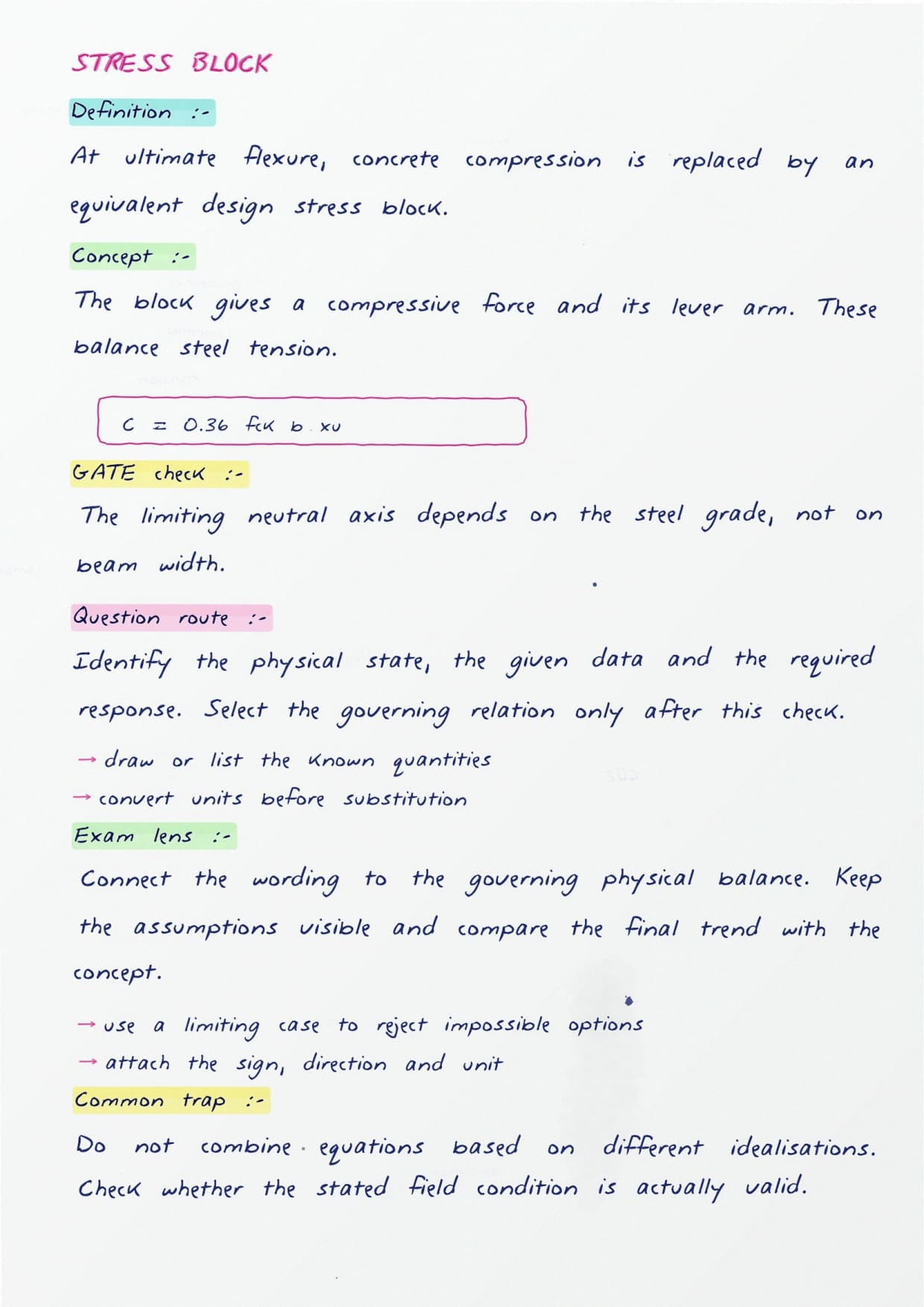

The notes carry hand-drawn diagrams for limit state stress blocks, singly and doubly reinforced beam sections, slab reinforcement layouts, and column and footing details, along with a formula sheet you can revise in the last few days before the exam. Every major result is solved step by step, so you follow the design logic instead of memorising a formula on its own.

• Full Reinforced Concrete Structures syllabus in one PDF, in the standard GATE order.
• Key formulas and code rules for every topic, with the assumptions behind them.
• Hand-drawn diagrams and a formula sheet for fast last-day revision.

What These GATE Reinforced Concrete Structures Notes Cover

Reinforced concrete design decides the size and steel of beams, slabs, columns, and footings so each part stays safe under load. The notes explain every design idea in plain language and then give the formula and code rule you apply in the exam. They stay close to the GATE Civil syllabus, so nothing extra is added and nothing important is left out.

• Clear meaning of each design term, with the formula that follows from it.
• Key formulas and IS 456 limits given with units and conditions of use.
• Hand-drawn figures for beam sections, slabs, columns, and footings.

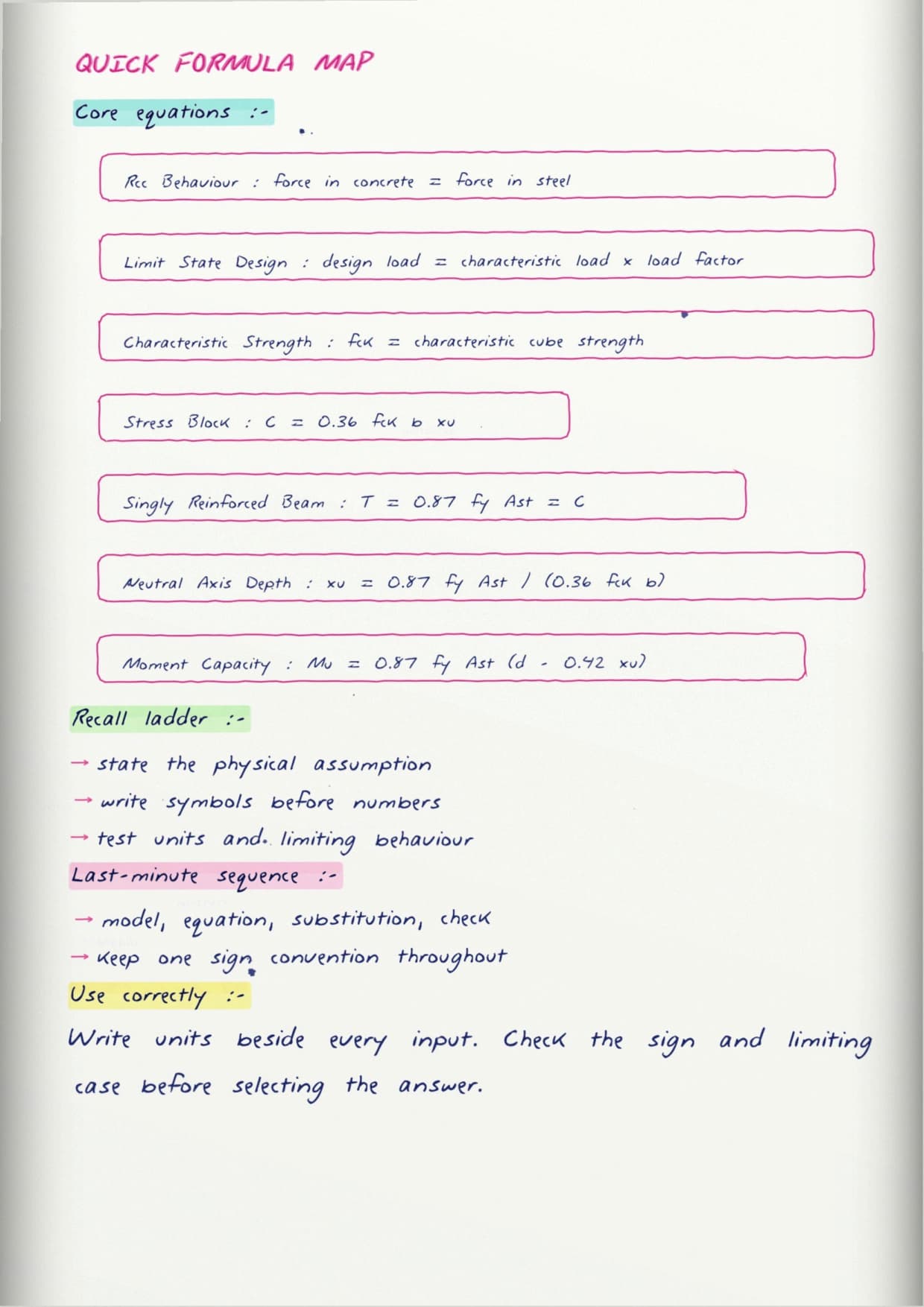

• A formula sheet that collects every design result in one place.

GATE Reinforced Concrete Structures Quick Revision

Source: GATE Wallah - ME, CE, XE, CH, PI & ES on YouTube

Topics Covered in GATE Reinforced Concrete Structures

The notes follow the standard GATE Civil order, starting from the two design methods and building up to slabs, columns, footings, and prestressed concrete. Each topic connects to the one before it, so the subject reads as a single flow rather than a set of separate formulas. The full list below matches the official syllabus.

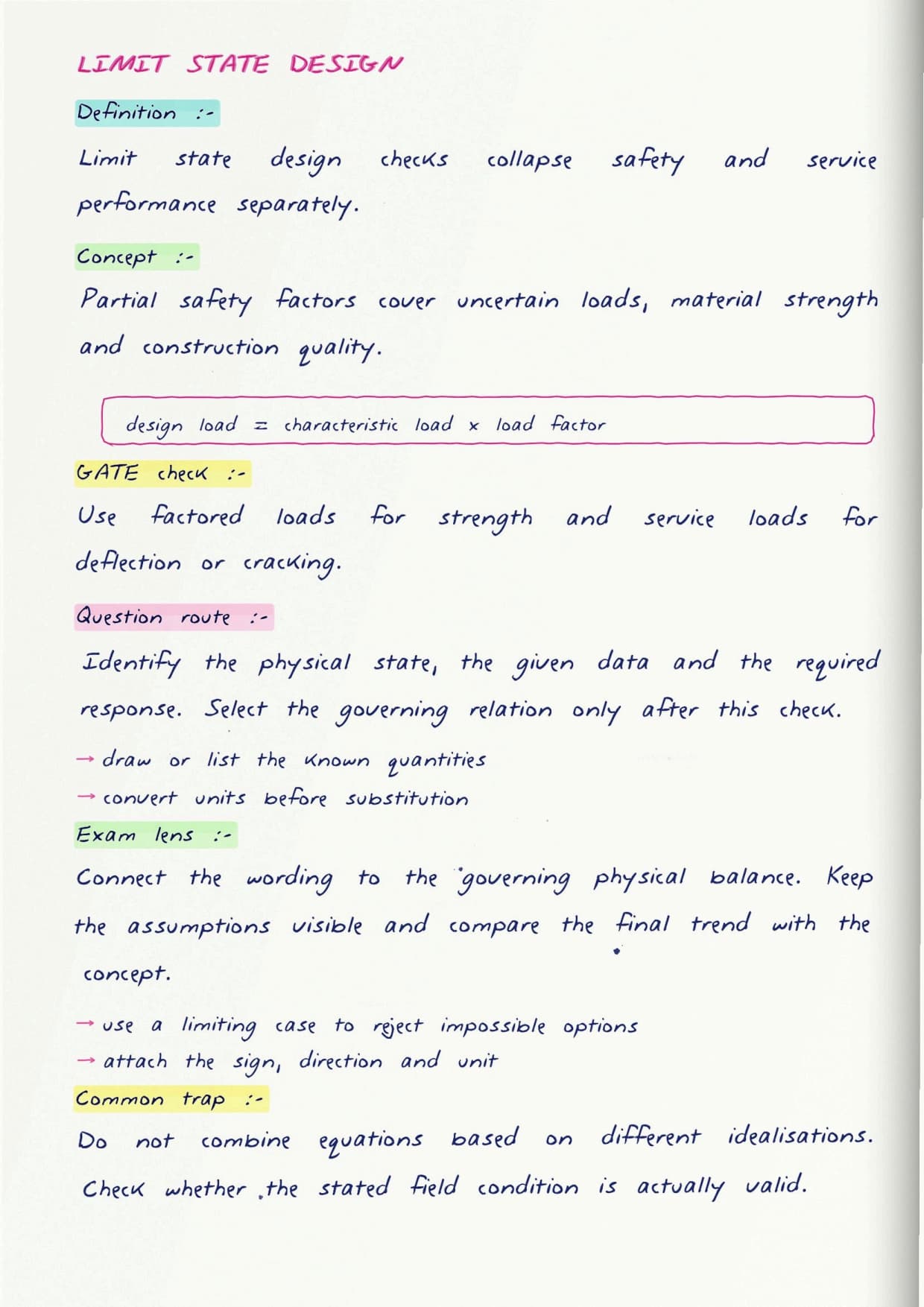

• Working stress and limit state design, with the basic assumptions of each method.

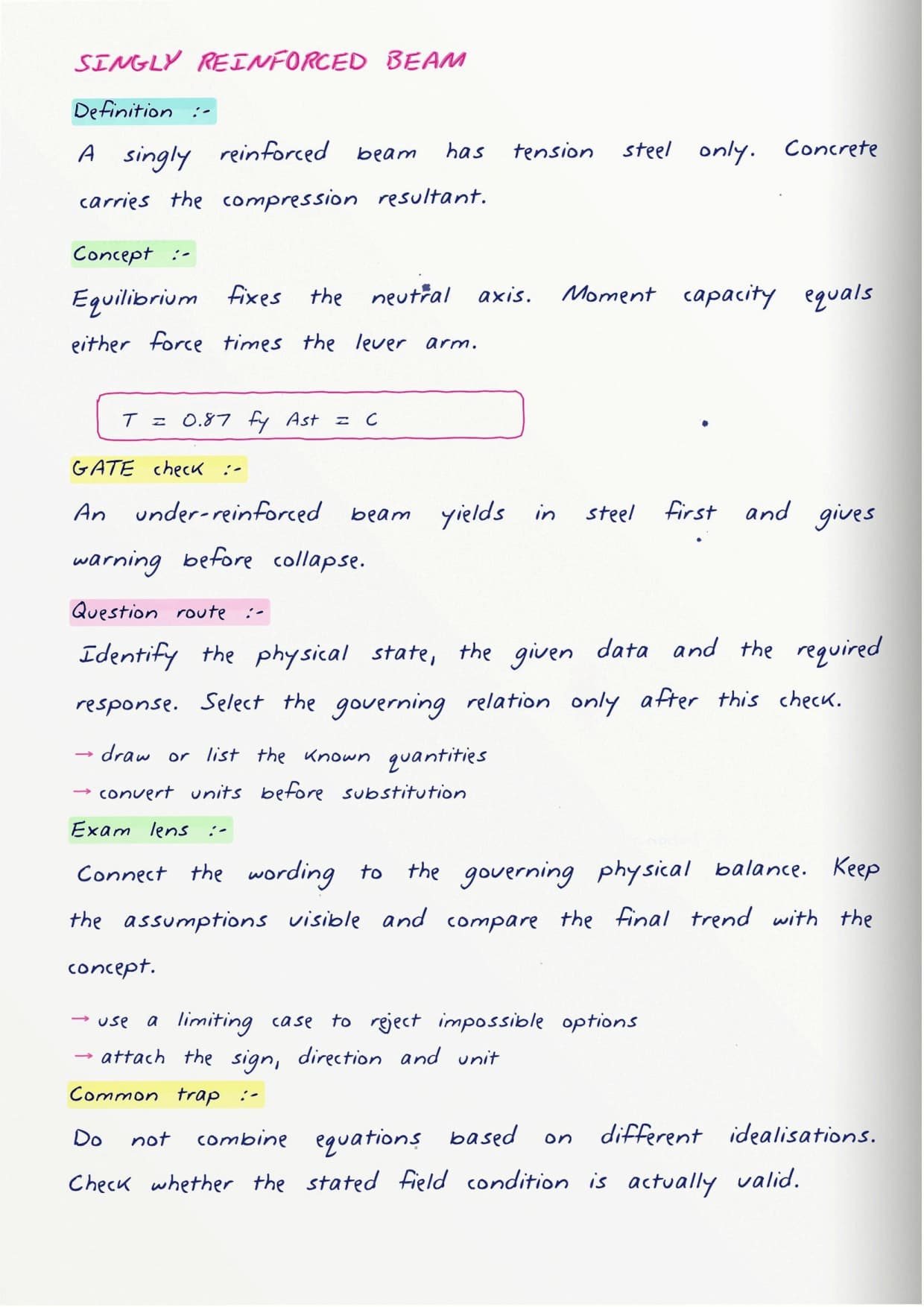

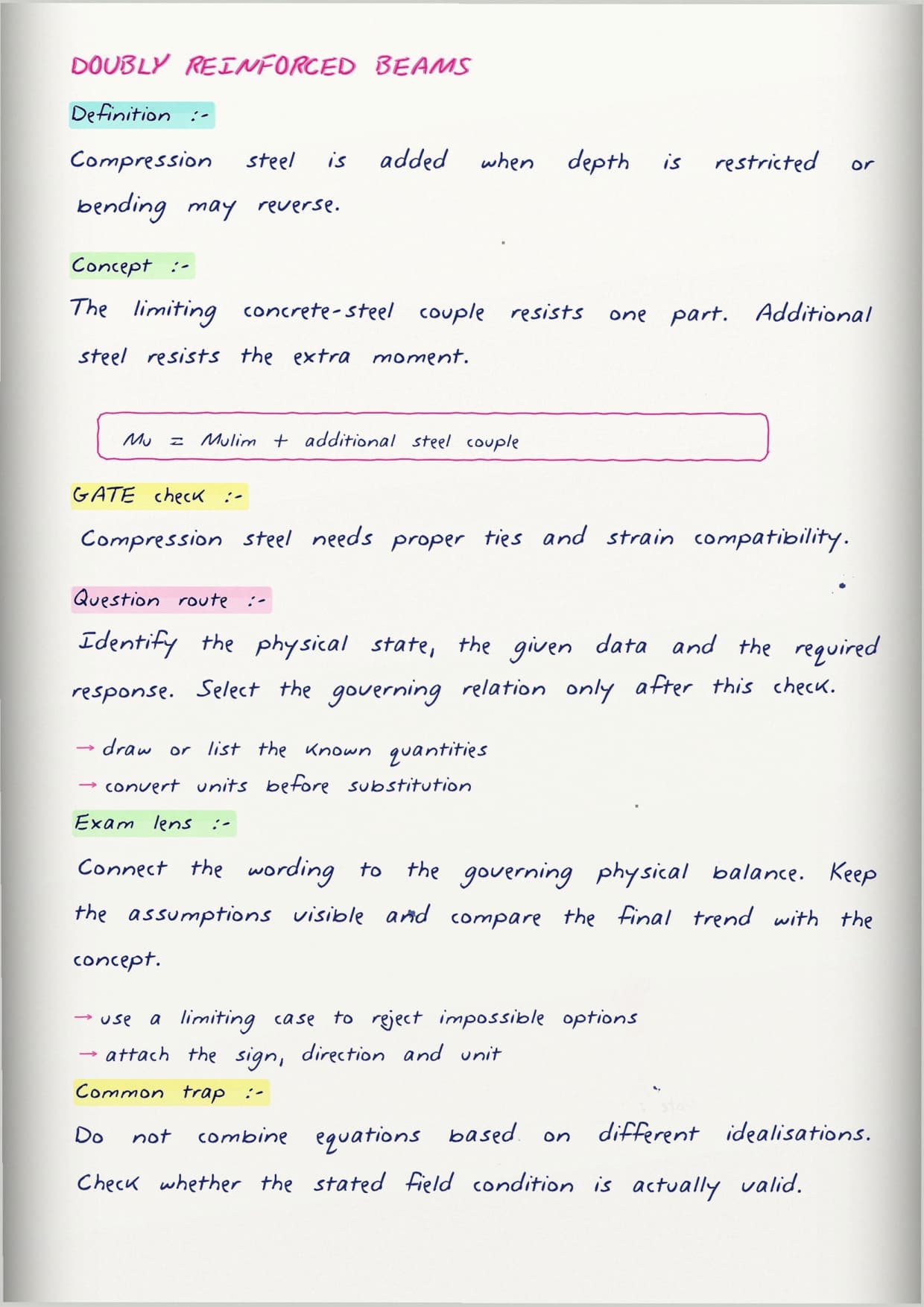

• Singly and doubly reinforced beams, and the balanced section.

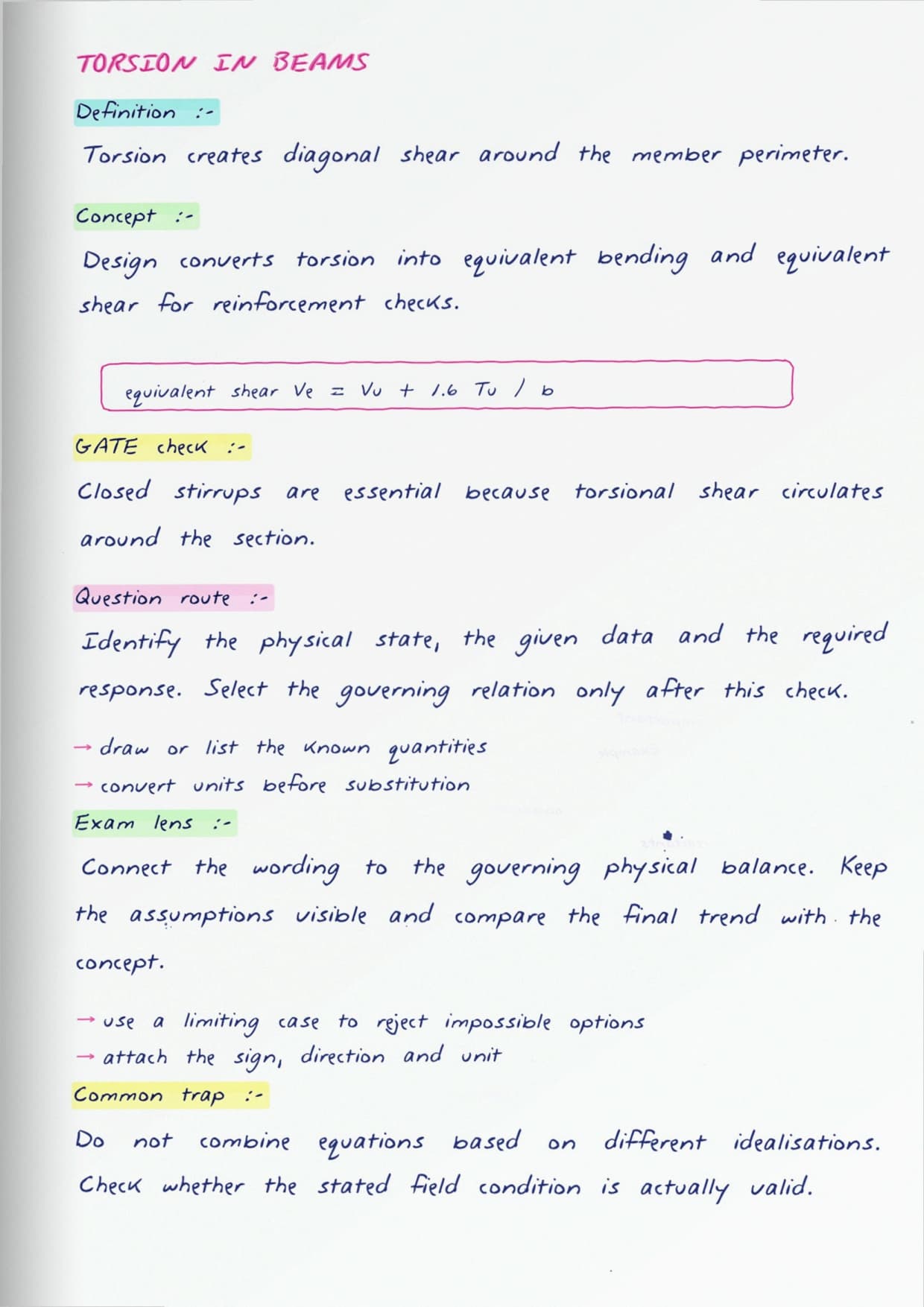

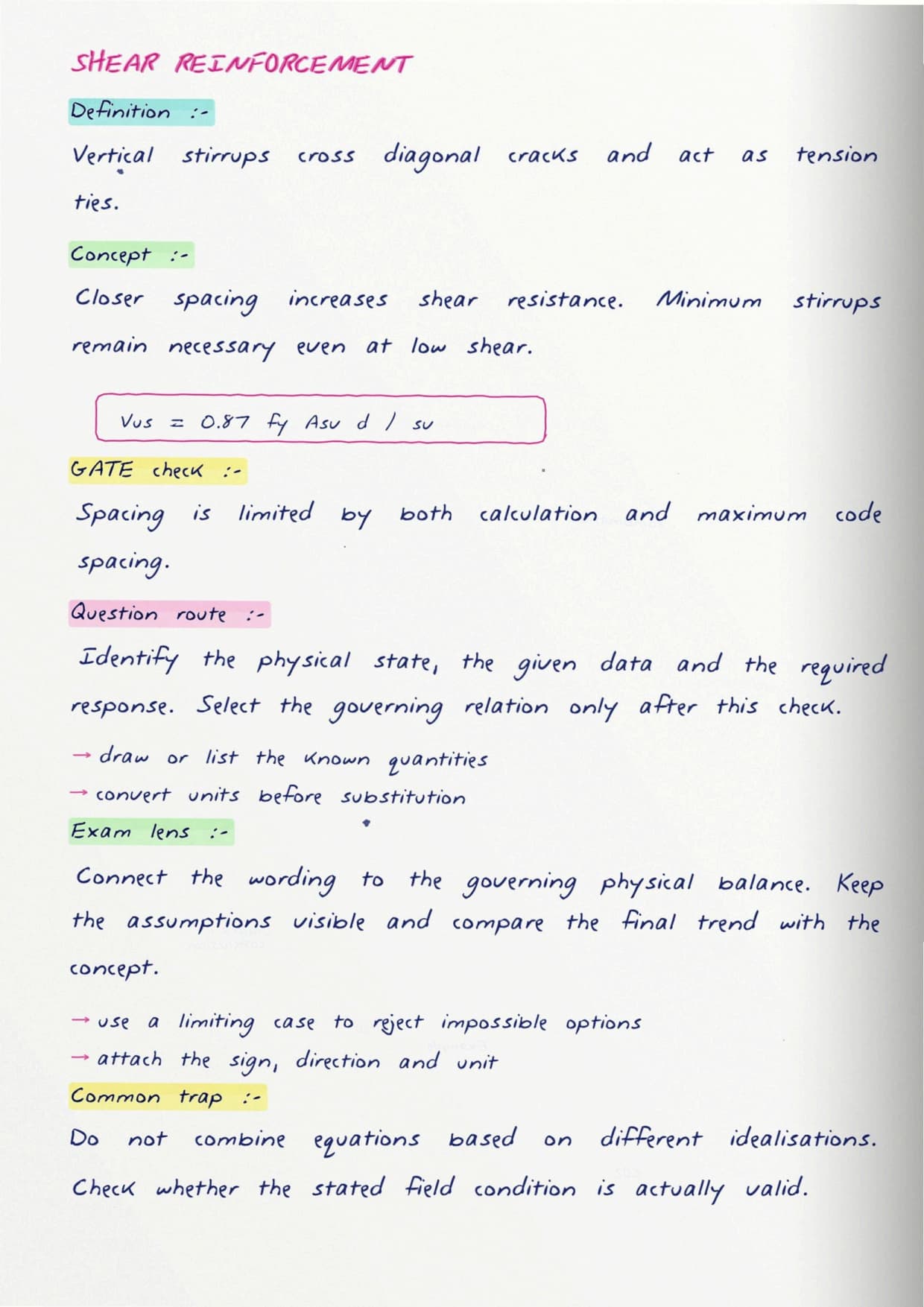

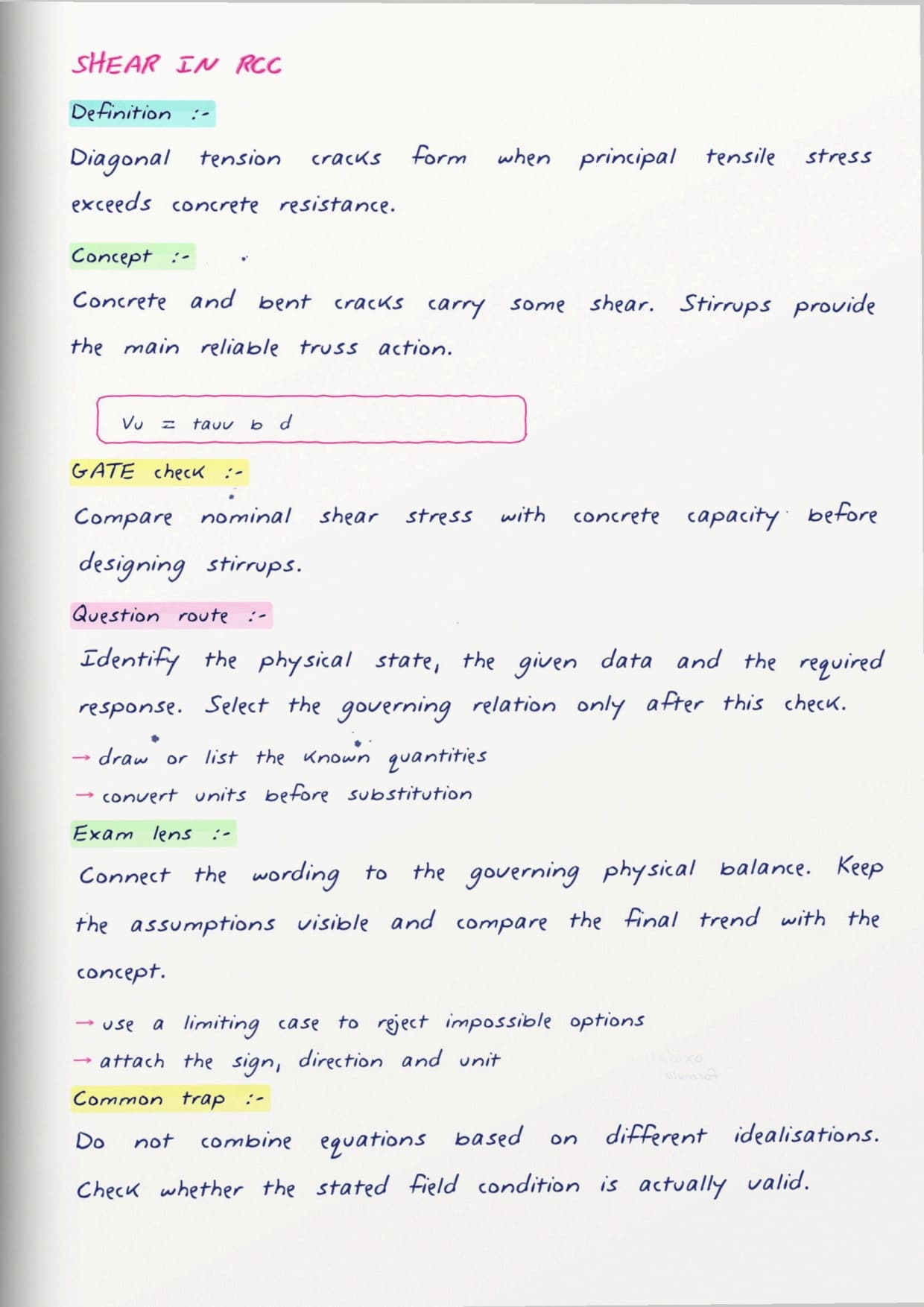

• Shear and torsion in beams, with stirrup and bent-up bar design.

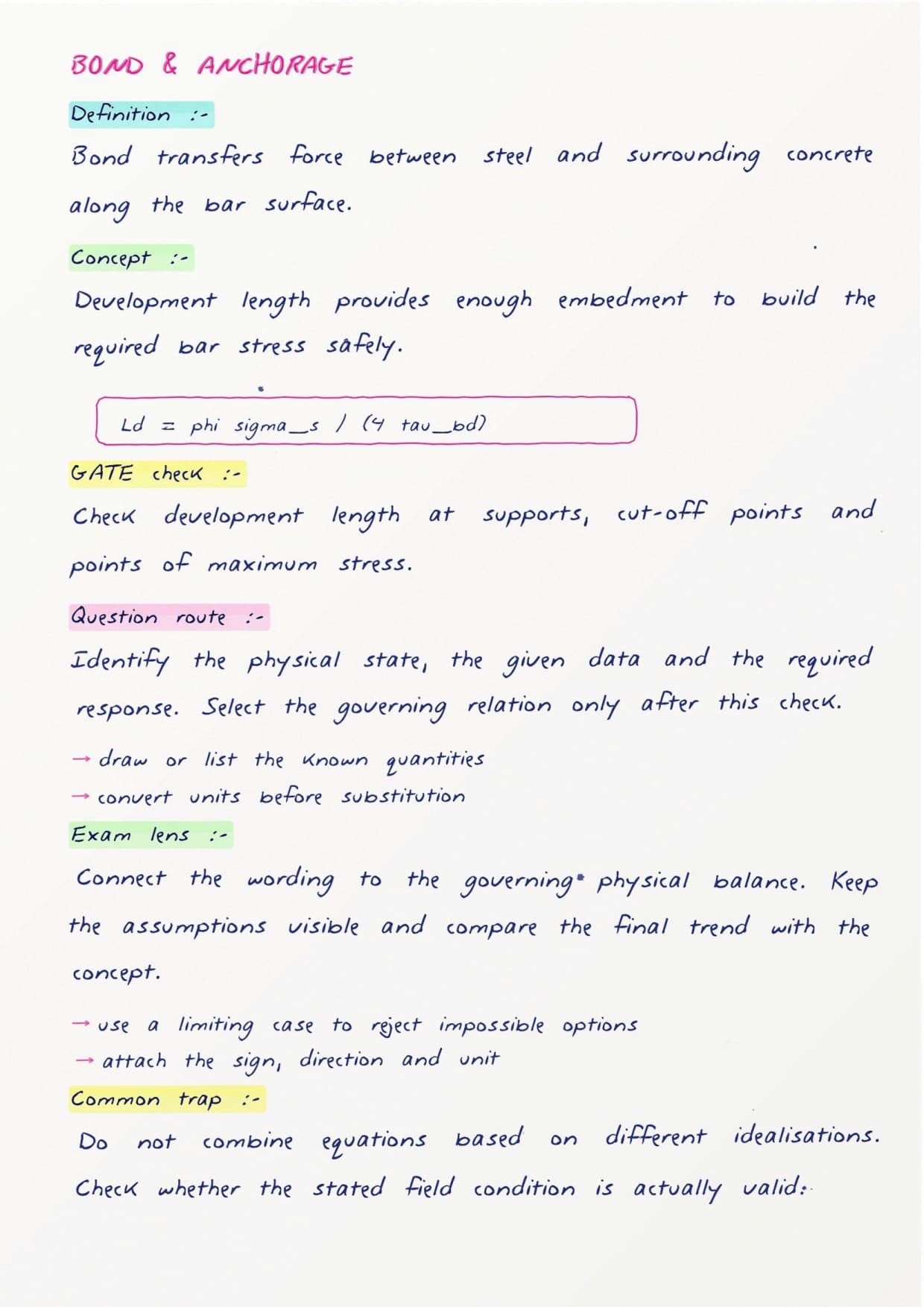

• Development length and bond between steel and concrete.

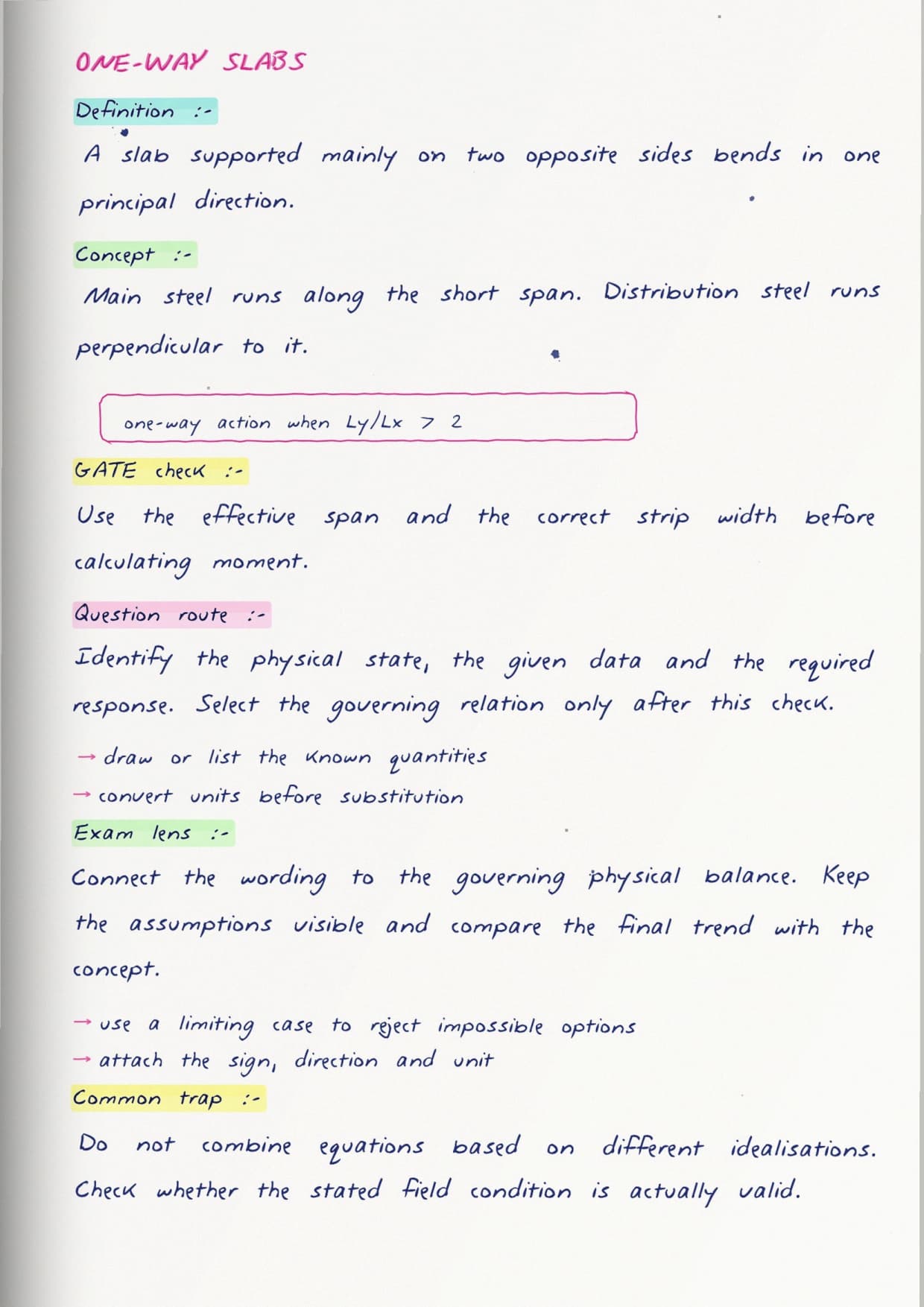

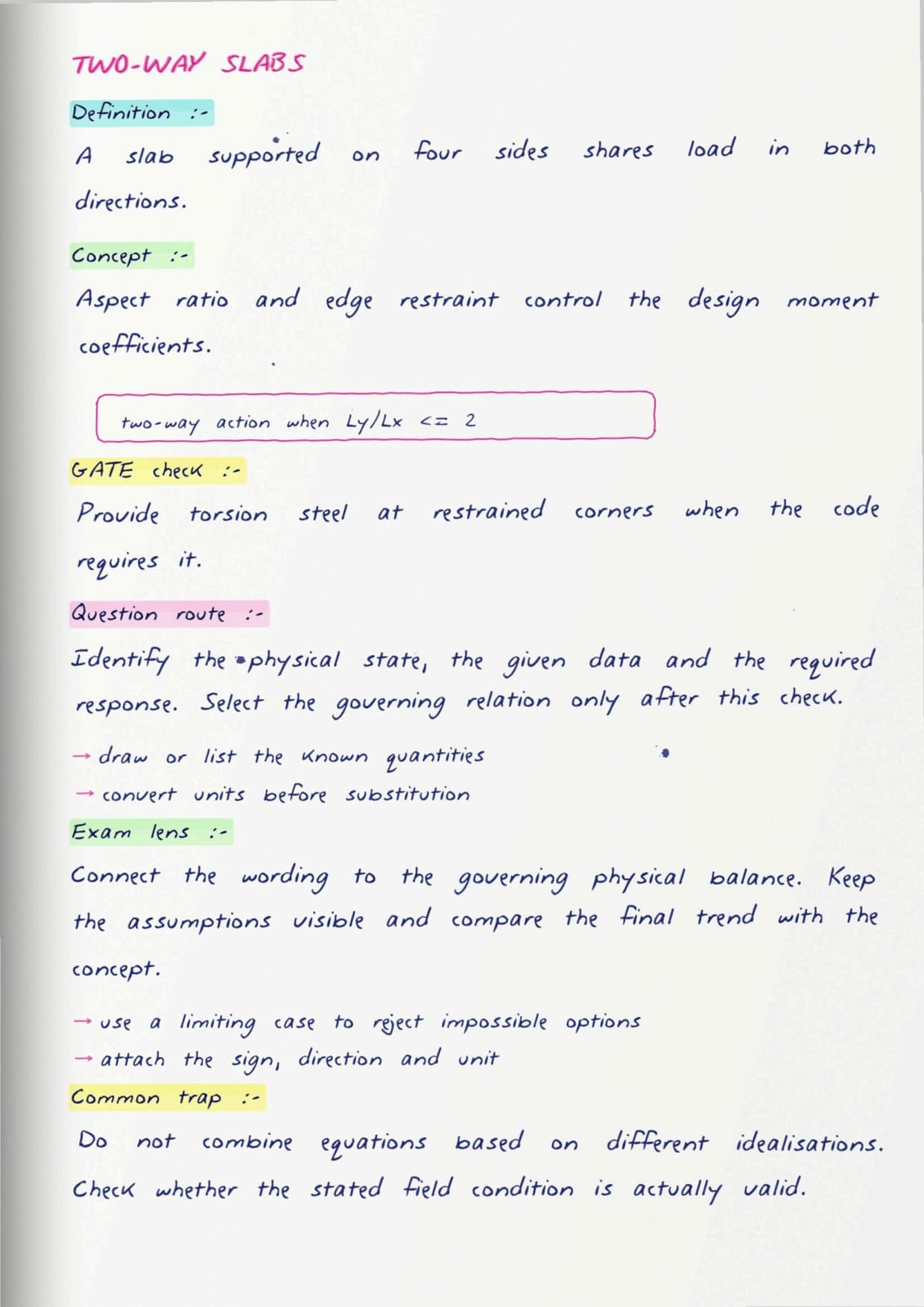

• One-way and two-way slabs, with reinforcement layout rules.

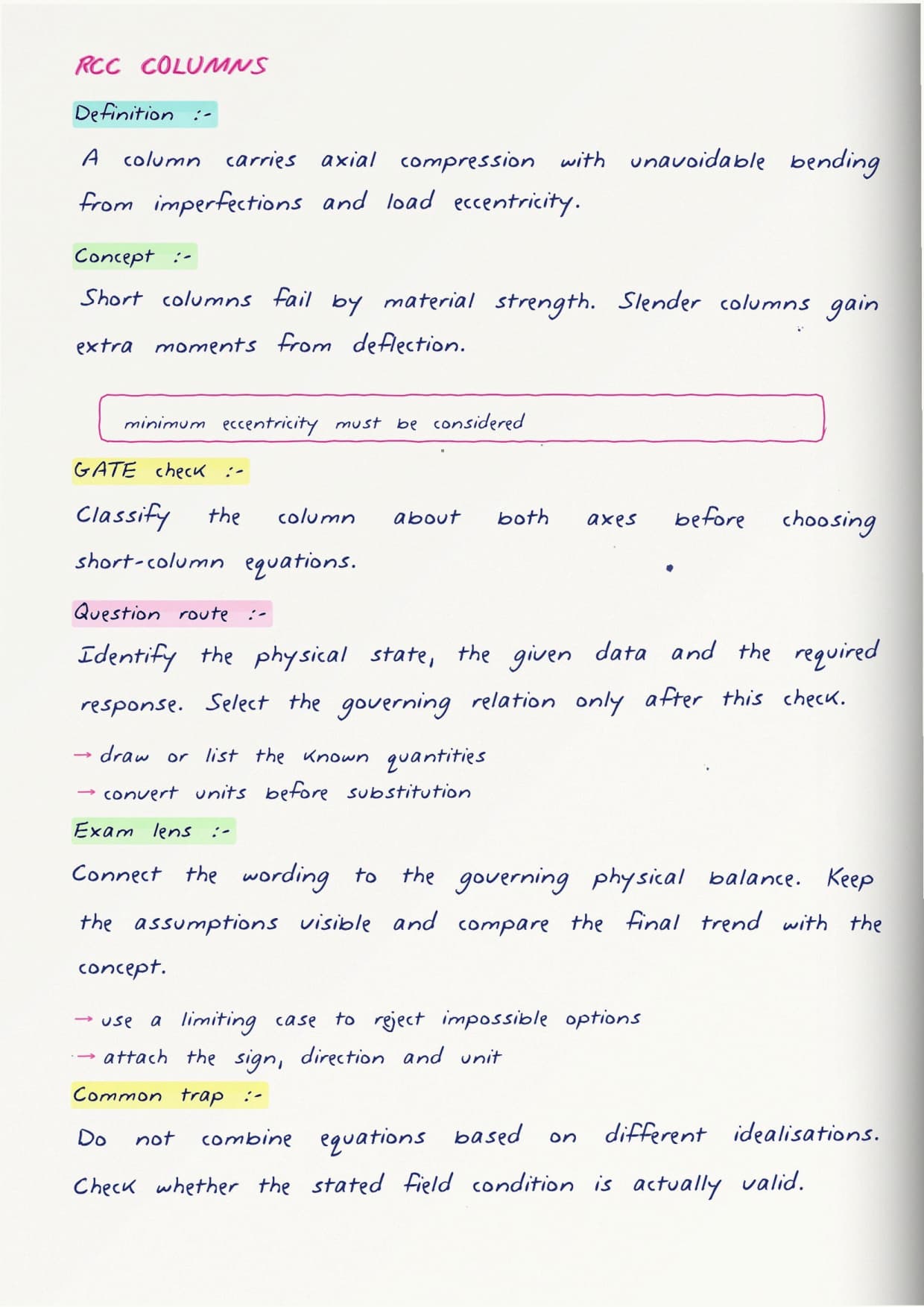

• Short and long columns, with slenderness and load checks.
• Isolated footings, with bearing, punching, and one-way shear.

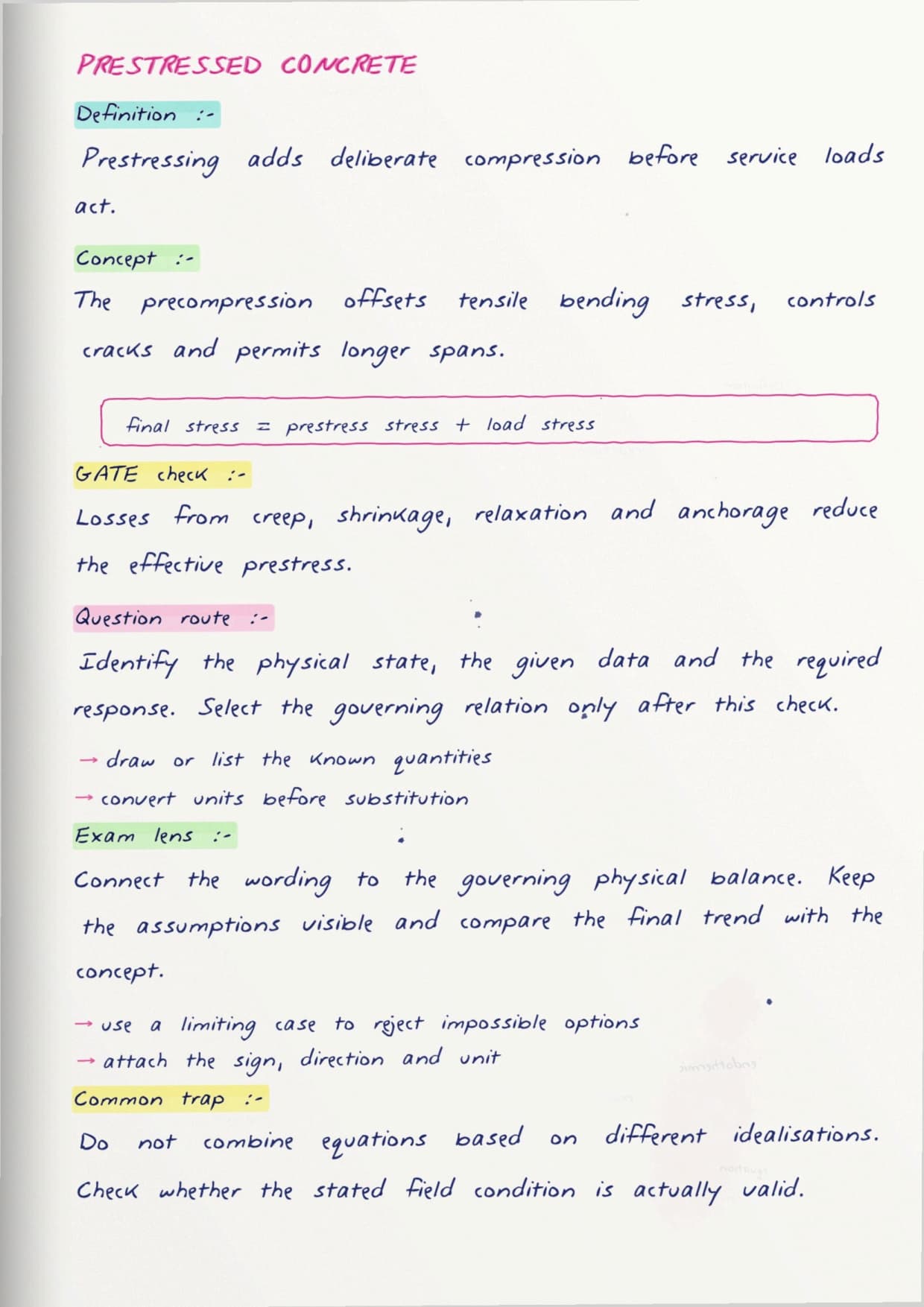

• Basics of prestressed concrete, with losses and end zones.

How the Notes Are Organised

The material runs from the design methods to the harder members, so you can read it straight through or open a single page for a quick recap. Simpler topics such as working stress and singly reinforced beams come first, while heavier ones like two-way slabs, columns, and prestressed concrete come later once the basics are set. A formula sheet near the end brings the key results together for revision.

Because each topic stands on its own, you can match it to whatever you are practising that day and revise only the part you need before an attempt.

How GATE Reinforced Concrete Structures Links to Other Subjects

Reinforced Concrete Structures does not stand alone in the GATE Civil paper. It builds on Strength of Materials and Structural Analysis for member forces, and pairs with Steel Structures as the two halves of structural design. The notes point out these links as they come up.

• Bending and shear stress ideas come from Strength of Materials.
• Member forces and moments are found using Structural Analysis.
• Design method and load factors are shared with Steel Structures.
• Footing loads connect to Foundation Engineering for the soil side.

Important Topics in GATE Reinforced Concrete Structures

A few topics appear in the GATE paper almost every year and carry most of the subject's marks. If your time is short, revise these first and make sure you can solve them quickly and without mistakes, since they are the surest source of marks.

• Limit state design of beams, near-certain every year.
• Shear design with stirrups and the design shear strength.
• Development length and bond, often a one-mark result.
• Two-way slabs and columns, with slenderness checks.

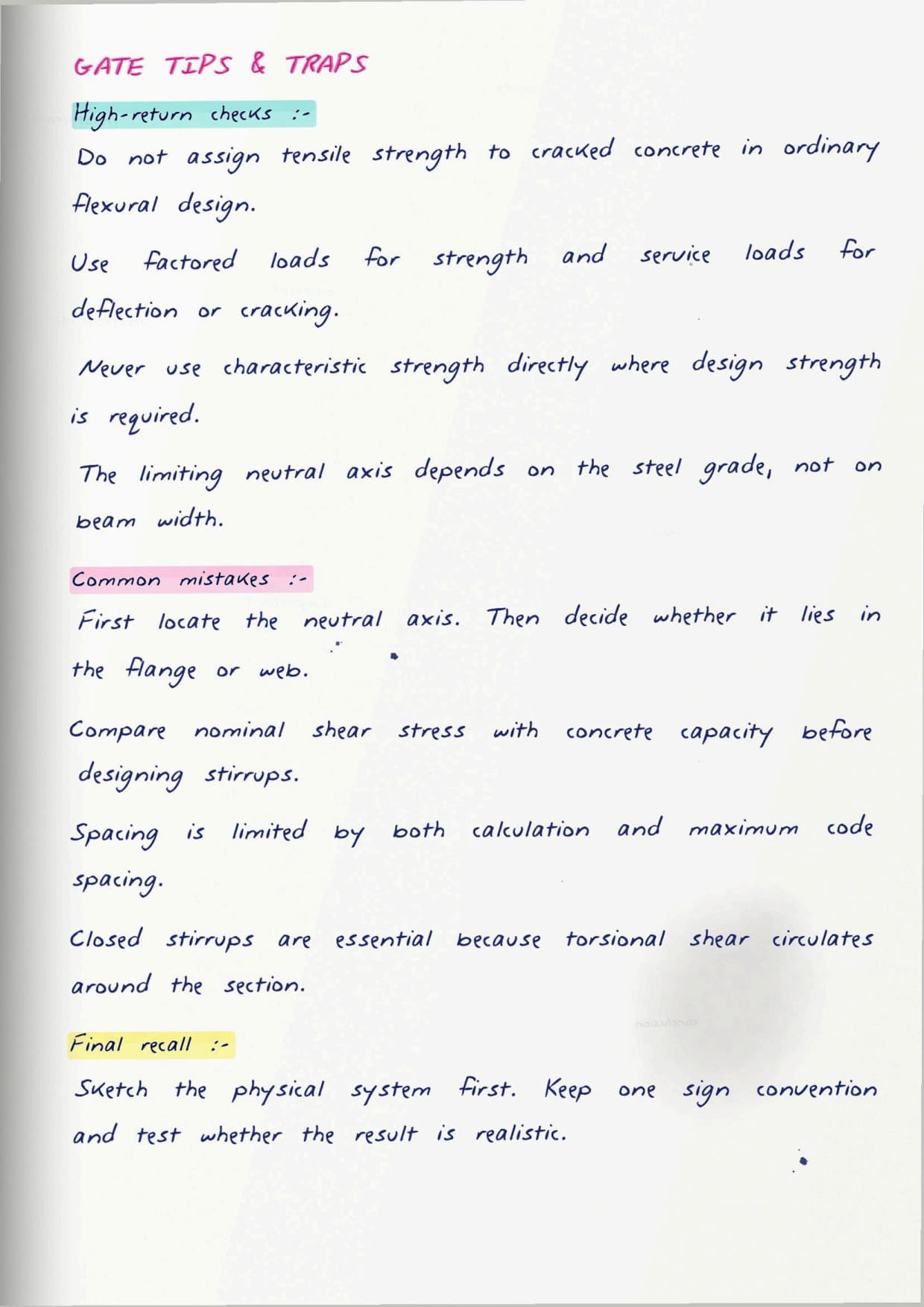

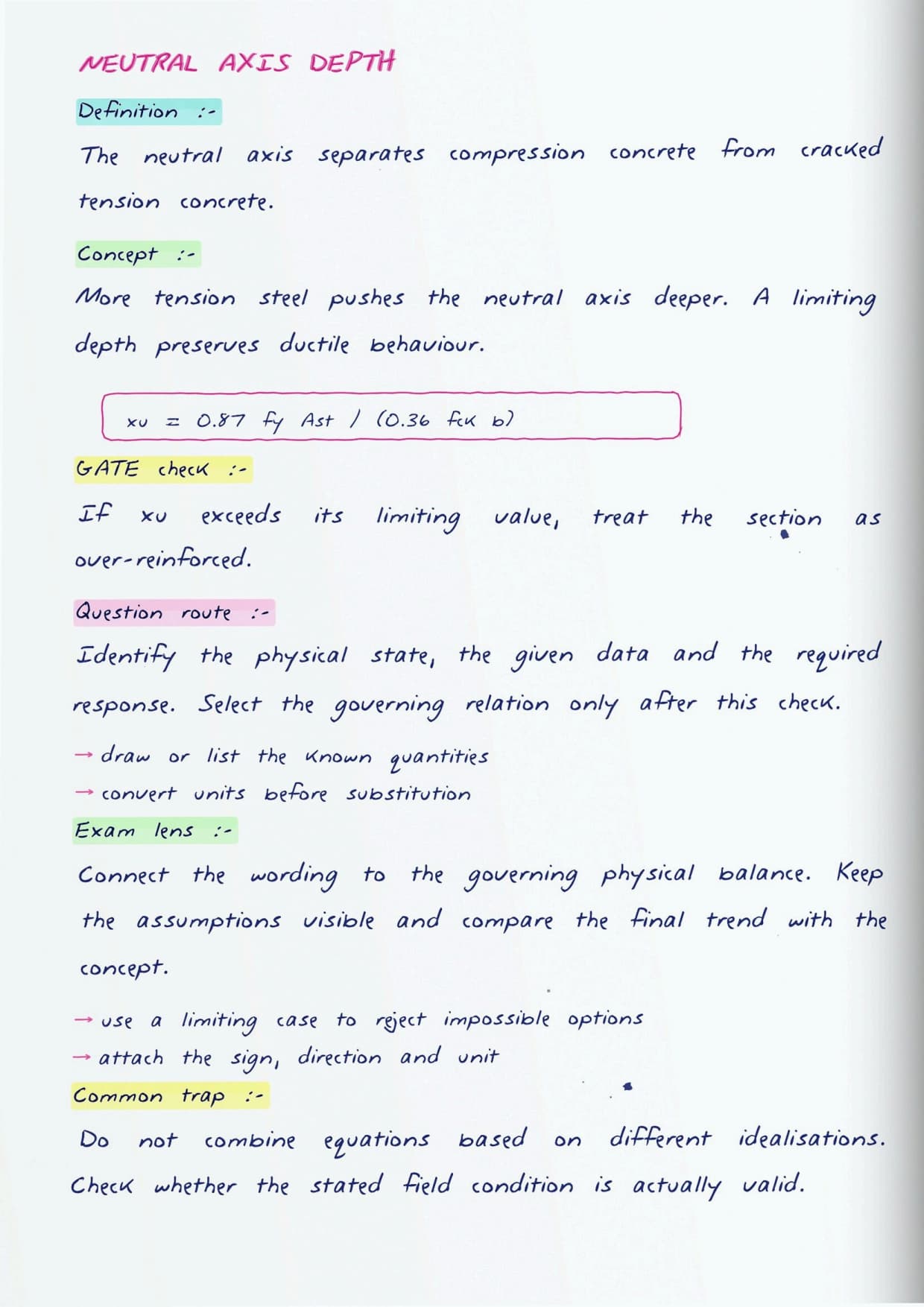

• Common traps: the neutral axis depth limit and the minimum steel rule.

How to Prepare GATE Reinforced Concrete Structures with Handwritten Notes

Reinforced concrete rewards clear design steps more than reading, so use the notes as a theory and formula base beside daily practice. Read a topic, note its formula and code limit, then solve a few previous year questions on it before you move on. Return to the notes before mock tests to refresh the ideas quickly.

• First read: cover every topic once to build the base.
• Second pass: focus on limit state beams, shear, slabs, and columns.
• Solve previous year questions topic by topic beside the notes.
• Final week: revise the formula sheet and the code-limit page.

Why These Notes Help You Score Better

Handwritten notes are quick to scan and easy to recall under exam pressure, which is why they work well for revision in the final weeks. A short, visual page is faster to go through than a full textbook chapter, and each diagram is right next to the result it explains, so the link stays clear.
