GATE Civil Steel Structures Handwritten Notes

Steel Structures is a steady scoring subject in GATE Civil Engineering, usually worth about 4 to 6 marks in the paper. It belongs to the Structural Engineering section and builds on Strength of Materials and Structural Analysis. These handwritten notes cover the full GATE syllabus in a compact, exam-focused form.

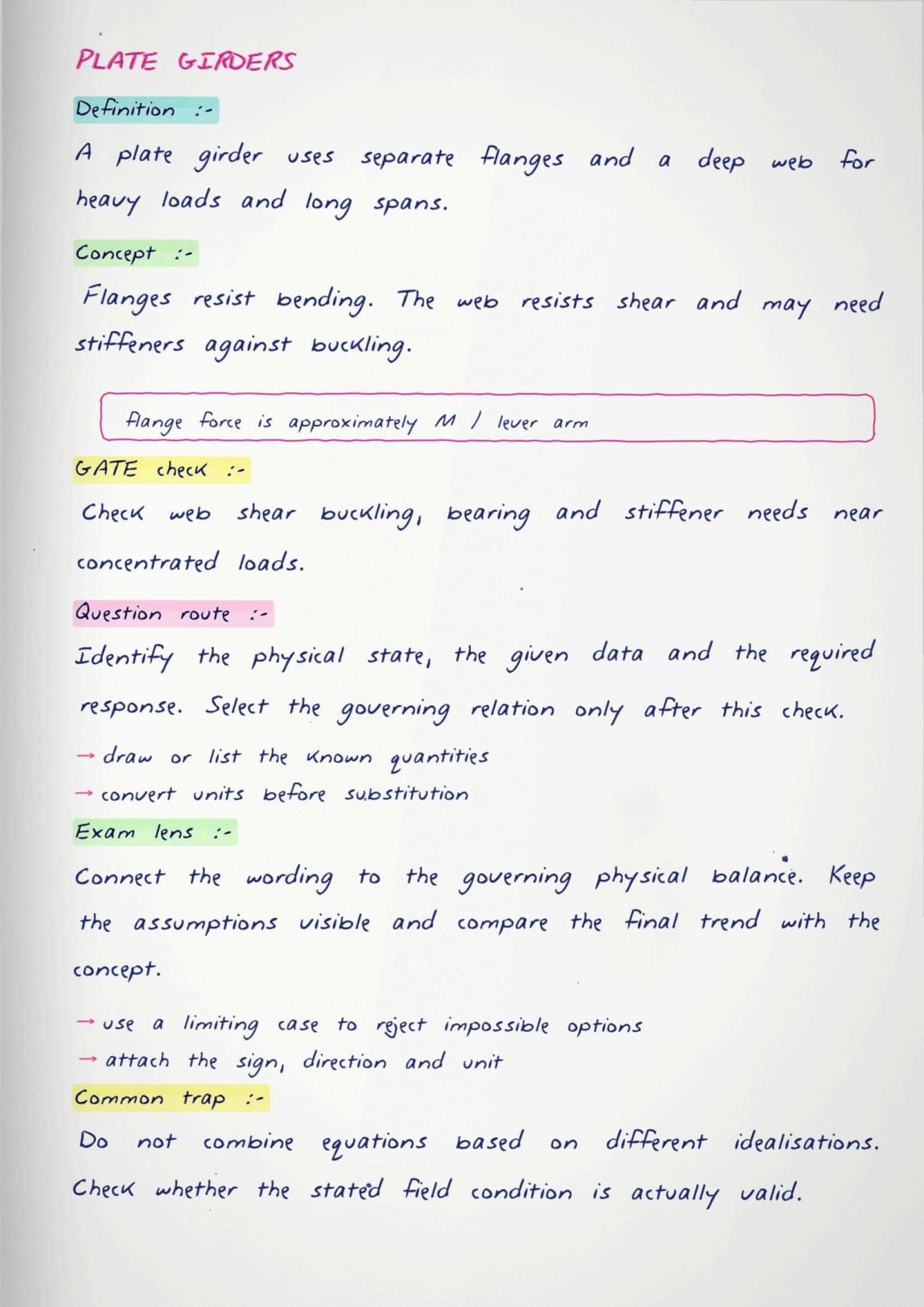

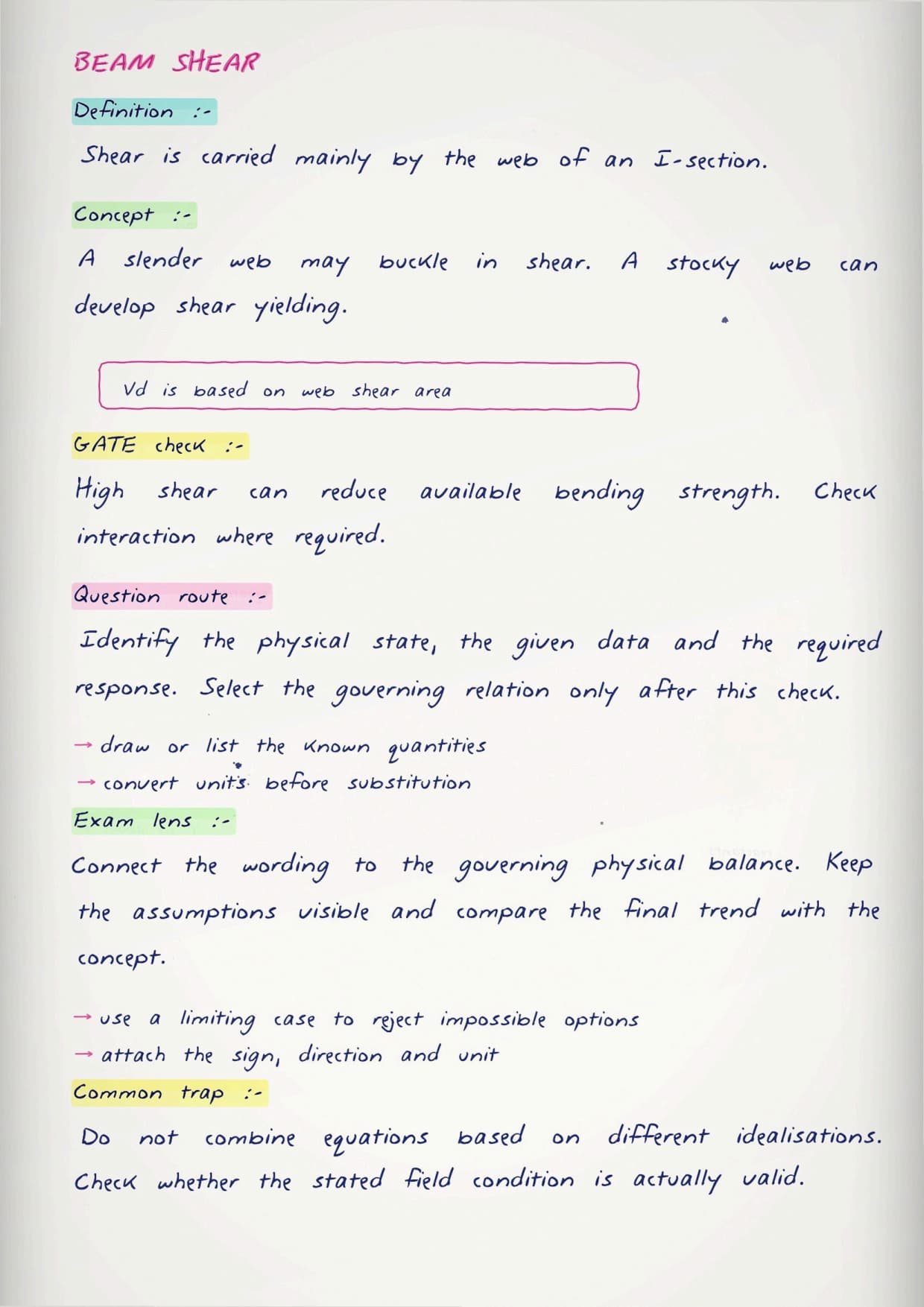

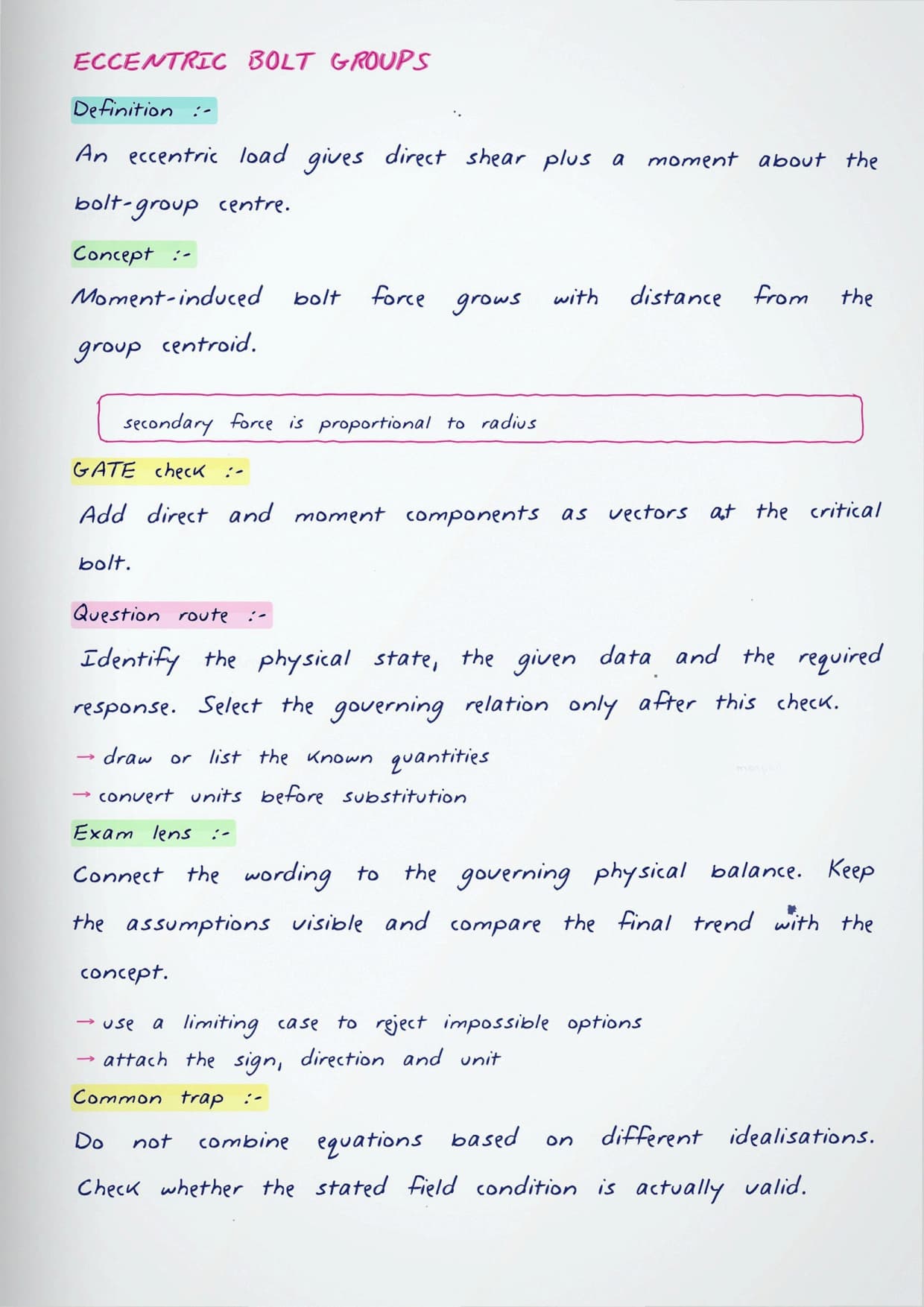

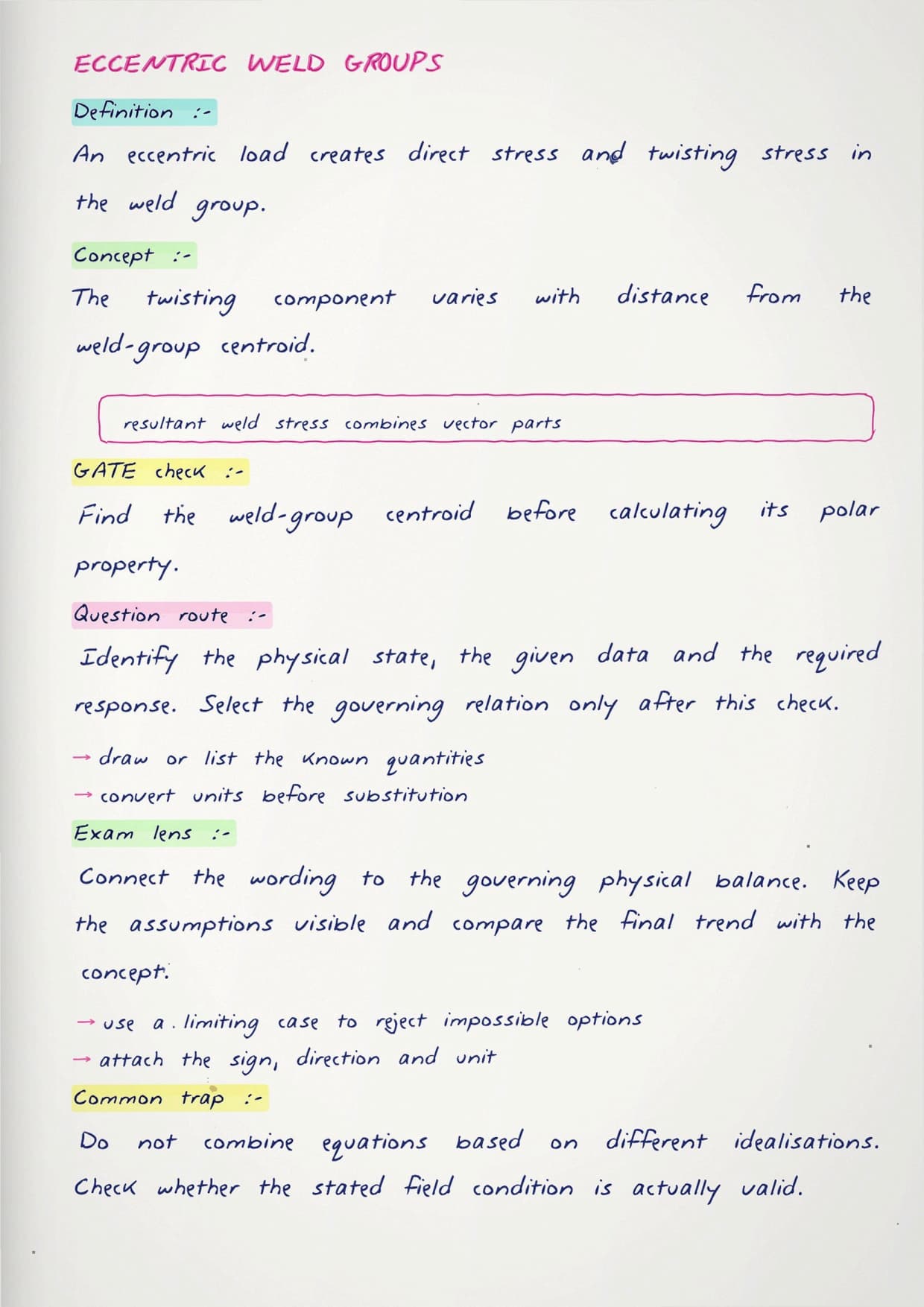

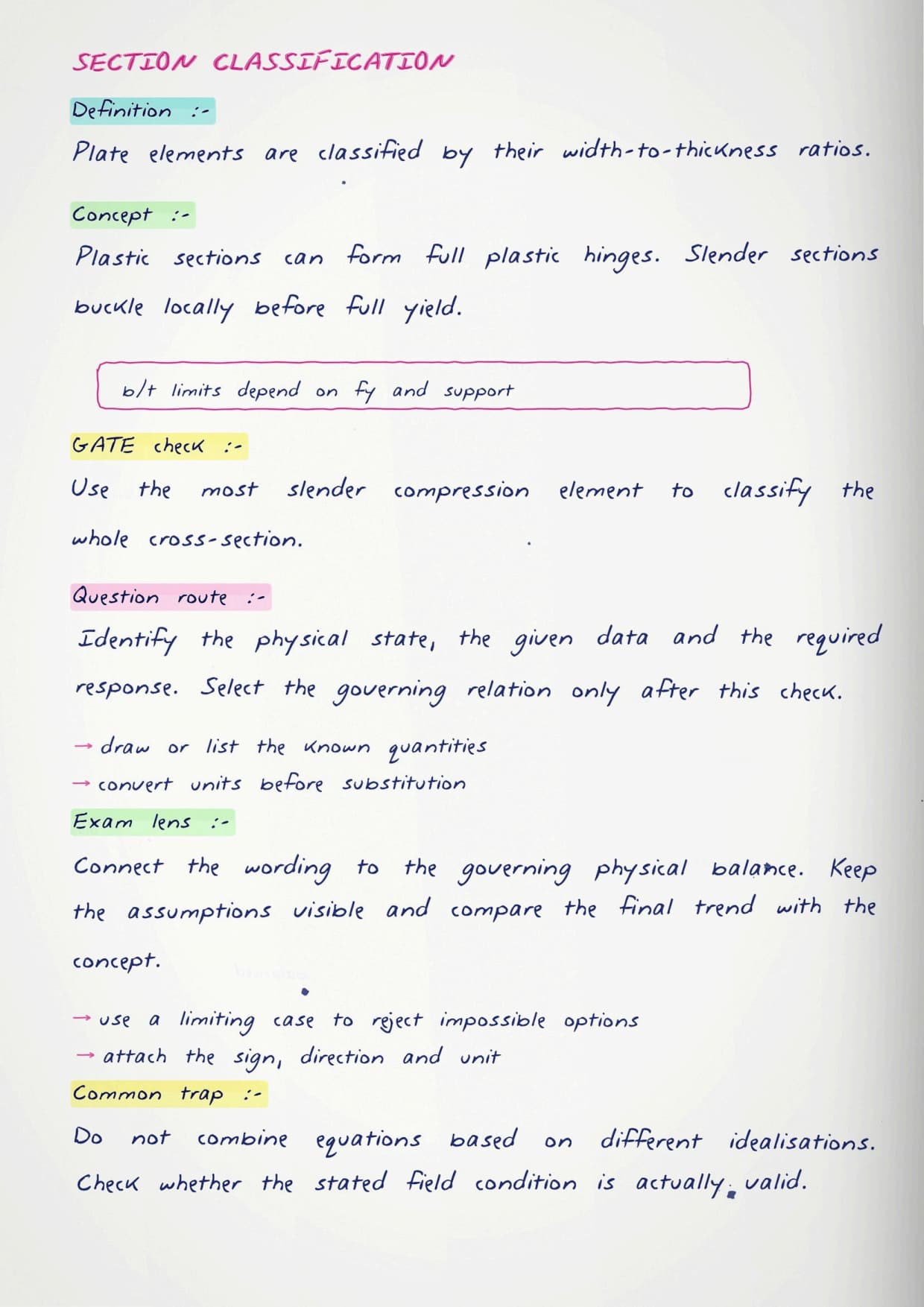

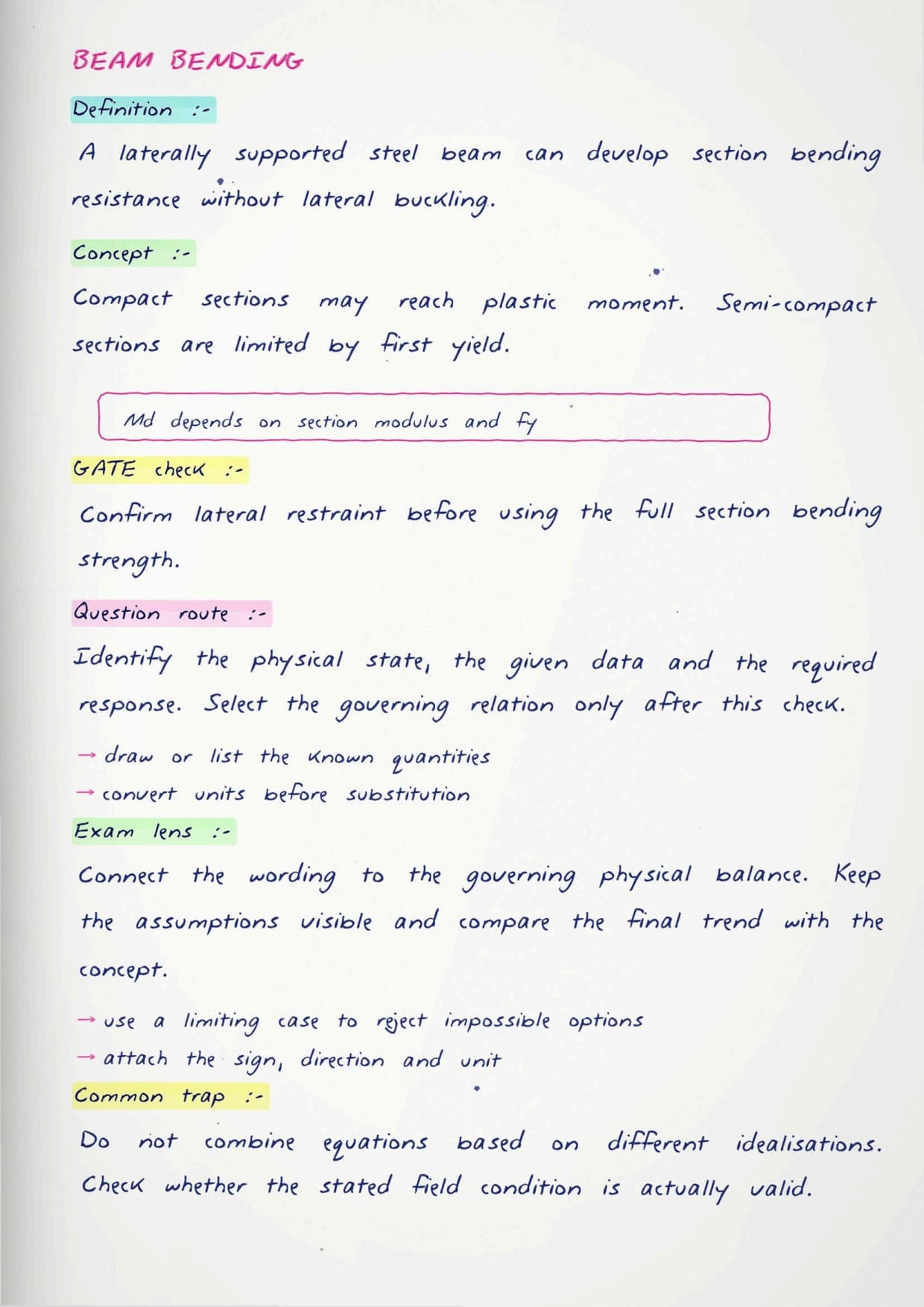

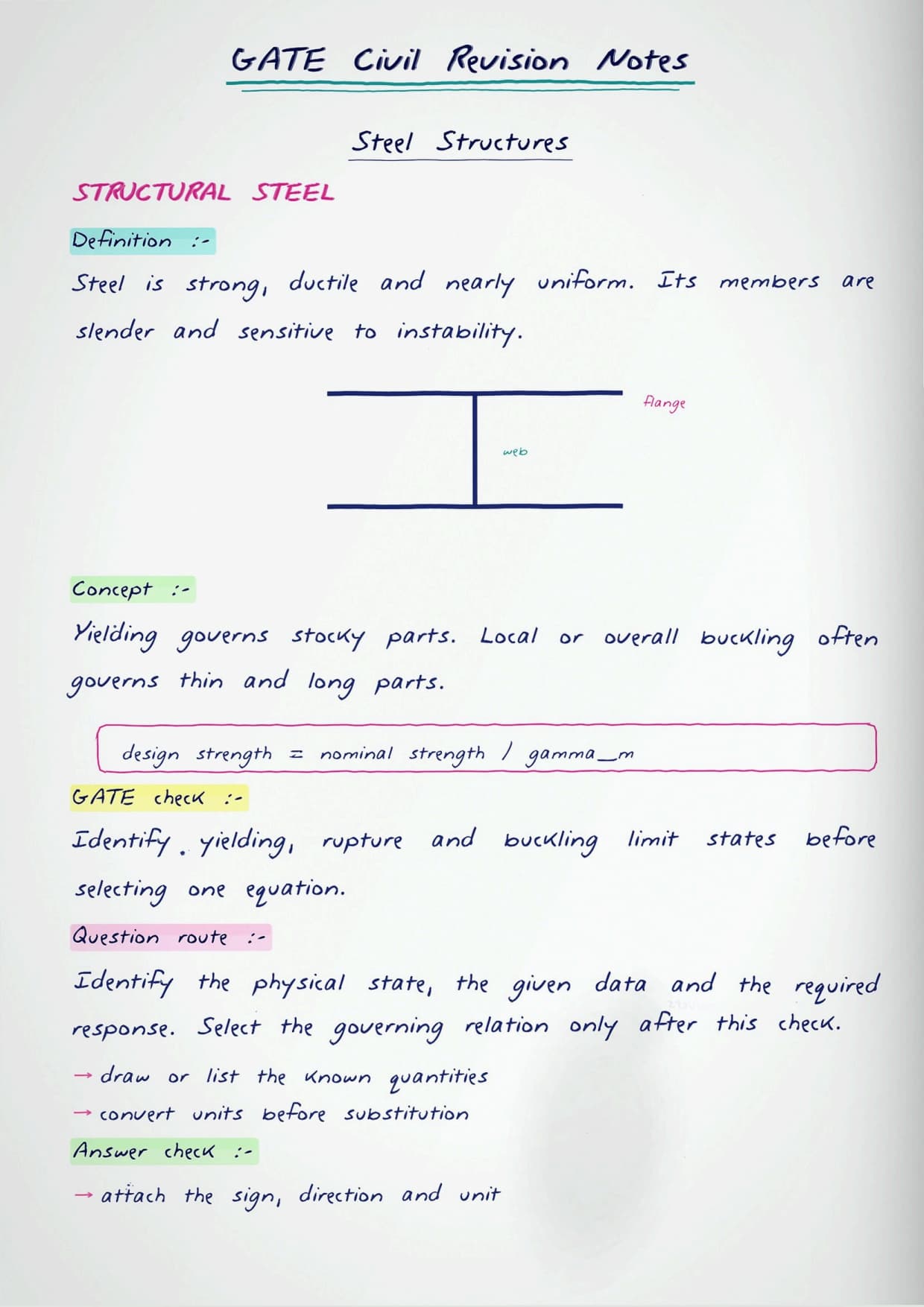

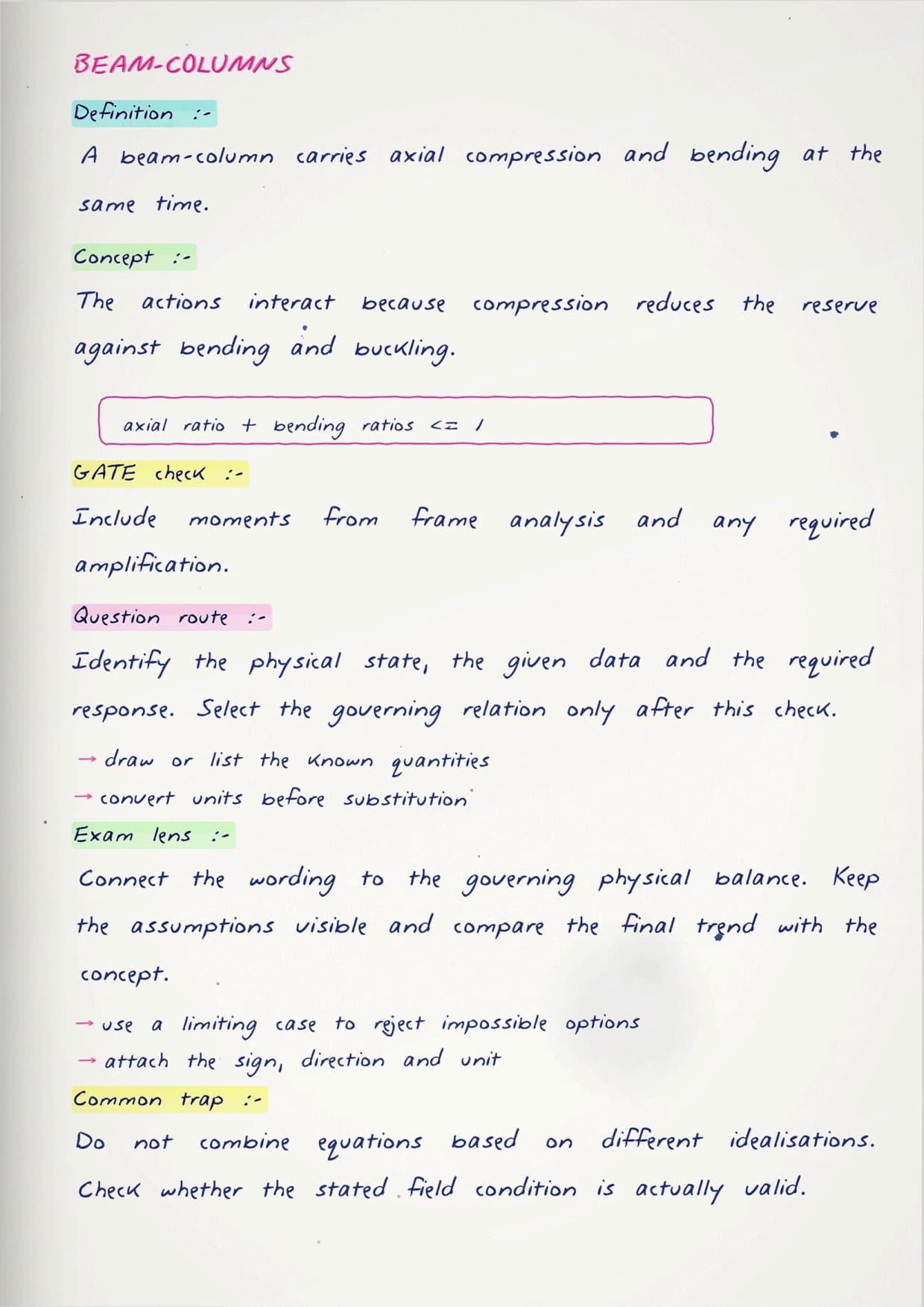

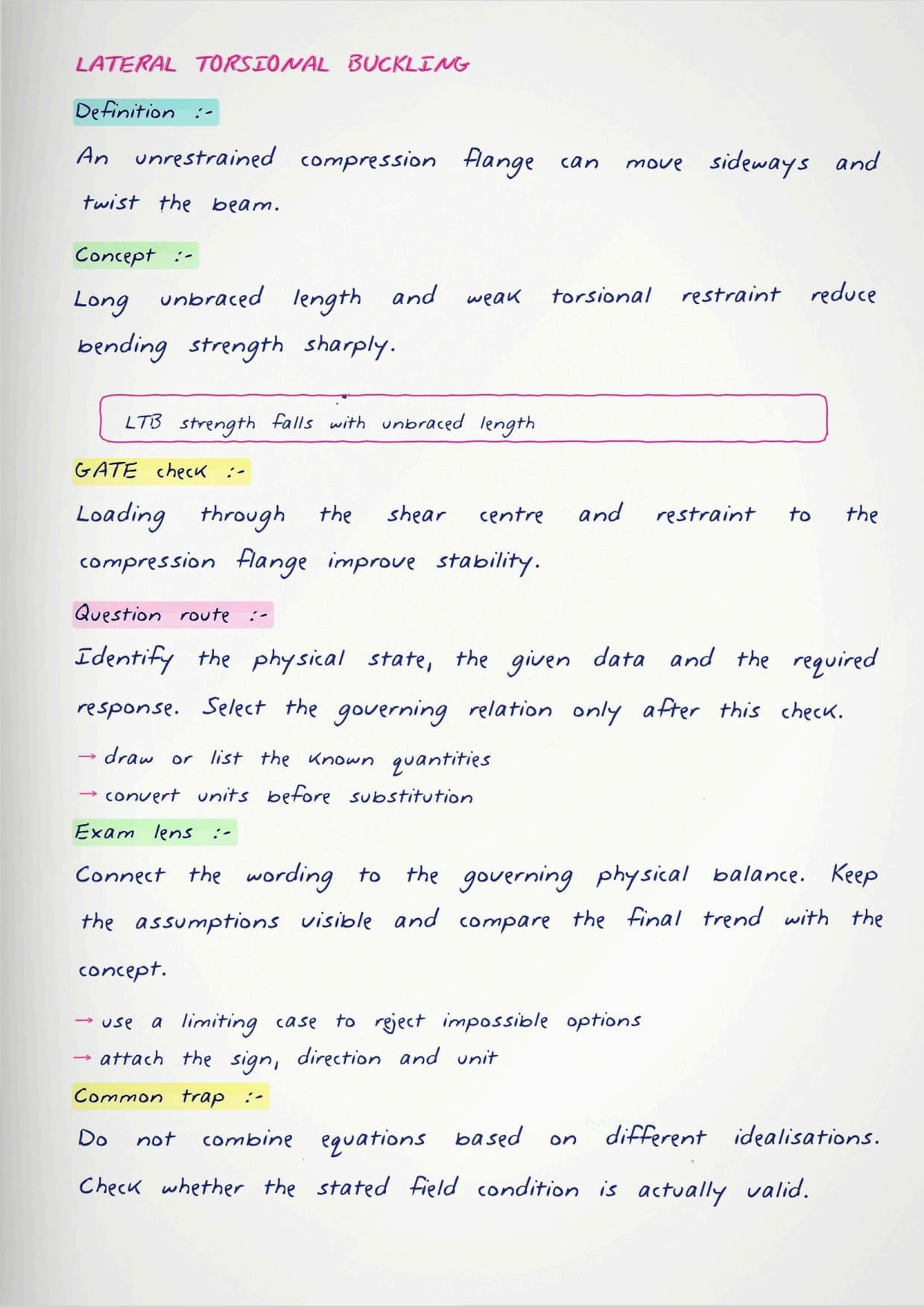

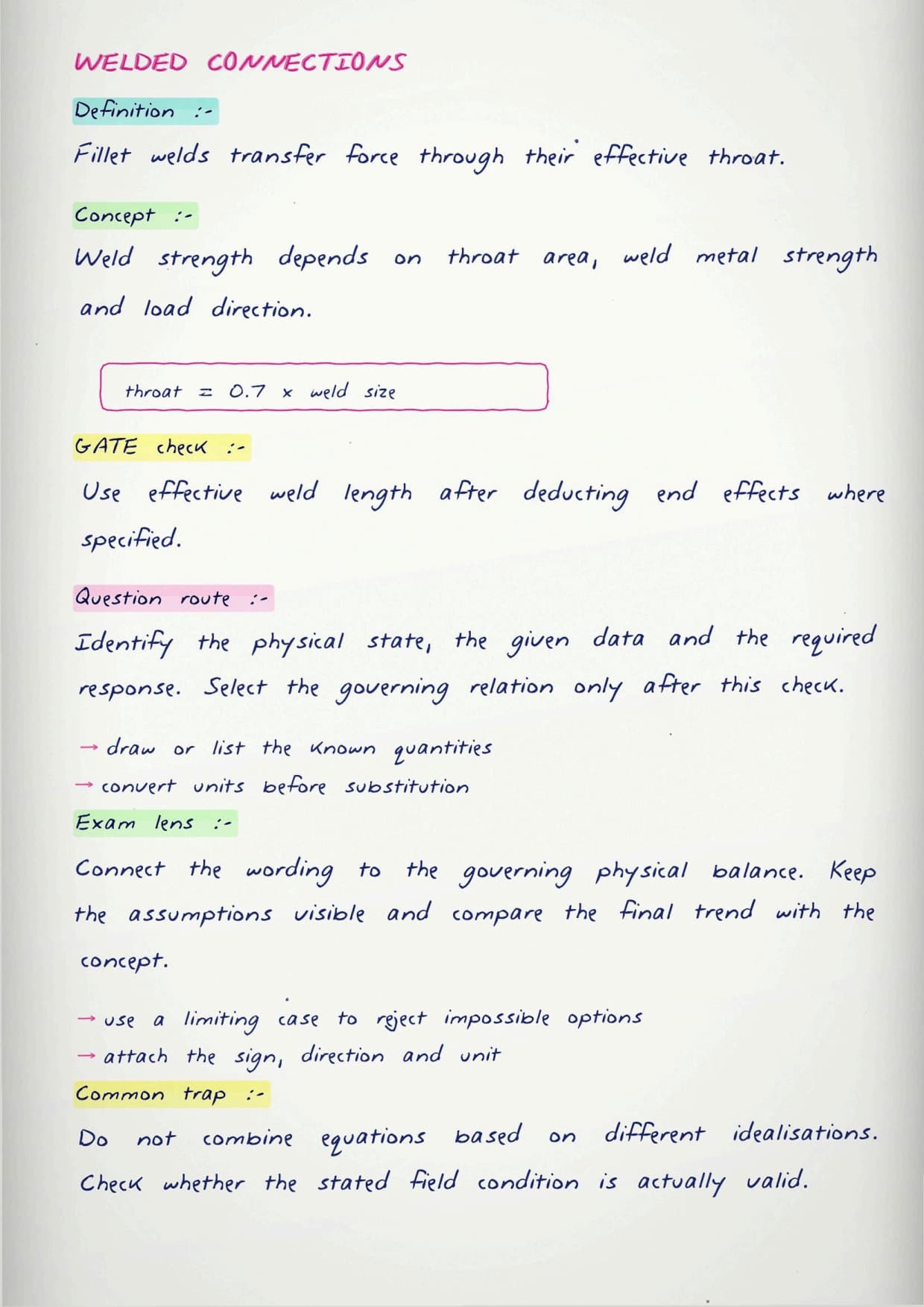

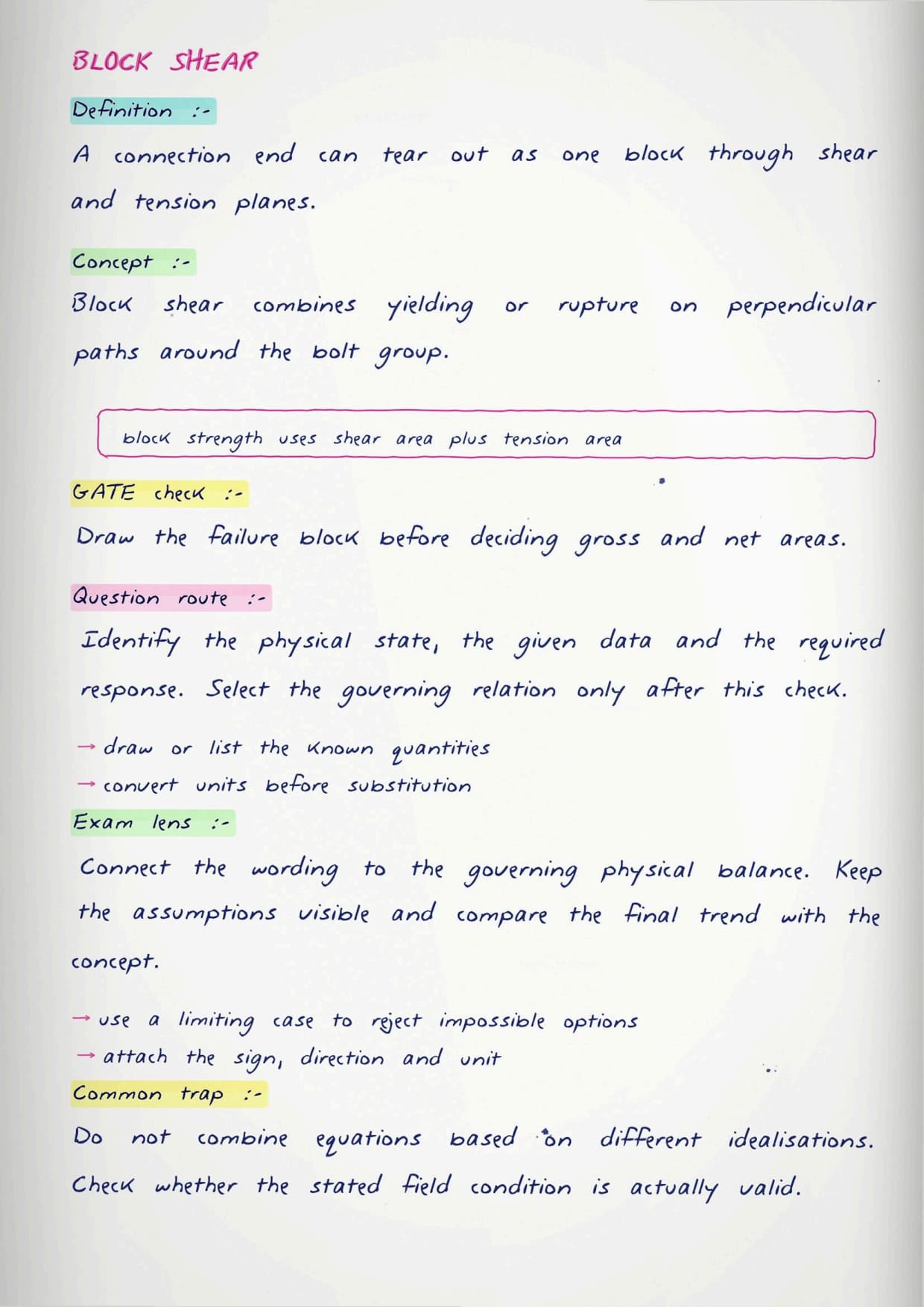

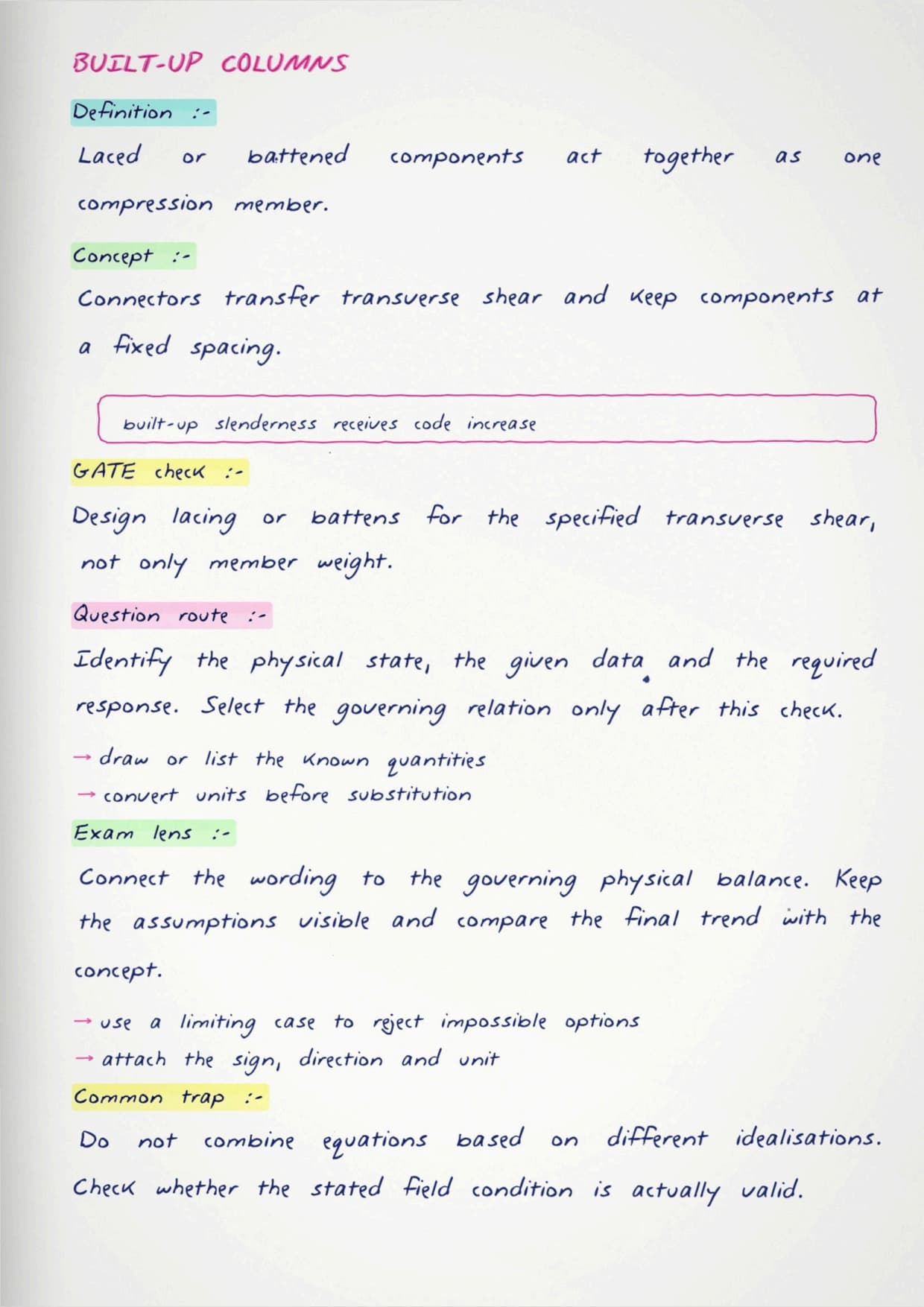

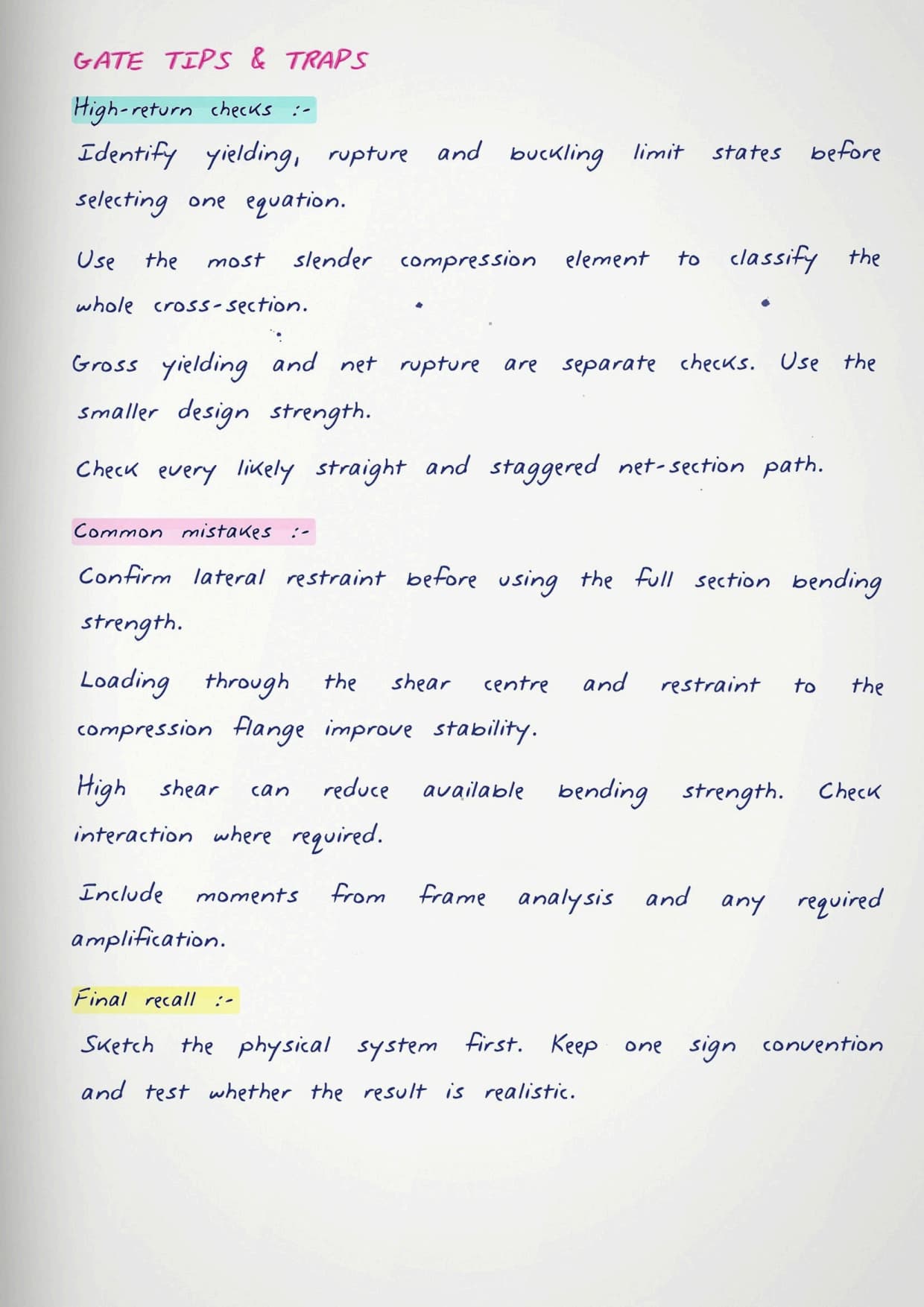

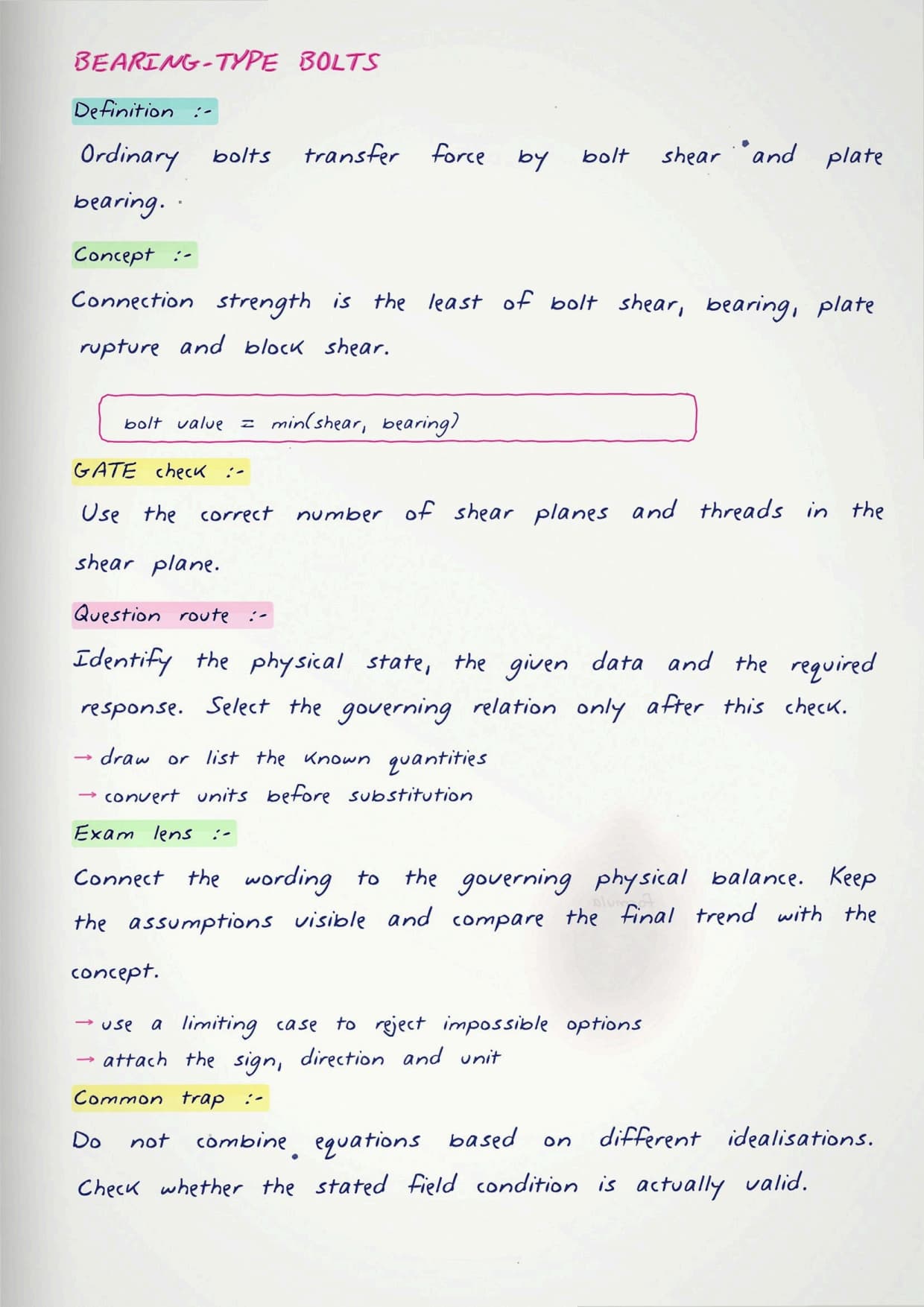

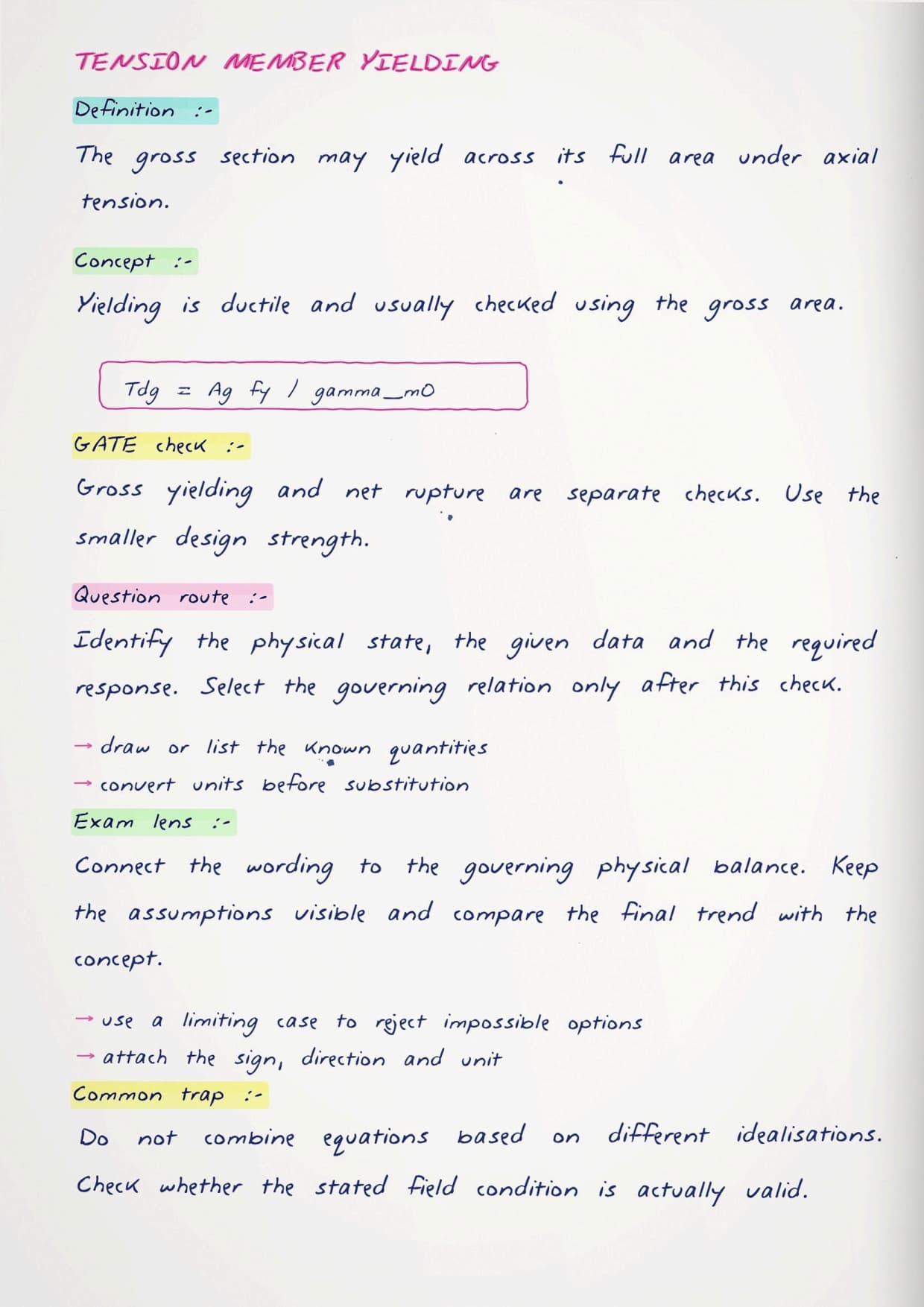

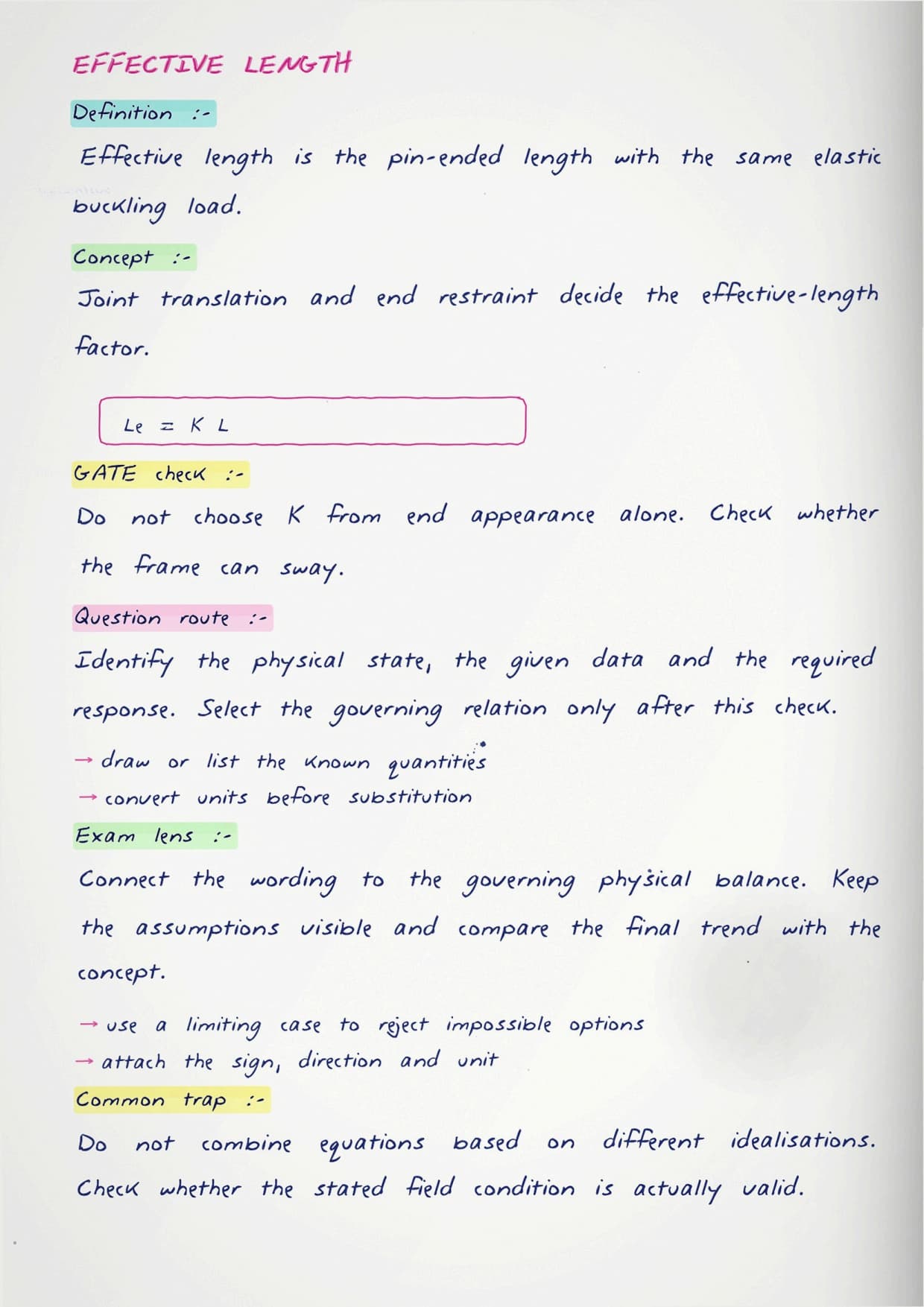

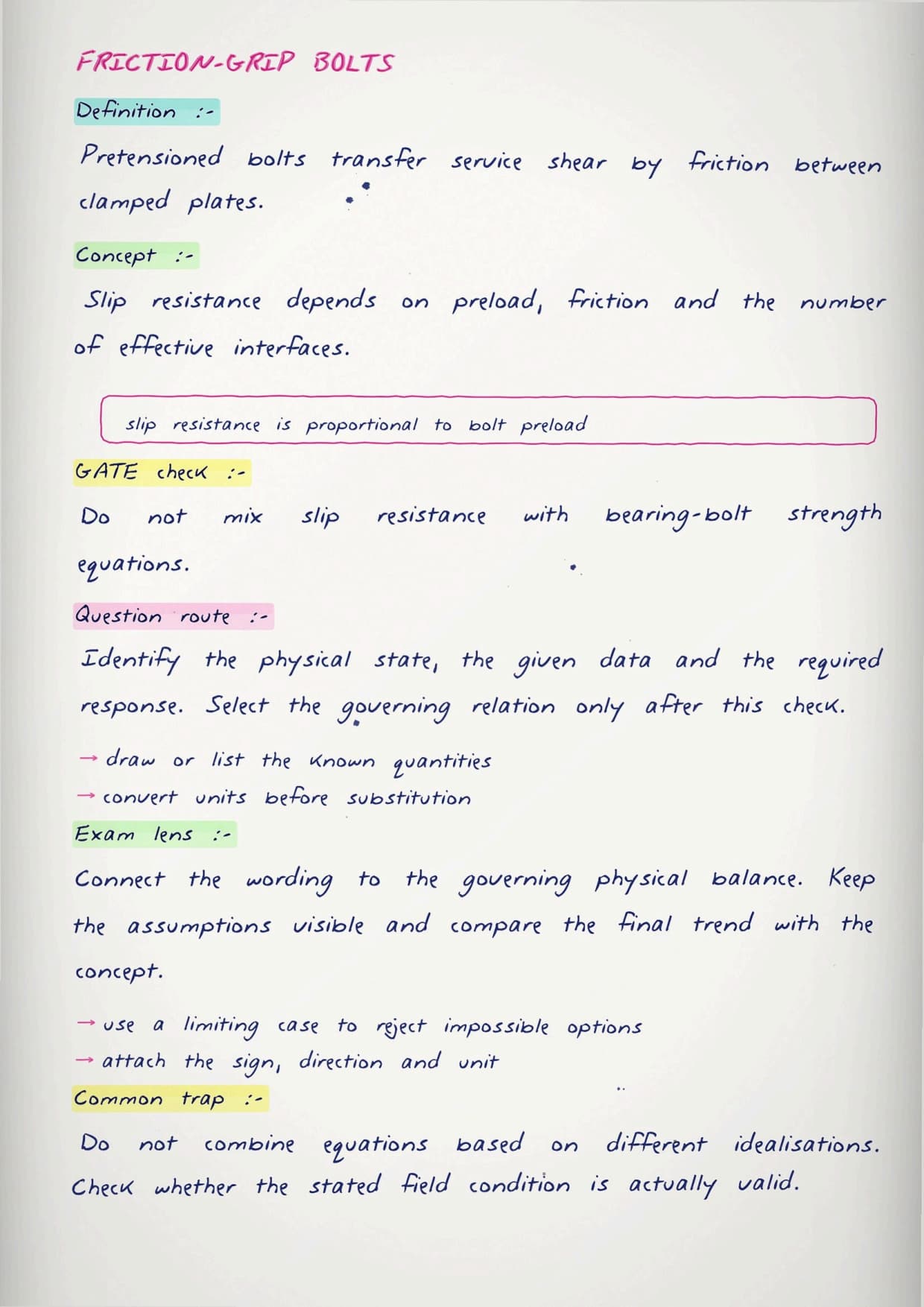

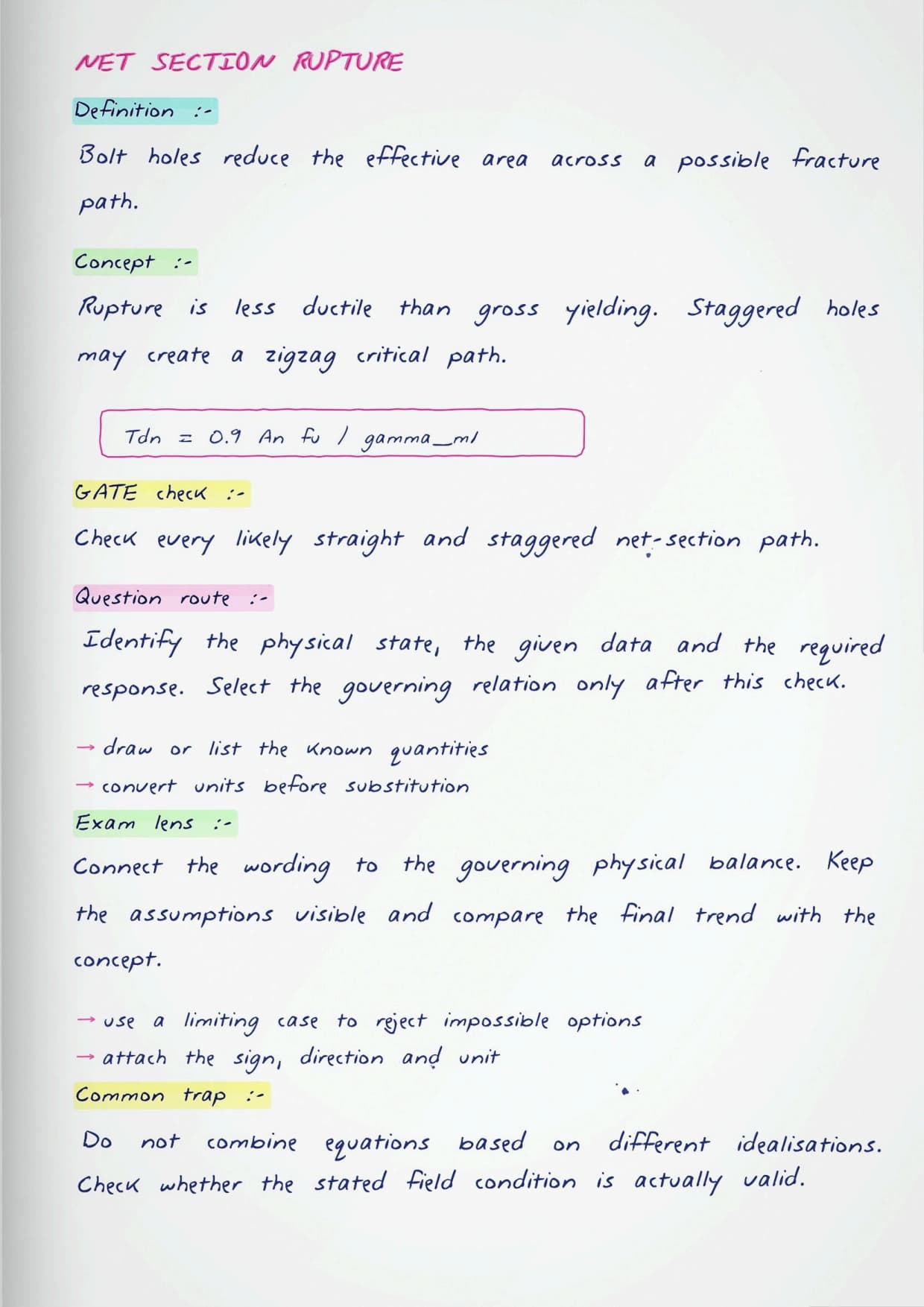

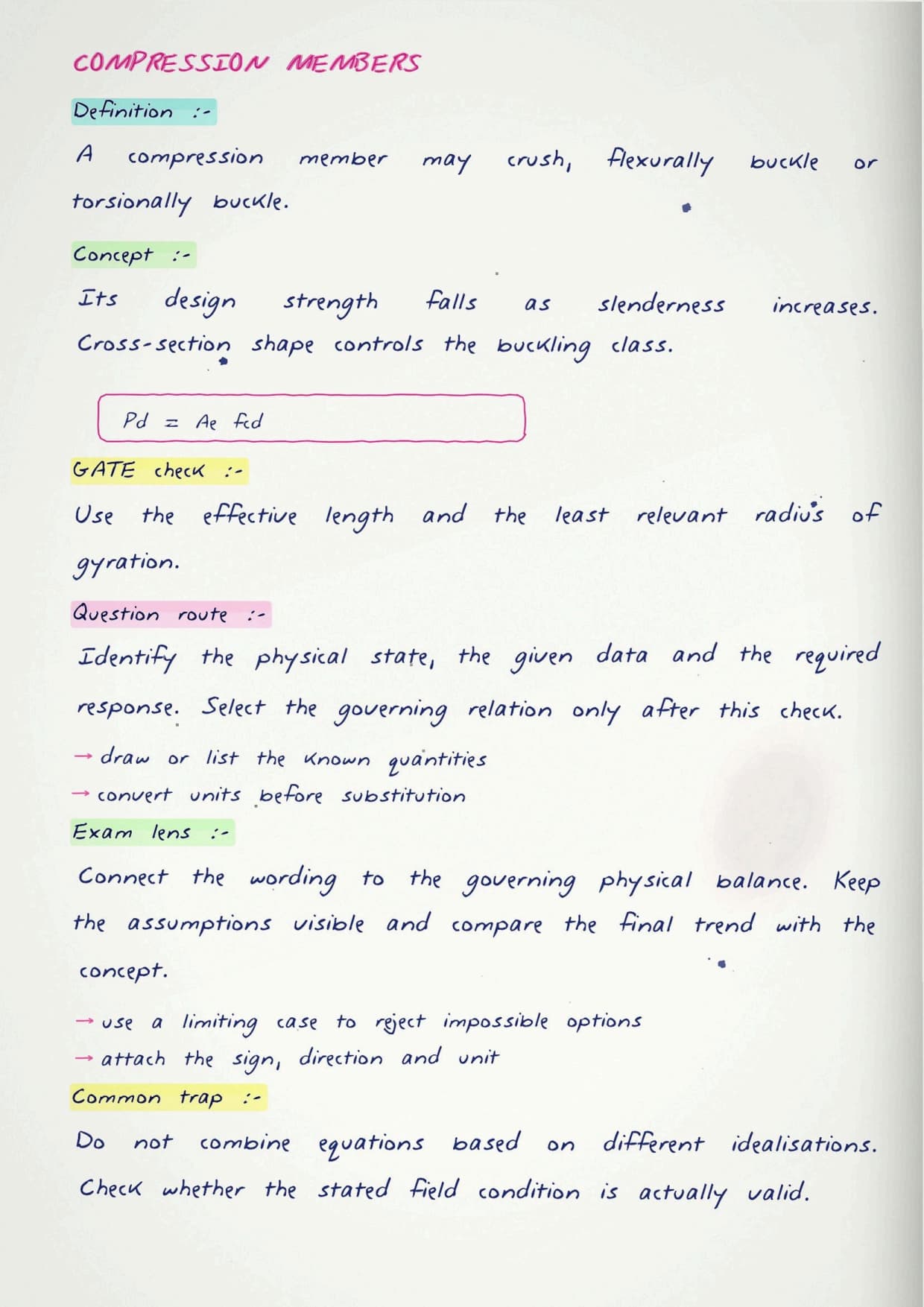

The notes carry hand-drawn diagrams for bolted and welded connections, beam-columns, plastic hinges, and column base plates, along with a formula sheet you can revise in the last few days before the exam. Every design check is solved step by step, so you follow the logic instead of memorising a formula on its own.

• Full Steel Structures syllabus in one PDF, in the standard GATE order.
• Key formulas and code rules for every topic, with the assumptions behind them.
• Hand-drawn diagrams and a formula sheet for fast last-day revision.

What These GATE Steel Structures Notes Cover

Steel Structures deals with how steel members and joints are designed so they carry load safely. The notes explain each design method in plain language, then give the formula and code check you apply in the exam. They stay close to the GATE Civil syllabus, so nothing extra is added and nothing important is left out.

• Clear meaning of working stress and limit state design methods.
• Key formulas for members and connections, with their limits of use.
• Hand-drawn figures for tension members, beams, and bolted joints.

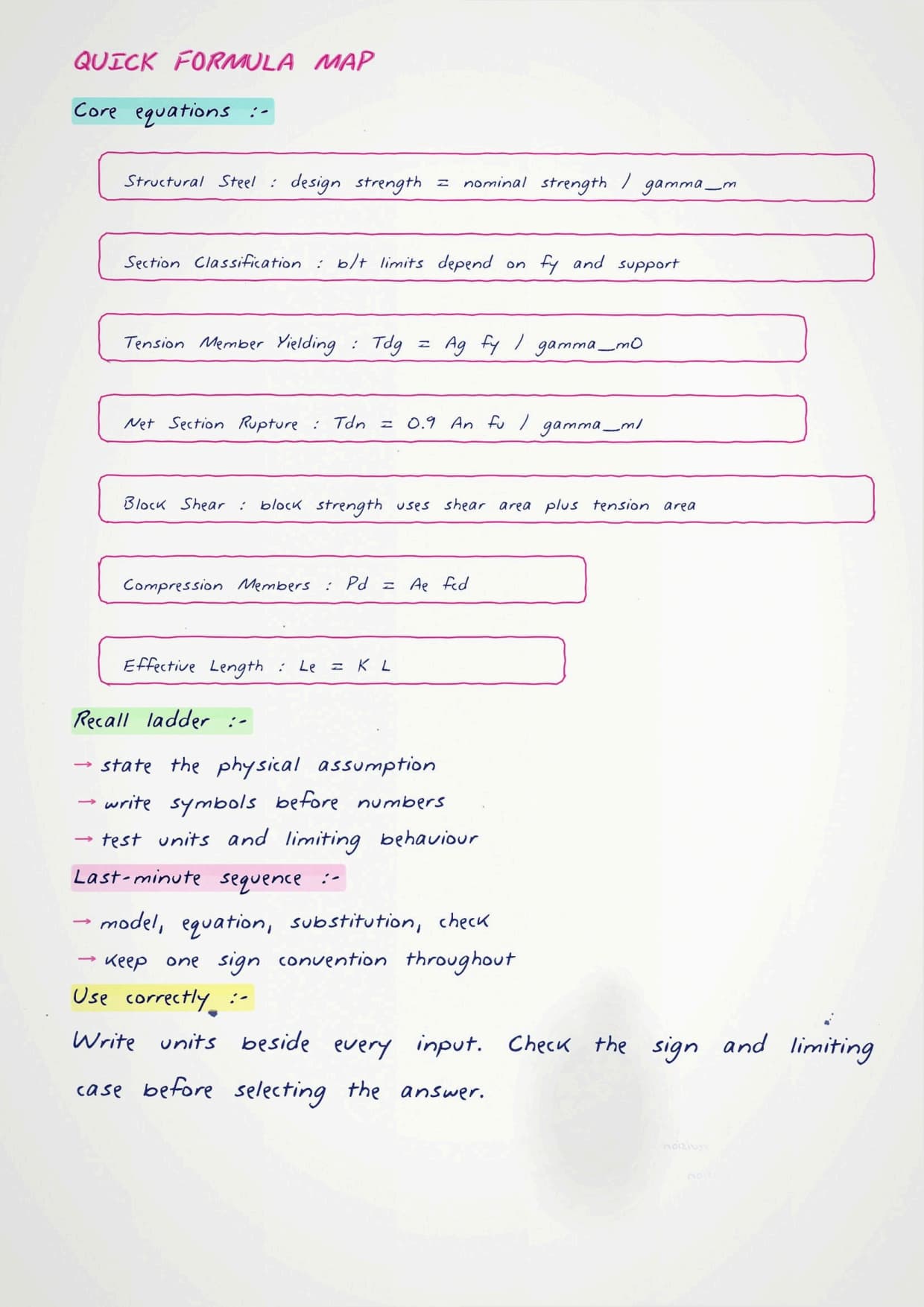

• A formula sheet that collects every design check in one place.

GATE Steel Structures Quick Revision

Source: GATE Wallah - ME, CE, XE, CH, PI & ES on YouTube

Topics Covered in GATE Steel Structures

The notes follow the standard GATE Civil order, starting from the two design philosophies and building up to connections and column bases. Each topic connects to the one before it, so the subject reads as a single flow rather than a set of separate checks. The full list below matches the official syllabus.

• Working stress and limit state design of steel structures.
• Tension members, net area, and the design tensile strength.
• Compression members, buckling, and effective length rules.
• Beams and beam-columns, with bending and combined action.
• Plastic analysis, plastic hinges, and the collapse load.
• Bolted connections, shear and bearing capacity of bolts.
• Welded connections, fillet and butt weld strength.
• Column bases, base plates, and anchor design.

How the Notes Are Organised

The material runs from the basics to the harder topics, so you can read it straight through or open a single page for a quick recap. Simpler topics such as tension members and bolt design come first, while heavier ones like plastic analysis and beam-columns come later once the basics are in place. A formula sheet near the end brings the key results together for revision.

Because each topic stands on its own, you can match it to whatever you are practising that day and revise only the part you need before an attempt.

How GATE Steel Structures Links to Other Subjects

Steel Structures does not stand alone in the GATE Civil paper. It draws member forces from Structural Analysis and stress ideas from Strength of Materials, so revising those subjects well makes this one easier. The notes point out these links as they come up.

• Strength of Materials gives the stress and bending basics used here.
• Structural Analysis supplies the member forces you then design for.
• It pairs with Reinforced Concrete Structures as the other half of design.
• Plastic analysis ideas return in indeterminate structure questions.

Important Topics in GATE Steel Structures

A few topics appear in the GATE paper almost every year and carry most of the subject's marks. If your time is short, revise these first and make sure you can solve them quickly and without mistakes, since they are the surest source of marks.

• Bolted and welded connections, near-certain every year.
• Tension member net area and rupture strength.
• Compression members and effective length checks.
• Plastic analysis and the shape factor of sections.
• Common traps: net area uses the staggered path, and weld throat is 0.7 times the size.

How to Prepare GATE Steel Structures with Handwritten Notes

Steel Structures rewards steady problem solving more than reading, so use the notes as a theory and formula base beside daily practice. Read a topic, note its code rule, then solve a few previous year questions on it before you move on. Return to the notes before mock tests to refresh the ideas quickly.

• First read: cover every topic once to build the base.
• Second pass: focus on connections, tension members, and plastic analysis.
• Solve previous year questions topic by topic beside the notes.
• Final week: revise the formula sheet and the code rules page.

Why These Notes Help You Score Better

Handwritten notes are quick to scan and easy to recall under exam pressure, which is why they work well for revision in the final weeks. A short, visual page is faster to go through than a full textbook chapter, and each diagram is right next to the result it explains, so the link stays clear.
