GATE Civil Strength of Materials Handwritten Notes

Strength of Materials is one of the highest-scoring and most predictable subjects in GATE Civil Engineering, usually worth about 6 to 8 marks in the paper. It belongs to the Structural Engineering section and its ideas return in Structural Analysis, Reinforced Concrete Structures, and Steel Structures. These handwritten notes cover the full GATE syllabus in a compact, exam-focused form.

The notes carry hand-drawn diagrams for stress elements, beams under load, SFD and BMD sketches, and Mohr's circle, along with a formula sheet you can revise in the last few days before the exam. Every major result is solved step by step, so you follow the logic instead of memorising a formula on its own.

• Full Strength of Materials syllabus in one PDF, in the standard GATE order.
• Key formulas for every topic, with the assumptions behind them.
• Hand-drawn diagrams and a formula sheet for fast last-day revision.

What These GATE Strength of Materials Notes Cover

Strength of Materials studies how a member deforms and fails under load, and how to size a section so it stays safe. The notes explain each idea in plain words and then give the formula you apply in the exam, with the conditions under which it holds. They stay close to the GATE Civil syllabus, so nothing important is left out.

• Clear meaning of each term, with the formula that follows from it.
• Key formulas given with units and their limits of use.
• Hand-drawn figures for stress, strain, beams, and shafts.

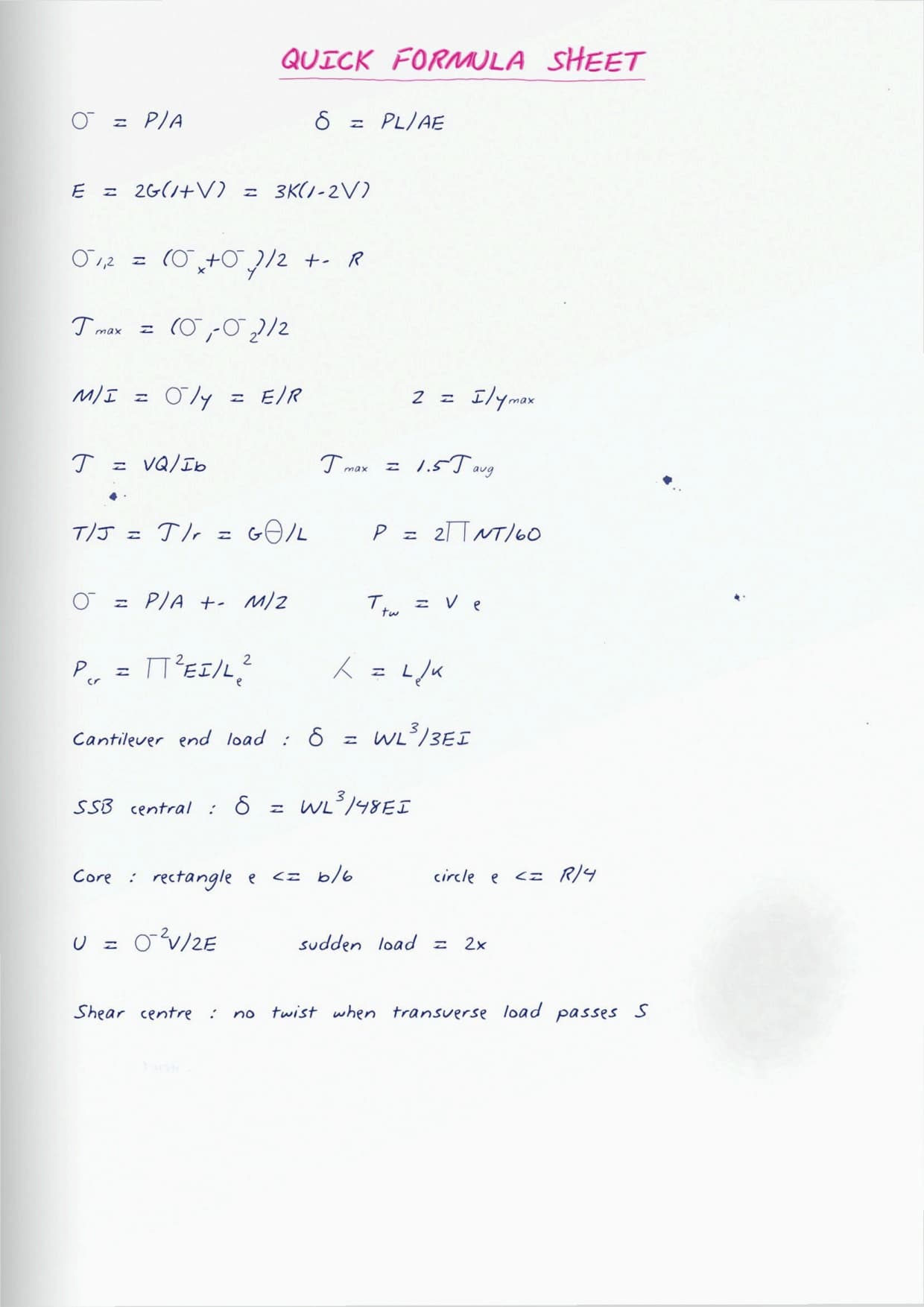

• A formula sheet that collects every result in one place.

GATE Strength of Materials Quick Revision

Source: GATE Wallah - ME, CE, XE, CH, PI & ES on YouTube

Topics Covered in GATE Strength of Materials

The notes follow the standard GATE Civil order, starting from simple stress and strain and building up to columns and strain energy. Each topic connects to the one before it, so the subject reads as a single flow rather than a set of loose formulas. The list below matches the official syllabus.

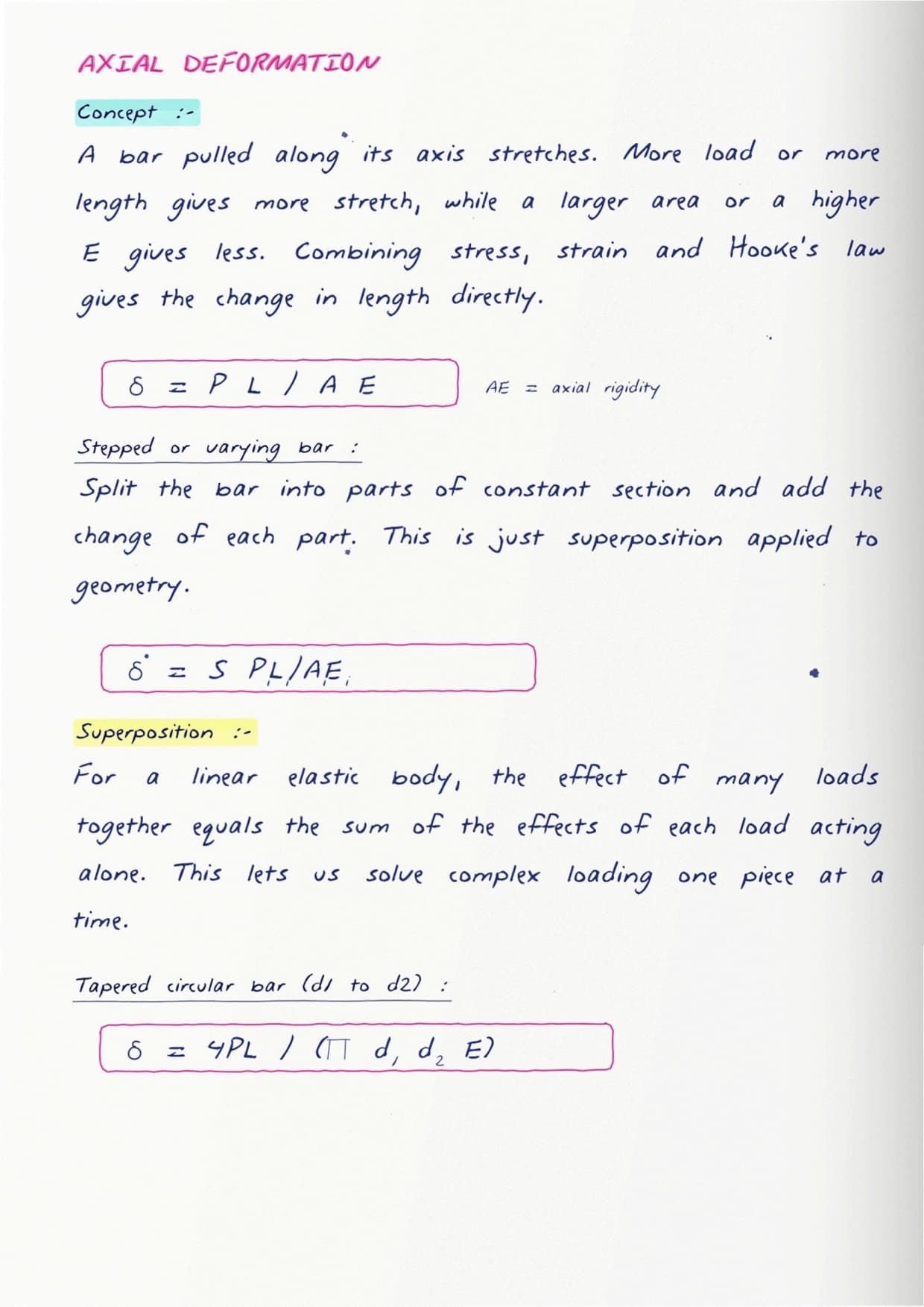

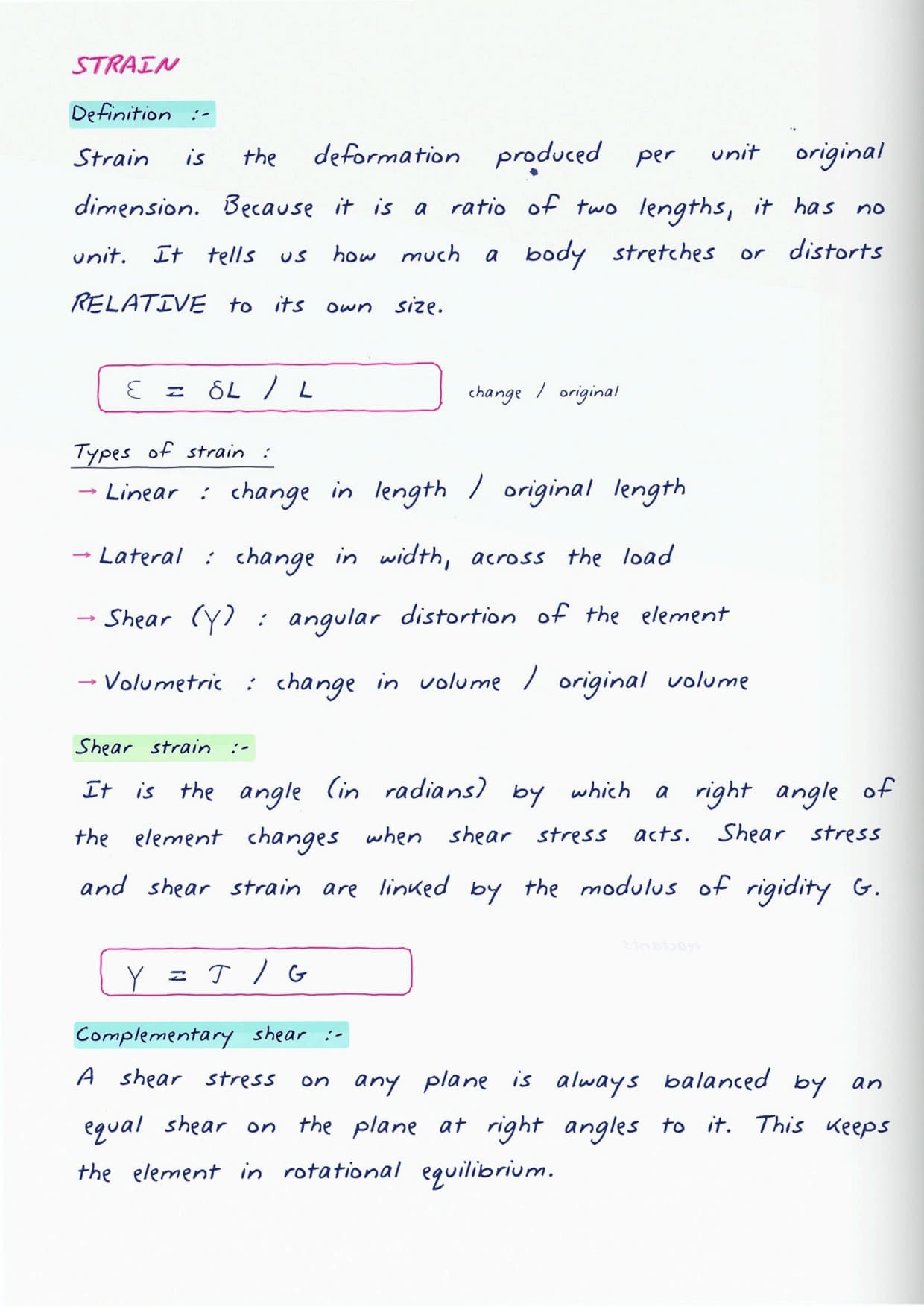

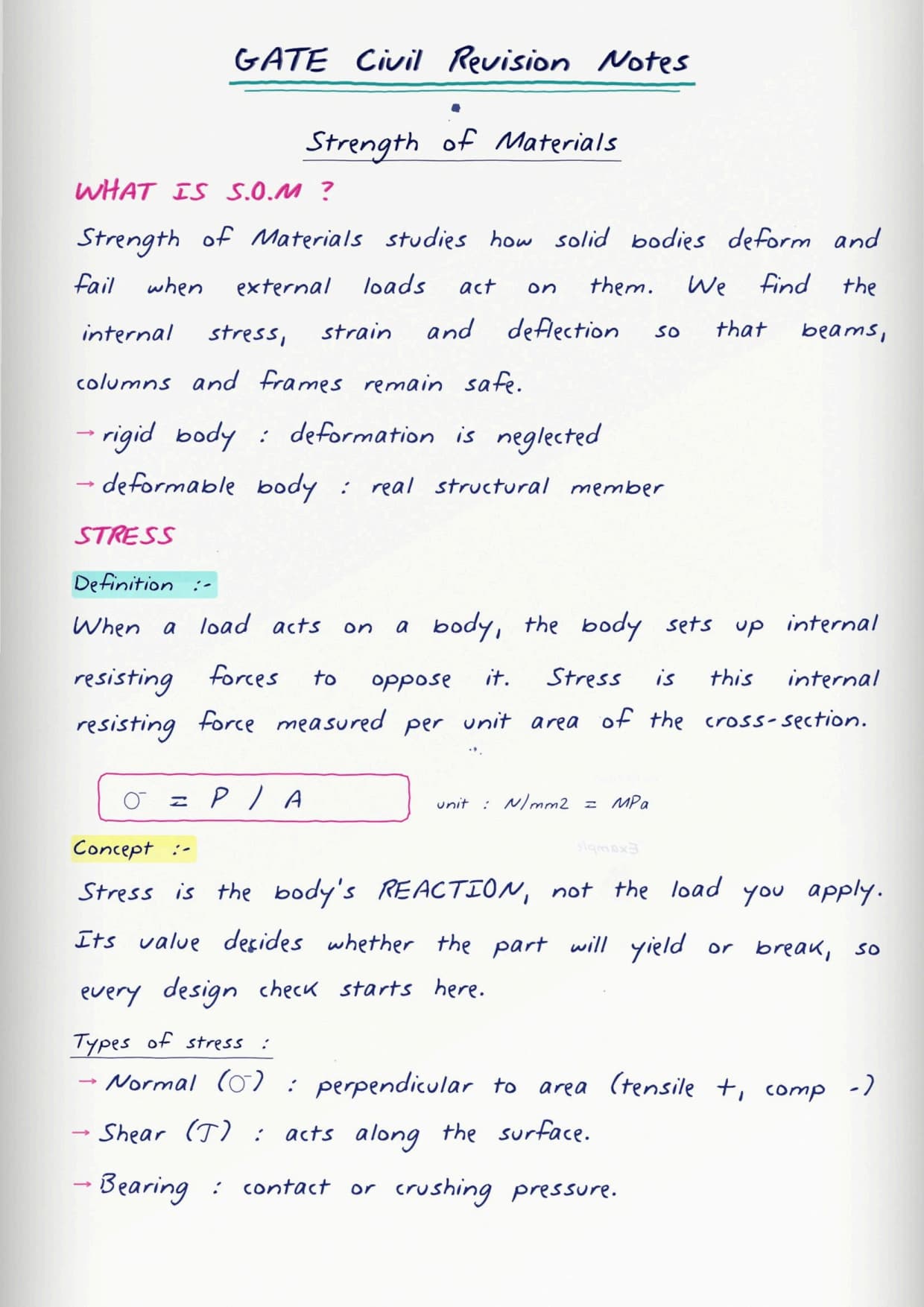

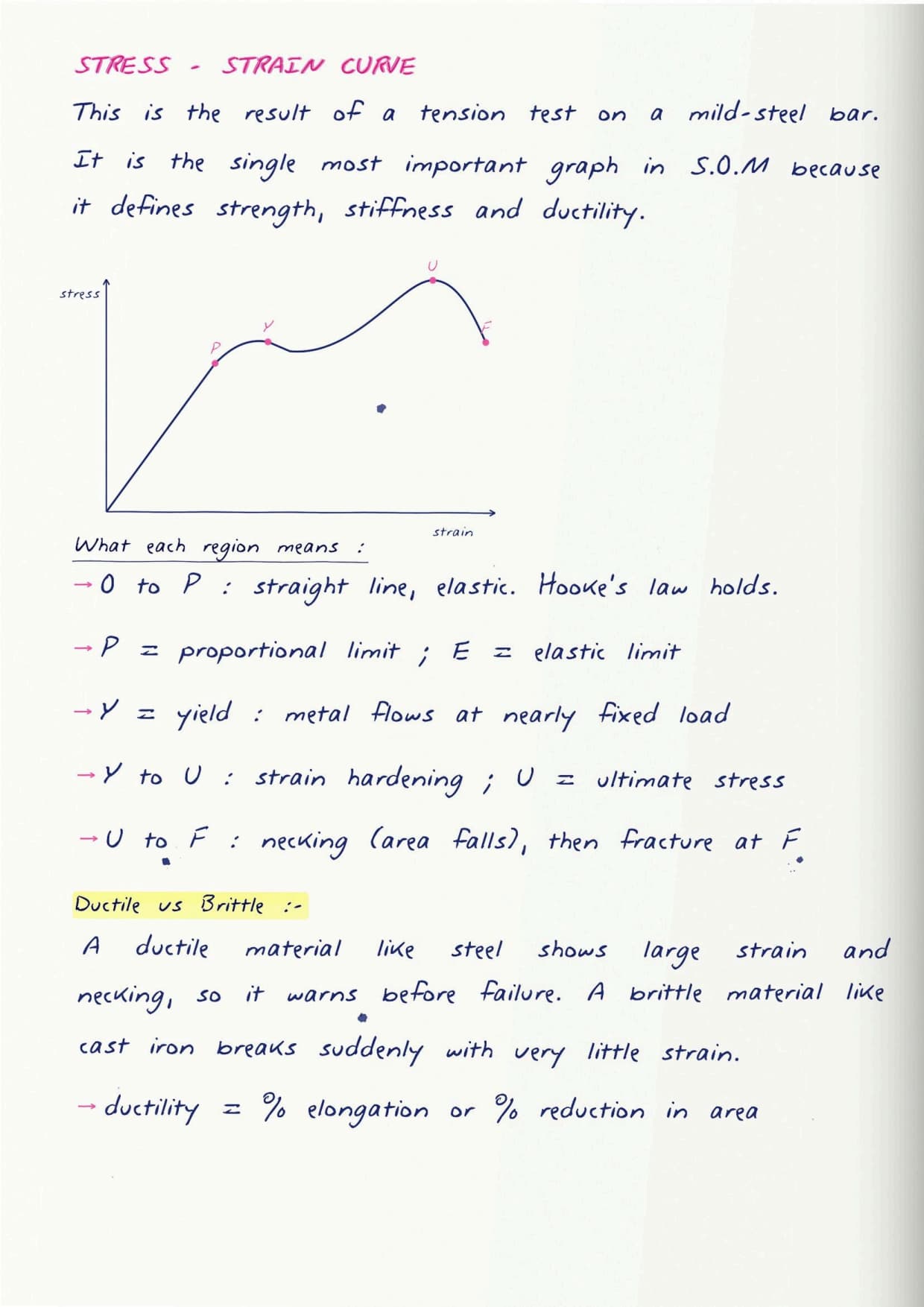

• Simple stress and strain, with the stress-strain curve for mild steel.

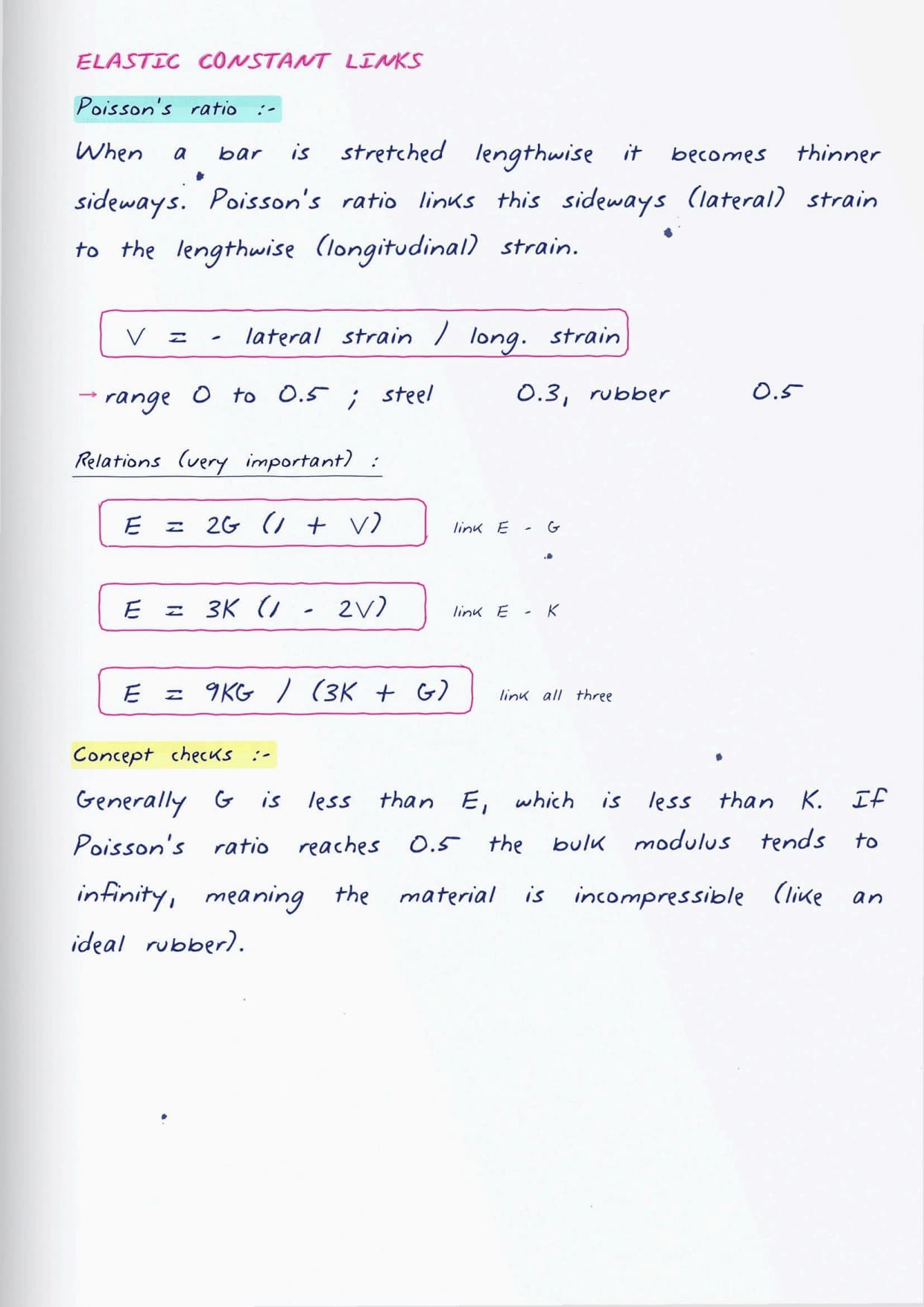

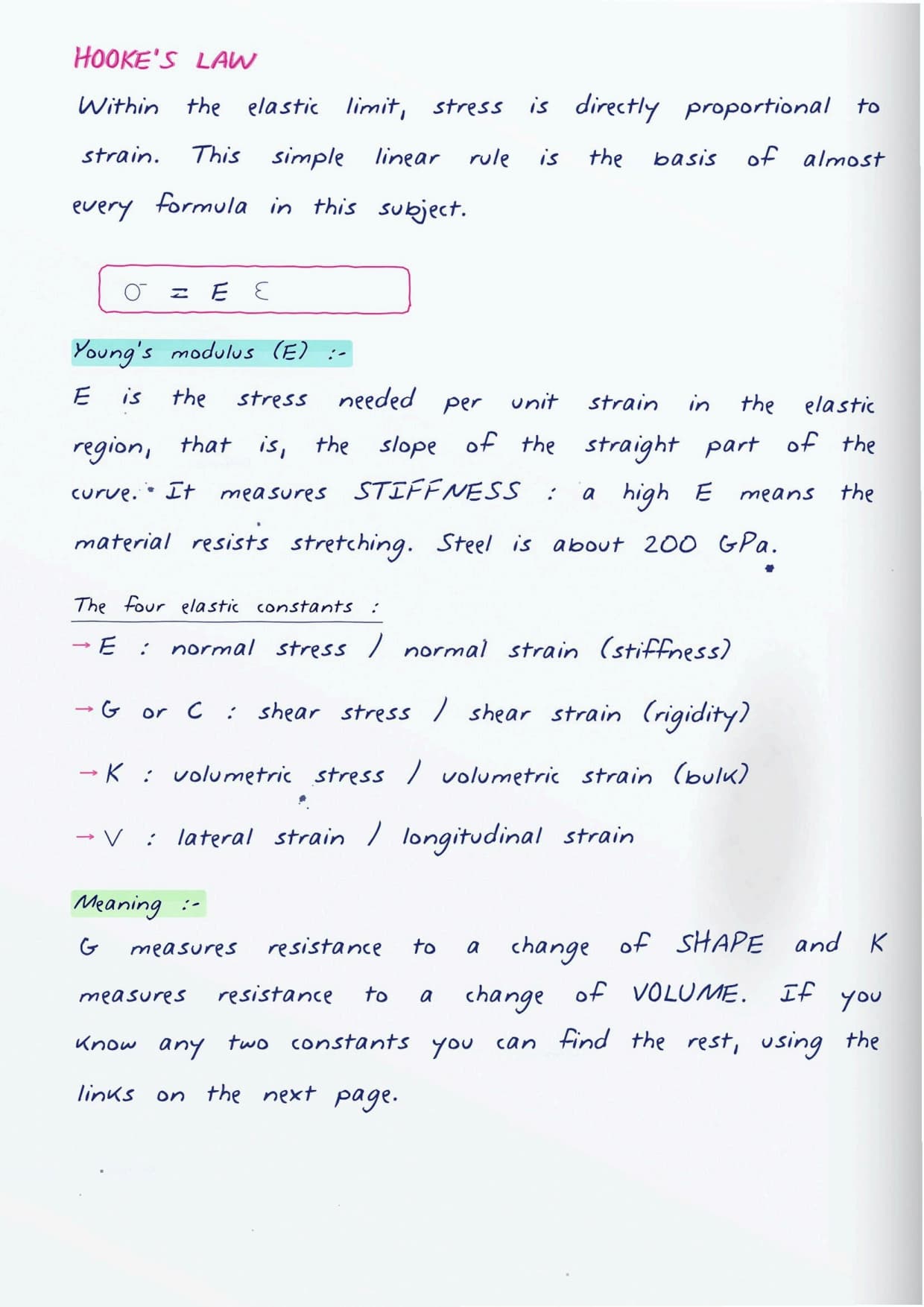

• Elastic constants (E, G, K) and Poisson's ratio, with the linking relations.

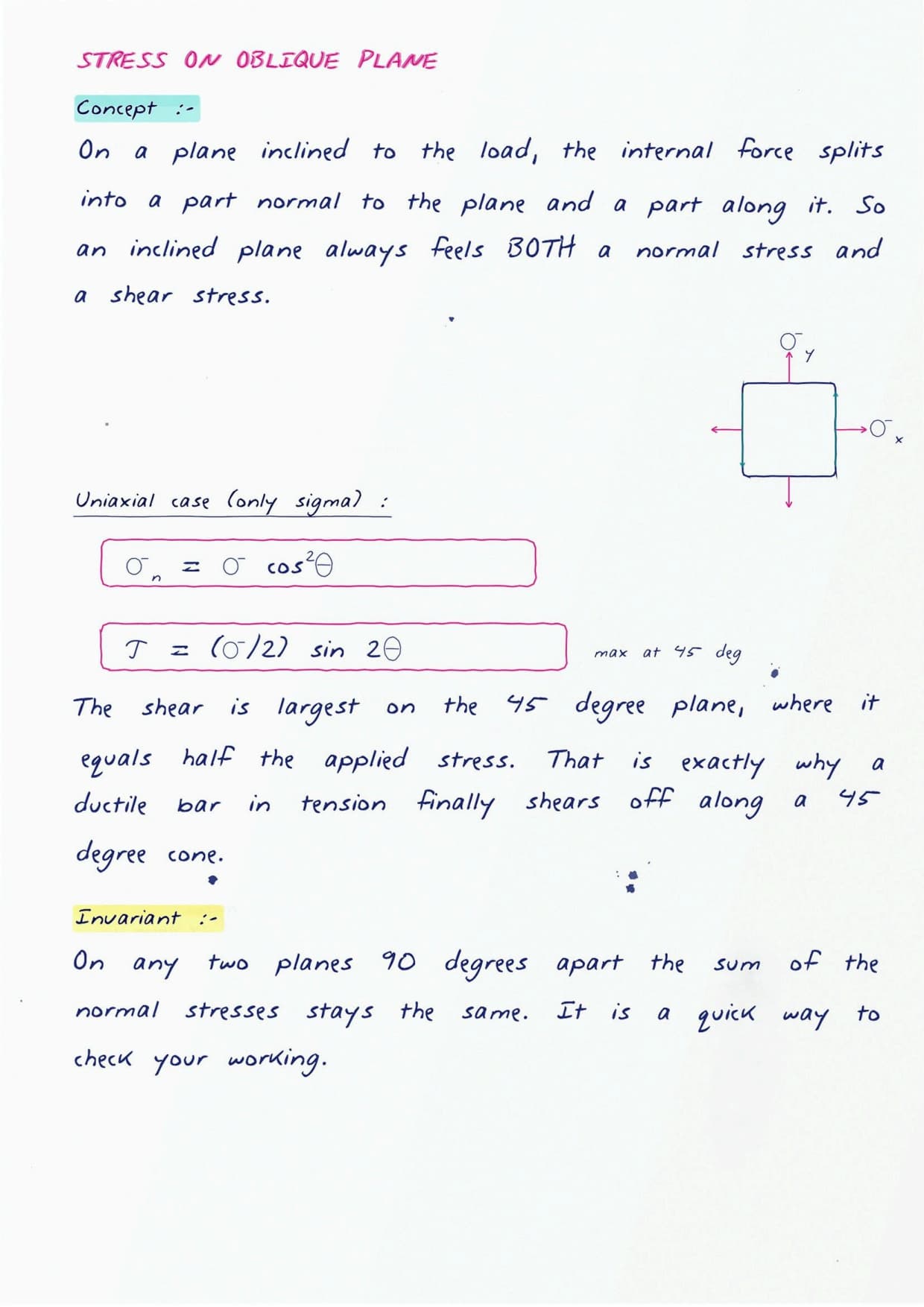

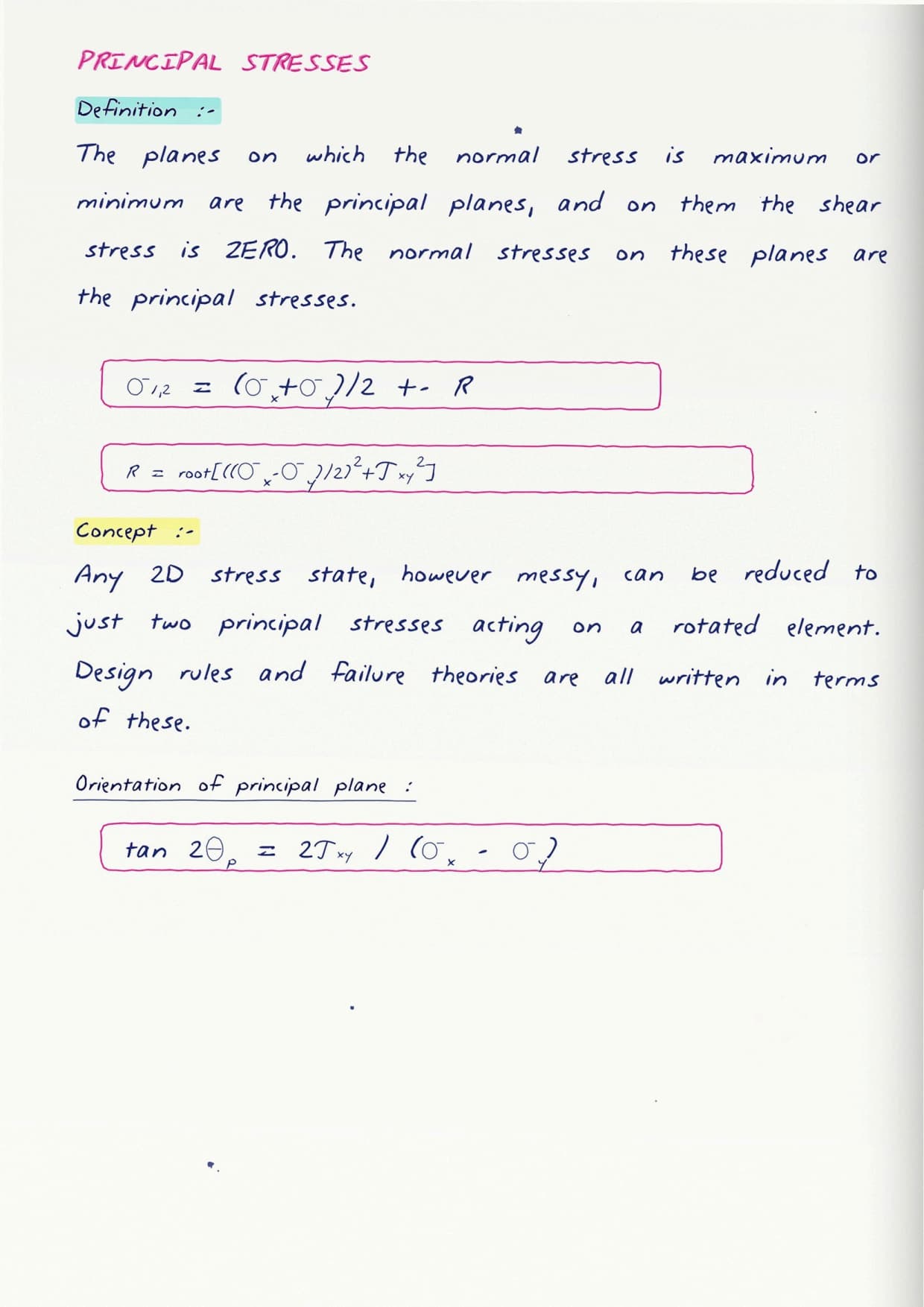

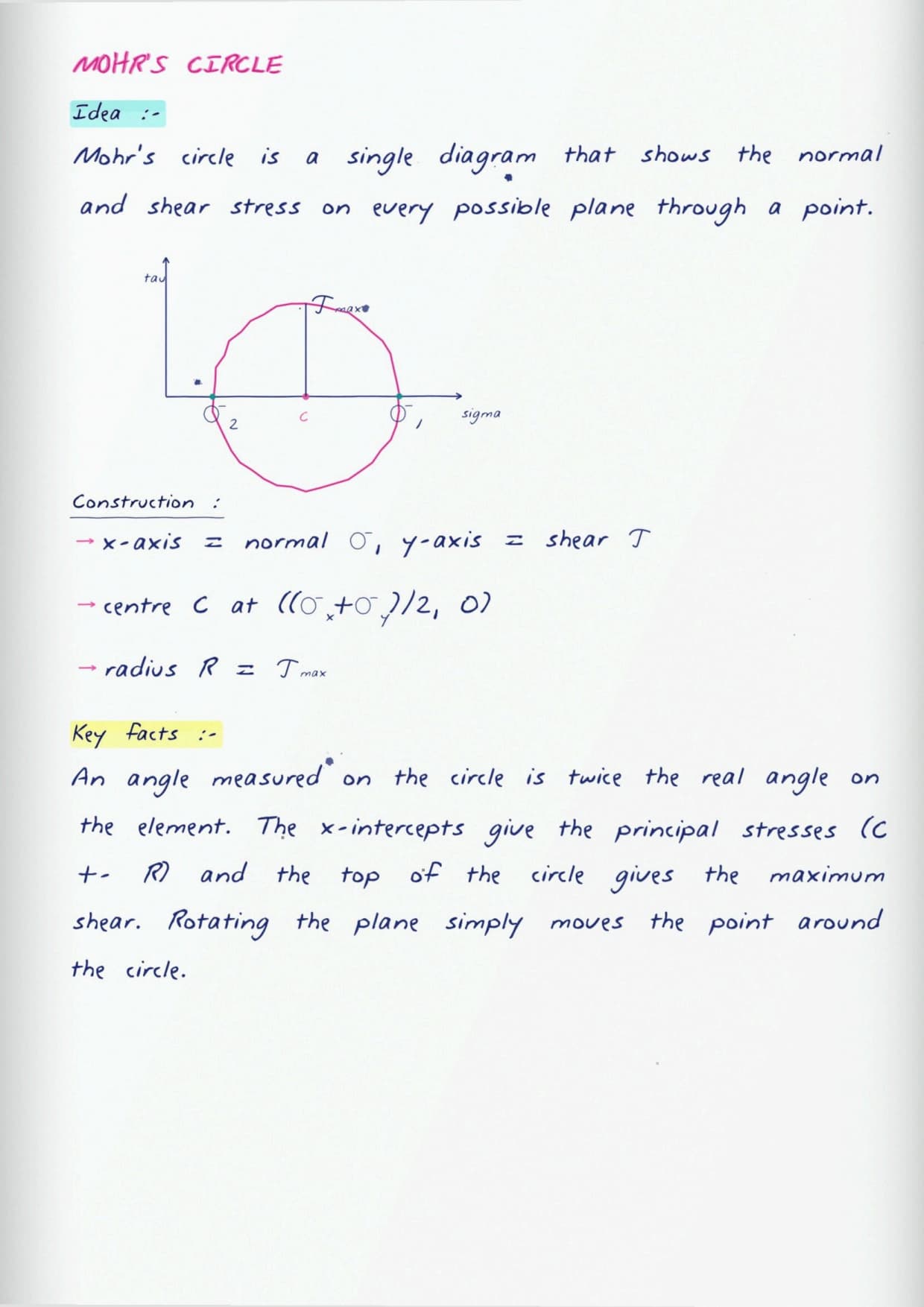

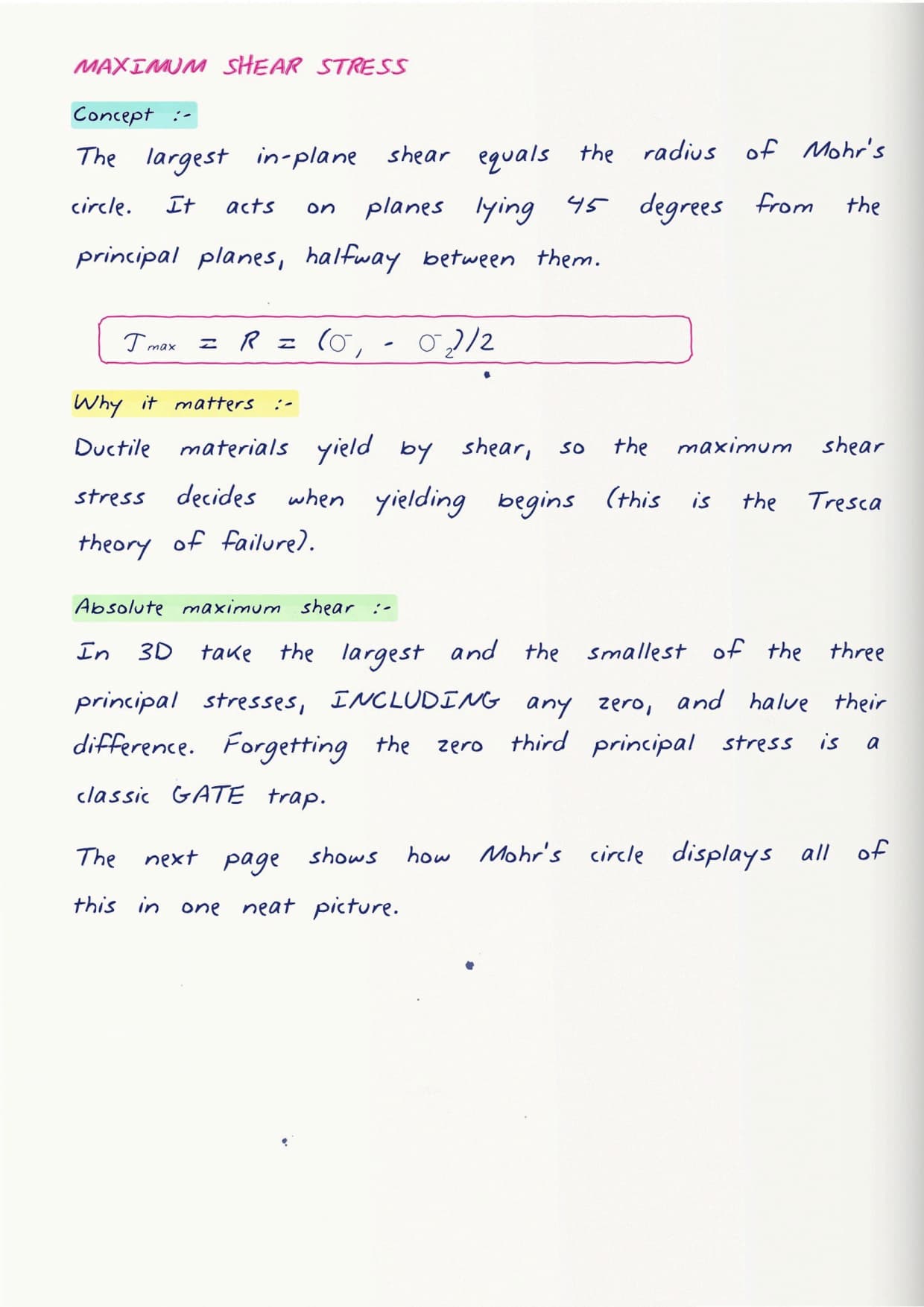

• Principal stresses, maximum shear stress, and Mohr's circle.

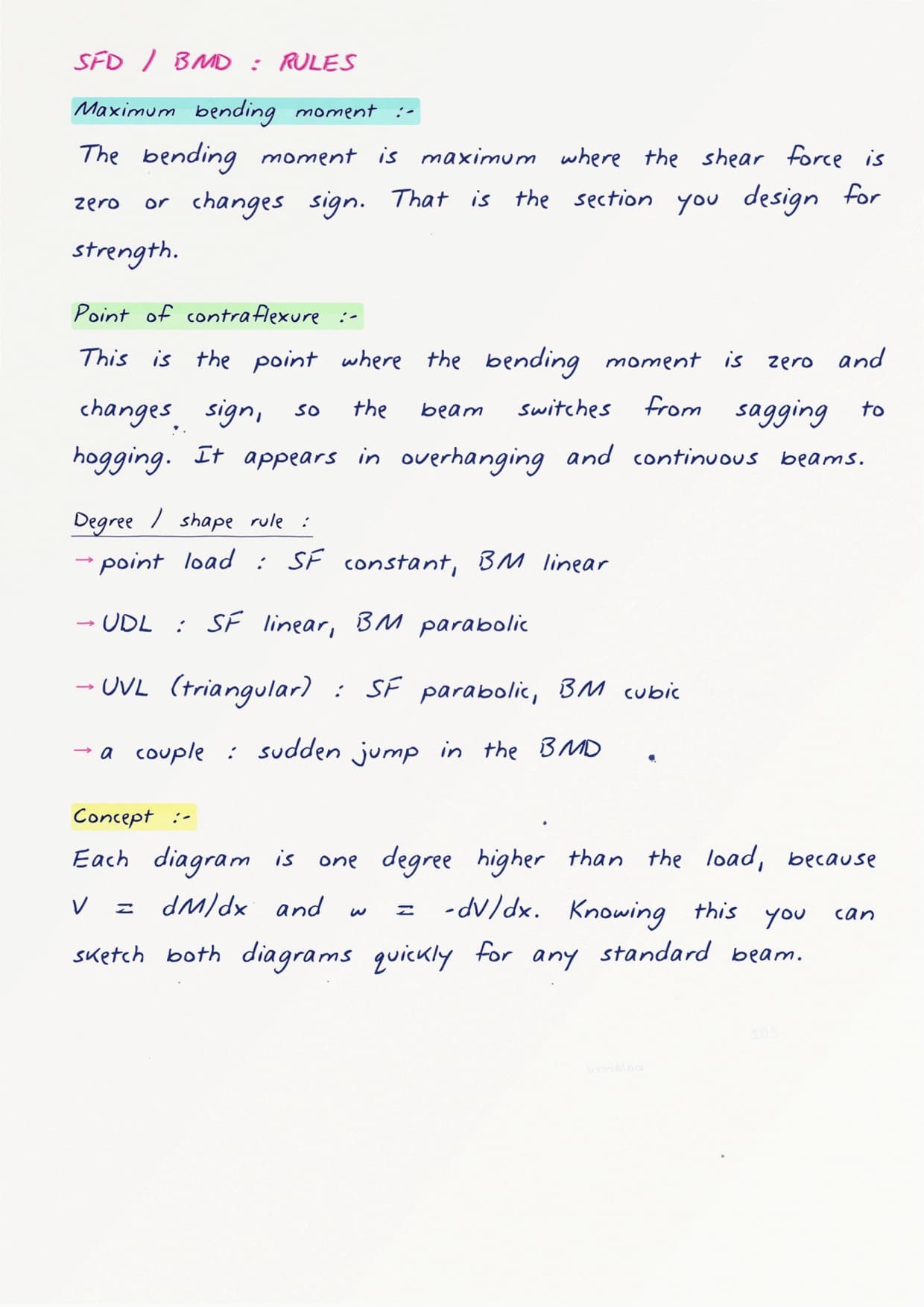

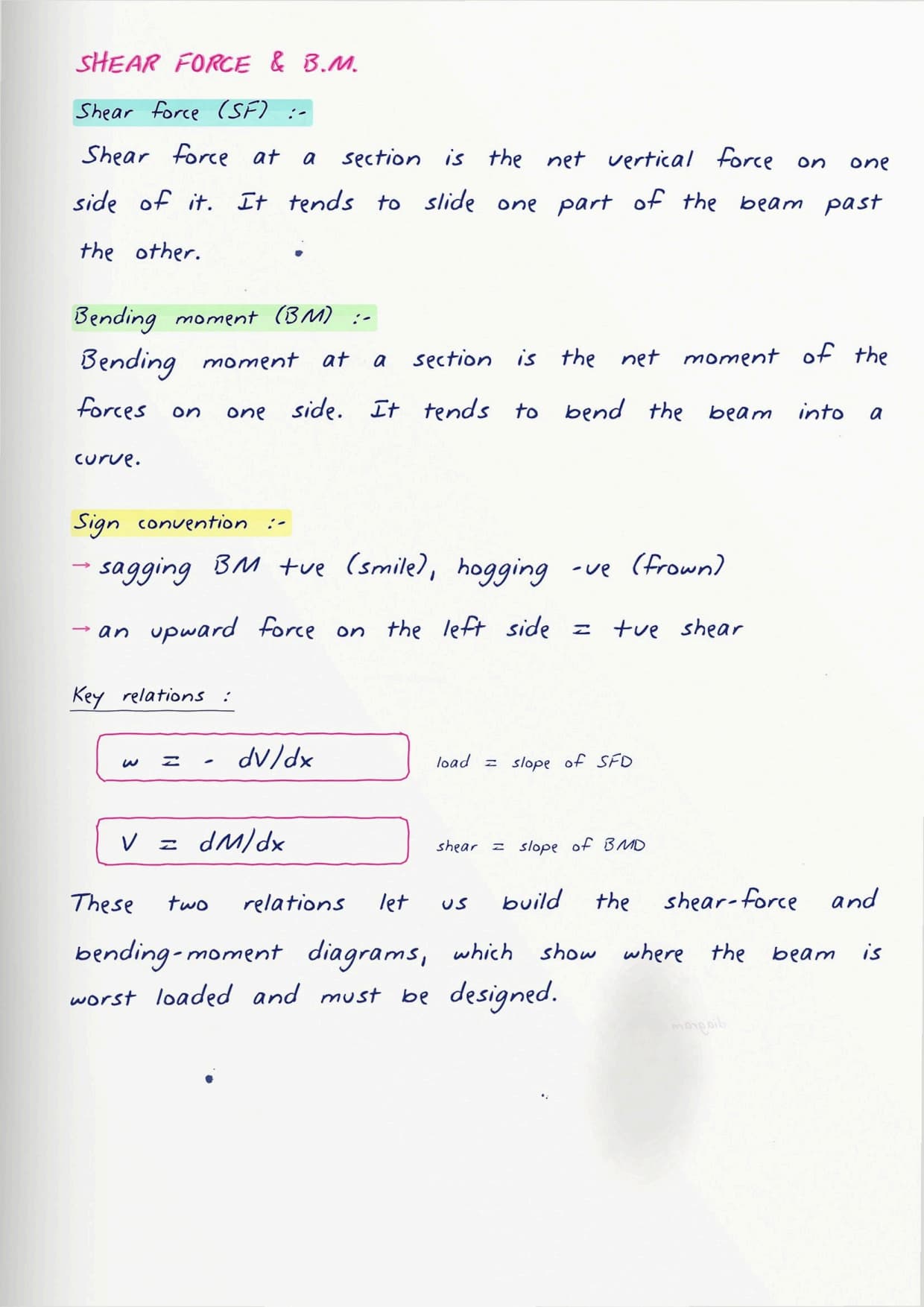

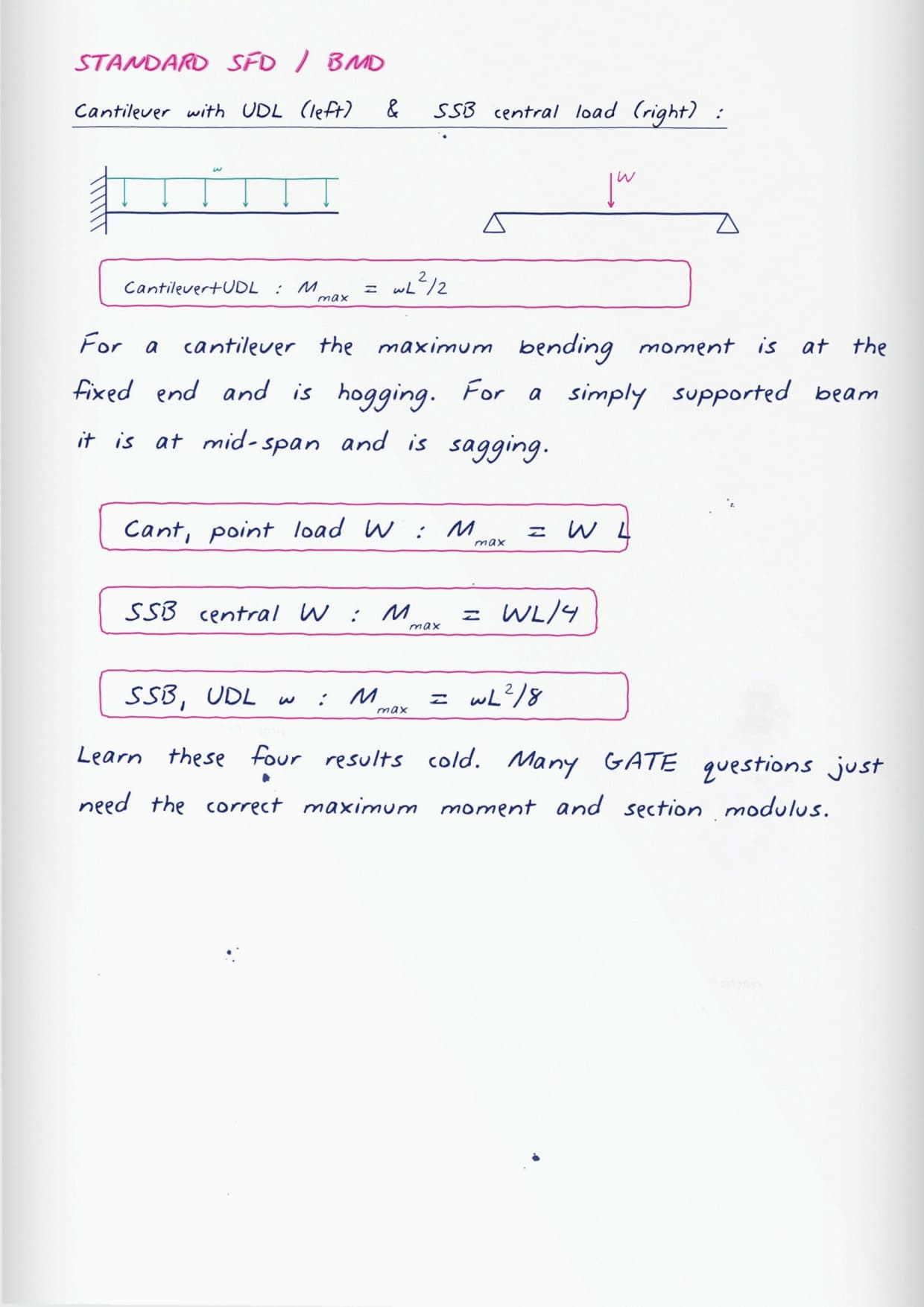

• Shear force and bending moment, with SFD and BMD rules.

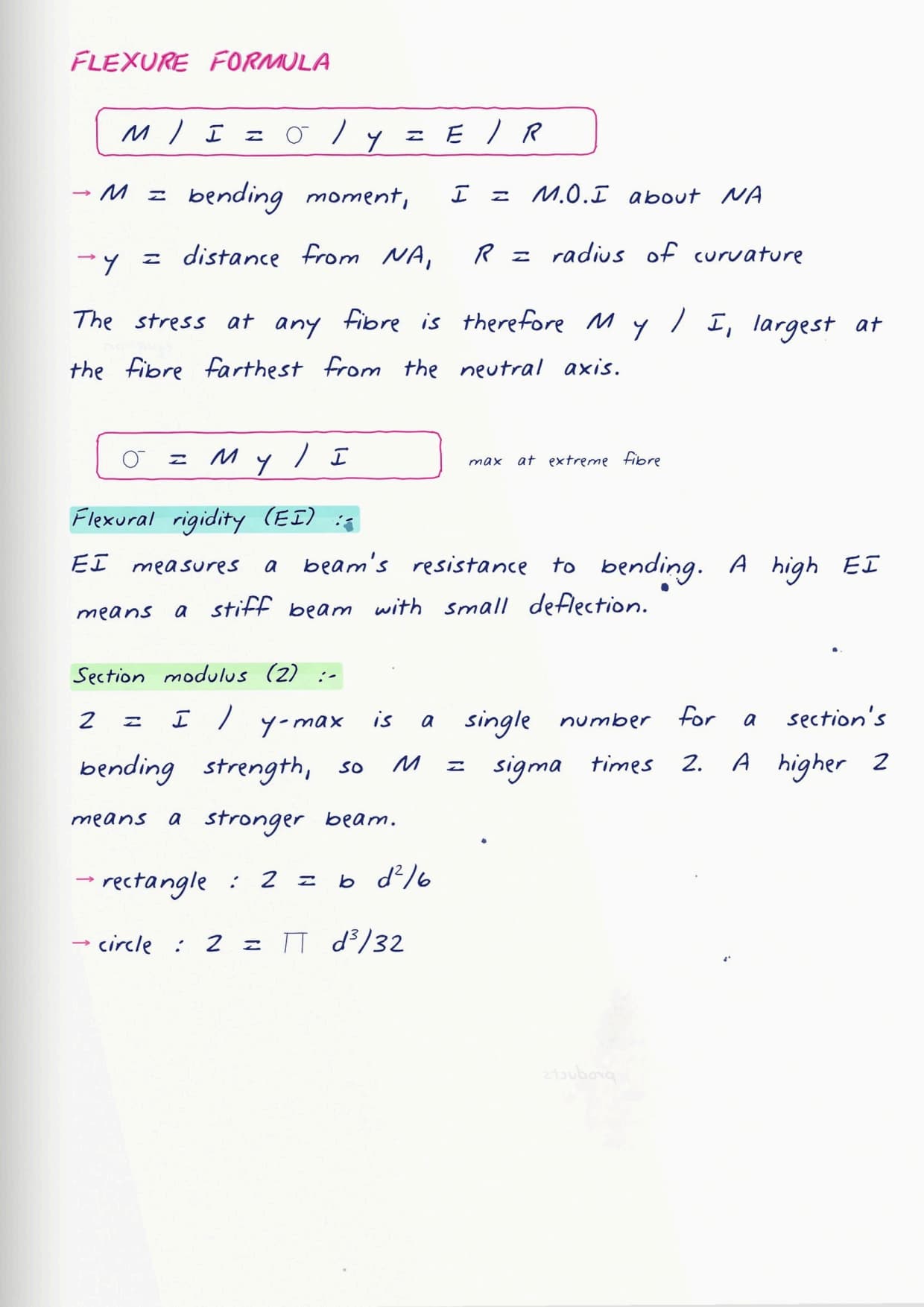

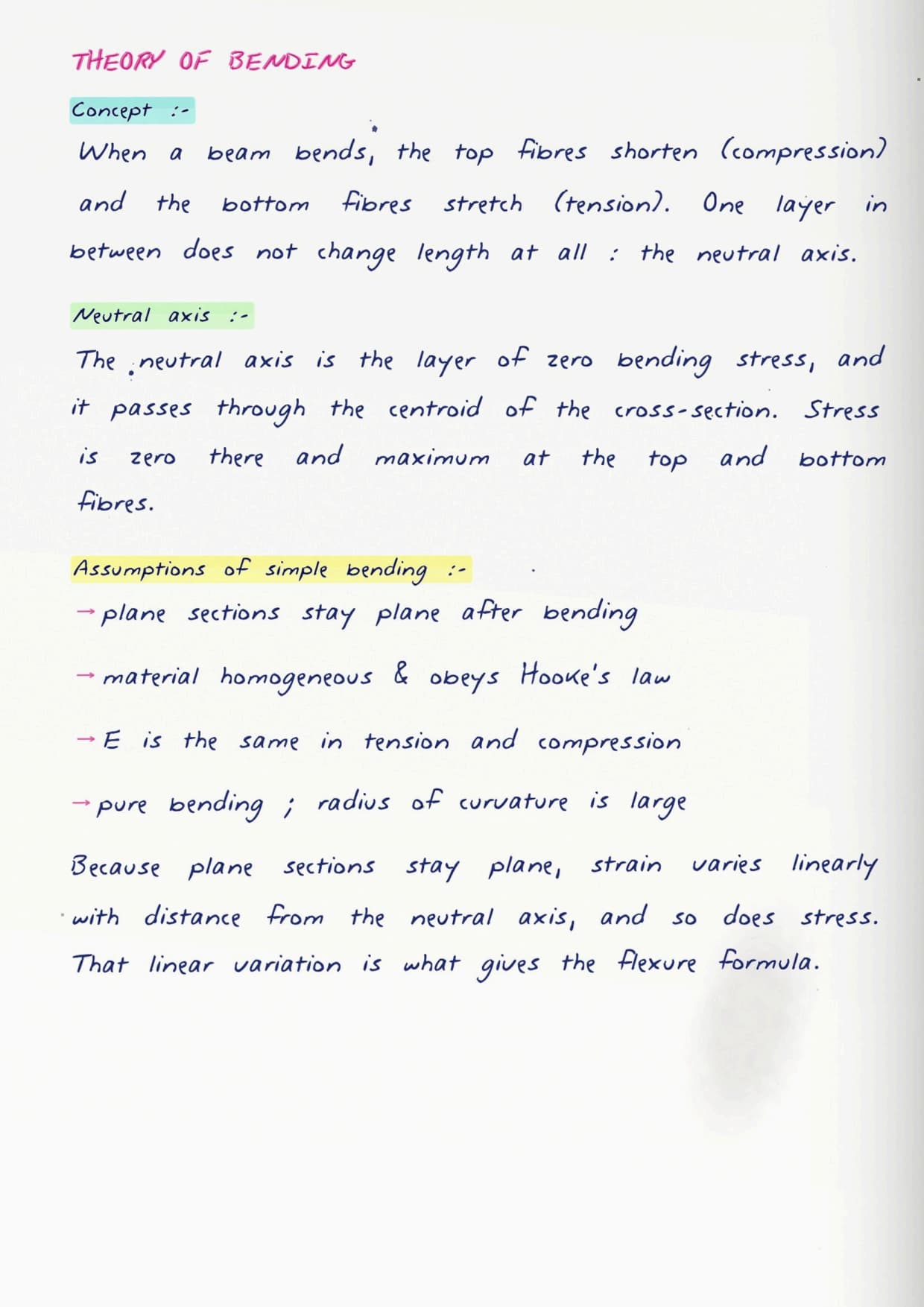

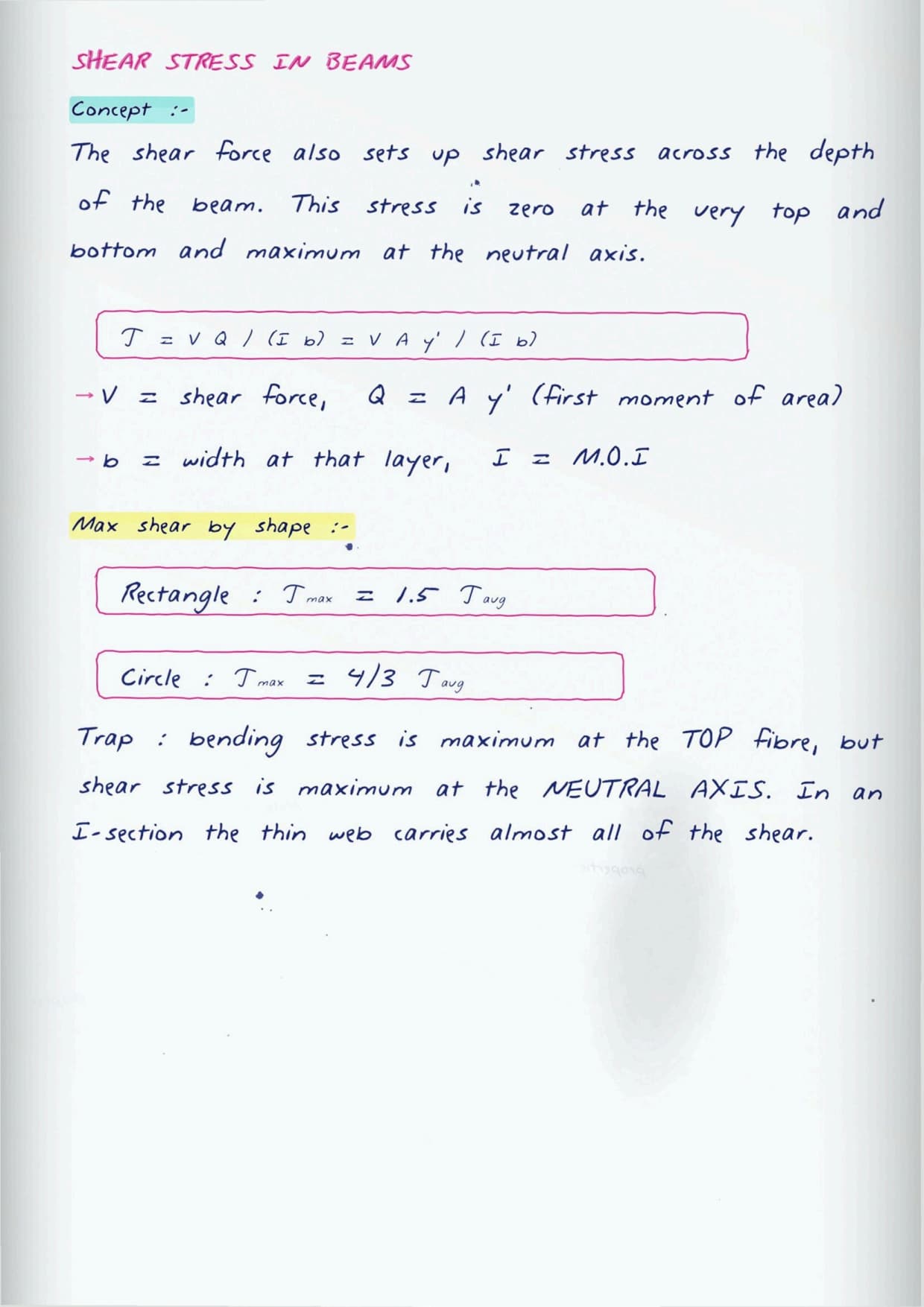

• Bending and shear stress in beams, using the flexure formula.

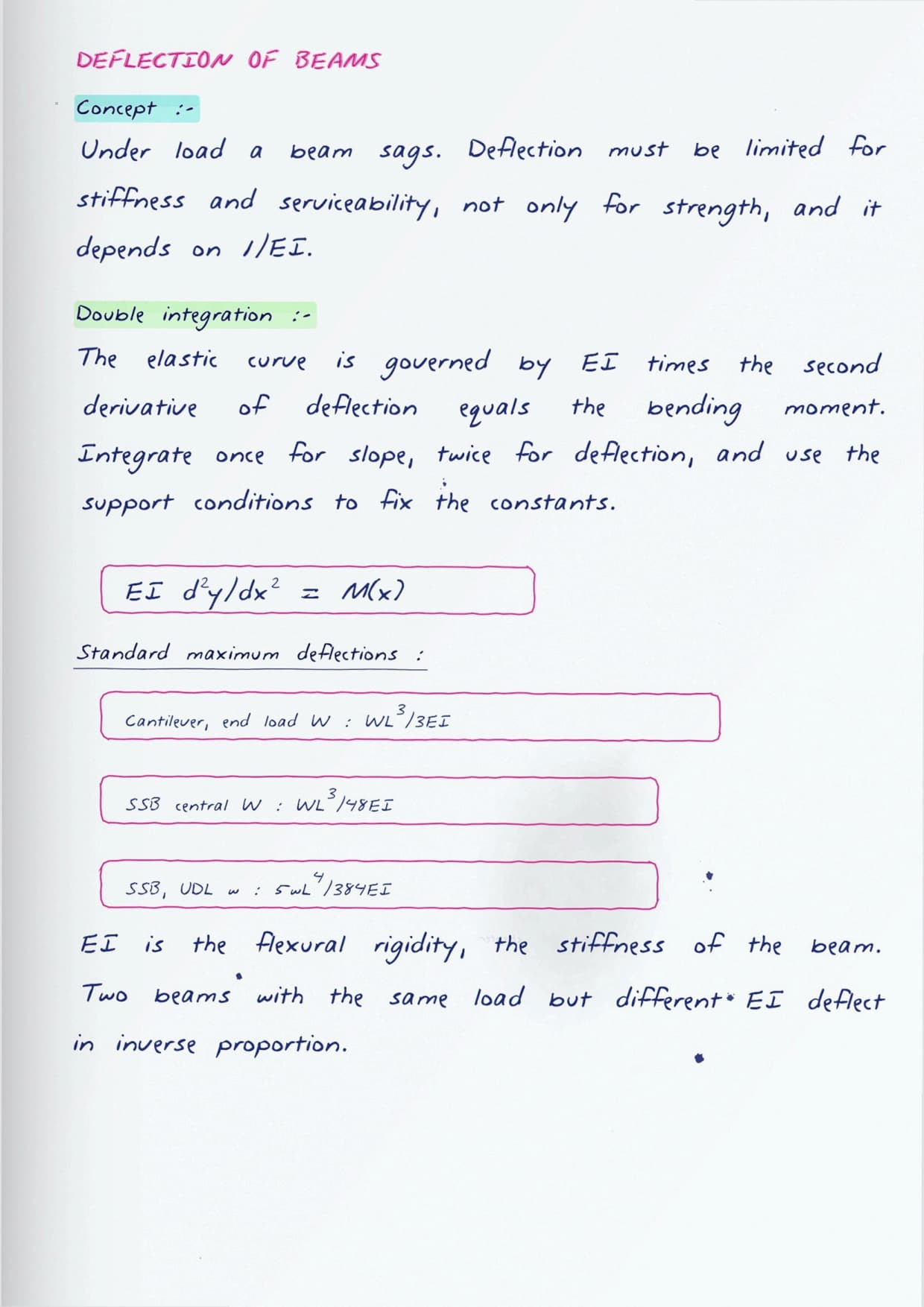

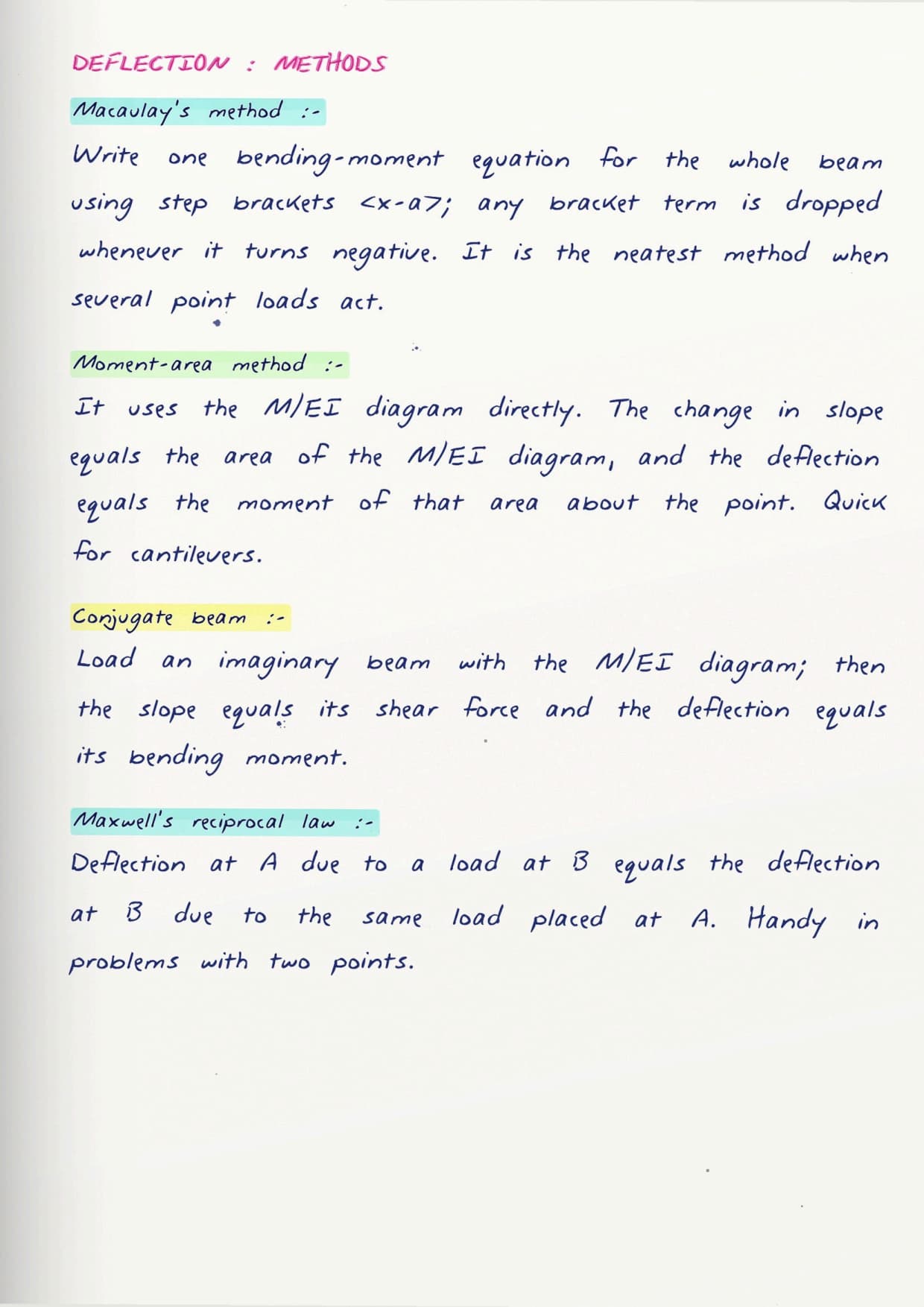

• Deflection of beams by double integration and other methods.

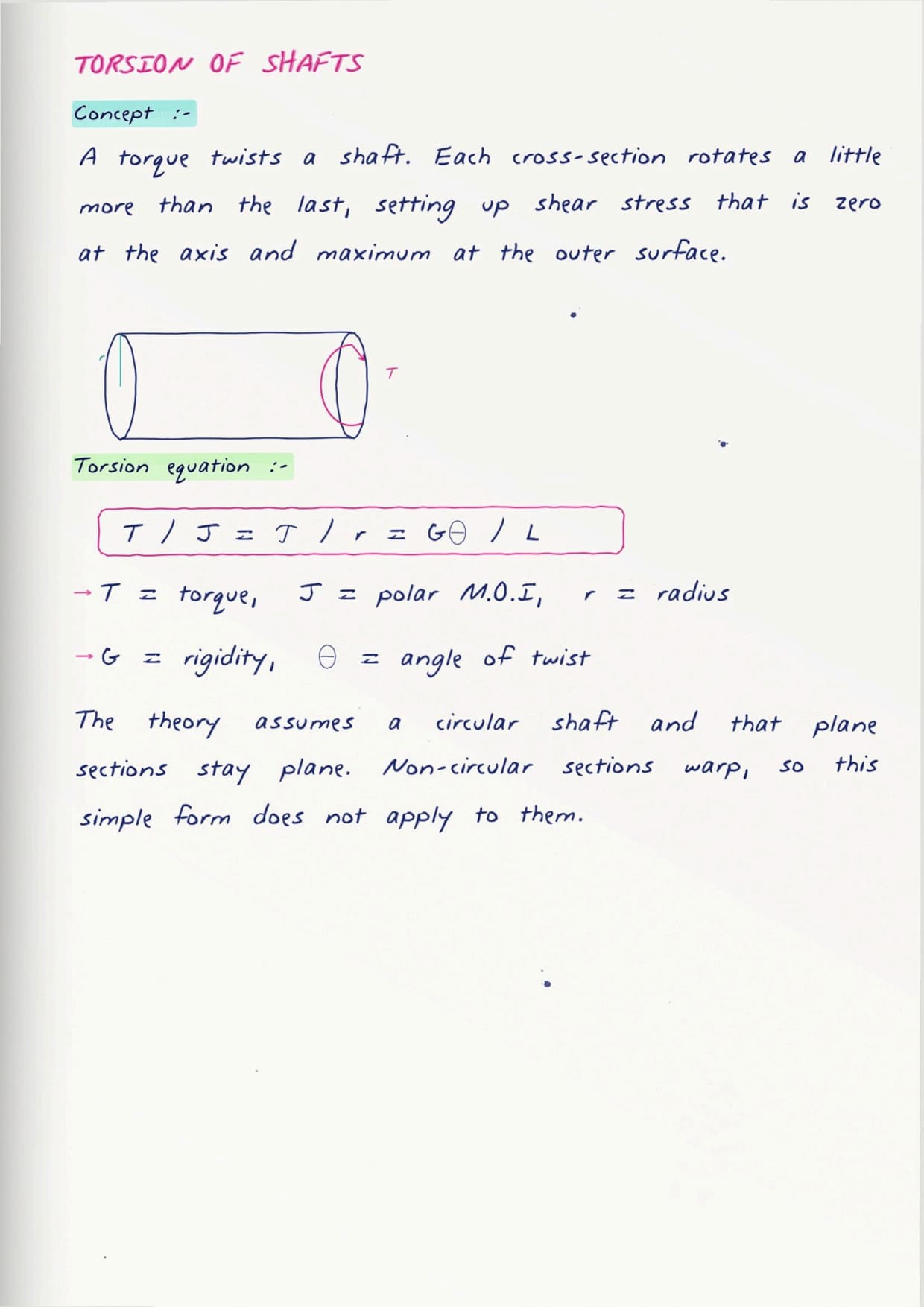

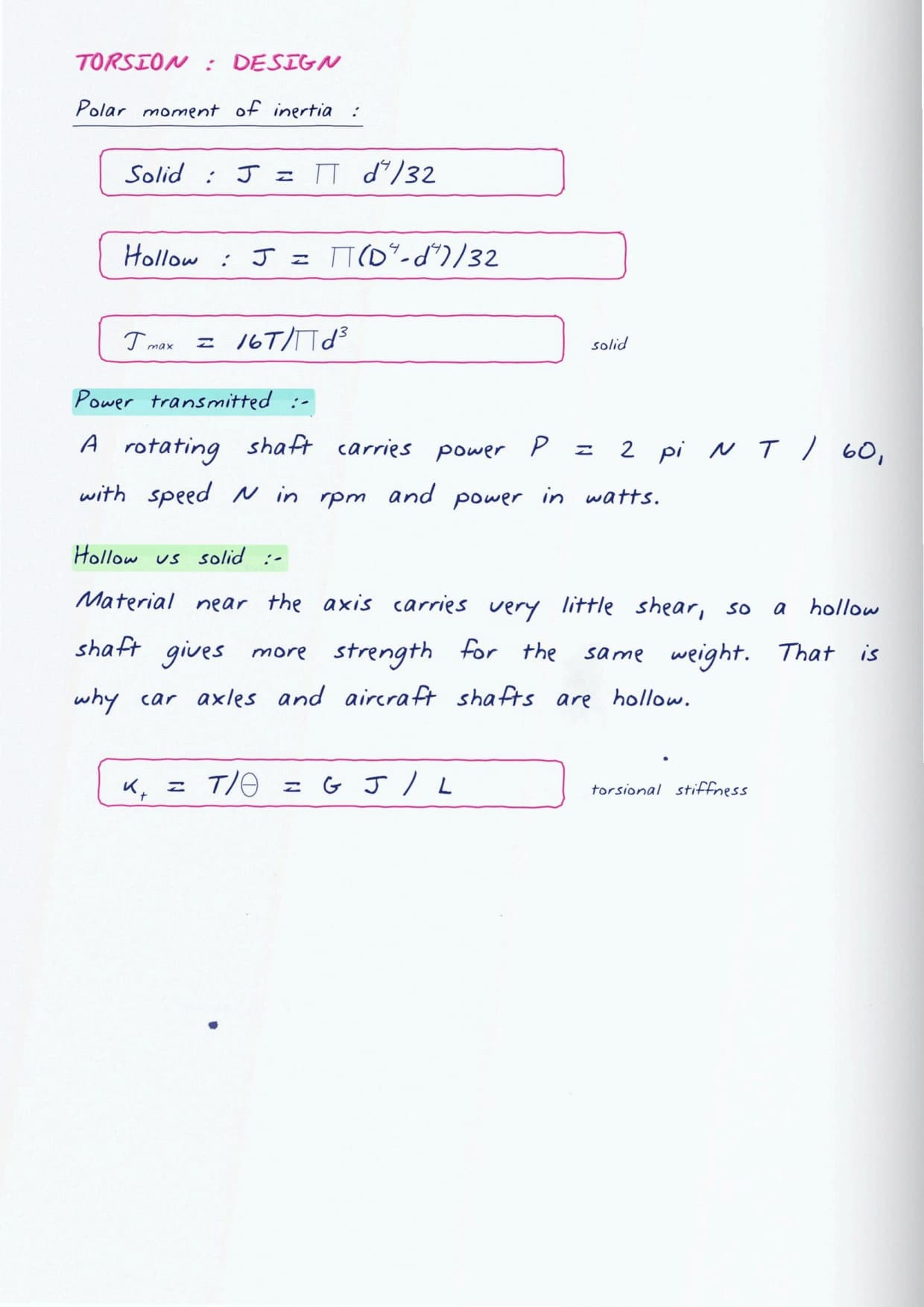

• Torsion of shafts and power transmission.
• Thin cylinders and their hoop and longitudinal stress.

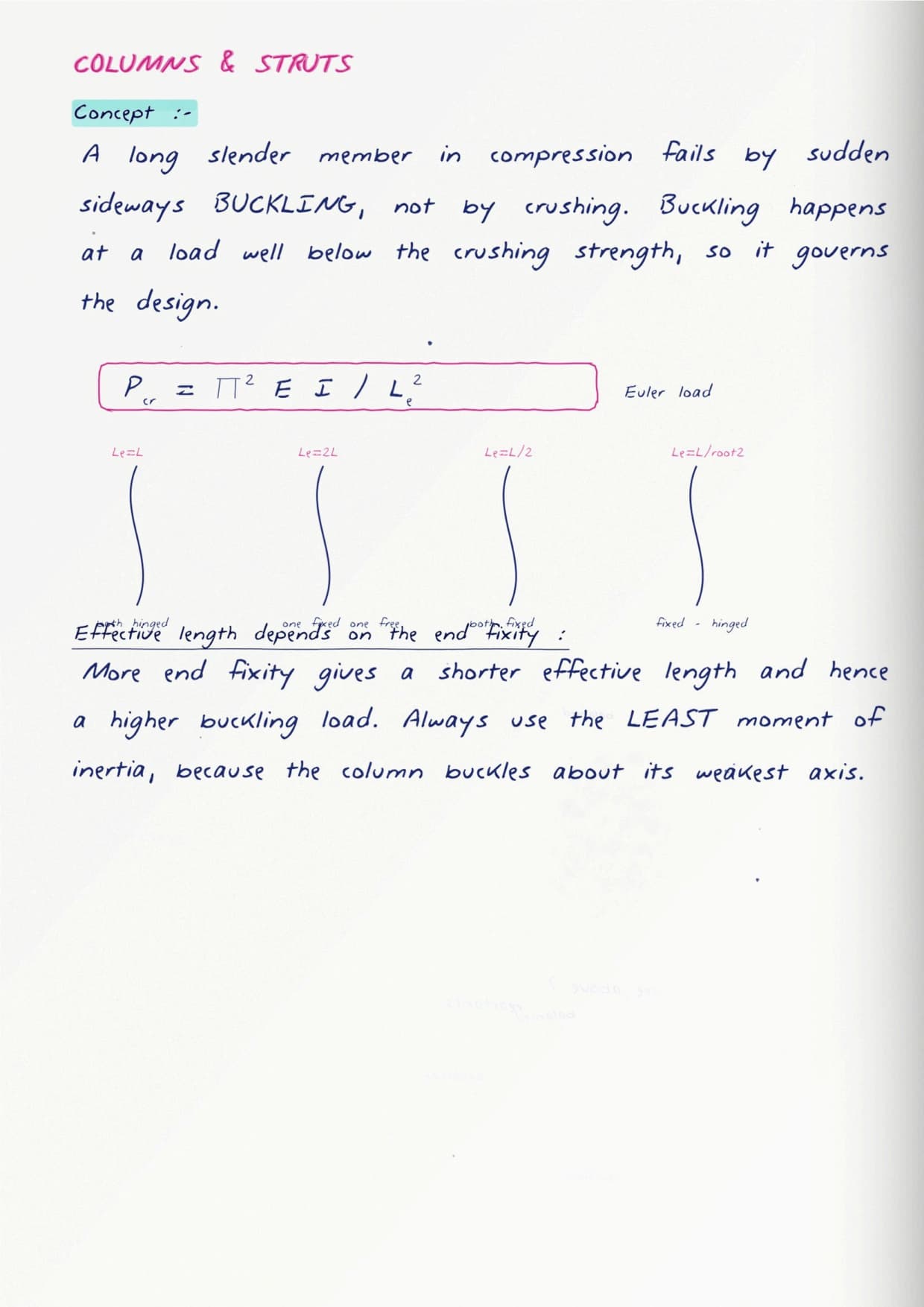

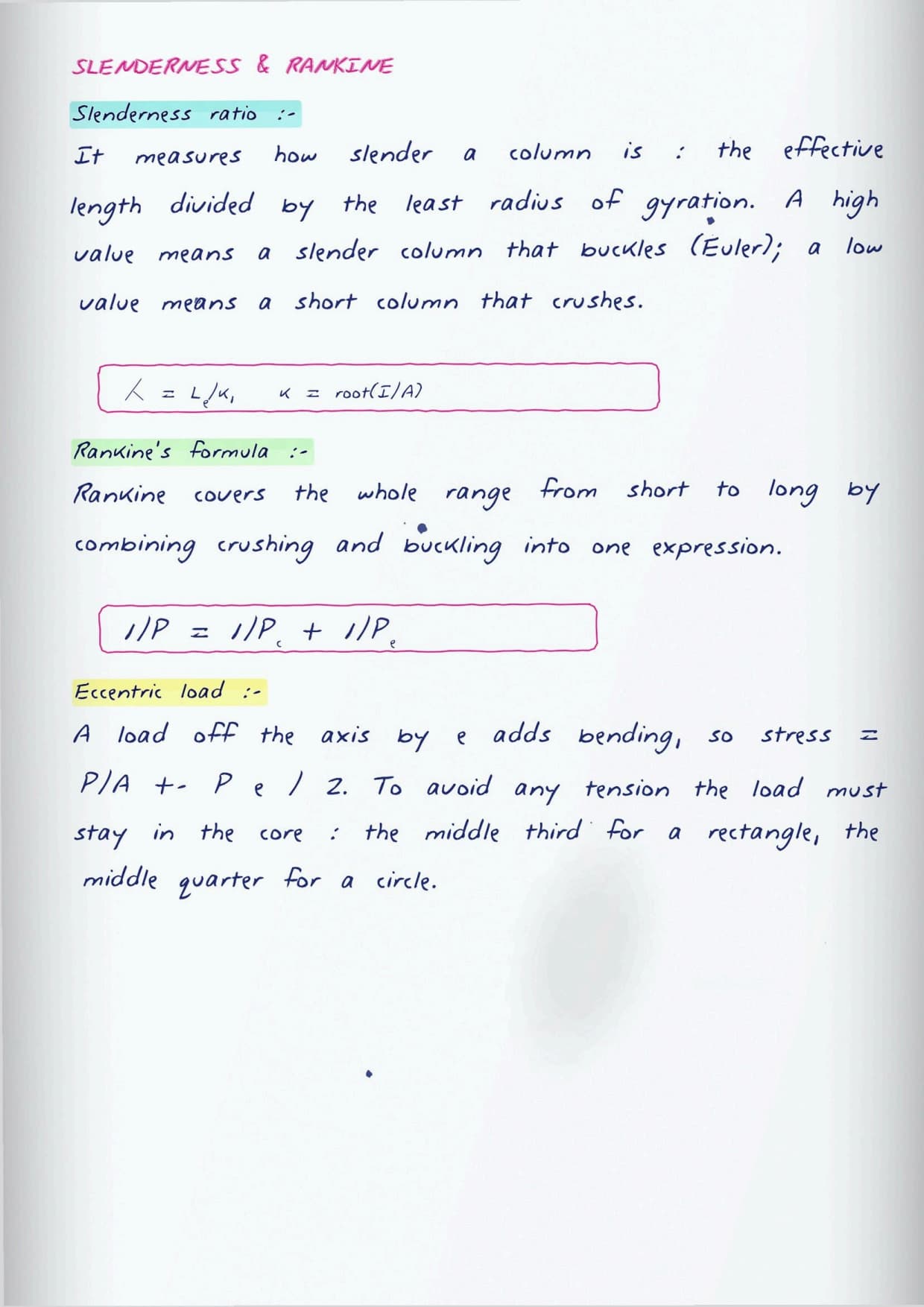

• Columns and struts, Euler load, and slenderness ratio.

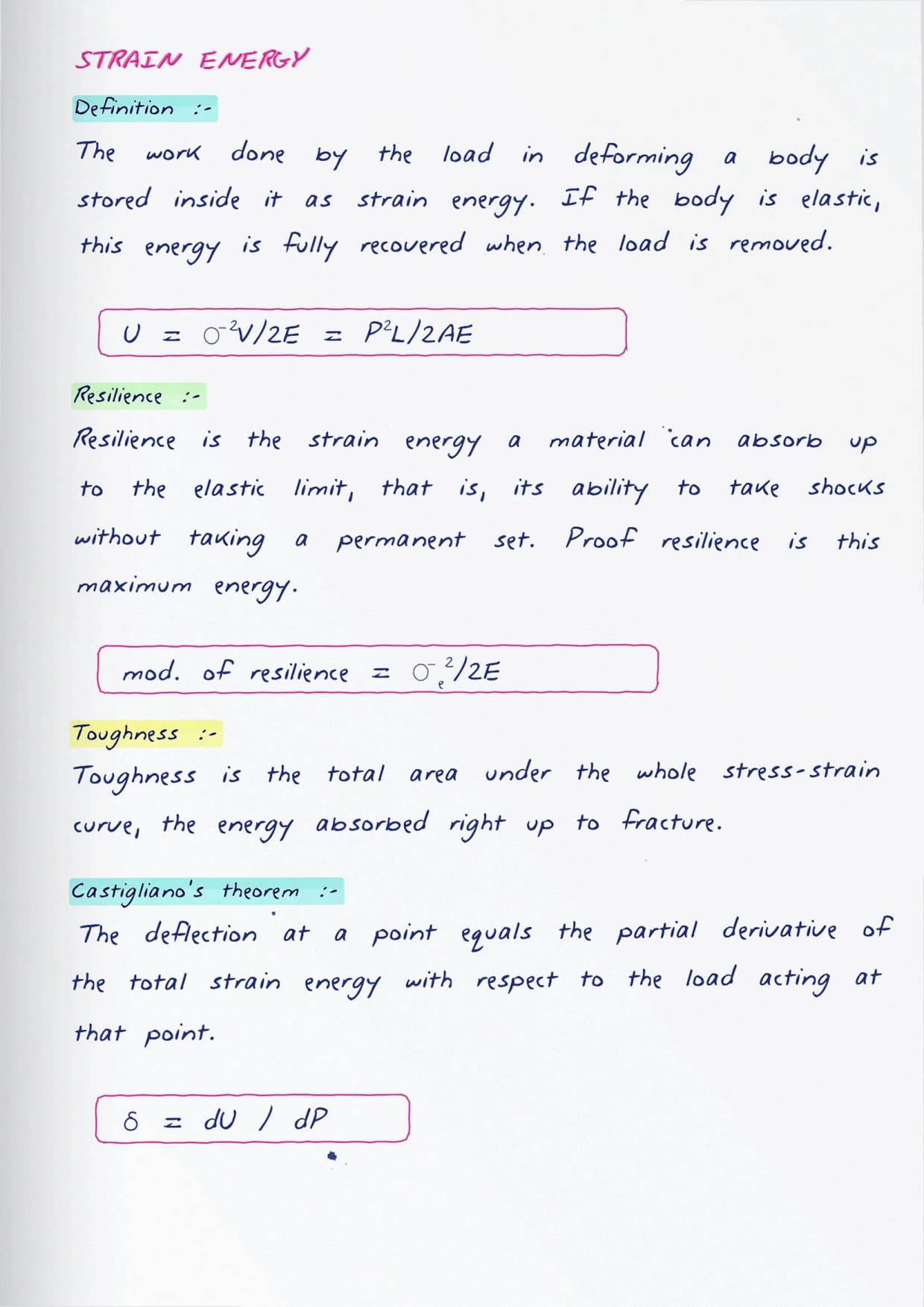

• Strain energy and its use in deflection problems.

How the Notes Are Organised

The material runs from the basics to the harder topics, so you can read it straight through or open a single page for a quick recap. Simpler topics such as stress, strain, and elastic constants come first, while heavier ones like deflection and columns come later once the base is in place. A formula sheet near the end brings the key results together.

Because each topic stands on its own, you can match it to whatever you are practising that day and revise only the part you need before an attempt.

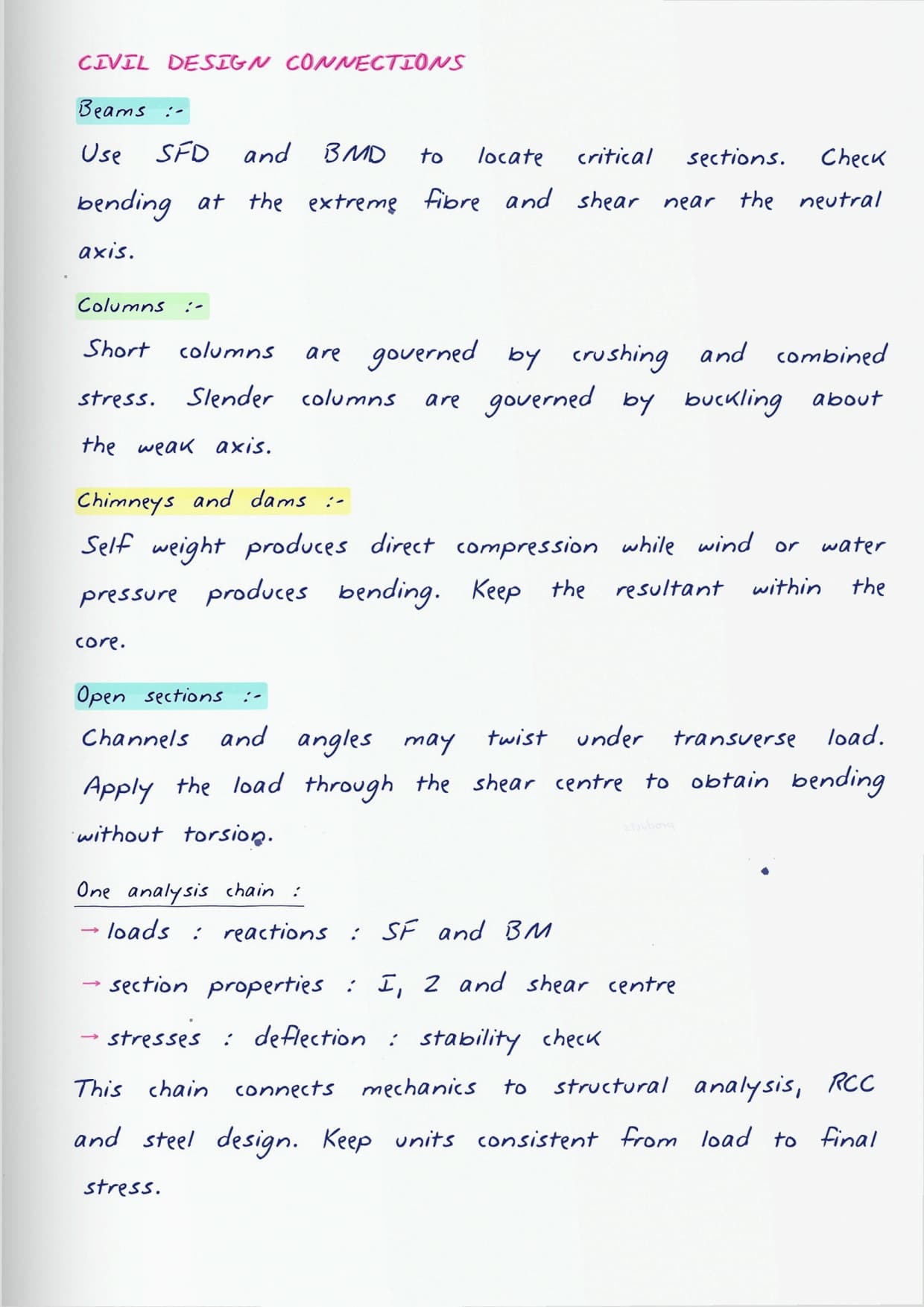

How GATE Strength of Materials Links to Other Subjects

Strength of Materials does not stand alone in the GATE Civil paper. It is the base for the whole Structural Engineering section, so revising it well earns marks across several subjects. The notes point out these links as they come up.

• Stress and deflection ideas feed directly into Structural Analysis.
• Bending and shear stress are reused to size members in Reinforced Concrete Structures.
• The same section behaviour supports member design in Steel Structures.
• Column and buckling ideas return when checking compression members.

Important Topics in GATE Strength of Materials

A few topics appear in the GATE Civil paper almost every year and carry most of the subject's marks. If your time is short, revise these first and make sure you can solve them quickly and without slips, since they are the surest source of marks.

• Principal stress and Mohr's circle, near-certain every year.
• Shear force and bending moment, plus drawing SFD and BMD.
• Bending and shear stress in beams from the flexure formula.
• Deflection of beams and buckling of columns.

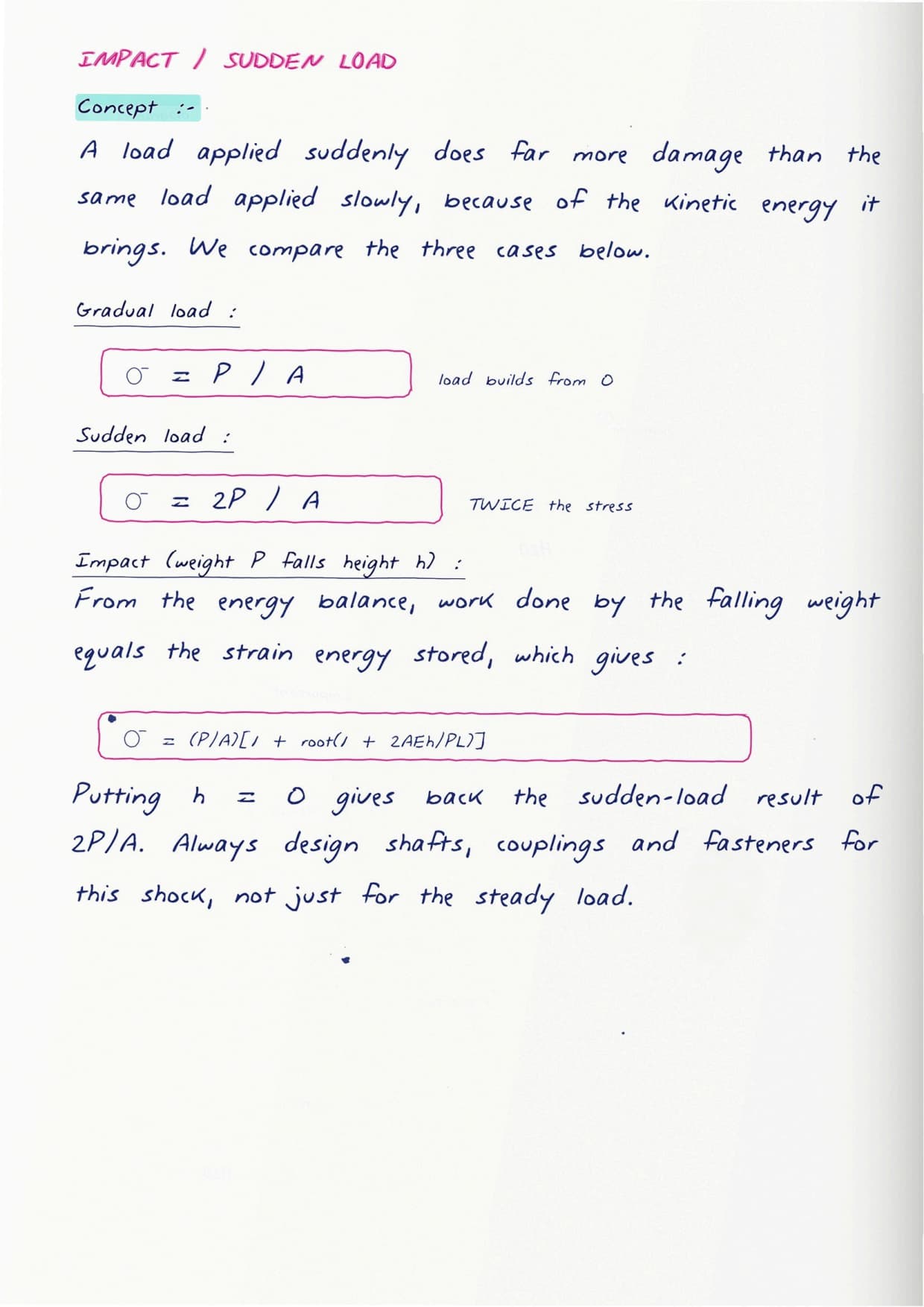

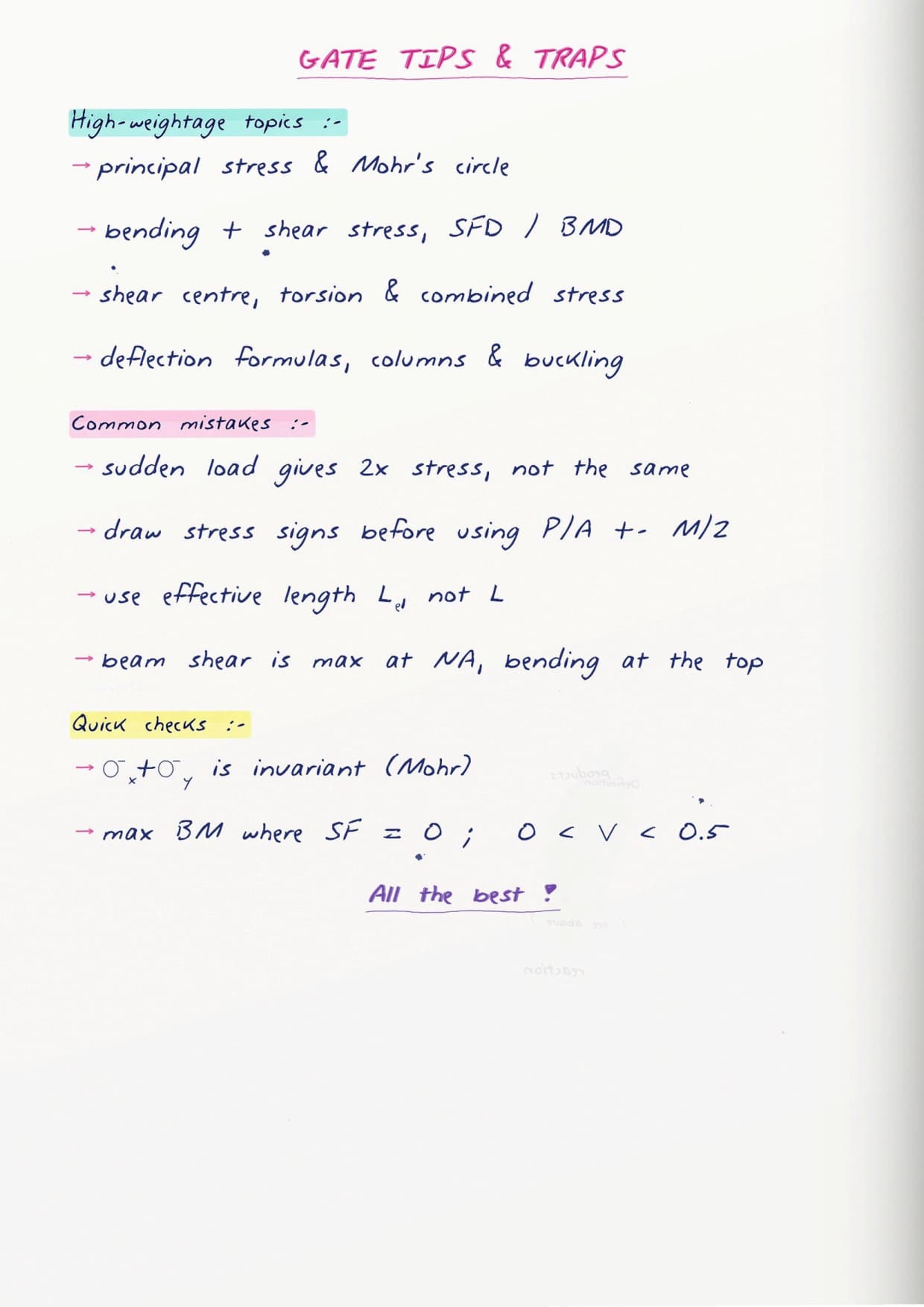

• Common traps: a sudden load gives twice the stress, and shear is maximum at the neutral axis.

How to Prepare GATE Strength of Materials with Handwritten Notes

Strength of Materials rewards steady problem solving more than reading, so use the notes as a theory and formula base beside daily practice. Read a topic, note its formula, then solve a few previous year questions on it before you move on. Return to the notes before mock tests to refresh the ideas quickly.

• First read: cover every topic once to build the base.
• Second pass: focus on principal stress, SFD and BMD, bending, and columns.
• Solve previous year questions topic by topic beside the notes.
• Final week: revise the formula sheet and the tips page.

Why These Notes Help You Score Better

Handwritten notes are quick to scan and easy to recall under exam pressure, which is why they work well for revision in the final weeks. A short, visual page is faster to go through than a full textbook chapter, and each diagram is right next to the result it explains, so the link stays clear for students.
